Mastering Embrilliance Essentials: The Zero-Friction Guide for Brother PE800 Owners

If you have ever stared at the Embrilliance Essentials interface thinking, “I paid for this… now what?” you are not alone. In my 20 years of embroidery education, I have watched countless beginners freeze up for one specific reason: Fear.

They are afraid one wrong click will ruin a design, waste expensive stabilizer, or—worst of all—cause the machine to perform that terrifying grab-and-chew maneuver that destroys both the shirt and the bobbin case.

This guide reconstructs the beginner workflow into a military-grade, repeatable process. We will focus specifically on the Brother PE800/PE770 ecosystem (though the logic applies universally), blending software precision with physical "feel." We don’t just want you to design; we want you to hit the "Start" button with zero anxiety.

The Mental Model: The Assembly Bench vs. The Foundry

Before clicking anything, you must understand what Embrilliance Essentials is. It is not a full digitizing suite where you draw shapes and create stitch types from scratch (that is "The Foundry").

Think of Essentials as a Smart Assembly Bench. It is designed to:

1. Import purchased stitch files (The raw materials).
2. Combine them with text (BX Fonts).
3. Recalculate stitches when you resize (Crucial for safety).
4. Export a machine-ready map.

If your goal is to combine a number, a name, and a small icon for team gear, you are in the perfect sweet spot.

Phase 1: The "Hidden" Prep (The Safety Zone)

Most disasters happen before the software is even open. Angela Jasmina starts her workflow with File → New Page, but the critical step is defining your reality in Preferences.

1. Calibrate Your Digital Twin

You must tell the software exactly what physical limiters you are working with.

• Action: Go to Preferences.
• Select: 130mm x 180mm (This is the 5x7" field for PE800/PE770).
• Verify: Look at the visual grid on your screen. This is your "Digital Twin."


Why Hoop Selection is Non-Negotiable

If you select a generic "5x7" that doesn't match your machine's specific millimeters, centering tools will lie to you. A design might look centered on screen but strike the plastic frame in reality.

Warning: Mechanical Safety Risk. If your design exceeds the physical hoop limits even by 1mm, the needle bar can slam into the plastic hoop frame. This can shatter the needle, sending metal shards flying, or knock the machine's timing out of sync (a costly repair). Always respect the red boundary lines.

Prep Checklist (Pre-Flight Protocol)

• Hoop Sync: Confirm Preferences covers your actual physical hoop (e.g., 130x180mm for PE800).
• Format Lock: Generally, set your output to PES for Brother machines.
• Folder Hygiene: Create a folder named "To_Machine" on your desktop. Never save working files directly to the USB drive; save to the computer first, then drag to USB to prevent corruption.
• Needle Check: Is a fresh 75/11 embroidery needle installed? (Dull needles cause 50% of thread breaks).

Hidden Consumables (The "Oh No" Prevention Kit)

• Spray Adhesive / Painter's Tape: For floating applique fabric.
• Water Soluble Topping: Essential for towels (prevents stitches sinking).
• New Needles: Titanium or Organ needles (Sizes 75/11 and 90/14).
• Bobbin Thread: 60wt or 90wt specifically for embroidery (NOT sewing thread).


Phase 2: Building the Layout (The "Merge" Discipline)

Angela is direct here: Do not rely on "Open." When building a layout, use Merge Stitch File (Recall the Needle + Arrow Icon).

The "Merge" Logic

"Opening" a file starts a new project. "Merging" brings an asset into your current assembly bench. You are merging Stitch Data (PES/DST), not graphics (JPG/PNG).

The Physical Reality of Resizing

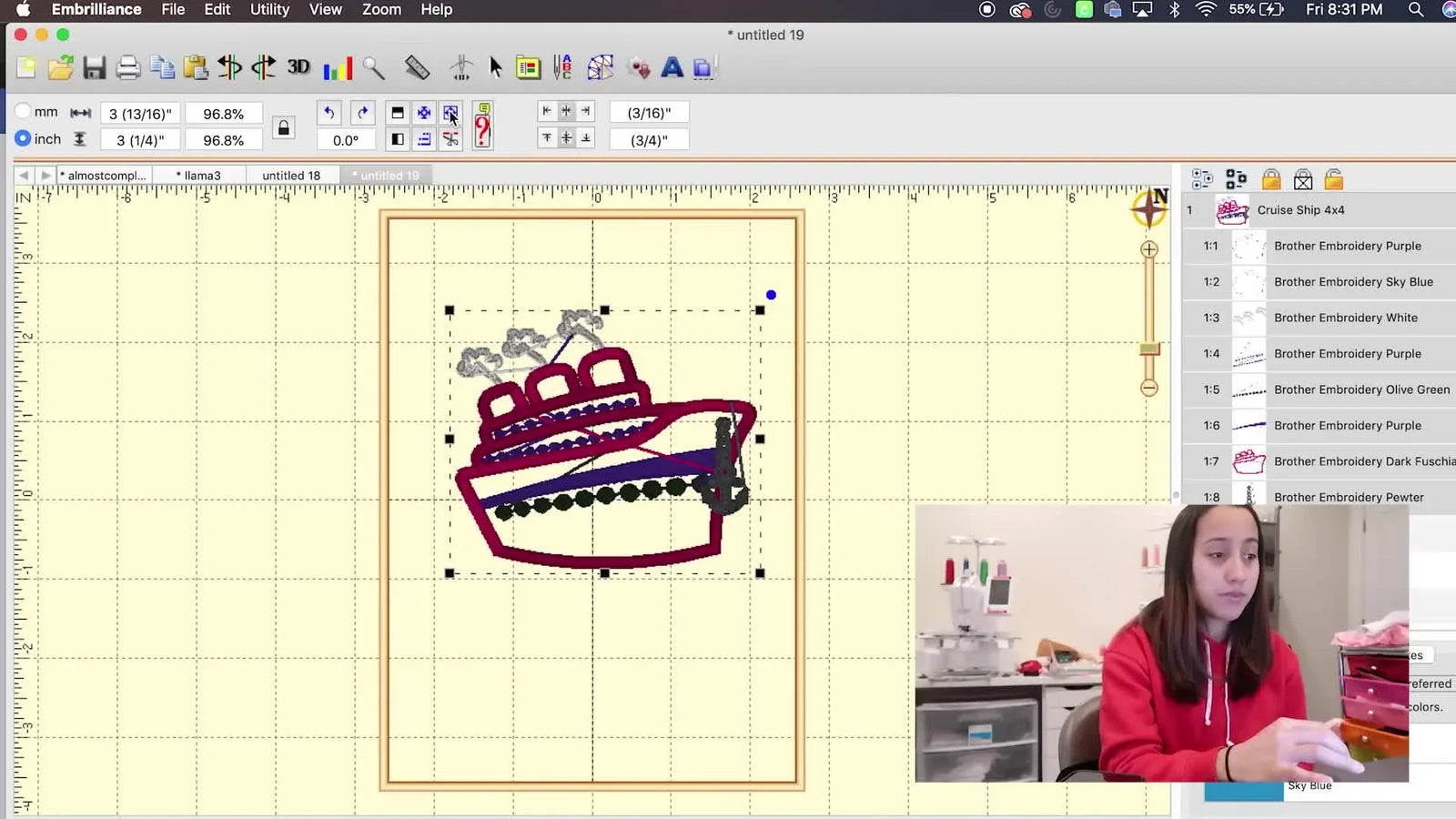

Angela demonstrates resizing by dragging the black corner handles.

• The Visual Cue: Watch for the lines turning into a "blackish blob."
• The Physics: When you shrink a design, stitches get closer together. If they get too close (high density), your needle will hammer the same spot repeatedly, cutting a hole in your fabric.
• The Rule: Generally, keep resizing within ±20%. If you need to go smaller, you must change the density settings or buy a smaller design.




Centering and Alignment

Use the Center Design button (crosshair icon). This aligns the design with the mathematical center of the hoop.

• Pro Tip: If you are struggling with physical alignment on slippery garments, terms like magnetic embroidery hoops are your gateways to understanding efficient production. A magnetic hoop holds the fabric without the "inner ring" distortion, making the On-Screen Center match the Shirt Center much more reliably.

Setup Checklist (Design Assembly)

• Merge: Used the "Needle+Arrow" icon for all elements.
• Density Check: Did resizing create "blackish" dense spots? If yes, Undo.
• Position: Elements are dragged into place; nothing overlaps the red safety boundary.
• Centering: Clicked the Crosshair icon to center the full composition.


Phase 3: Advanced Layout Tools ("Fit to Hoop" & Applique)

"Fit to Hoop": Use With Caution

Angela switches to the 5x7 hoop and uses Fit to Hoop.

• Good for: Simple, low-density patterns.
• Bad for: Dense patches or detailed crests. Stretching these forces the software to interpolate stitch gaps, which can lead to messy "gaps" in the fabric coverage.


Applique Logic: The "Cut" Layer

When layering a butterfly over a number, understanding "Overlap" is critical.

• The Problem: If you stack a dense butterfly on top of a dense number, you have 4-5 layers of thread. This breaks needles.
• The Fix: Embrilliance Essentials can "Remove Hidden Stitches."
• Sensory Check: When you run the simulation, you should see the machine stop stitching the number exactly where the butterfly begins.


Phase 4: Typography (The BX Revolution)

Angela contrasts two methods. You must choose the second one.

1. The "Painful" Way (PES): Importing individual letter files (A.pes, C.pes, E.pes). You have to manually space and align them. This is high-friction.
2. The "Pro" Way (BX Fonts): You type "ACE" using the keyboard.
   • Action: Click the "A" tool. Type text. Press Enter.
   • The Expert Upgrade: Only buy fonts that offer BX format. It creates a mapped keyboard font rather than a pile of shape files.




Phase 5: The Stitch Simulator (Your Safety Net)

This is the most underused button: The Stitch Simulator. Angela runs the preview to catch errors before the machine is turned on.

What to Watch For (The Simulation Audit)

1. Order: Does the name stitch after the background?
2. Jumps: Are there crazy long lines connecting objects?
3. Stops: Does the machine stop for applique fabric placement?

If you are using a hooping station for machine embroidery or a hoopmaster hooping station to align your shirts physically, the Stitch Simulator is your confirming step that the digital file matches your physical prep.

Phase 6: Compensation (Preventing "Fabric Eating")

Angela solves a classic rookie problem: Thin fonts disappearing or sinking into the fabric.

• The Fix: Go to the Stitch Tab → Adjust Comp (Compensation).
• The Value: She suggests a value of roughly 2 (typically 0.2mm or 2 points).
• The Physics: Thread is under tension; it pulls fabric in. "Pull Compensation" adds width to satin columns to counteract this tension.
• Sensory Anchor: Without compensation, text looks "anemic" or thin. With compensation, it looks "bold" and sits on top of the fabric loops.


The Equipment Bottleneck: When Software Isn't Enough

Once your software workflow is clean, your bottleneck shifts to the physical world: Hooping.

Standard plastic hoops require "drum tight" tension, which causes "Hoop Burn" (permanent shiny rings) on delicate dark fabrics.

• Level 1 Fix: Float the fabric on adhesive stabilizer (messy).
• Level 2 Fix (Tool Upgrade): Many professionals search for a brother pe800 magnetic hoop (or magnetic hoops for brother pe770 for older models).
• Why Upgrade? A brother 5x7 magnetic hoop clamps the fabric flat using magnetic force rather than friction. This eliminates hoop burn and drastically reduces the wrist strain of wrestling with the inner ring. It is the bridge between "hobby frustration" and "production consistency."

Warning: Magnetic Hazard. Magnetic frames use industrial-strength neodymium magnets. They can pinch skin severely causing blood blisters. Pacemaker Safety: Keep these strong magnetic fields at least 6 inches away from pacemakers, insulin pumps, and credit cards.

Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow before you start stitching to ensure your software settings match reality.

• Scenario A: Stretchy Knit (T-Shirt/Polo)
  • Stabilizer: Cutaway (Mesh). Must use Cutaway.
  • Software: Add Pull Comp (Min 2-3 pts). Avoid thin serifs.
  • Hooping: Do not stretch fabric. If struggling, consider magnetic embroidery hoops.
• Scenario B: Woven Shirt / Denim
  • Stabilizer: Tearaway is acceptable (Cutaway is still stronger).
  • Software: Standard Comp (0-1 pts).
  • Hooping: Standard hoop works well here.
• Scenario C: Towel / Fleece
  • Stabilizer: Tearaway (Back) + Water Soluble Topping (Front).
  • Software: Increase Density slightly; Increase underlay padding.
  • Hooping: Floating method is preferred to avoid crushing the pile.

Troubleshooting: From Panic to Fix

Final Output

Angela finishes with File → Save Stitch File As. This creates the machine file (PES).

• Note: This is different from "Save Working File" (BE), which keeps the editable layers. Always save BOTH. You cannot edit text easily in a PES file later; you edit the BE file and re-save the PES.


Operation Checklist (Your Routine)

1. Reset: File → New Page.
2. Verify: Hoop is set to 130x180mm (or your machine's exact limit).
3. Merge: Import PES/DST files via the "Needle-Arrow" icon.
4. Text: Use the "A" tool with BX fonts.
5. Refine: Use Center Design. Add Comp (start at 2 pts) for text.
6. Simulate: Run the Stitch Simulator to verify order and overlap.
7. Export: Save as PES to a clean USB stick.
8. Physical Check: Hoop your fabric "drum tight" (or snap it in your magnetic hoop), insert, hear the "Click," and press Start.

FAQ

• Q: How do I set Embrilliance Essentials hoop size correctly for a Brother PE800/PE770 5x7 hoop to avoid the needle hitting the hoop?
  A: Set the exact hoop size in Preferences first—use 130mm × 180mm for the Brother PE800/PE770 5x7 field.
  • Open Preferences → Hoops → select 130mm x 180mm (not a generic “5x7” if it does not match the millimeters shown).
  • Verify the red boundary lines match the real hoop limits before placing any design.
  • Keep every object fully inside the red boundary—leave a safety margin instead of “touching the line.”
  • Success check: The on-screen hoop outline and red boundary look consistent with the physical 5x7 hoop, and the design never crosses the red limits.
  • If it still fails: Re-check that the correct hoop is selected for the current page and re-center the full composition before exporting.
• Q: In Embrilliance Essentials, should a Brother PE800 owner use “Open” or “Merge Stitch File” when combining multiple PES designs and text?
  A: Use Merge Stitch File for building layouts; “Open” is for starting a new project.
  • Click the Needle + Arrow icon to Merge Stitch File for every added element (logos, icons, extra designs).
  • Use File → New Page when starting fresh, then merge everything into that single page.
  • Keep only stitch files (PES/DST) in the layout workflow—do not expect JPG/PNG to behave like stitch data.
  • Success check: Each new element appears without replacing the existing layout on the workspace.
  • If it still fails: If the previous design disappears, the file was opened instead of merged—undo and re-import using Merge.
• Q: How much can a Brother PE800 user safely resize a design in Embrilliance Essentials before stitch density turns into a “blackish blob” and causes fabric damage?
  A: Keep resizing generally within ±20% to avoid density problems that can shred fabric.
  • Drag the black corner handles and watch for areas that visually darken into a dense “blob.”
  • Undo immediately if details look mashed together after shrinking.
  • Choose a smaller source design (or adjust density settings) instead of forcing heavy downscaling.
  • Success check: The resized design still shows clear stitch spacing on screen and does not look overly dark or packed.
  • If it still fails: Stop shrinking and use a different size file—over-dense stitches can cause the needle to hammer and cut holes.
• Q: What is the correct Embrilliance Essentials file-saving workflow for Brother PE800 PES export to prevent USB corruption or “USB not reading file” problems?
  A: Save to the computer first, then copy the final PES to a clean USB—do not work directly on the USB.
  • Create a desktop folder (example: “To_Machine”) and save the exported PES there first.
  • Copy the PES to the root of the USB drive (avoid many nested folders).
  • Save both versions: Working file (BE) for edits and Stitch file (PES) for the machine.
  • Success check: The Brother PE800 reads the PES on the USB without errors and the design preview loads normally.
  • If it still fails: Re-export as PES again and try a different USB stick or a simpler folder path on the drive.
• Q: How do I stop “machine is eating my shirt” on a Brother PE800 when stitching a T-shirt or polo using Embrilliance Essentials?
  A: Reduce fabric stress and improve coverage: use cutaway stabilizer, add pull compensation, and confirm a sharp needle.
  • Switch to cutaway (mesh) stabilizer for stretchy knits—do not rely on tearaway for T-shirts.
  • Increase Comp in the Stitch Tab (a safe starting point is around 2–3 pts for knits, as used in the workflow).
  • Replace the needle with a fresh 75/11 embroidery needle (dull needles are a common cause of thread breaks and chewing).
  • Success check: Satin columns and thin text look fuller (not “anemic”), and the fabric does not tunnel or get pulled into the needle plate.
  • If it still fails: Re-check design density (especially after resizing) and re-run the Stitch Simulator to confirm stitch order and overlaps.
• Q: What mechanical safety risk happens if a Brother PE800 design exceeds the hoop boundary in Embrilliance Essentials by 1mm, and how do I prevent it?
  A: A design that exceeds the real hoop limits can make the needle strike the hoop, break the needle, and potentially throw the machine out of timing—prevent it by respecting the red boundary lines.
  • Set the correct hoop size first (Brother PE800/PE770 5x7 is 130mm x 180mm in Preferences).
  • Center the full composition with the Center Design (crosshair) tool and confirm nothing touches/exits the red lines.
  • Avoid “looks centered” assumptions—use the software boundary as a hard stop.
  • Success check: The entire design stays inside the red boundary in every direction before export.
  • If it still fails: Reduce the overall layout size or remove elements; do not attempt to “squeeze” a design to the edge.
• Q: What magnetic hoop safety precautions should be followed when using a Brother PE800 magnetic hoop to reduce hoop burn and wrist strain?
  A: Treat magnetic hoops as industrial clamping tools—keep fingers clear and keep magnets away from sensitive devices.
  • Keep hands out of pinch zones when closing the magnetic frame; strong magnets can pinch hard enough to cause blood blisters.
  • Keep the magnetic hoop at least 6 inches away from pacemakers, insulin pumps, and credit cards.
  • Close the frame slowly and deliberately instead of letting magnets snap together.
  • Success check: Fabric is held flat without “inner ring” distortion and without shiny hoop-burn rings on delicate dark fabrics.
  • If it still fails: If fabric still shifts, reassess stabilizer choice and consider a hooping method change (standard hoop vs. floating vs. magnetic) based on fabric type.
