Embrilliance Enthusiast Multi-Position Hoop: The 2×2 “4-Patch” Layout That Makes Oversized Designs Actually Stitchable

When a design is bigger than your physical hoop, the panic is real—especially when the software starts showing red warnings and you’re thinking, “Did I just buy the wrong machine?” The good news: you don’t need a bigger hoop to plan a bigger layout.

In this tutorial, we’re rebuilding the exact workflow from the video: creating a custom Multi-Position Hoop profile in Embrilliance Enthusiast so a large design (rounded to 405 mm × 300 mm) can stitch in a 2 rows × 2 columns “4-patch” layout using a 6×10 hoop (260 mm × 160 mm).

Along the way, I’ll also address the most common viewer pain points from the comments—especially the offset math confusion, “How do I align the hoops in real life?”, and why some machines (like the Brother PE800) can still end up slightly off-center even when the split files line up.

The Calm-Down Moment: What a Multi-Position Hoop in Embrilliance Enthusiast Really Does (and Doesn’t)

A Multi-Position Hoop profile is planning math inside Embrilliance. It tells the software, “Pretend my hoop can move to these positions, and show me how to split the design into sections that fit my real hoop.”

It does not magically enlarge your machine’s stitch field. You will still re-hoop (or re-position) the project multiple times—four times in this 2×2 example.

If you’re doing multi hooping machine embroidery, the biggest mental shift is this: software splitting is only half the job. The other half is repeatable, accurate re-hooping so each quadrant lands exactly where the previous one left off. You aren't just stitching; you are engineering a grid on fabric.

Warning: Mechanical Safety Alert. Keep fingers, hair, and loose sleeves away from the needle area during test-outs. When running basting boxes for alignment, the machine often makes sudden, wide jumps to the corners of the frame. Do not attempt to smooth the fabric while the machine is running.

The “Hidden” Prep Pros Do First: Write the Numbers Down Before You Touch Hoop Properties

The video shows a habit I wish every embroiderer learned early: write down the two sets of dimensions before you start clicking around. Blindly entering numbers into software is the fastest way to ruin a garment.

You need:

1) Your physical hoop size (metric): 260 mm × 160 mm. Tip: Check your hoop's plastic frame; the stitchable area is often stamped on it.

2) Your target layout size (metric): the design measures 404.4 mm × 298.8 mm, and the instructor rounds up to 405 mm × 300 mm.

That rounding-up is not optional fluff—it’s a safety margin. In the video’s words: you can create a larger hoop, but you can’t create a smaller hoop than the design.

If you’re working with an embroidery machine 6x10 hoop, this “write it down first” step prevents the most common mistake I see in studios: people start changing offsets without a fixed target, then wonder why the overall size never lands cleanly.

Prep Checklist: The "Go/No-Go" Flight Check

• Physical Hoop Verified: I have confirmed my hoop's max stitch area is 260mm x 160mm (not just the outer frame size).
• Target Size Rounded: I have rounded my design size up to the nearest 5mm (e.g., 405 x 300).
• Orientation Strategy: I have acted out the rotations physically to see if rotating the design allows for fewer hoopings.
• Hidden Consumables Stocked: I have temporary adhesive spray (like Odif 505), a fresh water-soluble marking pen, and enough bobbin thread for 4 full heavy fills.
• Data Record: I have written 260x160 and 405x300 on a physical sticky note stuck to my monitor.

The Time-Saver Move: Rotate the 6×10 Hoop to Avoid 6 Hoopings

In the video, the instructor first visualizes the problem: the design clearly extends beyond the 6×10 hoop.

Then comes the key planning trick: rotate the hoop orientation on screen.

• In the “normal” vertical orientation, the instructor estimates it would take six hoopings.
• After rotating the hoop 90° (landscape), the design fits a 2×2 grid, meaning four hoopings.

This is not just convenience—it’s risk management. Every extra hooping is a "failure point"—another chance to introduce drift, skew, or a visible seam. Reducing the count from 6 to 4 reduces your error potential by 33%.

If you’re setting up hooping for embroidery machine workflows for large layouts, always test both orientations first. It’s the fastest “free upgrade” you’ll ever get.

The Core Setup: Creating a New Multi-Position Hoop Profile (260×160, 2 Rows × 2 Columns)

Now we follow the exact on-screen steps.

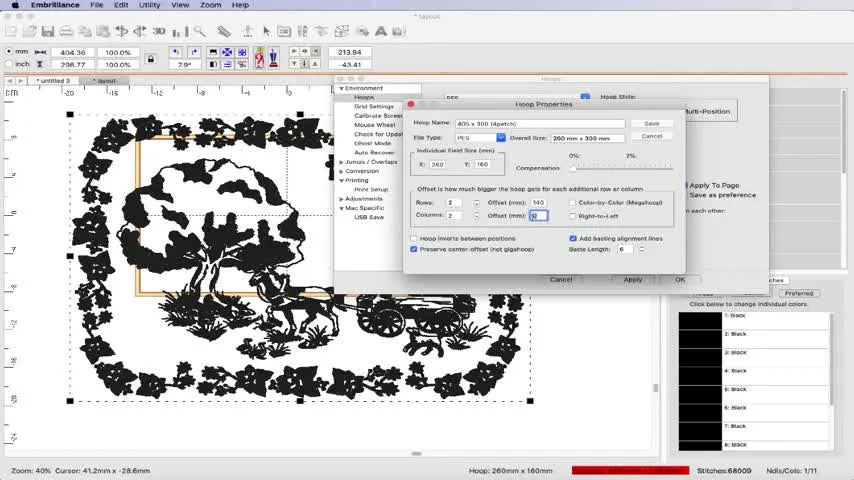

1) Open Hoop Properties. 2) Select Multi-Position. 3) Click New. 4) Name the hoop profile something you’ll recognize later. The instructor uses: “405 by 300 (4 patch)”. 5) Enter the individual hoop size (your real hoop):

• X = 260
• Y = 160

6) Set the grid:

• Rows = 2
• Columns = 2

At this point, the “Overall Size” will change as you adjust settings, but it will not match your target until you fix the offsets. Don't panic if the preview looks weird; we haven't told the software how much the hoops overlap yet.

Setup Checklist (Before Calculating Offsets)

• Profile Isolation: I clicked "New" and am NOT overwriting a standard factory hoop profile.
• Nomenclature: My hoop name includes the specific dimensions (e.g., "405x300") so I don't confuse it with other multi-hoops later.
• Base Truth: The X/Y fields match my physical hard hoop exactly (260 / 160).
• Grid Check: Rows/Columns are set to 2/2.
• Visual Aid: I can see the "Overall Size" readout, which I will use as my verification tool in the next step.

The Offset Math That “Feels Like Thin Air”: Use Subtraction, Not Guessing

This is where many commenters got lost (“the math totally loses me” / “I got lost on the math part”). The video’s method is simple, but the wording can feel twisty if you’re new.

Here’s the exact rule used in the tutorial. Memorize this formula:

Target Total Dimension − Single Hoop Dimension = Offset

You do it twice:

1) Row Offset (vertical)

• Target total height = 300
• Single hoop height = 160
• Calculation: 300 − 160 = 140 mm

Enter 140 into the Row Offset field.

2) Column Offset (horizontal)

• Target total width = 405
• Single hoop width = 260
• Calculation: 405 − 260 = 145 mm

Enter 145 into the Column Offset field.

Your goal is not to “understand the whole universe of offsets.” Your goal is practical: keep adjusting until the Overall Size readout matches 405 × 300 exactly (the instructor emphasizes this).

A quick reality check from 20 years of production work: this subtraction method works because you’re defining the distance between hoop positions in a 2×2 grid. In real stitching, that “distance” becomes the overlap/relationship between sections. If you accidentally calculate “overlap” instead of “offset,” you’ll chase the wrong number and never land on the correct overall size.

If you’re using hooping station for machine embroidery tools in a production setting, this is also where you decide whether your process can tolerate four precise re-hoops—or whether you need to upgrade your hooping method to reduce human variability.

The Save-and-Verify Ritual: Apply, Center, and Make Sure the Red Warning Is Gone

Once the Overall Size matches your rounded target:

1) Click Save. 2) Click Apply. 3) Click OK.

Back on the main canvas, the instructor shows the new large boundary encompassing the design. That’s your confirmation that the profile is correct.

Then the instructor uses the Center button so the design is centered in the hoop.

This is also the moment to answer a common comment: “How do I get the large design into my machine?”

What you’re seeing on screen is a virtual planning boundary. You’re not sending a single 405×300 stitch field to the machine. You’re going to split it into hoop-sized sections and send those sections one by one.

Split into Hoop Preview: See the 4 Quadrants and the Stitching Order Before You Waste Fabric

The video uses:

• Utility → Split into Hoop

This preview is valuable because it shows:

• The design “blown apart” into four sections.
• The stitching order the software expects (shown in the video as Top Left → Bottom Left → Top Right → Bottom Right).
• Automatic basting boxes and alignment lines for each section.




Operation Checklist (Before First Stitch)

• Split Verification: I ran Utility > Split into Hoop and confirmed there are exactly 4 distinct files/sections.
• Sequence Map: I have written down the stitch order (e.g., TL -> BL -> TR -> BR) and won't rely on memory.
• Alignment Lines: I verify that basting boxes/crosshairs are visible in the preview for every section.
• Physical Rehearsal: I have physically moved the hoop on my table to match the sequence, ensuring the fabric bulk won't hit the machine arm on the final quadrant.
• Test Run: I am testing this on a scrap piece of felt or stabilizer first, NOT the final expensive garment.

The Real-World Alignment Problem: How to Re-Hoop Without Drift (and Why It Skews Left)

Several comments ask the question the video doesn’t fully cover: “How do you align the designs on the hoops?” and one viewer reports the result skewed left about 3/8" even though the quadrants lined up.

Here’s what’s happening in real shops, and how to fix it physically:

1) “Quadrants line up, but the whole design isn’t centered” usually means your *first hooping* wasn’t centered

Even if your needle centers correctly, the fabric can be loaded slightly off relative to your drawn center marks. The Fix: Make the first quadrant your "Master Anchor." Spend 80% of your effort getting the first hoop perfectly aligned with your drawn crosshairs. If the first one is crooked, the other three will just be crooked in perfect unison.

2) Fabric distortion: The "Drum Skin" Effect

In multi-hooping, you aren't just repeating hooping; you are repeating tension. If you pull the fabric tight for Quadrant 1, but leave it loose for Quadrant 2, the design will warp. Sensory Check: Tap the hooped fabric. It should sound like a dull thud (thump-thump), not a high-pitched ping. If it's too tight, you stretch the grain; when unhooped, it shrinks back and gaps appear.

3) Re-hooping speed vs. Alignment Drift

Traditional screw hoops are accurate but slow. When you have to unscrew, move fabric, and re-screw four times, hand fatigue sets in. You start accepting "good enough" alignment because your wrists hurt.

This is where professionals often switch to magnetic embroidery hoops. Because they snap together rather than requiring screw-cranking, they allow you to make micro-adjustments to the fabric without fully un-hooping. You simply lift the magnet edge, slide the fabric 1mm to match your line, and snap it back down.

Warning: Magnetic Field Safety. Magnetic hoops are powerful industrial tools. Keep them at least 6 inches away from pacemakers, insulin pumps, and implanted medical devices. Watch for pinch hazards—when the top frame snaps onto the bottom, keep fingers clear of the edge. Store magnets away from phones and credit cards.

A simple alignment workflow

• Use the split preview’s alignment lines as your visual contract.
• Stitch the first quadrant including its basting/alignment.
• For the next hooping, align the fabric so the needle can land precisely on the next section’s alignment marks.
• Do not switch stabilizer mid-project.

If you’re running a Brother PE800 and want faster, cleaner re-hooping, a magnetic hoop for brother pe800 can be a sensible option when you’re doing multi-position layouts often. It removes the variables of "how much did I twist the screw this time?"

Decision Tree: Pick Stabilizer Strategy Before You Commit to a 4-Hoop Layout

The video doesn’t specify fabric or stabilizer, but in multi-hooping, your stabilizer is your foundation. Use this logic path:

START: Pinch your fabric. How much does it stretch?

• Scenario A: Zero Stretch (Denim, Canvas, heavy Cotton)
  • Risk: Hooping burn or stiffness.
  • Action: Use Medium Tearaway.
  • Hooping: Hoop tight. The fabric can handle it.
• Scenario B: High Stretch (T-shirts, Jersey, Performance Knits)
  • Risk: The "Hourglass" distortion. If you stretch it in the hoop, the design will pucker when removed.
  • Action: Use Fusible Mesh Cutaway (PolyMesh). Iron it on first using a specialized stabilizer.
  • Hooping: Do NOT pull the fabric. Let the stabilizer take the tension.
• Scenario C: Slippery/Delicate (Satin, Silk, Rayon)
  • Risk: Fabric sliding between the hoop rings (Drifting).
  • Action: Use Cutaway plus a temporary spray adhesive (like 505) to bond the fabric to the stabilizer.
  • Hooping: Consider wrapping the inner hoop ring with confident tape or using a magnetic hoop to grip without crushing delicately.

CRITICAL RULE: If you are re-hooping 4 times, you cannot "float" the stabilizer. You must hoop the stabilizer with the fabric every single time to ensure registration.

Software Limits That Trip People Up: Enthusiast vs StitchArtist vs Essentials

Two recurring questions in the comments are worth locking down:

“My design file won’t split.”

The video states clearly: to split existing stitch files (like PES/DST), you need Embrilliance Enthusiast. StitchArtist is for creating designs from scratch (digitizing). While StitchArtist lets you make a large design, it doesn't automatically calculate splits for pre-bought files the same way Enthusiast does.

“Can I create a multi-hoop frame in Essentials?”

The creator replies in the comments: No—Multi-Position Hoop is a function of Enthusiast. Essentials is for basic editing (resizing, color sorting); it lacks the complex splitting algorithms.

“Can I do this on a PE800?”

The software can create the split plan, but your success depends on your hooping accuracy. The machine doesn't know it's sewing part of a larger picture; it relies entirely on you placing the fabric perfectly for parts 2, 3, and 4.

Appliqué Designs and Multi-Position Hoops: Why the Creator Says “I Wouldn’t”

A commenter asks if this can be done with appliqué designs. The creator replies short and sharp: "I wouldn't."

Here is the "Why": Appliqué relies on a strict sequence of Placement Line → Lay Fabric → Tack Down → Trim → Satin Finish. If you split an appliqué design, the software might put the placement line in Hooping #1 and the Satin Finish in Hooping #2. If your alignment is off by even 0.5mm, you will have a gap where the raw fabric edge shows, or the satin stitch will miss the fabric entirely.

Pro Verdict: Only split fill-stitch designs or text. Do not split appliqué unless you are an expert digitizer who can manually control the breaks.

The Upgrade Path That Actually Makes Sense: When Tools Beat “Trying Harder”

Multi-position layouts are powerful, but they expose every weakness in your hooping workflow: inconsistent tension, slow re-hooping, alignment drift, and operator fatigue.

Here’s a practical “scene trigger → decision standard → option” way to think about upgrades:

Scene Trigger: "I dread the re-hooping process."

Decision Standard: If it takes you longer to hoop the garment than it does to stitch the design, or if your wrists ache after a 4-patch project. Option Level 1: Buy a Hooping Station (like HoopMaster) to standardize placement. Option Level 2: Upgrade to Magnetic Hoops. They eliminate the "unscrew-rescrew" friction and allow instant micro-adjustments for alignment.

Scene Trigger: "My alignment lines match, but the fabric ripples between them."

Decision Standard: You are fighting the "push-pull" physics of the hoop rings. Option Level 1: Switch to a heavier Cutaway stabilizer. Option Level 2: Use a magnetic hoop. Because it clamps flat down (vertical pressure) rather than forcing an inner ring into an outer ring (distorted pressure), it reduces the "hoop burn" and fabric wave that ruins multi-position alignment.

Scene Trigger: "I need to make 50 of these for a client."

Decision Standard: You cannot afford 4 manual re-hoops per shirt. It is not profitable. Option Level 1: Outsource the job. Option Level 2: Upgrade to a Multi-Needle Machine (like SEWTECH). While you may still need to split huge designs, the larger default fields (often 8x12 or 14x20) mean you can do this design in ONE hooping, not four.

If you’re new to magnets, learn how to use magnetic embroidery hoop techniques on a simple 2-quadrant test first, then move to a 4-patch layout.

Quick Troubleshooting: Symptom → Likely Cause → Fix

• Symptom: “Design file won’t split / Option is grayed out.”
  • Likely Cause: You are using Embrilliance Essentials, not Enthusiast.
  • Fix: Upgrade software or check if you are in "viewer" mode.
• Symptom: “The math totally loses me.”
  • Likely Cause: You are calculating overlap instead of offset.
  • Fix: Use the subtraction rule: Target total − single hoop = offset. Ignore the gap; look at the "Overall Size" readout.
• Symptom: “My 4 sections line up, but the whole thing is shifted left.”
  • Likely Cause: Hooping #1 was not centered on the fabric marks.
  • Fix: Do not trust your eye. Measure twice. Use water-soluble pens to draw crosshairs on both the stabilizer and the fabric.
• Symptom: “I created huge virtual hoops and now I want them gone.”
  • Likely Cause: You saved experimental hoop profiles in your permanent list.
  • Fix: Go back to Hoop Properties > Multi-Position and delete the entry. Leaving bad data in your system is a recipe for future mistakes.

The Payoff: A Clean 405×300 Plan Using a 260×160 Hoop—Without Guesswork

From the video, the winning recipe is:

• Physical hoop: 260 × 160 mm
• Target design rounded up: 405 × 300 mm
• Grid: 2 rows × 2 columns
• Row Offset: 140 mm
• Column Offset: 145 mm
• Preview: Utility → Split into Hoop to confirm the four quadrants and stitch order

Once you can do this once, you can do it for any oversized design—because the method is consistent: rotate to reduce hoopings, round up, subtract for offsets, verify overall size, then preview the split.

And if multi-hooping becomes a regular part of your workflow, don’t just “try harder” at re-hooping. Upgrade the part that’s actually costing you time and accuracy—your hooping method—so the software plan can translate into a professional stitch-out every time.

FAQ

• Q: How do I calculate Embrilliance Enthusiast Multi-Position Hoop Row Offset and Column Offset for a 405×300 mm design using a 260×160 mm (6×10) hoop in a 2×2 grid?
  A: Use simple subtraction: Target total dimension − single hoop dimension = offset.
  • Calculate Row Offset (height): 300 − 160 = 140 mm, then enter 140 in Row Offset.
  • Calculate Column Offset (width): 405 − 260 = 145 mm, then enter 145 in Column Offset.
  • Verify by watching the Hoop Properties “Overall Size” until it reads exactly 405 × 300.
  • Success check: The overall boundary shows 405×300 and the red warning disappears after applying the profile.
  • If it still fails… re-check that the hoop is set to 2 rows × 2 columns and that X/Y are exactly 260/160 (not outer frame size).
• Q: Why does Embrilliance Enthusiast “Split into Hoop” get grayed out or the design file will not split when using Embrilliance Essentials?
  A: Embrilliance Essentials cannot split existing stitch files into multi-position hoop sections; Embrilliance Enthusiast is required.
  • Confirm the installed product level is Enthusiast (not Essentials) before troubleshooting settings.
  • Open the design, then use Utility → Split into Hoop only after selecting the Multi-Position Hoop profile.
  • Save/Apply/OK the hoop profile first so the software knows the planned layout.
  • Success check: Utility → Split into Hoop shows 4 distinct sections for a 2×2 setup.
  • If it still fails… verify the file is an embroidery stitch file (not just artwork) and that the Multi-Position profile is selected and active.
• Q: How do I prevent a 4-patch multi-hooping design from shifting left (about 3/8") on a Brother PE800 even when the quadrants line up in Embrilliance Enthusiast?
  A: Treat the first hooping as the master anchor—most “whole design shifted” problems start with Hoop #1 being slightly off-center on the fabric marks.
  • Draw precise crosshairs on both fabric and stabilizer, then align Hoop #1 to those marks before stitching anything.
  • Stitch the first quadrant including its basting/alignment, then use those stitched marks as the reference for re-hooping the next quadrants.
  • Keep fabric tension consistent across all 4 hoopings to avoid distortion drift.
  • Success check: After the second hooping basting/alignment runs, the needle lands exactly on the previous alignment marks without forcing the fabric.
  • If it still fails… slow down and re-check the physical centering of Hoop #1; do not “correct” later quadrants to compensate, or the grid will skew.
• Q: What stabilizer strategy should I use for Embrilliance Enthusiast 4-hoop Multi-Position projects to avoid distortion when re-hooping four times?
  A: Pick stabilizer based on fabric stretch and keep the same stabilizer method for all four hoopings—do not float stabilizer in a re-hoop project.
  • Use medium tearaway for stable fabrics like denim/canvas/heavy cotton.
  • Use fusible mesh cutaway (PolyMesh) for high-stretch knits, and avoid pulling the fabric in the hoop.
  • Use cutaway + temporary adhesive spray for slippery/delicate fabrics to reduce drifting.
  • Success check: Each re-hoop lands on the same registration marks and the fabric does not “hourglass” or ripple between sections.
  • If it still fails… increase stabilizer support (often heavier cutaway) and confirm the stabilizer is hooped together with the fabric every time.
• Q: What are the must-have prep consumables and “go/no-go” checks before stitching a 2×2 Multi-Position Hoop layout in Embrilliance Enthusiast?
  A: Do the prep first—most multi-hooping failures come from skipping marking, adhesive, and test-running before committing to the garment.
  • Verify the true stitchable hoop area (e.g., 260×160 mm) from the hoop marking, not the outer frame.
  • Round the target design size up (e.g., 404.4×298.8 → 405×300) and write both size sets down before entering Hoop Properties.
  • Stock temporary adhesive spray, a fresh water-soluble marking pen, and enough bobbin thread for 4 heavy-fill sections.
  • Success check: You can recite the physical hoop size, target size, and stitch order (TL → BL → TR → BR) without opening menus mid-stitch.
  • If it still fails… run the full split-and-baste sequence on scrap felt/stabilizer first and confirm the re-hoop alignment is repeatable.
• Q: What is the correct way to verify a Embrilliance Enthusiast Multi-Position Hoop setup is correct before wasting fabric on a 4-section stitch-out?
  A: Save/Apply the hoop profile, center the design, then use Utility → Split into Hoop to confirm section count, order, and alignment marks.
  • Click Save → Apply → OK in Hoop Properties after the Overall Size matches the target (e.g., 405×300).
  • Use Center on the main canvas so the planned boundary and design placement match.
  • Open Utility → Split into Hoop and confirm four quadrants plus basting/alignment lines for every section.
  • Success check: The preview clearly shows 4 separate sections and no red warning, with visible alignment lines in each quadrant.
  • If it still fails… re-check offsets using subtraction and confirm the hoop orientation (rotated vs not) matches the planned 2×2 layout.
• Q: What safety precautions should be followed when running Embrilliance Enthusiast split designs with basting boxes for multi-hooping alignment?
  A: Keep hands and loose items away—basting boxes can drive sudden wide movements to frame corners during alignment runs.
  • Keep fingers, hair, and sleeves out of the needle/hoop path during basting and corner jumps.
  • Stop the machine before smoothing fabric or adjusting anything near the hoop.
  • Rehearse the hoop movement sequence on the table so fabric bulk will not hit the machine arm on later quadrants.
  • Success check: The machine completes basting boxes without any near-contact between fabric bulk, hoop, and the machine arm.
  • If it still fails… reduce bulk (roll/clip excess fabric safely) and re-plan the stitch order and physical orientation before restarting.
• Q: When should a multi-hooping workflow move from technique tweaks to magnetic hoops or a multi-needle machine for repeated 4-patch Embrilliance Enthusiast projects?
  A: Upgrade when time, fatigue, or alignment drift becomes the bottleneck—not when skill alone is the only issue.
  • Level 1 (technique): Reduce hoopings by rotating the hoop orientation to reach a 2×2 plan instead of 6 hoopings where possible.
  • Level 2 (tool): Consider magnetic hoops when repeated screw-hoop re-hooping causes wrist fatigue or makes micro-adjustments difficult during alignment.
  • Level 3 (capacity): Consider a multi-needle machine when producing volume (e.g., dozens of garments) makes 4 manual re-hoops per item unprofitable.
  • Success check: Re-hooping becomes consistent and fast enough that setup time no longer exceeds stitching time for the same job type.
  • If it still fails… standardize placement with a hooping station before changing machines, and confirm stabilizer and marking methods are consistent across all hoopings.
