The Definitive Guide to Empress Monograms: From Embrilliance Setup to Flawless Production

If you’ve ever stared at Embrilliance thinking, “Why is my frame showing up as random letters… and why is everything suddenly outlined in red?”, take a breath—you’re not doing anything “wrong.” You are simply encountering the friction point where digital logic meets analog art. You’re just missing the few insider moves that make Empress Monogram frames feel effortless.

As someone who has managed production floors for two decades, I can tell you that machine embroidery is an "empirical science"—it relies on feel, sound, and physics as much as software. This post rebuilds the full workflow from the video—installing the BX files, creating the monogram, pulling the correct frame via the PDF key chart, and fixing hoop-size conflicts.

But we are going further. We will add the practical shop-floor habits that prevent the most common waste: mis-sized designs, crooked alignment, and the frustration of test-stitching the same thing twice. We will move you from "hoping it works" to "knowing it will work."

The Calm-Down Moment: Embrilliance Express, Empress Frames, and Why “Nothing Looks Like a Frame” at First

Embrilliance Express (the free mode shown in the video) can create and save text designs from installed BX files. That’s exactly why Empress Monogram frames work here: the frames are delivered as BX “fonts,” but they’re not displayed as cute icons—you call them by typing specific keyboard letters listed on the included PDF chart.

So when you first select the “Empress Frames” font and see the default “ABC” pulling in odd shapes, that’s normal. Those shapes are simply whatever designs are mapped to A, B, and C in that font—not necessarily the frame you want.

One more reality check: the moment you add a frame around a monogram, your design footprint grows fast. A 3-inch monogram that looks fine alone can exceed a 4x4 hoop the second you wrap it in a decorative border. That’s the “4x4 hoop trap” that catches beginners.

The “Hidden” Prep Pros Do First: ZIP Extraction, BX Install, and a Quick Sanity Check Before You Design

Before you touch lettering, get the files installed cleanly. The video is very clear here, and it matters—especially on Windows. A clean install is the difference between a smooth workflow and a "Missing Font" error message simply because your computer technically couldn't "see" the files yet.

Download + locate the correct ZIP

In the Empress download area, there are multiple ZIPs sorted by machine format. The BX files are in the ZIP labeled for “INS and BX.”

Mac vs Windows extraction (don’t skip this)

• Mac: Double-clicking the ZIP automatically extracts it into a folder.
• Windows: Double-clicking a ZIP lets you “peek,” but the files are still compressed. You must use Extract → Extract All (or drag the BX files out to a normal folder/desktop) before installing.

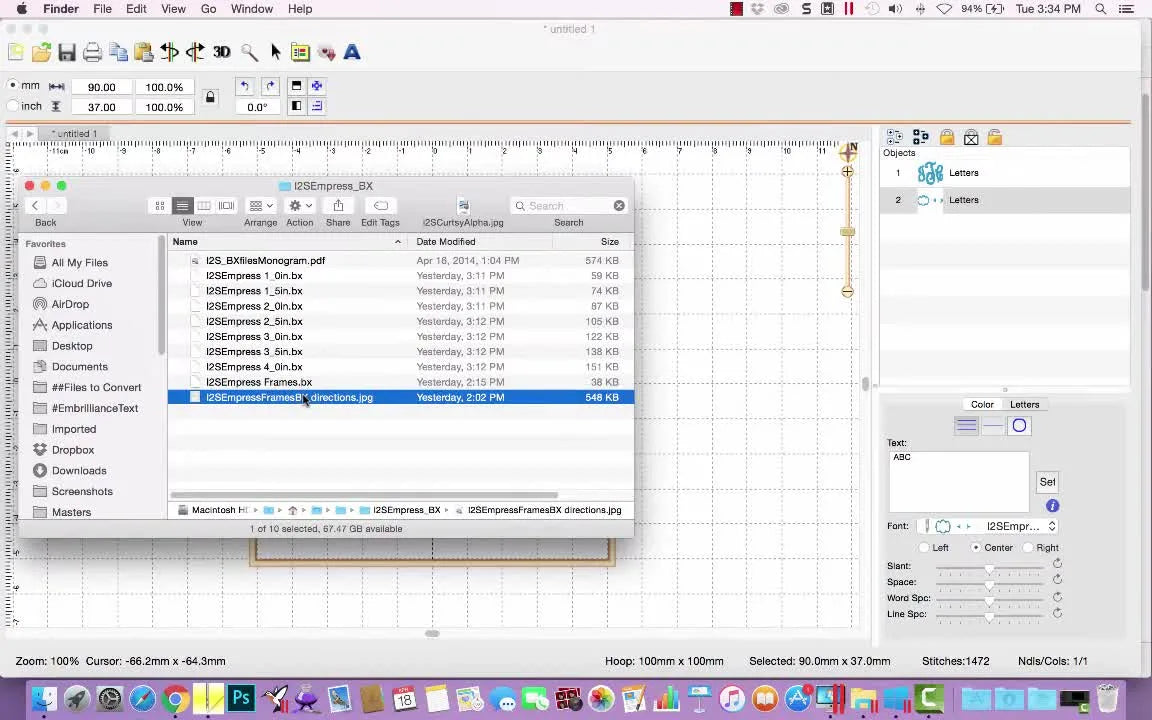

Install the BX files into Embrilliance

1. Open Embrilliance.
2. In Finder/Explorer, select all the BX files (the video shows 8 BX files: seven monogram sizes plus one frames BX).
3. Drag and drop them directly onto the open Embrilliance workspace.
4. Confirm the install when prompted; you should see a “Files Installed” confirmation.

Warning: Software Hygiene
On Windows, installing from inside a compressed ZIP is the fastest way to end up with corrupted links. If you see the "Extract" button at the top of your window, stop. Extract first. Treat your file system with the same discipline as your bobbin case—keep it clean.

Prep Checklist (Digital Foundation):

• You downloaded the “INS and BX” ZIP (not just a machine-format ZIP).
• On Windows, you used Extract All (or moved BX files into a normal folder).
• You dragged all 8 BX files into Embrilliance and saw the “Files Installed” confirmation.
• You can find “Empress” and “Empress Frames” in the font list (frames appear near the bottom alphabetically).
• You opened the included PDF chart and can read the key-to-frame mapping.


Build a Clean Empress Monogram in Embrilliance: The Green-Handle Kerning Trick That Saves Ugly Spacing

In Embrilliance, click the “A” button to create a lettering object. The default text is “ABC.”

1. Select the Empress font.
2. Choose the size you want (the video demonstrates the 3-inch size first).
3. Replace “ABC” with your initials (the video example changes to “JTC”).

Spacing: slider first, then the “green handle” move

You can adjust spacing with the slider, but the video calls out the real power move: use the small green square handle inside each letter to nudge individual letters when the slider isn’t precise enough.

The Sensory Check: Stop looking at the bounding box. Look at the negative space (the white air) between the letters. The volume of air between the J and T should visually match the volume between the T and C. That manual kerning is what keeps monograms from looking “store-bought in a bad way”—especially when letter shapes fight each other (wide serifs, tight curves, etc.).

Add the Empress Frames Font the Right Way: Use the PDF Key Chart (and Don’t Edit Your Monogram Object)

Here’s the rule that prevents 90% of beginner frustration: frames must be created as a NEW lettering object. Don’t try to “add frames” by editing your monogram lettering object.

1. Click the “A” button again to create a second lettering object.
2. From the font dropdown, select Empress Frames.
3. Open the included PDF chart and find the frame you want.
4. Type the mapped key letter into the text box and click Set.

In the video example, the scalloped frame for the 3-inch monogram is mapped to typing “M.”

A quick note for anyone scrolling the font list and panicking: frames appear near the bottom alphabetically, and if you also have large Empress sizes (4.5" through 8.5" are mentioned), those may appear between the small sizes and the frames.

If you’re building a library of monograms for different customers, this is where naming discipline starts to matter. Save working files with size + hoop target in the filename (for example: “Empress_2.5in_Scallop_4x4”). It’s not glamorous, but it prevents rework.

The Red Outline Reality Check: Fixing the Embrilliance Hoop Warning for a 4x4 Hoop vs 5x7 Hoop

When you see the red highlight/outline, Embrilliance is telling you the design exceeds the currently selected hoop boundary.

In the video, this happens because a 3-inch monogram + frame is too wide for a 100mm x 100mm (4x4) hoop. This is a critical decision point where physics dictates your next move.

You have two legitimate fixes:

Fix Option A: Switch hoop preference to 5x7

Go to Preferences and change the hoop to 130mm x 180mm (5x7).

This is the “don’t fight physics” option—great when the customer wants that exact size and frame.

Fix Option B: Downsize to 2.5" and use the matching 2.5" frame key

If you must stay in a 4x4 hoop, the video shows a clean standardization move:

• Change the monogram size from 3" to 2.5".
• Change the frame key to the 2.5" version. For the scalloped frame, the video uses “J.”

This is the part many people miss: frame keys are size-specific. If you downsize the monogram but keep the 3-inch frame, you’ll still be fighting boundaries and proportions.

One practical production note: if you’re stitching on a true brother 4x4 embroidery hoop, you’ll often get better results by standardizing your “framed monogram” product line to 2.5" rather than trying to force 3" into every order. The extra margin ensures the presser foot doesn't slam into the hoop edge—a mistake that sounds like a distinct, terrifying "crunch."

Swirl Frames Without Tears: Using “K” and “L” in One Object for Symmetry (and How to Spread Them Correctly)

The video’s second frame style is a two-part swirl: one left, one right.

To generate them:

1. In the frames lettering object, type K and L (the video uses these keys for the 2.5" swirl components).
2. Click Set.


Spacing control: slider + optional typed space

You can spread the swirls apart using the spacing slider. If you can’t spread them far enough, the video shows a clever trick: type a space between the letters (e.g., “K L”). That gives you access to both character spacing and word spacing behavior, increasing flexibility.

The reason keeping both swirls in one lettering object matters: when you use the spacing slider, the left and right elements stay aligned with each other. That symmetry is what makes the finished monogram look intentional instead of “two random flourishes.”

From a digitizing perspective, this is also why split frames are smart: different letter combinations need different breathing room. A "W" is much wider than an "I." A tight monogram might need the swirls pulled in; a wide monogram needs them pushed out.

The “-A-” Hack in Embrilliance Express: Force a True Center Letter for Single-Initial Monograms

Three-letter monogram fonts rely on position logic: Left–Middle–Right.

• Type one letter → you get the Left version.
• Type two letters → you get Left and Right, skipping the middle.
• Type three characters → you finally get the Middle version.

So how do you get only the middle letter by itself in Express mode?

The video’s workaround:

1. Type -A- (dash, letter, dash).
2. Click Set.

Because no designs are mapped to punctuation dashes, Embrilliance pulls only the middle-position “A” design.

This is one of those “write it on a sticky note” tricks. If you’re building single-initial products (towels, tote bags, baby gifts), it saves you from buying software upgrades just to access a center-letter variant.

And if you’re planning to sell these designs, keep your workflow consistent: decide whether your single-initial line is always center-letter + swirls, or center-letter alone. Consistency is what makes your product photos look like a brand.

Thread Color Stops and Stitch Order in Embrilliance: Don’t Let Same-Color Layers Ruin Your Look

In the video, the letter and swirls can be the same color—or different colors.

Key behavior:

• If two objects are the same color, they may stitch as one continuous color stop (no pause for thread change).
• If you want the swirls a different color (example shown: letter blue, swirls pink), change the color in the Color tab by selecting a different thread color from the catalog.


Stitch order is top-to-bottom (and you can reorder)

Embrilliance stitches in order from top to bottom in the object list. If you want the swirls first, drag the swirl layer above the letter layer; if you want the letter first, keep it above.

The "Why" - Physics of Push/Pull: Typically, I recommend stitching the structural element (the frame or swirls) after the central letter if they overlap significantly, but for open designs like this, order is aesthetic. However, be aware of "push/pull compensation." If you stitch a heavy background first, it shifts the fabric. Always test on a scrap of the same fabric (with the same stabilizer) before running the final garment.

Setup Checklist (Software Design Phase):

• Your hoop preference matches your target hardware (4x4 or 5x7).
• Your monogram and frame are separate objects.
• Your frame key matches the monogram size (e.g., 2.5" monogram uses the 2.5" frame key).
• Your color stops match your plan (same color = no pause; different colors = separate stops).
• Your stitch order is intentional (check the object list).

Essentials Users Get a Faster, Cleaner Method: Merge Stitch File + Align Centers + Distribute Spacing

If you own Embrilliance Essentials, the video recommends a more “production-minded” approach: instead of relying on lettering-object hacks and key charts, you can import the actual stitch files.

Method: Merge Stitch File

1. Use Merge Stitch File.
2. Navigate to the folder with the .PES frame parts and the middle letter file.
3. Import the needed pieces (the video shows selecting multiple files while holding the command key).


Then use alignment tools

With the objects imported:

• Use Align Centers to snap them into perfect alignment.
• Use Distribute Spacing to evenly space the elements.


This is the difference between “I can make it work” and “I can make 20 of these without thinking.” If you’re doing gifts for a team, a craft fair batch, or a small Etsy run, Essentials-style alignment is simply faster and more repeatable.

If you’re already stitching on a brother 5x7 hoop, this workflow also makes it easier to build larger, more premium-looking framed monograms without constantly resizing and re-keying.

When Things Go Sideways: The Symptoms-to-Fix Table I Use at the Workbench

You don’t need more guesswork—you need fast diagnosis. Here is my structured troubleshooting logic, ordered from "user error" (free to fix) to "system error" (harder to fix).

The "Why" Behind the Fixes: Size Standardization, Alignment Discipline, and What Actually Improves Results

Most embroidery “software problems” are really workflow problems.

Standardize sizes to reduce rework

The video demonstrates a smart standardization move: dropping from 3" to 2.5" to fit a 4x4 hoop. In real shops, standardization is how you stop burning time. Pick a default framed size for 4x4 orders, and a default framed size for 5x7 orders.

Alignment is a production skill, not a personality trait

Express mode can absolutely get you there, but Essentials alignment tools make repeatability easier. If you’re doing more than occasional gifts, the time saved on alignment alone can justify the upgrade.

The Upgrade Path That Actually Makes Sense: From “One-Off Hobby” to Faster, Cleaner Output

When your designs are clean in Embrilliance, the next bottleneck is usually physical setup—getting fabric hooped straight, fast, and consistently. This is where users usually experience "hoop burn" (the ring mark left on fabric) or wrist fatigue.

Here’s the practical way I’d think about upgrades based on your volume:

Level 1: The Frustrated Hobbyist (Hoop Burn & Struggle)

If you are fighting to tighten the screw or leaving marks on delicate velvet/towels, the standard hoop is your enemy. Consider a magnetic embroidery hoop for your specific machine.

• The Benefit: No screwing mechanisms, no friction burn on fabric.
• The Physics: It uses magnetic force to clamp, holding thick piles (like towels) or delicate silks without distortion.

Level 2: The Semi-Pro (Alignment & Speed)

If you need to place this monogram in the exact same spot on 10 shirts, eyeballing it will fail. A hooping station for machine embroidery allows you to preset the placement.

• The Benefit: Consistent placement across multiple garments.

Level 3: The Production Shop (Scale)

If you’re scaling beyond occasional gifts into batches, single-needle machines become the bottleneck due to thread changes. A high-value multi-needle platform (like SEWTECH) combined with magnetic frames turns "evenings and weekends" into reliable profit.

And if you’re shopping for compatibility, don’t guess—match your machine model and hoop size first. Many users specifically search for embroidery hoops for brother machines because fit and mounting style matter as much as hoop dimensions.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength magnets (unlike fridge magnets).
* Pinch Hazard: They snap shut with significant force (often 5kg+). Keep fingers clear of the edge.
* Electronics: Keep them at least 6 inches away from pace makers, credit cards, and machine screens.

Decision Tree: Choose 4x4 vs 5x7 Hoop (and the Right Frame Size) Before You Waste a Stitch-Out

Use this quick decision tree before you commit to a design size:

1. What hoop will you actually stitch in?
   • If it’s a 4x4 hoop → Go to Step 2
   • If it’s a 5x7 hoop → Go to Step 3
2. 4x4 Hoop Path (100mm x 100mm):
   • Goal: Framed Monogram.
   • Action: Start at 2.5" monogram size. Use the 2.5" frame key (e.g., scallop uses “J”).
   • Check: Seeing red? Reduce size; don’t "force" it.
3. 5x7 Hoop Path (130mm x 180mm):
   • Goal: Premium/Large Look.
   • Action: Use the 3" monogram size. Use the 3" frame key (e.g., scallop uses “M”).
   • Check: Ensure preferences are set to 5x7.
4. Swirl Frame Alignment:
   • Goal: Perfect Width.
   • Action: Use two-part keys ("K" + "L"). Use the slider and the space bar trick.

Operation Checklist: The "Pre-Flight" Safety Check

Do not press the green button on your machine until you have verified these five points. This is how pros save garments.

• Hoop Check: No red outline in software; the design fits the actual hoop you loaded onto the machine.
• Center Check: The monogram is visually centered inside the frame (zoom in 200% on screen to verify).
• Symmetry Check: Swirls are symmetric. If manually spacing, verify the gap is equal on both sides.
• Color Logic: Color stops are correct. (Example: If you want the frame to stitch, then stop so you can change to a secondary color for the letter, ensure they are different colors in the software).
• Consumables:
  • Towels: Did you use a water-soluble topping (Solvy) to prevent stitches sinking?
  • Knits: Did you use Cutaway stabilizer (not Tearaway) to prevent distortion?
  • Needle: Is the needle fresh? (A dull needle causes 50% of thread breaks).

If you follow the video’s workflow and add these checkpoints, you’ll stop losing time to the same three problems: wrong frame key, wrong hoop preference, and shifting fabric.

Once your software output is consistent, your next wins come from physical efficiency—better hooping, better stabilization choices, and tools that reduce handling time so you can spend your energy on the designs that actually look premium.

FAQ

• Q: Why does Embrilliance Express show Empress Monogram frames as random letters like “ABC” instead of frame icons?
  A: This is normal—Empress Frames are delivered as a BX “font,” and the frames are called by typing specific keyboard letters from the included PDF chart.
  • Open the Empress Frames font in Embrilliance Express.
  • Find the frame you want on the PDF key chart.
  • Type the mapped letter (example shown: “M” for a 3" scallop frame) and click Set.
  • Success check: The “random shapes” change into the exact border style shown on the PDF chart.
  • If it still fails: Confirm the BX files were fully installed (not run from inside a compressed ZIP), and verify you selected Empress Frames (not the Empress monogram font).
• Q: How do I fix “Missing Fonts” in Embrilliance on Windows after installing Empress BX files?
  A: Reinstall from fully extracted files—Windows can “peek” into ZIPs without actually extracting, which commonly causes bad installs.
  • Re-download the ZIP labeled for “INS and BX.”
  • Click Extract All (or drag BX files to a normal folder like Desktop) before installing.
  • Drag all BX files (the video shows 8 total) onto the open Embrilliance workspace and confirm “Files Installed.”
  • Success check: “Empress” and “Empress Frames” appear in the font list (frames often appear near the bottom alphabetically).
  • If it still fails: Remove the partially installed set and repeat the install with freshly extracted files from a clean folder path.
• Q: Why is Embrilliance outlining the Empress monogram in red when using a 4x4 (100mm x 100mm) hoop?
  A: The red outline is a hoop boundary warning—your framed monogram exceeds the currently selected hoop size, so you must change hoop preference or reduce the design.
  • Switch hoop preference to 5x7 (130mm x 180mm) in Preferences if you want the 3" framed look.
  • If you must stay in 4x4, downsize the monogram to 2.5" and use the matching 2.5" frame key (example shown: scallop frame uses “J” for 2.5").
  • Success check: The red highlight disappears and the full frame sits inside the hoop boundary on-screen.
  • If it still fails: Verify you did not keep a 3" frame key with a 2.5" monogram—frame keys are size-specific.
• Q: How do I add Empress Frames in Embrilliance without ruining the monogram lettering object?
  A: Create the frame as a separate, new lettering object—do not edit the monogram object to “add” the frame.
  • Click the A button to create the monogram lettering object, set font/size, and adjust spacing.
  • Click the A button again to create a second lettering object for the frame.
  • Select Empress Frames, type the PDF-mapped key letter, and click Set.
  • Success check: The object list shows two separate items (monogram + frame), and you can select/move them independently.
  • If it still fails: Delete only the frame object and recreate it using the correct Empress Frames font and the PDF key chart.
• Q: How do I force the center letter for a single-initial Empress monogram in Embrilliance Express?
  A: Use the “-A-” workaround—typing dashes forces Embrilliance Express to pull the true middle-position glyph for a single initial.
  • Create a lettering object and select the Empress monogram font/size.
  • Type -A- (dash, letter, dash) and click Set.
  • Replace “A” with the needed initial while keeping the dashes (example: -J-).
  • Success check: The letter style matches the “middle” letter form (not the left-position form).
  • If it still fails: Confirm you are using the Empress monogram font (not Empress Frames) and that punctuation is not mapped to a design in that specific font set.
• Q: How do I space Empress swirl frames evenly in Embrilliance when the swirls are too close together?
  A: Keep both swirl parts in one frames lettering object and use spacing controls—type “K L” (with a space) if the slider alone won’t spread them far enough.
  • In the frames lettering object, type the two-part keys (example shown: K and L) and click Set.
  • Increase spacing with the character spacing slider.
  • If spacing hits a limit, type a space between them (example: K L) to leverage word spacing behavior.
  • Success check: The left and right swirls stay symmetric and the gap looks equal on both sides when you zoom in.
  • If it still fails: Recreate the swirls in a single object (not two separate objects), then adjust spacing again for linked symmetry.
• Q: What safety checks should be done before pressing Start on an embroidery machine for an Embrilliance-designed Empress monogram (needle, hoop clearance, and fabric stability)?
  A: Do a quick “pre-flight” check—most ruined garments come from hoop mismatch, fabric shift, or a dull needle.
  • Confirm there is no red outline in Embrilliance and the selected hoop matches the hoop actually mounted on the machine.
  • Verify fabric support choices: use water-soluble topping on towels to prevent sink-in, and cutaway stabilizer on knits (not tearaway) to reduce distortion.
  • Install a fresh needle if thread breaks have been happening; a dull needle often causes repeated breaks.
  • Success check: During the first stitches, there is no hoop-edge “crunch,” the fabric stays flat, and stitches do not sink into towel pile.
  • If it still fails: Stop early and test the same design on a scrap of the same fabric + stabilizer combo before running the final garment.
• Q: When crooked placement, hoop burn, or repeated re-hooping happens with framed monograms, what is a practical upgrade path from technique fixes to magnetic hoops to multi-needle output?
  A: Start with workflow fixes, then upgrade the physical holding method, then upgrade production capacity only if volume demands it.
  • Level 1 (Technique): Standardize sizes (often 2.5" framed for 4x4; 3" framed for 5x7) and confirm frame keys match the size before stitching.
  • Level 2 (Tooling): If hoop burn or tightening struggle is the trigger, a magnetic embroidery hoop may reduce marks and speed hooping (always follow the machine manual for fit and use).
  • Level 3 (Capacity): If thread changes and batching are the bottleneck, a multi-needle platform (such as SEWTECH) is the typical next step for repeatable output.
  • Success check: Placement becomes repeatable across multiple items, re-hooping time drops, and test-stitch repeats decrease.
  • If it still fails: Re-check stabilization (cutaway vs tearaway, topping on towels) and confirm stitch order/color-stop planning in Embrilliance is intentional before changing hardware.
