Embossed Towel Monograms That Actually Look Expensive: Design Shop Primer Stitch + Melco Stitch-Out (Without the Usual Towel Headaches)

The Embossed "Knockdown" Towel Technique: A Master Class in Texture and Tension

For the uninitiated, embroidering on plush towels is a high-stakes game. The pile shifts, loops snag on the presser foot, and outlines that looked crisp on screen often disappear into a fuzzy abyss once stitched.

The frustration is real: You spend 20 minutes hooping a thick bath towel, wresting the thumbscrew until your wrist aches, only to have the final monogram look "sunken" or distorted.

The solution lies in the Embossed or "Knockdown" Stitch technique. Instead of fighting the pile, we use a structural background fill to mat it down, creating a "negative space" where the towel itself becomes the design. It is the most forgiving, high-margin aesthetic for boutique towel personalization.

This guide reconstructs the workflow from industry-standard digitizing (Design Shop Pro Plus) to the physical execution on a multi-needle machine. We will bridge the gap between "it looks good on screen" and "it feels premium in the hand."

The Embossed Concept: Controlling the "Z-Axis"

In standard embroidery, you place ink (thread) on top of paper (fabric). On a towel, you are working in three dimensions. The loops of the towel (the pile) create a "Z-axis" of height that you must control.

The "Knockdown" or Primer stitch is a mechanical layer. It compresses the loops, creating a flat, stable foundation. We then cut a hole in this foundation for the letter. The result is a "tone-on-tone" effect where the unstitched towel pops up through the window, creating contrast through texture rather than color.

This method solves two major beginner nightmares:

1. Legibility: The letter edges are defined by the flattened background, so they never get lost.
2. Stability: The heavy background stitch locks the fabric fibers in place, preventing the classic "towel distortion" where the weave pulls apart.

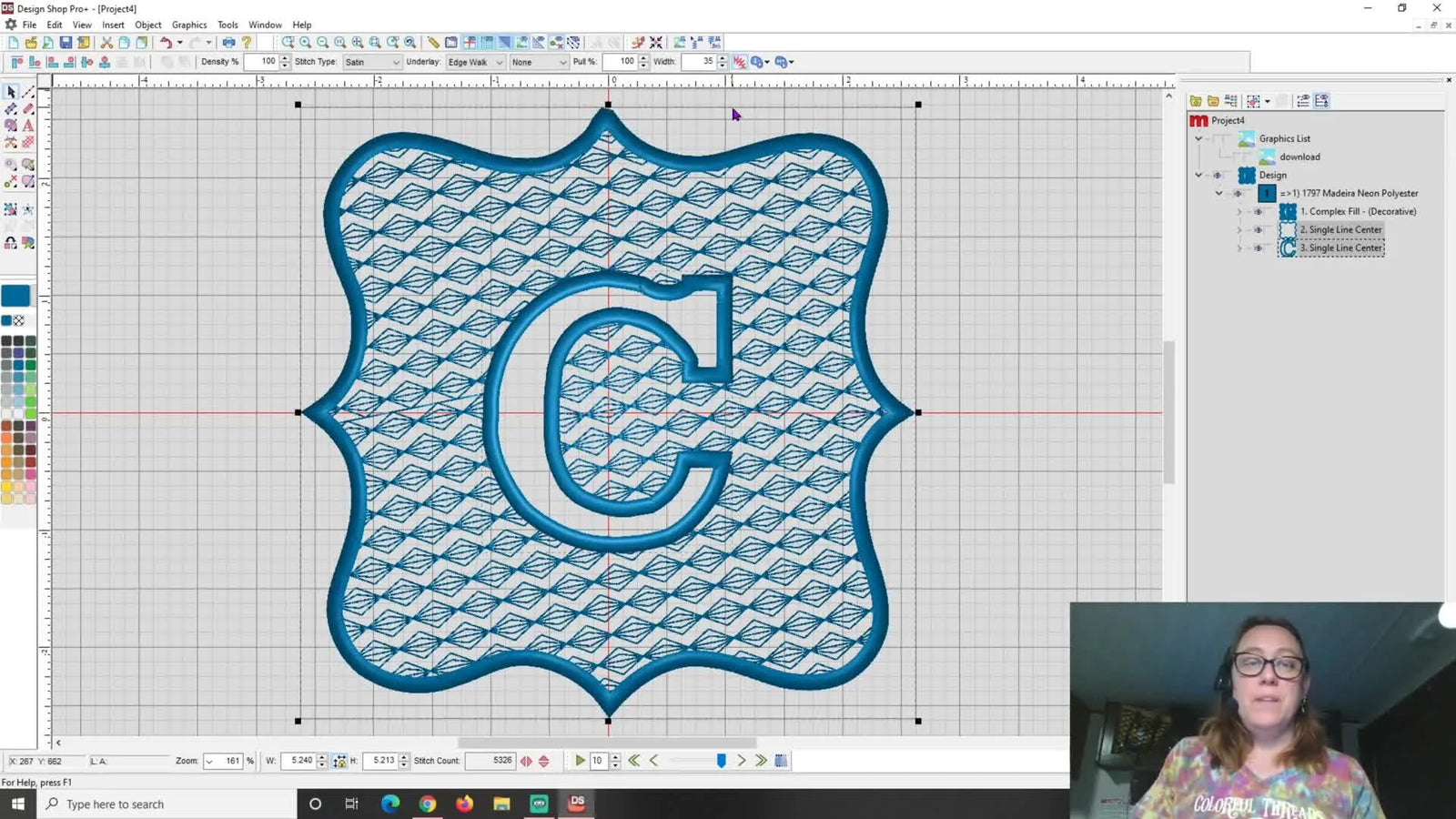

Step 1: Digitizing the Base Shape (The Foundation)

Before we add decorative elements, we need a clean geometry to hold the stitches.

The Trace

1. Import Artwork: Load your desired shape (a "swoopy" organic shape is used here).
2. Complex Fill: Use the Complex Fill tool. Trace the outline.
3. Point Discipline: Do not place nodes too close together. On a towel, a curve defined by 3 points stitches smoother than one defined by 20 points.
4. Hide the Art: Once traced, hide the background image. You must judge the shape object, not the picture.

Expert Insight: The "Towel Tolerance"

Beginners often obsess over pixel-perfect tracing. On a towel, the loop height is often 2mm-3mm. A 0.5mm deviation in your tracing will vanish into the texture. Focus on smooth curves, not microscopic accuracy.

Prep Checklist: Digital Hygiene

• Closed Object: Verify the Complex Fill is a single, closed shape with no accidental gaps.
• Scale Check: Is the shape large enough to contain the letter with at least 15mm of border space?
• Start/Stop: Position entry and exit points logically (usually bottom center to minimize jump stitches later).
• Clean Canvas: The background image is hidden or deleted.

Step 2: The Primer Stitch Selection

The choice of stitch type for the background is critical. A standard Tatami fill can be too stiff, creating a "bulletproof patch" feel. Creating a "Spin" or radial decorative fill is the industry secret for a softer drape.

The "Spin" Setup

1. Select the background object.
2. Open Object Properties.
3. Change stitch type to Decorative.
4. Select a pattern like "Spin".
5. Density: The video keeps the default.
   • Experience Note: Standard density is usually around 0.40mm to 0.45mm. For a knockdown stitch, you want it dense enough to hold loops down, but not so dense it perforates the fabric. If your towel is extremely dense, you may need to tighten density to 0.35mm, but start with defaults to avoid needle breaks.


Why "Spin" Works

A radial or spin fill drives stitches in changing directions. This prevents the fabric from being pulled continuously in one vector (which causes puckering). It also reflects light differently, enhancing the "embossed" luxury look.

Step 3: Creating the Negative Space (The "Cookie Cutter")

This is the specialized step that separates pro software from basic editing tools.

1. Place the Letter: Insert a bold, serif font (like Century). Avoid thin scripts; they don't have enough surface area to "pop" through the pile.
2. Size It: Set height to approx 2 inches. Center it visually.
3. The Subtract Order:
   • Select the Letter FIRST.
   • Hold Shift, Select the Background SECOND.
   • Execute Subtract Elements.
4. Verify: Delete the letter object. You should see a hole in the background.


Troubleshooting: The "Weird Line" Artifact

Complex algorithmic calculations sometimes fail. You might see a random line of stitches cutting across your nice empty letter.

• Symptom: A stitch line bridging the negative space.
• Cause: The software is confused about stitch direction in a complex curve.
• Fix: Use the Stitch Direction tool. Grab the direction handle and rotate it slightly (5-10 degrees). This forces the software to recalculate the pathing, often eliminating the artifact instantly.


Step 4: The Satin Border (The Frame)

A raw fill edge on a towel looks messy. We need a satin border to cap the edges and trap any rogue loops.

1. Select the background shape.
2. Convert outline to Single Line Center.
3. Width Setting: Change width to 35 points (3.5mm).
   • Warning: Do not go below 30 points (3.0mm) on a towel. The pile will swallow a thin border. 35-40 points is the safety zone.
4. Single Line Center vs. Border: "Center" places the column 50% on the fill and 50% on the fabric. This provides the best edge coverage.




The Manual Workaround (For Vector/Standard Software)

If you lack the "Subtract Elements" button, you are not out of luck—you are just paying with time.

1. Place the letter as a template (make it a light color so you can see).
2. Select your background Fill.
3. Use the Hole / Input Hole tool.
4. Manually click points around the letter outline.
5. This creates the same gap. It takes 2 minutes instead of 2 seconds, but the result is identical.


Business Logic: If you are doing one towel a month, the manual method is fine. If you are doing team orders (20+ towels), the time wasted manually tracing holes justifies upgrading your software or outsourcing the digitizing.

Step 5: Physical Setup & Hooping (The Crucial Variables)

Here is where the digital file meets physical reality. Towels are notoriously difficult to hoop because of their thickness.

The Stabilizer Stack

• Backing: Heavyweight Tearaway.
  • Why? Towels are stable fabrics (they don't stretch much). Tearaway provides support during stitching and removes cleanly, leaving the back soft.
  • Note: If the towel has Spandex/Elastane content, switch to Cutaway to prevent distortion.
• Topping: Water Soluble (Solvy).
  • Mandatory: You cannot stitch on towels without topping. The stitches will sink into the pile and vanish. The topping creates a smooth surface for the thread to glide on.

The Tension Setting

• Machine: Melco Multi-needle (or similar).
• Setting: "Sweatshirt" or Looser Tension.
• Physics: You want the bobbin thread to pull the top thread down slightly, but not so tight that it puckers the thick fabric. A standard "Cap" or "Broadcloth" tension is often too tight for plush towels.

Hooping Mechanics

The video demonstrates using a standard clamped hoop. However, for thick materials, this is the biggest pain point.

Setup Checklist: The "Pre-Flight"

• Hoop Fit: Is the hoop large enough so the design doesn't hit the edges?
• Topping Security: Is the water-soluble topping taped down at the corners? If it curls up, the foot will catch it.
• Orientation: rotate the design 180° if necessary. (Towels are often hooped "upside down" to keep the bulk of the fabric outside the machine arm).
• Clearance: Ensure the heavy towel isn't resting on a wall or table that will drag against the Y-axis movement.

Warning (Physical Safety): Towel loops can snag on presser feet. Keep fingers well away from the needle bar. Never reach in to smooth the fabric while the machine is running—a 1000 SPM needle does not forgive.

Hooping Physics: The Argument for Magnetic Frames

Let's talk about "Hoop Burn." When you force a thick towel into a standard two-ring hoop, you have to tighten the screw aggressively. This crushes the towel fibers, often leaving a permanent white ring called "hoop burn." Furthermore, forcing the inner ring can stretch the fabric unevenly.

This is where the industry is shifting toward magnetic embroidery hoops. A magnetic frame (like the MaggieFrame) uses vertical force rather than lateral friction. It clamps the towel without distorting the weave.

• Speed: You eliminate the "loosen screw, adjust, tighten screw, fail, repeat" cycle.
• Consistency: The magnet pressure is uniform.
• No Burn: The flat clamping surface prevents ring marks.

If you are struggling with thick hems or getting towels straight, look into melco magnetic hoops specifically designed for your machine type. It transforms towel embroidery from a wrestling match into a production process.

Warning (Magnet Safety): Industrial magnetic hoops contain neodymium magnets. They are incredibly strong. They can pinch skin severely and damage electronics or pacemakers. Always handle with respect and slide them apart—do not pry.

Step 6: The Stitch-Out (Operation & Quality Control)

Hit start. But don't walk away.

What to Watch and Hear

• The Sound: A towel stitch-out should sound rhythmic—a dull thump-thump. If you hear a sharp slap or high-pitched click, stop immediately. It usually means the needle is deflecting off a dense section or the hoop is hitting the arm.
• The Look: As the primer stitch lays down, you should see the towel loops being flattened. The texture should look intentional.




Operation Checklist: Mid-Run

• Topping Check: Is the topping still covering the design area? (The needle can perforate it excessively).
• Bobbin Check: Look at the back. You should see about 1/3 bobbin thread (white) in the center of simple columns.
• Visual Gap: Is the negative space clean? No thread trailing across the letter?

Decision Tree: Stabilizer & Hoop Selection for Towels

Use this logic flow to avoid failing on your first attempt.

Scenario A: Standard Cotton Bath Towel

• Stabilizer: Heavyweight Tearaway (1 or 2 layers).
• Topping: Solvy (Medium weight).
• Hoop: Magnetic Hoop (Preferred) or Standard Hoop (Loose tension on screw).

Scenario B: Stretchy Microfiber / Hair Wrap

• Stabilizer: Poly-mesh Cutaway (Must create structural stability).
• Topping: Solvy.
• Hoop: Must use tight hooping to prevent stretch; magnetic embroidery frames are safer here to grip without distortion.

Scenario C: Corner Monogram on Thick Hem

• Stabilizer: Tearaway.
• Technique: "Float" method (hoop the stabilizer, spray adhesive, stick the towel).
• Better Way: Use a clamping frame or embroidery hoops for melco that have high clearance for hems.

The Production Reality: Scaling Up

If you successfully stitch one towel, you are a hobbyist. If you stitch 50, you are a manufacturer. The difference is workflow.

As you move into volume production, your body and your equipment become the bottlenecks.

1. Wrist Fatigue: Traditional hooping of 50 towels is physically exhausting. A hooping station for machine embroidery ensures that every towel is placed at the exact same angle and location, reducing the mental load of "eyeballing it."
2. Efficiency: A magnetic hooping station combined with magnetic frames allows you to hoop the next towel while the machine is stitching the current one.
3. Capacity: If your single-needle machine takes 20 minutes per towel (due to color changes or slow speeds), a multi-needle machine like the SEWTECH models can cut that time drastically, allowing you to queue colors and run at higher sustained speeds.

Hidden Consumables List

Don't start without these:

• Duckbill Applique Scissors: Essential for trimming threads inside the negative space without cutting the loops.
• Tweezers: To pull tiny bits of water-soluble topping out of tight corners.
• Lint Roller: The final step before bagging. A towel sheds lint; don't ship a dirty-looking product.

By mastering the "Knockdown" digitizing technique and pairing it with the right physical tools (Solvy and Magnetic Hoops), you turn a frightening project into a predictable, profitable product line.

FAQ

• Q: How do I stop a knockdown towel monogram from looking “sunken” when using water-soluble topping (Solvy) on a plush bath towel?
  A: Use a true knockdown/primer background stitch plus topping, then let the negative space be the “letter” texture.
  • Add a dense-enough primer background (a Decorative “Spin” fill is a safe starting point) before the letter window.
  • Tape down water-soluble topping at the corners so the presser foot cannot lift or snag it.
  • Choose a bold serif letter (thin scripts often disappear into towel pile).
  • Success check: the primer area visibly mats the loops down, and the unstitched letter area reads clearly by texture contrast.
  • If it still fails: tighten primer density slightly (generally in small steps) or increase stabilizer support (1–2 layers tearaway), then re-test.
• Q: What stabilizer stack should I use for an embossed “knockdown” towel design on a standard cotton bath towel versus a stretchy microfiber towel?
  A: Match stability to fabric: cotton towels usually do best with heavyweight tearaway + Solvy topping; stretchy towels generally need cutaway + Solvy topping.
  • Use heavyweight tearaway backing for standard cotton bath towels (add a second layer if the design is large/dense).
  • Switch to cutaway when the towel fabric contains Spandex/Elastane or behaves stretchy.
  • Always add water-soluble topping on the face to prevent stitches from sinking into the pile.
  • Success check: after stitch-out, the towel surface looks controlled (no sinking outlines), and the back shows clean support removal (tearaway) or stable reinforcement (cutaway).
  • If it still fails: re-check hooping stability and confirm the towel bulk is not dragging and distorting the Y-axis movement.
• Q: How do I set multi-needle embroidery machine thread tension for plush towels when the design is puckering or looks too tight on the towel?
  A: Start with a looser “Sweatshirt” style setting rather than a tighter setting commonly used for caps or broadcloth.
  • Select a looser tension preset (commonly labeled “Sweatshirt” on some systems) to avoid over-pulling the thick towel.
  • Inspect the underside during the run instead of waiting for the end.
  • Adjust only one variable at a time (tension first, then stabilizer) to avoid chasing multiple causes.
  • Success check: on the back of satin columns, about 1/3 bobbin thread is visible in the center and the top side is not puckered.
  • If it still fails: confirm the towel is not being stretched by aggressive hoop tightening or by the towel weight pulling outside the arm.
• Q: How do I fix a random stitch line cutting across the negative-space letter after using “Subtract Elements” in Design Shop Pro Plus for a knockdown towel design?
  A: Slightly rotate the stitch direction so the software recalculates the pathing cleanly.
  • Open the Stitch Direction tool on the affected fill object.
  • Rotate the direction handle a small amount (about 5–10 degrees) to force a new stitch route.
  • Re-run a short test to confirm the artifact is gone before committing to the towel.
  • Success check: the letter window stays completely clear with no bridging stitches crossing the empty space.
  • If it still fails: simplify the shape (fewer points/nodes) and re-check the fill is a single closed object with no gaps.
• Q: What satin border width should I use to frame an embossed knockdown design on a towel so the edge does not get swallowed by towel pile?
  A: Use a wider satin border; 35 points (about 3.5 mm) is a proven starting point on towels, and going below 30 points is risky.
  • Convert the outline to a single line center satin column so coverage lands both on the fill and on the towel.
  • Set width to about 35 points (3.5 mm) to trap loops and cap the edge cleanly.
  • Avoid going under 30 points (3.0 mm) because towel pile often hides thin borders.
  • Success check: the border looks continuous and clean with no fuzzy towel loops breaking through the edge.
  • If it still fails: verify topping coverage and confirm the letter style is not too thin for the towel texture.
• Q: What is the safest way to prevent towel loops from snagging the presser foot and needle area during a high-speed multi-needle towel stitch-out?
  A: Treat towel embroidery as a snag-risk job: secure topping, keep hands away during motion, and stop immediately on abnormal sounds.
  • Tape down topping corners so it cannot curl into the presser foot path.
  • Keep fingers away from the needle bar and never reach in to smooth fabric while the machine is running.
  • Stop immediately if the sound changes from a dull rhythmic “thump-thump” to a sharp slap/click.
  • Success check: the run sounds steady and the towel loops are visibly being flattened by the primer stitch without sudden snags.
  • If it still fails: check for hoop clearance issues (hoop hitting the arm) and make sure the towel bulk is not dragging on a table or wall.
• Q: What magnetic hoop safety rules should I follow when using industrial magnetic embroidery frames for thick towels?
  A: Handle industrial magnetic frames as pinch-and-electronics hazards: slide apart carefully and keep magnets away from sensitive devices.
  • Slide magnetic sections apart—do not pry—so fingers do not get caught in the snap.
  • Keep magnets away from electronics and pacemakers; store them with controlled spacing.
  • Use deliberate placement to avoid sudden slam-down on thick hems or bulky folds.
  • Success check: the frame closes in a controlled way with uniform clamping pressure and no sudden pinch events.
  • If it still fails: switch to a slower, two-hand handling routine and reposition the towel bulk so the magnets meet flat-to-flat.
• Q: When towel hooping causes hoop burn, wrist fatigue, or inconsistent placement, what is the step-by-step upgrade path from technique changes to magnetic hoops to a multi-needle machine?
  A: Escalate in levels: optimize stabilizer/topping and hooping first, then use magnetic frames for consistency, then consider a multi-needle machine for production volume.
  • Level 1 (technique): Use heavyweight tearaway (or cutaway for stretch), always add Solvy topping, and ensure the towel bulk is not dragging during stitching.
  • Level 2 (tooling): Use magnetic embroidery hoops/frames to reduce hoop burn and speed up thick towel clamping with uniform pressure.
  • Level 3 (capacity): Move to a multi-needle platform when single-needle color changes and slow speed make towels take too long per piece.
  • Success check: hoop marks reduce, placement becomes repeatable, and stitch-outs become predictable without constant re-hooping.
  • If it still fails: add a hooping station approach for repeatable alignment and re-check that the design is not too close to hoop edges.
