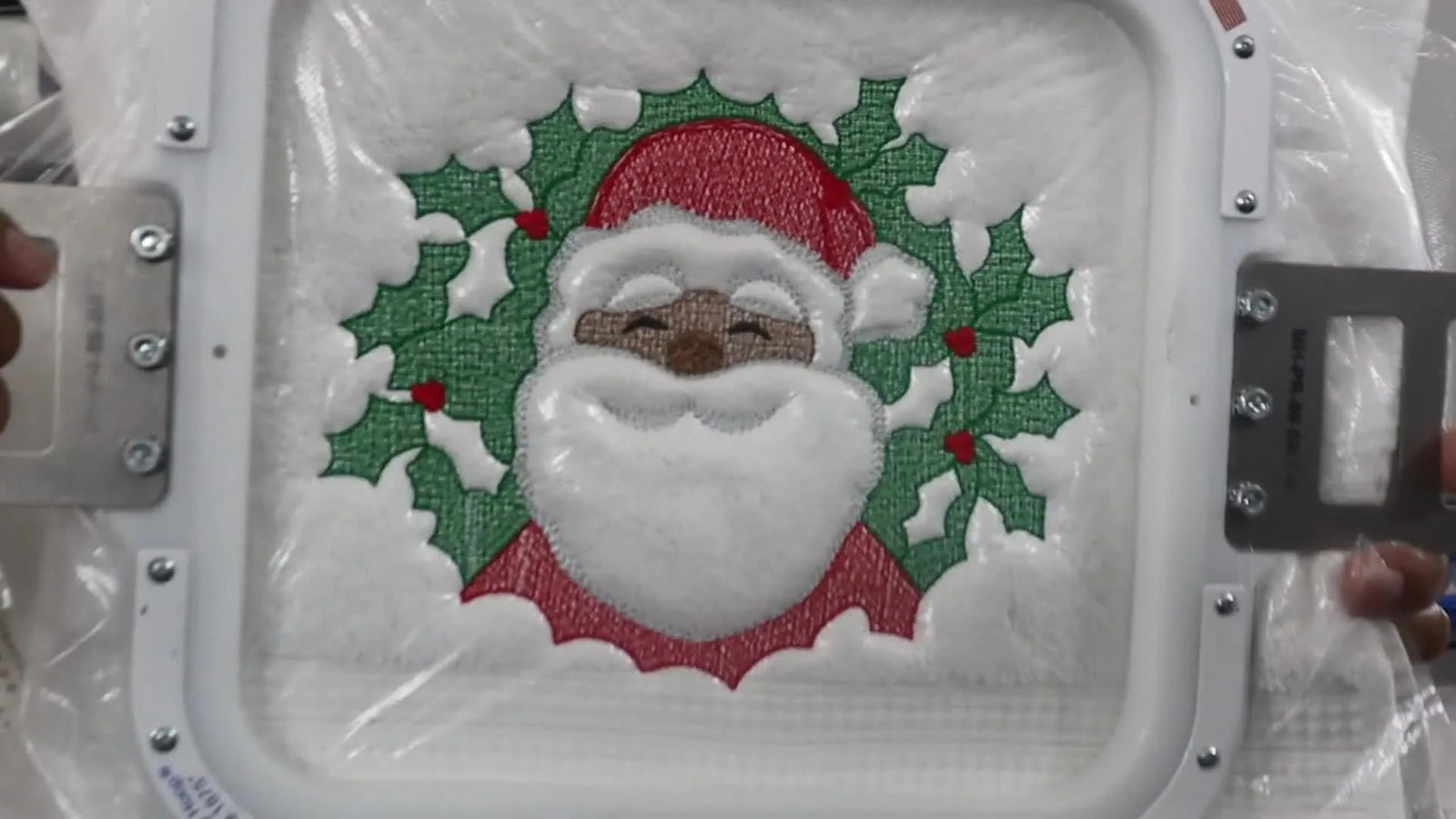

Embossed Santa Towel on a Brother PR1055X: The Magnetic Hoop Method That Keeps Stitches Sitting “On Top”

If you’ve ever stitched on terry cloth and watched your beautiful fill stitches disappear into the loops, you already understand the panic: the design looks great on-screen, but in real life, it turns into a fuzzy, sunken mess where the text is unreadable.

This is the classic "Towel Trap." But the solution isn't magic; it's engineering.

Shirley’s Day 4 Christmas gift idea solves that exact problem with a simple, repeatable formula known in the industry as the "Stabilizer Sandwich." By combining No-Show Poly Mesh (bottom) + plush towel (middle) + water-soluble topper (top)—and clamping it with a magnetic hoop—you create a controlled environment where stitches sit proud (elevated) on the fabric, creating that satisfying "embossed" look.

In this guide, we will break down the physics of why this works, how to execute it safely, and how to use tools like specialized hoops to turn a frustrating struggle into a profitable workflow.

The Physics of Failure: Why Towel Embroidery Feels Scary

Towels are difficult because they are distinct from woven shirts. They are active surfaces. The terry loops are designed to move, absorb, and spring back. When you stitch directly onto them without the right prep, the needle pushes the loop aside, the thread sinks deep, and the surrounding loops spring up to hide your work.

Shirley’s approach works because it controls the towel from both vertical directions:

• From Below (Foundation): The No-Show Poly Mesh provides a stable base that prevents the heavy towel from tunneling (puckering) under the tension of the thread.
• From Above (Suppression): The water-soluble topper acts as a temporary barrier, pressing the loops flat so your stitches land on a smooth surface rather than a jagged landscape.
• The Clamp (Stability): Magnetic clamping secures the bulk without the "tug-of-war" required by traditional friction hoops.


Materials: The "Pro-Standard" Kit

Shirley keeps the supply list tight. Experienced embroiderers know that introducing too many variables on a textured fabric is a recipe for disaster.

The Core Components:

• Fabric: White plush hand towel / terry cloth.
• Stabilizer A (Backing): No-Show Poly Mesh (Soft, strong, doesn't add bulk).
• Stabilizer B (Topping): Clear water-soluble stabilizer (PVA film).
• Hoop: 8x9 Magnetic Hoop (e.g., Mighty Hoop).
• Hardware: Backing fixture/bracket (critical for table-top hooping).

The Hidden Consumables (Don't start without these):

• New Needles: Size 75/11 Ball Point (protects the loops) or Sharp (pierces crisp lines). ensure your needle is fresh; a burred needle will snag terry loops instantly.
• 75/11 Ball Point Needles: Essential to avoid cutting the loops of the towel.
• Micro-serrated Scissors: For cutting the stabilizer cleanly without fraying the towel.

Why No-Show Poly Mesh? Unlike thick cutaway which can leave a "badge" feeling on the back of a soft towel, Poly Mesh is invisible to the touch but strong enough to hold high stitch counts.

The Tool Debate: Magnetic vs. Traditional Hoops

A towel is bulky, springy, and uneven. Traditional friction hoops (inner and outer rings) operate on resistance. To get a towel tight in a traditional hoop, you often have to wrestle the inner ring down, which requires significant hand strength and risks "hoop burn" (permanent crushing of the fibers).

This is exactly why magnetic embroidery hoops have become the industry standard for bulky items.

• The Mechanic: Instead of friction, they use vertical magnetic force.
• The Benefit: The machine snaps shut instantly, accommodating the thickness of the towel without distorting the weave.

Commercial Reality Check: If you are doing one towel for fun, you can struggle through with a standard hoop. However, if you have an order for 50 towels, the wrist strain from manual hooping is a real injury risk.

• Level 1 (Hobbyist): Use a standard hoop, but loosen the screw significantly before hooping.
• Level 2 (Enthusiast/Small Biz): Upgrade to a Magnetic Hoop compatible with your machine (e.g., specific models for Brother, Janome, or industrial machines).
• Level 3 (Volume Production): If you are consistently battling thick garments, this is the trigger to consider SEWTECH Multi-needle Machines or similar industrial upgrades that natively support heavy tubular hooping.


The "Hidden" Prep: Pre-Flight Checks

Embroidery is 90% preparation and 10% stitching. Before you even touch the magnets, you must stage your environment.

1. Measure and Mark: Don't guess. Finding the center of a fluffy towel while it's clamped in a hoop is difficult. Mark your crosshairs using a water-soluble pen or placement stickers before you go to the hoop.

2. The Sensory Check: Run your hand over the towel direction. You want to stitch with the nap if possible, though the topper negates most of this issue.

Prep Checklist (Verify OR Fail):

• Needle Check: Is the installed needle straight and sharp? (Rub a fingernail down the side to feel for burrs).
• Bobbin Check: Do you have enough bobbin thread for a fill-heavy design? (Running out mid-towel is a nightmare).
• Cut Material: Is your No-Show Mesh cut 2 inches wider than the hoop on all sides?
• Environment: Is the table clear? Magnetic hoops will attract pins, scissors, and stray needles. Clear the "Blast Zone."


Hooping Strategy: The "Tabletop Sandwich" method

Shirley demonstrates a crucial technique for stability: using the metal backing fixture (the bracket) on the table.

The Stability Principle: Hooping "in the air" allows gravity to pull the heavy towel down, causing it to slip off-center. By placing the bottom ring into the fixture on the table, you create a solid, immovable anvil.

Action Step:

1. Slot the bottom magnetic ring into the fixture.
2. Listen for the metallic clink—it should sit flush and not wiggle.
3. This fixture effectively becomes your "third hand."


Building the Sandwich: The Layering Layer

This is where the magic happens. Precision here dictates the quality of the final stitch.

Step 1: The Foundation (Mesh)

Drape the No-Show Poly Mesh over the bottom ring.

• Tactile Cue: Smooth it out. It does not need to be tight like a drum skin yet; it just needs to be flat.

Step 2: The Meat (Towel)

Place the towel on top. Align your pre-marked center with the center of the hoop fixture.

• Visual Check: Ensure the towel edges are not bunched up near the magnet contact points.

Step 3: The Shield (Topper)

Place the water-soluble topper on the very top.

• Tip: If you are in a dry environment and the topper builds static, breathe on it lightly or use a dryer sheet on your hands before handling.
• Why it matters: If you search for how to use mighty hoop or similar magnetic systems, you'll find that the magnet strength allows you to float this topper without pinning it, as the clamp will catch it all.


The Clamping: Snap and Seal

With all layers stacked, hover the top magnetic ring over the setup.

The Sensory Anchor: When you lower the top ring, do not hesitate. Let the magnets engage. You will hear a loud SNAP. This sound is the sound of security.

• Safety Rule: Hold the top hoop by the sides, never with fingers underneath. The force of an 8x9 mighty hoop or similar industrial magnet is strong enough to cause severe blood blisters.

Visual Verification: Look at the sandwich from the side. Is the towel sandwiched evenly? If you see "ripples" or "waves" in the towel inside the hoop, pop it off and redo it. Fabric must be taut (flat), but not stretched (distorted).

CRITICAL SAFETY: The "Machine-Killer" Step

This is the most dangerous moment in the process.

The Action: After hooping, you generally must REMOVE the metal backing fixture/bracket from the back of the hoop assembly before taking it to the machine.

Why? The fixture is a hooping aid, not a stitching part. If you attach the hoop to the machine with the heavy metal bracket still clinging to the bottom, it will crash into your machine arm or pantograph. This can bend your machine's frame or shatter the hoop interface.

Warning (Mechanical Hazard): ALWAYS inspect the back of your magnetic hoop before sliding it onto the machine. Ensure the backing fixture is back on your table, NOT on your hoop.
Warning (Magnetic Safety): These magnets are powerful. Keep them at least 6 inches away from pacemakers, credit cards, and computerized machine screens.

Machine Setup: The Safe Zone

Shirley uses a Brother Entrepreneur Pro X PR1055X, a multi-needle beast. However, the rules apply to single-needle machines too.

Needle Restriction Logic: Shirley notes a specific rule: “Don’t use Needle #3 or #10.”

• The Why: On multi-needle machines, the outer needle bars sometimes have less clearance relative to the bulky magnetic hoop clamps. Hitting the hard plastic or metal of a hoop with a needle bar moving at 1000 stitches per minute is a $500 repair bill.
• The Lesson: Know your machine's "No Fly Zone."

Speed Settings (The Sweet Spot):

• Expert Speed: 1000 SPM (Stitches Per Minute).
• Beginner Speed: 600 - 700 SPM.
• Recommendation: Slow down. Towels create friction. Slower speeds reduce thread breakage and heat buildup.

Setup Checklist (Pre-Start):

• Fixture Removed: Back of hoop is clear.
• Hoop Clicked In: You physically felt the hoop arms lock into the machine pantograph.
• Needle Clearance: You have traced the design (Trace function) to ensure the needle never gets closer than 5mm to the magnetic frame.
• Needle Rule: You are avoiding the "danger needles" for your specific brother pr1055x or similar machine setup.


The Stitch-Out: Watching the "Pop"

As the machine runs, observe the fill stitch.

What to look for: The topper should be looking hammered down. You want to see the thread sitting on top of the plastic film.

• Good Sign: The embroidery looks slightly "raised."
• Bad Sign: You see loops of terry cloth poking through the fill stitch. This means your density is too low or your topper moved.

Data Point - Stitch Density: For towels, standard density (usually 0.4mm spacing) is fine, but if you are designing your own file, bumping the density up by 10-15% helps create a solid cap over the loops.

If you are using magnetic hoops for brother pr1055x or other high-speed machines, watch the vibration. Towels are heavy. If the towel is flopping around, use clips to secure the excess fabric so the weight doesn't drag on the pantograph.

Finishing: The Reveal

Once the stitching stops, remove the hoop.

The Tear-Away:

1. Top: Gently tear away that water-soluble topper. Tip: Tweezers are great for picking out the tiny islands of plastic inside letters (e, a, o). Use a wet Q-tip to dissolve any stubborn remaining bits.
2. Bottom: Trim the excess No-Show Mesh. Do not cut it flush to the stitch; leave about 1/4 inch border. It's soft, so it won't irritate the skin.


Troubleshooting Guide: From Symptom to Cure

Pro Tip on Hoops: If you are constantly fighting hoop burn or setup time, exploring the ecosystem of mighty hoop or other high-quality magnetic frames is a valid research path. They are an investment, but they solve the "Physical Force" problem of hooping.

Decision Tree: Fabric vs. Stabilizer

Don't guess. Use this logic flow to determine your loadout.

Start Here:

1. Is the fabric textured (Towels, Velvet, Fleece)?
   • YES: You MUST use a Water Soluble Topper. Go to 2.
   • NO: Topper is optional.
2. Is the fabric stretchy?
   • YES: Use No-Show Mesh or Cutaway. (Tearaway will result in distorted designs).
   • NO: Tearaway is acceptable (but Mesh is softer).
3. Is the item worn against skin?
   • YES: Use No-Show Mesh (Softest option).
   • NO: Standard Cutaway is fine.

Commercial Scaling: When to Upgrade

There comes a point where skill isn't the bottleneck—equipment is.

If you find yourself spending 5 minutes hooping a towel and only 2 minutes stitching it, your ratio is broken.

• The Upgrade: Magnetic hoops reduce hooping time to roughly 15-30 seconds.
• The Scale: If you are moving from "Gifts for friends" to "Corporate orders," upgrading to a capable multi-needle machine (like the SEWTECH line of specialized equipment or similar industrial models) allows you to use these tubular magnetic hoops natively, essentially printing money by removing the "hooping labor" cost.

If you are researching a magnetic hoop for brother, remember: the ROI (Return on Investment) comes from the speed of the "Snap," not just the quality of the stitch.

Operation Checklist (Project Close-Out):

• Clean Reveal: All topper removed? (Mist with water if needed).
• Backside Check: Is the mesh trimmed neatly? messy backsides feel "cheap."
• Hoop Check: Did you put the metal backing fixture back on the table?
• Needle Check: Is the specific needle used still sharp, or did the heavy towel dull it? (Replace after 8 hours of use).




FAQ

• Q: How do I prevent fill stitches from sinking into terry cloth towel loops when embroidering towels on a Brother PR1055X?
  A: Use a stabilizer sandwich: No-Show Poly Mesh on the bottom + towel in the middle + water-soluble topper on top, then hoop firmly (magnetic clamping helps a lot).
  • Cut No-Show Poly Mesh at least 2 inches wider than the hoop on all sides.
  • Place water-soluble topper fully covering the design area before clamping the hoop.
  • Slow the machine down to 600–700 SPM if thread breaks or the towel drags.
  • Success check: stitches look slightly raised and sit on top of the topper film, with minimal terry loops poking through.
  • If it still fails: increase design density about 10–15% (if you control the file) or add a larger/more secure topper layer.
• Q: How can I tell if a towel is hooped correctly in an 8x9 magnetic embroidery hoop before stitching starts?
  A: The towel must be flat and evenly clamped—taut but not stretched—before the hoop ever goes on the machine.
  • Look from the side and re-hoop if you see ripples, waves, or uneven sandwich thickness.
  • Align the pre-marked center crosshair to the hoop center before the magnets snap shut.
  • Hold the top ring by the sides and lower it decisively to clamp all layers evenly.
  • Success check: the hoop closes with a solid “snap,” and the fabric surface inside the hoop is smooth with no distortion lines.
  • If it still fails: use a tabletop hooping fixture/bracket so gravity can’t pull the towel off-center during hooping.
• Q: What pre-flight checklist should be done before embroidering a plush towel with No-Show Poly Mesh and water-soluble topper?
  A: Do a quick needle–bobbin–materials–workspace check before hooping; towels punish skipped prep.
  • Replace with a fresh 75/11 needle (ball point to protect loops, or sharp for crisp lines) and confirm it’s straight and not burred.
  • Confirm enough bobbin thread for a fill-heavy design to avoid running out mid-towel.
  • Clear the table “blast zone” because magnetic hoops attract pins, scissors, and stray needles.
  • Success check: towel center is marked before hooping, mesh is cut oversized, and the work area is free of metal objects that could jump to the hoop.
  • If it still fails: re-check for a snagging/burred needle first—towel loops show damage immediately when a needle is compromised.
• Q: What is the correct way to use a magnetic hoop backing fixture/bracket for tabletop hooping, and what is the machine-crash risk?
  A: Use the backing fixture only as a hooping aid on the table, then remove it before mounting the hoop on the embroidery machine.
  • Seat the bottom ring into the fixture until it sits flush and does not wiggle.
  • Hoop the stabilizer + towel + topper while the bottom ring is supported on the table.
  • Remove the metal backing fixture/bracket from the hoop assembly before sliding the hoop onto the machine.
  • Success check: the back of the hoop is completely clear (no metal fixture attached) before the hoop clicks into the pantograph.
  • If it still fails: stop and inspect again—stitching with the bracket attached can crash into the machine arm/pantograph and cause major damage.
• Q: How do I prevent needle strikes and hoop collisions when using a magnetic hoop on a Brother Entrepreneur Pro X PR1055X?
  A: Avoid low-clearance needle positions and always trace the design to confirm the needle stays safely away from the magnetic frame.
  • Follow the practical restriction: don’t use Needle #3 or Needle #10 on setups where clearance is tight.
  • Run the machine “Trace” function and verify at least ~5 mm clearance from the magnetic hoop/frame throughout the design path.
  • Reduce speed to 600–700 SPM if you are new to towels or if vibration increases.
  • Success check: the trace completes without approaching the frame, and the machine runs without clicking/impact sounds near the hoop.
  • If it still fails: emergency stop and re-position the design or switch to a safer needle position before continuing.
• Q: What magnetic hoop safety rules prevent finger injuries and device/card damage when using strong embroidery magnets?
  A: Treat magnetic hoops like a clamp tool: keep fingers out of the pinch zone and keep magnets away from sensitive items.
  • Hold the top ring by the sides—never place fingers underneath when lowering the ring.
  • Lower the ring decisively and expect a strong snap; don’t “ease” fingers into the closing gap.
  • Keep magnets at least 6 inches away from pacemakers, credit cards, and computerized machine screens.
  • Success check: the hoop closes cleanly without pinching, and no loose metal items jump to the hoop on the table.
  • If it still fails: clear the workspace again and slow down the hooping motion—most pinches happen when hands hover under the ring.
• Q: If towel hooping takes 5 minutes and stitching takes 2 minutes, what is the practical upgrade path for embroidery production efficiency?
  A: Use a tiered approach: optimize technique first, then reduce hooping labor with magnetic hoops, then consider a multi-needle machine when volume makes labor the bottleneck.
  • Level 1: loosen a traditional hoop screw significantly before hooping to reduce struggle and hoop burn risk.
  • Level 2: switch to a compatible magnetic hoop to cut hooping time to roughly 15–30 seconds per towel.
  • Level 3: if towel orders are frequent/high-volume, a multi-needle machine (such as SEWTECH-class production machines) often makes thick-item workflows smoother and faster.
  • Success check: hooping time drops dramatically while placement accuracy and stitch quality remain consistent across multiple towels.
  • If it still fails: time each step—if re-hooping or collisions are the real time sink, focus next on tracing/clearance rules and hooping fixture discipline.
