Embird for Beginners, Minus the Headaches: Manager vs Editor vs Studio, the 20% Resize Trap, and Clean Stitches That Actually Sew Out

If Embird feels like “three programs in a trench coat,” you’re not alone. I’ve spent two decades training everyone from home hobbyists to industrial factory managers, and the initial reaction is always the same: beginners open Manager, don't see "digitizing," and assume something is broken.

It isn't broken. It’s modular.

Here’s the calm truth: Embird is a workflow, not just a canvas. Manager keeps you organized, Editor allows for limited manipulation of existing stitch files, and Studio is where the actual architecture of digitizing happens.

This article rebuilds the standard tutorial into a "Shop Floor Standard" guide. We will cover the pitfalls I’ve watched people hit for 20 years—density disasters, resizing mistakes that break needles, and the crucial distinction between "editing" and "creating."

Embird Manager (File Browser) — Use It to Stay Organized, Not to “Fix” Stitches

Embird Manager is exactly what it looks like: a file management hub. You can navigate folders, preview designs, print templates, zip files, and convert formats. However, you cannot manipulate stitches here.

That limitation is a feature, not a flaw. In a professional shop, the fastest way to ruin a production run is to “edit wherever you happen to be.” Manager keeps your library clean so you always know which version is the "Golden Master."

The "Safe-Zone" Folder Structure

Chaos in your files leads to errors on the machine. Adopt this structure to reduce cognitive load:

• /01_Original_Downloads: (Read-Only access. Never save over these.)
• /02_Working_Files: (Contains .EOF files and vector artwork.)
• /03_Machine_Ready: (Contains only the final PES/DST/JEF exports.)
• /04_Customer_Proofs: (PDFs and approval markups.)

By separating your inputs from your outputs, you prevent the heartbreak of saving a resized, density-corrupted file over your high-quality original.

Embird Editor (Stitch File Editing) — The 20% Resize Rule That Saves Needles and Sanity

Editor is where you load an existing design (like a purchased PES or DST) to make final adjustments. The video demonstrates 3D viewing, stitch simulation, and hoop selection.

However, there is an "Iron Law" of editing stitch files that you must respect:

The 20% Rule: Never resize a stitch file (PES/DST/JEF) more than 10-20% up or down.

The Physics of Why Stitches Fail

Why such a strict limit? Because a stitch file is not a blueprint; it is a brick wall. The bricks (stitches) are already laid.

• Scaling Down > 20%: You are cramming the same number of bricks into a smaller room. Density spikes, needles deflect, and thread shreds.
• Scaling Up > 20%: You are stretching the gaps between bricks. The fabric shows through, and satin columns turn into loose loops that snag.

Expert Sweet Spot: If you need to resize by 50%, you do not use Editor. You must go to Studio (digitizing) or use a file specifically digitized for that size.

Use 3D View + Stitch Simulator Like a Pre-Flight Check

The stitch simulator is your cheapest insurance policy. Before a single thread touches fabric, run the simulator at high speed.

Visual Anchors – What to Look For:

1. The "Bird's Nest" Warning: Do you see the cursor moving back and forth over the same spot 5+ times? That is a knot waiting to happen.
2. The Jump Stitch Trap: Look for long distinct lines connecting separate objects. If your machine doesn't auto-trim, you will need to cut these by hand.
3. Layer Order: Does the background stitch after the outline? If so, your registration will be off.


Hoop Size Isn’t Just a Menu Choice—It’s a Quality Decision

The video demonstrates changing hoop size to a standard 5x7. In the software, this is just a visual boundary. In reality, the hoop is the physical foundation of your embroidery.

The "Pain Point" of Standard Hooping: Traditional screw-tighten hoops rely on friction. To get the fabric taut (like a drum skin), you often have to pull and tug, which distorts the fabric grain. When you unhoop, the fabric relaxes, and your perfect circle becomes an oval. This is often blamed on the software, but it is a physical failure.

The Commercial Solution: If you find yourself constantly re-hooping because the fabric slipped, or if you are getting "hoop burn" (shiny crushed rings) on delicate items, this is where tools matter. Professional shops mitigate this by using a brother 5x7 magnetic hoop (or the equivalent for your machine brand). Magnetic hoops hold the fabric flat without the "tug-of-war" distortion, making them ideal for precise edits where the digital file needs to match the physical reality perfectly.

Density Map: Yellow Is a Warning, Red Is a Stop Sign

The Density Map is a heat map for needle impact.

• Blue/Green: Safe (Standard density is usually ~0.4mm spacing).
• Yellow: Caution. Acceptable for short durations.
• Red: Danger Zone.

Critical Safety Warning: If you see a solid red block in the Density Map, do not sew it. A red zone implies multiple layers of stitching occupying the same coordinates. This builds up heat, melts polyester thread, and can violently snap a needle, sending debris flying. Reduce density or remove hidden underlying layers before proceeding.

The “Hidden” Prep Before You Digitize Anything in Embird Studio

Most beginners jump straight into Studio, digitize a logo, sew it, and watch it pucker. They blame the digitizing. Usually, the issue is Stabilization mechanics.

Prep Checklist (The "Check or Fail" Routine)

• File Type Audit: Are you opening a Stitch File (PES/DST - restricted editing) or a Digitizing File (EOF - full control)?
• Needle Freshness: Can you feel a burr on your needle tip with your fingernail? If yes, replace it. A burred needle shreds thread regardless of digitizing quality.
• Hoop Tension Check: Tap the hooped fabric. Does it sound like a dull thud (too loose) or a crisp drum (correct)?
• Stabilizer Match: Have you consulted the Decision Tree below?
• Speed Limit: For the first test run, cap your machine speed at 600 SPM (Stitches Per Minute). Speed amplifies errors; slowness reveals them.

If you are running multiple test swatches (which is necessary for learning), the physical strain on your wrists from standard hoops adds up. This is explicitly why many intermediate users switch to embroidery hoops magnetic systems—it reduces the "setup friction," encouraging you to run that one extra test that makes the difference between "okay" and "perfect."

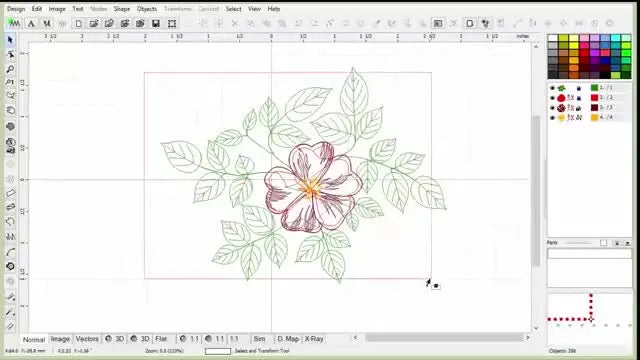

Embird Studio (Digitizing) — Why .EOF Is the File That Actually Lets You Scale Cleanly

Studio is the engine room. This is where you create the "Blueprint" (.EOF file).

The Core Concept:

• .EOF (Embird Outline Format): Vectors and Objects. It says "Fill this circle with red." When you resize it, the software recalculates the math to keep density perfect.
• .DST/.PES (Machine Format): Coordinates. It says "Move X+10, Y+5, Drop Needle." It does not know it is making a circle.


The “Generate Stitches” Button Is Your Reality Check

In Studio, you are working with wireframes. The "Generate Stitches" button (often a lightning bolt icon or Ctrl+G) compiles that wireframe into thread data.

Workflow Rhythm:

1. Draw Object (nodes and curves).
2. Set Parameters (Density: 4.0-4.5 lines/mm; Pull Comp: 0.2mm).
3. Action: Generate Stitches.
4. Sensory Check: 3D Preview. Does it look solid?
5. Repeat.


Layering: Start From the Back, But Don’t Stack Forever

The video warns against too many layers. In cognitive terms, think of embroidery like painting with string.

The "3-Layer Cap": Try never to stack more than 3 layers of thread on top of each other (e.g., Fill Background + Satin Detail + Text).

• Layer 1: The foundation (Underlay + fill).
• Layer 2: The detail.
• Layer 3: The highlight.
• Layer 4+: Risk of needle deflection and bullet-proof stiffness.

If your design looks "thin," do not just add a second layer of fill! Instead, increase the density of the single layer or change the "Underlay" type to a Tatami or Double-Zigzag mesh. This builds structure without bulk.

Fill + Hole Tools in Embird Studio — Clean Shapes, Clean Negative Space

To save thread and reduce "bullet-proof" patches, you must cut holes in your background where foreground objects will sit.

The Sequence (Memorize This):

1. Draw the large shape (e.g., a donut).
2. Select that shape. (Crucial step).
3. Click the "Hole" tool.
4. Draw the inner circle.
5. Regenerate Stitches.


Why Can't I See the Hole?

If the hole doesn't appear after you draw it, you missed Step 5. wireframes update instantly, but stitches require a command to recalculate.

The Pull Compensation Factor: When cutting a hole for an inner object (like a name inside a patch), you must account for "Pull." The fabric will shrink inward as stitches tighten.

• Rule: Overlap your inner object and the background hole by at least 0.3mm - 0.5mm. If they line up perfectly on screen, you will have a gap on the fabric.

The Carving Tool — Add Texture Without Adding Bulk

Carving allows you to draw invisisble lines through a fill block to create texture—like the veins of a leaf—without adding new thread colors.

Expert Tip: Use carving to control fabric push. Stitches tend to push fabric in the direction of the stitch angle. Carving lines can act as "stress relief" breaks in large fill areas, reducing the warping effect on t-shirts.

Outlines in Embird Studio — Satin vs Sketch vs Motif (And When Satin Will Betray You)

The video covers outline options like Redwork, Triple Bean, and Motif stitches. Your choice here defines durability.

The Stitch Width Safety Index:

• Running Stitch: Use for details smaller than 1mm.
• Satin Column (1.5mm - 7mm): The standard "glossy" border.
• Satin Danger Zone (< 1mm): Too narrow. The needle penetrations are so close they will cut the fabric like a postage stamp perforation. Use a Bean Stitch instead.
• Satin Danger Zone (> 8mm): Too wide. These long loose threads (floats) will snag on zippers and jewelry. Use a Pattern Fill or Motif instead.

Answering a common user question about "French Knot" eyes: As noted in the video comments, use Motif Stitches (specifically Candlewicking options) to create small, raised circular bumps. This is safer than manually piling up stitches, which creates a hard knot that breaks needles.

Applique + Border Tools — Let Embird Automate the Boring Parts (Correctly)

Applique is the art of using fabric instead of thread to cover area. The Applique tool automates the three critical passes.

Verify the Auto-Sequence:

1. Placement Line (Run): Shows you where to put the fabric. Machine Stops.
2. Tack Down (Double Run/Zigzag): Sews the fabric down. Machine Stops for trimming.
3. Cover Stitch (Satin): Seals the raw edge.

Efficiency Note: If you are doing applique patches in bulk, precise placement of that initial fabric scrap is key. Slippage here ruins the final satin edge. This is where physical tools complement software: a stable hooping station for machine embroidery ensures that your stabilizer and fabric are perfectly aligned every time, matching the precision of the digitizing coordinates.

Setup Checklist (Digital Pre-Flight)

• Density Audit: Check Density Map. Are there Red zones?
• Pull Comp: Is "Pull Compensation" turned on? (Standard starts at 0.2mm or 0.3mm).
• Start/Stop: Are the start and end points of the design logical (usually center or bottom)?
• Color Sort: Minimizing thread changes saves time. (Studio > Edit > Optimize Color Changes).
• Format: Export to the distinct format your machine reads (PES for Brother, DST for commercial).

Decision Tree: Fabric → Stabilizer (Backing) Choices for Cleaner Test Sew-Outs

Software cannot fix poor physics. Use this logic gate to choose your stabilizer.

1) Is the fabric stretchy? (T-shirts, Polos, Hoodies, Knits)

• YES: You must use Cutaway stabilizer.
  • Why: Knits have no structure. Tearaway will disintegrate after 500 stitches, causing the design to distort. Cutaway holds the shape forever.
• NO: Go to step 2.

2) Is the fabric unstable or sheer? (Silk, Rayon, loose weave)

• YES: Use No-Show Mesh (Cutaway). It provides support without looking like a stiff board.

3) Is the fabric stable? (Denim, Canvas, Twill caps)

• YES: You can use Tearaway stabilizer. The fabric supports itself; the backing is just for the hoop interaction.

4) Is the fabric fluffy? (Towels, Fleece, Velvet)

• YES: You need a Water Soluble Topper (Solvy) on top.
  • Why: Without a topper, your stitches will sink into the pile and disappear.

Troubleshooting the Problems Viewers Keep Asking About (Symptoms → Causes → Fixes)

Note on Color Changes

Don't obsess over hex codes on screen. Screens emit light; thread reflects light. The colors will never match perfectly. Trust your physical thread chart, not the monitor.

The “Why” Behind the 20% Rule (So You Stop Fighting Density Forever)

To master this, you must understand the difference in data types:

• Stitch Files (PES/DST): Think of these as a connect-the-dots drawing where the dots are already drawn in ink. If you shrink the page, the dots merge into a blob (high density). If you stretch it, the dots move apart (gaps).
• Object Files (EOF): Think of this as a mathematical instruction: "Draw a circle with dots spaced 0.4mm apart." If you resize the circle to the size of a billboard, the math simply adds more dots to maintain the 0.4mm spacing.

Conclusion: Always archive your .EOF files. They are your only way to truly resize a logo for a hat (small) vs. a jacket back (large) without destroying quality.

The Upgrade Path (When You’re Ready to Work Faster, Not Harder)

Once you master the software, the bottleneck will shift to your physical environment. You will notice that "hooping" takes longer than "sewing."

Here is the hierarchy of production upgrades:

1. Level 1 (Technique): Use the correct Cutaway stabilizer and temporary spray adhesive to prevent fabric shifting.
2. Level 2 (Tooling): If you struggle with hoop burn or wrist fatigue from screw-hoops, professionals rely on how to use magnetic embroidery hoop systems to snap fabric in place instantly. This is the single biggest "quality of life" upgrade for single-needle users.
3. Level 3 (Scaling): If placement consistency is costing you money (crooked logos), a hoop master embroidery hooping station systematizes the placement, ensuring every shirt is identical.

Magnet Safety Warning: Commercial magnetic hoops are incredibly powerful (Industrial Neodymium).
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Health: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not rest the magnet on your laptop or phone.

Operation Checklist (Your First Clean Embird Test Sew-Out)

Before you press "Start," run this final diagnostic:

• Format Check: Is the file exported to the correct extension (e.g., .PES)?
• Bobbin Check: Is your bobbin full enough to finish the job? (Sound check: Drop the bobbin in; pull the thread. It should spin smoothly, not rattle).
• Hooping: Is the fabric taut? If using embroidery hoops magnetic, ensure the magnets are seated fully against the frame edges.
• Clearance: Rotate the handwheel manually to ensure the needle bar doesn't hit the hoop frame (Trace function).
• Observe: Watch the first 100 stitches. If you hear a rhythmic "thump-thump," your needle is dull or hitting something. Stop immediately.


A Final Reality Check: Embird Gets Easy After You Stop Using the Wrong Module

If you take nothing else from this guide, remember the division of labor:

1. Manager is for Organization.
2. Editor is for minor tweaks (Rotations / <20% Resizing).
3. Studio is for creation and true resizing.

Once you stop trying to "digitize" inside Editor, the frustration evaporates. Your designs get cleaner, your density issues disappear, and your machine stops eating shirts.

FAQ

• Q: In Embird Manager, why can’t Embird Manager edit stitches in PES/DST/JEF files when the design preview looks correct?
  A: Embird Manager is a file browser and converter, not a stitch editor—open the file in Embird Editor or Embird Studio for changes.
  • Open: Launch Embird Editor to view/simulate and make minor adjustments, or Embird Studio to digitize and rebuild objects.
  • Organize: Keep “Original_Downloads” read-only and export only final machine files into “Machine_Ready” to avoid overwriting a good master.
  • Success check: The same design shows editable stitch/object tools only after opening in Editor/Studio (not in Manager).
  • If it still fails: Confirm the file type—PES/DST/JEF is stitch-based (limited), while EOF is object-based (full control).
• Q: In Embird Editor, why does resizing a PES/DST/JEF design more than 20% cause thread shredding or needle breaks on multi-needle embroidery machines?
  A: Do not resize stitch files more than 10–20% in Embird Editor; for large size changes, use Embird Studio (EOF workflow) or a file digitized for that size.
  • Stop: Revert to the original file if the design was scaled beyond 20%.
  • Inspect: Use Density Map—solid yellow is caution, solid red means “do not sew.”
  • Redo: If a 50% resize is needed, digitize/rebuild in Studio and regenerate stitches.
  • Success check: Density Map stays mostly blue/green and the stitch simulation does not hammer the same point repeatedly.
  • If it still fails: Reduce density or remove hidden overlapping layers before sewing.
• Q: In Embird Studio, why does the Hole tool not create a visible hole in the stitched preview after drawing the inner circle?
  A: After using the Hole tool, regenerate stitches—wireframes update instantly, stitches do not.
  • Select: Click the base fill object first (the background shape) before choosing the Hole tool.
  • Draw: Create the inner boundary, then click Generate Stitches (Ctrl+G / lightning bolt) to compile changes.
  • Allow: Overlap the inner object and the hole by about 0.3–0.5 mm to account for pull.
  • Success check: The 3D preview shows clean negative space with no unintended fill stitches inside the hole.
  • If it still fails: Verify the correct object is selected and regenerate stitches again before exporting.
• Q: On machine embroidery test sew-outs, what hoop tension standard prevents fabric distortion and “gaps between outline and fill” when using Embird exports?
  A: Hoop the fabric “drum tight” and stabilize correctly—most outline/fill gaps are physical pull and stabilization issues, not software errors.
  • Tap: Check hoop tension by tapping the hooped fabric; aim for a crisp “drum” sound, not a dull thud.
  • Match: Follow fabric-to-stabilizer logic (knits = cutaway; stable fabrics = tearaway; fluffy fabrics = add water-soluble topper).
  • Preview: Run stitch simulation first and keep first test speed around 600 SPM to reveal issues early.
  • Success check: Circles sew as circles (not ovals) and outlines sit snug against fills without visible daylight.
  • If it still fails: Add/adjust pull compensation in Studio or use a compensation/thickness approach instead of increasing layers blindly.
• Q: What is the safest way to interpret the Embird Density Map colors to avoid needle snap hazards during embroidery?
  A: Treat yellow as a warning and red as a stop sign—do not sew solid red density zones.
  • Scan: Open Density Map before sewing; locate any solid red blocks (multiple stitch layers in the same coordinates).
  • Fix: Reduce density and remove hidden/stacked layers instead of adding more fill.
  • Test: Sew a slow test run first (about 600 SPM) to confirm behavior before full speed production.
  • Success check: Density Map shows mostly blue/green, and the first 100 stitches run smoothly without harsh punching or overheating.
  • If it still fails: Redesign the layering strategy (aim for a 3-layer cap) and regenerate stitches.
• Q: What magnet safety steps are required when using industrial magnetic embroidery hoops to prevent finger pinch injuries and device interference?
  A: Magnetic hoops can snap hard—keep fingers out of the closing zone and keep magnets away from medical implants and electronics.
  • Clear: Keep fingertips fully outside the frame edge before seating magnets.
  • Distance: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Protect: Do not place magnets on laptops or phones during setup.
  • Success check: Magnets seat fully against the frame edges without “rocking,” and no fingers are near the snap path during closure.
  • If it still fails: Slow down the hooping motion and reposition the fabric/stabilizer so the magnets meet evenly rather than at an angle.
• Q: When hooping takes longer than stitching and hoop burn keeps happening, what is the practical upgrade path from technique to tooling to higher production capacity?
  A: Use a tiered approach: fix technique first, then reduce hooping friction with magnetic hoops, then systematize placement with a hooping station if consistency is costing time.
  • Level 1: Use correct cutaway stabilizer on knits and temporary spray adhesive to prevent shifting during test runs.
  • Level 2: Switch from screw hoops to magnetic hoops when hoop burn, fabric slippage, or wrist fatigue causes repeated re-hooping.
  • Level 3: Add a hooping station when logo placement consistency (crooked/variable positions) becomes the main bottleneck.
  • Success check: Hooping becomes repeatable with fewer re-hoops, and the first sew-out lands correctly without crushed hoop rings.
  • If it still fails: Re-audit hoop tension, stabilizer choice, and slow the first run to 600 SPM to isolate whether the issue is placement, pull, or density.
