EL Digitizer’s “10% Tools” Promise—How to Turn Faster Digitizing into Cleaner Stitch-Outs (Without Getting Burned by Hooping or Pricing)

If you have ever opened a digitizing program and felt your brain melt—faced with toolbars everywhere, tiny cryptic icons, and a workflow that seems designed to punish beginners—you are not alone. In my 20 years on the production floor, I have watched thousands of aspiring embroiderers hit this exact wall: the creativity is there, the desire is burning, but the cold, complex software interface freezes them in their tracks.

In Embroidery Legacy’s recent breakdown, John Deer introduces EL Digitizer, built around a philosophy that resonates with cognitive psychology: reduce the cognitive load. The idea is to show you the "10% of tools you use 90% of the time" and hide the rest. This sounds like marketing fluff until you connect it to the hard reality of a shop floor: fewer clicks mean fewer decisions, and fewer decisions mean fewer mistakes that lead to the dreaded sound of a machine grinding to a halt.

Below is a reconstructed, "Industry White Paper" level guide to this workflow. We will move beyond the demo to discuss the empirical realities of stitch density, the physics of stabilization, and the commercial upgrades that actually solve the bottlenecks software can't touch.

The Panic-to-Progress Primer: What EL Digitizer Is (and What It Isn’t) When You’re Trying to Stitch for Real

EL Digitizer creates a clear "safe zone" for intermediate users who understand stitch types (columns vs. fills) but are tired of fighting the interface. However, as an educator, I must calibrate your expectations.

The Hard Truth: No software—no matter how intuitive—can "auto-fix" physical variances in your setup. If you digitize a perfect file but hoop your fabric loosely, you will fail. If you select the wrong stabilizer, you will fail.

Think of software as the sheet music and your machine setup as the instrument. You can write a masterpiece, but if the instrument is out of tune, it will sound terrible. Even if you are running a high-end industrial workhorse like a tajima embroidery machine, the speed gains from the software are real only if your machine-side workflow (hooping tension, backing selection, and thread path) is equally disciplined.

The “Hidden” Prep Pros Do Before They Even Click ‘New Design’ (So the First Sew-Out Isn’t a Surprise)

Amateur digitizers start by drawing. Professional digitizers start by auditioning the substrate. Before you touch a single vector node, you must define the physical environment your stitches will live in.

The video demonstrates designs on garments and caps. This distinction is critical because fabric physics dictates your strategy. A standard fill stitch that looks smooth on denim will turn a stretchy performance tee into a puckered mess.

The "Hidden Consumables" You Must Have

Beginners often focus on the machine and the software but neglect the chemistry and tools that make the job possible. Ensure you have:

• Temporary Spray Adhesive (e.g., KK100): For floating stabilizers.
• 75/11 Ballpoint Needles: Essential for knits to avoid cutting fibers.
• Water Soluble Topping: The secret weapon for towels and textured knits (prevents stitches from sinking).

Prep Checklist: The "Go/No-Go" Pre-Flight

Perform these physical checks before opening the software.

• Substrate ID: Is it stable (denim/twill) or unstable (knit/spandex)?
• Hooping Strategy: Will you use a tubular hoop (mark potential hoop burn risk) or a magnetic frame?
• Needle Check: Run your fingernail down the needle shaft. If you feel a catch/burr, replace it immediately.
• Bobbin Tension: Pull the bobbin thread. It should feel like the slight resistance of pulling dental floss. If it slides freely, tighten it.
• Consumable Match: Do you have the correct Cutaway (for knits) or Tearaway (for wovens) stabilizer on hand?

Warning: Embroidery involves high-speed mechanical needles and sharp trimming tools. Always keep fingers clear of the needle bar area during operation. Power down your machine completely before changing needles to prevent accidental foot-pedal activation.

The “10% Tools” Interface Fix: Why Cluttered Digitizing Software Causes Real Stitch Problems

Cognitive Friction is the enemy of quality. Traditional digitizing software presents you with "thousands of buttons." When you are stressed or rushing an order, this clutter increases the probability of error features:

• Picking the wrong stitch type (Satin vs. Step Fill).
• Forgetting to check Pull Compensation (the setting that accounts for fabric shrinking).
• Leaving density at default settings that are too heavy for your fabric.

EL Digitizer’s "10% Tools" approach is about error reduction. By hiding the advanced tools, it forces you to focus on the fundamentals.

However, do not let software speed create a production bottleneck elsewhere. If you are currently shopping for hooping stations to speed up your physical workflow, understand this: your software speed and your hooping speed must rise together. If you digitize in 5 minutes but take 15 minutes to hoop a shirt because you are fighting with screw-tightened frames, you have not actually saved any money.

The Digitizing Widget Workflow: Pick Run/Satin/Fill and Adjust Density Without Hunting Menus

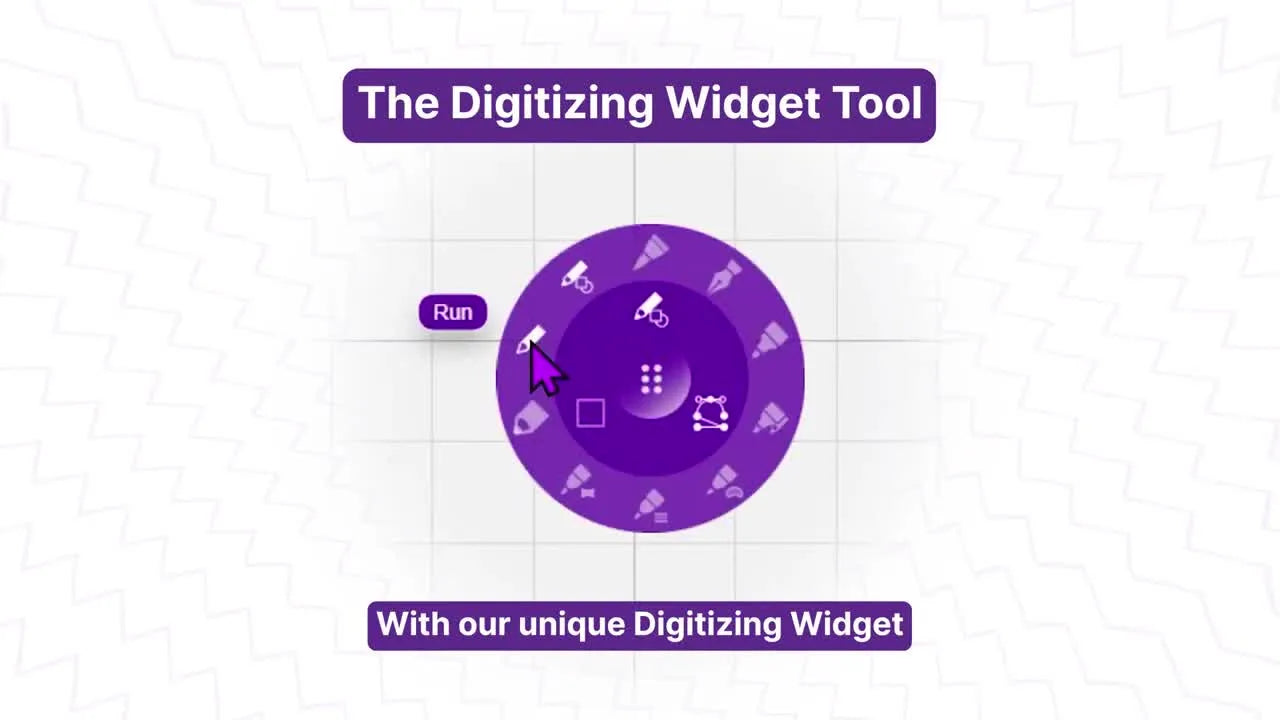

In the demo (01:58), the Digitizing Widget appears as a purple circular HUD (Heads-Up Display) near the cursor. This allows for rapid switching between Run (outlines), Satin (columns), and Fill (large areas).

Crucially, it shows the Density parameter immediately. The video shows 0.40 mm.

Empirical Data: The "Sweet Spot" Density Settings

The software might default to 0.40mm, but "set it and forget it" is dangerous. Use these experience-based ranges:

• Standard Weight threads (40wt): 0.40mm to 0.42mm is the industry standard.
• Fine Detail/Small Text: Decrease density (open it up) to 0.45mm or 0.48mm to prevent "bulletproof" patches that break needles.
• Puffy Foam (3D): Increase density (tighten it) to 0.18mm - 0.20mm to cut the foam.

Action Steps: Using the Widget Logic

1. Hover: Bring your cursor to the zone you are digitizing.
2. Select: Open the widget and click the stitch type (e.g., Satin for a border).
3. Verify Sensory Output: Look at the simulation. Does it look like a solid bar (Satin) or a brick wall (Fill)?
4. Check Density: Ensure it reads 0.40 mm as a baseline. If you are stitching on delicate silk, change this to 0.45 mm now to reduce stress on the fabric.


Vector-to-Stitch in Seconds: Using the All-in-one Artwork Tool Without Creating “Pretty Simulations, Ugly Stitch-Outs”

Around 02:15, John demonstrates the All-in-one Artwork Tool, converting a Bezier curve vector directly into stitches. The screen shows a perfect black fill.

The Trap: A screen simulation has zero physics. It does not account for the "Push and Pull" of thread tension. When thread interacts with fabric, it pulls the fabric in (shortening the stitch) and pushes it out (widening the object).

The Master Class Correction

If you rely solely on this auto-conversion without understanding the mechanics, you will get gaps between your outlines and your fills.

1. Select the Artwork Tool and draw your shape.
2. Assign the stitch type.
3. Apply Pull Compensation: Locate this setting. For standard pique polos, ensure you have at least 0.20mm to 0.30mm of pull compensation. This "over-digitizes" the shape slightly so that when it shrinks during stitching, it ends up the correct size.

If you are doing hooping for embroidery machine usage on difficult substrates like thin performance knits, you cannot rely on the software alone. You must pair the correct Pull Compensation settings with a Cutaway Stabilizer. No amount of software tweaking will fix a knit shirt hooped with Tearaway—it will distort every time.

Object-Based Fonts (200 Built In): How to Resize Text Without Destroying Stitch Quality

Text is the number one revenue generator and the number one cause of frustration. In the demo (02:46), the user selects Object Based Fonts. Unlike "keyboard lettering" which often just scales existing stitches (causing gaps or needle breaks), object-based fonts recalculate the stitch count dynamically as you resize.

The "Small Text" Safety Zone

When scaling down text, you hit a physical limit of the thread and needle.

• The 5mm Rule: Standard 40wt thread struggles to resolve text smaller than 5-6mm in height.
• The 60wt Solution: If you must go smaller (down to 3-4mm), you must switch to a thinner 60wt thread and a smaller #65/9 needle.

Setup Checklist: Text Integrity

• Font Type: Confirm it is an Object-Based font (recalculates stitches).
• Underlay Check: For letters smaller than 6mm, Turn Off complex underlay (like Edge Run). It creates too much bulk and causes birdnesting. Use a simple Center Run underlay only.
• Kerning (Letter Spacing): Manually spread letters apart by 10-15%. Thread adds bulk; letters that touch on screen will overlap on fabric.
• Hoop Check: If you are using a cap hoop for brother embroidery machine or similar rotary device, increase the Pull Compensation on the text to 0.40mm or higher. The curvature of the cap eats up column width.


The Comment-Section Reality Check: PC vs Mac, iPad Confusion, and “Is There a Real Trial?”

Let’s cut through the marketing noise and look at the logistics raised in the comments.

1. Mac Compatibility: The software is currently PC-Only. While Parallels or Bootcamp can work, they add a layer of instability. If you are a dedicated Mac shop, this is a friction point.
2. iPad/Tablet: Tablet apps are excellent for viewing or simple edits, but for heavy production digitizing, you need a mouse and a keyboard. Precision bezier curve manipulation on a touch screen is inefficient for high-volume work.
3. The "Trial": Be aware that a "Money-Back Guarantee" is not a Free Trial. You are out of pocket upfront. This mandates that you have a rigorous testing plan ready for Day 1.


The Fix That Actually Matters: A Controlled Test Sew-Out Plan (So You Don’t Waste Garments While “Learning Software”)

You cannot evaluate software if your physical variables are chaotic. To utilize the guarantee period effectively, run this "Scientific Method" test sequence immediately.

The "Holy Trinity" Test Sequence

1. The Control Group: Use broadcloth or denim with 2 layers of medium cutaway. Sew the design. If this fails, the digitizing implies a density or pathing issue.
2. The Stress Test: Use a stretchy t-shirt with cutaway. If this puckers but Test 1 was clean, your stabilization is the issue.
3. The Production Test: Use your actual finished garment (e.g., a cap).

The Commercial Bridge: If you find that Test 1 works, but Test 2 and 3 consistently show distortion or "hoop burn" (shiny rings left by the hoop), your issue is likely the mechanical clamping force of traditional hoops.

• Scenario: You are fighting to Hoop thick hoodies or delicate performance wear.
• Solution: This is where Magnetic Hoops become a valid upgrade. By using magnetic force rather than mechanical friction, they eliminate hoop burn and allow for self-adjusting tension.

Terms like machine embroidery hoops often cover a wide range of tools, but understanding the difference between standard plastic frames and magnetic upgrades is often the key to consistency.

Troubleshooting the Two Big “Scary” Problems: Clunky Interfaces and the Learning Curve

Let's structure the troubleshooting based on "Low Cost" to "High Cost" fixes.

Symptom: "The design is puckering / fabric is gathering."

• Phase 1 (Physical): Is the hoop "drum tight"? A loose hoop is the #1 cause.
• Phase 2 (Consumable): Did you use Tearaway on a knit? (Switch to Cutaway).
• Phase 3 (Software): Check the Widget. Is density too high (>0.40mm)? Is Pull Comp too low (<0.20mm)?

Symptom: "Thread breaks constantly on specific letters."

• Phase 1 (Physical): Change the needle. A burred eye will shred thread instantly.
• Phase 2 (Software): Check the "short stitches." If the software generated stitches shorter than 0.8mm inside the letter saturation, delete them or filter them out.


The Business Angle Everyone Argued About: Price, Payment Options, and When Software Pays for Itself

The comments reveal a price sensitivity, with the software listed around $1,399 (post-launch). Is this worth it?

Start with the ROI Calculation:

• Hobbyist: Value = Enjoyment. Risk tolerance is low.
• Business: Value = Efficiency.
  • If current "free/cheap" software takes you 1 hour to digitize a logo, and EL Digitizer takes 20 minutes: You save 40 minutes.
  • If your shop rate is $60/hour, you save $40 per design.
  • After 35 designs, the software is free.

However, you must look at your entire pipeline. If you save 40 minutes digitizing but lose 40 minutes physically hooping garments due to inefficient tools, your net gain is zero.

Professional shops often invest in a hooping station for embroidery simultaneously with software key upgrades. Standardization is the only way to scale.

Decision Tree: Stabilizer + Hooping Choices That Keep Your “Fast Digitizing” From Turning Into Puckering

Use this logic flow to ensure your physical setup matches your digital file.

Step 1: Analyze Material Elasticity

• Stable (Denim/Canvas/Twill):
  • Stabilizer: Tearaway (1.5oz - 2.0oz).
  • Digitizing: Standard density (0.40mm).
• Unstable (Tee/Polo/Spandex):
  • Stabilizer: Cutaway (2.0oz - 3.0oz). No exceptions.
  • Digitizing: Increase Pull Comp (0.30mm+).

Step 2: Analyze Surface Texture

• Flat (Dress Shirt): Standard setup.
• Textured (Towel/Fleece/Pique):
  • Topping: Must use Water Soluble Solvy on top to keep stitches elevated.
  • Underlay: Use a "Tatami" or "Edge Walk" underlay to tack down the nap before the satin stitch fires.

Step 3: Hoop selection

• Delicate/Velvet/Performance: Use Magnetic Frames to avoid crushing the texture.
• Standard Cotton: Standard Tubular Hoops are acceptable.


The Upgrade Path That Feels Natural (Not Salesy): When to Add Better Hoops, Better Backing, or a Multi-Needle Machine

As your skills grow, you will hit ceilings that no software can break. Here is my "Trigger-Criteria-Option" guide for upgrading your shop.

Path 1: The "Hoop Burn" Bottleneck

• Trigger: You are ruining profitable garments with shiny hoop rings, or your wrists hurt from tightening screws all day.
• Criteria: Are you hooping more than 10 items a day?
• Option: Upgrade to Magnetic Hoops. They snap on instantly, reducing strain and eliminating ring marks on delicate textiles.

Path 2: The "Production Speed" Bottleneck

• Trigger: You are turning away orders because you cannot stitch them fast enough on a single-needle machine. You dread thread changes on 6-color logos.
• Criteria: Are you consistently getting orders for 10+ items with multi-color logos?
• Option: It is time to move from a domestic machine to a Multi-Needle Machine (like SEWTECH). The ability to load 12-15 colors at once changes your business from "babysitting threads" to "pressing start and walking away."

Path 3: The "Consistency" Bottleneck

• Trigger: Logos are crooked or placed at different heights on different shirts.
• Option: A hoop master embroidery hooping station ensures that every left-chest logo creates a straight line, which is critical for corporate clients.


Operation Checklist: The “Don’t Skip This” Routine Before You Call a Design ‘Sellable’

Print this and tape it to your machine. It is your insurance policy.

• Trace the Design: Run a framing trace on the machine to ensure the needle won't hit the hoop. (Physical collision = $$$ repair).
• Bobbin Check: Do you have enough bobbin thread to finish the run? (Running out mid-satin stitch creates a weak point).
• Final Thread Path: Check that the thread isn't caught on a spool pin or guide.
• Presser Foot Height: Adjust the foot so it just barely skims the fabric (about a credit card thickness gap). Too high = flagging/birdnesting. Too low = dragging.

Warning: Magnetic Safety
If you utilize Magnetic Hoops, exercise extreme caution. These use powerful Neodymium magnets.
* Pinch Hazard: They can snap shut with bone-bruising force. Watch your fingertips.
* Medical Device: Keep them at least 6 inches away from pacemakers or insulin pumps.

The Bottom Line: EL Digitizer Looks Fast—But Your Best Results Come From Pairing Software Speed with Shop Discipline

From the video, EL Digitizer offers a compelling proposition: reducing the "fog of war" in digitizing by simplifying the tools. The Digitizing Widget and Object-Based Fonts are genuine productivity boosters.

However, software is only 50% of the equation.

My educational advice is simple: Don't just upgrade your software. Upgrade your discipline. Adopt a rigorous prep checklist. Understand the physics of stabilizer. And when your production volume demands it, recognize when it is time to upgrade your hardware—be it through Magnetic Hoops for efficiency or Multi-Needle Machines for scale.

Stitch quality is not an accident; it is the result of a calibrated "ecosystem" of software, machine, and supplies working in harmony.

FAQ

• Q: What pre-flight consumables should be on hand before digitizing in EL Digitizer for knit polos and textured fabrics?
  A: Stock the “hidden consumables” first, because missing topping/needle/adhesive will ruin a sew-out even with a perfect file.
  • Use temporary spray adhesive (e.g., KK100) when floating stabilizer layers.
  • Install a 75/11 ballpoint needle for knits to avoid cutting fibers.
  • Add water-soluble topping for towels and textured knits to prevent stitches from sinking.
  • Success check: the first sew-out shows clean coverage with no stitches disappearing into the nap.
  • If it still fails… move to stabilization and hoop tension checks before changing digitizing settings.
• Q: How do I know embroidery hooping tension is correct before stitching a logo on a t-shirt, and when should I switch to a magnetic hoop?
  A: Aim for firm, even tension (not loose, not over-crushed); switch to a magnetic hoop when traditional hoops cause hoop burn or inconsistent tension.
  • Hoop the fabric so it feels “drum tight” without stretching the garment out of shape.
  • Mark hoop-burn risk on delicate/performance fabrics and avoid over-tightening screw hoops.
  • Switch to a magnetic frame when shiny rings (hoop burn) or clamping damage keeps showing up on finished garments.
  • Success check: after stitching, the fabric is flat with no shiny hoop ring and no gathered/puckered edge around the design.
  • If it still fails… verify stabilizer choice (cutaway vs tearaway) and then review density/pull compensation.
• Q: What bobbin tension “feel test” should be used before running a test sew-out on a single-needle embroidery machine?
  A: Use the “dental floss” feel as the quick standard—too loose or too free-spinning bobbin thread will destabilize stitching.
  • Pull the bobbin thread by hand and compare the resistance to pulling dental floss.
  • Tighten if the bobbin thread slides freely with almost no resistance.
  • Recheck after any bobbin change or if stitch quality suddenly shifts mid-job.
  • Success check: bobbin pull feels consistent and controlled, not slack and not jerky.
  • If it still fails… inspect the needle for burrs and confirm the thread path is not snagging.
• Q: What stitch density settings should be used in EL Digitizer Digitizing Widget for 40wt thread, small text, and 3D puffy foam?
  A: Use 0.40–0.42 mm as the baseline for 40wt, open density for small detail, and tighten density for 3D foam.
  • Set standard 40wt designs to 0.40–0.42 mm.
  • Decrease density for fine detail/small text to 0.45–0.48 mm to avoid “bulletproof” stitching and needle breaks.
  • Increase density for 3D puffy foam to 0.18–0.20 mm so stitches cut the foam cleanly.
  • Success check: stitching looks filled but not overly stiff, and the machine runs without repeated needle/thread stress.
  • If it still fails… confirm stabilizer matches the fabric (knits need cutaway) before changing more software settings.
• Q: What pull compensation range should be used when EL Digitizer auto-converts artwork to stitches for pique polos and performance knits?
  A: Add pull compensation early—0.20–0.30 mm is a solid starting range for standard pique polos, and unstable knits often need higher.
  • Apply at least 0.20–0.30 mm pull compensation on standard pique polos to prevent outline/fill gaps after stitching.
  • Increase pull compensation to 0.30 mm+ on unstable knit/spandex-type garments.
  • Pair performance knits with cutaway stabilizer; software alone cannot compensate for the wrong backing.
  • Success check: outlines meet fills cleanly with no visible “halo gaps” after the sew-out.
  • If it still fails… run the controlled test sequence on stable fabric first to separate digitizing issues from stabilization issues.
• Q: How do I stop constant thread breaks on specific small letters when using EL Digitizer object-based fonts?
  A: Treat it as a needle + short-stitch problem first; then simplify the small-text structure so the machine is not forced into ultra-short stitches.
  • Replace the needle immediately if there is any burr or catch on the shaft (a rough eye can shred thread fast).
  • Check for overly short stitches inside dense lettering (especially under ~0.8 mm) and filter/delete those stitches.
  • For letters under 6 mm, turn off complex underlay (like Edge Run) and use a simple Center Run underlay only.
  • Success check: the same letter sequence completes without repeated breaks in the same spot.
  • If it still fails… open density slightly for small text (do not over-pack stitches) and re-test on a stable “control” fabric.
• Q: What safety steps are required before changing needles on a multi-needle embroidery machine, and what are the pinch hazards of magnetic hoops?
  A: Power down completely before needle work, and treat magnetic hoops as high-force tools that can snap shut on fingers.
  • Power down the machine fully before changing needles to prevent accidental activation.
  • Keep fingers clear of the needle bar area during operation and when testing movements.
  • Handle magnetic hoops slowly and deliberately; strong magnets can snap shut with bone-bruising force.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: needle changes are completed with the machine off, and hoop loading/unloading is controlled with no finger pinch incidents.
  • If it still fails… stop and follow the machine manual’s safety procedure for the specific model before continuing.
