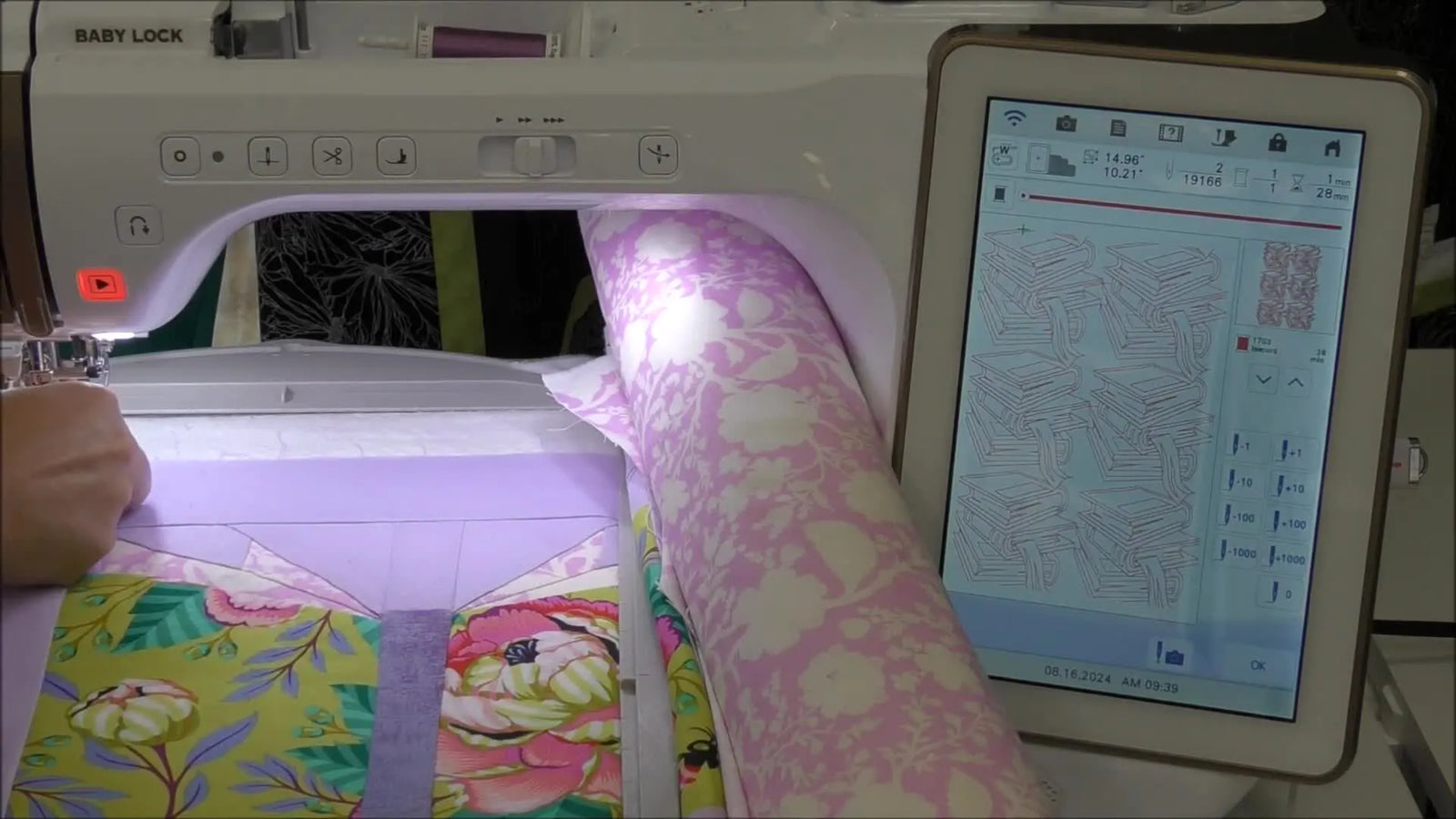

Edge-to-Edge Quilting on a Baby Lock Solaris: The Re-Hooping Workflow That Keeps Fills Aligned (and Your Back Clean)

If you have ever attempted edge-to-edge quilting in the hoop on a thick quilt sandwich, you are likely familiar with the specific emotional trajectory of the process: the first hooping looks pristine, but the second hooping—where you must align new stitches with old ones while wrestling bulky fabric—is often where confidence goes to die.

The reality of machine quilting is that it is a battle against physics. You are asking a precision machine to move heavy, drag-prone layers of batting and fabric with millimeter accuracy. The good news is that the workflow Patricia demonstrates on the Baby Lock Solaris converts this chaos into a repeatable system.

By combining smart IQ Designer setups (specifically, a "forgiving" boundary box) with disciplined thread management, you can achieve results that look like long-arm quilting. Below, I have rebuilt this process into a studio-grade operational guide, calibrated to keep you safe, efficient, and frustration-free.

The Calm-Down Moment: Why Baby Lock Solaris Edge-to-Edge Quilting Feels Hard (and Why It’s Fixable)

Edge-to-edge quilting on a domestic embroidery machine isn’t difficult because the machine lacks the power; it feels difficult because it forces you to perform two high-friction tasks repeatedly:

1. Hooping a bulky sandwich: You are clamping three layers (top + batting + backing) that naturally want to shift and puff up.
2. Precision Nesting: You must align the start of the new pattern perfectly with the end of the previous one, often while the weight of the quilt drags on the hoop.

The "Master Level" shift here is mental: Do not design a file that demands 100% perfect hooping. If your file requires millimeter-perfect hooping to look good, you will fail by the third row. Instead, design a file that forgives imperfection.

This is why Patricia’s strategy of building a boundary box slightly smaller than the embroidery field is genius. That small negative space creates a "buffer zone," allowing you to use the machine's camera and projector to nudge and rotate the design into alignment, rather than un-hooping and re-hooping five times until your wrists give out.

The “Hidden” Prep Pros Use: Quilt Sandwich Hooping That Won’t Bite You Mid-Stitch

Patricia begins with a table runner that is already layered. The physics here are critical: if your layers are loose, the foot will push a "wave" of fabric ahead of it, resulting in wrinkles or puckers.

The "Drum Skin" Test: When hooped, your quilt sandwich should not feel rock hard (which distorts the fiber), but it should be taut enough that tapping it creates a dull thud.

Managing the Drag: The Solaris has a large throat space, but a heavy quilt hanging off the edge acts like an anchor.

• Support the weight: Use a table extension or stack books to keep the quilt level with the needle plate.
• The "Jaws" Technique: Patricia mentions using clips to manage excess bulk. Never let the excess quilt pool in the throat space where it can interact with the moving arm.

The Commercial Reality Check: Standard screw-tightened hoops are excellent for single layers, but they struggle with quilt sandwiches. You have to unscrew them significantly to fit the batting, and tightening them requires significant hand strength. This friction point is exactly why production studios researching hooping for embroidery machine often transition to alternative clamping methods to save their wrists and ensure the backing doesn't slip during the 50th run.

Warning: The "Finger Trap" Zone
Keep scissors, snips, and loose tools at least 6 inches away from the moving hoop area. A heavy quilt moving at 800 stitches per minute can snag a pair of scissors and pull them under the needle bar instantly. Pause the machine completely before reaching in to adjust bulk.

Prep Checklist (Pre-Flight Safety Check)

• Layer Integrity: Quilt top, batting, and backing are smoothed; no hidden folds on the underside.
• Hoop Security: The inner hoop is flush with the outer hoop; no "popping" at the corners.
• Bulk Management: Excess fabric is rolled and clipped (using "Jaws" or clamps) away from the sewing path.
• Thread Loadout: Bobbin is loaded with Cotton (for a matte quilt look) or matching Poly; Top is Polyester.
• Needle Check: Fresh Topstitch 90/14 or Quilting 75/11 needle installed. (Do not use a standard ballpoint; it struggles to pierce batting cleanly).
• Operator Position: You are seated in front of the machine. Do not walk away during quilting; the drag physics change every second.


Build a Boundary Box in IQ Designer That Gives You Re-Hooping Wiggle Room (10-5/8" x 16" Hoop)

Do not maximize your embroidery field. Greed causes alignment errors. Patricia uses the 10-5/8" x 16" hoop, but she deliberately creates a "safe zone."

The Setup Logic:

1. Open IQ Designer.
2. Select the Rectangle Shape tool.
3. Input these specific dimensions:
   • Height: 15.00 inches
   • Width: 10.25 inches

Why these numbers?

• The hoop is ~10.6" wide. Setting the box to 10.25" leaves about 0.35" of clearance.
• This clearance is your "Sanity Margin." When you re-hoop later, if you are slightly crooked, you have empty space to rotate and shift the design on-screen without hitting the plastic limit of the hoop.

Note: She specifically chooses the second grouping of shapes (Fills Only/No Outline). If you select a shape with an outline property, you will have to manually disable the outline later, or you risk stitching a satin stitch border around your quilting, which ruins the effect.

Import the Design Suite “Book” Fill from USB Without Filling Your Machine Memory to Death

Patricia inserts a USB stick and navigates to the decorative fills area. She demonstrates a crucial limitation of the machine's architecture: the "Custom Fill" memory slot is not infinite.

The "Active Ingredient" Workflow: The machine can typically hold roughly 9–12 custom fills in its working memory.

1. Select the Pocket Icon (Custom/USB load).
2. Select the USB tab and choose your .PES fill file (the "Books" pattern).
3. Load only what you need. If the memory is full, you must delete an old fill to make room.

Pro Tip: Treat this memory slot like a kitchen counter, not a pantry. Clear it off after every project. If you are mid-project and accidentally delete the fill you are using, you may lose the specific sizing/density settings you dialed in. Always write down your settings (Size % and Offset values) on a sticky note stuck to the machine screen.

Make the “Book” Fill Look Intentional: Bucket Fill + 130% Size + Position Offset 2.64

This is the step that separates "stiff cardboard" quilting from "soft, drapeable" quilting. When Patricia fills the red boundary box using the Bucket Tool, the default settings are usually too dense for a quilt sandwich.

1. Density Control: The 130% Rule

Standard embroidery fills are designed for tea towels or shirts, not lofty batting.

• The Adjustment: Go to properties and increase the pattern size (Scale) to 130%.
• The Physics: Increasing the size increases the space between stitch lines. This maintains the "pouffy" quilt feel. If left at 100%, the stitches will smash the batting flat, creating a stiff, bulletproof runner.

2. Aesthetic Doctoring: Position Offset

The machine calculates the "Book" fill mathematically, tiling it from a hidden grid. This often results in books being chopped in half at the edges of your 10.25" box.

• The Adjustment: Use the Position Offset / Pattern Shift arrows.
• The Value: Patricia uses 2.64 (yours may vary slightly).
• The Goal: Shift the pattern horizontally until the books at the edges look complete, or at least cut off in an aesthetically pleasing way.

If you are struggling to get the pattern to land specifically where you want it across multiple hoopings, you are encountering the limits of friction-based hooping. This is where the concept of a repositionable embroidery hoop enters the conversation—advanced hoops allow for minor fabric adjustments without fully unclamping, though on the Solaris, we rely heavily on the software offset to do this work for us.

The Save-First Habit: Keep an Editable IQ Designer File Before You Convert to Embroidery

CRITICAL STEP: When you press "Next" to leave IQ Designer, the specific "live" properties (the 130% scale, the fill type) are baked into a static embroidery file. You cannot easily un-bake them.

The Protocol:

1. Before pressing "Set" or "Convert," SAVE the file in IQ Designer format.
2. Save it to the machine memory or USB.

Why? If you stitch the first row and realize the density is still too high, or the thread tension breaks, having the editable source file means you can open it, change 130% to 140%, and restart instantly. If you didn't save, you have to rebuild the box, re-import the fill, and re-guess the offset values from scratch.

The Clean-Back Ritual on Baby Lock Solaris: Needle +1, Pull Up Bobbin, Knot, Then Start

Bird nesting (a tangle of thread on the underside) usually happens in the first 3 seconds of stitching. Patricia’s ritual eliminates this.

The "No-Nest" Sequence:

1. Needle +1: In embroidery mode, press the "Needle Forward/+/-" button to move 1 stitch forward (or to the specific start point). The needle bar will move to the exact starting coordinate.
2. The Floss Move: Hold the top thread tail. Press Needle Down, then Needle Up.
3. The Retrieval: Pull the top thread gently; a loop of bobbin thread should pop up through the fabric. Pull this loop out so you have both tails in your hand.
4. The Lock: Tie these two tails or hold them firmly.
5. The Start: Lower the presser foot. Use the machine’s "Tie-Off" button (creates 3-4 fixing stitches).
6. Trim: Trim the tails now (or after 2-3 seconds of stitching) so they don’t get sewn over.

If you skip this, the tails get sucked into the bobbin race, creating a knot that looks messy on the back of your runner.

Setup Checklist (Ready to Launch)

• Start Point Identified: Used "Needle +1" to align exactly.
• Tails Up: Bobbin thread brought to top surface.
• Anchor: Threads held or knotted; machine tie-off function engaged.
• Clearance: Presser foot is down; no clips touching the foot path.
• Speed: Set machine to a "Sweet Spot" speed (600–800 SPM). Do not run max 1050 SPM on a thick quilt sandwich; the drag can cause layer shifting.


Re-Hooping a Thick Quilt Sandwich Without Losing Your Mind: Hoop Marks + Camera Scan + Projector

After Section 1 is finished, you must slide the fabric to Section 2. This is the moment of highest risk.

Stage 1: Mechanical Alignment (The Rough Draft)

Use the plastic grid template or the notches on the hoop frame.

• Slide the fabric down.
• Use the side markings on the hoop to keep the fabric straight.
• Clamp the hoop. Sensory Check: Ensure the batting isn't bunching in the corners.

Stage 2: Digital Alignment (The Fine Tune)

1. Camera Scan: Press the Scan button. The machine photographs the fabric in the hoop.
2. Zoom In: Look at where the previous stitching ended on the screen.
3. Nudge: Use the on-screen directional arrows to move your design. Because you left that "Wiggle Room" (10.25" box in a 10.6" field), you can move the design up/down/left/right to nest perfectly with the previous row.
4. Projector Check: Turn on the projector. It shines the actual stitch lines onto the fabric. This is your final "Trust but Verify" moment.

The Hooping Bottleneck: If you find that your wrists hurt from tightening the screw, or the batting keeps slipping as you try to close the inner ring, you are experiencing the primary flaw of traditional hoops for quilting. This is precisely why high-volume quilters eventually invest in magnetic hoops for embroidery machines. The "snap" closure mechanism of a magnetic hoop handles thick sandwich layers without the need for hand-tightening screws, and it prevents the "hoop burn" (creases) that are hard to iron out of quilt batting.

When the Solaris Camera Scan Can’t “See” Your Stitches: The Contrast Trick That Saves Time

Sometimes, the camera scan looks like a blurry mess, especially if you are using white thread on white fabric.

The Fix: Patricia demonstrates changing the Scan Background Color.

• Go to settings.
• Change the overlay to High Contrast (Blue or Green) or Enhanced.
• Suddenly, the faint white stitches on the fabric will pop out against the darker digital background, allowing you to align the connection points with pixel-perfect accuracy.


The “Don’t Get Greedy” Rule: Why a Slightly Smaller IQ Designer Box Prevents Re-Hooping Disaster

This cannot be overstated: Greed creates gaps.

If you create a box that fills the hoop 100% (Edge-to-Edge):

• Your re-hooping must be physically perfect (0.0mm error tolerance).
• If you hoop 1mm too low, you will have a gap.
• If you hoop 1mm too high, you will have an overlap.

By using the 15.00" x 10.25" box, you have created a floating design. The machine doesn't care if the fabric is hooped 3mm off-center, because you can simply move the projected design 3mm to match the fabric. You are trading a small amount of quilting area for a massive amount of stress relief.

Troubleshooting the Three Most Common “Why Does This Look Wrong?” Problems

Diagnose your issue before you rip out stitches.

1. Symptom: "Dirty" Backside (Bird Nests)

• Likely Cause: The top thread tail was pulled under the throat plate during the first stitch.
• The Fix: You must pull the bobbin thread to the top before pressing start. Hold both tails for the first 3 stitches.

2. Symptom: Chopped-Off Design Edges

• Likely Cause: The pattern fill is tiled arbitrarily.
• The Fix: In IQ Designer, go to the Size/Move page and use the Pattern Shift arrows (not just the design move arrows) to center the motif within your boundary box.

3. Symptom: Projector alignment looks perfect, but it stitches crooked.

• Likely Cause: The quilt drag. The heavy quilt hanging off the table pulled the hoop slightly during the stitching.
• The Fix: Support the quilt weight with books or a table extension. Do not let gravity fight your stabilizer.

Warning: Magnetic Safety
If you choose to upgrade to a magnetic hoop for this workflow, be aware they use industrial-strength magnets. Keep them away from pacemakers and be extremely careful of pinch points—they snap together with enough force to bruise fingers.

Decision Tree: Stabilizer/Backing Choices for Embroidery Machine Quilting

Patricia stitches directly into the sandwich, but depending on your batting, you may need help.

• Scenario A: Distinct, high-loft batting (Polyester/Wool).
  • Risk: The foot gets stuck in the fluff.
  • Solution: Use a Water Soluble Topping (Solvy) to keep stitches floating above the fluff.
• Scenario B: Stretchy backing fabric (Minky/Cuddle).
  • Risk: The backing distorts as the hoop moves.
  • Solution: You must float a layer of Tear-Away Stabilizer under the hoop (or sticky stabilizer) to glue the backing in place.
• Scenario C: Standard Cotton Sandwich.
  • Risk: Minimal.
  • Solution: Usually requires No Extra Stabilizer, provided your hooping tension is drum-tight.

Hidden Consumable Alert: Keep Spray Adhesive (Temporary) nearby. A light mist between the batting and backing can prevent the backing from creeping or wrinkling on the underside where you can't see it.

The Upgrade Path That Actually Makes Sense: Faster Re-Hooping, Less Hoop Burn, More Consistent Alignment

Patricia’s method is perfectly functional with standard hoops, but it highlights a physical bottleneck: the screw clamp.

If you plan to turn edge-to-edge quilting into a business or a regular hobby, assess your pain points:

1. The Wrist Pain: If tightening the hoop screw repeatedly is causing fatigue, this is the trigger to upgrade.
2. The Hoop Burn: If you see white crease marks on your dark quilt backing that won't steam out, standard hoops are compressing the fibers too aggressively.

In these scenarios, many Solaris owners specifically look for magnetic hoops for babylock embroidery machines. These tools replace the friction-screw method with magnetic force, which clamps thick layers vertically without distorting the fabric grain or crushing the batting fibers as severely.

Furthermore, if aligning the quilt straight is your primary struggle, a hooping station for embroidery can act as a "third hand," holding the hoop steady while you align the bulk, ensuring your "Rough Draft" alignment is accurate enough for the camera to handle the rest.

Operation Checklist (The Loop)

• Stop: Previous section finished; threads trimmed.
• Slide: Hoop opened; fabric slid down.
• Align: Hoop markings aligned visually with fabric lines.
• Scan: Camera scan performed; background contrast checked.
• Fine-Tune: Design nudged on-screen to nest with previous stitches.
• Verify: Projector turned on to confirm "virtual ink" hits "real ink."
• Go: Bobbin pulled up; start button pressed.


A Quick Note on Compatibility Questions (Like “Does This Work on the Altaire 2?”)

Patricia demonstrates on the Baby Lock Solaris, utilizing specific features like the Camera Scan, Projector, and IQ Designer.

• If you have a Brother Luminaire: The workflow is nearly identical (My Design Center = IQ Designer).
• If you have a Baby Lock Altaire / Brother Stellaire: You lack the projector and internal camera scanning, but you can use the Mobile App feature to photograph the hoop and send it to the machine for alignment.
• If you have a lower-tier machine: You can still use the "Needle +1" and "Boundary Box" concepts, but you will rely entirely on printed templates and visual grid alignment rather than a digital camera feed.


The Result Standard: What “Good” Looks Like on a Book-Themed Quilted Table Runner

At the end of the process, you should see a texture that reads as a continuous fabric, not a series of stamped blocks. The "Book" motifs should flow organically.

The Markers of Success:

1. No Gaps: The new rows nest gently into the old rows without a visible "gutter."
2. Clean Back: No thread nests or loops on the underside.
3. Soft Hand: The runner drapes over the table edge (thanks to the 130% density sizing) rather than sticking out stiffly.

This workflow turns the Baby Lock Solaris from a simple embroidery machine into a capable quilting frame. It requires patience during prep, but the "Save First" and "Boundary Box" rules provide the safety net you need to quilt with confidence.

FAQ

• Q: How do I hoop a thick quilt sandwich for edge-to-edge quilting on a Baby Lock Solaris without wrinkles or shifting?
  A: Hoop the quilt sandwich taut—not rock-hard—and control quilt drag before you stitch.
  • Smooth the quilt top, batting, and backing so there are no hidden folds on the underside.
  • Support the quilt weight so it stays level with the needle plate (use a table extension or stacked books).
  • Roll and clip excess bulk away from the throat space so it cannot interfere with the moving arm.
  • Success check: Tap the hooped area—aim for a “drum skin” feel with a dull thud, not a tight, distorted surface.
  • If it still fails: Add a light mist of temporary spray adhesive between layers to reduce backing creep, then re-hoop.
• Q: What needle and thread setup helps prevent bird nesting when quilting in the hoop on a Baby Lock Solaris?
  A: Start with the recommended needle type and a stable thread pairing, then use a controlled start routine.
  • Install a fresh Topstitch 90/14 or Quilting 75/11 needle (avoid a standard ballpoint on batting).
  • Load cotton bobbin thread for a matte quilt look (or matching poly); use polyester thread on top.
  • Set a controlled speed around 600–800 SPM for thick quilt sandwiches instead of maximum speed.
  • Success check: The underside shows clean stitches with no loops or tangles in the first few seconds.
  • If it still fails: Re-do the bobbin pull-up and tie-off start sequence before adjusting anything else.
• Q: How do I stop bird nests on the back when starting a quilting section on a Baby Lock Solaris embroidery machine?
  A: Pull the bobbin thread to the top and secure both thread tails before pressing Start.
  • Use “Needle +1” to move the needle to the exact start point.
  • Hold the top thread tail, then needle down/up to bring the bobbin thread loop to the top.
  • Tie the two tails (or hold firmly), lower the presser foot, and use the tie-off function before trimming.
  • Success check: No thread snarl forms underneath during the first 3–5 stitches.
  • If it still fails: Stop immediately, remove the nest from the bobbin area, and restart with longer held tails.
• Q: What IQ Designer boundary box size helps Baby Lock Solaris edge-to-edge quilting alignment when re-hooping a 10-5/8" x 16" hoop?
  A: Use a slightly smaller boundary box (15.00" x 10.25") to create alignment “wiggle room.”
  • Create a rectangle in IQ Designer with Height 15.00 inches and Width 10.25 inches.
  • Choose a fill-only rectangle (no outline) so the machine does not stitch an unwanted border.
  • Use the extra clearance to nudge/rotate the design during re-hooping instead of re-hooping repeatedly.
  • Success check: The design can be shifted on-screen without hitting hoop limits, and rows nest without visible gaps.
  • If it still fails: Reduce “greedy” sizing—keep the box smaller rather than trying to fill the full hoop field.
• Q: How do I make the Baby Lock Solaris IQ Designer “Book” fill stitch softer on a quilt sandwich instead of stiff and dense?
  A: Increase the fill pattern size to 130% and adjust the pattern offset so the motif lands cleanly in the box.
  • Use the Bucket Fill tool to fill the boundary box with the “Book” pattern.
  • Increase the pattern Scale/Size to 130% to open spacing between stitch lines.
  • Use Position Offset/Pattern Shift (Patricia uses 2.64) to avoid awkward chopped motifs at the edges.
  • Success check: The quilted piece drapes and feels “quilty,” not flattened or cardboard-stiff.
  • If it still fails: Save an editable IQ Designer file first, then re-open and fine-tune scale/offset rather than rebuilding.
• Q: How do I re-hoop and align the next quilting row on a Baby Lock Solaris using Camera Scan and the projector without gaps?
  A: Do a two-stage alignment—mechanical first, then digital fine-tuning—using the boundary-box clearance.
  • Re-hoop using hoop markings/grid as a rough placement and confirm batting is not bunched at corners.
  • Run Camera Scan, zoom in on the previous stitch endpoint, and nudge the design with on-screen arrows.
  • Turn on the projector and verify projected stitch lines land exactly where the previous row ended.
  • Success check: The new row stitches into the previous row with no visible “gutter” gap and no overlap ridge.
  • If it still fails: Re-check quilt support—heavy drag pulling off the table can shift alignment during stitching.
• Q: What should I do when the Baby Lock Solaris Camera Scan cannot see white-on-white quilting stitches for alignment?
  A: Change the Scan Background Color to a high-contrast option so faint stitches become visible on-screen.
  • Open settings and switch the scan overlay/background to High Contrast (Blue or Green) or Enhanced.
  • Scan again and zoom in to confirm the previous stitching is clearly visible for nesting.
  • Use the nudging controls only after the stitch endpoints are visually distinct on the display.
  • Success check: Stitch lines that looked “invisible” now appear clearly enough to align connection points accurately.
  • If it still fails: Improve physical visibility on the fabric (better lighting) and rely more heavily on projector verification after scanning.
• Q: What safety rules prevent tool snags and finger injuries when quilting in the hoop on a Baby Lock Solaris, and what extra safety applies to magnetic embroidery hoops?
  A: Keep the hoop path clear and never reach in while the hoop is moving; magnetic hoops require strict pinch-point and pacemaker precautions.
  • Keep scissors, snips, and loose tools at least 6 inches away from the moving hoop area.
  • Pause the machine completely before adjusting bulk, clips, or thread tails near the needle/hoop path.
  • If using a magnetic hoop, keep magnets away from pacemakers and keep fingers out of pinch points during closure.
  • Success check: Nothing contacts the moving hoop/arm during stitching, and hands stay clear unless the machine is fully stopped.
  • If it still fails: Slow down the workflow—stop, clear the area, and restart only after verifying full clearance.
