Durkee Hat Hoop on a Brother 6-Needle: Clean Monograms on Unstructured Caps (Without a Cap Driver Panic)

If you’ve ever stared at a cap and thought, “This is going to shift, hit metal, or stitch crooked,” you’re not being dramatic—you’re being experienced. Caps are the "final boss" for many embroiderers because they combine a curved surface, heavy fabric, and extreme registration risks.

In this tutorial, we analyze Ashley’s method for monogramming unstructured baseball caps using a Durkee Hat Hoop on a Brother 6-needle style machine. We will break this down with the precision of a flight manual, adding the sensory cues and safety margins that separate a ruined cap from a sellable product.

Grab the Right Tools for a Durkee Hat Hoop Cap Job—So You Don’t Fight the Hat All Day

Success in embroidery is 80% preparation and 20% stitching. Ashley keeps the tool list tight, which minimizes variables.

The Essential Loadout:

• The Hardware: A Durkee Hat Hoop (specifically the 2-needle or 6-needle arm attachment style).
• The Stabilizer: Sticky-back stabilizer pre-cuts (8" x 8"). Note: Do not substitute with tear-away plus spray adhesive for this specific method; the bond isn't strong enough for the torque of a cap.
• The Safety: Painter’s tape / Masking tape (Blue or Green style).
• The Precision: Rotary cutter (essential for clean trimming without jagging the frame).
• The Substrate: Unstructured caps (denim, khaki, "dad hats").
• The Consumables: Embroidery thread (Ashley demonstrates coral, tone-on-tone, and light pink). Pro Tip: Use 75/11 Sharp needles for heavy denim/canvas caps to penetrate without deflecting.

If you’re researching cap hoop for brother embroidery machine, you are likely looking for a solution that avoids the complexity (and cost) of a full cap driver system. This "flat hoop" approach is the specific workflow for that hardware.

The “Hidden” Prep: Make Sticky Stabilizer Behave on a Durkee Hat Hoop (8"x8" Pre-Cuts)

This is the part most people rush—and then they blame the hoop when the cap shifts. The stabilizer here acts as your "floor." If the floor moves, the house falls.

Ashley flips the Durkee frame over and applies an 8" x 8" sticky stabilizer sheet:

1. Peel Only: Remove the carrier sheet to expose the adhesive. Sensory Check: Touch the corner with your thumb. It should feel aggressively tacky. If it feels dusty or barely sticky, discard it. Old stabilizer loses chemically and causes registration errors.
2. Back-Mount: Place the sticky side onto the back (underside) of the metal frame.
3. Pressure Bond: Press firmly around the metal edges. Sensory Check: Run your fingernail along the frame edge; you want a seamless bond with zero air bubbles.
4. Trim: Because the frame corners are rounded, you’ll have overlap. Ashley trims the excess with a rotary cutter.






Why this matters (the veteran explanation)

Sticky stabilizer is your anti-shift insurance. Unlike flat shirts, caps are under tension; they want to spring back to their curved shape. The adhesive provides friction across the entire surface area of the bill and crown.

Prep Checklist (End-of-Prep):

• Adhesive Freshness: Stabilizer is aggressively sticky, not dry.
• Surface Contact: Stabilizer is pressed firmly to the frame with no air gaps.
• Clearance: Overhang is completely trimmed (excess stabilizer can gum up your pantograph arm/driver).
• Safety: Rotary cutter blade is retracted or capped immediately after use.

Tape the Sweatband Like You Mean It: Cap Prep That Prevents Snags and Ugly Mis-Stitches

Caps fail for boring reasons—usually a sweatband flap getting sewn into the logo. This is an unforced error we must eliminate.

Ashley preps the cap utilizing a strict containment protocol:

1. Eject: Remove the cardboard shipping insert.
2. Break: Massage and flatten the bill by hand. Unstructured caps need to be "relaxed" to lay flat.
3. Locate: Find the inner sweatband/flap that covers the brim seam.
4. Secure: Use painter’s tape to aggressively tape that flap down onto the brim.




Pro tip pulled from real shop life

Do not use clips. Clips have vertical height and can strike the machine head during travel. Tape is low-profile. The goal is zero loose material inside the stitch zone.

Warning: Embroidery machines are industrial tools. Rotary cutters and scissors are deceptively sharp. Always cut away from your body, and never place your hands near the needle bar while the machine is live.

Hoop Unstructured Caps Straight on a Durkee Hat Hoop—The Thumb-Screw Method That Actually Holds

This is the "hand-feel" part of the process. Getting a 3D object onto a 2D plane requires a specific sequence of movements.

Ashley’s hooping sequence:

1. Open: Loosen the thumb screws on the bill holder significantly.
2. Engagement: Slide the cap bill fully under the metal holder plate.
3. The Stop: Push until the base of the cap hits the metal stop. Sensory Check: You should feel a solid "thud" against the metal backstop.
4. Align: Use the hoop’s side markings to visual align the cap.
5. Center: Align the cap’s center seam with the hoop’s center notch.
6. The Smooth: Press the cap crown down onto the sticky stabilizer. Crucial: Start at the center seam and wipe your hands outward toward the ears. This pushes ripples away from the embroidery area.
7. Lock: Tighten the thumb screws. Sensory Check: Finger-tight is usually not enough. Give it an extra quarter-turn, but don't use pliers (you'll strip the threads).








The physics you’re feeling in your hands

When you press the crown onto the adhesive, you are fighting the fabric's memory. The "Center-Out" smoothing technique is non-negotiable. If you trap a bubble in the middle, the needle will push that loose fabric around, causing a "flagging" effect that leads to birdnests.

If you’re new to hooping for embroidery machine limitations, mastering this "smooth and stick" technique is the single highest-value skill for using flat frames on curved items.

Mount the Durkee Frame on a Brother 6-Needle Machine—And Use the Extra Clearance Wisely

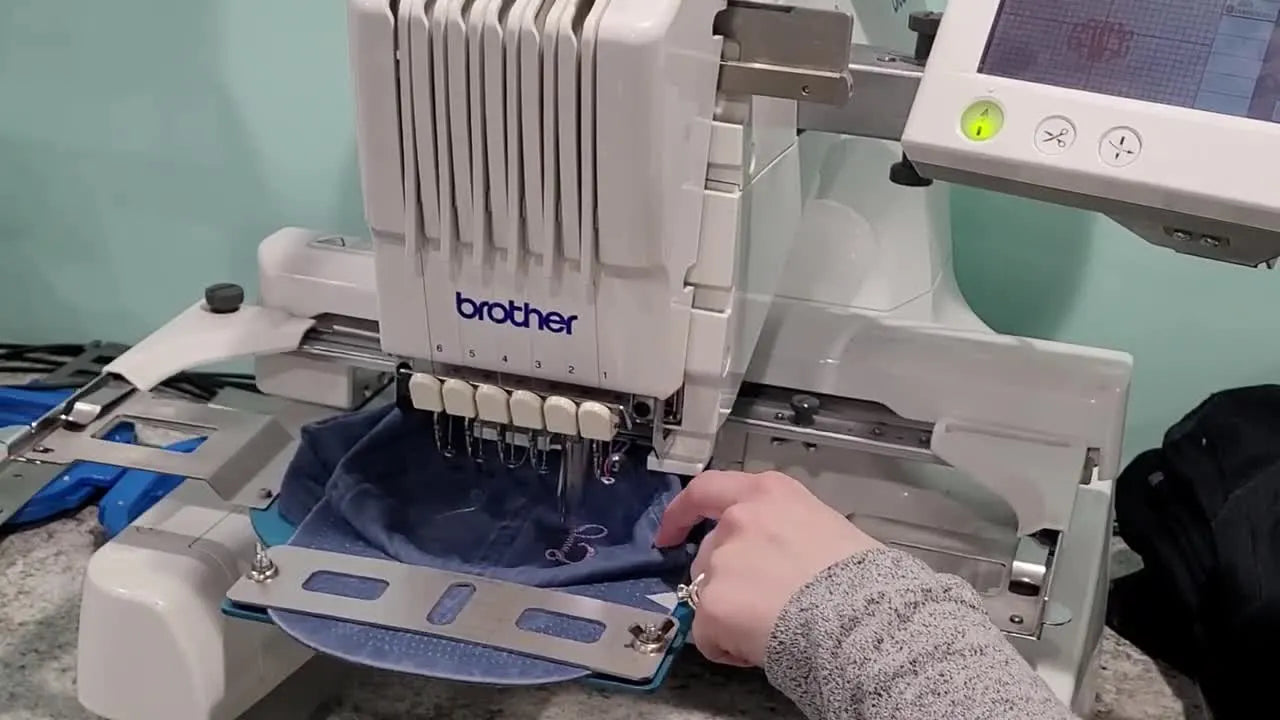

Ashley mounts the Durkee frame onto the machine arm.

She specifically chooses her older 6-needle machine because of the generous vertical clearance between the needle plate and the needles.

The Clearance Rule: Newer machines often have bulkier heads or different wiper systems. Ideally, you want at least 2 inches of clearance to maneuver the cap bill without grazing the needles. If you are running a brother 6 needle embroidery machine, verify your clearance before snapping the hoop in.

Nail Placement Without a Laser: Brother Needle-Drop + Trace to Avoid Brim and Frame Collisions

This is the "Pre-Flight Check" that prevents machine damage. Ashley’s machine lacks a laser, so she uses the mechanical "Needle-Drop" method.

1) Choose the design and confirm size

Ashley uses a font height of 2.5". The screen shows dimensions of 2.62" high and 3.7" wide.

Expert Range: For unstructured caps on flat frames, stay within 2.5 inches height. Pushing to 3 inches risks hitting the curve where the cap meets the bill, which causes needle deflection.

2) Align the design low—but safely

She positions the bottom edge near the brim. A monogram floating too high on the forehead looks amateur.

3) Use needle-drop to “see” the true edge

Ashley presses the Unlock + Cut button combo. This drops the needle bar (without stitching) to show exactly where the needle will land impact.

4) Trace, then resize if clearance is tight

During the trace, Ashley notices the bottom corner is dangerously close to the metal frame.

• The Fix: She reduces design width from 3.7" to 3.5".
• The Verification: She traces again.


Warning: Never walk away during a trace. Keep your finger on the Stop button. If the needle bar hits the metal frame or the thick plastic bill, the machine gears can strip, or the impact can shatter the needle toward your eyes.

Setup Checklist (End-of-Setup):

• Anchor: Cap bill is fully seated; thumb screws are tight.
• Alignment: Center seam matches hoop center mark.
• Design Safe-Zone: Height is kept under 2.5 inches.
• Visual Confirm: "Needle Drop" check confirms bottom edge is clear of the brim.
• Trace Test: Full trace run completed with no metal/brim collisions.
• Speed Limit: Machine speed set to 600 SPM (Stitches Per Minute) or lower. High speed on caps causes bouncing and registration loss.

Stitch the Monogram Cleanly—And Keep Registration from Drifting Mid-Run

Once safe, Ashley stitches.

Registration shifting: The "Center-Out" Rule

Ashley notes a critical distinction in embroidery logic:

• Logos: Must be digitized Center-Out. This nails the center first, and if the cap shifts slightly as you move outward, the error is distributed to the edges where it's less visible.
• Monograms: Ashley stitches outside letters first, then the center. This creates a pleasing visual overlap (the center letter sits "on top").

If you’re comparing a brother hat hoop (cap driver) vs. this flat frame, the driver is superior for holding registration on expensive logos. The flat frame requires you to slow down and stabilize aggressively.

Operation Checklist (End-of-Operation):

• The "Drift Watch": Watch the first 100 stitches intently. If the cap moves at all, stop immediately.
• Auditory Check: Listen for a rhythmic "thump-thump." If you hear a sharp metallic "clack," you are hitting the frame—STOP.
• Adhesion Check: Ensure the cap isn't lifting off the sticky stabilizer in the corners.
• Tape Check: Sweatband tape is still secure.

Fix the Problems People Actually Comment About: Shifting, “Too Wide,” Bobbin Showing, Thread Breaks

Here is a structured troubleshooting guide based on common failures in this workflow.

Symptom: Registration Shifting (Gap between outline and fill)

• Likely Cause: The cap is "flagging" (bouncing up and down) because the sticky stabilizer lost its grip.
• Immediate Fix: Stop. Use a fresh sheet of sticky stabilizer. Do not try to reuse the same sheet for a second hat.
• Prevention: Apply temporary spray adhesive (like 505) to the sticky stabilizer for an extra "bite" on denim caps.

Symptom: Design hits the metal frame

• Likely Cause: Design is too wide (over 4.5" is risky on these frames).
• Immediate Fix: Reduce width to < 3.5 inches. Re-trace.

Symptom: Bobbin thread showing on top ("I see white specs")

• Likely Cause: Upper tension is too tight, or the needle is snagging the thick canvas.
• Immediate Fix: Loosen upper tension slightly. Ensure you aren't using a needle with a burr.
• Expert Note: On thick caps, increase your "Pull Compensation" in digitizing software to 0.4mm to open up the stitches.

Symptom: Thread Breaks

• Likely Cause: Speed is too high (800+ SPM) causes needle vibration.
• Immediate Fix: Slow down to 500-600 SPM. Stick to the "Sweet Spot."
• Check: Ensure the cap bill isn't rubbing against the machine arm during Y-axis movement.

If you are using aftermarket systems like durkee fast frames, always verify that your machine recognizes the hoop size correctly to prevent the pantograph from slamming into its limits.

Decide When to “Bite the Bullet”: Flat Cap Hoop vs Traditional Cap Driver (A Realistic Upgrade Path)

Ashley validates a common struggle: Cap Driver systems are expensive ($1,000+). Durkee hoops are cheaper ($60-$100 range). When do you upgrade?

Decision Tree: Which cap setup should you run?

1) The Fabric Test:

• Unstructured (Soft): Durkee Flat Hoop is excellent. The fabric flattens easily.
• Structured (Stiff Buckram): Stop. Structured caps fight the flat hoop. You can do it, but you will fight ripples. A Cap Driver is the correct tool here.

2) The Volume Test:

• < 10 Caps/Month: Stick with the Durkee/Flat method.
• 50+ Caps/Order: You need a Cap Driver or the SEWTECH equivalent. The hooping speed difference creates your profit margin.

3) The Ergonomic Test (The Wrist Factor):

• Painful Wrists? Tightening screws all day causes repetitive strain.
• Solution Level 1: For flats/shirts, switch to Magnetic Hoops immediately to save your wrists for the hard cap jobs.
• Solution Level 2: Upgrade to a setup that uses snap-in mechanics rather than thumb screws.

Where Magnetic Hoops fit into your shop

If you are tired of hoop burn on shirts or struggling with thick items like bags, magnetic hoops are the industry standard for relief. While standard magnetics are for flats, using them for your non-cap work frees up your time and energy to focus on the tricky cap jobs.

If you are comparing durkee magnetic hoops or exploring cost-effective alternatives like SEWTECH Magnetic Frames (compatible with Brother, Tajima, Ricoma, etc.), look for strong magnets and robust plastic durability.

Warning: Magnetic Safety. Magnetic hoops contain powerful Neodymium magnets. They can pinch fingers severely. Do not use if you have a pacemaker, and keep them away from computerized storage media.

The “Finished Cap Standard”: Placement, Height, and What Customers Notice First

Ashley shows the finished caps. The placement is low, centered, and balanced.

A professional monogram should sit just above the bill seam—about 0.5" to 0.75" gap. Too high, and it looks like it's on the forehead, not the face.

Final Thought: Start with unstructured caps on a simple flat frame. Master the Stabilizer Stick and the Trace. Once you are profitable and reliable, reinvest that profit into a dedicated cap driver or a stronger accessory ecosystem like brother pr600 hoops or SEWTECH upgrades to handle volume without the stress.

FAQ

• Q: How do I prepare 8" x 8" sticky-back stabilizer pre-cuts on a Durkee Hat Hoop so an unstructured cap does not shift during stitching?
  A: Use a fresh, aggressively tacky sticky sheet and bond it to the underside of the Durkee frame with zero bubbles before trimming.
  • Peel only the carrier sheet, then touch a corner to confirm the adhesive feels strongly tacky (not dusty or weak).
  • Back-mount the sticky sheet to the underside of the metal frame and press firmly around all metal edges.
  • Trim all overhang cleanly (rounded corners will create overlap) using a rotary cutter.
  • Success check: Fingernail-test the frame edge; the stabilizer should feel seamlessly bonded with no lifted spots or air gaps.
  • If it still fails: Discard the sheet and apply a fresh sticky sheet; old adhesive often causes registration drift on caps.
• Q: How do I tape an unstructured baseball cap sweatband for Durkee Hat Hoop embroidery to prevent the sweatband flap from getting stitched?
  A: Tape the inner sweatband/flap down flat with low-profile painter’s tape so nothing can lift into the stitch zone.
  • Remove the cardboard insert and hand-relax the bill so the cap lays flatter.
  • Locate the inner sweatband/flap that covers the brim seam and tape it firmly onto the brim.
  • Avoid using clips because the extra height can strike the embroidery head during travel.
  • Success check: Run a fingertip around the inside stitch area; nothing should be loose, springy, or able to flip up.
  • If it still fails: Retape with longer tape coverage and press harder along the edges so the flap cannot peel during stitching.
• Q: What is the correct thumb-screw hooping sequence for mounting an unstructured cap on a Durkee Hat Hoop so the cap stays centered and flat?
  A: Seat the bill fully to the metal stop, align the center seam to the hoop center notch, then smooth center-out before tightening the thumb screws.
  • Loosen the bill-holder thumb screws significantly, then slide the cap bill fully under the holder plate.
  • Push until the cap hits the metal backstop, align using side markings, and match the cap center seam to the hoop center notch.
  • Press the crown onto the sticky stabilizer starting at the center seam and wiping outward to push ripples away from the embroidery zone.
  • Success check: The cap should feel “stuck” at the center with no bubble; the fabric should not spring up when lightly tapped.
  • If it still fails: Rehoop using the center-out smoothing again; trapped bubbles in the middle commonly lead to flagging and birdnesting.
• Q: How do I use Brother 6-needle “Needle Drop” and Trace to prevent a Durkee Hat Hoop cap design from hitting the metal frame or brim?
  A: Use Needle Drop to verify the true needle landing point, then run a full trace and resize/reposition until there is safe clearance.
  • Keep unstructured-cap design height under 2.5 inches to avoid the curve near the bill where deflection risk increases.
  • Use the Brother Unlock + Cut button combo to drop the needle (without stitching) and confirm the bottom edge clears the brim.
  • Run a full trace and stay at the machine with a finger on Stop; if clearance is tight, reduce width and trace again.
  • Success check: The full trace completes with no “clack,” no near-misses at corners, and visible space between the needle path and the metal frame.
  • If it still fails: Reduce the design width further and re-trace; do not stitch until the trace path is fully clear.
• Q: What machine speed should be used for stitching an unstructured cap on a Durkee Hat Hoop on a Brother 6-needle machine to reduce shifting and thread breaks?
  A: Set speed to 600 SPM or lower, and watch the first 100 stitches for any drift before committing to the full run.
  • Lower speed to the 500–600 SPM range if thread breaks occur or the cap starts bouncing.
  • Monitor for lifting corners; stop immediately if the cap begins separating from the sticky stabilizer.
  • Listen closely during the run and stop if any sharp metallic contact occurs.
  • Success check: The stitch run sounds steady (no sharp “clack”), and the design stays aligned during the first 100 stitches.
  • If it still fails: Rehoop with fresh sticky stabilizer and re-run trace to confirm the bill is not rubbing the machine arm during movement.
• Q: How do I fix registration shifting on unstructured caps embroidered with a Durkee Hat Hoop when outlines and fills no longer line up?
  A: Stop and rehoop using a fresh sticky stabilizer sheet because shifting is commonly caused by the cap flagging as adhesion weakens.
  • Replace the sticky sheet instead of reusing it for a second hat.
  • Press the crown down again using the center-out smoothing method to eliminate mid-area bubbles.
  • For extra bite on denim caps, apply temporary spray adhesive to the sticky stabilizer.
  • Success check: The cap stays fully adhered at the edges and corners, and early stitches do not drift relative to the center seam.
  • If it still fails: Reduce speed and confirm thumb screws are tight and the bill is fully seated to the backstop.
• Q: What are the key safety rules when tracing and stitching caps with a Durkee Hat Hoop on a Brother 6-needle machine to avoid needle/frame collisions and injuries?
  A: Treat trace like a live test run—never leave the machine unattended, and stop immediately if the needle path approaches metal or the brim.
  • Keep a finger on the Stop button during every trace and first stitches because impacts can strip gears or shatter needles.
  • Use rotary cutters and scissors carefully; cut away from the body and retract/cap blades immediately after trimming stabilizer.
  • Keep hands away from the needle bar area while the machine is live, especially during trace and needle-drop checks.
  • Success check: Trace completes without contact sounds, and hands/tools remain clear of moving parts throughout the setup.
  • If it still fails: Reposition/resize the design and re-trace until the needle path is safely clear before stitching.
