Draw a Reindeer Right on the Brother Innov-is XV: My Design Center Tricks That Prevent “Fill Leaks” and Save You Stitch-Out Time

If you’ve ever stared at the Brother Innov-is XV screen thinking, “I just want a cute design without opening a computer,” you’re exactly where this workflow shines. My Design Center is fast, fun, and surprisingly capable—but it also has a few "gotchas" that can waste time (or create ugly stitch-outs) if you don’t know what to watch for.

In this tutorial, you’ll build a simple reindeer from scratch using only the Brother Innov-is XV touchscreen: an oval head, two eyes, a centered red nose, and freehand antlers that you’ll fill cleanly. But more importantly, I’m going to teach you the "Invisible Engineering" behind the drawing—the small habits regarding density, gaps, and hooping that turn a screen drawing into a professional physical product.

Take a Breath: My Design Center on the Brother Innov-is XV Is Meant for Quick Wins (Not Perfect Art)

My Design Center is built into the Brother Innov-is XV, and it’s designed for exactly this kind of project: simple shapes, quick edits, and a fast conversion to stitches.

Here’s the mindset shift that saves you frustration: Think like an engineer, not an artist. You aren’t trying to create museum-grade vector art. You are building a blueprint for a machine.

If you keep your shapes closed, your colors intentional, and your layers simple, you will get a design that stitches with far fewer surprises. When you draw on a screen, pixels are free. When you stitch on fabric, every needle penetration pulls the fabric slightly. We need to account for that "pull" by drawing cleanly.

The “Hidden” Prep Pros Do First: Canvas, Tools, and a Color Plan Before You Draw Anything

Before you place a single shape, set yourself up so you don’t redo work later. Professional digitizers never start without a "Path Plan"—knowing exactly which color stitches first to avoid burying the needle.

What you’ll see on the My Design Center screen

When you enter My Design Center, you’ll land on a grid drawing sheet with toolbars around it. You’ll also see access to:

• A drawing pencil tool (for lines) and a fill (bucket) tool (for solids).
• Color selection via the color chart/palette.
• Editing tools like eraser, scissors/cut, rotate, and built-in shapes.
• Save options (to the machine memory or USB).
• Preview Button, which converts your drawing into a stitch simulation.

A practical habit: Decide your color order early. Every extra color change is time, thread, and risk—especially if you plan to stitch this on real items later.

If you’re already thinking ahead to production (holiday patches, kids’ sweatshirts, quick gift sets), this is where terms like hooping stations become relevant. The design step is only half the job; the other half is organizing your workspace so you can hoop garments straight and fast once the design is ready.

Prep Checklist (do this before you start drawing)

• Sanitize: Wipe your screen with a microfiber cloth; ghost touches from fingerprints can ruin line work.
• Tool Check: Locate your stylus. Do not use your finger for detailed drawing; the contact patch is too wide for accurate closures.
• Consumables: Have a notebook ready to write down the color numbers you choose (the screen makes them look different than the spool).
• Mental Plan: Commit to the rule: "If I want to fill it, I must close it."


Build the Reindeer Head with the Egg/Oval Shape (and Avoid the “Wrong Color” Reset)

The head is the foundation. If it’s off-center or the wrong orientation, everything else becomes fiddly.

1. Open Shapes: Tap the Shapes menu icon.
2. Select Geometry: Choose the egg/oval shape.
3. Pre-Select Properties: Crucial Step. Before placing it, select a light brown from the color palette and choose the line property Fill with Outline (or just Fill, depending on your style).
4. Place & pivot: Tap the grid to place the oval.
5. Rotate: Use the Rotate tool to turn the oval 90 degrees so it sits horizontally.

A real-world “been there” moment from the video: if you forget to change the color first and place the shape in the default (usually red or black), don’t fight the edit menu. Just use Clear and redo it. It takes 3 seconds to redo, but 3 minutes to navigate the edit menus to change line properties later.

Expert note (why this matters later)

A head shape with a clean outline gives the stitch engine a predictable boundary. We call this the "Container." In embroidery physics, a clean container reduces "Edge Wobble"—where the fill stitches poke out from the outline because the fabric shifted. By using the built-in shape (rather than hand-drawing an oval), you guarantee a mathematically perfect closed loop.

Add the Eyes: Small Black Filled Circles, Placed by Hand

Now you’ll add two eyes using the circle shape. This is a danger zone for beginners: Screen size ≠ Stitch size.

1. Color Switch: Change the active color to black.
2. Tool Switch: Select the Circle shape.
3. Mode Switch: Choose Fill only (no outline). We don't want a heavy satin border on tiny eyes.
4. Resize: Use the size adjustment arrows to shrink the circle significantly.
5. Position: Drag the first eye into position.
6. Duplicate/Repeat: Create the second eye.

The "Sinking" Risk: On-screen, big eyes look cute. In reality, large, dense black circles can bullet-proof the fabric, causing puckering. Conversely, if they are too small (under 2mm), they will disappear into the nap of fleece or velvet.

If you’re planning to stitch this on a small area (like a pocket or toddler shirt), the physical constraint of the hoop matters. A standard brother 4x4 embroidery hoop provides excellent tension for these small, centered designs, but be careful not to stretch the fabric like a trampoline, or the circular eyes will stitch as ovals when released.

Center the Red Nose Like a Pro: Use the On-Screen Arrow Keys for Perfect Alignment

A reindeer without a red nose isn’t much of a reindeer. But a nose that is 1mm off-center triggers the "Uncanny Valley" effect—it just looks wrong.

1. Color: Change to red.
2. Shape: Select the Circle.
3. Size: Shrink it down (slightly larger than the eyes).
4. Rough Place: Drag it roughly between the eyes.
5. Fine Tune: Do not drag anymore. Use the on-screen directional arrow keys (jog keys).

Sensory Check: Tap the arrow key. Watch the shape move pixel by pixel. This "Digital Nudging" is the difference between "Homemade" and "Pro." Dragging is for speed; nudging is for accuracy.

Draw the Antlers with the Pencil Tool—But Draw Them Like You Plan to Fill Them

This is where 90% of failures happen. You are switching from "Stamping Shapes" to "Freehand Drawing."

1. Tool: Select the Pencil tool.
2. Color: Choose a darker brown.
3. Draw: Sketch the antler outline starting from the head.
4. Symmetry: Draw the other side, aiming for symmetry by eye.
5. The Critical Move: Make sure the start and end points of your antler line cross comfortably into the head shape.

Anchor Concept: Imagine the "Fill Tool" is literally liquid water. If your line doesn't fully touch the head, or if the head shape isn't recognized as a "wall," the water will leak.

Warning – Physical Safety: When drawing on screen with a stylus, do not press hard. The LCD screen is pressure-sensitive but fragile. If the line mimics your pressure, you are pressing too hard. Light, confident strokes are better than heavy, shaky ones.

Stop the “Brown Screen” Panic: Fixing a Fill Bucket Leak on Brother My Design Center

In the video, the user attempts to fill the antlers, and suddenly—BAM—the entire background turns brown. This is the "Leak."

Here’s the clean recovery sequence (do not panic, do not start over):

1. Immediate action: Press Undo. (Do not try to "fill it back" to white, that creates layers).
2. Diagnose: Zoom in on the connection points between the antler and the head. You are looking for a gap the size of a pixel.
3. Surgery: Use the Pencil tool again. Draw over the gap. Ideally, extend the line inside the head area slightly. Embroidery software ignores overlapping lines of the same color better than it handles gaps.
4. Retest: Tap the Fill (bucket) tool and tap inside the antler again.

Expected outcome: The antlers become solid darker brown, while the background stays untouched.

If you keep getting leaks, your "Head" shape might be on a different layer or not recognized as a boundary. In that case, draw a full closed loop for the antler (like a balloon string) rather than relying on the head to close it.

Why the leak matters for stitching

If you leave a gap, the machine doesn't just "fail to fill." It might try to calculate a fill path that travels wildly across your hoop. A closed vector shape equals a contained, safe stitch path.

Preview Without Overthinking: Convert to Stitches and Leave Density at Default (for This Simple Design)

Once your reindeer looks right as a drawing:

1. Press Preview.
2. Accept the warning that My Design Center data will not be saved (This means you are moving from Vector format to Stitch format. You can't easily edit the specific shapes after this).
3. Review the Specs: You will see stitch count and density.
   • Standard Density: Usually 100% or 4.5 pts/mm.
   • Beginner Safety: Leave this at default.
4. Generate: Press Set or OK.

Visual Check: Look at the stitch simulation. Do you see long satin stitches (zig-zags) or fill stitches (tatami/flat)? For the nose, you want Satins. For the Head, you likely want Fill. If the machine chose wrong, go back and change the "Region Property."

The Setup Habits That Make This Design Stitch Cleanly Later (Even Though the Video Stays On-Screen)

The video ends at the screen, but your risk begins at the machine. A cute drawing can turn into a puckered mess if the Physics of Sewing aren't respected.

The number one enemy of this specific design (large filled oval) is Pull Compensation. As the needle creates the fill, it pulls the fabric inward. If your hooping is loose, the round head will stitch out looking like a lemon.

This is where understanding hooping for embroidery machine is vital. You want the fabric to be "drum-skin tight" (taut, but not stretched).

Decision Tree: The "Safe Stitch" Material Formula

Don't guess. Follow this logic path:

• Scenario A: T-Shirt / Knit / Stretchy
  • Stabilizer: Cut-away (2.5oz). Absolutely required. Tear-away will result in gaps between the eyes and the outline.
  • Hoop: Do not stretch. Use a magnetic hoop if available to avoid "hoop burn" (the shiny ring left by friction).
• Scenario B: Denim / Canvas / Totebag
  • Stabilizer: Tear-away is fine.
  • Hoop: Standard hoop tightened securely with a screwdriver (not just fingers).
• Scenario C: Fleece / Towel
  • Stabilizer: Tear-away on bottom + Water Soluble Topping on top.
  • Why? Without topping, the tiny eyes and nose will sink into the fuzz and disappear.

Setup Checklist (Pre-Flight)

• Bobbin Check: Is your bobbin full? Running out of bobbin thread on a fill stitch leaves a visible seam.
• Needle Check: Are you using a 75/11 Embroidery Needle? A dull needle will push the fabric down, causing registration errors (eyes not centered).
• Speed Limit: Set your machine to 600 SPM (Stitches Per Minute) for the first run. Speed creates vibration; vibration creates errors.

The Upgrade Path When You Want Speed (or You’re Selling): Hooping Efficiency Beats “Faster Digitizing”

Once you master this design, you might want to stitch it on 10 Christmas stockings or 20 school shirts. At that point, the bottleneck isn't the drawing—it's the setup.

Traditional screwing and tightening of hoops causes strain on your wrists and leaves marks on delicate fabrics. This is where professional shops switch to magnetic embroidery hoops. These use powerful magnets to clamp the fabric instantly without forcing it into an inner ring.

If you are a Brother user, ensure you look for a specific magnetic hoop for brother that fits your machine’s attachment arm. A generic one won't snap in.

For a design this size (approx 3x3 inches), the brother 5x7 magnetic hoop is often the "Goldilocks" size—large enough to maneuver the garment, but small enough to keep the fabric flagged down securely.

Warning – Magnet Safety: Commercial magnetic hoops are incredibly strong. They can pinch fingers severely (blood blisters) and can interfere with pacemakers. Keep them at least 6 inches away from medical devices and never leave them where children can snap them together.

Operation Checklist (Production Mode)

• Test Run: Run the design on a piece of scrap fabric similar to your final product.
• Auditory Check: Listen to the machine. A rhythmic thump-thump is good. A harsh clack-clack means the thread path is dry or the needle is hitting something.
• Watch the Trim: If your machine leaves long tails "bird-nesting" on the back, clean your bobbin case area before the next run.
• Color Batching: If you have multiple hoops, hoop the next item while the first one stitches.

Quick Troubleshooting: Symptoms You’ll See Later (and What They Usually Mean)

Even with perfect drawing, things happen physically. Use this table to diagnose the fabric issues, not just the software.

What You’ve Built (and Why It’s a Smart Skill to Practice)

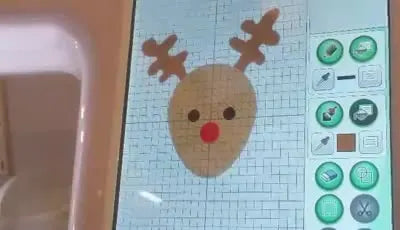

You created a reindeer entirely on the Brother Innov-is XV: shapes for the head and facial features, freehand antlers, and a clean fix for the fill leak.

But underneath the drawing, you practiced the three pillars of embroidery mastery: Closed Geometry, Color Planning, and Physical Stabilization.

Practice this exact workflow a few times. Once you stop fighting the tool, you can focus on the fun part: making things that people love. When you are ready to scale up—when "fun" turns into "orders"—remember that your tools (hoops, stabilizers, needles) are the cheapest insurance you can buy for your time.

FAQ

• Q: On the Brother Innov-is XV My Design Center, why does the shape place in the wrong color and why is “Clear and redo” sometimes faster than editing?
  A: Change the color and region property before placing the shape; if the oval was placed with the default color/property, clearing and re-placing is often the quickest fix.
  • Select the intended color first, then choose “Fill with Outline” (or Fill) before tapping the canvas.
  • If the oval is already down in the wrong settings, press Clear and rebuild the oval in the correct color/property.
  • Success check: the oval appears in the intended color with the intended fill/outline immediately after placement.
  • If it still fails: confirm the active color swatch/palette selection changed before you re-place the shape.
• Q: On the Brother Innov-is XV My Design Center, how do you stop the Fill (bucket) tool from turning the entire background brown (“fill bucket leak”) when filling antlers?
  A: Undo immediately, then close the tiny gap in the outline and re-fill; bucket leaks almost always mean the region is not fully closed.
  • Press Undo as soon as the background fills (do not try to paint it back to white).
  • Zoom in at the antler-to-head connection and hunt for a pixel-sized opening.
  • Redraw over the gap with the Pencil tool, extending slightly into the head area to ensure overlap.
  • Success check: tapping inside the antler fills only the antler, while the background remains unchanged.
  • If it still fails: draw the antler as a fully closed loop instead of relying on the head shape to “act like a wall.”
• Q: On the Brother Innov-is XV My Design Center, how do you center a small red nose perfectly without dragging it off-center?
  A: Rough-place the circle, then stop dragging and use the on-screen directional arrow keys (jog keys) for pixel-level alignment.
  • Create the red circle slightly larger than the eyes and drag it roughly into position.
  • Use only the arrow keys for the final alignment adjustments.
  • Success check: the nose looks visually centered between the eyes with clean, even spacing left and right.
  • If it still fails: resize the nose slightly, then re-nudge using the arrow keys (dragging again often introduces tiny misalignment).
• Q: When stitching a large filled oval reindeer head from Brother Innov-is XV My Design Center, what stabilizer choice prevents puckering on T-shirt knits versus denim/canvas versus fleece/towel?
  A: Match the stabilizer to the fabric: cut-away for knits, tear-away for stable wovens, and topping for high-nap fabrics.
  • Use cut-away (2.5oz) for T-shirt/knit/stretchy fabrics.
  • Use tear-away for denim/canvas/totebags.
  • Use tear-away underneath plus water-soluble topping on fleece/towel to prevent the eyes and nose from sinking.
  • Success check: after unhooping, the head stays round (not lemon-shaped) and the fabric lies flat without ripples.
  • If it still fails: re-hoop with better tension control (taut, not stretched) and consider a hooping method that reduces fabric distortion.
• Q: On the Brother Innov-is XV, what is the correct hooping tension standard for filled designs, and how can over-stretching cause eyes to stitch as ovals?
  A: Hoop the fabric “drum-skin tight” (taut but not stretched); stretching fabric in the hoop can distort circles once the fabric relaxes.
  • Tighten and smooth until the fabric is evenly taut across the hoop without pulling it like a trampoline.
  • Avoid forcing knits outward to “look tight” in the hoop—let stabilizer provide support.
  • Success check: circles (eyes/nose) stitch as circles and remain circular after the item is released from the hoop.
  • If it still fails: change stabilizer to the recommended type for the fabric and re-check that the hoop did not shift during stitching (“flagging”).
• Q: During stitch-out of a Brother Innov-is XV My Design Center design, what does “white bobbin showing on top of the red nose” usually mean and what is the first fix?
  A: Rethread the top thread first, then reduce top tension slightly; white specks on top usually indicate top tension is too tight or bobbin tension is too loose.
  • Rethread the top path completely (with the presser foot up, if applicable to the machine’s threading method).
  • Lower the top tension slightly and test again on scrap fabric.
  • Success check: the red nose looks solid red on top without white pinpricks.
  • If it still fails: clean the bobbin area and re-test; follow the machine manual before making any bobbin-tension adjustments.
• Q: What is a safe first-run speed and pre-flight checklist for stitching a Brother Innov-is XV My Design Center fill-heavy design to prevent registration issues and bird-nesting?
  A: Start slower and verify basics: a full bobbin, a fresh 75/11 embroidery needle, and a reduced speed for the first run.
  • Check the bobbin is sufficiently full before starting (fills can empty bobbins fast).
  • Install a 75/11 embroidery needle (a dull needle can contribute to registration problems).
  • Set speed to 600 SPM for the first test run to reduce vibration-related issues.
  • Success check: the machine sounds steady (a consistent rhythmic thump) and the eyes/nose land where expected without messy nests on the back.
  • If it still fails: stop and clean the bobbin case area before the next run, especially if the back shows long tails or nesting.
• Q: If hoop burn marks or slow hooping becomes a bottleneck when stitching multiple Brother Innov-is XV projects, when should you switch from technique tweaks to a magnetic embroidery hoop, and what magnetic hoop safety rules matter most?
  A: If consistent hooping causes fabric shine/marks or production is limited by hooping time, a magnetic hoop can be a practical next step; handle magnets carefully to prevent injury and medical-device interference.
  • Level 1 (technique): refine hooping tension (taut, not stretched) and stabilize correctly for the fabric to reduce shifting and re-hooping.
  • Level 2 (tool upgrade): use a magnetic hoop to clamp fabric faster and reduce friction-based hoop burn on delicate materials (choose a model made to fit the Brother attachment system).
  • Safety: keep strong magnets away from pacemakers and prevent finger pinches by controlling the snap together force.
  • Success check: hooping is faster and repeatable, with fewer visible hoop marks and fewer alignment issues across multiple items.
  • If it still fails: verify the hoop is the correct fit for the machine’s arm and re-check stabilization—magnetic clamping cannot compensate for incorrect stabilizer choices.
