Double Appliqué “Bubble” Text in Embrilliance Stitch Artist Level 3—Clean Unions, a 6 mm Offset, and a Tote-Bag Stitch-Out That Doesn’t Drift

If you have ever watched a flawless “bubble” appliqué stitch out on YouTube—only to have your own machine drop the placement line next to your fabric like a bad practical joke—stop. Breathe. You are not untalented; you are likely fighting physics.

This specific technique (Double Appliqué with Offset) has two distinct failure points that rarely get mentioned in 60-second tutorials: Vector Hygiene (software control) and Hoop Stability (physical control).

In this white-paper-style guide, we are deconstructing Patty Ann’s double appliqué offset workflow. We will move from the digital architecture (TrueType text → Logical Union → Inflate Outline 6mm) to the high-stakes physical execution on a tote bag using Batik, Terial Magic, and Steam-A-Seam 2 Lite.

But we are going deeper. We will address the sensory cues of a good setup, the safety protocols for heavy items, and the commercial-grade tools that stop your hoop from drifting.

The “Do I Need Stitch Artist Level 3?” Reality Check for Logical Union + Inflate (and why Essentials won’t get you there)

Patty Ann addresses the elephant in the room immediately: the specific combination required for this look—Logical Union plus Inflate Objects—is a function of Embrilliance Stitch Artist Level 3. While Essentials is fantastic for basic management, it lacks the vector manipulation tools required here.

Why does this matter? Because “Bubble” appliqué relies on two non-negotiable operations:

1. Welding (Logical Union): You must fuse overlapping script letters into a single, continuous shape. If you don't, your cutting machine (Cricut/Silhouette) will slice right through the connecting tails of your letters, ruining the appliqué.
2. Offsetting (Inflate Objects): You need to scientifically expand that welded shape to create the background shadow.

The Business Perspective: If you are evaluating software with a business goal (selling badges, spirit wear, or Etsy customization), treat Level 3 as a capital investment, not a toy. Hobbyists often burn 10+ hours trying to "hack" this look in lower-tier software. In a production environment, time is your most expensive inventory. If Level 3 saves you 30 minutes per design, it pays for itself in a few dozen orders.

Note on Licensing: Generally, purchasing Level 3 encompasses the features of lower levels, but always verify current licensing terms at the point of purchase.

The “Hidden” Prep Pros Do Before Touching Embrilliance: fonts, nodes, and a plan for cutting

Novices open software and start typing. Pros plan the cut before they touch the keyboard. Patty Ann’s workflow works because she uses a Pre-Cut Method (using a digital cutter like a Portrait or Cricut), which eliminates the tedious/risky hand-trimming of curves inside the hoop.

However, this method demands "Vector Hygiene." Script fonts are notorious for being "dirty"—they often contain hundreds of unnecessary nodes or micro-loops that look fine on screen but cause cutters to stutter and jagged edges on fabric.

The "Clean Node" Principle: Your goal is a stitch path that flows like water. Every extra node is a potential hesitation point for your cutter or your needle.

Prep Checklist: The "Zero-Friction" Start

• Font Selection: Choose a script font with clean overlaps. Does it look like a smooth highway or a rocky road?
• Cutting Strategy: Decide now—Scissors (requires stopping the machine) vs. Digital Cutter (requires pre-exporting files).
• Consumable Check: Do you have Terial Magic (liquid stabilizer) and Steam-A-Seam 2? The "Bubble" look requires stiff fabric. Use a fresh 75/11 Sharp needle to penetrate the Batik without deflection.
• Contrast Plan: Pick two high-contrast thread colors for your screen simulation (e.g., Hot Pink and Lime Green) so you can visually verify the layers.
• Hooping Strategy: If doing a tote bag, how will you secure the handles? (See the Operation Checklist below).


Build the text in Embrilliance TrueType Font Tool: “Luckily” + Extra Bold, then group it so it behaves

In the workflow, Patty Ann enters Stitch Artist, selects Create, and utilizes the TrueType Font tool. She selects the font “Luckily”, applies the Extra Bold style, and types “teacher.”

Key Workflow Nuances:

• Grouping (Ctrl+G): She treats the word as a single unit. This prevents the accidental shifting of a single letter, which would ruin the kerning.
• Scaling: She scales the word up significantly. Tip: It is always better to digitize at the target size rather than resizing later, which can distort density calculations.

Troubleshooting the UI: A common frustration among users is that their dialog box "looks different." Software UIs update, and Operating System scaling can hide buttons. If you cannot find the TrueType tool, ensure you are in "Create" mode (Stitch Artist), not "Editor" mode (Essentials).

Logical Union in Stitch Artist Level 3: weld the script so your cutter doesn’t slice through overlaps

This is the "Secret Sauce" of Level 3. Patty Ann clicks Logical Union. Visually, the change is subtle, but in the Objects Panel, a new object named “Union” appears.

The Critical Step: She deletes the original, individual letter objects.

The "Node Panic" & The Fix: After unioning, the outline might look like a "gobbledy mess" of hundreds of tiny nodes. This is common with free TrueType fonts.

1. Zoom In: Get close to the vector line.
2. Sanitize: Double-click to delete the "wild" nodes that create jagged corners.
3. Pro Option: Use Reconstruct Outline (a Level 3 feature) to mathematically simplify the curve.

Experience Note: If a font refuses to Union cleanly, do not fight it for an hour. Some fonts are simply poorly constructed. Discard the font and find a better-engineered alternative.

Convert the top layer to Appliqué: Border = None, and turn on Fabric Preview + Position + Material for cutting

With a clean "Union" object, duplication is next (Copy → Paste). You now have two identical layers:

1. Object A: Will become the Top Text.
2. Object B: Will become the Background Bubble.

Patty Ann selects the top layer and clicks the Appliqué icon (blanket stitch symbol).

The "Pre-Cut" Settings Profile:

• Border: None (We are not simulating the edge stitch yet).
• Fabric Preview: Checked (Visual confirmation).
• Position: Checked (Runs a placement line).
• Material: Checked (Essential for exporting the .SVG/.FCM file to your cutter).

If your Properties panel seems to be missing these options and only shows density, click the Appliqué button again. The software context needs to switch from "Stitch generation" to "Appliqué properties."

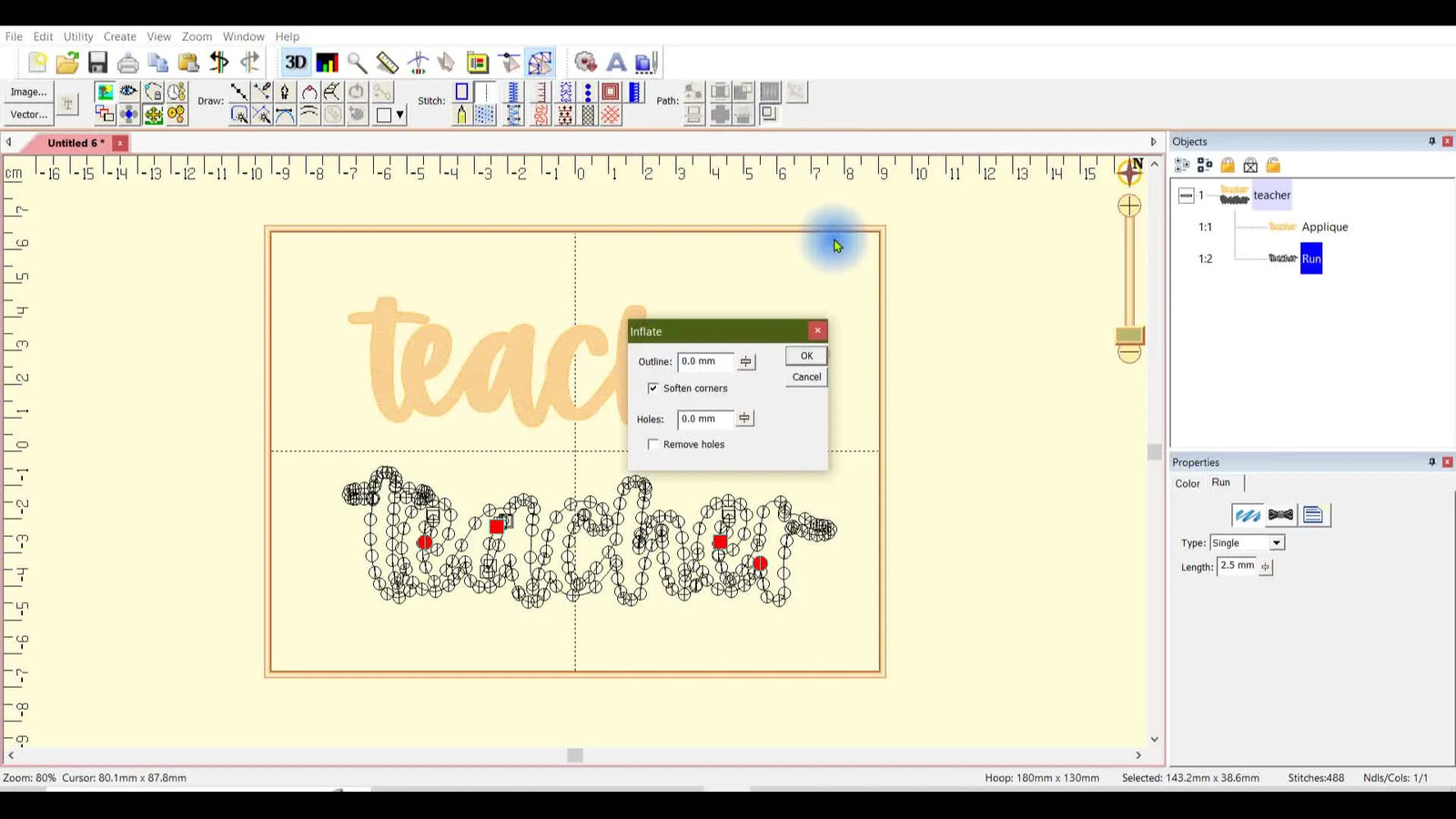

The 6 mm “Bubble” Offset: duplicate → Inflate Objects → Inflate Outline 6 mm + Remove holes

Select the second (duplicate) object. This will become the background. Use the Inflate Objects tool.

The "Sweet Spot" Data:

• Inflate Outline: 6 mm. (Experience suggests 4mm is too tight for a distinct bubble; 8mm begins to look disconnected. 6mm is the aesthetic sweet spot).
• Softened Corners: Checked. (Sharp corners on a bubble background look harsh and robotic).
• Remove Holes: Checked. (Crucial. You want a solid background silhouette, not little holes inside the 'e' or 'a').

Warning: Determine Your Physical Limits When you inflate a design by 6mm on all sides, the overall footprint grows significantly. If you are researching hooping for embroidery machine limitations on a tote bag, measure your hoop's safe workable area. A design that fits the screen might hit the plastic frame of the hoop once inflated. Always leave a 20mm buffer from the hoop edge.

Sequence like a pro: reorder Objects panel + assign different colors so the stitch simulator tells the truth

Sequence dictates success. After inflating, convert the bubble layer to Appliqué properties as well. Now, reorder the Objects Panel:

1. Background Bubble (Bottom Layer)
2. Text (Top Layer)

The "Traffic Light" System: Change the screen colors of the placement lines (e.g., make the background Blue and the text Red). This has nothing to do with thread; it forces the machine to stop. If layers are the same color, many machines will "optimize" them into one continuous run, preventing you from placing your fabric.

The Simulator Check (Do not skip): Run the Stitch Simulator. You must see:

• Click... Placement Line (Background) → STOP.
• Click... Tack Down (Background) → STOP.
• Click... Placement Line (Text) → STOP.
• Click... Tack Down (Text) → STOP.


Fabric prep that makes appliqué behave: Batik + Terial Magic + Steam-A-Seam 2 Lite (and why it works)

Patty Ann uses a "Stability Sandwich": Batik fabric treated with Terial Magic (stiffener), backed with Steam-A-Seam 2 Lite (fusible web).

Why this combination? A Material Science view: Appliqué fails when fabric acts like fluid—shifting, stretching, and fraying.

• Batik: High thread count, low stretch. Inherently stable.
• Terial Magic: Saturates the fibers, temporary transforming the fabric into a paper-like material. This provides the rigidity needed for the digital cutter to slice complex script without dragging.
• Steam-A-Seam: Provides the adhesion. It locks the precise placement so the needle doesn't push the fabric letter while stitching.

If you are setting up a dedicated workspace, professional embroidery hooping station fixtures are excellent for repeatable placement, but your material prep is what ensures the machine doesn't chew up your letters.

Stitch-out on a tote bag without the “handle drag” disaster: placement line → iron-on → tack-down (then repeat if you want it bolder)

The stitching process is standard: Placement → Iron the pre-cut distinct shape → Tack-down. Patty Ann runs the stitch twice for a bolder, hand-stitched look.

The Crisis Point: Handle Drag During the video, disastrous reality strikes: a tote bag handle catches on the machine's free arm. The motor is stronger than the hoop's friction. It drags the hoop, shifting the registration by millimeters. The second pass stitches onto raw fabric. Ruined bag.

Warning: Physical Safety
An embroidery machine arm moves with significant torque. Keep fingers, scissors, and loose straps (like tote handles) at least 4 inches away from the active needle bar. Only a fleeting snag is required to snap a needle, which can send metal shards flying toward your eyes. Always wear eyewear when monitoring a stitch-out.

The Post-Mortem: If your outline drifts, do not blame the digitizer immediately. Check the Physical Vector. Did a heavy seam hit the table? Did a handle snag? Did the weight of the bag pull the hoop down?

The “Why it drifted” explanation: hoop tension, drag points, and how magnetic hoops change the game on bags

Why did the hoop shift? Traditional plastic hoops rely on friction between an inner and outer ring. Thick items like tote bags create "Hoop Pop"—where the inner ring is barely holding on. A lateral tug (like a snagged handle) easily overcomes this weak friction.

The Fix Phase 1: Technique

• Tape/Pin Everything: Securing handles is not optional.
• Support the Weight: Do not let the heavy bag hang off the machine. Support it with a table extension or your hands (gently).

The Fix Phase 2: Tooling Upgrade This is where magnetic embroidery hoops transition from a luxury to a necessity. Unlike friction hoops that "pinch" fabric (often causing burn marks or popping loose), magnetic frames use vertical magnetic force to clamp the material.

• For Home Machines: SEWTECH magnetic hoops allow you to slide a thick tote bag seam in without wrestling the inner ring. The clamp is instant and uniform.
• Drift Resistance: Because the magnetic bond is continuous around the frame, it resists the "leveraging" force of a heavy bag better than a plastic hoop that is barely closed.

Warning: Magnet Handling
High-quality magnetic hoops use industrial Neodymium magnets. They are incredibly powerful. Pinch Hazard: Never place your fingers between the magnets. Medical Safety: Keep them away from pacemakers and insulin pumps.

For volume production, combining a magnetic hooping station with magnetic frames turns the nightmare of hooping bags into a 30-second, repeatable flow.

Decision tree: choose stabilizer + hoop strategy for tote bags vs. flat cotton (so appliqué stays registered)

Stop guessing. Use this decision matrix to determine your setup based on the physics of your blank.

The Appliqué Stability Matrix

Scenario A: Flat Material (Quilting Cotton / Unassembled Fabric)

• Risk Profile: Low.
• Stabilizer: Medium Tearaway (for clean back) or Cutaway.
• Hoop: Standard Plastic Hoop.
• Adhesion: Lite fusible web recommended.

Scenario B: The "Bag Beast" (Assembled Canvas Tote with Seams)

• Risk Profile: High (Drag & Distort).
• Stabilizer: Heavy Cutaway (Must support 50,000+ stitches) or Firm Tearaway.
• Hoop: how to use magnetic embroidery hoop recommended to accommodate thick seams without "Hoop Burn."
• Adhesion: Steam-A-Seam 2 (Strong hold).
• Physical Fix: Roll and clip excess bag material. Tape handles to the body of the bag.

Scenario C: Stretchy Material (T-Shirt / Jersey)

• Risk Profile: Severe (Available Distortion).
• Stabilizer: Fusible No-Show Mesh (Cutaway) is mandatory.
• Hoop: Magnetic Hoop preferred to prevent "stretching" the fabric while hooping (drum-tight hooping ruins patterns on knits).


Troubleshooting the problems people actually hit: messy nodes, Union failures, missing Properties, and “my outline doesn’t match”

We have translated the user comments and video failures into a rapid-response troubleshooting table.

The upgrade path that actually saves time (not just money): from hobby workflow to small-batch production

If you are strictly a hobbyist, patience is free. But if you are trying to monetize your embroidery, bottlenecks kill profit.

The Evolution of a Shop:

1. Level 1 (The Learner): Uses standard plastic hoops. Battles hoop burn. Wastes 5 minutes per bag hooping and re-hooping.
2. Level 2 (The Prosumer): Adopts SEWTECH Magnetic Hoops. Hooping time drops to 30 seconds. "Hoop burn" disappears. Thick items become profitable.
3. Level 3 (The Producer): Moves to Multi-Needle Machines.
   • Why? A design like this requires color stops for placement. On a single needle, you are manual labor—stopping, rethreading, starting. On a SEWTECH multi-needle, the machine handles the colors; you just handle the appliqué placement.
   • Scale: If you land an order for 50 "Teacher Totes," a single-needle machine will take you a week. A multi-needle machine finishes in a weekend.

Even if you aren't ready for a new machine, integrating a hoop master embroidery hooping station style fixture ensures that every placement (e.g., center chest) is identical across all 50 bags, which is the hallmark of professional work.

Operation Checklist: The "Pre-Flight" Safety Check

• Clearance: Handles pinned/taped so they cannot touch the free arm.
• Support: Bag body weight is supported (not dragging the hoop).
• Tension: Fabric is clamped securely (Listen for the "snap" of the magnet or feel the tightness).
• Needle: Fresh 75/11 or 80/12 Sharp installed (Ballpoint will struggle with Batik + Canvas).
• Simulator: Verified stitch order (Placement → Tack → Placement → Tack).
• Iron: Hot and ready for the fuse step.


A finishing note from a working shop: decide your edge finish before you sell the result

Patty Ann ends by noting she might use a satin stitch next time. This is a critical design decision.

• Raw Edge / Light Beam: Fast, modern, but may fray over time. Great for "rustic" looks.
• Satin Stitch: Classic, durable, seals the edge. Takes longer to stitch and requires simpler node structures to turn corners cleanly.
• Bean Stitch (Triple Run): The "hand-sewn" aesthetic similar to the video. Very popular in boutique markets.

Your choice of finish dictates your stabilizer intensity. A heavy satin stitch requires significantly more stabilization to prevent tunneling than a light bean stitch.

Setup Checklist (Software Recap):

1. Font: TrueType "Luckily" + Extra Bold.
2. Logic: Create Text → Logical Union → Clean Nodes.
3. Layer 1: Convert to Appliqué (Border: None, Position/Material: On).
4. Layer 2: Duplicate → Inflate Object (6mm, Remove Holes) → Convert to Appliqué.
5. Order: Move Inflated Bubble to bottom → Color code for stops.

Mastering this technique is a rite of passage. It demands that you control both the digital nodes in your software and the physical forces on your hoop. Once you do, you stop hoping for a good result and start manufacturing one.

FAQ

• Q: Why does Embrilliance Stitch Artist Level 3 Logical Union create a “gobbledy mess” outline with too many nodes on script fonts?
  A: This is common with poorly constructed TrueType script fonts; clean the vector or switch to a cleaner font.
  • Zoom in tightly on the Union outline and delete stray/wild nodes that create jagged corners.
  • Use Embrilliance Stitch Artist Level 3 “Reconstruct Outline” to mathematically simplify curves when manual cleanup is too slow.
  • Swap to a known clean script font (for example, the blog’s “Luckily” test) to confirm the tool is working.
  • Success check: the outline looks smooth at high zoom and the cutter/preview path flows without tiny zigzags.
  • If it still fails… stop fighting the font and choose a better-engineered font rather than losing an hour on cleanup.
• Q: Why is the Embrilliance Stitch Artist Level 3 Logical Union button not working for welding overlapping script letters for a Cricut/Silhouette pre-cut appliqué?
  A: The most common cause is font incompatibility rather than software failure; try a different script font and re-run Union.
  • Confirm the letters are selected as intended (group the word so individual letters don’t shift).
  • Run Logical Union and then delete the original individual letter objects so only the new “Union” object remains.
  • Test with a known-working font to separate “font problem” from “workflow problem.”
  • Success check: the Objects panel shows a single “Union” object and overlaps become one continuous shape (no cut-through gaps).
  • If it still fails… verify Stitch Artist Level 3 is actually authorized and that you are working in Create mode, not Essentials/Editor mode.
• Q: Why are Embrilliance appliqué options missing (Border None, Fabric Preview, Position, Material) when setting up pre-cut appliqué files for a cutting machine?
  A: The properties are context-sensitive; re-select the object and click the Appliqué icon again to switch the panel into appliqué mode.
  • Click the exact object you want to convert (top text layer or bubble layer).
  • Click the Appliqué button firmly again to toggle the correct appliqué property view.
  • Turn on Position and Material for pre-cut workflows, and set Border to None if you are not simulating the edge stitch yet.
  • Success check: the panel shows Fabric Preview/Position/Material checkboxes and the stitch simulator shows distinct placement/tack steps.
  • If it still fails… confirm you are in Stitch Artist Create mode (UI differs between modes and versions).
• Q: What is the correct stitch sequence for a double appliqué with 6 mm offset “bubble” in Embrilliance Stitch Artist so the machine stops for fabric placement?
  A: Sequence and color stops must force pauses; reorder layers and assign different colors so placement/tack steps do not merge.
  • Place the Background Bubble layer below the Text layer in the Objects panel.
  • Assign different thread colors to each layer’s placement/tack lines to force machine stops.
  • Run the stitch simulator and confirm the order: Background placement → stop, Background tack → stop, Text placement → stop, Text tack → stop.
  • Success check: the simulator clearly shows four separate “stop points” that match the placement/iron/tack workflow.
  • If it still fails… re-check that both layers were actually converted to appliqué properties (not just one layer).
• Q: Why does an embroidery placement line drift on an assembled tote bag (handle snag/drag) even when the digitizing looks correct in Embrilliance?
  A: Drift is often caused by physical drag overcoming hoop friction; control straps/weight first, then upgrade hooping if needed.
  • Tape or pin tote handles so they cannot reach the machine free arm during stitching.
  • Support the tote bag weight with a table extension or by gently holding the bag so it does not pull down on the hoop.
  • Stop stitching immediately if a snag happens; continuing usually ruins registration.
  • Success check: the second pass stitches exactly on the first placement/tack path with no visible offset by millimeters.
  • If it still fails… consider switching from a standard friction hoop to a magnetic hoop for better clamping on thick, assembled items.
• Q: What needle and material prep are recommended for Batik appliqué with Terial Magic and Steam-A-Seam 2 Lite to prevent fabric shifting during stitching?
  A: Use a fresh sharp needle and stiffened, fused fabric so the pre-cut pieces behave like stable “paper,” not stretchy cloth.
  • Install a fresh 75/11 Sharp needle (an 80/12 Sharp may be used generally if the blank is heavier, but follow the machine manual).
  • Treat Batik with Terial Magic for rigidity, and back it with Steam-A-Seam 2 Lite for controlled adhesion during stitching.
  • Pre-plan high-contrast screen colors so you can visually verify layers before committing to the stitch-out.
  • Success check: pre-cut pieces place cleanly, do not creep under the needle, and the tack-down lands exactly on the edge you expect.
  • If it still fails… re-check hoop stability and drag points on the tote bag; material prep cannot compensate for a shifting hoop.
• Q: What embroidery machine safety steps prevent needle breaks when stitching a tote bag appliqué near the free arm and moving needle bar?
  A: Treat straps and tools as hazards near a high-torque moving arm—secure everything and keep hands away from the needle zone.
  • Keep fingers, scissors, and loose straps at least 4 inches away from the active needle bar and free arm movement path.
  • Tape/clip handles and roll/clip excess tote material so nothing can snag during a color stop or placement pause.
  • Wear eye protection when monitoring a stitch-out, especially on bulky items where snags can snap needles.
  • Success check: the machine completes the placement/tack sequence with no sudden tug, no needle deflection, and no contact between straps and the free arm.
  • If it still fails… stop the machine and re-check clearance and weight support before restarting.
• Q: What are safe handling rules for industrial neodymium magnetic embroidery hoops when hooping thick tote bags?
  A: Magnetic hoops clamp strongly and reduce slippage, but they can pinch hard—handle magnets deliberately and keep them away from medical devices.
  • Keep fingers out from between magnets when closing the frame to avoid pinch injuries.
  • Keep magnetic hoops away from pacemakers and insulin pumps (medical safety comes first).
  • Clamp evenly and verify the bag seam is seated flat so the magnetic bond is continuous around the frame.
  • Success check: you feel a firm, uniform clamp (no loose corner), and the tote does not “creep” when the bag is supported.
  • If it still fails… reduce drag by supporting the tote weight and securing handles; even strong clamping cannot overcome a hard snag.
