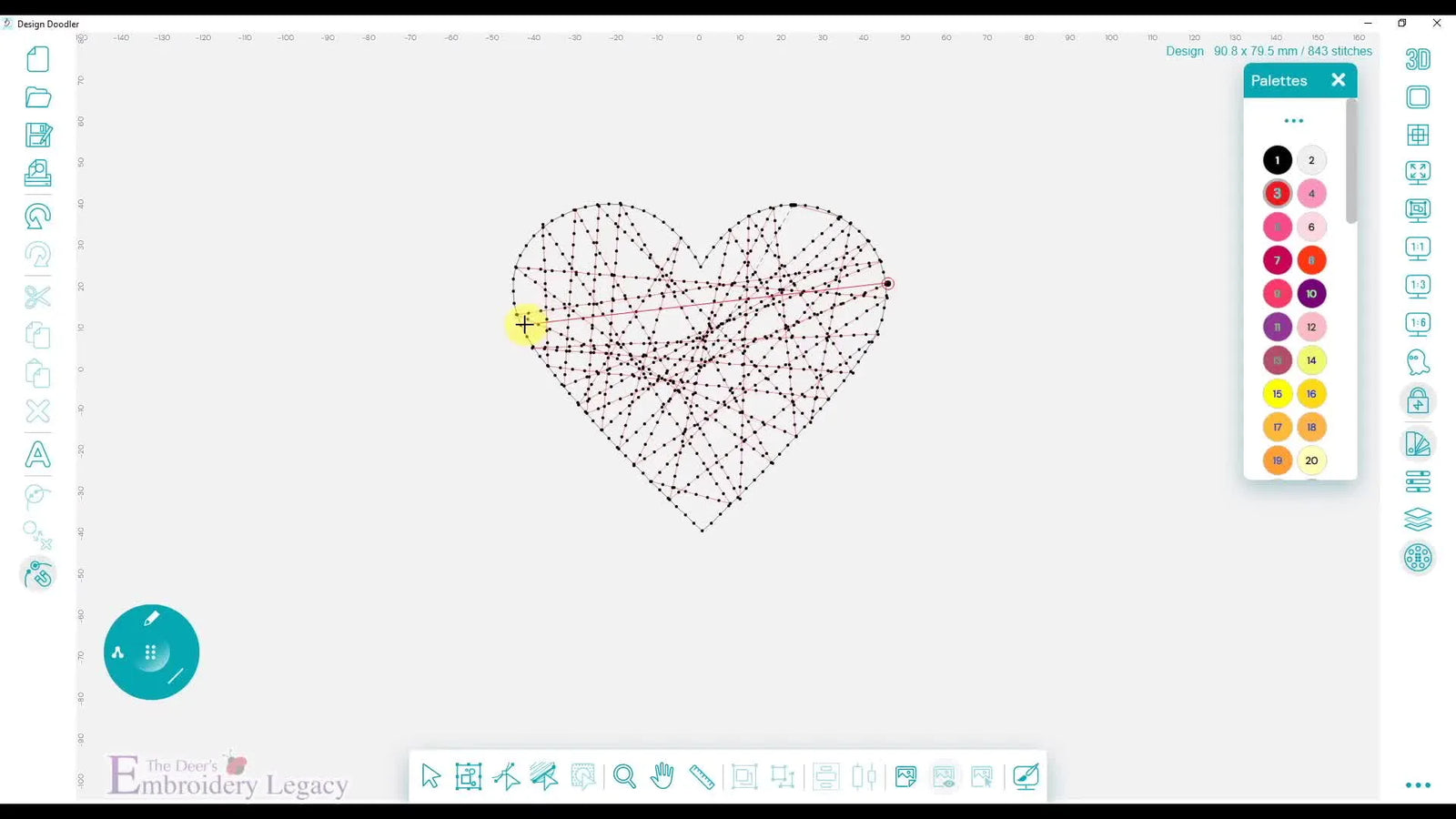

Dot-to-Dot Doodling in Design Doodler: A Clean String-Art Fill That Stitches Without Jumps

If you have ever stared at a dense, complex embroidery design and felt the urge to give up before you even threaded the needle, you are not alone. The industry often pushes "high stitch count" as a proxy for quality, but seasoned digitizers know the truth: sometimes, less is more.

If you’ve ever wanted a “string art” look that stitches fast, stays light, and doesn’t turn into a trim-jump nightmare, Linda’s Dot-to-Dot Doodling method is one of those deceptively simple techniques that can level up your design library in a single afternoon.

The magic is not a fancy fill algorithm—it’s a manual workflow: you create evenly spaced stitch points on a shape, reveal those points as clickable dots, then draw straight running-stitch lines that snap to those dots so the machine can stitch continuously.

The Calm-Down Moment: Dot-to-Dot Doodling Is “Manual,” Not “Hard”

A lot of beginners hear “manual digitizing” and immediately assume it means slow, technical, and easy to mess up. This one isn’t. It’s closer to a controlled doodle: you’re making simple straight lines, but you’re letting the software’s stitch points do the precision work.

Think of it like connecting the stars in a constellation. You don't need to be an artist; you just need to be able to move your mouse from Point A to Point B. One viewer even called it great mouse practice—and that’s exactly right. If you can click, drag, and wait for a snap indicator, you can build a clean line-art fill that looks remarkably modern on tote bags, t-shirts, and quilt blocks.

The Hidden Prep That Prevents Ugly Stitch-Outs (Before You Draw a Single Line)

Before you touch the line tool, you must set the "physics" of your digital canvas. If you skip this, your dots will either be too crowded (creating a bulletproof patch of thread) or too sparse (losing the shape entirely).

What the video sets up (and why it matters)

• Brush type: Running Stitch. This keeps the whole look airy and “stringy,” creating that geometric, hand-stitched aesthetic without the bulk.
• Brush size / stitch length: 3 mm. This is the most critical number. In this technique, your stitch length dictates how far apart your "anchor dots" appear on the perimeter.
  • Expert Insight: If you go lower (e.g., 1.5mm), your dots will be clustered, making it hard to click specific ones, and you risk needle penetrations that are too close, shredding the fabric.
  • The Sweet Spot: 3.0mm to 3.5mm is the beginner safety zone. It provides enough definition for the shape while keeping the stitch count low.
• Shape size: Heart at about 100 mm (approx. 4 inches). This is a standard size that fits most entry-level 4x4 or 5x7 hoops.
• Grid: Turned off. This reduces visual clutter so your eyes can focus solely on the anchor points.


Prep Checklist (do this once, save yourself 30 minutes later)

• Select Tool: Choose the Running Stitch brush/tool.
• Set Parameters: Change brush size / stitch length to 3.0 mm.
• Create Shape: Drag the heart shape onto the canvas and resize to ~100 mm height.
• Clean View: Turn Grid off to reduce eye strain.
• Color Setup: Pick a high-contrast working color (Linda uses red) so you can easily distinguish your new lines from the original black outline.


Turn “View Stitch Points” Into Your Anchor Map (and Fix the “Faint Dots” Problem)

Linda’s “secret sauce” starts in the three-dots options menu: View Stitch Points (or "Show Nodes/Points" depending on your software). When you enable it, the heart outline becomes a perimeter of small dots—each dot represents a needle penetration point.

“Why are the dots so faint?” (comment question, real-world fix)

If you can barely see the dots, you’re not alone—this is a common usability snag in digitizing software. The dots are often rendered as single pixels, which can disappear on high-resolution 4K monitors.

What you can do inside the boundaries of what the video shows:

• Confirm Activation: Ensure you actually clicked View Stitch Points. The outline usually changes appearance slightly when active.
• Verify Settings: Make sure you are looking at the perimeter after the 3 mm setting is applied. If the stitch length is set to "Auto" or a very small number, the dots may blur into a solid line.

Pro Tip: If you are struggling to see them, zoom in to 200% or 400%. The "snap" function will work even if you can't see the dot perfectly, but visual confirmation reduces errors.

“Why don’t I have a black outline?” (comment question)

In the video, the black outline is the original reference object. If your outline matches your active thread color, you might get confused about which line is the "border" and which is your "doodle." Always change your active thread color to something contrasting (like Hot Pink or Bright Red) before starting the manual drawing process.

Snap to Anchors: The One Toggle That Prevents Jumps, Trims, and Gaps

Now switch to the Straight Line tool and make sure Snap to Anchors (or Snap to Nodes/Grid) is enabled. This is the difference between a satisfying continuous run and a design full of tiny disconnects.

When you hover over a perimeter dot, it turns red (or highlights significantly). That red highlight is your "green light"—it is the software telling you, "I have locked onto this exact coordinate."

If you are building a library of quick fills, this workflow is essential. While searches for how to use magnetic embroidery hoop often spike when users are frustrated with physical stability, digital stability is just as important. Continuous connectivity in the file keeps the machine stitches flowing without stopping to trim every few seconds, which is the hallmark of a professional file.

Warning: Safety First. Keep fingers clear when you later stitch out and trim threads near the needle area. Running-stitch designs can tempt you to “just snip one loose thread quickly” while the machine is running. Never do this. A moving needle at 600 stitches per minute is invisible to the eye and can cause severe injury. Pause the machine before trimming.

Draw the First Line the “Linda Way”: Click, Drag, Wait for Red, Release

This involves a specific rhythm. Do not rush. This is not about speed; it is about connection.

1. Start: Click anywhere on the heart perimeter.
2. Target: Hover over a different perimeter dot until it turns red.
3. Action: Click and drag across the heart.
4. Verify: Wait for the target dot to highlight.
5. Commit: Release the mouse button to create the line.

Linda demonstrates this with a mouse and notes it’s perfect if you don’t have a pen tablet or iPad pencil. In fact, a mouse often provides better "snap" feedback than a stylus.

Operation Checklist (your quality control while you doodle)

• Visual Lock: Do not release the mouse until the target dot turns red.
• Audio Check: Listen for the "click" of your mouse (if audible) to ensure you aren't dragging inadvertently.
• Pattern Strategy: Move in a random zig-zag pattern. Avoid parallel lines; you want chaos, not stripes.
• Density Watch: Avoid crossing the same center point more than 3 times (this prevents needle deflection).
• Correction: If a line doesn’t land correctly, press Ctrl+Z (Undo) immediately. Do not try to patch it.


Keep the Heart Looking Like a Heart: Don’t Cross the Top “Dip” (Boundary Management)

Linda shows a classic mistake: bridging across the negative space between the two top lobes of the heart. When you do that, you lose the iconic silhouette.

The rule is simple: Stay in the meat. Your lines must strictly follow the interior of the shape. If you need to connect the left lobe to the right lobe, do not cross the "V" dip at the top outside the shape. Instead, route your path lower down, through the center of the heart.

The physics behind this (why it matters on fabric)

Even though this is “just running stitch,” thread has tension. When you stitch long straight runs across open negative space (if you were to ignore the boundary), the thread creates a "bridge" that can snag on zippers or buttons. Furthermore, long straight stitches usually have a limitation (around 7mm to 9mm depending on the machine). If you draw a line longer than your machine's max trim length, the machine might insert intermediate stitches you didn't plan for, ruining the geometric look.

The Fast Fix for a Gap: Red Dot or It Didn’t Happen

Linda calls out the most common failure mode, which results in those annoying "jump stitches" where the machine stops, trims, moves 1mm, and starts again.

• Symptom: You see a dotted line or a jump command in the simulator where there should be a solid thread.
• Likely Cause: You released the mouse before the Snap to Anchor function fully engaged.
• The Fix: Undo. Redraw. Wait for the Red Dot.

This is a discipline issue. Train your eye to wait for the visual lock confirmation every single time. It takes a fraction of a second longer but saves minutes of trimming time later.

Use 3D View as Your Reality Check: You’re Looking for “String Art,” Not a Brick Wall

Linda toggles 3D View (often hotkey 'T' or a realistic render icon) to preview the thread simulation. This provides a "What You See Is What You Get" verification.

You are looking for two specific problems:

1. Hot Spots: Areas where 5, 6, or 7 lines all cross at the exact same point. This will create a hard knot of thread that can break needles or cause the machine to jam. Fix: Delete the last few lines and route them around the hot spot.
2. Bald Spots: Large areas with no thread coverage. Fix: Add a few transverse lines to break up the empty space.

A practical, generally-true digitizing insight: with loose fills, distribution matters more than density. You want the viewer to read “airy texture,” not “solid patch.”

Cleanup in Sequence Docker: Delete the Reference Outline Without Deleting Your Art

Once the fill looks good, you must remove the scaffolding. Go to the Sequence Docker (or Object Manager), identify the original black outline, and delete it (Select > Delete key).

This leaves only your red string-art lines. If you leave the outline, the machine will double-stitch the perimeter, making the edge look heavy and potentially misaligned if the fabric shifts.

Save Like a Pro: JDX for Editing, DST for Stitching

Linda saves twice, and this is a non-negotiable habit for professional longevity:

1. Format 1: Native (e.g., JDX, EMB, BE): This preserves the vector data, the nodes, and the "object" properties. You can edit this later.
2. Format 2: Machine (e.g., DST, PES, EXP): This captures the implementation instructions (X/Y coordinates) for the machine.


Never relying solely on the machine file. If you need to resize the heart next Valentine's Day, you must use the Native file to recalculate the stitch points.

Stitch-Out Reality: Hooping, Stabilizer, and Why Magnetic Frames Feel Like Cheating (In a Good Way)

The video ends with a real-time stitch-out on an embroidery machine. You can clearly see a blue magnetic hoop being used during production.

Here is the reality of stitching light running-stitch designs: they are very unforgiving of distortion.

• In a dense satin fill, the thread pulls the fabric tight, masking minor hooping errors.
• In "String Art," the fabric needs to lay perfectly flat with zero distortion. If you stretch the fabric in a traditional hoop and then stitch this geometric pattern, when you un-hoop it, the fabric relaxes and your straight lines become wavy noodles.

This is where the magnetic hoop becomes more than a convenience. In many professional shops, magnetic frames are used specifically to hold the fabric with even tension without the "tug-of-war" that causes hoop burn or distortion.

Warning: Magnetic Hazard. Magnetic hoops contain powerful industrial magnets. Keep them away from pacemakers, ICDs, and other implanted medical devices. Do not let the magnets snap together on your fingers—pinch injuries can be severe.

Decision Tree: Fabric → Stabilizer Strategy for Light Running-Stitch Fills

Use this logic to avoid puckering:

• Scenario A: Stable Woven Cotton / Denim / Canvas
  • System: Medium Tear-away.
  • Why: The fabric supports itself. The stabilizer just keeps it crisp.
• Scenario B: Stretchy Knit / T-Shirt / Performance Wear
  • System: No-Show Mesh Cut-away (1-2 layers as needed).
  • Why: Knits move. Running stitches will sink and distort without a permanent backing (Cut-away) to hold the geometry for the life of the garment.
• Scenario C: High Nap (Towels/Velvet)
  • System: Tear-away (Back) + Water Soluble Topper (Front).
  • Why: The topper prevents the thin running stitches from sinking into the loops of the towel.

If you find yourself constantly re-hooping because you can't get the tension right without pulling the fabric, magnetic embroidery hoops can be a valid workflow upgrade. They float the top frame over the fabric, reducing the friction that causes the distortion.

“Can I Use Mylar With This?” Yes—But Give It a Border to Behave

A commenter asked whether Mylar (iridescent film) can be used to add sparkle under this open stitching.

The channel replied they’d be inclined to put a satin border around the object if applying Mylar. This is solid advice. Mylar is slippery. If you only use the running stitch doodles to hold it down, the edges of the Mylar will lift, poke the wearer, and eventually tear away.

The Fix:

1. Add a placement run (running stitch heart).
2. Lay down Mylar.
3. Stitch the "Doodle" fill.
4. Finish with a Satin Stitch Border to seal the raw edges of the Mylar.

The “No Pen Tablet Needed” Advantage: Why This Technique Scales for Production

Linda mentions you can do this with a mouse. That’s not just beginner-friendly—it’s scalable. In a production environment, repeatability beats artistry.

If you’re doing team gifts, quick Valentine drops, or personalized name tags, this is the kind of technique that can become a product line. It's fast to digitize and, more importantly, fast to stitch because it lacks heavy fills.

However, when you start doing volume (e.g., 50 tote bags), the bottleneck shifts. The bottleneck is no longer the design; it represents the physical labor of hooping. This is where magnetic embroidery frames and magnetic frames for embroidery machine become practical investments. They allow you to hoop thick seams, zippers, and pockets that are impossible to frame in traditional plastic rings, significantly reducing prep time per unit.

The Upgrade Path: When Your Hobby Workflow Starts Costing You Money

If you’re stitching one heart for fun, any hoop and machine will do. If you’re stitching 30 hearts for a paid order, your process needs to protect both your product quality and your physical health.

Here is a grounded way to determine if you need to upgrade your tools:

1. The Pain Trigger: Are you rejecting garments because of "hoop burn" (the shiny ring left by plastic hoops)? Are your wrists sore after hooping 10 shirts?
2. The Solution - Level 1 (Consumables): Try "floating" your fabric on sticky stabilizer to avoid hooping the item directly.
3. The Solution - Level 2 (Hooping): If floating isn't stable enough, consider a magnetic embroidery hoop. It eliminates hoop burn almost entirely and is faster to load.
4. The Solution - Level 3 (Machine): If you are spending more time changing thread colors than stitching, or if you can't keep up with orders on a single-needle machine, it may be time to look at multi-needle solutions like the SEWTECH producitivity series. Moving to a multi-needle machine allows you to set up the next run while the current one is stitching, doubling your effective output.

Setup Checklist (the stitch-out setup that keeps line art crisp)

Before you press the green button:

• Needle Check: Use a sharp, new needle (Size 75/11 is standard). A dull needle will push the fabric rather than piercing it, causing puckered lines.
• Bobbin Check: Ensure you have enough bobbin thread. Running out in the middle of a continuous line is painful to fix seamlessly.
• Thread Path: Floss the upper thread through the tension disks. Low tension causes looping; high tension causes snapping.
• Consumable Check: Have your texturizing tools ready (Serrated scissors for Mylar, tweezers for jump threads).


If you build this technique into your toolbox, you’ll have a fast, modern fill that looks hand-drawn but stitches like a machine-friendly running-stitch design—because it is.

FAQ

• Q: In embroidery digitizing software using Linda’s Dot-to-Dot Doodling method, why are the “View Stitch Points” dots so faint on a 4K monitor?
  A: Zoom in and confirm stitch-point display is actually enabled; faint dots are a common UI issue on high-resolution screens.
  • Enable: Turn on View Stitch Points/Show Nodes from the options menu and look for a slight outline change.
  • Set: Apply the 3.0 mm stitch length first so the perimeter points space out clearly (avoid “Auto” or ultra-short lengths that blur points together).
  • Zoom: Increase view to 200%–400% to make single-pixel dots easier to see.
  • Success check: Individual perimeter dots become distinguishable, and hovering near a dot consistently triggers a clear highlight/snap behavior.
  • If it still fails: Recheck that the object you’re viewing is the stitched outline (not just a reference) and verify the stitch length did not revert to Auto.
• Q: In Linda’s Dot-to-Dot Doodling with a Straight Line tool, how do I prevent jump stitches caused by missing “Snap to Anchors” connections?
  A: Keep Snap to Anchors on and do not release the mouse until the target anchor dot highlights (often turns red).
  • Toggle: Turn on Snap to Anchors/Nodes before drawing any lines.
  • Practice: Click-drag only from dot to dot and wait for the target dot to highlight red before releasing.
  • Fix fast: Use Ctrl+Z (Undo) immediately if a line doesn’t land on an anchor.
  • Success check: The simulator shows continuous running stitches with no tiny breaks, trims, or 1 mm “move-then-stitch” segments.
  • If it still fails: Slow down the mouse rhythm—most misses happen from releasing a fraction of a second too early.
• Q: In Linda’s Dot-to-Dot Doodling heart fill, how do I keep the heart shape and avoid ruining the top “dip” between the lobes?
  A: Do not draw lines that bridge across the negative space at the top; route connections through the interior “meat” of the heart.
  • Avoid: Skip any line that crosses the top V-shaped dip outside the heart boundary.
  • Redirect: Connect left-to-right paths lower through the center area instead of straight across the top gap.
  • Preview: Toggle 3D View to confirm the silhouette still reads as a heart.
  • Success check: The top dip remains clearly open and recognizable, with no “bridge” thread spanning the gap.
  • If it still fails: Undo the last few lines and redraw them to alternate anchor points that stay inside the shape.
• Q: In Linda’s Dot-to-Dot Doodling, what stitch length is a safe starting point to avoid a “bulletproof” dense outline or dots that are too crowded to click?
  A: Use 3.0 mm as the critical starting setting; 3.0–3.5 mm is a safe beginner zone for clean, clickable anchor spacing.
  • Set: Choose Running Stitch and set stitch length/brush size to 3.0 mm before creating the shape.
  • Inspect: Confirm the perimeter shows evenly spaced points rather than a nearly solid line.
  • Adjust carefully: Increase slightly (toward 3.5 mm) if points feel too crowded for accurate snapping.
  • Success check: You can reliably click individual perimeter dots and build lines without accidental mis-targeting.
  • If it still fails: If you previously set ~1.5 mm (or very small), reset to 3.0 mm and regenerate the shape/outline points.
• Q: During stitch-out of light running-stitch “string art” embroidery, how do I choose stabilizer to prevent distortion on knits, towels, and woven cotton?
  A: Match stabilizer to fabric movement and nap; light running stitches show distortion easily, so support matters.
  • Use on woven cotton/denim/canvas: Medium tear-away for crisp support.
  • Use on stretchy knits/T-shirts/performance wear: No-show mesh cut-away (1–2 layers as needed) to hold geometry long-term.
  • Use on towels/velvet/high-nap: Tear-away backing + water-soluble topper to prevent stitches sinking.
  • Success check: After unhooping, straight lines stay straight (not “wavy noodles”) and the texture remains airy, not puckered.
  • If it still fails: Reevaluate hooping tension—light running-stitch designs are unforgiving of fabric stretch and distortion.
• Q: When stitching running-stitch string-art designs, how do I avoid finger injuries when trimming threads near the needle area on an embroidery machine?
  A: Pause/stop the machine before trimming—never reach near a moving needle, even for a quick snip.
  • Stop: Hit pause/stop before cutting any loose threads.
  • Clear: Keep fingers out of the needle path and trim only when motion is fully stopped.
  • Resume: Restart only after hands and tools are away from the needle area.
  • Success check: Thread trimming is done with the needle stationary, and there is no temptation to “catch it while it’s running.”
  • If it still fails: Slow the workflow—running-stitch designs can create frequent loose ends, so plan trim moments between stops.
• Q: What safety precautions are required when using industrial magnetic embroidery hoops to reduce hoop burn and distortion?
  A: Treat magnetic hoops as a pinch and medical-device hazard—handle magnets deliberately and keep them away from implants.
  • Separate safely: Do not let magnets snap together; guide frames together slowly to avoid finger pinch injuries.
  • Protect medically: Keep magnetic hoops away from pacemakers, ICDs, and implanted medical devices.
  • Control handling: Store and transport hoops so magnets cannot collide unexpectedly.
  • Success check: The hoop closes without snapping, fingers stay clear, and the work area remains controlled and uncluttered.
  • If it still fails: Change handling technique—use a two-hand, slow-close habit and reposition fingers before bringing magnets together.
• Q: For production embroidery of 30+ running-stitch string-art items, what is a practical upgrade path from consumables to magnetic hoops to a SEWTECH multi-needle machine?
  A: Use a tiered approach: first reduce distortion with technique/consumables, then reduce hooping pain with magnetic hoops, then increase throughput with a multi-needle machine when changeovers become the bottleneck.
  • Level 1 (Technique/consumables): Float fabric on sticky stabilizer when hooping directly causes hoop burn or distortion.
  • Level 2 (Hooping tool): Switch to magnetic hoops when consistent tension and faster loading matter, especially on seams/zippers/pockets.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle machine when thread/color changes and hooping time limit order capacity more than stitch time.
  • Success check: Rehooping attempts drop, hoop burn complaints decrease, and per-item prep time becomes predictable for batch runs.
  • If it still fails: Track where time is spent (rehooping vs trimming vs color changes) and upgrade the step that is actually slowing production.
