Don’t Trust the Collar: The Seam-to-Seam Method for Perfect Sweatshirt Embroidery Placement on a SmartStitch Multi-Needle Machine

The Definitive Guide to Perfect Sweatshirt Embroidery Placement: From "Wonky Collars" to Precision Production

Sweatshirt placement is one of those things that looks "easy" until you’re staring at a finished stitch-out that’s 1/2" off—and now the customer can’t unsee it. That sinking feeling in your stomach? It's usually followed by the realization that you just bought a $20 garment yourself.

If you run a shop (or you’re trying to turn a hobby into a hustle), you already know the real pain: factory sweatshirts are not precision garments. Collars can be crooked, side seams can twist during the dyeing process, and ribbing can pull the neckline off-center. The fix isn’t luck—it’s a repeatable, data-driven measuring routine.

Below is the updated, expert-verified workflow based on Michelle from Sew Unique Designz’s methodology, enhanced with industry-standard safety margins and ergonomic best practices. We will move from squaring the garment on a gridded mat to using a T-shirt guide strictly as a reference, and finally, using the "Body Center" method (armpit-to-armpit) to bypass crooked factory collars.

The “Collar Lie” on Sweatshirts: Why Necklines Throw Off Embroidery Placement

A sweatshirt collar feels like the obvious centering reference—your eye naturally wants to follow the ribbing. But until you meet a neckline that’s sewn slightly off-grain (Michelle calls these “wonky”), you won't realize the trap.

Here is the harsh reality of garment manufacturing: If the collar was attached 5mm to the left during assembly, and you center your hoop to that collar, your embroidery will be centered to the neck hole, but the embroidery will look crooked on the customer's chest.

Here’s the practical rule I’ve taught for years: center to the body, not the neckline. On sweatshirts, the most reliable "body reference"—the skeleton of the garment—is the underarm seam-to-seam width across the chest. This anchor point is structural and determines how the fabric drapes over the torso.

The Tool Trio That Makes Placement Fast (Cutting Mat + T-Shirt Guide + Acrylic Ruler)

To turn this from a guessing game into a science, you need a precise environment. Michelle’s setup is simple and shop-friendly, but every item serves a specific physics-based purpose:

1. A 24 x 36 Cutting Mat with a Printed Grid: This isn't just a surface; it's your specific gravity. This grid is the only "straight" thing in your workflow.
2. A Chalk Marker or Water-Soluble Pen: Hidden Consumable Tip: Ensure your chalk is distinct from the garment color but brushable. avoid wax-based tailors chalk on delicate fleeces as heat can set the wax.
3. A Plastic T-Shirt Placement Guide: The "couple bucks" tool that acts as a quick sieve for gross errors.
4. A Long Acrylic Ruler (non-slip preferred): For connecting the dots.

The cutting mat grid is doing more work than people realize: it gives you a visual "truth line" so you can square the shoulders and edges before you measure. If you are serious about output, a dedicated station is non-negotiable. Terms like hooping station for embroidery are your gateways to understanding efficient production consistency, because they physically lock this grid into place, reducing the variables your eyes have to track.

Square the Sweatshirt on a 24x36 Cutting Mat Before You Measure Anything

Lay the sweatshirt flat on the mat. Do not just throw it down; pet the fabric. Use your hands to smooth the grain of the fleece from the center outward.

What you’re aiming for (The Visual Anchor): Look at the shoulder seams and the bottom hem. They should run parallel to the horizontal lines on your mat. The side seams should roughly mirror each other effectively.

Checkpoint: If the sweatshirt is drifting diagonally across the grid (torquing), your center mark will be mathematically "perfect" relative to the table, but crooked on the shirt. You must manipulate the fabric until it relaxes into a square shape.

Expected outcome: When you place your ruler later, it sits flat. The fabric shouldn't look like it's pulling or rippling under the ruler.

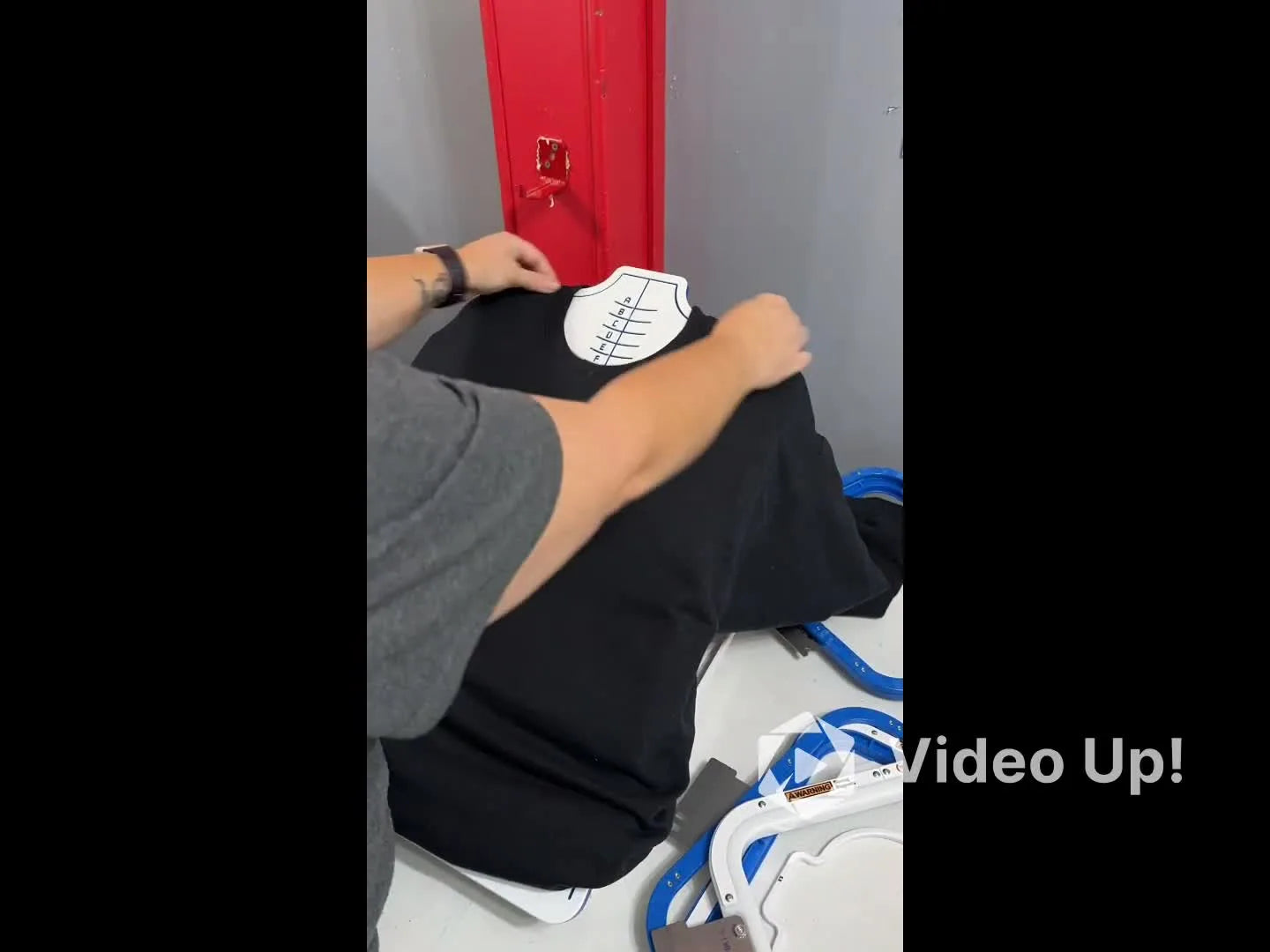

Use the T-Shirt Placement Guide as a Starting Point (But Don’t Marry It)

Place the plastic guide at the neckline so the arrows point to the theoretical center.

Michelle’s nuance matters here: sometimes the guide lands perfectly, and sometimes it exposes that the collar is off by a quarter-inch. Trust your eyes, verify with the ruler.

Treat the guide like a rough draft. It gets you in the ballpark quickly. If you run a high-volume shop using a hoop master style workflow, these guides serve as a rapid "Go/No-Go" gauge. If the guide points to center, but the shirt looks twisted, stop. The ruler (the next step) is the ultimate judge and jury.

The Seam-to-Seam Centering Move: Measure Underarm Seam to Underarm Seam

Now, the step that creates the "Body Center" and ignores the "Wonky Collar."

1. Find the Anchors: Locate where the sleeve seam meets the body seam (the armpit intersection). This is structurally the strongest part of the upper garment.
2. The Bridge: Lay the acrylic ruler across the chest, connecting these two points.
3. The Math: In the video example, the sweatshirt measures 21 inches seam to seam.
   • Half of 21" is 10.5".
   • Mark 10.5" from one seam with chalk.

Sensory Check: When you hold the ruler down, you should feel the seams bumping against the edge of the acrylic. Ensure you are measuring from the stitching line, not the excess fabric fold outside the seam.

Michelle double-checks by confirming 10.5" on one side and 10.5" on the other. This "measure twice" habit takes 10 seconds but saves 20 minutes of unpicking stitches.

Checkpoint: If your halves don’t match (e.g., 10.25" vs 10.75"), do not "split the difference" by eye. Your shirt isn't square on the mat. Re-square the garment and measure again.

Expected outcome: Your center mark is now aligned with the wearer's torso dynamics, regardless of what the neck ribbing is doing.

The 3-Inch Rule for Sweatshirt Design Height (And When to Drop It Lower)

Vertical placement defines the "balance" of the logo. Too high, and it looks like a choker; too low, and it sits on the stomach.

The Golden Standard: Michelle sets vertical placement by measuring 3 inches down from the bottom of the collar ribbing to the top of the design.

The "Real World" Variables:

• Adult S - L: 3 inches is usually the sweet spot.
• Adult XL - 3XL: Michelle advises going a little bit lower (3.5" to 4"). Larger sizes have deeper chest cavities; a logo sitting at 3" on a 3XL can look like it's climbing into the throat.
• Hoodies: Watch out for the pocket! Ensure your design doesn't crash into the kangaroo pouch.

Checkpoint: Measure from the seam where the ribbing meets the fleece, not the top edge of the collar. The top edge can roll or fray; the seam is constant.

Expected outcome: A consistent, professional "chest zone" placement across a full size run of staff uniforms.

Draw the Big Chalk “T” Crosshair So You Can Hoop Without Guessing

This is where the method becomes foolproof. Small dots get lost in fleece texture; big lines tell the truth.

Using the ruler as a straight edge:

1. Draw a solid horizontal line through your center point (along the chest axis).
2. Draw a solid vertical line through your center point (perpendicular to the chest).

You end up with a large chalk “T” (crosshair) that is vividly visible even through the plastic of a hoop template.

Expert Nuance: Use a light hand. You want the chalk to sit on top of the fleece nap, not ground into the fibers where it becomes hard to remove.

Checkpoint: Confirm the measurement reads evenly one last time (10.5" left / 10.5" right).

Expected outcome: You now have a navigation map on the fabric that allows you to align the garment to a station centerline in seconds.

The “Hidden” Prep Pros Do Before Hooping Sweatshirts (So You Don’t Waste a Garment)

This is the "Flight Safety Check." Amateurs just grab the hoop; pros check their consumables.

Before you hoop, take 60 seconds to perform these tactile and visual checks:

• Stabilizer Selection: For sweatshirts (knit fabric), you must use Cutaway stabilizer. Tearaway is insufficient and will lead to design distortion over time. Hidden Consumable: keep a can of temporary spray adhesive (like 505) handy to float the stabilizer if needed.
• Needle Check: Are you using a Ballpoint 75/11 needle? Sharp needles can cut the knit loops of fleece, causing holes. Ballpoints slide between fibers.
• Hoop Size Sanity Check: Does the design actually fit? Leave a 10-20% buffer zone around the travel limit to prevent the presser foot from hitting the frame.

If you produce sweatshirts regularly, switching to a high-quality magnetic embroidery hoop is a strategic move. It eliminates the "hoop burn" (shiny rings) caused by friction from standard hoops and prevents the thick seams from popping the hoop open mid-stitch.

Prep Checklist (do this before you touch the hoop)

• Sweatshirt is squared to the cutting mat grid (grain is straight).
• Seam-to-seam width measured; Body Center calculated (e.g., 21" → 10.5").
• Vertical placement marked (Standard: 3" down from collar seam).
• Crosshair lines (The "T") are bold and clearly visible.
• Cutaway Stabilizer is cut larger than the hoop.
• Needle Type: 75/11 Ballpoint installed for knit fabric.
• Excess garment layers (sleeves/hood) folded away from hoop area.


Hooping on a Hoop Master Station with a Magnetic Frame (Fast, Repeatable, Adjustable)

Michelle transfers the marked sweatshirt to the Hoop Master station. She pulls the shirt over the station and aligns the chalked vertical line with the station’s permanent center line.

Then she places the top magnetic frame down and lets it snap securely over the garment and backing.

The "Click" of Confidence: That snapping sound is the sound of time being saved. In a production environment, you are not wrestling with the thumbscrew of an inner ring, nor are you over-stretching the knit to "make it fit."

If you’re setting up a repeatable station workflow, a hoop master embroidery hooping station paired with magnetic frames is the industry standard for reducing hooping time from 3 minutes per shirt to 30 seconds.

Warning: Magnetic Safety
Magnetic frames use powerful neodymium magnets. They can pinch fingers severely (blood blister hazard). Strictly keep these away from pacemakers, insulin pumps, and sensitive electronics. When storing, place the foam spacer between the rings to prevent them from locking together permanently.

The Physics Behind Better Hooping: Flat, Supported Fabric Beats “Drum Tight” Every Time

A lot of embroiderers were taught to hoop fabric "drum tight" like a trampoline. On sweatshirts, this is dangerous advice.

Sweatshirt fleece is a knit; it stretches. If you force it "drum tight" in the hoop, you are stretching the fabric loops open. You stitch your design on that stretched surface. When you unhoop, the fabric relaxes back to its original state, condensing your design. The result? Puckering, waves, and bulletproof density.

A magnetic frame helps because it holds the fabric firmly without excessive horizontal tension.

The Goal State (Sensory Check):

• Visual: The fabric is flat with no hills or valleys.
• Tactile: When you run your hand over it, it feels taut but "at rest," not pulled to its breaking point.
• Support: The Cutaway stabilizer is carrying the load, not the stretchy shirt.


Load the Hoop on the SmartStitch and Do the Laser Alignment Check Before You Stitch

Michelle loads the hoop onto the machine arm. On modern commercial units, you will often find a laser alignment tool. She uses the red laser dot to trace along the chalk line she drew earlier.

This is your last "cheap" moment to catch an error. Once the needle disrupts the fabric, the garment is committed.

The Laser Verification Routine:

1. Move the pantograph so the laser hits the center of your chalk "T".
2. Trace the bottom center of your design. Does the laser stay on the vertical chalk line?
3. Trace the top center. Is the garment rotated?

If you observe the laser line drifting away from your chalk line, the shirt is crooked in the hoop. Adjust the hoop rotation in your machine's software by 1-2 degrees until it matches.

For shops using a SmartStitch platform like smartstitch 1501, this laser-check habit is the firewall between "pretty good" and "consistently sellable" inventory.

Run the Stitch-Out and Watch for the Two Sweatshirt Gotchas (Bulk + Shift)

Press start, but stay close. Sweatshirts present two specific physics problems during the sew-out:

1. Bulk Drag (Friction): The weight of the hood or sleeves hanging off the machine can pull the hoop slightly, distorting the design. Fix: Support the heavy parts of the garment on the machine table.
2. Fiber Flagging: Thick fleece bounces up and down with the needle (flagging). Fix: Ensure your Presser Foot Height is set correctly (usually slightly higher for fleece, around 1.5mm-2mm) so it glides over the texture rather than stomping on it.

Speed Limit Recommendation: For detailed designs on thick fleece, resist the urge to run at 1200 SPM (Stitches Per Minute). Start at a Sweet Spot of 600-800 SPM. This reduces friction and thread breaks.

Warning: Physical Safety
Keep hands, scissors, and loose drawstrings away from the needle bar while the machine is running. needles move at ~14 penetrations per second; there is no reaction time fast enough to save a finger. Stop the machine completely before trimming jump threads.

Setup Checklist (right before you press Start)

• Hoop is snapped in and seated correctly on the pantograph arm.
• Laser Check: Laser tracks perfectly along your vertical chalk line.
• Thread Check: Bobbin has sufficient thread (check the white core visibility).
• Path Clearance: Sleeves and hood are tucked back, not hanging under the needle path.
• Speed: Machine set to safe zone (e.g., 700 SPM).

“How Do You Get the Chalk Off?”—Clean Removal Without Smearing or Ghost Marks

A viewer asked the exact question every shop owner eventually asks: how do you remove the chalk after embroidery without ruining the shirt?

Michelle’s approach is gentle:

• She wipes it off with a dry micro-fiber cloth; she doesn't use heavy pressure.
• She avoids using excessive chalk during the marking phase (less is more).
• If stubborn, use a damp cloth (distilled water is best to avoid mineral rings).
• Alternative: Masking Tape. Michelle mentions using tape on light shirts to avoid color transfer.

Crucial Warning: Do not iron directly over heavy chalk lines before removing them. Heat can set the pigments of certain wax-based chalks, leaving a permanent "ghost line" on the garment.

Decision Tree: Pick the Right Stabilizer/Backing for Sweatshirts

The video shows backing being used, but in production, stabilizer choice is what keeps your "perfect placement" from turning into a wavy mess after the first wash.

Use this logic flow to make your decision:

1) What is the fabric elasticity?

• Standard Heavy Fleece (Low stretch): 2.5oz or 3.0oz Cutaway Stabilizer.
• Performance / Tri-Blend Fleece (High stretch/drape): Use two layers of No-Show Mesh (PolyMesh) Cutaway, fused in opposite directions (cross-hatch) for maximum stability without stiffness.

2) How dense is the design?

• Light (<8,000 stitches): Single layer Cutaway.
• Heavy / Full Front (>15,000 stitches): Heavy Cutaway OR two layers of medium Cutaway + a layer of Water Soluble Topping (Solvy) to prevent stitches sinking into the fleece pile.

3) Is this item for sale?

• Yes: Always use Cutaway. Tearaway will eventually disintegrate in the wash, leaving the embroidery unsupported. The shirt will pucker, and the customer will not return.

If you’re scaling orders, reliable consumables are key. Combining high-quality magnetic embroidery hoops with the correct Cutaway backing creates a "system" that works regardless of the operator's skill level.

The Upgrade Path: When Tools Pay for Themselves in Sweatshirt Production

Michelle mentions the Hoop Master station helps with consistency—and she still measures. This is the mindset of a pro: Tools elevate skill; they don't replace it.

Diagnose your current pain point to see if you are ready for an upgrade:

• Pain: Wrist Pain / Hoop Burn.
  • Diagnosis: You are fighting spring-loaded hoops on thick fabric.
  • Prescription: Magnetic Hoops. They save your joints and leave no marks on the fabric.
• Pain: "It takes me 5 minutes to hoop one shirt."
  • Diagnosis: You are eyeballing every shirt manually.
  • Prescription: Hooping Station. It locks the variables down so you can load a shirt in 45 seconds.
• Pain: "I can't keep up with orders on my single needle."
  • Diagnosis: Output bottleneck. You are spending too much time changing threads.
  • Prescription: Multi-Needle Machine (e.g., SEWTECH / SmartStitch). The ability to set 15 colors and walk away is the only way to scale profitability.

For home users, a magnetic frame is a comfort upgrade. For business owners, it is a throughput upgrade. Treat it like ROI (Return on Investment): calculate how many "redo" garments you save per month. The tools usually pay for themselves in the first 50 shirts.

Operation Checklist (after the stitch-out, before bagging)

• Remove hoop and check that the design is mathematically centered to the crosshair.
• Check the back: Is the bobbin tension balanced? (Should see 1/3 white thread in center).
• Trim Jump Stitches: Use curved snips to cut close to the knot.
• Remove Chalk: Wipe gently or use a damp cloth.
• Topping Removal: If used, tear away excess Solvy or mist with water to dissolve.
• Final Inspect: Check for puckering around the edges of the design (a sign of poor stabilization).


FAQ

• Q: How do I center sweatshirt embroidery placement when the sweatshirt neckline ribbing is crooked (“wonky collar”)?
  A: Center the embroidery to the sweatshirt body (underarm seam-to-seam), not to the neckline ribbing—this is the most reliable reference on factory garments.
  • Find the armpit intersections where sleeve seams meet the body seams on both sides.
  • Lay a long acrylic ruler from seam to seam and measure the total width, then mark the exact half (example: 21" total → 10.5").
  • Re-check the half measurement from both sides before marking the final center.
  • Success check: The ruler reads equal left/right (e.g., 10.5" and 10.5") and sits flat with no fabric torque.
  • If it still fails: Re-square the sweatshirt on a gridded cutting mat and re-measure—do not “split the difference” by eye.
• Q: How do I square a sweatshirt on a 24x36 gridded cutting mat so the chest logo does not look rotated after embroidery?
  A: Square the garment to the cutting mat grid before any measuring—if the sweatshirt is torqued diagonally, the logo will look crooked on the body even when measurements are “correct.”
  • Smooth (“pet”) the fleece from the center outward to relax the knit and remove twist.
  • Align shoulder seams and bottom hem parallel to the grid’s horizontal lines; keep side seams visually mirrored.
  • Adjust the garment until the fabric stops drifting diagonally across the grid.
  • Success check: A ruler placed for measuring lies flat and the fabric does not ripple or pull under the ruler.
  • If it still fails: Reposition and smooth again; twisted side seams from manufacturing are common and may take a few resets.
• Q: How do I set sweatshirt embroidery design height using the “3-inch down” rule, and when should sweatshirt logo placement be lower?
  A: Start by placing the top of the design 3" down from the collar seam, then drop slightly lower for larger adult sizes to keep the logo in a balanced chest zone.
  • Measure from the seam where the collar ribbing meets the fleece (not the top edge of the ribbing).
  • Use 3" down for most Adult S–L garments; move lower (3.5"–4") for Adult XL–3XL when needed.
  • Check hoodie pocket clearance so the design does not collide with the kangaroo pouch.
  • Success check: The logo does not read like a “choker” (too high) or sit on the stomach (too low) when the sweatshirt is laid square.
  • If it still fails: Reconfirm the body center mark first—vertical placement looks “wrong” when horizontal centering is off.
• Q: How do I draw a chalk crosshair (“big chalk T”) for sweatshirt hooping so the marks stay visible and removable on fleece?
  A: Draw bold, straight crosshair lines through the measured center—big lines are easier to align than tiny dots on fleece texture.
  • Draw a horizontal line through the center point using an acrylic ruler as a straight edge.
  • Draw a vertical line through the same point, perpendicular to the chest line.
  • Use a light touch so chalk sits on top of the fleece nap instead of grinding into fibers.
  • Success check: The crosshair is clearly visible through hoop templates and wipes off without heavy scrubbing.
  • If it still fails: Switch to gentler marking (less chalk) and plan removal with a microfiber cloth (dry first, then damp if needed).
• Q: What stabilizer and needle should be used for sweatshirt embroidery on knit fleece to avoid puckering and holes?
  A: Use Cutaway stabilizer for sweatshirts and install a 75/11 ballpoint needle—this combination supports knit fleece and helps prevent distortion and cut fibers.
  • Choose Cutaway as the default backing for sweatshirt knit; keep stabilizer cut larger than the hoop.
  • For dense designs, add water-soluble topping to reduce stitches sinking into fleece pile.
  • Consider temporary spray adhesive (e.g., 505) to float and hold stabilizer in place when needed.
  • Success check: After unhooping, the fabric stays flat around the design edges and the knit shows no needle-cut holes.
  • If it still fails: Reduce fabric stretching during hooping and re-check that the needle is ballpoint (sharp needles can cut knit loops).
• Q: How can a magnetic embroidery hoop reduce hoop burn and prevent thick sweatshirt seams from popping a standard hoop during stitching?
  A: A magnetic embroidery hoop holds fleece firmly without over-tension, which helps reduce shiny hoop rings (“hoop burn”) and keeps bulky seams from forcing the hoop open mid-stitch.
  • Hoop the sweatshirt so fabric is flat and supported rather than pulled “drum tight.”
  • Keep cutaway stabilizer doing the work so the stretchy sweatshirt is not carrying stitch load.
  • Maintain a buffer around the design so the presser foot does not strike the frame.
  • Success check: The hooped area feels taut but “at rest,” and the hoop stays locked through bulky seam transitions.
  • If it still fails: Re-evaluate hoop size and fabric layering—excess bulk under the ring can still cause shifting.
• Q: What are the safety rules for using powerful neodymium magnetic embroidery frames around pacemakers and fingers?
  A: Treat magnetic frames like industrial magnets—keep them away from pacemakers/insulin pumps/electronics and protect fingers from pinch injuries.
  • Keep hands clear when letting the top ring “snap” down; magnets can create severe pinch points.
  • Do not use or store magnets near pacemakers, insulin pumps, or sensitive electronics.
  • Store frames with a foam spacer between rings to prevent them from locking together permanently.
  • Success check: The frame closes in a controlled placement (no sudden finger pinch) and stores separated with the spacer.
  • If it still fails: Slow down the placement step and reposition using the frame edges—never pry magnets apart with fingers in the pinch zone.
• Q: What should a sweatshirt embroidery shop upgrade first to reduce redo garments: technique optimization, magnetic hoops, hooping station, or a multi-needle machine?
  A: Upgrade in layers based on the bottleneck: fix the measuring/marking routine first, then reduce hooping pain and inconsistency with magnetic hoops and a hooping station, and only move to a multi-needle machine when throughput is the limit.
  • Level 1 (technique): Use body-center seam-to-seam measuring, 3" height marking, and a bold chalk crosshair to prevent placement redo.
  • Level 2 (tool): Add magnetic hoops if hoop burn, wrist pain, or seam pop-outs are frequent.
  • Level 2 (process): Add a hooping station when hooping time is the slow step and results vary by operator.
  • Level 3 (capacity): Move to a multi-needle machine when thread changes and single-needle time cap daily output.
  • Success check: The biggest recurring failure (placement error, hooping time, or throughput) visibly drops within the first production run.
  • If it still fails: Track which step causes the most rework (placement, hooping shift, or sew-out issues) and upgrade that step next rather than guessing.
