Don’t Let an Aftermarket Hoop Cost You a Needle: Tracing Designs on the Baby Lock Valiant (Auto vs Manual Grid)

The Ultimate Safety Guide: Mastering Tracing on the Baby Lock Valiant & 10-Needle Machines

If you have ever swapped to an aftermarket hoop on a Baby Lock Valiant and felt that specific spike of panic—"What if the needle hits the frame?"—you are experiencing a healthy survival instinct.

In the world of professional embroidery, a needle strike isn’t just a broken $0.50 needle. It is a violent collision that can throw off your timing, burr the rotary hook, or bend the needle bar—repairs that often cost upwards of $300 and weeks of downtime.

On Brother and Baby Lock platforms (like the Enterprise or Valiant), the built-in camera and IQ Designer are engineering marvels, but they are designed to recognize OEM hoops via specific visual markers. When you upgrade to third-party tools—essential for production—you lose that digital safety net. The camera becomes blind to the hoop's physical boundaries.

This guide replaces that anxiety with a military-grade protocol. We will rebuild the workflow shown in the video, optimized with 20 years of shop-floor experience. We will move beyond "just hoping it fits" to a system of Auto Tracing and Manual Grid Tracing that guarantees rigorous safety.

1. The Physics of Risk: Why "Tracing" Is Non-Negotiable

The core message is binary: If the camera cannot see the hoop, you must trace the hoop.

When you use the standard frames included with your machine, the software knows the exact "No Fly Zone." It will physically prevent you from moving the pantograph into the frame. However, when you attach a custom frame—such as a specialized cap driver or babylock valiant hoops tailored for difficult items—the machine relies entirely on you to define safe boundaries.

The "Blind Spot" Reality: If you load a 5x7 design but center it incorrectly in a 6x10 non-OEM hoop, the machine assumes it has infinite space. Without tracing, the needle bar will plunge effectively at 1,000 stitches per minute (SPM) into the metal or plastic frame.

The Solution: Tracing creates a "dry run." It moves the hoop along the outermost perimeter of your design (the bounding box) without stitching, allowing you to visually verify that the active needle acts within the safe airspace of the hoop.

2. Pre-Flight Prep: The "Hidden" Checks Before You Touch the Screen

Most novices jump straight to the screen. Professionals look at the physical setup first. The video demonstrates tracing on hooped stabilizer (no garment), which is the safest way to build muscle memory.

Before you engage the motors, perform this physical audit.

The "Safe Gap" Rule (Experience Data)

A "clear" trace isn't just not touching the hoop. You need a Safety Buffer.

• Minimum Safe Gap: 3mm (approx. 1/8 inch) between the needle point and the hoop wall.
• Why? Pantograph vibration at high speeds (800+ SPM) can cause micro-deflections. Fabric pull can distort the hoop shape slightly. A 0mm gap during a slow trace often becomes a collision during a fast stitch-out.


Essential Consumables Check

Do not start a trace without these verified:

1. Needles: Are they straight? A slightly bent needle alters your true position. Use a reliable brand like Organ or Groz-Beckert.
2. Stabilizer: Is it drum-tight? Loose stabilizer creates a "trampoline effect" that makes judging depth difficult.
3. Hoop Attachment: Is the hoop clicked fully into the driver arm? Listen for the definitive "Click" sound. A partial latch is the #1 cause of catastrophic frame hits.

Warning: Physical Safety
When tracing, the machine moves the X-Y carriage automatically. Keep fingers, scissors, and loose sleeves away from the needle area. The hoop can move suddenly and with torque sufficient to bruise fingers or trap skin against the machine body.

Prep Checklist (Physical):

• hoop is locked into the driver arm (audible click confirmed).
• Design is loaded and oriented correctly (check rotation).
• "Danger Zones" identified (usually the clamps or adjustment screws).
• Hidden Item: verify you have a clear view of the needle tip (good lighting is essential).

3. Decoding the Interface: Design Size and Iconography

The Valiant interface is dense. You need to ignore 90% of it and focus on the Design Boundary Controls.

The video highlights the specific icon for Auto Trace: it looks like a dashed-line box.

The Mental Model:

• Auto Trace (Dashed Box): The "Satellite View." It gives you a quick, continuous lap around the perimeter. Good for a general "Yes/No" check.
• Manual Grid (3x3 Squares): The "Sniper View." It allows you to park the needle at a specific coordinate and stare at it until you are satisfied.

If you are operating a baby lock 10 needle embroidery machine, understanding this distinction is what separates a hobbyist from a production manager.

4. Method A: Auto Trace (The Bounding Box Scan)

This is your first line of defense. It detects gross misalignment instantly.

Action Steps:

1. Locate: On the main embroidery screen, press the Auto Trace icon (dashed box).
2. Observe: The hoop will immediately begin to travel in a rectangle defining the North, South, East, and West limits of the design.
3. Listen & Look: Listen for the smooth hum of the motors. Watch the gap between the needle and the hoop wall.


Sensory Check:

• Visual: You are looking for "Daylight." You must see light between the needle signal and the hoop inner wall at all times.
• Timing: The trace moves at a moderate speed. If it feels too fast to track with your eyes, STOP. Do not trust it. Switch to Method B.

Pro Tip: Auto Trace is often sufficient for standard oval hoops. However, for square or rectangular hoops—especially magnetic hoops for babylock embroidery machines where the usable area is strictly defined by magnetic clamping force—Auto Trace can sometimes be too generic.

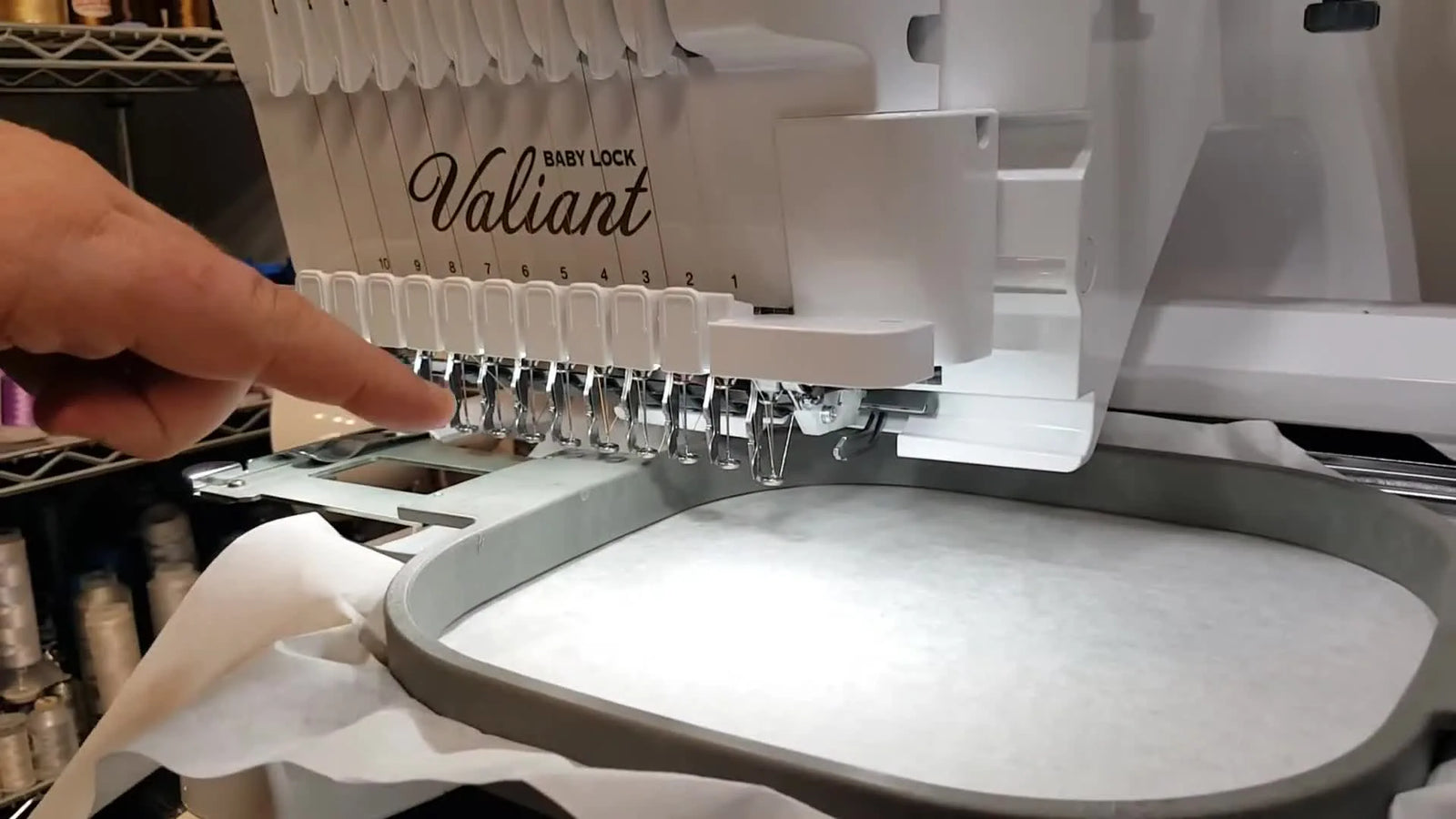

5. The Active Pointer: Which Needle Do I Watch?

A common point of confusion on 10-needle machines: "There are ten needles. Which one is the threat?"

The machine uses the Active Needle (the one currently selected or the #1 needle depending on settings) as the pointer.

Visual Confirmation: When you enter Trace Mode, the machine will mechanically lower one needle bar about 0.5 inches (12mm) lower than the rest.

• Look for: The "dropped" needle bar.
• Ignore: The other 9 needles.
• This dropped needle represents the exact impact point of your design's edge.

6. Method B: Manual 3x3 Grid Trace (The Expert Protocol)

This is the gold standard for safety. If your Auto Trace looked "kinda close," you must use this method. It removes the element of time, allowing you to pause and inspect.

Action Steps:

1. Access: Press the button next to the Auto Trace icon.
2. Interface: A 3x3 Grid appears. This represents your design's bounding box (Top-Left, Top-Center, Top-Right, etc.).




The Inspection Routine

Navigate the grid like a pilot checking control surfaces.

Step 1: Park at the Edge Press Left Middle. The hoop moves until the needle sits directly over the absolute left-most stitch of your design.

• Action: Lean in. Look at the gap. Is it 3mm?


Step 2: Return to Zero Press Center. This re-orients your eye.

Step 3: The Danger Corners Press Bottom Left. This is often the "Blind Side" depending on how you stand.

• Action: Verify clearance against the hoop adjustment screw or bracket.




Step 4: Full Perimeter Tap through the remaining outer squares (Bottom-Right, Top-Right, Top-Left).

Why this is superior: The Auto Trace moves constantly. The Manual Grid stops. It allows you to get your face close to the needle, use a flashlight, or even slide a physical spacer gauge between the needle and hoop to verify the gap.

If you are using high-end accessories like magnetic embroidery hoops for babylock, this manual grid is your best friend. Magnetic hoops have thick, rigid frames. A collision here doesn't just break a needle; it impacts a solid magnet and steel chassis. The Manual Grid allows you to verify that your design fits inside the magnetic clamp capability.

7. The "Why" Behind the Protocol: Hooping Physics

Why do we obsess over this? Because fabric is a living variable.

1. Fabric "Flagging" and Pull

On stabilizer (as shown in the video), the surface is flat. On a pique polo shirt or a thick jacket, the fabric has volume. Hooping introduces tension.

• The Reality: The "Center" of your garment might shift 2-3mm once clamped due to fabric grain distortion.
• The Fix: Tracing confirms the final hooped reality, not the theoretical software center.

2. The Rotation Trap

If your design is rotated 5 degrees in software to compensate for a crooked hoop job, your bounding box changes shape. A square design rotated 45 degrees becomes a diamond—and its corners push much further out. Always re-trace after rotating.

8. Troubleshooting: Symptom to Solution

Diagnose issues before they become repair bills.

9. Decision Tree: Trace Strategy

Use this logic flow to determine your action for every job.

Operational Decision Tree:

1. Is the Hoop OEM (Star Coded)?
   • Yes: Machine prevents collision. Action: Auto Trace for position check.
   • No (Aftermarket/Magnetic): Go to Step 2.
2. Is the Design "Full Bleed" (Using >80% of Hoop Area)?
   • Yes: Danger is high. Action: Manual 3x3 Grid Trace required.
   • No (Small Logo in Big Hoop): Danger is low. Action: Auto Trace is acceptable.
3. Is the Fabric Bulky/Structured (Caps, Jackets, Bags)?
   • Yes: Vertical clearance is an issue. Action: Manual Trace to check Z-axis clearance (presser foot height).
   • No (T-shirt/Flat): Action: Standard trace.

10. The Commercial Upgrade Path: Tools for Efficiency

Once you master safety, you will hit a new bottleneck: Speed.

You will find yourself spending 5 minutes hooping a shirt perfectly to ensure safety, only to sew it in 2 minutes. This is where the industry upgrades its tooling.

Problem: Hoop Burn & Hooping Fatigue

Standard partial-hoops require forceful tightening, which can leave permanent pressure marks ("hoop burn") on sensitive polyesters, and creates wrist strain for the operator.

• The Professional Solution: magnetic hoops for babylock.
• Why: They use magnetic force to clamp rather than friction. This eliminates hoop burn instantly and reduces hooping time by 40%.
  • Note: Because the machine cannot "see" these hoops, the Manual Grid Trace skill you just learned is the mandatory prerequisite for using them.

Warning: Magnetic Field Safety
Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They snap together with force capable of pinching skin painfully.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on debit cards or hard drives.
* Handling: Slide them apart; do not try to pull them apart vertically.

Problem: Inconsistent Placement

You trace every time because you aren't sure where the design will land.

• The Professional Solution: A hooping station for embroidery.
• Why: A station holds the outer frame static and ensures the garment is loaded at the exact same coordinates every time. Used with a magnetic hoop, this allows you to trace the first garment, and trust the next 50 (with only spot checks), massively increasing ROI.

Problem: Production Bottlenecks

If you are confident in tracing but your single-needle machine is too slow, or you are maxing out your 10-needle:

• The Upgrade: Consider SEWTECH’s Multi-Needle Solutions. These machines are built for the rigorous duty cycles of shops running magnetic framing systems, offering the stability required for high-speed production.

11. Final Operations Checklist

Paste this near your Valiant’s distinct start button.

The "No-Regrets" Launch Sequence:

• Hoop Seated: Audible click verified.
• Vector Checked: Design orientation matches garment.
• Auto Trace: Performed. General boundary confirmed inside hoop.
• Manual Grid (If Taught): Four corners verified with 3mm clearance.
• Active Needle: Visually confirmed the "dropped" needle is safe.
• Exit: Returned to Center and exited Trace Mode.

Checking babylock magnetic hoop sizes before you buy is critical—always choose a size that allows that comfortable 3mm buffer around your standard designs. Safety is not about working slowly; it is about establishing a predictable environment where speed is possible.

FAQ

• Q: How do I prevent a needle strike when using an aftermarket hoop on a Baby Lock Valiant 10-needle embroidery machine?
  A: Treat any non-OEM hoop as “invisible” to the camera and always run tracing before stitching.
  • Do: Lock the hoop fully into the driver arm until the audible click confirms it is seated.
  • Do: Run Auto Trace first for a quick boundary check, then switch to Manual 3x3 Grid Trace if any side looks close.
  • Do: Maintain a minimum 3 mm (1/8 in) safety gap between the active needle tip and the hoop wall.
  • Success check: You can see consistent “daylight” clearance all the way around the trace with no near-misses at corners or clamps.
  • If it still fails… Stop and re-seat the hoop; a partial latch is a common cause of frame hits.
• Q: On a Baby Lock Valiant or Brother 10-needle embroidery machine, which needle should I watch during Trace Mode to avoid hitting the hoop?
  A: Watch the active “dropped” needle bar—the machine lowers one needle about 12 mm (0.5 in) to act as the pointer.
  • Do: Enter Trace Mode and visually identify the single needle bar sitting lower than the other nine.
  • Do: Keep your eyes on that lowered needle tip during Auto Trace and each Manual Grid position.
  • Success check: The lowered needle remains safely inside the hoop boundary at every edge and corner position you trace.
  • If it still fails… Improve lighting and re-check which needle is active before tracing again.
• Q: What is the correct safety gap for tracing on a Baby Lock Valiant 10-needle embroidery machine, and why does a “0 mm” clearance fail at sewing speed?
  A: Use a minimum 3 mm (about 1/8 in) clearance, because vibration and fabric pull can turn a “barely clears” trace into a collision at 800+ SPM.
  • Do: Reposition the design or choose a larger hoop if any traced edge is within 0–2 mm of the hoop.
  • Do: Use Manual 3x3 Grid Trace to pause at corners and visually confirm the buffer where strikes happen most.
  • Success check: Every corner and side shows at least 3 mm gap, not just “not touching” during a slow trace.
  • If it still fails… Do not sew; reduce design size slightly or upsize the hoop instead of gambling.
• Q: When should I use Auto Trace vs Manual 3x3 Grid Trace on a Baby Lock Valiant 10-needle embroidery machine?
  A: Use Auto Trace for a fast “yes/no” perimeter scan, and use Manual 3x3 Grid Trace any time clearance is close or the job is high-risk.
  • Do: Start with Auto Trace to catch obvious mis-centering quickly.
  • Do: Switch to Manual 3x3 Grid Trace if the trace looks “kinda close,” if the design uses more than ~80% of the hoop area, or if clamps/screws create danger zones.
  • Success check: In Manual Grid, all four corners and side-midpoints can be parked and inspected with comfortable clearance.
  • If it still fails… Re-center the design, correct rotation, or change hoop size before attempting a stitch-out.
• Q: Why does a rotated design change tracing results on a Baby Lock Valiant 10-needle embroidery machine, and what should I do after rotating a design?
  A: Rotation changes the bounding box shape, so tracing must be repeated after any rotation adjustment.
  • Do: Check whether the design has been rotated to compensate for hooping or garment alignment.
  • Do: Re-run tracing immediately after rotation—especially the corners in Manual 3x3 Grid Trace.
  • Success check: After rotation, the traced perimeter still stays inside the hoop with the same 3 mm buffer.
  • If it still fails… Reset rotation to 0° or re-position the design so the new “diamond” corners don’t push into the hoop wall.
• Q: What should I check first if a Baby Lock Valiant 10-needle embroidery machine trace looks closer to the hoop on one side?
  A: Suspect hoop skew or a hoop that is not fully seated, then re-seat and re-trace.
  • Do: Gently push on the hoop to feel for wobble or mechanical play.
  • Do: Remove and re-install the hoop until the latch fully engages (listen for the click).
  • Do: Re-run Manual 3x3 Grid Trace to verify the problem is gone before sewing.
  • Success check: The gap looks even on opposite sides and does not “shift” when you lightly test the hoop.
  • If it still fails… Stop and inspect for loose locking knobs or interference at clamps/screws before continuing.
• Q: What safety precautions should I follow when using magnetic embroidery hoops on a Baby Lock Valiant 10-needle embroidery machine?
  A: Handle magnetic hoops as pinch-hazard tools and rely on Manual 3x3 Grid Trace because the machine cannot digitally “see” the hoop boundary.
  • Do: Slide magnets apart instead of pulling vertically to reduce snap force and pinching risk.
  • Do: Keep magnetic hoops at least 6 inches away from pacemakers and avoid placing them on sensitive electronics or magnetic-stripe cards.
  • Do: Run Manual 3x3 Grid Trace to confirm the design stitches remain inside the magnetic clamping area and away from the thick frame.
  • Success check: The hoop halves can be handled without sudden snapping, and the traced corners clear the rigid frame with the 3 mm buffer.
  • If it still fails… Choose a hoop size that gives more clearance around your standard designs rather than trying to “make it fit.”
