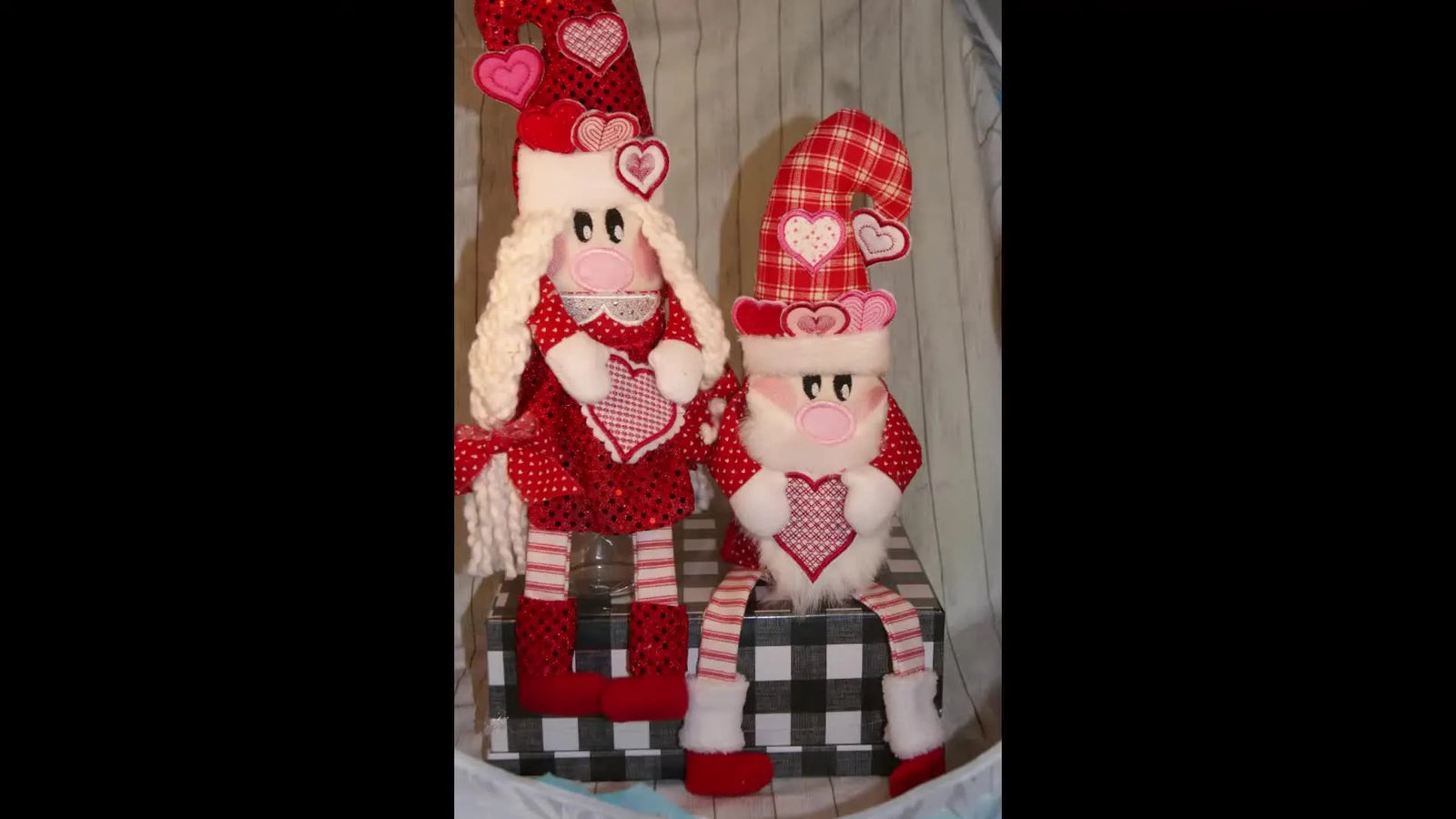

DIY ITH Valentine Gnomes That Actually Stitch Clean: Yarn Beard, Sew-and-Flip Legs, and a Hat Pocket That Won’t Warp

If you have ever pulled an In-The-Hoop (ITH) doll out of your machine and thought, "Why does the digital preview look adorable, but my result looks like a chaotic accident?", you are not alone. Multi-piece projects—particularly Gnomes—are supposed to look like "Humpty Dumpty" right before the final assembly. What separates a novice project from a boutique-quality product isn't magic; it is the discipline of component construction.

This project is an intermediate, component-based build (Beard → Legs/Arms → Hat → Final Body). It rewards patience and punishes sloppy stabilization. When mastering multi hooping machine embroidery, the real skill isn't just watching the needle move—it is controlling fabric shift, managing seam bulk, and ensuring alignment across multiple physical hoopings.

Materials for the Valentine Gnome ITH Build (5x7 Hoop): What You’ll Use and Why It Matters

You will be constructing separate components and then "sandwiching" them into the final body seam. Success here relies on the right combination of physics and friction.

The Essentials:

• Embroidery Machine: (Brother/Baby Lock style interface shown in examples).
• Hoops: Standard 5x7 hoop (Plastic screw-tighten style) OR a magnetic hoop (highly recommended for ITH to prevent hoop burn).
• Stabilizer: Medium-weight Tear-away.
  • Expert Note: While Cut-away is standard for wearables, Tear-away is preferred for ITH "turn-and-stuff" projects because it tears cleanly from the seams, allowing curves to pop out smoothly without bulk.
• Fabrics: Cotton (Heart print, stripes) for structure; Felt for the face (non-fraying); Tulle for the apron.
• Texture: Chunky yarn (Beard) and Polyester Fiberfill (Stuffing).
• Adhesives: Masking tape or Painter’s tape (Low residue).

The "Hidden" Consumables (Do not start without these):

• Curved Appliqué Scissors: Prevents you from snipping the seam thread when trimming close.
• 75/11 Embroidery Needles: A fresh needle is non-negotiable for thick layers.
• Water Soluble Topping (or scrap stabilizer): Used as a "glide sheet" over bulky seams.

Warning: Respect the Blade. When trimming excess fabric inside the hoop, keep your fingers clear of the cutting path. High-quality appliqué scissors are razor sharp. A slip here doesn't just cut the fabric; it ruins the structural integrity of the doll, causing seams to explode during stuffing.

The “Hidden” Prep Before You Stitch: Stabilizer Discipline, Tape Habits, and a Sanity Check

Most ITH failures do not happen at the needle; they happen at the prep table. Before you load the file, you must establish a "Zero-Variable" environment.

The Psychology of Hooping: When using a standard screw hoop, the fabric tension must be "drum-tight." Tap the stabilizer with your finger—it should sound like a dull thud, not a paper rattle. If it is verify loose, the outline stitches will not align with the placement stitches.

Machine Health Check:

• Sound Check: Run your machine at a moderate speed (suggested: 600 SPM). If you hear a rhythmic "thumping" sound, your needle is dull, or your hoop is hitting the chassis.
• Bobbin Check: Ensure your bobbin tension is calibrated so the white bobbin thread creates a straight line on the back, occupying 1/3 of the width of the satin column.

Prep checklist (do this before hooping anything)

• Inventory: Confirm you have enough tear-away stabilizer for four separate hoopings (Beard, Legs/Arms, Hat, Body).
• Glider Prep: Pre-cut small scrap squares of stabilizer or Solvy to use as "bridge" tools for thick seams.
• Adhesive Safety: Tear 10-12 strips of painter's tape and stick them to the edge of your table for rapid access.
• Volume Control: Fluff your fiberfill into small cloud-like pinches. Clumps create lumpy gnomes.
• Path Clearance: Ensure the area behind your machine is clear so the moving carriage doesn't hit the wall or a thread cone.


The Yarn Beard Trick: Tape It Flat So the Tack-Down Stitch Can’t Drag It

The beard is built by laying chunky yarn vertically across the center of the hooped stabilizer. This creates a high-friction environment for your presser foot.

The Risk: If the foot catches a loop of yarn, it will rip the stabilizer or shift the registration.

What the video does (and how to optimize it)

1. Stitch the beard placement line.
2. Spread chunky yarn strands vertically. Expert Tip: Do not pile them too high; a single dense layer is safer than a mountain.
3. Tape horizontally across the middle of the yarn. Use firm pressure to flatten the yarn.
4. Stitch the securing/tack-down line.
5. Remove and set aside.

Pro tip (from the way this stitches): Keep your tape at least 1 inch away from the needle path. If the needle punches through tape adhesive, the needle becomes sticky. A sticky needle creates friction in the thread eye, leading to shredding and "bird nesting" in the bobbin case.

Sew-and-Flip Legs (and Arms): The 1/4" Placement Rule That Keeps the Sock Line Clean

The "Sew-and-Flip" technique relies on precise geometry. The video emphasizes a specific offset to ensure the raw edges are hidden inside the seam allowance.

What the video does for legs

1. Stitch the placement line directly onto the stabilizer.
2. Place the foot fabric.
3. Place the leg fabric about 1/4 inch (6mm) past the placement line, Right Sides Together (RST).
4. Stitch the seam line.
5. Fold the leg fabric up.

Why 1/4 Inch Matters: If you place the fabric exactly on the line, the seam may pull out when you stuff the leg. If you place it 1/2 inch past, the bulk will be too thick to turn nicely. 1/4 inch is the "Goldilocks" zone for structural integrity without bulk.

The seam-alignment habit that prevents lumpy legs

When you fold the fabric up, you are stacking three layers of cotton plus stabilizer. This creates a physical ridge. Ensure the side seams of the foot match perfectly with the side seams of the leg. Visually inspect this before hitting "Start." Misalignment here creates a "broken ankle" look on the finished doll.

The Presser-Foot Snag Fix: Use a Glide Sheet Over the Bulky Foot Seam

This is a critical failure point. The presser foot is designed to glide over flat fabric. When it hits the "speed bump" of the folded leg seam, it can stall. A stalled hoop + moving needle = bullet-hole damage to your fabric.

What the video recommends

• The Bridge Technique: Place a scrap piece of stabilizer or clear water-soluble topping over the bulky seam area before the foot travels over it.

This acts as a ramp. The plastic foot slides over the scrap stabilizer rather than digging into the fabric fold.

Expected outcome: You will hear a smooth stitching sound rather than the "machine gun" sound of the needle hammering in one spot. The goal is consistent momentum.

Cutting, Turning, and Stuffing the Legs: Tight Margins, Clean Clips, and “Stuff Only the Foot”

Once the legs are stitched, the engineering work begins.

What the video does

1. Tear away the stabilizer gently.
2. Trim the seam allowance to 1/8" or 3/16". Do not trim closer distinct distortion risks.
3. Clip the curves at the toe. This releases tension so the fabric can round out.
4. Turn right side out using a turning tool or chop stick.
5. Stuff ONLY the foot.

The Physics of Stuffing: If you stuff the upper leg, you create a rigid cylinder. A rigid cylinder cannot be caught into the final body seam (the "sandwich") without shattering a needle or damaging the presser foot bar. The top of the leg must remain flat fabric to fit under the machine foot.

Warning: Mechanical Hazard. Attempting to stitch through a stuffed limb is the #1 cause of broken gears in home embroidery machines. Ensure the stuffing stops at least 1.5 inches away from the final seam line.

The Hat With the Fold-Over Pocket: A Simple Slot That Makes Your Gnome Look Custom

The hat utilizes a fold-over technique to create a functional pocket for interchangeable seasonal decor.

What the video does

1. Stitch placement.
2. Place hat fabric 1/4 inch below the line.
3. Place rim fabric, stitch, and fold.
4. The Slot: By folding the band down and stitching, then folding back up, you create a clean channel.


Why the pocket works (and how to keep it from warping)

A "fold-over" is essentially a tunnel. To keep it professional:

• Finger Press: Use your fingernail or a specialized seam creamer to flatten the fold before stitching.
• Stuff Lightly: Overstuffing the hat will cause the band to flare outward, distorting the pocket. Light stuffing maintains the conical shape.

Final Body Assembly in the Hoop: Face First, Then Body Fabric, Then the “Messy Tuck” That Makes It 3D

This is the "Sandwich Phase." It requires visualization because you are working blind—building the doll inside out.

What the video does

1. Stitch placement for the face (Felt).
2. Stitch facial features.
3. Lay body fabric across the placement area.
4. The Tuck: Carefully position the pre-made arms and legs inside the body area.




Catching arms and legs into the seam (the correct direction matters)

Orientation Rule: Toops (toes) and fingers must point INWARD toward the center of the gnome. The raw edges of the limbs must align with the raw edges of the body, extending slightly past the seam line.

Tape Security: Once the limbs are positioned, tape them down aggressively. If a leg shifts during the final stitch, it will be missed by the needle, and you will have an amputee gnome. Use the painter's tape to secure the limbs to the body fabric, ensuring the tape is not in the stitch path.

Operation checklist (right before you stitch the final seam)

• Orientation: Are toes pointing up/in? Are arms pointing in?
• Clearance: Is the stuffing pushed far enough back (away from the seam line) so the foot is flat?
• Tape Safety: Is the tape securing the limbs effectively without crossing the needle path?
• Speed: Reduce machine speed to 400 SPM. You are stitching through multiple layers (Stabilizer + Body + Limb + Limb Backing + Back Body). Slower speed allows the needle to penetrate without deflecting.

Nose Over Yarn Beard: Layer It So the Foot Doesn’t Catch the Texture

When adding the nose over the yarn beard, you are stitching over an unstable surface.

• Process: Place the nose fabric. Cover it with a layer of water-soluble topping.
• Why: The loops of the yarn can poke through the nose fabric or catch the foot. The topping compresses the yarn and provides a smooth surface for the satin stitch.


The Gathered Tulle Apron (4" x 10"): Tape It Down, Skip the Spray, and Keep the Machine Clean

The girl gnome features a tulle apron. Tulle is slippery and porous.

What the video does

1. Hand-gather the tulle to fit the waist width.
2. Tape it directly to the hoop/stabilizer.
3. Avoid Spray Adhesive.


Why Skip the Spray? Spray adhesive passes squarely through the holes in the tulle and gums up your needle plate and bobbin case. Over time, this sticky residue attracts lint, creating a "cement" that jams your thread cutter. Always use tape for porous fabrics.

Assembly Reality Check: Why Your Parts Look Wrong Until They’re Glued Together

When you remove the final body from the hoop, it will be inside out and covered in stabilizer. This is normal.

Setup checklist (before final glue/finishing)

• Trim: Trim the seam allowance to 1/4 inch perfectly. Notch the curves (cut small V shapes) so the fabric doesn't pucker when turned.
• Turn: Turn the body right side out. Use a chopstick to gently poke out the corners.
• Stuff: Stuff the body firmly at the bottom (for stability) and lightly at the top.
• Close: Use a ladder stitch (invisible stitch) to close the turning hole by hand.
• Assembly: Glue the hat and beard using hot glue or fabric glue.

Display Ideas That Sell: Shelf Sitters, Lighted Bottles, and Small Upgrades That Save Time

The difference between a "craft project" and a "product" is the finish.

• Weight: Add a small bag of poly-pellets at the bottom of the gnome before stuffing with fiberfill. This lowers the center of gravity, preventing the gnome from falling over on a shelf.
• Interaction: The video suggests placing the gnome over a lighted bottle. This requires leaving the bottom open or using a drawstring closure.

Decision Tree: Stabilizer + Hooping Choices for ITH Gnomes (When Re-Hooping Starts to Cost You)

ITH projects utilize a "Factory Line" workflow. When you are re-hooping the same frame 4-5 times per doll, fatigue sets in. Use this logic gate to optimize your setup:

1. Assess Your Frequency:
   • One-off Hobbyist: Standard plastic hoop + screw tightening is acceptable.
   • Batch Production (5+ dolls): The constant wrist motion of tightening screws leads to fatigue and "hoop shifting."
2. Assess Your Fabric:
   • Standard Cotton: Tear-away stabilizer is sufficient.
   • Plush/Minky/Stretchy: Requires careful tension. If you over-stretch the fabric in a standard hoop, the gnome will be distorted.
3. The Magnetic Solution Criteria:
   • Are you struggling with "Hoop Burn" (shiny rings left on fabric)?
   • Do you need to re-hoop quickly between the arm, leg, and body files?
   • Do you hate the "tug of war" trying to get thick stabilizer taut?
   • Decision: If you answered YES, this is the trigger point where professionals switch to magnetic embroidery hoops. These tools clamp fabric instantly without the screw-tightening friction, ensuring zero distortion on delicate ITH pieces. For specific machines, searching for a brother 5x7 magnetic hoop can save hours of frustration during a holiday production rush.

Warning: Magnet Safety. Magnetic hoops use industrial-strength magnets (Neodymium). They can carry a massive pinch force. Keep fingers clear of the snapping zone. Pacemaker users must maintain a safe distance (usually 6 inches+) as the magnetic field can interfere with medical devices.

1. Placement Accuracy:
   • If your parts are consistently misaligned, investigate a hooping station for embroidery. This ensures every layer of stabilizer and fabric is perfectly squared before it touches the machine.

Troubleshooting the Two Most Common “This Ruined My Gnome” Moments

Use this table to diagnose issues before they destroy materials.

The Upgrade Path (Without the Hard Sell): When Tools Pay for Themselves on Multi-Part ITH Projects

If you are making one gnome for yourself, perseverance with basic tools is a virtue. However, if you are scaling up to make gifts for the whole class, or selling these at a market, "Perseverance" quickly turns into "Repetitive Strain Injury."

Level 1: Stability Upgrade For frequent re-hooping, a magnetic hooping station solves the alignment drift. It holds the outer hoop frame static while you position the stabilizer, acting as a "third hand."

Level 2: Speed & Safety Upgrade The embroidery magnetic hoop is the industry standard for preventing "Hoop Burn" and increasing speed. By simply snapping the top frame on, you eliminate the variable of "how tight did I screw this?" It is particularly effective for thick ITH layers (Stabilizer + Batting + Fabric) that are hard to jam into a plastic frame.

Level 3: Production Capability If you find yourself limited by the single-needle color changes or the 5x7 field size, this is the ceiling of home machinery. Scaling to SEWTECH multi-needle embroidery machines allows you to set up multiple thread colors (Face, beard, body, outline) once and walk away, turning a hands-on chore into a hands-off manufacturing process.

Your goal is to enjoy the craft, not fight the equipment. Whether you stick with your starter machine or upgrade your toolkit, mastering the physics of the hoop is the key to a perfect gnome.

FAQ

• Q: For a Brother/Baby Lock home embroidery machine, what stabilizer should be used for an ITH gnome “turn-and-stuff” project to avoid bulky seams?
  A: Use medium-weight tear-away stabilizer for ITH gnomes so seams turn cleanly without extra bulk.
  • Choose: Hoop medium-weight tear-away for each component (beard, legs/arms, hat, body).
  • Tear: Remove stabilizer gently after stitching so seam allowances stay intact.
  • Avoid: Using a bulky stabilizer that makes curves hard to turn on small parts.
  • Success check: Turned seams look rounded and smooth, not boxy or stiff at the curves.
  • If it still fails… Reduce seam allowance carefully and clip curves at toes and notches, then re-check turning quality.
• Q: On a Brother/Baby Lock embroidery machine using a standard screw-tightened 5x7 hoop, how can hooping tension be checked before stitching ITH placement lines?
  A: Hoop “drum-tight” so the fabric/stabilizer does not shift and placement lines match seam lines.
  • Tap: Tap the hooped stabilizer; aim for a dull thud (not a loose papery rattle).
  • Tighten: Re-seat and tighten evenly so the hoop holds tension consistently.
  • Verify: Keep the hooping flat and square before loading the design.
  • Success check: Placement stitches and outline stitches land exactly on top of each other without offset.
  • If it still fails… Switch to a magnetic hoop to reduce distortion and re-hooping variability.
• Q: On a Brother/Baby Lock embroidery machine, how should bobbin tension look on satin columns to confirm correct stitch balance before an ITH gnome run?
  A: Set bobbin tension so the white bobbin thread shows as a straight line on the back, about 1/3 the width of the satin column.
  • Inspect: Check the back of a satin area before committing to the full build.
  • Adjust: Make small tension corrections as needed (use the machine manual as the authority).
  • Replace: Install a correctly wound bobbin and re-thread if balance suddenly changes.
  • Success check: The back shows a clean, consistent bobbin “railroad” line—not loops, not top thread dominating.
  • If it still fails… Re-thread top and bobbin paths and confirm the bobbin is seated correctly in the case.
• Q: On a Brother/Baby Lock embroidery machine, what is the safest way to prevent presser-foot snags when stitching over the bulky ankle seam on ITH gnome sew-and-flip legs?
  A: Use a “glide sheet” bridge—lay a scrap of stabilizer or water-soluble topping over the bulky seam before the presser foot travels across it.
  • Stop: Pause immediately if the foot starts to catch or the hoop stalls.
  • Place: Slide a scrap stabilizer/topping piece over the seam hump to act as a ramp.
  • Resume: Stitch at controlled speed so the needle does not hammer one spot.
  • Success check: The stitch sound stays smooth and continuous, not a rapid “machine-gun” hammering in one area.
  • If it still fails… Finger-press/flatten the seam more aggressively before stitching and slow the machine further for that pass.
• Q: For an ITH gnome yarn beard on a Brother/Baby Lock embroidery machine, how can sticky needles and bobbin “bird nesting” be prevented when using painter’s tape?
  A: Tape the yarn beard flat but keep all tape at least 1 inch away from the needle path to avoid adhesive on the needle.
  • Spread: Lay yarn in a single dense layer rather than piling it high.
  • Tape: Press tape firmly across the yarn center to prevent the tack-down stitch from dragging loops.
  • Avoid: Do not let the needle punch through tape—adhesive can make the needle sticky and increase thread shredding/nesting risk.
  • Success check: The tack-down line sews without thread shredding, and the yarn stays evenly anchored with no bald gaps.
  • If it still fails… Replace the needle and re-tape flatter; reduce yarn thickness so the presser foot glides instead of snagging.
• Q: On a Brother/Baby Lock embroidery machine, why should an ITH gnome leg be stuffed only in the foot and not the upper leg before final body assembly?
  A: Stuff only the foot so the upper leg stays flat and can be caught into the final body seam without damaging the needle or machine.
  • Stop: Keep stuffing at least 1.5 inches away from the final seam line.
  • Shape: Pack the foot firmly, then leave the upper leg unstuffed and compressible.
  • Assemble: Tuck flat limb tops into the “sandwich” so the machine can stitch through layers safely.
  • Success check: The hoop and presser foot move freely during the final seam without deflection, thumping, or repeated needle strikes.
  • If it still fails… Remove some stuffing and re-stitch; attempting to sew through stuffed limbs is a common cause of broken needles and mechanical damage.
• Q: For ITH gnomes on a Brother/Baby Lock embroidery machine, when should a magnetic embroidery hoop be chosen instead of a standard screw-tightened 5x7 hoop to reduce hoop burn and re-hooping drift?
  A: Choose a magnetic embroidery hoop when repeated re-hooping causes hoop burn, shifting, or slow setup—especially in batch production.
  • Trigger: Upgrade if hoop burn rings appear, screw-tightening fatigue sets in, or thick ITH layers are hard to tension evenly.
  • Use: Clamp fabric instantly with consistent holding force to reduce distortion on delicate pieces.
  • Add: Consider a hooping station if layer squaring/alignment is inconsistent across multiple hoopings.
  • Success check: Re-hooped components (beard/legs/hat/body) align consistently with fewer retries and fewer visible hoop marks.
  • If it still fails… Re-check limb orientation/taping and slow to about 400 SPM for the final multi-layer seam; alignment issues can also come from shifting during stitching.
• Q: What magnetic hoop safety rules should pacemaker users follow when using neodymium magnetic embroidery hoops for ITH projects?
  A: Treat neodymium magnetic hoops as industrial magnets—avoid pinch zones and keep them away from pacemakers (a common guideline is 6 inches+, but follow medical advice).
  • Keep: Fingers clear when the top frame snaps down; pinch force can be severe.
  • Separate: Store magnets controlled and away from sensitive devices and loose metal tools.
  • Follow: Defer to pacemaker manufacturer guidance and a healthcare professional for exact safe distance.
  • Success check: The hoop closes without finger contact in the snapping zone and is handled without sudden “slam” movements.
  • If it still fails… Use a standard screw hoop for safety, or use handling aids that keep hands away from the closing path.
