Ditch the USB, Keep Your Sanity: Connecting Brother Luminaire Apps + Design Database Transfer (Wireless PES Workflow)

The Definitive Guide to Brother Wireless Setup: From "USB shuffle" to Continuous Flow

If you have ever walked a USB stick back and forth between your computer and your machine like it’s 2009—only to realize you grabbed the wrong file version—this workflow is the relief you’ve been waiting for.

In the embroidery world, friction is the enemy of creativity. Every time you stop to find a flash drive, your "flow state" breaks. In this guide, based on expert workflows and Jeannie's demonstration, we will connect your Brother Luminaire (and similar high-end models like the Solaris or Avenir) to the official ecosystem.

The goal isn't just "more tech." The goal is a production environment where the machine waits for you, not the other way around.

Phase 1: The "App Guide" Protocol (Don't Trust the App Store)

Here is where 90% of beginners fail before they start: They open their phone’s App Store and search for "Brother." The results are a mess of printers, sewing guides, and third-party tools.

The Golden Rule: Never search manually. Let the machine generate the specific QR code for your device. This ensures you get the exact version compatible with your firmware.

On your Brother Luminaire/Solaris screen:

1. Press the Settings key (page icon).
2. Navigate to Page 11 using the arrow keys.
3. Tap App Guide (bottom left corner).

You will see the "Holy Trinity" of Brother connectivity:

• My Stitch Monitor: Your remote control.
• My Design Snap: Your positioning camera.
• Artspira: The cloud design hub (Note: Brother Solaris owners will not see this option).


Phase 2: The "Hidden" Prep (Physical & Network Hygiene)

Wireless embroidery is unforgiving. If your physical or network environment is messy, the software will fail silently. Before you scan a comprehensive code, perform this pre-flight check.

The "Invisible" Consumables: Just like you need stabilizer and fresh needles, you need digital consumables.

• A Clean Network: The machine must be on Home Wi-Fi (2.4GHz is often more stable for walls/distance), not a guest network.
• Power: Wireless radios turn off when the machine sleeps. Keep it awake.
• File Hygiene: Create a folder on your PC desktop named "CURRENT_PROJECTS." Dump old files later.

Warning: Never attempt network troubleshooting while the machine is stitching. A distracted operator is the #1 cause of needle injuries. Keep hands clear of the active needle zone at all times.

Phase 3: Mobile Linking (Stitch Monitor & Design Snap)

We start with the phone apps because they validate the connection quickly.

Step A: My Stitch Monitor

This app is your "peace of mind." It alerts you when thread breaks or a color change is needed, allowing you to step away from the machine.

The Setup:

1. Machine: In the App Guide, tap My Stitch Monitor.
2. Phone (Android/iOS): Open your camera and focus on the QR code.
3. Action: Tap the link → Install → Open.
4. Critical Setting: You must allow Notifications. Without them, the app is useless.

Sensory Check: When connected, look for the status "Monitoring." If the machine is idle, the app will look empty. This is normal. It only wakes up when the needle moves.

Step B: My Design Snap & Artspira

Repeat the QR code process for My Design Snap.

• The Efficiency Hack: You only need to install these apps once. If you buy a second machine (like an Avenir), the app will detect it automatically as long as it is on the same Wi-Fi.

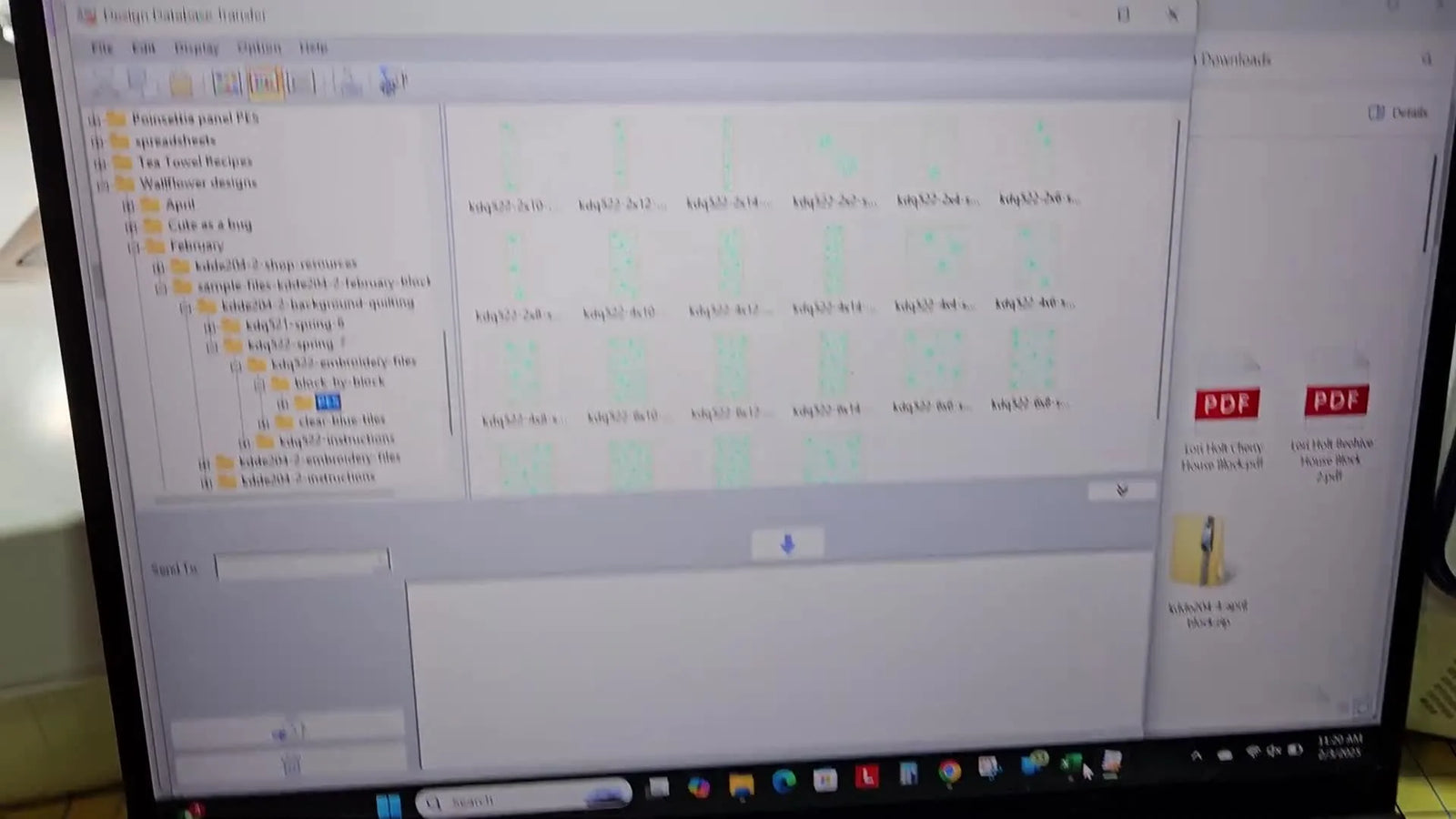

Phase 4: The PC Workflow (The "Digital Conveyor Belt")

Now we eliminate the USB stick forever. We will use Design Database Transfer, a free Windows tool that acts as a bridge between your PC and the machine.

Step A: Download & Install

1. On your Windows PC, search for "Brother Design Database Transfer".
2. Navigate to the official support page.
3. Select your OS (e.g., Windows 11) and download.
4. The Privacy Check: During installation, Jeannie recommends unchecking "Anonymous Data Collection" to keep the install clean and fast.






Pro Tip: Once installed, right-click the icon in your taskbar and select "Pin to Taskbar." This small friction-reducer makes opening the software a one-click reflex.

Step B: Network Machine Settings (The Handshake)

This is the most common failure point. The software does not "know" your machine exists until you introduce them.

1. Open Design Database Transfer.
2. Look for the icon depicting a Sewing Machine with Gears (Network Settings).
3. Click Add. The software will scan your Wi-Fi.
4. Select & Name: You should see your machine's internal name. Select it.
   • Troubleshooting: If the list is empty, your machine is likely asleep or on a different Wi-Fi band. Wake it up and try again.


Step C: The Transfer (Cherry Picking)

1. Browse to your design folder.
2. Select: Hold the Ctrl key to "cherry-pick" capable files (e.g., select file 1, 3, and 5).
3. Send: Click the large Blue Down Arrow.
4. Sensory Check: Watch the progress bar. It should zip across in seconds.




Phrase 5: Retrieval (The "Wi-Fi Pocket")

Where did the files go? They do not appear on the main screen.

1. Go to the Embroidery screen on your Luminaire.
2. Look for the Wi-Fi Icon (usually a folder tab).
3. Select it. Your files are waiting there.

The Decision Matrix: Which Tool When?

Don't overcomplicate your day. Use this logic tree to decide which path to take.

Decision Tree: The Efficiency Path

1. Is the file on your Computer?
   • YES → Use Design Database Transfer. (Best for bulk sending).
   • NO → Go to step 2.
2. Is the design in the Cloud/Artspira?
   • YES → Use the Artspira App on mobile.
   • NO → Go to step 3.
3. Are you checking progress/status only?
   • YES → Use My Stitch Monitor.
4. Result: If none of above, you are likely doing a firmware update or old-school transfer. Use USB.

Troubleshooting Field Manual

When things go wrong, do not panic. Follow this structured diagnostic, ordered from "easiest fix" to "hardest fix."

Beyond the Screen: Solving the *Physical* Bottleneck

Congratulation. You have streamlined your digital workflow. Your files now travel instantly.

But here is the harsh reality of production embroidery: Saving 2 minutes on file transfer is meaningless if you spend 10 minutes fighting with a hoop, or worse, dealing with "Hoop Burn" that ruins the garment.

Once the data flows fast, the mechanical handling becomes your new bottleneck. Just as you upgraded your software workflow, you must evaluate your hardware workflow.

The Problem: Hoop Burn & Wrist Fatigue

Standard plastic hoops rely on friction and brute force. To hold a sweatshirt securely, you have to tighten the screw aggressively. This causes:

1. Hoop Burn: Permanent rings on delicate fabrics (velvet, performance wear).
2. Wrist Strain: repetitive stress from tightening screws.
3. Low Precision: The fabric shifts as you tighten the inner ring.

The Solution: Magnetic Hoops

If you are serious about efficiency, professionals typically upgrade to magnetic embroidery hoops for brother.

• How they work: Instead of forcing an inner ring into an outer ring, they use powerful magnets to sandwich the fabric.
• The Benefit: The fabric stays flat (zero distortion). There is no "shoving," so no hoop burn.
• The Speed: It turns a 2-minute hooping struggle into a 10-second "Click."

If you find yourself searching for magnetic embroidery hoop or wondering if they fit your specific Luminaire or Solaris, look for reputable brands like SEWTECH. They offer the stability required for high-speed stitching without the "hoop burn" risk of traditional rings.

Warning: Magnetic Force Hazard
magnetic hoops for embroidery machines use industrial-strength magnets.
* Pinch Hazard: They snap shut instantly. Keep fingers clear of the edge.
* Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.

When to Upgrade?

• The Hobbyist: If you stitch once a week, standard hoops are fine.
• The Pro-sumer: If you do runs of 10+ shirts, or work with thick jackets/delicate velvet, a magnetic hoops for brother luminaire setup is not a luxury—it is a production necessity.

Final Checklists

Print these out. Tape them near your station.

Setup Checklist (One-Time)

• Apps Installed: Stitch Monitor, Design Snap, Artspira showing on phone.
• PC Software: Design Database Transfer installed on Windows.
• Network Check: "LUMI" (or your machine name) added in software settings.
• Pin it: Software pinned to Windows Taskbar.
• Consumables: Backing/Stabilizer stock checked (Cutaway for knits, Tearaway for wovens).

Operation Checklist (Daily Routine)

• Wake Up: Power on machine before opening software.
• Clean: Remove old files from "Wi-Fi Pocket" on machine to prevent confusion.
• Select: Ctrl+Click designs in Database Transfer.
• Send: Click Blue Arrow → Wait for "Transmitted" message.
• Hoop: Secure fabric (Magnetic hoop recommended for speed) + Stabilizer.
• Stitch: Load file from Wi-Fi tab and press start.

By mastering the wireless flow and upgrading your hooping strategy, you move from "fighting the machine" to "managing the production." Happy stitching.

FAQ

• Q: How do I install the correct Brother apps for Brother Luminaire/Solaris/Avenir without downloading the wrong app from the App Store?
  A: Use the Brother machine “App Guide” QR code instead of searching the App Store.
  • Open Settings (page icon) on the Brother Luminaire/Solaris screen → go to Page 11 → tap App Guide.
  • Scan the on-screen QR code with the phone camera → install from the link (repeat for My Stitch Monitor / My Design Snap / Artspira if shown).
  • Allow Notifications for My Stitch Monitor during setup.
  • Success check: the correct app opens and pairs, and My Stitch Monitor shows “Monitoring” when the machine starts stitching.
  • If it still fails… re-scan the QR code from the machine (don’t reuse an old store search result).
• Q: Why does Brother Design Database Transfer show “No Machine Found” when adding a Brother Luminaire/Solaris on Wi-Fi?
  A: Wake the Brother machine and make sure the Brother machine and Windows PC are on the same main home Wi-Fi (often 2.4GHz is more stable).
  • Touch the Brother machine screen to keep it awake, then wait about 10 seconds before scanning/adding.
  • Confirm the Brother machine is on Home Wi-Fi, not a Guest network; keep the Windows PC on that same network.
  • Reopen Design Database Transfer → Network Settings (sewing machine with gears) → Add and scan again.
  • Success check: the Brother machine appears by its internal name in the add list and can be selected and named.
  • If it still fails… power-cycle the Brother machine to re-enable the wireless radio (sleep can disable connectivity).
• Q: Why is the blue down arrow grayed out in Brother Design Database Transfer when sending designs to a Brother Luminaire/Solaris?
  A: Set a destination machine first in Network Settings—otherwise there is nowhere to send the files.
  • Click the sewing machine with gears icon (Network Settings) in Design Database Transfer.
  • Click Add and select the Brother Luminaire/Solaris from the scan list, then name it.
  • Return to the main screen, select designs, then click the blue down arrow again.
  • Success check: the transfer progress bar moves and the job shows as transmitted within seconds.
  • If it still fails… confirm the Brother machine is awake and on the same main home Wi-Fi as the PC.
• Q: Where do wireless-transferred embroidery files appear on a Brother Luminaire after using Brother Design Database Transfer?
  A: Wireless files go to the Brother Luminaire “Wi-Fi” folder tab on the Embroidery screen, not the main design list.
  • Go to the Brother machine Embroidery screen.
  • Tap the Wi-Fi icon/tab (folder-like tab).
  • Look for the transferred designs inside that Wi-Fi location.
  • Success check: the exact filenames sent from the PC appear in the Wi-Fi tab and can be loaded to stitch.
  • If it still fails… re-send one small file and watch the PC progress bar to confirm the transfer completed.
• Q: What is the correct safety practice when troubleshooting Brother wireless setup around a Brother Luminaire/Solaris while stitching?
  A: Do not troubleshoot Wi-Fi or app connections while the Brother machine is stitching—stop first to prevent needle injuries.
  • Pause/stop the embroidery cycle before touching the phone, router settings, or PC transfer settings.
  • Keep hands clear of the active needle area at all times when the machine is running.
  • Resume stitching only after the connection steps are complete and attention is back on the machine.
  • Success check: troubleshooting is done with the needle stopped and hands never entering the needle zone.
  • If it still fails… troubleshoot in a separate step (power on, connect, then stitch) rather than mid-run.
• Q: How do I reduce hoop burn and wrist strain on Brother Luminaire/Solaris projects, and when should I switch to magnetic embroidery hoops?
  A: Start by reducing “over-tightening” behaviors; if hoop burn or hooping time keeps happening—especially on thick or delicate fabrics—magnetic hoops are often the next practical upgrade.
  • Diagnose: look for visible ring marks on fabric and repeated screw-tightening fatigue during hooping.
  • Optimize first: hoop more gently and focus on keeping fabric flat before locking it in (avoid brute-force tightening).
  • Upgrade next: use magnetic embroidery hoops to “click” the fabric flat without shoving an inner ring (this often reduces distortion and hoop burn).
  • Success check: fabric lays flat with minimal distortion and hoop marks are reduced after unhooping.
  • If it still fails… treat it as a workflow bottleneck: after digital transfer is fast, consider hardware workflow upgrades (magnetic hooping) before chasing more app/network tweaks.
• Q: What are the key safety precautions for using magnetic embroidery hoops on Brother-style embroidery setups?
  A: Treat magnetic embroidery hoops as industrial magnets—prevent finger pinch and keep them away from medical devices.
  • Keep fingers away from the closing edge; magnets can snap shut suddenly.
  • Maintain at least 6 inches distance from pacemakers or insulin pumps.
  • Close the hoop in a controlled way (don’t let the magnets slam together).
  • Success check: the hoop closes without pinching, and handling feels controlled and repeatable.
  • If it still fails… slow down and reposition hands before closing; do not “fight” the magnets while aligning fabric.
