Digitizing the Tricky Letters “m, o, n” in Forte PD: Clean Satin, Fewer Trims, and a Path That Actually Stitches Well

When lettering goes wrong, you usually hear it before you see it. It’s that erratic, chopping sound of the machine trimming thread ten times for a single word, followed by the silence of a thread break.

If you are digitizing in Forte PD and your lowercase letters look crisp in the wireframe view but stitch out like a frayed mess in reality, you aren't lacking talent—you are lacking pathing discipline. Machine embroidery is a physical battle against tension and fabric movement.

This guide isn't just about tracing shapes. It is about engineering a thread path that flows like water—continuous, unbroken, and clean. We’re going to fix the "m, o, n" sequence, which defeats beginners because of its curves and connection points.

The Calm-Down Primer: Why Forte PD Text Letters “m, o, n” Make Even Good Digitizers Sweat

Lowercase “m”, “o”, and “n” are deceptively simple shapes. In typography, an "m" is just three vertical strokes and two arches. In embroidery physics, however, an "m" is a nightmare of pulls and pushes.

The machine sees the "m" as three distinct islands. If you digitize them separately without a plan:

1. The machine stitches the first leg. TRIM.
2. It jumps to the middle leg. TRIM.
3. It jumps to the final leg. TRIM.

That is three lock stitches, three trims, and three chances for the thread to pull out of the needle eye.

The Expert Goal: We want to "draw" the letter without lifting the pen (the needle). We will use a combination of Satin Stitch (for the body) and Running Stitch (for the hidden travel).

This lowers your stitch count, reduces machine wear, and eliminates those ugly "bird nests" of thread on the back of the fabric.

The “Hidden” Prep in Forte PD: Set Yourself Up Before You Place a Single Node

Before you place your first node, stop. Look at your grid. The most common error I see in my 20 years of teaching is digitizing letters too small for the chosen thread weight.

The Physics of Size:

• Standard 40wt Thread: Requires a satin column width of at least 1.0mm to look clean.
• Small Lettering: If your letter height is under 6mm (approx 1/4 inch), standard needles (75/11) will punch holes that destroy the definition. You will need to switch to a 65/9 or 60/8 needle and possibly 60wt thread.

The "Hidden Consumables" Check: Do you have your physical tools ready?

• Soluble Pen: For marking center points on fabric.
• Spray Adhesive (Temporary): To float fabric if you aren't hooping tight.
• Correct Needle: A sharp point for wovens, ballpoint for knits.

Prep Checklist (The "Do Not Ski" Flight Check):

• Type Measure: Measure the satin column width on screen. Is it at least 1mm wide? If thinner, increase size or bold the font.
• Start/Stop Visual: Mentally visualize where the needle enters and exits the letter.
• Underlay Strategy: For letters under 10mm, use a Center Run underlay. Avoid Edge Run or Zig Zag underlay on tiny letters; it will poke out the sides.
• Equipment Check: Ensure your hoop is clean. Old adhesive buildup on inner rings causes fabric slippage ("flagging").


The Pathing Trick That Saves You: Planning the Letter “m” in Three Sections Without Jump Stitches

Here is the secret to the "m": You must stitch it backwards to move forwards.

If you stitch left-to-right linearly, you trap yourself at the bottom of a leg and have to jump to the top of the next arch. Instead, we use a continuous path strategy.

The Video’s Logic (The "Continuous Flow" Method):

1. Leg 1: Digitize the far-left vertical leg. Stop at the bottom.
2. Travel: Use a running stitch to travel up the edge of that leg to the start of the first arch.
3. Arch 1: Digitize the middle arch. Stop at the bottom right.
4. Travel: Run up the edge to the start of the second arch.
5. Arch 2: Digitize the final leg/arch.

This reduces a 3-trim letter to a 0-trim letter. It sounds like extra work on screen, but it saves 10-15 seconds of machine time per letter. On a 50-shirt order, that is an hour of production time saved.

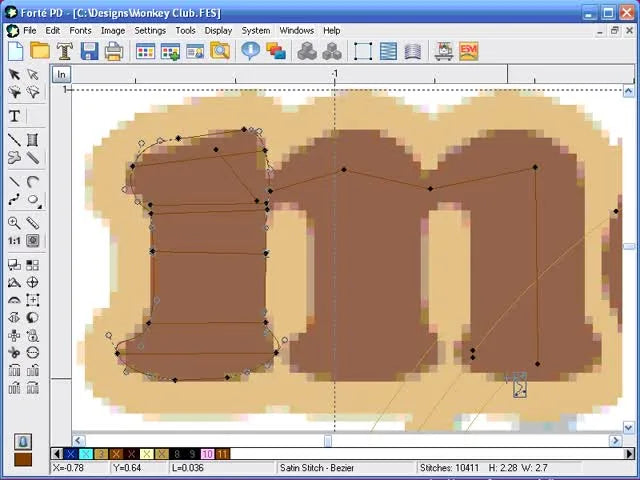

Satin Stitch – Bezier in Forte PD: Place Nodes Like You Mean It (Not Like You’re Tracing Clipart)

When using the Satin Stitch – Bezier tool, many beginners click fifty times around a curve. Stop that.

The Rule of Nodes:

• Less is More: Every node is a calculation point for the software. Too many nodes create "choppy" satin edges that look like a staircase rather than a slide.
• Placement Strategy: Place nodes only at the "peaks" (highest point of a curve), "valleys" (lowest point), and inflection points (where a curve changes direction).

Sensory Check: When you drag the handles to shape the curve, visualize a rubber band stretching. It should look smooth and tense. If the curve creates a sharp angle, your thread will pile up there and create a hard knot.

Warning (Safety & Quality): Uneven node placement creates variable density. If stitches are packed too tightly in a sharp corner, the needle can deflect, strike the throat plate, and shatter. Always keep stitch density consistent (standard is roughly 0.40mm - 0.45mm).

The Running Stitch Travel Line: How to Move Between Letter Segments Without Ugly Trims

Once the first leg of the "m" is done, switch to the Running Stitch tool.

You need to move from the bottom of the leg (where you finished) to the top (where the arch starts). You cannot fly through the air. You must walk along the wall.

The "Hidden Highway" Technique: Place your running stitches just slightly inside the boundary of the satin column you just created.

• Too far inside: The running stitch might peek out through the satin top-stitching if the density is loose.
• Too far outside: It’s visible on the garment.
• The Sweet Spot: About 0.3mm to 0.5mm from the edge.

This travel line will be covered by the next segment or by the underlay of the current segment. It essentially buries the travel thread inside the embroidered column.

The Overlap Rule: Prevent Gaps Where the “m” Segments Meet

This is the number one failure point for beginners. You digitize the arch perfectly touching the leg on screen, but when you stitch it, there is a distinct gap between them.

Why does this happen? (The Physics of Pull): Stitches run with the grain of the column. As they tighten, they pull the fabric in, making the column narrower (Pull Compensation). This pulls the two segments apart.

The Fix: You must overlap your segments. Start the arch slightly inside the previous leg.

• Experience Value: Overlap by roughly 0.3mm to 0.5mm.
• It should look "wrong" (too jammed) on the screen wireframe.
• It will look perfect on the fabric.

Fabric Reality Check: If you are stitching on pique knit (polo shirts), the fabric stretches. Even a 0.5mm overlap might not be enough if your hooping is loose. This is where mechanical aids come in. Professionals often rely on hooping for embroidery machine guides and fixtures to ensure the fabric is stabilized firmly enough to support the digitizing logic.

The Cleanup Pass: Zoom In, Edit Points, and Fix Misaligned Shape Edges

Never trust the 100% zoom view. It lies.

Zoom in to 400% or 600%. Look at where your Bezier curves meet straight lines.

• Issue: Sharp "elbows" or jagged transitions.
• Fix: Use the Node Edit tool. Drag the handles to smooth the transition.

The Two-Pass Cleanup Method:

1. Skeleton Pass: Check the wireframes. Are the lines touching?
2. Flesh Pass: Turn on 3D/Stitch View. Do the stitches flow cleanly?

If the wireframe nodes look erratic, the machine movements will be erratic. This creates vibration, noise, and poor stitch quality.

“Stitches On” Reality Check: Inspect the Satin Before You Commit to Trims

In Forte PD, toggle the "Stitches On" view. This simulates the thread thickness.

What to look for (Visual Anchors):

• Cigar Shapes: Satin columns should look like smooth cigars or tubes.
• Hourglasses: If a column pinches tightly in the middle and flares at the ends, you have a node problem or a stitch angle problem.
• Bald Spots: If you see background color peeking through the "m" legs, increase your density (lower the number, e.g., from 0.45mm to 0.40mm) or increase the overlap.

Setup Checklist (The "Virtual Sew-Out"):

• Flow Check: Use the "Slow Redraw" or simulator function. Watch the virtual needle. Does it jump? If yes, you missed a travel path.
• Gap Check: Verify your 0.3mm overlaps are present at every junction.
• Angle Check: Ensure stitch angles are generally perpendicular to the column shape (gradually turning around curves).
• Density Check: Is the density consistent across all three legs of the "m"?

The Scissors Icon in Forte PD: When to Apply Trim and Lock (and When Not To)

The instructor selects the last object and applies the Scissors (Trim) and lock stitches.

The Golden Rule of Trims:

• Never trim inside a letter if you can travel.
• Always trim between letters (unless they are script/connected text).
• Always lock stich (tie-in/tie-off) before a trim.

A "lock stitch" is usually 3-4 tiny stitches in a triangle or line pattern. Without this, your lettering will unravel in the washing machine. Listen for a rapid thump-thump-thump sound at the start and end of letters—that is the sound of a secure lock stitch.

Digitizing the Letter “o”: Close the Loop With a Slight Overlap So It Stitches Like a Real Font

The "o" presents a different challenge: the Closed Loop.

If you start at the top (12 o'clock) and stitch around to finish at 12 o'clock, the fabric will push forward during stitching. By the time you return to the start, the ends won't meet. You will survive the gap.

The Overlap Strategy for Circles:

• Start at the top (or bottom).
• Trace the donut shape.
• End the shape by crossing over your start point by 3-4 stitches (approx 1mm).
• This ensures the circle seals shut despite the fabric pushing.


Digitizing the Letter “n”: Reuse the “m” Logic—Start Low, Travel Smart, Finish the Arch Clean

The lowercase "n" is simply an "m" with one less leg. Do not reinvent the wheel.

1. Digitize Left Leg (down).
2. Run stitch travel (up).
3. Digitize Arch/Right Leg (down).

Consistency is King: Ensure the height of your "n" creates a horizontal alignment line with the "m" and "o". In digitizing software, we often rely on grid lines. Turn them on. If your "n" is two pixels shorter than your "m", the human eye will notice it immediately on the final product.

A Decision Tree You’ll Actually Use: Choosing Stabilizer + Hooping Strategy for Satin Text

Your digitizing is perfect. Your machine is calibrated. But your lettering still looks puckered. Why? Stabilization.

Small satin lettering is high-intensity; it exerts tremendous force on a small area of fabric. Use this decision tree to match your consumables to your detailed digitizing:

Decision Tree (Fabric → Stabilizer → Strategy):

• Scenario A: Sturdy Woven (Denim/Canvas)
  • Stabilizer: Tearaway (Medium weight, 1.5oz - 2.0oz).
  • Hooping: Standard hoop tightened until "drum tight."
  • Needle: 75/11 Sharp.
• Scenario B: Performance Knit / Polo Shirt (Stretchy)
  • Stabilizer: Cutaway (No exceptions). 2.0oz - 2.5oz. Tearaway will fail and cause gaps.
  • Hooping: Do not stretch the fabric. Lay it neutral.
  • Needle: 75/11 Ballpoint.
• Scenario C: Slippery/Thick items (Backpacks, Velour)
  • Stabilizer: Cutaway + Water Soluble Topper (to keep stitches from sinking).
  • Hooping: This is the danger zone for "hoop burn" (permanent ring marks). Many professionals switch to magnetic embroidery hoops here. They clamp vertically without the friction that causes burn marks, holding thick layers securely without struggle.

Warning (High Magnet Hazard): If you use magnetic framing systems, keep fingers clear of the snapping zone. The force is strong enough to pinch severely. Operators with pacemakers should maintain a safe distance from powerful magnetic hoops.

The Production Mindset: Fewer Trims = Faster Runs (and Cleaner Finishing)

Why do we obsess over removing trims in the software?

• Time: A trim cycle takes 5-10 seconds. In a word with 6 letters, bad pathing adds a minute.
• Risk: Every trim is a mechanical sequence (blade actuates, tension releases, wiper moves). Every sequence is a potential failure point.
• Aesthetics: Trims leave "tails" on the back. For baby clothes or sensitive skin, fewer tails means a softer product.

Efficiency Trigger: If you find yourself spending hours trimming tails by hand after the machine stops, your digitizing is the bottleneck. But if your hands are sore from forcing thick jackets into standard plastic hoops, your hardware is the bottleneck. This is why high-volume shops invest in hooping stations to standardize placement and reduce physical fatigue.

Common “Why Does My Lettering Look Bad?” Symptoms—And the Fixes That Match This Video’s Workflow

Even following this guide, things go wrong. Here is your structured troubleshooting table.

The Upgrade Path: When Better Hooping Tools Make Your Digitizing Look Better

Digitizing is software, but embroidery is hardware. Sometimes the software is right, but the tool is wrong.

Level 1: The Stabilizer Upgrade If you are still using "whatever paper came with the machine," upgrade to branded, industry-standard Cutaway and Tearaway backing. It is the cheapest way to improve results instantly.

Level 2: The Hoop Upgrade If you struggle with hoop burn on delicate items or simply cannot hoop thick items (like Carhartt jackets), standard hoops are the limitation. magnetic embroidery frames act as a "level up" for your machine—they allow you to frame items that were previously impossible, and they tend to hold tension more evenly during the aggressive zig-zag of satin text.

Level 3: The Machine Upgrade If you are running 50+ items and dread the single-needle thread change, digitizing efficiency can only save you so much time. Moving to a multi-needle machine (like the SEWTECH series) changes the game from "hobby output" to "commercial profit," allowing you to queue colors without intervention.

Operation Checklist (Run This Before Big Batches):

• Test Sew: Run the specific "m, o, n" file on a scrap of the exact fabric you will use.
• Tension Audit: Look at the back. Is the bobbin thread a neat 1/3 strip in the middle of the white column?
• Trim Check: Did the travel stitches stay hidden? If you see travel lines, nudge them further toward the center of the column in Forte PD.
• Needle Freshness: If the test sew sounds a "popping" noise, change the needle.


Final Reality Check: If Your “m” Stitches Clean, Your Whole Alphabet Gets Easier

Mastering the lowercase "m" in Forte PD is the gateway skill. It teaches you overlap, travel stitches, node control, and density management.

The workflow never changes:

1. Prep: Check sizes and materials.
2. Path: Plan a continuous route.
3. Execute: Digitize with minimal nodes.
4. Verify: Check overlaps and travel lines.
5. Stabilize: Hoop physically secure.

Get the "m" right, and the rest of the alphabet is just details. Happy stitching.

FAQ

• Q: In Forte PD Satin Stitch–Bezier lettering, why do lowercase “m” letters cause multiple trims and thread breaks during stitching?
  A: Use a continuous path with hidden running-stitch travel so the Forte PD stitch order finishes the “m” without internal trims.
  • Plan: Digitize the far-left leg, stop at the bottom, then travel up the leg edge with Running Stitch to reach the arch start.
  • Continue: Stitch Arch 1, stop low, travel up again along the column edge, then stitch Arch 2/last leg.
  • Avoid: Do not digitize each leg as separate “islands” that force Trim–Jump–Trim sequences.
  • Success check: The machine runs the entire “m” with 0 trims inside the letter and the stitch sound becomes steady instead of repeated trim “chops.”
  • If it still fails: Re-check the start/end points—any missed travel path will force a jump or an unwanted trim.
• Q: In Forte PD, what satin column size is the minimum for clean small lettering when using standard 40wt embroidery thread?
  A: Keep each satin column at least 1.0 mm wide when using standard 40wt thread, or increase the text size/boldness.
  • Measure: Use the on-screen grid/measure tool to confirm the satin column width is ≥ 1.0 mm.
  • Adjust: Increase font size or bold the font if columns measure thinner than 1.0 mm.
  • Choose: If letter height is under 6 mm, switch to a smaller needle (65/9 or 60/8) and consider finer thread.
  • Success check: Satin edges stitch as smooth “tubes” with clear letter definition, not frayed or broken edges.
  • If it still fails: Reduce aggressive underlay (avoid Edge Run/Zig Zag on tiny letters) and keep density consistent.
• Q: In Forte PD small satin text under 10 mm tall, which underlay type prevents underlay from poking out of the sides?
  A: Use Center Run underlay for letters under 10 mm and avoid Edge Run or Zig Zag underlay on tiny lettering.
  • Set: Select Center Run underlay as the default for small satin columns.
  • Avoid: Disable Edge Run/Zig Zag underlay when the lettering is very small, because it may show at the edges.
  • Verify: Toggle “Stitches On” to confirm the underlay support looks centered and covered.
  • Success check: No underlay threads peek out beyond the satin edges after stitching.
  • If it still fails: Increase letter size or satin width rather than trying to “force” heavy underlay into tiny columns.
• Q: In Forte PD satin lettering, how far inside the satin edge should a running-stitch travel line be placed to stay hidden without showing on the garment?
  A: Place the running-stitch travel line about 0.3 mm to 0.5 mm inside the satin column edge so the next stitches bury it.
  • Switch: Use the Running Stitch tool only for travel between segments (for example, moving up a leg on “m”).
  • Place: Keep travel stitches slightly inside the boundary—too far outside becomes visible, too far inside may peek through loose density.
  • Simulate: Use Slow Redraw/simulator to confirm the travel path is covered by the next segment.
  • Success check: No visible “walking line” appears on the front, and no unnecessary trims occur inside the letter.
  • If it still fails: Nudge the travel line closer to the column center and verify density is not too loose.
• Q: In Forte PD satin text, why do gaps appear where the “m” legs and arches meet even when the wireframe touches, and what overlap fixes it?
  A: Overlap the joining segments by roughly 0.3 mm to 0.5 mm to compensate for pull that narrows satin columns during stitching.
  • Edit: Start each arch slightly inside the previous leg instead of meeting perfectly edge-to-edge.
  • Accept: Expect the overlap to look “too jammed” in wireframe—this is normal for pull compensation.
  • Match: On stretchy knits, prioritize firm stabilization/hooping because fabric stretch can widen gaps.
  • Success check: After stitching, the junctions look sealed with no visible split between leg and arch.
  • If it still fails: Increase pull compensation or improve stabilization (cutaway on knits) before adding more density.
• Q: In Forte PD satin “o” lettering, how do you prevent an open seam where the circle starts and ends?
  A: Close the loop by crossing over the start point by about 3–4 stitches (≈1 mm) at the end of the “o.”
  • Start: Begin the “o” at the top or bottom and stitch around the donut shape.
  • End: Continue past the start point slightly so the final stitches overlap the first stitches.
  • Check: Use “Stitches On” to confirm the seam area is not a single-touch endpoint.
  • Success check: The “o” looks like a continuous font loop with no visible gap at the join.
  • If it still fails: Improve stabilization (especially on knits) because fabric push can exaggerate seam openings.
• Q: On a multi-needle embroidery machine, what is the safe, correct way to confirm top tension and bobbin balance for satin lettering before running a big batch?
  A: Use a test sew and confirm the back shows the “1/3 bobbin” balance, then correct looping or bobbin show-through before production.
  • Run: Stitch the exact “m, o, n” file on scrap fabric that matches the final garment and stabilizer.
  • Inspect: Check the back—aim for a neat strip of bobbin thread centered in the satin (the “1/3 bobbin” look).
  • Correct: If top thread loops on the surface, tighten top tension or re-thread through tension discs; if bobbin shows on top, loosen top tension or tighten bobbin slightly (follow the machine manual).
  • Safety: Stop immediately if the machine makes harsh popping/striking sounds—change the needle to reduce deflection risk.
  • Success check: Stitching sounds smooth and consistent, and the satin columns look even with no looping or bobbin pull-through.
  • If it still fails: Re-check thread path, needle condition, and density consistency before changing multiple settings at once.
• Q: What magnetic embroidery hoop safety precautions should operators follow when using high-force magnetic framing systems on thick or slippery items?
  A: Treat magnetic hoops as a pinch hazard and keep fingers clear of the snap zone; operators with pacemakers must keep a safe distance.
  • Position: Hold hoop parts securely and guide them together slowly—do not let magnets “slam” shut.
  • Protect: Keep fingertips out of the closing gap, especially when aligning thick items like backpacks or layered jackets.
  • Communicate: Post a clear shop rule about pacemakers and strong magnets near the framing area.
  • Success check: The fabric is clamped evenly without finger pinch incidents and without needing excessive force that risks misalignment.
  • If it still fails: Switch to a controlled framing routine (one operator aligns while another lowers) and avoid rushing high-magnet setups.
