Digitizing the “Ghost Walking a Dog” Patch in Hatch: Clean Tatami, One-Piece Satin Borders, and a Stitch-Out That Doesn’t Bite Back

How to Digitally Master the "Ghost Walking Dog" Patch: A Step-by-Step Production Guide

Halloween designs are fun—until your “simple line art” turns into a bulletproof white blob, a choppy outline, or a patch that looks great on-screen but stitches like a nightmare.

In this walkthrough, we are rebuilding the exact workflow from the video: manually digitizing the popular “Ghost Walking a Dog” artwork in Hatch Embroidery, then proving it with a real stitch-out on a multi-needle machine using a blue magnetic hoop.

But we aren’t just copying clicks. We are decoding the production thinking behind the clicks. If you are an intermediate digitizer (or a shop owner who digitizes to keep margins healthy), this file teaches you the three pillars of sellable patches: clean shapes, controlled resistance (stitch angles), and welded borders.

The “Don’t Panic” Primer: Why This Ghost Line Art Fails in Real Stitch-Outs (and How We Prevent It)

Line-art designs look forgiving to the naked eye, but they are physically picky. Two big white objects (ghost + dog) sitting together creates a large field of "pull." Without specific intervention, these areas will visually merge into a shapeless marshmallow, and thin black details will disappear into the texture of the tatami fill.

Here is the calm truth: Auto-digitizing is not your friend here. It cannot calculate the physical "push and pull" compensation needed for these specific shapes. Manual digitizing gives you control over edges, angles, and overlaps—exactly what keeps a patch readable from six feet away.

The Mindset Shift: Treat this not just as a "cute design," but as a structural engineering project. Patches demand clean borders to stop fraying, predictable trims to save production time, and a hooping method that keeps the fabric structurally sound under needle impact.

The “Hidden” Prep in Hatch Embroidery: Set Size First, or You’ll Chase Density Problems Later

The video starts with a low-quality PNG—and that’s fine, because we are using it as a blueprint, not the building material. The critical move happens before you drop a single node: Sizing.

The Engineering Reality

1. Insert the artwork.
2. Resize the design to exactly 3.5 inches wide immediately.

Why this is non-negotiable: Stitch properties are mathematical. A satin stitch that looks elegant at 3.5" becomes a thread-breaking, needle-deflecting knot at 2.5". If you digitize first and resize later, you inherit weird spacing, crushed density, and gaps that require hours of repair.

Prep Checklist: The "Pre-Flight" Inspection

(Do not skip this. 90% of failures happen here.)

• Target Definition: Is this for a patch (needs firm stability) or a T-shirt (needs drape)? This defines your underlay strategy.
• Size Lock: Artwork is set to 3.5" wide (or your specific target) before digitizing.
• Layer Safety: Artwork layer is LOCKED (protects against accidental drags while tracing).
• Palette Prep: Thread colors picked (White + Black) to check contrast on screen.
• Ghost Supply Check: Do you have Heavy Cutaway stabilizer (for patches) and a sharp 75/11 needle?

Manual Closed Shapes in Hatch: Trace the Ghost Body Cleanly (Right-Click Curves, Left-Click Corners)

This design lives or dies on the cleanliness of your closed shapes (the main white fills).

The "Rhythm" of Digitizing

• Choose the Digitize Closed Shape tool.
• Tactile Guide:
  • Left-Click: Creates a sharp corner (Hard point). Use this for the feet bottoms.
  • Right-Click: Creates a smooth curve (Round point). Use this for the ghostly head and back.
• Press Enter to close the shape.

Pro tip from the floor: Beginners often panic and add too many nodes. Fewer, better nodes beat a “connect-the-dots” outline. Too many nodes create micro-wobbles that translate into a jittery satin border later.

Trust your geometry. If you struggle with stability during this process, remember that consistency starts with your tools. Just as a hooping station for embroidery stabilizes your fabric for physical embroidery, mastering manual node placement stabilizes your file for digital production.

The “Reshape (H) Save”: Fix Missed Details Without Re-Digitizing the Whole Object

Everyone misses a detail eventually. In the video, the ghost’s hand gets missed during the first trace. Do not delete and restart.

The Surgical Fix

1. Press H to enter Reshape mode (The surgeon's scalpel).
2. Click the outline to add new nodes where the hand should be.
3. Sensory Check: Use the Spacebar to toggle a node between square (straight) and round (curved). You can visually see the line relax.
4. Slide nodes to form the hand shape cleanly.

Why this matters: Repairing the vector boundary keeps your stitch settings (underlay, density) intact. It is the efficient way to work.

Warning: Finalize your main closed shapes before you add borders. If you reshape the body after adding a border, you break the registration (alignment) between the fill and the outline.

The Texture Trick That Makes the Design Readable: Opposing Tatami Stitch Angles for Ghost vs Dog

If you stitch the ghost and the dog with the same white thread at the same angle, they will look like one unified blob. We need to create visual separation using light reflection.

The Physics of Light

• Ghost Tatami Angle: Set strictly Vertical (90°).
• Dog Tatami Angle: Set Horizontal or DIagonal (0° or 45°).

Expert Insight: Thread is shiny. It reflects light differently depending on the direction it lays. By opposing the angles, you force the light to hit the "Ghost" differently than the "Dog," creating a distinct visual edge without needing a black outline separator. This is a crucial technique for high-end tone-on-tone embroidery.

Satin Eyes That Pop: Circle Tool + Satin Fill + Duplicate for Symmetry

The eyes provide the character. Keep them simple.

The Workflow

• Use the Circle/Oval tool.
• Convert fill to Satin.
• Symmetry Hack: Select the eye, Ctrl+C / Ctrl+V, and drag the copy over. Human eyes detect asymmetry instantly; cloning prevents this.

Safety Threshold: Ensure the satin column is at least 1.5mm to 2mm wide. If it is too narrow (under 1mm), the needle will struggle to form a loop, leading to thread shredding.

The Border That Separates Hobby Files from Sellable Patches: Satin Outline at 0.040" + Weld

This is the moment where the file becomes "production-grade." A double border (one for the ghost, one for the dog) where they touch creates a thick, ugly ridge. We need one continuous path.

The "Weld" Protocol

1. Duplicate your main body fills.
2. Convert duplicates to Outline objects.
3. Set stitch type to Satin.
4. Set width to 0.040 inches (approx 1mm). Note: For a thick patch edge, you might go up to 3-4mm, but for this specific interior outline, 0.040" keeps it crisp.
5. The Magic Move: Select both borders (ghost + dog) and use the Weld tool.


Why Weld? Welding fuses the shapes into a single outline, removing the intersecting lines. Overlapping satin stitches are a major cause of broken needles. By welding, you ensure the machine never hammers the same spot twice.

If you run a multi-needle setup, this consistency is vital. A magnetic embroidery frame provides the physical hold, but the Weld command provides the digital safety. Together, they eliminate "flagging" (fabric bouncing) and ensure crisp registration.

Detail Line Work That Stays Visible: From Triple Run to 0.030" Satin (and Why Stitch Order Matters)

After fills and borders, we add the narrative details: folds, mouth, and leash.

Visibility Strategy

• Tool: Digitize Open Shape.
• Evolution: Start with Triple Run for placement. Convert to Satin at 0.030 inches for visibility. Triple run often sinks into tatami; a thin satin sits on top.
• The "Top Layer" Rule: Digitizing the leash last ensures it physically lays over the ghost and dog, mimicking reality.

Production Reality Check: The creator notes "a lot of trims." In a hobby setting, trims are fine. In a factory, trims equal time. Minimizing trims is good, but NOT at the expense of long jump stitches that might snag.

To maintain speed during these complex layers, using a magnetic hooping station ensures your fabric starts square and stays square, reducing the chance of the final leash outline drifting off-target.

Setup for the Real Stitch-Out: Patch Material, Thread Choices, and Hooping That Doesn’t Distort

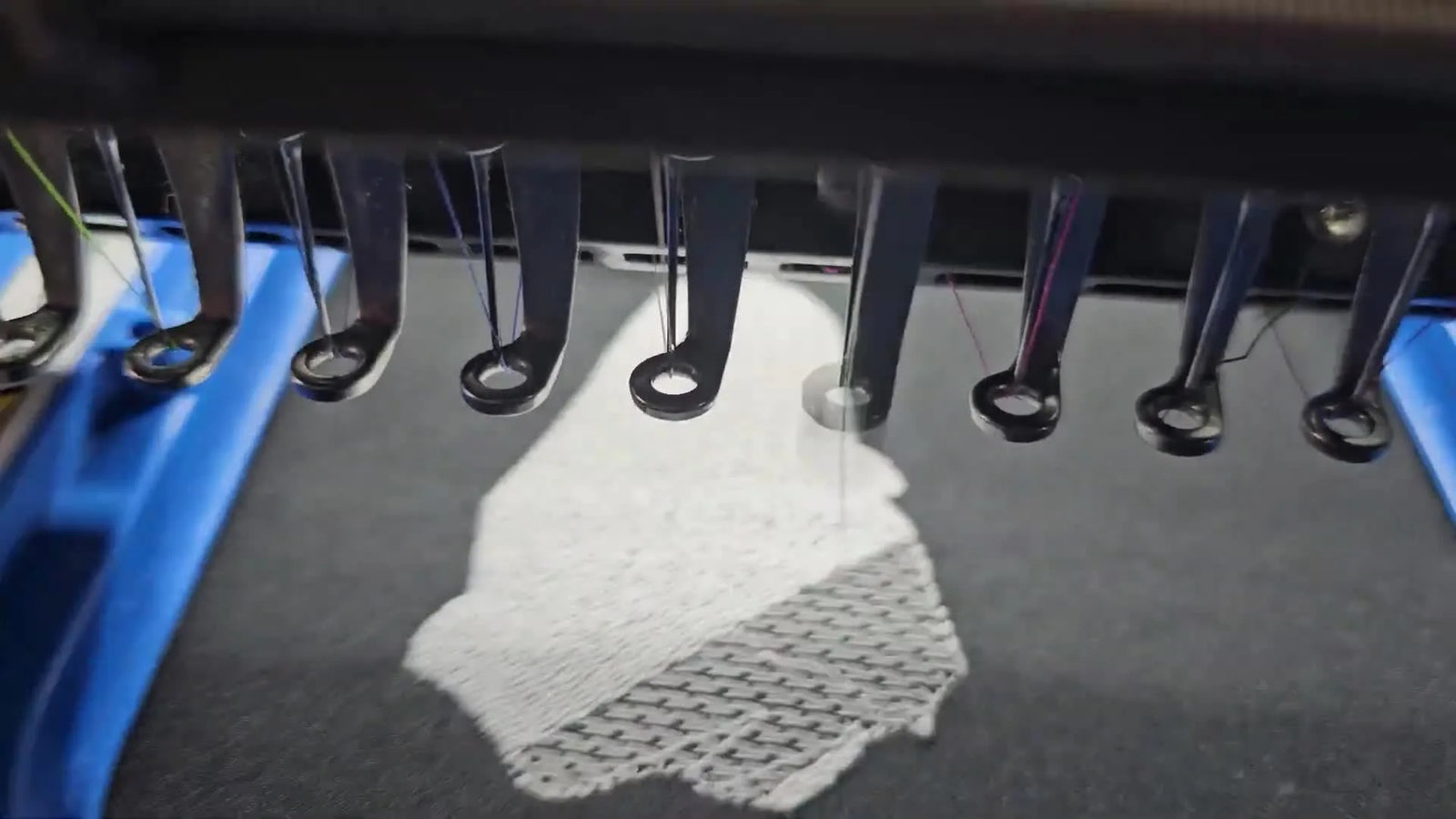

The video proves the file with a live stitch-out on a multi-needle machine using a blue magnetic hoop on a black substrate.

The Physical Config

• Substrate: Firm Twill or Felt (Standard for patches).
• Thread: 40wt Polyester (White for fills, Black for lines).
• Needle: 75/11 sharp.

Addressing "Hoop Burn" and Distortion

Traditional frames force you to wrench a screw tight, which creates a "ring of death" (hoop burn) on sensitive fabrics and can distort the weave. The video uses a magnetic hoop.

Why upgrade? If you are fighting hoop marks or struggling to hoop thick items (like Carhartt jackets or thick felt), an upgrade to a magnetic embroidery hoop is often the L2 solution. It allows the fabric to slide between magnets without being crushed, maintaining the natural grain of the fabric.

Warning: Mechanical Safety
Keep fingers, loose sleeves, and trimming scissors far away from the needle bar while the machine is running. 1000 stitches per minute is too fast for human reaction time. Never reach efficiently under the presser foot during operation.

Warning: Magnetic Hazard
Magnetic embroidery hoops use industrial-grade neodymium magnets. They can pinch fingers severely. Do not place them near pacemakers, insulin pumps, or magnetic storage media. Handle with deliberate care.

Setup Checklist: The "Go/No-Go" Sequence

• Bobbin Check: Is your bobbin at least 50% full? (Running out mid-patch is a disaster).
• Needle Freshness: If you can't remember when you changed it, change it now.
• Hoop Tension: Fabric should be taut but not stretched. Tap it—it should sound like a dull drum (Thump-Thump), not a high-pitched snare (Ping-Ping).
• Trace the Field: Run a "Trace" or "Contour" check on the machine to ensure the needle won't hit the metal hoop frame.

A Simple Decision Tree: Stabilizer + Hooping Choices for Patch vs Sweater (So You Don’t Waste Blanks)

Stitching this file on a patch is different than stitching it on a hoodie. Use this logic to choose your path.

Scenario A: Making a Patch (The Video Workflow)

• Base: Twill or Canvas.
• Stabilizer: 2 layers of Fusible Mesh or 1 layer of Heavy Cutaway.
• Hoop: Magnetic Hoop (for speed) or Standard Hoop (tight screw).
• Result: Crisp, flat edges.

Scenario B: Direct to Hoodie (Soft/Stretchy)

• Base: Cotton/Poly Knit.
• Stabilizer: REQUIRED 1 layer No-Show Mesh (against skin) + 1 layer Tearaway (for stiffness).
• Hoop: Magnetic is preferred to avoid stretching the knit cells.
• Result: You may need to increase "Pull Compensation" in Hatch to 0.4mm to prevent gaps.

If you are scaling up production, the consistency of magnetic embroidery hoops across different garment types becomes a major asset—you don't have to relearn hooping "feel" for every different thickness.

Finishing Like a Pro: Fixing White Specks, Cleaning Edges, and Making the Patch Look Retail-Ready

The video shows a real-world "save": using a black Sharpie to cover tiny white bobbin threads poking through the black satin. This is industry standard—don't feel guilty.

The "Retail-Ready" Finish

1. The Flame Trick: Quickly pass a lighter flame over the edge of the patch (if using polyester thread) to melt fuzz. Move fast.
2. The Sharpie Fix: Touch up registration gaps.
3. Backing Cleanup: Trim cutaway stabilizer close to the edge, but not so close you cut the stitches.

Operation Checklist: Post-Mortem

• Gap Check: Did the black border fully cover the white fill edge? (If not, increase Pull Comp +0.2mm next time).
• Text Readability: Are the fine lines visible? (If not, widen Satin to 0.045").
• Underside: Is the bobbin thread showing clean tension (1/3 white center)? Nests indicate tension issues.

The Upgrade Path That Actually Makes Sense: When to Add Magnetic Hoops or Move Up to Multi-Needle Production

If you are making one patch for fun, your current single-needle setup is perfect. But if you are making 50 patches for a client, your bottleneck will shift.

Identify Your Pain Point:

• Pain: "My wrists hurt from tightening screws." / "I can't hoop this thick backpack."
  • Solution (Tool Upgrade): Magnetic Hoops. They clamp automatically. If you are browsing equipment, you might see terms like ricoma embroidery hoops or the heavy-duty ricoma mighty hoop. The principle is universal: strong magnets reduce strain and increase grip on thick items. Our magnetic solutions offer this same industrial efficiency compatible with various machine brands.
• Pain: "I spend half my time changing thread colors."
  • Solution (Capacity Upgrade): SEWTECH Multi-Needle Machine. A 15-needle machine allows you to load your ghost white, outline black, and 13 other colors once, then press start and walk away.

The Golden Rule: Upgrade your skills first (digitizing logic), then upgrade your tools (hoops/machines) when the volume demands it. Pairing a clean, welded-border file with a repeatable magnetic hooping method is how you transition from "hobbyist" to "professional."

FAQ

• Q: In Hatch Embroidery, why does resizing the “Ghost Walking Dog” patch design after digitizing cause density problems and distorted satin outlines?
  A: Resize the artwork to the final width (example: 3.5") before placing any stitches, because stitch properties do not scale cleanly after digitizing.
  • Set: Insert the artwork and resize it to the exact target size immediately.
  • Lock: Lock the artwork layer to prevent accidental drags while tracing.
  • Recheck: Confirm satin widths and spacing look normal at the final size before continuing.
  • Success check: Satin columns look smooth (not crushed), and tatami spacing looks even (no “overpacked” texture) in TrueView/preview.
  • If it still fails: Redigitize at the correct size instead of trying to repair dozens of density/spacing issues after scaling.
• Q: In Hatch Embroidery Digitize Closed Shape, how do left-click corners and right-click curves prevent a wobbly patch outline on the “Ghost Walking Dog” artwork?
  A: Use fewer, cleaner nodes by placing left-click hard points only on true corners and right-click round points on smooth curves.
  • Trace: Left-click for sharp corners (for example, the bottoms of the feet).
  • Curve: Right-click for smooth arcs (for example, the head and back).
  • Close: Press Enter to close the shape and review the boundary before moving on.
  • Success check: The outline boundary looks smooth with no tiny zig-zags, and later satin borders do not “jitter.”
  • If it still fails: Delete extra nodes and retrace with fewer points rather than “connecting the dots.”
• Q: In Hatch Embroidery Reshape (H), how can the “Ghost Walking Dog” ghost hand be fixed without deleting the whole object?
  A: Use Reshape (H) to surgically add and adjust nodes so the missed hand detail is added while keeping stitch settings intact.
  • Enter: Press H to enter Reshape mode.
  • Add: Click the outline to add nodes where the hand shape should exist.
  • Toggle: Press Spacebar to switch a node between straight and curved until the contour relaxes correctly.
  • Success check: The hand contour matches the artwork and the fill still registers cleanly to the border with no gaps.
  • If it still fails: Finalize all main closed shapes before creating borders; reshaping after borders are built can break alignment.
• Q: In Hatch Embroidery tatami fill, how do opposing stitch angles stop the white ghost and white dog from merging into one “white blob” on the “Ghost Walking Dog” patch?
  A: Set different tatami angles for the ghost and the dog so thread shine separates the shapes without adding extra outlines.
  • Set: Ghost tatami angle to vertical (90°).
  • Set: Dog tatami angle to horizontal or diagonal (0° or 45°).
  • Preview: Check contrast under simulated light/preview before stitching.
  • Success check: From normal viewing distance, the ghost and dog read as two separate shapes even though both are white.
  • If it still fails: Change one object’s angle again (often 45° vs 90°) and restitch a small test—light reflection is angle-sensitive.
• Q: In Hatch Embroidery, how does a welded satin outline at 0.040" prevent thick ridges and needle breaks on the “Ghost Walking Dog” patch border where the ghost touches the dog?
  A: Create one continuous satin outline by welding the two outline shapes so the machine does not hammer overlapping borders in the same area.
  • Duplicate: Duplicate the main body fills (ghost and dog).
  • Convert: Convert the duplicates to Outline objects and set stitch type to Satin.
  • Set: Set outline width to 0.040" (about 1 mm) for the interior outline.
  • Weld: Select both borders and apply Weld to remove intersecting overlap lines.
  • Success check: The touching area stitches as a single clean outline with no raised “double border” ridge.
  • If it still fails: Inspect for any remaining overlap segments—overlapping satin is a common cause of broken needles and bulky borders.
• Q: On a multi-needle embroidery machine stitch-out, how can hoop tension be judged to prevent distortion and hoop burn when making the “Ghost Walking Dog” patch on twill or felt?
  A: Hoop the patch base taut but not stretched, and verify tension with a tap test before running the design.
  • Hoop: Secure twill/felt with the chosen stabilizer so it is flat and supported.
  • Tap: Tap the hooped material—aim for a dull drum “thump-thump,” not a high “ping-ping.”
  • Trace: Run the machine’s Trace/Contour to confirm the needle path will not hit the hoop frame.
  • Success check: The substrate stays flat during stitching with no visible weave distortion and no ring-shaped hoop marks after unhooping.
  • If it still fails: Consider switching hooping method (magnetic style can reduce crushing) and re-check that the fabric is not being over-tightened.
• Q: What are the needle-bar mechanical safety rules during a multi-needle embroidery machine stitch-out for the “Ghost Walking Dog” patch?
  A: Keep hands, sleeves, and tools away from the needle area while the machine is running—do not reach under the presser foot during operation.
  • Stop: Pause/stop the machine before trimming or touching the hoop area.
  • Clear: Keep trimming scissors and loose clothing away from the needle bar path.
  • Plan: Do setup checks (bobbin level, needle condition, trace) before pressing start so mid-run intervention is minimized.
  • Success check: No hands enter the needle/presser-foot zone while the machine is stitching at speed.
  • If it still fails: Build a habit of using the machine stop button first—speed is too high for “quick reaches.”
• Q: What are the neodymium magnet safety precautions when using magnetic embroidery hoops for patch stitch-outs like the “Ghost Walking Dog” design?
  A: Handle magnetic hoops deliberately because strong magnets can pinch fingers and can be hazardous near certain medical devices and magnetic media.
  • Grip: Keep fingers out of pinch zones when closing the magnetic frame.
  • Separate: Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media.
  • Store: Store magnetic parts so they cannot snap together unexpectedly.
  • Success check: The hoop closes with controlled placement and no sudden snap that shifts fabric or pinches skin.
  • If it still fails: Slow down and reposition with two-handed control—rushing magnetic closure is the most common cause of pinches and mis-hooping.
