Digitizer MB Outline Cleanup That Actually Stitches: Swap Satin Line to Triple Run, Then Fix the Gaps with Reshape Nodes

Mastering the Micro-Outline: How to Save a ‘Ruined’ Design in Digitizer MB

If you have ever watched a design look flawless on your computer screen only to stitch out with chunky corners, wobbly edges, or that one heartbreaking gap that ruins the entire garment—take a deep breath. You are not alone. This is the "Screen-to-Stubborn-Fabric" reality gap, and every embroiderer, from hobbyist to factory foreman, faces it.

The workflow we are about to cover using Digitizer MB is one of the highest-leverage skills you can learn. The goal is specific: reduce bulk first (Satin → Triple Run), then correct geometry (Reshape nodes).

When you perform these steps in the correct order, you stop fighting the physics of thread and start producing files that run smoothly on your machine—whether it's a trusty home single-needle or a production workhorse like a SEWTECH.

The "Bulk Problem": Why Your Outlines Look Bad (And Why It’s Not Your Fault)

When an outline feels too heavy or distorted, beginners often blame their hooping or their machine tension. However, the culprit is usually simple physics: Column Width.

A Satin Stitch is beautiful, but it behaves like a tiny brick wall. It requires a minimum width (usually 1.0mm to 1.5mm) to form correctly. When you force a satin stitch into a narrow outline or a sharp 90-degree corner, the needle penetrations stack on top of each other. This creates a "bulletproof" knot of thread that can break needles, shred thread, or push the surrounding fabric away, creating gaps.

The Golden Rule: If an outline is purely decorative and very thin, a Satin Stitch is structurally wrong. The solution is the Triple Run (often called a Bean Stitch). It provides the bold visual of an outline without the destructive bulk.

Phase 1: The "Hidden" Prep – Resequence View & Object Hygiene

Before you change a single setting, you must ensure you have surgical access to the design. A common frustration for beginners in Digitizer MB is trying to click on a line and getting no response. This usually happens because you are in Color Mode, not Object Mode.

The "Pilot's Check": Verify Your View Mode

In Color mode, the software groups everything by thread color. This is great for sorting production order, but terrible for editing specific geometry. You cannot grab a single segment of a black outline if the software treats all black stitching as one giant block.

Action Steps:

1. Locate the Panel: Look at the Resequence View panel (usually on the right).
2. Toggle the Switch: If you see large blocks of color, click the Objects button at the top of the panel. You should now see a long list of individual shapes.
3. The "Hygiene" Scan: Scroll through the list. Look for "dust"—tiny, 3-stitch segments that serve no purpose. Delete them now. They are just trim hazards waiting to happen.

Prep Checklist (The "Do Not Touch" List)

• View Mode: Confirmed Resequence View = Objects.
• Selection Strategy: Identified which specific segments constitute the outline.
• Stress Zones: Visually identified sharp corners (these are your primary failure points).
• Inventory: Ensured you have the correct needles (75/11 Sharp is standard for detail work) and scissors handy.


Phase 2: Batch Selection (Saving Your Wrist and Sanity)

If your design has a complex border, clicking each segment one by one is a recipe for fatigue and mistakes. You need to operate like a pro: Batch Select.

The Workflow:

1. Anchor: In the Object List, Left-Click the very first segment of the outline you want to change.
2. Scroll: Move down the list to the last segment of that outline group.
3. Batch: Hold the Shift Key and Left-Click the last segment.

Sensory Check: You should see the entire list between your clicks turn blue (or your system's highlight color). On the canvas, the "marching ants" or selection handles should surround the entire outline group. If you missed one, hold Ctrl and click the straggler to add it.

Phase 3: The Surgical Swap – Satin to Triple Run

Now we execute the core fix. We are stripping away the bulk of the satin stitch and replacing it with the sleek efficiency of a Triple Run.

Action Steps:

1. Open Object Details (Properties).

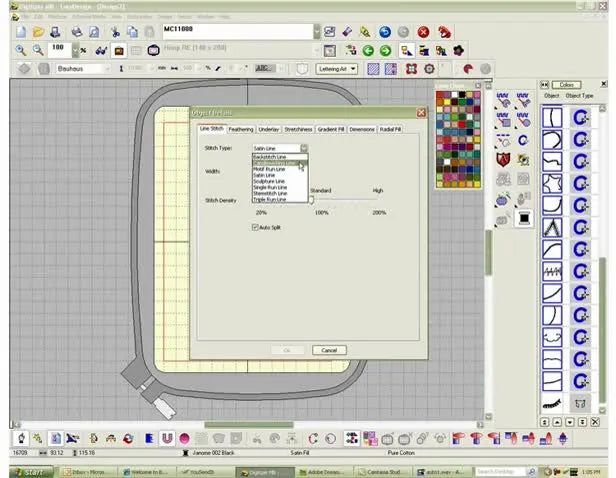

2. Locate the Outline tab.
3. Change Stitch Type from "Satin Line" to Triple Run Line.
4. Crucial Parameter: Set Stitch Length to 2.00 mm.




Experience Calibration: Why 2.00 mm?

In the world of digitization, the default run length is often 2.5mm or 3.0mm. However, for outlines on small objects (like the moon graphic in this example), 2.5mm is too long—it will cut corners like a race car taking a turn too fast, resulting in a hexagonal, jagged look rather than a smooth curve.

• The Sweet Spot: 1.8mm to 2.2mm. This range allows the needle to drop frequently enough to describe the curve of the moon, but not so frequently that it perforates the fabric.
• The Sensory Check: When you click OK, the design on screen should instantly look "lighter." The thick, worm-like border should vanish, replaced by a crisp, darker line.


Setup Checklist (Post-Conversion)

• Verification: Did all selected objects convert? (Look for any remaining satin "chunks").
• Parameter Check: Is the length strictly set to 2.00 mm?
• Visual Scan: Zoom out to 100%. Does the design look legible?
• Corner Check: Zoom in to 400% on the sharpest corner. Is the path clean?

Phase 4: Visibility Tactics – The "B" Key and The Bitmap Trap

To fix a design, you must see what the machine sees. The machine does not see the background artwork; it only sees coordinate data.

The "B" Key Zoom: Pressing B usually activates the Zoom Box tool. Click and drag a box around your problem area. This is faster and more precise than scrolling your mouse wheel.

Disable the Background Image: This is non-negotiable for precision work.

• The Problem: Your brain naturally "fills in the blanks" when the artwork is visible beneath the stitches. You might think a gap is closed because you see the black ink of the artwork, not the black thread.
• The Fix: Click the Display Image (picture frame icon) to toggle the bitmap OFF.
• The Result: You are now looking at the naked truth of the stitch path. If there is a gap here, there will be a gap on the shirt.






Phase 5: Geometry Repair – Node Editing (Reshape)

Now that we have converted to a Triple Run, we have exposed the "gaps." A satin stitch is wide and covers up bad alignment. A run stitch is unforgivingly thin. You will likely see whitespace between your fill (the yellow moon) and your new thin outline.

The Fix: You must physically move the edges of the fill object to meet or slightly overlap the outline.

The Workflow:

1. Select the fill object (the yellow moon).
2. Click the Reshape tool (often looks like a node/point icon).
3. Visual Anchor: You will see small squares (nodes) along the perimeter of the shape.
   • Square Nodes: Usually represent straight lines/corners.
   • Round/Circle Nodes: Usually represent curves.
4. The Drag: Click a node and drag it toward the outline.
5. The Clean Up: If a node is creating a weird jagged spike, click it and press Delete.

The "Overlap" Rule for Safety

Do not just make the fill touch the outline. Make it overlap.

• Physics: As stitching progresses, thread tension pulls fabric inward (the "Push/Pull" effect).
• Compensation: If you align them perfectly on screen, you will have a gap on fabric. Overlap the fill under the outline by about 0.2mm to 0.4mm. This is your safety margin.










Warning: Physical Safety
If you are editing on a laptop next to your running machine, keep your hands clear. A common injury occurs when users get absorbed in "Reshape" mode on the screen and absentmindedly reach under the needle bar of a moving machine to trim a thread. Pause the machine before your hand enters the hoop zone.

Troubleshooting Guide: From Screen to Seam

If you encounter issues, follow this structured diagnostic path. Always rule out the simple things before changing complex settings.

The Stabilizer Decision Tree: The Invisible Foundation

You can digitize perfectly, but if your foundation is weak, the house will crumble. Use this logic flow to determine your consumables.

Start Here:

• Step 1: Is the fabric stretchy? (T-shirt, Hoodie, Polo, Knit)
  • YES: You MUST use Cutaway Stabilizer. Tearaway will eventually disintegrate during washing and the design will distort.
    • Sensory Check: It should feel fibrous and soft, resisting a tear in any direction.
  • NO: Proceed to Step 2.
• Step 2: Is the fabric unstable or loose weave? (Linen, light cotton)
  • YES: Use a No-Show Mesh (Poly Mesh) or a light Cutaway.
  • NO (Denim, Canvas, Twill): You can safely use Tearaway Stabilizer.
    • Sensory Check: It should tear cleanly like crisp paper.
• Step 3: Is there pile or texture (Towels, Velvet, Fleece)?
  • YES: You need a Water Soluble Topper on top to prevent stitches from sinking.
  • NO: No topper needed.

Hidden Consumables:

• Temporary Spray Adhesive (e.g., KK100): Essential for floating fabric or keeping backing stuck to slippery garments.
• New Needles: If you hear a "popping" sound as the needle enters the fabric, the tip is dull. Change it immediately.

The Physical Upgrade: Closing the "Hooping Gap"

You have optimized your file. You selected the right stabilizer. But when you hit strict production, you might still see outlines that don't line up. Why? Because the fabric moved during the hooping process.

This is where the difference between "struggling" and "scaling" lies.

The Problem: Hoop Burn and Shift

Traditional plastic hoops require you to muscle the inner ring into the outer ring. This friction drags the fabric, distorting the grain before you even stitch. Plus, the "hoop burn" (shininess left by the ring) can ruin delicate garments.

The Solution Level 1: Magnetic Hoops

Many professionals searching for how to use magnetic embroidery hoop tutorials are looking to solve exactly this distortion problem.

• The Benefit: magnetic embroidery hoops do not rely on friction. They clamp straight down using powerful magnets. The fabric stays perfectly flat, the grain acts naturally, and your "Gap" issues significantly decrease.
• Compatibility: Whether you are using a commercial giant or searching for magnetic embroidery hoops for janome, finding compatible frames is the single fastest hardware upgrade you can make to improve stitch quality.

The Solution Level 2: Hooping Stations

If you are running a janome embroidery machine for a small business, repeatability is key. A hooping station for embroidery ensures that every pocket logo is in the exact same spot.

• Industry standards like the hoop master embroidery hooping station allow you to load shirts consistently, reducing the operator error that causes crooked outlines.

The Solution Level 3: Multi-Needle Machines

If you are frustrated by the constant thread changes required for complex outlined designs, you are hitting the ceiling of single-needle machines.

• The Scale-Up: A multi-needle machine (like those from SEWTECH) allows you to set the fill color and the outline color on different needles. The machine switches automatically. This doesn't just save time; it improves registration accuracy because the fabric isn't sitting idle, shifting while you fumble with a thread spool.

Warning: Magnet Safety
magnetic embroidery hoops use industrial-strength magnets (often Neodymium).
1. Pinch Hazard: They snap together with enough force to bruise fingers or break skin. Handle with deliberate care.
2. Medical Devices: Keep these hoops at least 6–12 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place them directly on laptops or computerized machine screens.

Final pre-Flight Check: The "Green Light" Sequence

Before you press the start button, run this final mental loop. This separates the amateurs from the pros.

Operation Checklist:

• The "Tug Test": Gently pull the needle thread. It should feel smooth tension (like flossing teeth), not loose and not snagging.
• Bobbin Check: Open the case. Is it full? Is there lint? A "bird's nest" under the plate often starts with a dirty bobbin case.
• Clearance: Ensure the hoop arms will not hit the wall or your coffee mug.
• Trace Function: Run the "Trace" or "Contour" function on your machine to ensure the needle won't hit the hoop frame. Listen for the faint click of the plastic hoop—if you hear it during the trace, you will hit it during the stitch.
• The First Stitch: Watch the first 100 stitches. If the Triple Run outline looks loose, stop immediately and check your threading path.

By stripping the bulk from your file in Digitizer MB and securing your fabric with the right hoops for embroidery machines, you transform a frustrating "gap-filled" mess into a crisp, professional piece of art. Stop fighting the software, follow the physics, and let the machine do the work.
