Logos often feel "simple" until the moment you press the start button. A design like the Adidas trefoil—geometric, balanced, and iconic—looks easy on a computer screen. But in the physical world of machine embroidery, it is a minefield. One bad stitch angle turns a leaf into a blob; one poor overlap setting makes the stripes disappear; one mesmerizing curve turns into a jagged mess of "thread spaghetti."

I have spent 20 years on the shop floor, and I have seen more ruined polos caused by "simple" logos than by complex photographic stitch-outs. Why? Because with a geometric logo, there is nowhere to hide.

This guide transforms a silent Wilcom Embroidery Studio workflow into a comprehensive, sensory-based masterclass. We aren’t just tracing lines here; we are engineering a textile structure. We will cover the manual digitization of the trefoil using Tatami fills, the critical "Remove Overlap" technique for negative space stripes, and the physical reality of hooping that ultimately decides your success.

Don’t Panic: Wilcom Embroidery Studio Can Digitize a “Simple” Adidas Trefoil Without Auto-Digitizing Tricks

If you have ever tried to "Auto-Digitize" a famous brand logo, you know the heartbreak: the software misinterprets the stripes, creates 500 unnecessary color changes, and produces edges that look chewed up.

The good news is that the manual method shown here is safer, cleaner, and strictly logical. The trefoil is essentially:

1. Three Tatami Fills: The leaves.
2. Three Negative Spaces: The horizontal stripe "gaps."
3. One Shaping Command: The cookie-cutter action.

However, a digital file is only a blueprint. A blueprint doesn't build a house; labor does. In our world, that labor is stabilization and hooping. If you are running a small shop and constantly re-hooping garments because they are crooked, a dedicated hooping station for machine embroidery can be the difference between a "hobbyist struggle" and a profitable, repeatable output. But before we get to the physical gear, let's perfect the digital file.

The “Hidden” Prep: Reference Image, Workspace, and the "3-Sense" Reality Check

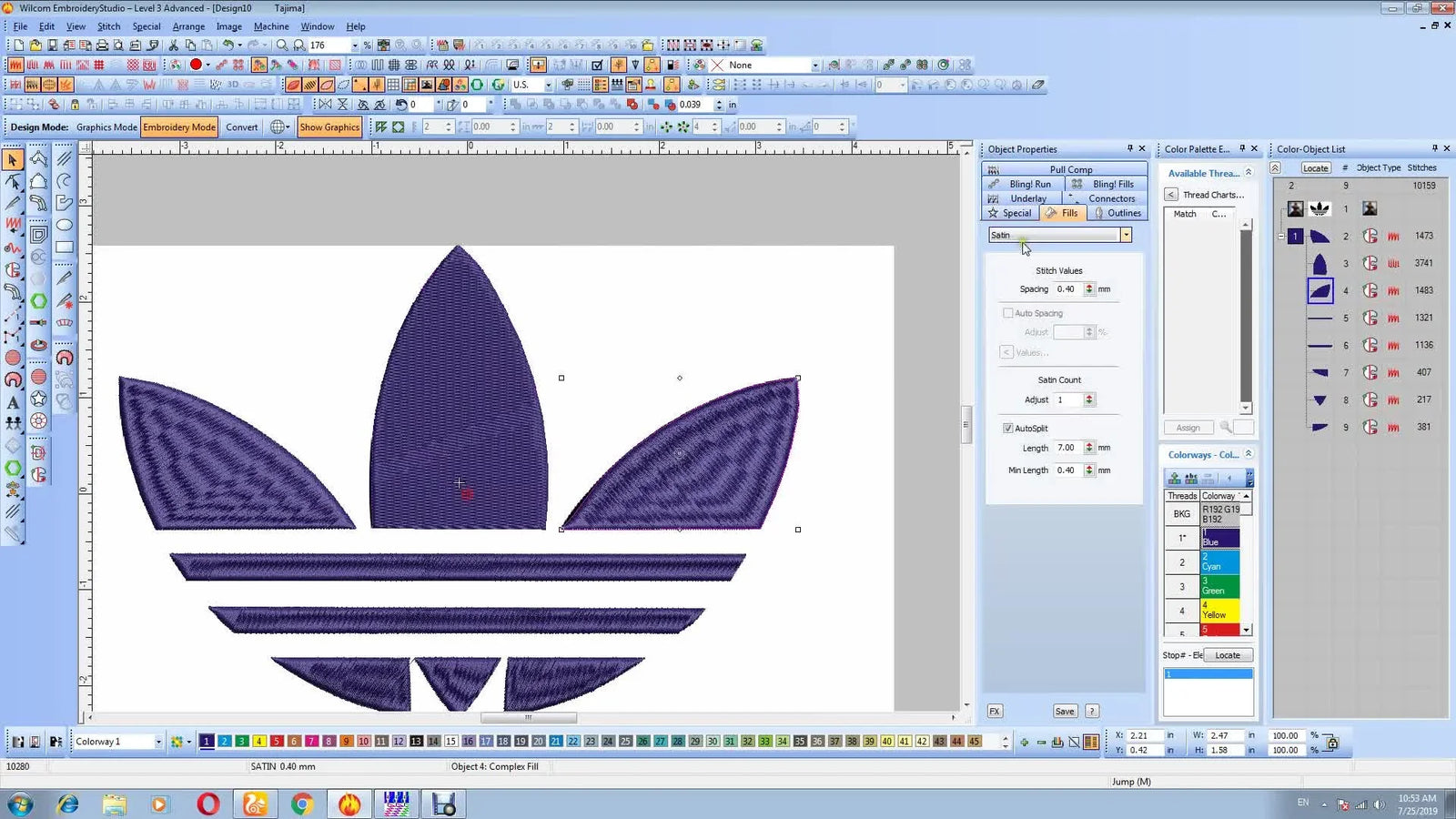

The video begins by importing a high-contrast black-and-white raster image. This is standard. But here is the "Chief Education Officer" advice that differentiates pros from amateurs: Do not trust your screen.

Your screen is flat; fabric is fluid. Your screen has infinite resolution; thread has physical thickness (usually 0.4mm for 40wt thread). Before you plot a single node, you must calibrate your environment.

1. The Visual Anchor

Zoom in on your reference image until you see pixels. You want to place your nodes on the center of the pixel blur, not the outside edge. This prevents the logo from "growing" too large during digitization.

2. The Tactile Check (Fabric Physics)

• Is it Stretchy? (Performance wear, Pique Polo): The fabric will pull in with the stitch direction. You need to add Pull Compensation (approx 0.25mm - 0.40mm).
• Is it Stable? (Canvas, Denim): The fabric holds its shape. Standard settings (0.17mm - 0.20mm) usually work.

3. The Logical Setup (The "Safe" Zone)

Start with safe settings. For a Tatami fill on a standard logo size (3-4 inches wide):

• Stitch Density: 0.40mm spacing. (Don't go denser than 0.35mm or you risk bulletproof patches).
• Stitch Length: 3.5mm - 4.0mm.

Prep Checklist (The "No-Go" List):

• Reference: Is the image high-contrast (Black/White)?
• Scale: Did you resize the image to the definitive final size before starting? (Scaling stitches later ruins density).
• Plan: Have you decided where the "Start" and "Stop" points are to minimize jump stitches?


Manual Tracing with Wilcom Complex Fill: Plot Nodes Like You’ll Have to Defend Every One

In the video, the digitizer uses the Complex Fill tool to trace the left leaf. They click around the perimeter, and the software generates the fill.

Here is the secret to "organic" curves that most tutorials miss: The 3-Point Rule. Beginners use 10 nodes to make a curve. Masters use 3.

• Node A: Start of curve.
• Node B: Peak of curve.
• Node C: End of curve.

Every extra node you add is a potential "kink" in the line. Wilcom (and most software) handles smooth curves mathematically better than you can by hand. Trust the software's arc function.

Pro Tip: The Click Rhythm

• Left Click: Straight point (sharp corner).
• Right Click: Curve point (smooth flow).
• Listen to your clicks: For a leaf, it should sound like "Left (corner)... Right, Right, Right (curve)... Left (corner)."

Warning: Mechanical Safety. When test-stitching these designs, keep your hands clear of the needle bar. A 1000 SPM (Stitches Per Minute) machine moves faster than human reaction time. If a needle breaks on a dense fill, shards can fly. Always wear eye protection or use the machine's safety shield.

Stitch Direction Isn’t Decoration: Use the Stitch Angle to Control "Push and Pull"

After filling the first leaf, the video demonstrates changing the Stitch Angle. The digitizer aligns the angle to flow vertically with the leaf.

This is not just aesthetic; it is structural engineering.

• The Physics: Thread pulls the fabric in along the line of the stitch (shortening the object) and pushes the fabric out perpendicular to the stitch (widening the object).
• The Application: If you set the angle to 90 degrees (vertical), the leaf will get slightly shorter and fatter. If you don't account for this, your perfect circle will become an oval.

By setting the angle correctly, you ensure the light reflects off the SEWTECH Rayon or Polyester thread in a way that creates a luxurious sheen. If the angles are chaotic, the logo looks flat and cheap.

Commercial Context: If you are struggling to get consistent placement on bulk orders (where the angle needs to be perfectly vertical on every chest), manual hooping is often the culprit. Many professionals use tools like a hoopmaster station as a reference point for standardization. However, for the embroidery machine itself, upgrading to Magnetic Hoops is often the stronger move to prevent fabric slippage that ruins these precise angles.

Duplicate the Logic, Not Just the Shape: Consistency Across the Trefoil

The video proceeds to digitize the right and center leaves. By 01:50, we have a solid purple mass.

The "Eye-Balling" Trap: Do not simply trace the other two leaves blindly. Look at the properties of your first leaf.

• Did you use a standard Tatami or a check-pattern?
• Did you use 0.40mm density?
• Did you use Edge Run underlay?

Apply these exact properties to the new leaves. In Wilcom, you can often "Copy Object Properties" and paste them. This ensures that when the light hits the final embroidery, all three leaves shine with the same intensity.

The Clean-Cut Concept: Building the Stripes as Negative Space

Here is where the magic happens. Instead of trying to digitize "three separate pieces of a leaf," the video draws three horizontal bars (rectangles) directly over the solid fill.

This is the "Cookie Cutter" Methodology.

1. Bake the dough (Digitize the solid leaves).
2. Press the cutter (Draw the stripes).
3. Remove the excess (Apply "Remove Overlap").

This ensures that the curves of the leaf remain perfectly fluid, even though they are interrupted by gaps. If you digitized the segments separately, it would be nearly impossible to align the curves perfectly.

The "Remove Overlap" Command: Subtracting Bulk (And Preventing Bulletproof Embroidery)

The video selects the stripe bars and the leaf fills, then applies Remove Overlap. The purple leaves are sliced, and the stripes become empty space.

Why this is vital for comfort: If you stitched the white stripes on top of the purple leaves, you would have three layers of thread (Underlay + Leaf Fill + Stripe Fill). This creates a "bulletproof" patch that feels heavy and sweaty on a T-shirt. By creating negative space, the "stripes" are just the revealed fabric color. The embroidery stays soft and flexible.

The "Gap Closing" Risk: This is the number one failure for beginners.

• Scenario: You digitize a 2mm gap.
• Reality: The Tatami fill creates tension (Pull). The fabric bunches up. The 2mm gap closes to 0.5mm or disappears entirely.
• The Fix: Exaggerate the negative space. If you want a 2mm visual gap, digitize a 3mm gap. You must fight the physics of the thread.

This battle against fabric shifting is why stabilizing is critical. For slippery performance fabrics, standard hoops often lose grip, causing the gaps to close unevenly. This is a prime scenario where a magnetic embroidery hoop excels—it clamps the entire perimeter with equal force, reducing the "draw-in" effect that ruins negative space.

Micro-Editing: The Difference Between "Homemade" and "Pro"

After the cut-out, the video shows the user zooming in to move individual nodes.

• Look for Sharp Edges: The "Remove Overlap" tool sometimes leaves tiny, weird artifacts or triangles. Delete them.
• Straighten the Walls: Ensure the sides of the stripes are perfectly parallel.

Sensory Check: Imagine running your finger over the finished patch. Would it feel bumpy at the edges? If the nodes look jagged on screen, the needle will make jagged penetrations. Smooth it out now.

TrueView is Your Safety Net: Inspect Before You Wreck

The video switches to TrueView (3D rendering).

• Visual: Look at the edges. Are they clean?
• Density: Do you see the background color showing through the fill? (If so, tighten density to 0.38mm).

The Production Reality Check: TrueView looks perfect, but your machine might hate it.

• Is there Underlay? You MUST have a permanent stabilizer stitch (Tatami underlay or Edge run) underneath. Without it, the top stitches will sink into the fabric, and the logo will look sparse.
• Trim Command: Are there scissors icons between the leaves? Ensure the machine knows to trim the thread, or you will have jump stitches to trim by hand.






The Commercial Logic: When Tools Outweigh Talent

You can be the best digitizer in the world, but if your physical tools fail, your embroidery fails. The Adidas trefoil is a "High Registration" design—meaning the alignment must be perfect.

The "Hoop Burn" & Alignment Crisis: Traditional hoop rings require you to shove an inner ring into an outer ring. This causes:

1. Hoop Burn: Shiny circular marks on the fabric that refuse to wash out (especially on dark polyester).
2. Hand Fatigue: Try hooping 50 shirts a day; your wrists will scream.
3. Slippage: The fabric loosens mid-stitch, destroying the stripe gaps we just worked so hard to create.

The Solution Hierarchy:

1. Level 1: Consumables Upgrade. Use SEWTECH High-Quality Stabilizer (Cutaway for knits, Tearaway for wovens) and strong spray adhesive. This is the baseline.
2. Level 2: Tool Upgrade. Switch to a Magnetic Hoop.
   • Why? It snaps shut. Zero friction burn. It holds thick jackets and thin tees with equal tension.
   • Result: Your negative space stripes stay open.
   • Search Intent: Professionals often look for terms like magnetic embroidery hoop when they are tired of rejecting garments due to hoop marks.
3. Level 3: Machine Upgrade. If you are doing this for profit, a single-needle machine is a bottleneck. Upgrading to a SEWTECH Multi-Needle Machine allows you to stage the next shirt while one is sewing, doubling your output.

Warning: Magnet Safety. Magnetic hoops use powerful industrial magnets. They can pinch fingers severely (blood blister hazard). Keep them away from pacemakers, ICDs, and magnetic storage media. Do not let children handle them.

Troubleshooting: The "Why Did It Fail?" Matrix

If your stitch-out looks bad, do not blame the software immediately. Check the physics first.

The Ultimate Pre-Flight Checklists

Don't guess. Check.

Setup Checklist (Digital)

• Nodes: Are curves defined by 3 points (Start, Peak, End)?
• Density: Is Tatami set to safe range (0.38mm - 0.42mm)?
• Underlay: Is "Edge Run" AND "Tatami" underlay enabled? (Crucial for stability).
• Ties: are Start/End Tie-offs enabled? (Prevents unraveling).

Operation Checklist (Physical)

• Needle: Is it new? (75/11 Ballpoint for knits, Sharp for wovens).
• Bobbin: Listen for the "click" when inserting the bobbin case. Ensure the tail is trimmed to 2-3 inches.
• Hooping: Tap the fabric in the hoop. Does it sound like a drum (tight) or a paper bag (loose)? It must be drum-tight without stretching the grain.
• Clearance: Is the path of the hoop clear? (No walls, coffee mugs, or scissors in the way).

Mastering the Adidas trefoil is a rite of passage. It demands that you respect the software and the physics of the machine. Use the right file, use the right hoop, and the results will look like they came from the factory.
