Digitize Outline Portraits in Wilcom Hatch Without Jump Stitches: The Steil + “Subway” Workflow That Stitches Clean

Outline portrait embroidery is one of those styles that looks deceptively simple—until you stitch it on a real garment. The "pretty line art" that looked clean on your screen often turns into a nightmare of jump stitches, thick knots at connection points, and fabric puckering that distorts the face.

You are not looking for "hope and pray" settings. You are building a production-grade file: a continuous outline that runs smoothly, minimizes trims (which minimizes failure points), and remains readable at chest size.

Don’t Panic: Why Outline Portrait Embroidery Fails on Sweaters (and How This Workflow Prevents It)

If your last outline portrait resulted in a bird's nest of thread or a distorted image, it likely wasn’t "your machine behaving badly"—it was path planning physics.

When digitizing for unstable fabrics like sweaters or knits, every time the machine stops to trim and restart, three risks occur:

1. The Knot Bulge: Tie-offs create tiny, hard knots that ruin the fluid look of fine line art.
2. The Thread Snag: The mechanism can catch a loop of the knit structure.
3. The Shift: The lack of continuous tension allows the stretchy fabric to relax and shift, causing the next object to land in the wrong spot (registration error).

This workflow prioritizes connection. By using just two tools—Steil (a satin column) and Run (a single line)—we create a single, flowing path. This keeps the machine moving and the fabric stable.

The “Hidden” Prep in Wilcom Hatch: Backdrop Scale, Opacity, and a Line-Style Setup That Won’t Bite You Later

Before you place a single node, you must calibrate your environment. Digitizing is 80% preparation and 20% clicking.

1) Import the portrait image and set a real-world size

• Load your image as a backdrop.
• Select the backdrop, right-click, and open Properties.
• Toggle metric/imperial with M.
• The Sweet Spot Rule: Set the image height to 4 inches (approx. 100mm). This is the industry standard "Left Chest" size. It is large enough for facial details to resolve but small enough to fit standard hoops without causing massive push/pull distortion.

2) Make the backdrop easy to trace

Drop the backdrop opacity significantly. You need to see your stitches clearly against the white background. If you can't distinguish your red stitch line from the black photo line, you will lose accuracy.

3) Configure Steil for fine line art

• Activate Steil (hotkey 6).
• The Danger Zone: Standard satin width is often 2.5mm+. For fine portraits, this looks like a cartoon marker.
• The Fix: Change Steil width to 1.0 mm.
• Expert Note: A 1mm column is very narrow. On a fluffy sweater, this line will sink and disappear without help. Hidden Consumable Alert: You must plan to use a Water Soluble Topping (like Solvy) on top of the fabric to keep these thin stitches floating above the knit texture.

Prep Checklist (Pre-Flight):

• Backdrop loaded and resized to 4 inches (100mm) exactly.
• Grid is clear (toggle with M to check size).
• Backdrop opacity lowered (faded) to roughly 40-50%.
• Steil tool configured to 1.0 mm width.
• Consumable Check: Do you have water-soluble topping and cutaway stabilizer ready? Without these, this design will fail on a sweater.

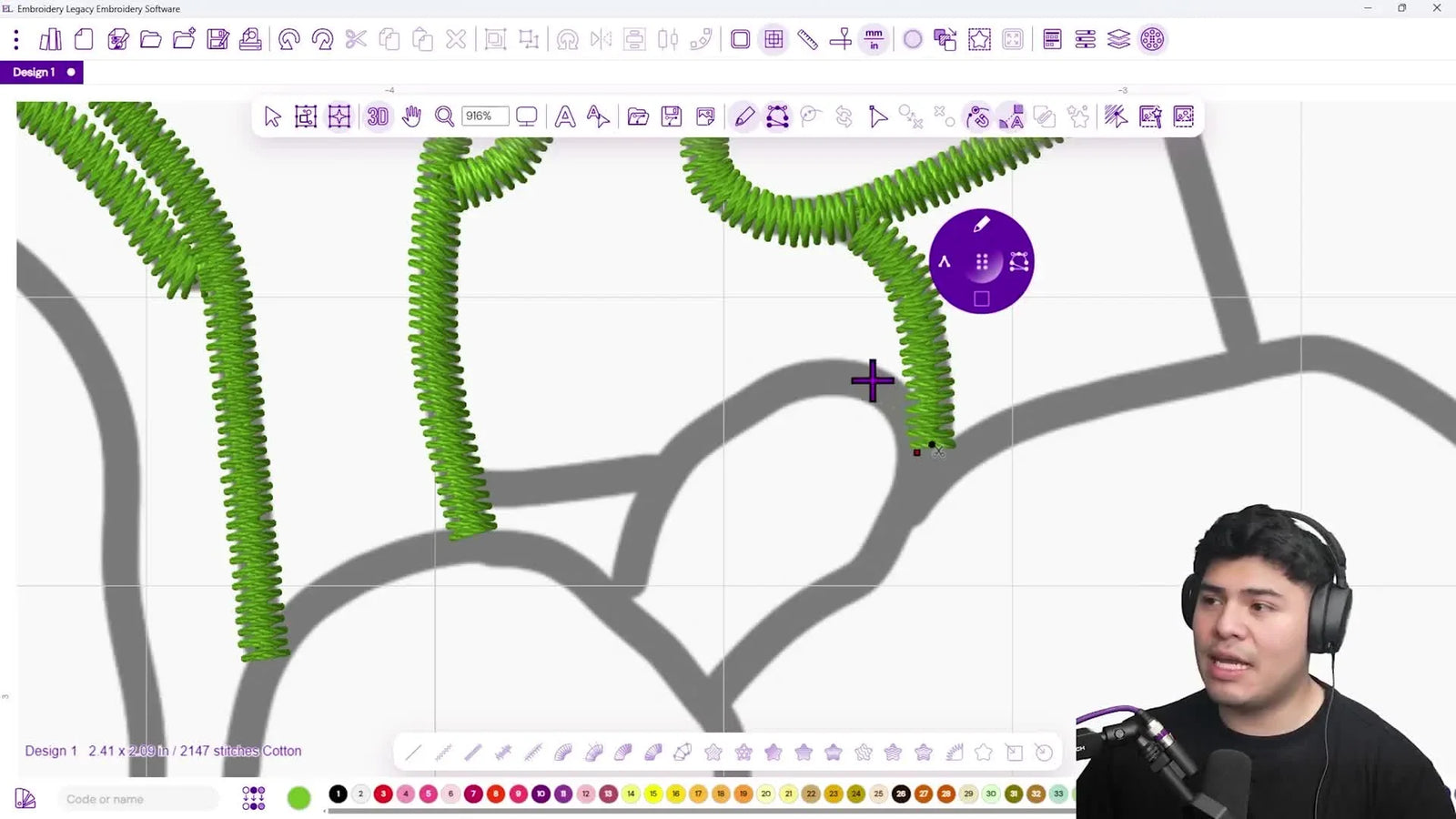

Steil Tool Digitizing: Left-Click vs Right-Click Points (and the Curve Trick That Saves Ugly Corners)

In Wilcom Hatch (and many pro suites), the way you click determines the flow of the line.

• Left-click: Creates a geometric Corner Point (Sharp).
• Right-click: Creates a smooth Curve Point (Organic).

For portraits (hair, jawline), you will rely 90% on Right-Click Curve Points.

The curve “trough” trick (use it whenever a curve changes direction)

Beginners often create "kinks" when a curve dips and rises (like a wave). To prevent this:

1. Place a right-click exactly at the lowest point (the trough).
2. Place another right-click immediately after it.

This "double-tap" technique forces the software to calculate a smooth transition rather than a jagged, angular turn.

Warning: Zoom Trap. Do not digitize at 600% zoom. If you are zoomed in too close, you will add too many nodes, making the line "wobbly" like a nervous handwriting. Zoom out frequently to 100% (Press 0) to ensure your lines look smooth to the naked eye.

Smart Join in Wilcom Hatch: The Fastest Way to Kill Jump Stitches (If You Watch the Entry/Exit Points)

The "Smart Join" feature is your autopilot, but you must monitor it. When you finish one object and start another nearby, the software attempts to bridge them without a trim.

To verify this is working physically:

• Press Q to toggle Entry (Green Diamond) and Exit (Red Cross) markers.
• Visual Check: Look for the absence of the small "scissor/trim" icon or dashed jump lines between objects.
• Logic Check: Ideally, the Exit point of Object A should be touching the Entry point of Object B.


Pro tip from the comments: why manual digitizing beats auto-punch for this style

Why not just click "Auto-Digitize"? Because auto-tools do not understand physics. They create shapes based on color contrast, often resulting in thousands of tiny unnecessary stitches and trims. Manual digitizing allows you to control the pathing—ensuring the machine sews in a logical, continuous line, which is the secret to high-quality sweater embroidery.

The Bulk Problem at Joins: Overlap Your 1mm Steil Lines Instead of Doubling Them

This is a nuanced error that separates amateurs from pros. When connecting two satin lines (e.g., a neck line meeting a shoulder line):

The Rookie Mistake: Placing the start point perfectly touching the end point. This often causes a "density spike" or a visible knot where the two satin columns fight for space.

The Pro Method (Overlap):

• Stop the first line slightly short of the intersection.
• Start the next line "over" the previous endpoint, creating a small overlap.

Sensory Check: The transition should look like a single fluid stroke of a calligraphy pen, not two pipes welded together. The overlap blends the density.

The “Subway Method” Run Stitch Connection: How to Escape a Corner Without Adding a Trim

Sometimes you paint yourself into a corner—you finish an eye, but the next part of the face is an inch away. A jump stitch here is risky.

The Subway Method (exact workflow shown)

This technique hides a travel stitch underneath a future satin line.

1. Switch to Run tool (hotkey 1).
2. Digitize a path through the center of where a future Steil line will go. (This is the "Subway Tunnel").
3. Switch back to Steil (hotkey 6).
4. Digitize the satin line over that run stitch path.


Why this works (and when it can fail)

Physics dictate that a 1mm satin column will easily cover a 0.2mm run stitch—if your registration is perfect.

The Risk: On stretchy knits, the fabric may shift, exposing the "subway" track. The Prevention: Ensure your "tunnel" runs exactly down the center line, and use proper stabilization (Cutaway + Spray Adhesive) to lock the fabric movement.

Setup That Makes or Breaks the Stitch-Out: Sweater Stabilization and Hooping Without Distortion

You can have a perfect file, but if your hooping is poor, the sweater will distort. We use a "Medicine Sandwich" approach for knits.

The Physics of Failure:

1. Stretch: The hoop pulls the knit open. When unhooped, it snaps back, puckering the design.
2. Sink: The stitches vanish into the loops of the sweater.

The Solution:

• Backing: Use Cutaway stabilizer. Tearaway is forbidden for sweaters—it provides zero long-term support.
• Hooping: This is where magnetic embroidery hoops shine. Unlike traditional friction hoops that force you to pull and distort the fabric to lock it in, magnetic hoops clamp straight down. This prevents "hoop burn" (shiny crushed fabric marks) and keeps the knit structure neutral (neither stretched nor loose).

Warning: Magnet Safety. Powerful magnetic hoops can pinch fingers severely. Never place your fingers between the rings. If you have a pacemaker, maintain the safe distance recommended by your doctor, as strong magnetic fields can interfere with medical devices.

Tool-upgrade path (when hooping is slowing you down)

• Level 1 (Hobby): Use temporary spray adhesive to float the sweater on a hooped stabilizer to avoid stretching.
• Level 2 (Pro): Invest in magnetic hoops to clamp knits without distortion.
• Level 3 (Production): If you are processing 50+ garments, a magnetic hooping station ensures the design lands in the exact same spot on every chest, reducing the mental load of measuring every piece.

Setup Checklist (The "Do Not Skip" List):

• Topping Applied: Water-soluble topping (e.g., Solvy) placed on Top of the sweater (essential for 1mm lines).
• Backing: Cutaway stabilizer (2.5oz or 3.0oz).
• Adhesion: Light mist of temporary spray adhesive to bond fabric to stabilizer.
• Hoop Tension: Fabric is flat and taut like a drum skin, but the knit ribs are not stretched open.
• Needle: Ballpoint needle (75/11) installed to slide between knit loops rather than cutting them.

The Frame Border and Date Text: Clean Finishing Without Adding Two More Trims

A floating portrait often needs an anchor. A simple rectangular border frames the art, but it can introduce unnecessary trims if not planned.

Add the rectangular border (as shown)

• Select Shape tool > Rectangle.
• Draw neatly around the portrait.
• Set line width to 3 mm (thicker than the face for contrast).
• Press A to select, then scale it visually.


Reduce trims by moving the rectangle’s start/stop points

By default, the rectangle drives "closed." You must break it slightly to connect it to the workflow.

• Press Q to view Entry/Exit.
• Use Reshape tool.
• Move the Start Point (Green) close to where the portrait ended.
• This creates a robust connection rather than a jump stitch.


Add the date text with readable sizing

• Use Text tool (Hotykey T).
• Font: Block RG (or similar sans-serif).
• Size Rule: Do not go below 5-6mm height for clear text on knits. The video recommends 7 mm, which is a safe, legible size.


Comment-based watch out: can you use Steil for lettering?

You can, but Steil makes a uniform line thickness. For text, standard satin font tools usually look better because they vary thickness (thin upstrokes, thick downstrokes) which mimics natural writing.

Preview Like a Pro: View Redraw to Confirm One Continuous Story (Not Random Objects)

Never trust a static static screen. You must watch the "movie" of your design.

• Use View Redraw (Shift+R) in Hatch.
• Visual Anchor: Watch the virtual needle. Does it flow like water from the neck, to the face, to the hair? Or does it jump around erratically?
• The Check: Verify that every "Subway" run stitch is fully covered by the satin that follows it.


Stitch-Out on a Tajima Embroidery Machine: What to Watch While It Runs

Now comes the truth. You have loaded the file. Whether you use a home machine or a commercial tajima embroidery machine, the physics remain similar, though industrial machines handle tension better.

The Sensory Audit:

• Sound: Listen for a rhythmic "thump-thump." A harsh "grinding" or "slapping" sound usually means the thread is loose or the needle is dull.
• Sight: Watch the 1mm lines. Are they sitting on top of the topping? Or are they sinking?
• Touch (Post-stitch): The back of the embroidery should feel smooth, not like a bird's nest.








Warning: Mechanical Safety. Keep hands, loose sleeves, and scissors well away from the needle bar and moving pantograph. Never attempt to trim a thread while the machine is running—stop the machine first.

Operation Checklist (Live Monitoring):

• The Topping Check: Is the water-soluble film staying in place?
• The Registration Check: After the first 500 stitches, is the fabric shifting? (If yes, stop and add more adhesive or magnets).
• The Bobbin Check: Flip the test piece. Do you see 1/3 white bobbin thread in the center of the satin column?
• Legibility: Is the 7mm date text readable, or are the loops closing up?

Troubleshooting the Three Most Common Outline Portrait Problems (Symptoms → Causes → Fixes)

Decision Tree: Choosing a Hooping Path for Outline Portrait Orders (Hobby vs Paid Work)

Not every project requires industrial tools, but every project requires stability. Use this logic to choose your setup:

1. Is this a one-off gift or a bulk order?
   • Gift: Standard hoop + careful pinning + intense supervision.
   • Bulk: Move to Step 2.
2. Are you experiencing fatigue or "hoop burn" marks?
   • Yes: This is a tool problem, not a skill problem. Traditional hoops damage knits.
   • Solution: A magnetic hoop eliminates the friction burn and reduces wrist strain significantly.
3. What is your machinery scale?
   • Single Needle: You are the operator and the bottleneck. Efficiency tools (magnets, pre-cut backing) save your time. Many users upgrading their workflow on a single head embroidery machine find that better hoops are cheaper than a new machine.
   • Multi-Needle: If you are running production, use a hooping station for embroidery machine to standardize placement so every Operator can hoop identical chests.

The Upgrade Moment: When Your File Is Clean, Your Workflow Becomes the Product

Once you master the Continuous Line file, the machine is no longer the limit—you are.

If you find yourself spending more time fighting the hoop than digitizing creative portraits, that is your signal.

• Software Skill: Master the Steil overlap and Subway run stitches.
• Hardware Match: Ensure your hoop matches your fabric. Knits demand gentle, vertical clamping.
• Production Scale: If you are serious about selling outlined sweaters, the combination of a robust file + a magnetic hoop creates the "set it and forget it" reliability that turns a hobby into a business.

Digitize smart, hoop safe, and keep those lines flowing.

FAQ

• Q: In Wilcom Hatch outline portrait embroidery on sweaters, why do 1.0 mm Steil satin lines disappear into the knit, and what materials prevent sinking?
  A: Use a water-soluble topping on top and cutaway stabilizer underneath, because a 1.0 mm satin column often sinks into fluffy knit texture without support.
  • Apply: Place water-soluble topping (e.g., Solvy) on top of the sweater before stitching.
  • Back: Use cutaway stabilizer (2.5 oz or 3.0 oz) under the sweater; avoid tearaway on sweaters.
  • Bond: Mist temporary spray adhesive to keep the knit from shifting on the backing.
  • Success check: The stitched line sits on top of the topping and stays readable instead of vanishing into loops.
  • If it still fails: Slightly increase Steil width (e.g., to 1.2 mm) or re-check hooping so the knit ribs are not stretched open.
• Q: In Wilcom Hatch, what is the fastest way to reduce jump stitches in outline portrait embroidery using Smart Join without causing trims?
  A: Use Smart Join but verify entry/exit markers so Object A exit touches Object B entry, otherwise Hatch will insert trims or jumps.
  • Toggle: Press Q to show Entry (green) and Exit (red) markers.
  • Inspect: Look for no scissor/trim icons and no dashed jump lines between nearby objects.
  • Adjust: Reshape/move start and stop points so the exit point lands where the next line begins.
  • Success check: View Redraw (Shift+R) shows one continuous flow rather than stop-trim-restart behavior.
  • If it still fails: Manually add a hidden travel using the Run-stitch “Subway Method” and cover it with the next Steil line.
• Q: In Wilcom Hatch, how do you prevent thick knots or blobs where two 1.0 mm Steil lines meet in outline portrait embroidery?
  A: Overlap the join instead of ending and starting on the exact same coordinate to avoid a density spike at the connection.
  • End: Stop the first Steil line slightly short of the intersection.
  • Start: Begin the next Steil line slightly “over” the previous endpoint to create a small overlap.
  • Preview: Use View Redraw (Shift+R) to watch whether the join behaves like one continuous stroke.
  • Success check: The join looks like a single fluid pen stroke, not a hard bump or welded-looking blob.
  • If it still fails: Re-check that Smart Join is not forcing tie-offs at the join (use Q to confirm entry/exit positions).
• Q: For sweater outline portrait embroidery, what hooping and stabilization setup prevents registration shift and “gaps” in the stitched line?
  A: Stabilize knits with a cutaway backing plus light spray adhesive, and hoop without stretching the knit structure to prevent the fabric from relaxing mid-design.
  • Back: Use cutaway stabilizer (not tearaway) for long-term support on sweaters.
  • Stick: Apply a light mist of temporary spray adhesive to bond sweater to stabilizer.
  • Hoop: Keep fabric flat and drum-tight, but do not stretch ribs open (avoid distortion that rebounds after unhooping).
  • Success check: After the first ~500 stitches, the outline still lands on the drawn path with no visible line “gap” from shifting.
  • If it still fails: Upgrade the grip method (often a magnetic embroidery hoop reduces distortion compared with friction hoops on knits).
• Q: What safety precautions are required when using magnetic embroidery hoops on sweaters, and what is the main pinch risk?
  A: Treat magnetic hoops like a clamp—keep fingers out of the closing area and follow medical-device guidance because the magnets can pinch severely and may affect pacemakers.
  • Keep clear: Never place fingers between the inner and outer rings while closing.
  • Close smart: Set the hoop down and let the magnet clamp vertically instead of “snapping” it together in your hands.
  • Medical caution: If a user has a pacemaker, maintain the safe distance recommended by a doctor.
  • Success check: The hoop closes smoothly with no finger contact and the sweater is held without being stretched.
  • If it still fails: If hooping still leaves marks or feels unsafe to handle, slow down the closing step and consider a hooping aid/fixture to control alignment.
• Q: What mechanical safety rule should be followed during a Tajima embroidery machine stitch-out when trimming threads or checking the needle area?
  A: Stop the machine before touching anything near the needle bar or pantograph—never trim threads while the machine is running.
  • Pause first: Use the machine stop function before reaching in to trim or clear threads.
  • Secure clothing: Keep loose sleeves and tools away from moving parts.
  • Observe: Monitor sound (steady rhythmic motion vs harsh slapping/grinding) and stop if the sound changes abruptly.
  • Success check: Hands and tools stay outside the needle/motion zone during operation, and interventions only happen when the machine is fully stopped.
  • If it still fails: If frequent stops are needed due to thread issues, re-check topping/backing and bobbin balance before restarting.
• Q: For bulk sweater outline portrait orders, when should a shop move from standard hoops to magnetic embroidery hoops or a hooping station for embroidery machines?
  A: Move up when hooping causes repeated registration problems, hoop burn marks, or operator fatigue—then use magnetic hoops for gentler clamping, and add a hooping station when placement consistency becomes the bottleneck.
  • Diagnose: If hoop burn, shifting, or slow measuring repeats across pieces, treat it as a process/tool limit rather than “more practice.”
  • Level 1: Use temporary spray adhesive to float the sweater on hooped stabilizer to reduce stretching.
  • Level 2: Use magnetic hoops to clamp knits straight down and reduce distortion and hoop burn.
  • Level 3: Use a hooping station for repeatable left-chest placement when running higher volume.
  • Success check: Each garment stitches with the same placement and clean continuous lines with fewer stops and less re-hooping.
  • If it still fails: Reconfirm the file pathing (minimize trims, use Smart Join/Subway Method) because unstable fabric plus frequent restarts multiplies failures.
