Digitize ITH Bunting in Janome Digitizer Junior (Hoop B 140×200): The Clean 3-Layer Appliqué Method That Actually Stitches Out

If you’ve ever opened Janome Digitizer Junior, stared at the tools, and thought “everyone else makes this look easy,” you’re not alone. The Junior version can feel limiting—especially when you realize you can’t just type with your computer fonts the way you can in higher tiers.

The good news: you can still build a professional, stitchable In-The-Hoop (ITH) bunting flag file from scratch—clean placement lines, reliable tack-down, and a satin edge that hides raw fabric—using nothing more than Digitizer Junior plus a simple workaround in MS Paint.

This post follows the exact workflow shown in the video and then adds the “missing” shop-floor details: how to keep your file trim-friendly, how to avoid puckering when you sandwich layers, and how to set yourself up for repeatable results if you want to make a whole birthday banner (not just one flag).

Don’t Panic: Janome Digitizer Junior Can Build Real ITH Files (Even If It Feels Limited)

Digitizer Junior often gets a reputation for being “only good for small edits,” and I understand why—especially when you watch MBX tutorials and can’t find half the buttons. One commenter summed up the frustration bluntly, and I’ve heard the same thing in many studios: the learning curve feels steeper than it should.

Here’s the stabilizing truth: ITH digitizing is less about fancy tools and more about sequence logic. If you can:

• import artwork,
• convert it to a simple running stitch for placement,
• duplicate objects for multiple stitch passes,
• and control satin spacing,

…you can build a file that stitches out predictably.

And yes—if you’re running this on a typical janome embroidery machine, the stitch file logic matters more than the brand name on the front. It’s about understanding the physics of the needle penetrating fabric.

The “Hidden” Prep That Saves Hours: Artwork, File Hygiene, and a Hooping Plan Before You Digitize

The video starts in MS Paint for a reason: it’s the fastest way to create clean, high-contrast shapes that auto-digitize well in Junior. Software "sees" contrast. Blurry lines confuse it.

Prep Part A — Build the bunting flag shape in MS Paint

1. Open MS Paint.
2. Draw the shape: Create a triangular shape for the flag.
3. Orient correctly: Select the triangle and use Rotate → Flip Vertically so it hangs like a bunting flag (point down).
4. Export: Save the shape as a high-contrast bitmap (BMP or PNG).






Prep Part B — Create lettering artwork (the Junior font workaround)

Digitizer Junior can’t use your system fonts directly the way MBX can, so the workaround is to type the letter in Paint, then import it as artwork.

1. Start new: In MS Paint, start a new image file.
2. Set size: Use the Text tool and set font size to 180 (this provides enough pixel density for the software to trace cleanly).
3. Type: Type your letter (the example uses “H”).
4. Save: Save it as a separate image file.


Prep Part C — Decide your physical build (single-sided vs double-sided)

The video’s construction is aimed at a double-sided bunting flag: you stitch a placement line, place fabric, stitch/tack, trim with seam allowance, then later “sandwich” with another fabric layer.

That means your digitizing choices must support:

• Clean trimming moments: Enough space for your scissors.
• Stable fabric edges: Tack-downs that don’t fray.
• A final border: Satin that completely hides raw edges.

Shop Floor Essentials (Hidden Consumables)

Before you start, ensure you have these "invisible" tools:

• Temporary Adhesive Spray (e.g., Odif 505): Vital for floating fabric layers without pins.
• Curved Appliqué Scissors (Duckbill): To trim close without slicing the placement stitches.
• New Needles: Size 75/11 Sharp (for wovens) or Ballpoint (for knits).

Prep Checklist (do this before you open Auto-Digitize)

• Contrast Check: Your Paint shapes are stark black on white (no gray anti-aliasing).
• File Hygiene: You saved each element (flag shape, letter) as separate importable images.
• Physical Constraints: You know your hoop size (the video uses Hoop B 140 × 200 mm).
• Construction Plan: You’ve decided if the flag is single or double-sided.
• Safety Zone: You are mentally prepared to keep the design inside the red boundary.

Fit It to Hoop B 140×200 Without Regret: Importing Artwork and Respecting the Red Safety Line

In Digitizer Junior, the video uses Hoop B (140 × 200 mm) and immediately shows the most common beginner mistake: importing artwork that’s slightly too wide.

1. Grid Setup: In Janome Digitizer Junior, open the hoop grid for Hoop B.
2. Import: Use the Insert Artwork tool to bring in the bunting flag image.
3. Scale Down: If the artwork touches the edge, drag the corner handles to resize until it sits inside the red boundary line.

That red line is your “no-drama zone.” If you stay inside it, you avoid edge clipping and the dreaded "Design exceeds hoop size" error message at the machine.

Pro tip from the shop floor: leave breathing room for fabric behavior

The machine is metal; fabric is fluid. Even if the software says it fits, fabric creates drag. I recommend leaving a 5mm buffer inside the red boundary. This prevents the presser foot from hitting the hoop wall, which causes registration loss (where your outline doesn't match your fill).

Turn Bitmaps Into True Placement Lines: Auto-Digitize with Centerline (Not Fill)

This is the first “make or break” setting. Beginners often leave the default "Fill" setting, creating a dense block of stitches that adds unnecessary bulk under your appliqué.

Placement line for the flag shape

1. Select: Click the imported flag artwork.
2. Tool: Choose Auto-digitize Embroidery.
3. Critical Adjustment: In Stitch Details, change from a filled option to Centerline.
4. Execute: Confirm to generate a simple running stitch outline.

The video shows the moment the solid triangle becomes a thin outline—exactly what you want for a placement line.

Why Centerline matters (and how it prevents ugly ITH surprises)

A placement line should act like a pencil sketch on the fabric. It needs to be:

• Fast: One pass of thread.
• Flat: Low bulk so subsequent layers don't "high center" on a bump.
• Visible: Easy to see where to lay your fabric.

Place the Letter Cleanly: Import the “H,” Arrange It, Then Digitize the Outline

Now you bring in the letter artwork and position it inside the flag.

1. Insert: Import the “H” bitmap.
2. Position: Drag it into the center of the flag.
3. Fine Tune: Use cursor keys for pixel-perfect positioning (as shown in the video).
4. Visual Check: If the flag layer obscures the "H", hide the flag layer temporarily to see your workspace.


Digitize the letter outline (Cartoon processing + Centerline)

1. Select: Click the “H” artwork.
2. Process: Select Auto-digitize and choose Cartoon processing. This simplifies jagged pixels into smooth vector curves.
3. Convert: Set Stitch Details to Centerline again.

This creates the first layer of the appliqué letter: the placement/outline stitch.

Watch out: hide the bitmap images once you have stitches

The video demonstrates hiding the imported images after digitizing (Shift-select both, right-click, hide). This is critical. If you don't hide the bitmap, you might accidentally duplicate the picture instead of the stitches in the next step, leading to a file that won't sew.

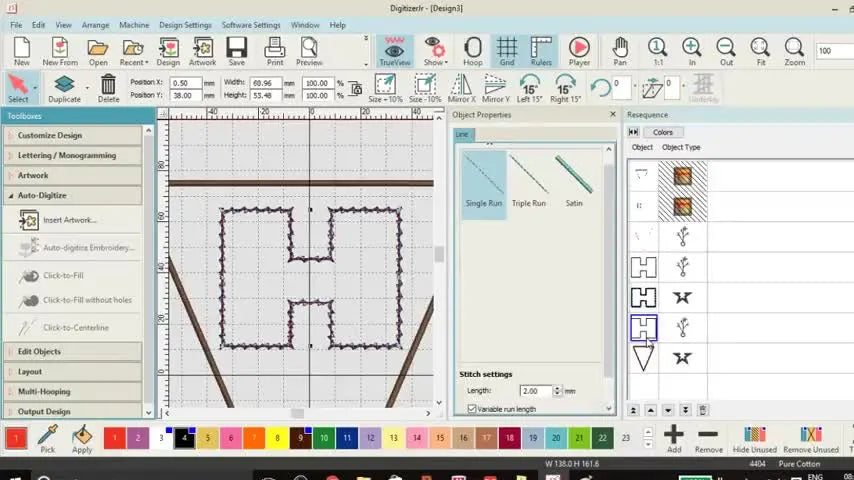

The ITH “Money Sequence”: The 3-Layer Appliqué Letter (Placement → Tack-Down → Satin)

This is the core technique. Professional appliqué files are built on a "Rule of Three." You will create three versions of the same letter object, each with a different physical job.

Layer 1 — Placement (already done)

You already created the Centerline outline of the “H.” This stitches directly onto the stabilizer to show you where to put the fabric.

Layer 2 — Tack-down (duplicate + satin + wide spacing)

This layer secures the fabric so you can trim it.

1. Duplicate: Copy and paste the "H" object in the resequence panel.
2. Type: Change stitch type to Satin.
3. Underlay: Set Underlay to Zigzag (shown in the video). This grips the fabric better than a straight line.
4. Density (The Secret Sauce): Increase Manual Spacing to 3.00 mm - 5.00 mm.

Why 5.00mm? We want a very loose, open zigzag. If the stitches are too close (standard 0.45mm), the needle will perforate the fabric like a postage stamp, and when you pull to trim, the fabric will rip. A wide 5mm zigzag holds the fabric flat but lets you trim right up to the thread without disaster.

Layer 3 — Final satin border (duplicate again + normal satin density)

1. Duplicate: Copy the "H" a third time.
2. Settings: Set it to a standard satin border.
3. Density: Verify spacing is around 0.40mm - 0.45mm for complete coverage.
4. Width: Ensure the width is at least 3.5mm. Anything narrower than 3mm struggles to cover the raw fabric edge you just trimmed.




Finish the Flag Construction Lines: Keep Borders as Single Run When They’re Not Meant to Be Satin

Near the end, the video shows converting the outer flag border back to a single run after an accidental change.

Shop Floor Logic: Only use dense stitches where they serve a visual purpose. For ITH construction lines (seam guides inside the sandwich), a single run reduces machine time and prevents needle breakage when you eventually sew the bunting together with a sewing machine.

Setup That Prevents Puckers: Stabilizer + Hooping Physics for ITH Bunting

The video mentions the sequence, but let's talk about the physics. ITH is unforgiving if your hooping is inconsistent. If your stabilizer is loose, the outline won't match the satin border, and you'll get "gapping" (white stabilizer showing between thread and fabric).

Decision Tree: Pick the Right Stabilizer Mix

The "Hooping Battle" and Tool Upgrades

If you are making 20 flags for a birthday banner, your wrists will likely start hurting from tightening the screw on standard hoops. Worse, "Hoop Burn" (the shiny ring left by tight plastic hoops) can ruin delicate bunting fabric.

When production volume increases, professionals switch to magnetic embroidery hoops. Unlike traditional screw hoops that require force, magnetic frames snap construction layers together instantly. They hold even thick "sandwiches" (stabilizer + back fabric + front fabric) without distorting the material, which is the #1 cause of misalignment in ITH projects.

Warning: Magnetic Safety
Modern magnetic hoops use high-power Neodymium magnets. They can pinch fingers severely (blood blister risk) and can disrupt pacemakers. Always slide the magnets off—never pry them straight up—and handle with respect.

Setup Checklist (Pre-Flight)

• Needle: Fresh needle installed (Burrs on old needles snag appliqué fabric).
• Bobbin: Full bobbin loaded (Running out mid-satin stitch is a nightmare).
• Stability: Stabilizer is hooped "drum tight" (feels taut, no sag).
• Adhesive: Spray adhesive or tape is ready for the floating method.

Operation: How the Stitch-Out Should Flow (and What You Should Expect at Each Checkpoint)

The video describes the stitch-out logic clearly; here it is translated into a production sequence with sensory cues.

1) Stitch the flag placement line

• Action: Run color 1.
• Sensory Check: Listen for a smooth running sound.
• Visual: A simple outline appears on the stabilizer.

2) Place the backing fabric

• Action: Lay your bunting fabric over the hoop.
• Tip: Use a light mist of 505 spray to keep it from shifting.

3) Stitch the letter placement line (“H” outline)

• Action: Run color 2.
• Visual: The "H" is drawn on your fabric.
• Checkpoint: Is it centered? If you hooped crookedly, stop now.

4) Place the appliqué fabric for the letter

• Action: Place a contrasting fabric scrap over the "H" outline.

5) Stitch the tack-down (wide zigzag)

• Action: Run color 3 (The wide 5mm open zigzag).
• Visual: It should look like a "bastard stitch"—loose and ugly. That's perfect.
• Touch: The fabric should be held firm, but not puckering.

6) Trim the appliqué fabric

• Action: Remove the hoop (or slide it forward if possible) but DO NOT un-hoop the fabric.
• Technique: Lift the appliqué fabric edge and slide your duckbill scissors flat against the main fabric. Cut close to the zigzag.

Warning: Mechanical Hazard
Never put your hands near the needle bar while the machine is engaged. If you trim while the hoop is attached, ensure the machine is in a stopped/locked state so a foot pedal tap doesn't send a needle through your finger.

7) Stitch the final satin border

• Action: Run color 4.
• Sensory: The sound will change to a rhythmic "thump-thump-thump" as the satin column builds.
• Success Metric: The satin should completely cover the raw edge of the trimmed fabric.

8) Operation Checklist (Post-Run)

• Coverage: No raw fabric threads poking through the satin.
• Flatness: The flag lays flat (no "bowl" shape indicating hooping was too tight).
• Cleanliness: No "bird's nests" (tangles) on the underside.

Troubleshooting the Two Most Common “Junior” Headaches (Plus a Few ITH Gotchas)

Symptom: “My design is too wide for Hoop B”

• Likely Cause: Imported artwork touches the edge.
• Fix: Resize using corner handles until there is a 5mm gap between the art and the red line.

Symptom: “I can’t use my system fonts in Digitizer Junior”

• Likely Cause: Junior software tier limitation.
• Fix: Use the MS Paint workaround: Create text at size 180+, save as BMP, import as image.

Symptom: “Trimming is a nightmare / Fabric is fraying”

• Likely Cause: Tack-down stitch was standard density (too tight), perforating the fabric.
• Fix: Ensure the tack-down layer uses Manual Spacing 3.00 mm - 5.00 mm.

Symptom: “The Satin stitch is tunneling (fabric is bunching up)”

• Likely Cause: Poor stabilization or thread tension is too high.
• Fix: Use a Cut-Away stabilizer for better support, or upgrade the physical holding method. Many users find searching on YouTube for terms like hooping station for embroidery reveals fixtures that help stabilize these sandwich projects better than manual hooping.

Comment-driven reality check

Several viewers noted the video audio was quiet. This is dangerous because you might miss a crucial number. When in doubt, stick to the Rule of Three: Layer 1 = Run, Layer 2 = Open Zigzag, Layer 3 = Dense Satin.

The Upgrade That Actually Pays Off: From “One Cute Flag” to Batch Production

If you’re making one birthday flag, you can muscle through the manual hooping and trimming. But if you plan to sell these or make a 20-flag banner, the physical strain becomes real.

When should you upgrade your tools?

1. The Wrist Test: If your wrists hurt after 3 hoops, you are fighting the equipment.
2. The Burn Test: If you spend more time steaming out "hoop burn" marks than sewing, your method is inefficient.

For repeat tasks, a magnetic hooping station setup can drastically reduce load times. Furthermore, many serious hobbyists eventually find that single-needle machines are too slow for multi-color ITH work (too many thread changes). Moving to a multi-needle platform, like the SEWTECH series, allows you to queue up placement, tack-down, and satin colors without re-threading, transforming a 2-hour frustration into a 20-minute production run.

If you aren't ready for a new machine yet, simply switching to janome magnetic embroidery hoops is the most cost-effective "Level 1" upgrade to stop fighting with screws and start enjoying the embroidery process again.

Final Stitch Logic Recap (So You Can Rebuild This Without Rewatching)

• Art: Create high-contrast text in Paint (Size 180+).
• Placement: Auto-digitize as Centerline.
• Letter Logic: Duplicate object twice.
  • 1. Placement (Run).
  • 2. Tack-down (Wide Zigzag, 5mm spacing).
  • 3. Satin (0.45mm density, 3.5mm width).
• Physics: Hoop drum-tight or use magnetic frames to prevent shifting.

Once you own the logic, the software name doesn't matter. You're the digitizer now.

FAQ

• Q: How can Janome Digitizer Junior users create usable lettering when Janome Digitizer Junior cannot use computer system fonts?
  A: Use the MS Paint text workaround: create the letter as high-contrast artwork, then import and auto-digitize it in Janome Digitizer Junior.
  • Create: Type the letter in MS Paint at font size 180+ and save as BMP or PNG.
  • Import: Insert the saved letter image into Janome Digitizer Junior and position it inside the bunting flag.
  • Convert: Auto-digitize using Cartoon processing, then set Stitch Details to Centerline for the outline.
  • Success check: The digitized letter becomes a clean single running-stitch outline (not a filled block).
  • If it still fails… Rebuild the artwork with pure black-on-white edges (avoid gray/anti-aliasing) and re-import.
• Q: How do Janome Digitizer Junior users fix the “Design exceeds hoop size” problem on Hoop B 140 × 200 mm when importing bunting flag artwork?
  A: Scale the imported artwork down until it sits fully inside the red boundary line, then leave extra buffer for fabric drag.
  • Open: Select Hoop B (140 × 200 mm) and display the hoop grid.
  • Resize: Drag corner handles until the artwork is inside the red safety boundary.
  • Buffer: Leave about a 5 mm gap inside the red line to prevent edge clipping and registration loss.
  • Success check: The artwork never touches the red boundary line anywhere around the design.
  • If it still fails… Reduce size slightly more and re-check that no part of the design approaches the hoop wall.
• Q: Which Auto-Digitize setting should Janome Digitizer Junior users choose for an ITH bunting flag placement line: Centerline or Fill?
  A: Choose Centerline for placement lines so the ITH file stays flat and trim-friendly.
  • Select: Click the imported flag artwork.
  • Convert: Use Auto-digitize Embroidery and change Stitch Details to Centerline (not Fill).
  • Verify: Confirm the result is a thin running-stitch outline, not dense stitches.
  • Success check: The placement line looks like a “pencil outline” and stitches quickly with low bulk.
  • If it still fails… Delete the filled object and re-run Auto-digitize with Centerline selected before confirming.
• Q: What tack-down settings prevent fraying and “trimming is a nightmare” on an appliqué letter in Janome Digitizer Junior ITH bunting?
  A: Use a deliberately loose tack-down: Satin with Zigzag underlay and Manual Spacing around 3.00–5.00 mm so fabric is held without perforation.
  • Duplicate: Copy the letter outline object in the resequence panel to create the tack-down layer.
  • Set: Change stitch type to Satin and set Underlay to Zigzag.
  • Open up: Increase Manual Spacing to 3.00–5.00 mm for a wide, open zigzag.
  • Success check: The tack-down looks “loose and ugly” but holds the appliqué fabric firmly without puckering.
  • If it still fails… Confirm you duplicated the stitched object (not the hidden bitmap image) and re-check spacing was not left at standard dense values.
• Q: What satin border settings help Janome Digitizer Junior users cover raw appliqué edges on ITH bunting letters after trimming?
  A: Use a normal dense satin for the final pass: spacing around 0.40–0.45 mm and satin width at least 3.5 mm for reliable edge coverage.
  • Duplicate: Copy the letter again to create the final satin border layer.
  • Set density: Verify spacing is about 0.40–0.45 mm for full coverage.
  • Set width: Ensure the satin column is at least 3.5 mm to hide trimmed fabric edges.
  • Success check: The satin completely covers the raw fabric edge with no fibers poking through.
  • If it still fails… Improve stabilization/hooping first (gapping often comes from movement), then re-check satin width and trimming distance.
• Q: What stabilizer and hooping method reduces gapping and puckers on ITH bunting stitch-outs on a Janome embroidery machine?
  A: Match stabilizer to fabric and hoop stabilizer “drum tight,” then float fabric with spray when needed to avoid distortion.
  • Choose: Use medium tear-away for woven cotton; mesh cut-away for stretchy knits (float fabric—do not stretch it); tear-away for felt/heavy canvas.
  • Hoop: Tighten stabilizer until it is drum-tight (no sag).
  • Prep: Keep temporary adhesive spray (e.g., 505) ready for floating layers cleanly.
  • Success check: Placement lines and satin borders align cleanly with no white stabilizer showing (“no gapping”).
  • If it still fails… Check needle condition (fresh needle) and review tension/stabilizer support, especially under satin areas.
• Q: What are the safety rules for trimming appliqué fabric during ITH embroidery on a Janome embroidery machine to avoid needle injuries?
  A: Stop and secure the machine before trimming, and never put hands near the needle bar while the machine is engaged.
  • Stop: Ensure the machine is fully stopped/locked before moving hands into the needle area.
  • Remove safely: Remove the hoop or slide it forward if possible, but do not un-hoop the project.
  • Trim smart: Use curved duckbill appliqué scissors and keep the blade flat against the base fabric.
  • Success check: Trimming is controlled and close to the tack-down without any contact with the needle path.
  • If it still fails… Re-check tack-down spacing (too dense makes trimming dangerous and prone to tearing) before attempting to trim again.
• Q: What are the safety risks of using magnetic embroidery hoops for ITH “sandwich” projects, and how should magnetic frames be handled?
  A: Treat magnetic embroidery hoops as high-power tools: slide magnets off (do not pry), keep fingers out of pinch points, and avoid use around pacemakers.
  • Handle: Slide magnets off sideways instead of pulling straight up to reduce sudden snap-back.
  • Protect: Keep fingertips away from magnet edges to prevent severe pinching (blood blister risk).
  • Screen: Do not use magnetic hoops near pacemakers or sensitive medical devices.
  • Success check: The fabric sandwich is held firmly without distortion, and magnets can be removed without pinching.
  • If it still fails… Reduce layer bulk or reposition magnets for even pressure rather than forcing the frame closed.
