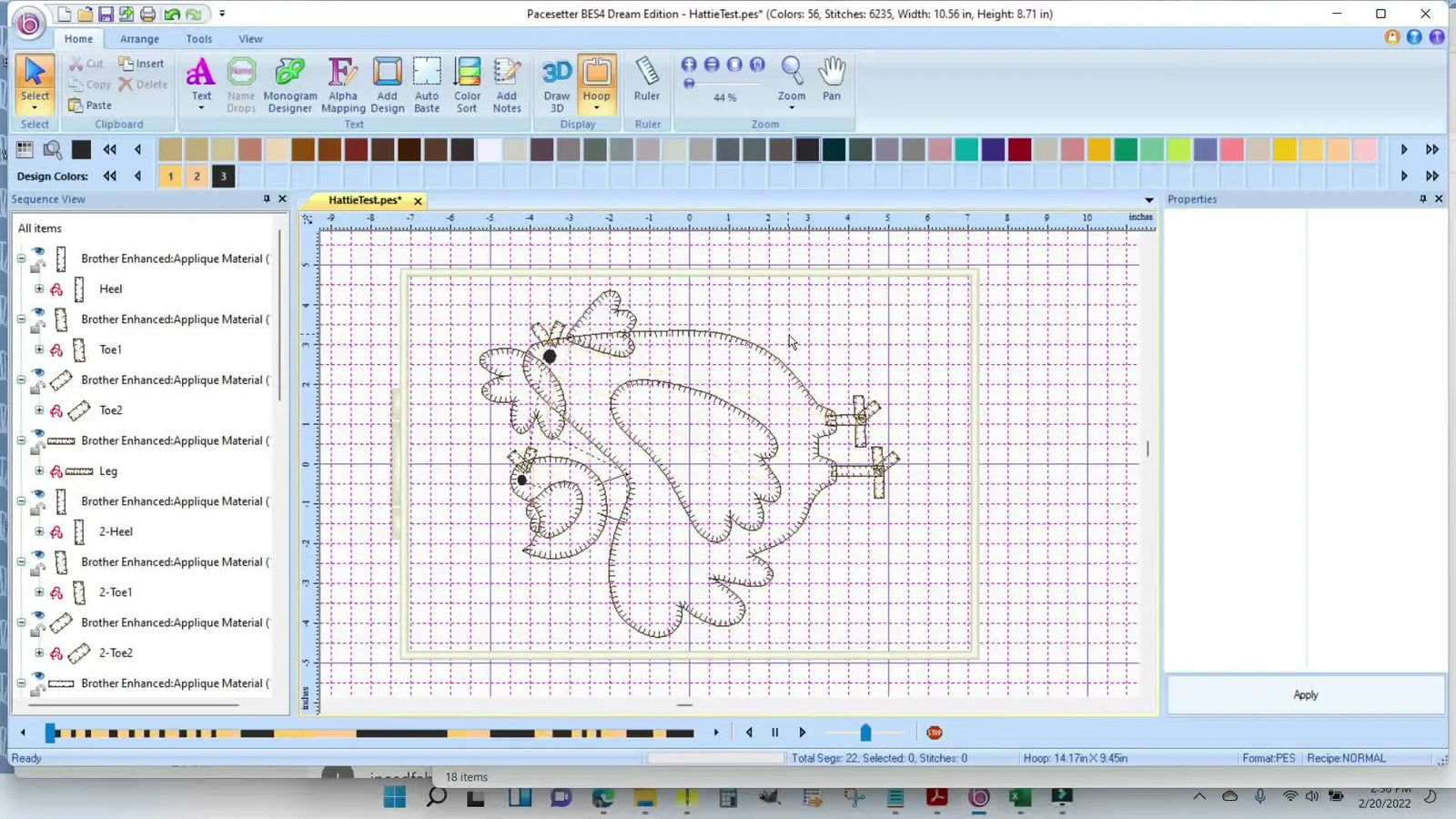

Digitize “Hattie the Chicken” Appliqué in BES4 (FCM to PES) Without Ruining Your Pre-Cut Fabric

The Precision Appliqué Playbook: From ScanNCut FCM to Perfect Stitches in BES4

When an appliqué block is built from pre-cut fabric pieces, you do not get unlimited “oops” attempts. One wrong resize, one bad stitch order, or a slip in the hoop, and suddenly your perfectly cut shapes don’t match your placement lines.

As someone who has overseen thousands of digitized blocks, I can tell you that appliqué is an "environment-dependent" science. It relies on the tension of your stabilizer, the calibration of your screen, and the stability of your hoop. This guide rebuilds the workflow for the "Hattie the Chicken" block using BES4 Dream Edition (or Simply Appliqué), but more importantly, it injects the industry safety protocols required to ensure your digital file matches your physical fabric.

The Calm-Down Moment: BES4 Dream Edition + Simply Appliqué Can Turn FCM Cut Lines Into Real Appliqué Stitches

If you’re staring at a folder full of FCM (ScanNCut) files thinking, “I cut everything… now what?”, you are in the right place. The transition from specific cut lines to embroidery data is often where beginners freeze.

The method we will use is straightforward: FCM files come in as cut lines. You position them digitally like a paper pattern, and the software generates the three holy grails of appliqué:

1. Placement Line: Shows you where to put the fabric.
2. Tack-Down Line: Secures the fabric.
3. Finishing Border: The blanket or satin stitch that makes it look professional.

Do you need full digitizing software? No. Expert consensus confirms you can execute this entire workflow in Simply Appliqué (essentially the appliqué-focused module of BES4). However, BES4 Dream Edition offers expanded font libraries and editing capabilities that streamline the process.

Reality Check: The Hattie block is significant—over 10.5" wide and almost 9" tall. Before you touch a mouse, you must confirm your machine can accommodate a hoop larger than standard 5x7 or 6x10 fields.

The “Hidden” Prep That Saves Fabric: Folder Hygiene, Grid Settings, and a No-Resize Rule

Precision starts before the import. If you skip this setup, you risk distorting shapes or losing track of microscopic components.

Prep Checklist: The Protocol Before Import

• Dimensional Verification: Confirm your finished design field exceeds 10.5" x ~9". You must plan for a large hoop (e.g., 10" x 16" or similar).
• Workspace Initialization: Create a new document in BES4 (File > New).
• The "Zero-Resize" Pact: Commit to this rule: Do not drag corner handles to scale parts if you have already cut your fabric. You are only adjusting placement.
• Workflow Strategy: If you are producing multiple blocks (e.g., for a quilt), consider a repeatable hooping workflow. Investing in hooping stations can drastically reduce handling errors and misalignment when you are trimming and layering identical blocks repeatedly.

Set the Grid exactly like the video (The "0.5 Inch" Rule)

The instructor uses a grid where each small pink square equals 0.5". This is your visual anchor.

Action Steps:

1. Go to View > Preferences > Grid.
2. Set Horizontal to 0.5 and Vertical to 0.5.
3. Set Sub-divisions per grid block to 10.
4. Optional but recommended: Use dashed grid lines and a high-contrast color (like bright blue or red) to maximize visibility against white backgrounds.


Why this matters (Expert Perspective): When aligning multiple appliqué pieces (like the wattle against the wing), your eyes will lie to you at normal zoom levels. A calibrated grid provides a "measurement language," ensuring spacing remains intentional rather than accidental.

Importing ScanNCut FCM Files in BES4 Without the “Where Are My Thumbnails?” Panic

The video uses the Import FCM icon (yellow folder with a green arrow). A common panic moment occurs when the window opens and appears empty. This is not a file error; it is a Windows View setting.

Import Workflow (Sensory Anchors)

1. Click Import FCM.
2. Navigate to your source folder (e.g., moving from the "chicks" folder to the "hattie" folder).
3. Visual Check: If the dialog shows only filenames, change the View setting (top right of the window) to Large Icons or Extra Large Icons.
4. Select the file and click Open.

Note on "Multi-Scan" Artifacts: If you traced and scanned multiple fabric pieces on a single mat, one FCM file might contain a cluster of shapes. This is normal. We will isolate the specific anatomy we need in the next step.

Cleaning Up Multi-Shape FCM Files: Isolate M3/M17 Without Deleting the Wrong Piece

When an imported FCM drops a "confetti pile" of shapes onto your canvas, do not panic. The instructor’s method is the safest way to sort them.

The "Isolate and Purge" Method

1. Click off the selection to deselect everything.
2. Click and Drag the specific piece you need (e.g., the M3 body shape) away from the cluster to a clear area of the canvas. Think of this as moving it to a "safe harbor."
3. Box Select the remaining unwanted shapes.
4. Press Delete.
5. Repeat this process for every FCM file until all body parts are on the canvas.

Pro Tip: Never stack imported shapes immediately. Keep them separated in your workspace until all "garbage" data is deleted. This prevents the accidental deletion of a crucial feather or toe.

Bringing in the Chicken Feet the Smart Way: Copy/Paste From a Working BRF File

A common oversight is the feet. In this workflow, the feet come from a separate working file because they are reused components.

The instructor keeps the feet in a "master" BRF file, allowing manipulation without corrupting the main layout.

The Feet Transfer Protocol

1. Open the separate working file (e.g., chickenfeet.brf). It will open in a new tab.
2. Navigate to Sequence View and click the feet elements.
3. Right-click > Copy.
4. Switch Tab back to the main "Hattie" file.
5. Right-click > Paste.

Warning: Physical Safety Alert. When transitioning from software planning to physical stitching, appliqué requires your hands to be inside the hoop zone frequently for trimming. Always stop the machine completely before trimming. Never rely on a "pause" button alone if your machine has a sensitive foot pedal.

Sequence View Is Your “Stitching Script”: Layer Order That Prevents Ugly Overlaps

If you memorize one thing from this guide, let it be this: Sequence View dictates physics. In embroidery, what stitches last sits on top.

The instructor drags the body (Artwork) below the leg layers. Why? Because in the physical world, the chicken’s body must overlap the top of the legs.

The Layering Logic

• Background elements (Under): Must be higher (earlier) in the sequence list.
• Foreground elements (Over): Must be lower (later) in the sequence list.

Core Reorder Steps

1. Open Sequence View.
2. Identify the Body Layer (often labeled 'Artwork').
3. Drag and Drop it down until it sits below the leg layers.
4. Verification: Visually confirm on the canvas that the body lines now cover the top of the legs.


Commentary on Overlap: A viewer asked about removing the intersection lines. For Blanket Stitch, we generally leave the overlap. Blanket stitch is visually forgiving and low-density. If you were using Satin Stitch, you might remove the underlying stitches to prevent a "bulletproof" stiff spot, but for this rustic look, overlapping is standard practice.

Placement Without Resizing: Rotate the Body 90° and Build the Chicken Like a Paper Pattern

Once parts are imported, you assemble the bird on your 0.5" grid.

Assembly Steps

1. Select the Body.
2. Go to the Arrange tab.
3. Rotate Left 90 degrees.
4. Nudge parts (comb, wattle, wing) into position. Use the arrow keys on your keyboard for micro-adjustments rather than the mouse.

Crucial Reminder: If you have cut your fabric pieces already, you are forbidden from resizing these shapes in the software. You are only adjusting their relative X/Y positions.

Rename Your Layers (The Anti-Confusion Tactic)

In Sequence View, right-click a layer and select Rename. Label them: "Comb," "Body," "Wing," "Wattle."

• Why? When you have 15 layers all named "Artwork," you will inevitably edit the wrong one. Naming layers is the hallmark of a professional digitizer.

The Chick Add-On: Import From the “Chicks” Folder and Position It Before Converting

After the main chicken is assembled, stitch logic dictates we finish the layout before converting to stitch data. The instructor imports the chick from a separate folder, positions it, and adjusts the beak/wing placement consistent with the main bird.

The Magic Button: Convert to Appliqué

Once the geometry is final, we convert the vector lines into embroidery data.

Conversion Sequence

1. Press Control + A (Select All).
2. Go to the Tools tab.
3. Click Convert to Appliqué.

The Result: Your single cut line is now three distinct events: Placement (Run), Tack-down (Run/Double Run), and Cover (Satin/Blanket).

Blanket Stitch Settings That Actually Look Hand-Done: Appliqué Type + Length + Width

By default, the software may assign a Satin stitch. For the "Hattie" aesthetic, we want a Blanket stitch.

Changing the Stitch Type

1. Control + A (Select All).
2. In the Properties box (Right Panel), locate Appliqué Type.
3. Change dropdown from Satin to Blanket.
4. Click Apply.

Empirical Data: The "Sweet Spot" Settings

Standard software settings often look too "digital." To achieve a hand-stitched look, the instructor—and industry experience—recommends the following adjustments:

• Stitch Length: Reduce from 2.0mm to 1.5mm.
• Stitch Width: Reduce from 3.5mm to 2.0mm.
• Note: These tighter numbers ensure the "teeth" of the blanket stitch hold the raw edge of the fabric securely without dominating the visual design.

Viewer Query: should I resize everything 1/4" smaller? Answer: No. The pattern designer likely included the needle-turn allowance in the cut files. In digital appliqué, the "Tack Down" line usually sits slightly inside the "Placement" line. Trust the file unless you are cutting the fabric yourself from scratch.

The Sneaky Font Trick: Make Perfect Eyes With “.” and Legs With a Serif-Free “I”

This is a masterclass in using what you have. Instead of drawing shapes, use the Text tool.

The Period Trick (Eyes)

1. Select Text Tool > Normal.
2. Type a period .
3. Select the period and move it to the eye position.
4. Resize by dragging the corner handle until it matches the scale of the chicken eye.
5. Sensory Check: Use your scroll wheel to Zoom In tightly. Moving a tiny dot while zoomed out feels slippery; zooming in gives you traction.

The Capital "I" Trick (Legs)

1. Select a Sans-Serif Font (Block style, no feet on the letters).
2. Type a capital I.
3. Resize and Rotate to form the chick's leg.
4. Copy/Paste for the second leg.


Order Check: Ensure these new legs are moved up in the Sequence View so they stitch before the body.

Hoop Reality: If Your Hoop Is Smaller Than 10x16, Don’t Find Out After You Save

The video demonstrates a classic error: exporting to PES only to be told, "The current design does not fit in the hoop."

Decision Tree: The Hoop Capacity Check

Before you proceed, determine your hardware capability:

• Context A: You have a 10"x10" or 10"x16" Hoop (e.g., Brother Luminaire/Stellaire)
  • Action: In software, go to Home > Select Hoop. Choose the 10x16.
  • Fix: If it still doesn't fit, Control + A and rotate the entire design 90 degrees to align with the hoop's long axis.
• Context B: Your Max Hoop is 5"x7" or 8"x8"
  • Action: You cannot stitch this Block in one pass.
  • Workaround: Build the full layout for sizing, then Delete the main chicken body/wing. Stitch the Chick and small elements using the embroidery machine, then appliqué the large chicken body using a standard sewing machine.


Exporting the File the Way the Video Does: Save a Working BRF, Then Save As PES

Do not save over your source. The instructor uses a dual-file system.

The Safe Save Protocol

1. File > Save As -> Hattie_working.BRF. (This retains editable layers, font data, and sequence logic).
2. File > Save As -> Change file type to .PES (or your machine format). Name it Hattie_Stitch.PES.

Why? Once you save as PES, the "Appliqué" properties are baked into raw stitches. You cannot easily change the blanket stitch width later. The BRF file is your safety net.

Setup Checklist: What to Confirm Before You Ever Hoop Fabric

Even though this tutorial is software-heavy, appliqué success is determined before the first needle drop.

🛑 Pre-Flight Checklist

• Grid Check: Grid is set to 0.5" and design width/height matches pattern requirements.
• Layer Audit: Sequence View has been checked. Background items (legs) are above foreground items (body).
• Appliqué Type: Properties confirm "Blanket" stitch (not Satin) with ~2.0mm width.
• Hoop Selection: The specific hoop (10x16) is selected in software, and no elements cross the red safety boundary.
• Hidden Consumable: Fresh needle installed? (Recommendation: 75/11 Embroidery or Topstitch needle for blanket stitch).

Operation Checklist: How to Avoid the Two Biggest Appliqué Time-Wasters

Once the machine is running, you are in a cycle: Placement -> Stop -> Place Fabric -> Tack -> Stop -> Trim -> Finish.

🚀 Production Checklist

• Fabric Queue: Arrange your pre-cut fabric pieces physically on the table in the exact order of your Sequence View.
• Trimming Hygiene: Use sharp, double-curved appliqué scissors. Trim threads cleanly after every tack-down to prevent them from showing under the blanket stitch.
• Hooping Stability: If you notice the placement lines drifting (not matching the fabric cuts) by the third or fourth layer, your stabilizer is too loose.
• Hoop Burn Mitigation: For projects like this involving delicate quilting cottons, standard plastic hoops can leave crushing "burn" marks. Many professionals switch to magnetic hoops for brother luminaire or similar setups. These tools hold evenly without the "crush" of inner/outer rings, protecting your fabric investment.

Warning: High Magnetic Force. Modern magnetic frames are industrial strength. Keep them away from pacemakers and implanted medical devices. Keep fingers clear of the "snap" zone to avoid pinching. Store away from credit cards and phones.

The “Why It Works”: Tension, Layering Physics, and When to Upgrade Tools

To conclude, let's look at the physics of why this method works and when you might outgrow it.

Why Stitch Order is Critical: Appliqué creates physical bulk. If you stitch the top wing before the underlying body, your presser foot has to climb "up" a cliff of fabric. By stitching bottom-up (Sequence View), the foot travels smoothly over steps.

Why Blanket Stitch is Forgiving: Satin stitch creates a dense wall of thread. If your trimming is slightly imperfect, satin stitch can look lumpy. Blanket stitch, with its open "teeth," disguises minor trimming errors and fabric fraying, making it ideal for beginners.

Hooping and The "Drift" Factor: In appliqué, you remove the hoop from the machine repeatedly to trim fabric. Every time you re-attach the hoop, there is a micro-risk of shifting.

• Level 1 Fix: Ensure your hoop attachment is tight and debris-free.
• Level 2 Upgrade: If you are battling "hoop burn" or struggle with hand strength when hooping thick quilt sandwiches, consider magnetic hoops for brother. They allow you to "slap and stick" the fabric without forcing inner rings, reducing distortion.

The Commercial Tipping Point: If you are making one chicken, a single-needle machine is fine. If you are producing 50 kits for a guild, the constant thread changes (Placement/Tack/Finish) will exhaust you. This is the moment to look at multi-needle machines (like SEWTECH options) or advanced magnetic embroidery hoops for brother that speed up the re-hooping process.

Troubleshooting the Exact Problems Viewers Keep Running Into

The Upgrade Path: When Workflow Upgrades Actually Matter

Appliqué is deceptively labor-heavy. You are not just stitching; you are managing a construction site of fabric layers.

Here is the practical logic for upgrading your toolkit:

1. If you are fighting clamp marks or thick seams: Tools like a brother luminaire magnetic hoop or general magnetic embroidery hoops for brother eliminate the friction that causes hoop burn.
2. If you are losing time re-hooping: Magnetic frames drastically reduce the "setup time" per block.
3. If you are scaling to production: Combine consistent hooping (using stations or magnets) with a machine capable of handling larger fields without rotation.

The goal isn't to buy tools for the sake of it—it’s to remove the friction that makes you dread the next block. Happy stitching!

FAQ

• Q: How do I import ScanNCut FCM files into Bernina BES4 when the Import FCM window shows no thumbnails?
  A: Switch the Windows file dialog view to Large Icons or Extra Large Icons—this is a display setting, not a broken FCM file.
  • Click Import FCM and open the folder that contains the FCM files.
  • Change the dialog View (top-right) to Large Icons or Extra Large Icons.
  • Select the correct FCM file and click Open.
  • Success check: The FCM shapes appear as visible outlines on the BES4 canvas instead of only filenames in the dialog.
  • If it still fails: Confirm the folder is the correct source folder (for example, not the wrong subfolder) and try importing a different FCM file from the same set.
• Q: How do I prevent size mismatches in Bernina BES4 Simply Appliqué when fabric pieces were already pre-cut from ScanNCut FCM files?
  A: Do not resize any imported appliqué parts in BES4 after cutting fabric—only reposition and rotate.
  • Commit to a “zero-resize” rule before starting layout.
  • Rotate parts (for example, rotate the body 90°) and nudge with keyboard arrows for micro placement.
  • Set the grid to match the workflow: View > Preferences > Grid and set 0.5 horizontal and 0.5 vertical (with subdivisions as shown in the tutorial).
  • Success check: Placement lines visually match the edges of the pre-cut fabric when test-positioned, without needing any scaling.
  • If it still fails: Re-check that no accidental corner-handle scaling happened on any piece and confirm the document/design field matches the intended finished size before conversion.
• Q: How do I clean up a multi-shape “confetti pile” after importing a ScanNCut FCM file into Bernina BES4 without deleting the wrong appliqué piece?
  A: Move the one needed shape to a “safe harbor” first, then delete the remaining cluster.
  • Click off the selection to deselect everything.
  • Click-drag the needed part (example: the M3 body shape) away to a clear area.
  • Box-select the leftover unwanted shapes and press Delete.
  • Repeat per FCM file until only required parts remain.
  • Success check: Each needed anatomy piece is separated on the canvas, and deleting leftovers never removes a required shape.
  • If it still fails: Undo immediately and repeat more slowly—avoid stacking parts together until all garbage shapes are purged.
• Q: How do I fix wrong overlaps in Bernina BES4 Sequence View so the appliqué body stitches on top of the legs instead of underneath?
  A: Reorder the stitch sequence so foreground elements stitch later (lower in the list) than background elements.
  • Open Sequence View and locate the body layer (often labeled “Artwork”).
  • Drag the body layer below the leg layers in the sequence list.
  • Visually verify the canvas preview shows the body covering the top of the legs.
  • Success check: The preview layering matches real-world logic (the body visually overlaps leg tops), reducing ugly intersections after stitching.
  • If it still fails: Rename layers (Comb/Body/Wing/Wattle/Legs) first so the correct objects are being reordered.
• Q: How do I convert ScanNCut FCM cut lines into appliqué stitches in Bernina BES4 and force Blanket Stitch instead of Satin Stitch?
  A: Use Tools > Convert to Appliqué, then change Appliqué Type to Blanket and apply consistent settings.
  • Press Ctrl + A to select all appliqué outlines.
  • Go to Tools > Convert to Appliqué to generate Placement, Tack-down, and Cover stitches.
  • In the Properties panel, change Appliqué Type from Satin to Blanket, then click Apply.
  • Use the tutorial’s working look: set Stitch Length ~1.5 mm and Stitch Width ~2.0 mm (as shown).
  • Success check: Each piece now shows three events (placement/tack/cover) and the border looks like an open blanket “tooth” pattern rather than a dense satin wall.
  • If it still fails: Confirm the selection includes all objects before applying properties, and avoid resizing after conversion if fabric was already cut.
• Q: Why does Bernina BES4 show “The current design does not fit in the hoop” when saving the PES file for a 10x16 hoop layout?
  A: Select the correct hoop in software first, then rotate the full design 90° if the orientation is fighting the hoop’s long axis.
  • Go to Home > Select Hoop and choose the intended hoop size (example: 10x16).
  • If it still won’t fit, press Ctrl + A and rotate the entire design 90°.
  • Re-check that no elements cross the red boundary/safety area.
  • Success check: The software accepts the design for export without the “does not fit in the hoop” warning and nothing touches/crosses the boundary.
  • If it still fails: Your maximum hoop field may be smaller (for example 5x7 or 8x8), and the block cannot stitch in one pass without changing the plan.
• Q: What is the safest way to trim appliqué fabric at the machine during Bernina BES4-style placement/tack/finish cycles, especially when hands are near the needle?
  A: Fully stop the machine before trimming—do not rely on a pause button alone if the machine has a sensitive foot pedal.
  • Stop the machine completely before placing hands inside the hoop zone for trimming.
  • Trim after tack-down using sharp appliqué scissors and keep fingers clear of the needle path.
  • Resume only after confirming the hoop is reattached securely and nothing is under the presser foot.
  • Success check: The machine never moves while hands are in the hoop area, and trimming does not pull or shift the fabric piece.
  • If it still fails: Slow the workflow down—most trimming injuries happen when trying to “save time” between tack-down and finishing stitches.
• Q: How do I reduce hoop burn and placement drift during appliqué when repeatedly removing and reattaching the hoop, and when should a magnetic hoop or multi-needle machine be considered?
  A: Start by stabilizing hooping and reattachment habits; if hoop marks and re-hooping time keep hurting results, magnetic hoops and then multi-needle capacity are the logical upgrades.
  • Level 1 (technique): Tighten/clean the hoop attachment area and keep stabilizer tension firm so placement lines do not drift after multiple removals.
  • Level 2 (tool): Switch from standard plastic hoops to a magnetic hoop system to reduce crushing marks and speed re-hooping (common fix for delicate quilting cotton).
  • Level 3 (capacity): If frequent thread changes and repeated cycles are exhausting in production runs, a multi-needle machine can reduce stop/start friction.
  • Success check: Hoop marks are minimized and placement lines continue matching fabric pieces by the third or fourth layer without visible shifting.
  • If it still fails: Treat the symptom specifically—if marks persist, change hooping method/tool; if drift persists, focus on stabilizer tightness and reattachment consistency before changing stitch settings.
