Digitize Appliqué in Wilcom Hatch Without Regrets: Pre-Cut vs Trim-in-Place, the 3.0 mm Rule, and the 65/35 Offset That Saves Edges

Appliqué is the technique that separates "homemade" from "boutique." It gives you texture, depth, and volume that thread alone simply cannot mimic. However, in my 20 years on the production floor, I’ve seen more tears over appliqué than almost any other technique.

Why? Because it relies on a synchronized dance between digital precision (the file) and physical discipline (your hands). It has a reputation for two heart-breaking failure modes: fraying edges that look messy after one wash, and missed stops—where you look away for ten seconds, the machine keeps running, and you’ve stitched a beautiful border... right onto the stabilizer, with no fabric underneath.

This guide rebuilds the workflow from the ground up. We will use the Wilcom Hatch software demonstration as our foundation, but we will layer it with the shop-floor physics and safety protocols that keep production reliable. Whether you are running a single-needle home machine or a bank of SEWTECH multi-needles, the logic here remains the same.

The Calm-Down Primer: Wilcom Hatch Appliqué Is Fast—If You Respect the Stops and the Edge

If you are new to digitizing appliqué in Wilcom Hatch, let me lower your heart rate: you do not need to manually draw three separate designs. The Digitize Applique tool is an intelligent object. It bundles the three critical layers—Placement (where it goes), Tackdown (what holds it), and Cover Stitch (the satin border)—into one cohesive unit.

The part that trips up beginners isn't "how to draw a circle." It is cognitive load.

A viewer asked a question that haunts every beginner: “How do I set a stop between laying fabric instead of manually stopping and forgetting?”

Here is the industry reality: The specific "Stop" command varies by machine reliability.

• On Multi-Needle Machines (like SEWTECH): You can often program a "Frame Out" or distinct "Halt" command that forces the machine to wait for you.
• On Single-Needle Machines: The "Stop" is usually just a color change. The machine stops because it thinks it needs new thread. It does not know you need to place fabric.

This is not a software glitch; it is a workflow discipline. We will fix this with a distinct "Stop-Proof" checklist later in this guide.

The “Hidden” Prep Pros Do Before Digitizing Appliqué in Hatch (So the Stitch-Out Doesn’t Surprise You)

Before you touch the mouse, you must make physical decisions. Appliqué is 20% digitizing and 80% engineering. If your fabric shifts 1mm during the process, no amount of software tweaking will save the border.

1. The Stability Equation

You must match your stabilizer to your fabric's "fight."

• Stretchy Fabric (T-shirts/Knits): You must use Cutaway stabilizer. No exceptions. If you use Tearaway, the fabric will ripple (pucker) inside the appliqué shapes.
• Stable Fabric (Denim/Canvas): Tearaway is acceptable, but heavy cutaway gives a more luxurious, stiff patch feel.

2. The "Hidden Consumables"

Newcomers often lack the "mise en place" (setup). Ensure you have:

• Temporary Spray Adhesive (e.g., KK100): Essential for holding pre-cut fabric flat.
• Double-Curved Scissors: The offset handle allows you to trim inside the hoop without your knuckles hitting the needle bar.
• Fresh Needles: An absolute must. A burred needle will snag your appliqué fabric.

Prep Checklist (Materials + Planning)

• Method Selection: Decide on Pre-cut (laser/cricut cut) vs. Trim-in-place (blob method).
• Fabric Test: Rub the raw edge of your appliqué fabric. If it shreds instantly, prepare fusible web (Iron-on backing) to stabilize it before cutting.
• Safety Zone: Ensure your design fits within the hoop with buffer room for your fingers during trimming.
• Hoop Strategy: Decide how you will keep the hoop stable during trimming. If you are struggling with "Hoop Burn" or slippage on delicate items, this is the time to evaluate if your current hoop is up to the task.

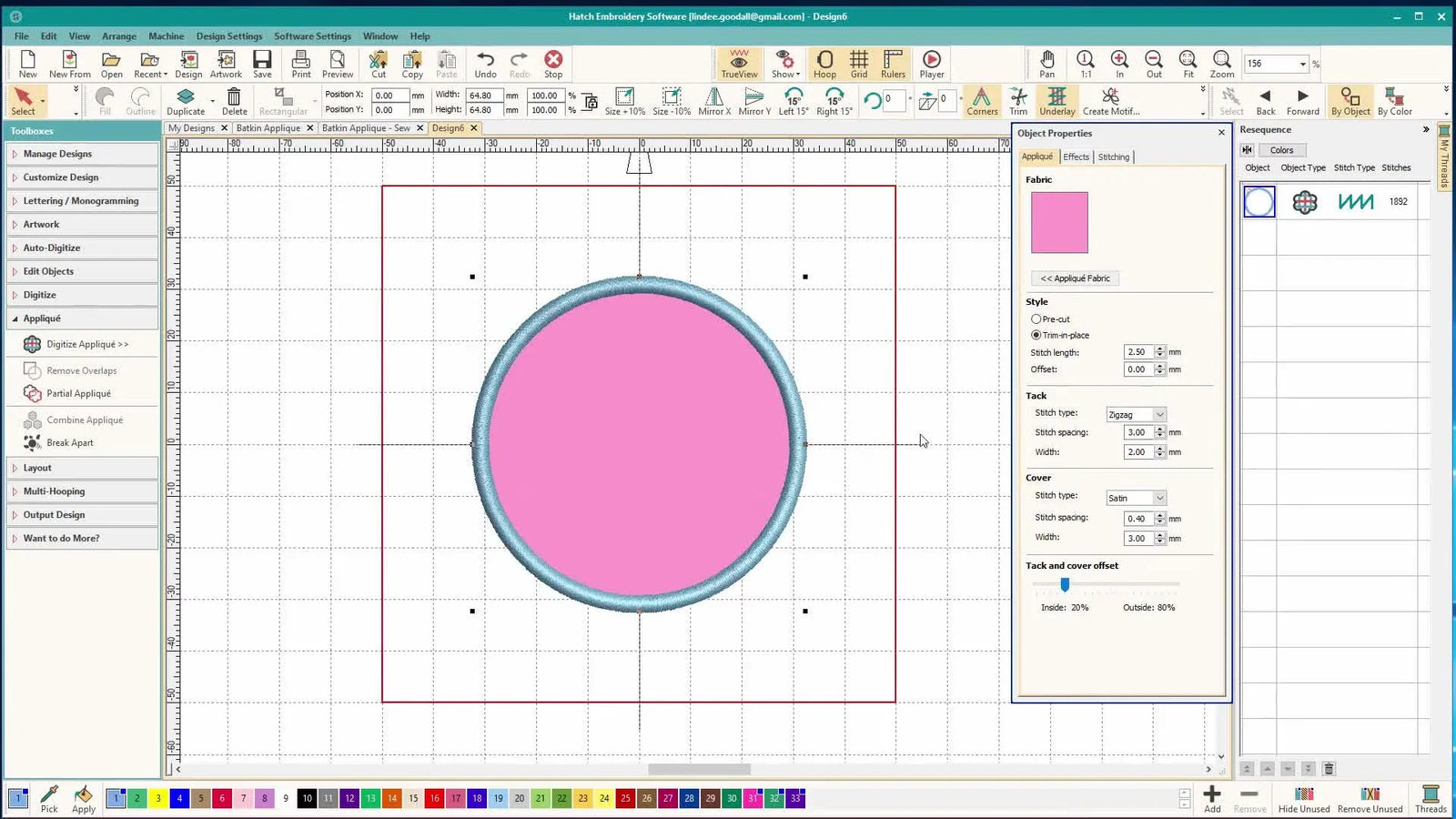

The Fast Build: Using Wilcom Hatch “Digitize Applique” to Create a Simple Shape That Actually Stitches

The video demonstrates the speed of the tool. Do not overthink this part; let the software do the heavy lifting.

Step-by-Step in Hatch

1. Locate Tool: In the left-hand toolbox, select Applique > Digitize Applique.
2. Define Shape: Click to place points (Left click for corners, Right click for curves).
3. Close & Generate: Press Enter.

Hatch generates a "Smart Object." It looks like one thing, but it contains all the necessary instructions.

Checkpoints (Visual Verification)

• The Container: You should see a single object in your "Resequence" list, not three separate loose paths.
• The visual: It should have a thick satin border by default.


The “Don’t Miss the Fabric” Moment: Stitch Player Is Where You Prove the Stop Sequence

If you only adopt one habit from this white paper, make it this: Run the Stitch Player (Virtual Simulator) before every single run.

In the video, the Stitch Player is used to visualize the invisible. Why? Because on a single-needle screen, "Color 1," "Color 2," and "Color 3" look identical. You need to memorize the rhythm.

Sensory Check: Watch the virtual needle.

• Does it stitch a thin line and stop? (That's Placement).
• Does it stitch a zigzag and stop? (That's Tackdown).
• Does it stitch a thick satin? (That's Cover).

If you are running production on a single-needle machine, you are the brain. The machine provides the muscle, but you provide the logic.

Pre-Cut Appliqué in Hatch: The Cleanest Workflow When Your Fabric Is Already Perfectly Shaped

The Pre-cut method is the "Factory Method." It assumes you have a laser-cutter, a Cricut, or very steady hands to cut the shape before the machine starts.

The Physics of Pre-Cut

• Advantage: Zero trimming in the hoop. No risk of snipping the shirt.
• Risk: Precision. If your fabric circle is 50mm and the stitch circle is 50mm, you have zero margin for error.


Stitch Player Sequence (Pre-Cut)

1. Placement Line: Shows you where to put the fabric.
2. STOP: You spray the back of your pre-cut piece and stick it down inside the lines.
3. Tackdown: Stitches the fabric down.
4. Cover: Finishes the edge.

If you are setting up a professional workflow involving hooping for embroidery machine efficiency, Pre-cut is superior because you can prep 50 fabric pieces while the machine is running, minimizing downtime.

Trim-in-Place (“Blob”) Appliqué in Hatch: The Method That Forgives Cutting—but Demands Hoop Stability

This is often called the "Blob Method." It is the most common method for custom, one-off designs.

The Software Switch

In Hatch Object Properties, change the method to Trim in Place.

The Physics of Trim-in-Place

You hoop the garment. You stitch a guide. You slap a rough square of fabric (the blob) over it. The machine tacks it down. Then you remove the hoop to trim the excess.

Here is the Pain Point: When you pop a traditional hoop out of the machine to trim, you are handling it. You are pressing on the fabric with scissors. If the fabric slips even slightly in the hoop rings during this struggle, your final satin stitch will be misaligned (registration error).

This is where Physical Tooling becomes more important than software.

• Traditional Hoops: Require immense hand strength to keep tight; prone to "hoop burn" (shiny marks) and slippage during trimming.
• The Upgrade: Many professionals utilize magnetic embroidery hoops for this specific workflow. The magnetic clamp force secures the fabric across the entire frame without the friction-burn of traditional rings. More importantly, they allow you to trim without distorting the fabric tension.


Stitch Player Sequence (Trim-in-Place)

Note the extra step!

1. Placement.
2. STOP (Place Blob).
3. Cut Line/Tack.
4. STOP (Remove hoop, Trim fabric, Replace hoop).
5. Cover Stitch.

Warning (Magnetic Safety): If you upgrade to magnetic hoops, be aware they use neodymium magnets. They are incredibly strong. Keep them away from pacemakers, and watch your fingers—they can pinch severely if they snap together.

Make the Appliqué Area Obvious: Setting “Applique Fabric” Color So You Don’t Bury Details

In the video, the creator sets the Applique Fabric simulation color (e.g., Pink).

The "Layer Logic"

This is not just for aesthetics. It is a safety check for layering.

• In Hatch Object Properties > Applique Fabric > Choose Color.


Why do this? Imagine you digitize a bear with eyes. If you don't simulate the fabric, you might accidentally put the eye stitches before the appliqué fabric in the sequence. You wouldn't know until you finished sewing and realized the eyes are buried under the fabric patch. By turning the fabric "Pink" on screen, any object stitched before the fabric will disappear behind the pink. If you can see the eyes on top of the pink, you know your sequence is correct.

The 3.0 mm Minimum: Stitch Width That Prevents Raveling Even When You Used Fusible Web

Let's talk numbers. The width of your satin border (Cover Stitch) is your structural integrity.

The video recommends a Zigzag tack and a Cover Width of ~3.00 mm.

The Sweet Spot Data

• Absolute Minimum: 2.5mm (Risky. Only for precise laser-cut shapes).
• Beginner Safe Zone: 3.0mm - 3.8mm.
• Bold Look: 4.0mm+.

The "Why": If the stitch is too narrow (e.g., 2.0mm), there isn't enough thread mass to compress the raw edge of the fabric. The fibers will poke through (whiskering) after the first laundry cycle. Even if you use Fusible Web (Heat'n Bond), a 3.0mm width is your insurance policy against fraying.

The 65/35 Offset Rule: Put 2/3 of the Stitch on the Fabric So the Edge Doesn’t Peel

This is the "Secret Sauce" of the tutorial.

Hatch defaults often place the satin stitch mostly outside the line. The video recommends changing the Offset.

• Default: 20% Inside / 80% Outside.
• Pro Setting: ~65% Inside / 35% Outside.


The Mechanics of Edge Grip

Think of the satin stitch like a hand gripping a ledge.

• If you grip with just your fingertips (20% inside), you might slip. The fabric edge can curl up or peek out.
• If you grip with your whole palm (65% inside), the fabric is trapped. It cannot move.


This adjustment is critical if you are not using a precision cutting machine. If you are hand-trimming, your edges will be imperfect. A 65% internal offset covers a multitude of trimming sins.

If you are using a hooping station for embroidery to ensure perfect placement, this offset setting ensures that your mechanical precision is matched by digital security.

Setup Checklist: The Stop-Proof Way to Run Appliqué Without Forgetting Fabric Placement

You are about to hit "Start." Do not trust your memory. Trust a checklist.

Pre-Flight Checklist

1. Needle Check: Is the needle fresh? (A dull needle pushes fabric rather than piercing it).
2. Bobbin Check: Do you have enough bobbin thread to finish the satin border? (Running out halfway through a satin stitch is a nightmare to fix).
3. Sequence Map: Write this down on a sticky note next to the screen:
   • Stop 1: Place Fabric
   • Stop 2: Trim Fabric
   • Stop 3: Change Thread
4. Tool Stage: Place your curved scissors and appliqué fabric to the right of the machine.

The Production Reality: On a single-needle machine, you are the tool changer. On a multi-needle machine, the machine handles color changes, so stops become purely functional. If you find yourself constantly confused by stops or exhausted by re-threading, this is the primary trigger to consider upgrading to a multi-needle system (like the SEWTECH series) where "Frame Out" commands are explicit.

Operation: Stitching Appliqué Like a Production Shop (Not a One-Off Test)

The file is ready. The machine is threaded. Here is how to execute.

Operation Checklist

• The Placement: When the machine stops for fabric simulation, spray the back of your fabric lightly. Place it. Sensory Check: Run your fingertips over it. Is it smooth? Air bubbles = Puckers.
• The Tackdown: Watch this part like a hawk. If the fabric starts to "wave" or push ahead of the foot, pause immediately and smooth it out with a stiletto tool (or a chopstick). Never use your fingers near the moving needle.
• The Trim:
  1. Remove hoop (if using single-needle).
  2. Place on a flat surface.
  3. Action: Pull the fabric slightly up; slide the scissors flat against the stabilizer.
  4. Sound Check: You should hear the crisp snip-snip of fabric, not the ripping sound of stabilizer.
• The Cover: Restart the machine. Watch the first 50 stitches. Ensure the 65/35 offset is actually covering the raw edge.

Warning (Mechanical Safety): Never trim fabric while the hoop is attached to the machine if the machine is powered/active. A stray foot on the pedal or a glitch can send the needle through your hand. Always Park/Lock the machine or remove the hoop entirely.

Professionals often search for how to use magnetic embroidery hoop videos specifically to see how easy it is to pop these hoops on and off for the trimming stage compared to the screw-tightened traditional hoops.

Troubleshooting Appliqué in Hatch: Symptoms → Likely Cause → Fix You Can Trust

If things go wrong, do not panic. Use this diagnostic table.

The Upgrade Path: When Better Hooping and Faster Machines Pay for Themselves

You can do appliqué on any machine. But if you are doing 50 shirts, "possible" does not mean "profitable."

Use this decision tree to decide if you need to upgrade your tools:

Decision Tree: Optimizing Your Workflow

1. The Pain: Is your fabric slipping when you trim?
   • No: Continue using standard hoops.
   • Yes: Upgrade Option: Switch to magnetic embroidery hoop systems. They clamp thicker fabrics and appliqué layers without the struggle.
2. The Pain: Are you spending more time changing thread than stitching?
   • No: Stick with single-needle.
   • Yes: Upgrade Option: A Multi-Needle Machine (like SEWTECH 10/15 needle). You program the colors once, and the machine only stops when you need to trim.
3. The Pain: Is your placement crooked across different shirts?
   • No: You have a good eye.
   • Yes: Upgrade Option: Look at a hoopmaster hooping station or similar fixture. Repeatability is the key to scaling.

One Last Reality Check: Simple Appliqué Is “Done”… Until You Start Overlapping Pieces

The video concludes with a complex Bat design. This teaches us that the "65/35 Rule" and the "3.0mm Width" differ when shapes overlap.

Your Homework: Start with a simple circle or star.

1. Use the Digitize Applique tool.
2. Set Width to 3.5mm.
3. Set Offset to 65% Inside.
4. Run the Stitch Player.

Master these four steps. Once you trust the edge grip, you can build anything from a simple patch to a full-back jacket design. The software gives you the control, but your setup gives you the quality.

FAQ

• Q: How do I program a reliable STOP for fabric placement in Wilcom Hatch appliqué when using a single-needle home embroidery machine with color-change stops?
  A: Use color changes as deliberate “human stops,” and confirm the stop locations in Hatch Stitch Player before stitching.
  • Run Stitch Player and identify: thin placement line → STOP, zigzag tackdown → STOP, satin cover → run.
  • Write a sticky-note map next to the machine screen: “Stop 1: Place Fabric / Stop 2: Trim Fabric / Stop 3: Change Thread.”
  • Stage tools on the right side (curved scissors + fabric) so the stop becomes an automatic routine.
  • Success check: the machine stops exactly after the placement line (or tackdown) and waits while fabric is added/trimmed.
  • If it still fails: switch to a workflow that supports explicit “Frame Out/Halt” commands (often available on multi-needle systems) so the stop cannot be missed.
• Q: What stabilizer should be used for Wilcom Hatch appliqué on T-shirts/knits versus denim/canvas to prevent puckering inside the shape?
  A: Use cutaway stabilizer for stretchy knits (no exceptions) and tearaway is acceptable for stable denim/canvas.
  • Match stabilizer to fabric “fight”: knits need cutaway to stop rippling; stable fabrics can tolerate tearaway.
  • Choose heavier cutaway if a stiffer, patch-like feel is desired on stable fabric.
  • Success check: the area inside the appliqué shape stays flat (no ripples/puckers) after stitching.
  • If it still fails: re-check hoop stability and adhesive use, because fabric shifting can mimic stabilizer problems.
• Q: Which “hidden consumables” should be prepared before digitizing and stitching Wilcom Hatch appliqué to avoid fraying and snags?
  A: Prep temporary spray adhesive, double-curved scissors, and a fresh needle before starting, because appliqué is mostly physical setup.
  • Replace the needle (a burred/dull needle can snag appliqué fabric).
  • Use temporary spray adhesive to keep the fabric smooth and flat during placement.
  • Trim with double-curved scissors to cut cleanly inside the hoop without fighting the machine head.
  • Success check: fabric lays smooth with no bubbles, and trimming sounds like crisp “snip-snip” (not stabilizer ripping).
  • If it still fails: test the fabric edge by rubbing it—if it shreds easily, add fusible web before cutting.
• Q: What Wilcom Hatch appliqué satin cover stitch width prevents fraying/whiskers after washing, even when using fusible web?
  A: Set the cover stitch width to a beginner-safe 3.0–3.8 mm, with 3.0 mm as the practical minimum for edge security.
  • Increase width if the border looks thin or fibers poke through (a narrow 2.5 mm setting is riskier and needs precision cutting).
  • Re-run Stitch Player after changing width to confirm the cover stitch fully compresses the raw edge.
  • Success check: no fabric fibers “whisker” through the satin border, especially after handling the edge.
  • If it still fails: add fusible web to stabilize the appliqué fabric before cutting and re-check offset coverage.
• Q: How do I set Wilcom Hatch appliqué offset so the satin border grips the fabric edge and the fabric does not peel or peek out?
  A: Change appliqué cover stitch offset to about 65% inside / 35% outside so most of the satin stitch lands on the fabric.
  • Adjust from common defaults that place too much stitch outside the edge.
  • Use this setting especially for hand-trimmed edges where cut accuracy is imperfect.
  • Success check: the satin border “grabs” the fabric like a clamp—no curling, peeling, or edge showing on the outside.
  • If it still fails: verify fabric did not shift during trimming (spray adhesive + stable hooping are the next levers).
• Q: How do I stop registration gaps in trim-in-place (“blob method”) appliqué when removing the hoop to trim causes fabric to shift?
  A: Stabilize the fabric before trimming and minimize distortion during handling; if shifting continues, upgrade the hooping method for stronger, even grip.
  • Spray the fabric lightly before tackdown so the blob cannot skate.
  • Trim on a flat surface and keep scissors flat against stabilizer; avoid pulling fabric hard while cutting.
  • Consider switching from traditional ring hoops (prone to hoop burn/slip during handling) to magnetic embroidery hoops for more uniform clamping during trimming.
  • Success check: after the hoop goes back on, the satin cover stitch lands evenly over the fabric edge with no visible gap.
  • If it still fails: re-check the stop sequence and confirm the hoop was re-seated consistently before restarting.
• Q: What are the must-follow mechanical safety rules for trimming appliqué fabric on any embroidery machine during trim-in-place appliqué?
  A: Never trim fabric while the hoop is attached to an active/powered machine—remove the hoop or park/lock the machine first.
  • Stop the machine and ensure it cannot start unexpectedly (pedal bumps and glitches do happen).
  • Remove the hoop completely for trimming, then return it to the machine only when hands are clear.
  • Use a stiletto tool (or similar) to guide fabric if smoothing is needed—keep fingers away from the needle path.
  • Success check: trimming is done with the machine fully stopped and hands never enter the needle area.
  • If it still fails: simplify the workflow (pre-cut method) to eliminate in-hoop trimming steps.
• Q: What magnetic hoop safety precautions should be followed when using neodymium magnetic embroidery hoops for appliqué trimming workflows?
  A: Treat magnetic hoops as high-force clamps: keep them away from pacemakers and protect fingers from pinch injuries.
  • Separate and assemble magnets with controlled movement—do not let frames snap together.
  • Keep hands clear of pinch points when seating the magnetic top frame.
  • Store magnets safely so they do not jump to tools or other metal objects on the table.
  • Success check: the hoop closes without snapping, and fabric is clamped evenly without finger contact in the closing path.
  • If it still fails: switch back to traditional hoops until safe handling becomes routine, then reintroduce magnetic hoops with slower, deliberate placement.
