Digitize an ITH Mug Rug in Hatch 2 Without the Usual Misalignment Drama (Brother PR1000 5x7 Workflow)

If you have ever opened a design in Hatch, thought “I’ll just add a quick ITH (In-The-Hoop) border,” and ended up with a traveling hoop, merged color blocks, or—worst of all—a seam that reveals your construction stitches after turning, stop. Take a breath.

Machine embroidery is an experience science. It is not just about clicking buttons; it is about understanding how physical forces—pull compensation, fabric thickness, and hoop tension—interact with digital commands.

This guide reconstructs a solid Hatch 2 workflow for a circular ITH mug rug, based on the methods demonstrated by OML Embroidery. However, we are going to elevate this from a simple "how-to" to a production-ready standard operating procedure. We will focus on the Brother Entrepreneur PR1000 5x7 setup, but the physics apply to any machine.

Calm the Panic: The “Non-Native” File Warning & The 10% Golden Rule

When you double-click a design from the Hatch Library and the software warns you that it is not a "Grade A or B EMB file," it is not an error message. It is a status report.

It simply means you are importing a "baked" stitch file (like .PES or .DST), not a native, object-based .EMB file. You cannot edit the underlying shapes because they no longer exist—only the needle penetrations do.

The Physics of Resizing Stitch Files

Sue accepts the warning because she understands the 10% Golden Rule:

• Native Files (EMB): Resizing recalculates the stitch count to maintain density.
• Stitch Files (PES/DST): Resizing simply stretches or squishes the existing stitches.

If you resize a stitch file up by 20%, you spread the same number of stitches over a larger area, creating gaps. If you shrink it by 20%, you pack stitches so densely you risk breaking needles or stiffening the fabric like cardboard.

The Strategy: If you are building an ITH mug rug around an existing stitch file, keep that central design at 100% original size. Build your ITH structure (placement, tack-down, seam) around it.

Warning: Never "force resize" a non-EMB stitch file beyond +/- 10% just to fit a hoop. You risk birdnesting (thread jamming) and needle breakage. If the design doesn't fit, change the design, not the scale.

Lock In the Machine Geometry: Define Your "No-Regret Zone"

Before you place a single node, you must define the physical reality of your machine. In the video, the setup is for a Brother PR1000 with a 5x7 hoop.

Action: Right-click inside the design window to access Embroidery Settings:

1. Select Machine: Brother Entrepreneur PR1000.
2. Select Hoop: 5x7 (130mm x 180mm).

Suddenly, a boundary appears with a red inner border. Those red lines are your safety margins. If you digitize outside them, the machine will refuse to sew, or worse, the presser foot will strike the frame.

The “Hidden” Prep Checklist: Pre-Flight Your Digital Workspace

Professional digitizers do not start until these boxes are checked.

Prep Checklist (Phase 1):

• Source Integrity: Confirm the imported file is at 100% scale (no resizing).
• Physical Boundary: Machine and Hoop are selected; red safety lines are visible.
• Center Alignment: Ensure the design is centered (X=0, Y=0) using the alignment tools.
• Visual Check: Zoom to 100% and look for any "jump stitches" in the source file that need trimming layout.

Sequence Hygiene: Delete the Frame & Group the Core

Sue deletes the external square frame by selecting it in the Sequence Docker (right pane) and hitting delete. Never try to click small objects on the canvas if you can select them primarily in the sequence list—it is safer and more precise.

Crucial Step: Group the Design. Select all remaining elements of the pumpkin design and Group them (Ctrl+G).

Why? If you do not group, a stray mouse click could move the pumpkin stem 2mm to the left. You won't notice it on screen, but you will definitely notice it when your final stitch-out is misaligned. Grouping locks the relative position of the design elements.

Fix the “Traveling Hoop” (Cognitive Load Reduction)

Beginners often panic when the hoop visualization moves around as they select different objects (Sue calls this the "traveling hoop"). This creates cognitive friction—your eyes have to constantly re-adjust.

The Fix:

1. Right-click the hoop icon.
2. Change Positioning to Manual.
3. Set coordinates to (0,0).


Now the hoop stays static, acting as your constant frame of reference.

Build the ITH Chassis: The Circle Outline

Sue uses Digitize Standard Shapes to create a circle. It initially appears as a filled tatami shape.

Action:

1. Select the circle.
2. Convert to Outline (Single Run).
3. Resize evenly to fit just inside the red safety lines.




The Physics of Hooping & Tension in ITH

This circle is not just a digital line; it is a physical anchor. In ITH projects, you are layering materials (stabilizer -> batting -> fabric -> backing).

If you place this circle too close to the hoop edge, the fabric tension varies. The center of a hoop is "drum-tight," but the edges can have microscopic slack. When you add batting, this slack causes shifting.

Expert Insight: If you constantly fight with thick sandwiches (batting + fabric) popping out of standard hoops, or if you get "hoop burn" (permanent creases) on delicate fabrics, this is a hardware limitation. Many professionals switch to magnetic embroidery hoops for ITH work. The strong magnets clamp thick layups evenly without the mechanical torque that damages fibers or strains your wrists.

The Sequence Strategy: Stop, Tack, and Backtrack

ITH relies on "forced stops." The machine does not know you need to place fabric unless you tell it to stop. The universal signal for "Stop" in embroidery machines is Color Change.

Step 1: Placement Line (The Map)

• Function: Stitches directly onto the stabilizer to show you where to put the batting/fabric.
• Fabric: Tearaway stabilizer only.

Step 2: Tack-Down Line (The Anchor)

• Action: Copy and Paste the Placement Circle.
• Trigger: Change the color (e.g., from Blue to Red). This forces the machine to halt.
• Reinforcement: Apply Backtrack (in Hatch Settings).




Why Backtrack? A single run stitch is weak. When you eventually turn the mug rug right-side out, you will pull and twist the fabric. A single run stitch can snap. A backtrack (double run) doubles the tensile strength, ensuring your batting doesn't shift during the dense decorative stitching.

Warning: When the machine stops for you to place batting, keep your hands clear of the start button. Do not place your fingers near the needle bar to smooth fabric while reaching for the "Start" button. Develop a "Hands Off, Then Sew" rhythm.

Setup Checklist (Phase 2):

• Stops Confirmed: Are the Placement and Tack-down lines different colors?
• Security: Is Backtrack enabled on the Tack-down line?
• Consumables: Do you have temporary spray adhesive or tape? (A light mist helps hold batting during the tack-down).
• Clearance: Is the tack-down design inside the safety line?

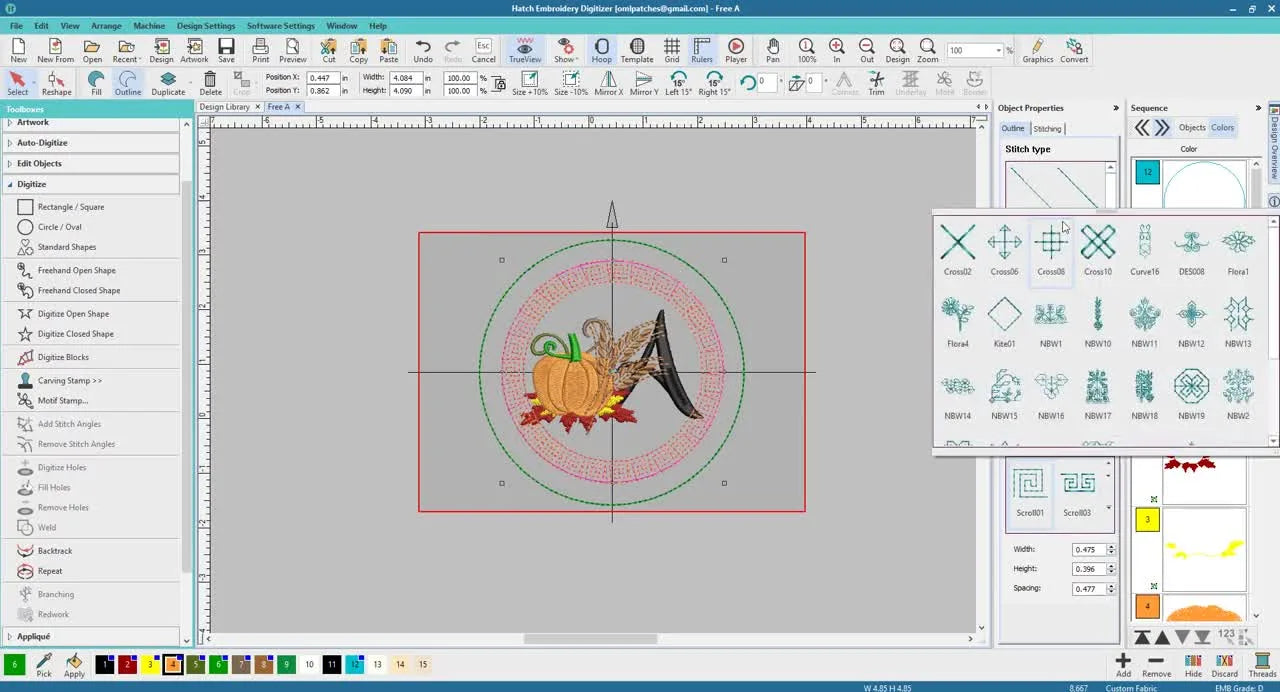

Make the Border Look Expensive: The Motif Run

Sue pastes the circle a third time later in the sequence, resizing it slightly smaller to sit inside the tack-down line. She converts this to a Motif Run (specifically a wheat/vine pattern).

Design Logic: By placing the decorative border inside the tack-down, you ensure the raw edges of the batting are fully encapsulated.

Constraint Check: When reordering objects to minimize color changes, be careful. If you group all orange items together but they are physically far apart, the machine will create long jump stitches.

• Production Tip: If you are running a shop, trimming jump stitches costs time. Sometimes it is better to have an extra color stop than to spend 2 minutes hand-trimming 50 jump stitches.

If you find yourself doing high-volume ITH production, the constant thread changes on a single-needle machine become the bottleneck. This is the "scale trigger point" where upgrading to a multi-needle machine (like the SEWTECH architecture) allows you to load all 4-5 colors at once, reducing job time by 30-40%.

The "Outrageous Color" Trick: Preventing Accidental Mergers

Hatch creates a "Optimization" problem for beginners: if you drag a red object next to another red object in the sequencer, Hatch automatically merges them. This is disastrous for ITH because you lose the "Stop" command.

The Fix:

1. Undo the move.
2. Change the object to an "Outrageous Color" (e.g., bright Lime Green) that appears nowhere else in the design.
3. Move the object.
4. Change the color back to what you want (as long as it doesn't match the neighbor).


The Final Seam: The Envelope Closure & Inset Geometry

The final step holds the back fabrics (envelope style) to the front.

Action:

1. Paste the circle shape again (make it the last object).
2. Resize it manually.
3. Visual Alignment: The line must be inside the decorative motif border.




The Inset Rule:

• Too close to edge: When you turn the project, the green construction stitches will peek out from the seam. Amateur look.
• Too far inside: You lose surface area, and the mug rug looks distorted/puckered.

Sue manually resizes using the corner handles until the line sits about 2-3mm inside the decorative border. She applies Backtrack again because this seam takes 100% of the stress when you turn the rug inside out.

Decision Tree: Fabric vs. Stabilizer Selection

ITH projects fail when the foundation is weak. Use this logic to choose your consumables.

• Scenario A: Standard Quilting Cotton
  • Base: Tearaway Stabilizer (Medium Weight, 1.8oz).
  • Result: Crisp edges, easy removal.
• Scenario B: Stretchy/Knit Fabrics (T-shirt quilt material)
  • Base: Cutaway Stabilizer + Fusible Interfacing on the fabric back.
  • Why: Knits distort under hoop tension. Tearaway will explode during the tack-down.
• Scenario C: Thick Batting/Fleece
  • Base: Tearaway.
  • Hardware: This is where you struggle with standard inner rings. magnetic hoops for brother are essential here. They "snap" the sandwich together without you needing to torque a screw, preventing hoop burn on the fleece.

Warning: Magnetic Safety. High-quality magnetic hoops are industrial strength. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and hard drives. Slide the magnets apart; do not try to pry them directly up.

Stitch-Out Reality Check: Operations Checklist

You are at the machine. The file is loaded. Here is how to ensure success.

Operation Checklist (Phase 3):

• Hooping: Fabric is virtually "drum-tight." Tap it; it should sound like a drum.
• Stitch 1 (Placement): Watch the run. Is it centered?
• Action: Spray light adhesive on batting. Place over line.
• Stitch 2 (Tack-down): Listen. You should hear the thump-thump rhythm of the backtrack.
• Trimming: Using double-curved appliqué scissors, trim the batting close to the stitch line. Do not cut the threads.
• Stitch 3 (Decoration): Let the machine run. Watch for thread tension (bobbin thread should be 1/3 width on the back).
• Stitch 4 (Envelope Back): Place folded back fabrics. Tape the edges/corners down so the foot doesn't catch them.
• Final: Remove, Trim, Turn, Press.

Troubleshooting Logic: From Symptom to Cure

If things go wrong, do not guess. Follow this diagnostic path.

The Commercial Upgrade Path: When to Switch Gears

If you are making one mug rug for a friend, the standard process above is perfect. But if you are selling these and hitting bottlenecks, you need to diagnose where the pain is.

Pain Point 1: "My wrists hurt from hooping 50 items."

• Diagnosis: Physical fatigue leads to bad hooping and crooked designs.
• Solution: hooping station for machine embroidery coupled with magnetic frames. This standardizes placement and removes the physical strain of tightening screws.

Pain Point 2: "I spend more time changing threads than sewing."

• Diagnosis: Single-needle inefficiency. Simple ITH designs often have 5-7 color stops.
• Solution: This is the trigger for a Multi-Needle Machine. A platform like SEWTECH allows you to set up the entire palette at once. You only approach the machine to place fabric, not to change threads.

By following Sue’s disciplined digitizing structure—and respecting the physical limits of your materials—you turn a frustrating trial-and-error session into a repeatable manufacturing process. Master the inputs, and the output takes care of itself.

FAQ

• Q: Why does Hatch 2 show a “non-native / not Grade A or B EMB file” warning when importing a PES or DST stitch file for an ITH mug rug?
  A: This is a status warning (not a crash); treat the PES/DST as a “baked” stitch file and avoid resizing beyond ±10%.
  • Keep the imported PES/DST design at 100% original size when possible.
  • Build the ITH structure (placement, tack-down, seam circles) around the design instead of forcing the design to fit the hoop.
  • Use an EMB (native) file only when true resizing with density recalculation is required.
  • Success check: The central design stitches without gaps (too large) or cardboard-dense stiffness/needle stress (too small).
  • If it still fails: Choose a different design that fits the hoop at 100% scale rather than scaling the stitch file.
• Q: How do I stop the “traveling hoop” effect in Hatch 2 when digitizing an ITH circle for a Brother Entrepreneur PR1000 5x7 hoop?
  A: Set the hoop positioning to Manual and lock the hoop to coordinates (0,0) so the hoop view stays static.
  • Right-click the hoop icon and change Positioning to Manual.
  • Set the hoop coordinates to (0,0).
  • Center the design using alignment tools so X=0 and Y=0 are truly centered.
  • Success check: The hoop boundary no longer jumps around when selecting objects in the Sequence Docker.
  • If it still fails: Re-confirm the machine is set to Brother Entrepreneur PR1000 and the hoop is set to 5x7 so the correct boundary is active.
• Q: How do I prevent Hatch 2 from merging ITH placement and tack-down steps when reordering colors in the Sequence Docker?
  A: Use an “outrageous” temporary color on the object before moving it, so Hatch does not auto-merge same-color blocks and remove your stop.
  • Undo the move if objects already merged.
  • Change the object color to a unique, unused color (temporary “outrageous color”).
  • Move/reorder the object in the Sequence Docker, then change it back to the intended color (avoiding matching neighbors if you need separate stops).
  • Success check: Placement and tack-down remain separate color blocks so the machine stops where fabric/batting must be added.
  • If it still fails: Keep the placement line and tack-down line as intentionally different colors even if the thread color is the same in real life.
• Q: What is the correct stop-and-structure sequence in Hatch 2 for an ITH circular mug rug (placement, tack-down, decoration, final seam) to avoid shifting and weak seams?
  A: Use color changes to force stops, and apply backtrack to the tack-down and final seam for strength.
  • Digitize a circle outline (single run) for the Placement line on stabilizer.
  • Copy/paste the circle, change to a different color to force a stop, and enable Backtrack for the Tack-down line.
  • Add a decorative Motif Run circle slightly inside the tack-down line to cover raw edges.
  • Add the final seam circle last, inset about 2–3 mm inside the decorative border, and enable Backtrack again.
  • Success check: You hear the “thump-thump” rhythm on backtracked steps and the turned project does not pop stitches or reveal construction stitches.
  • If it still fails: Move the final seam inward 1–2 mm if stitches show, or re-check that the tack-down is inside the hoop safety boundary.
• Q: How tight should fabric be hooped for ITH embroidery on a Brother Entrepreneur PR1000, and what bobbin-thread appearance indicates correct tension during stitch-out?
  A: Hoop the fabric “drum-tight,” and aim for bobbin thread showing about 1/3 width on the back during decorative stitching.
  • Tap the hooped fabric and confirm it feels and sounds drum-like (not spongy).
  • Watch Stitch 1 (Placement) to confirm the design is centered before adding batting/fabric.
  • During decoration, check the back: bobbin thread should show roughly 1/3 of the stitch width, not dominating the back.
  • Success check: The placement line lands centered and the decorative stitching forms clean coverage without looping or excessive bobbin pull-through.
  • If it still fails: Re-hoop to remove slack (especially near hoop edges) and confirm the design stays inside the red safety lines.
• Q: What tools and consumables are a safe starting checklist for ITH mug rug stitch-outs (batting control and trimming) on a Brother PR1000 workflow?
  A: Prepare light temporary spray adhesive (or tape) and double-curved appliqué scissors before sewing to prevent shifting and accidental thread cuts.
  • Spray a light mist of temporary adhesive on batting (or use tape) before running the tack-down step.
  • Trim batting close to the tack-down line using double-curved appliqué scissors, avoiding the stitches.
  • Tape envelope-back corners/edges down before the final seam so the presser foot does not catch fabric.
  • Success check: Batting does not creep during decoration, and trimming removes excess without snipping the tack-down threads.
  • If it still fails: Reduce handling between stops and confirm the tack-down line is backtracked for extra holding power.
• Q: What safety rules should be followed when resuming a Brother Entrepreneur PR1000 during ITH stops and when handling magnetic embroidery hoops for thick ITH “sandwich” stacks?
  A: Keep hands away from the needle area before pressing Start, and handle magnetic hoops by sliding magnets apart to avoid pinches and magnetic hazards.
  • Build a “Hands Off, Then Sew” habit: place fabric/batting, remove hands fully, then press Start.
  • Never smooth fabric with fingers near the needle bar while reaching for the Start button.
  • For magnetic hoops, slide magnets apart instead of prying upward; keep magnets away from pacemakers, credit cards, and hard drives.
  • Success check: No near-misses with the needle area during restarts, and no finger pinches when setting magnets.
  • If it still fails: Slow down the stop-to-start routine and consider using tape/adhesive to reduce the need for last-second fabric adjustments near the needle.
