Digitize a Van Gogh Skeleton Head with Just a Mouse (and Stitch It Clean on a Magnetic Hoop)

It is a common misconception that to digitize embroidery, you must be a classically trained artist with a high-end Wacom tablet. The reality of the industry is quite different. Some of the most striking, profitable designs—specifically “sketch style” embroidery—are created using nothing more than a standard mouse, a keyboard, and a deep understanding of stitch physics.

This guide deconstructs the workflow of digitizing a Van Gogh-inspired design live. However, we are not just following a tutorial; we are extracting the reproducible industrial logic behind it. We will cover how to disable the software automation that fights your style, how to resequence for physical stability, and when to upgrade your hardware from standard hoops to magnetic systems for consistency.

The “Don’t Panic” Primer: Why Sketch Style is Your Best Starting Point

Sketch-style embroidery is the "jazz" of the digitizing world. Unlike corporate logos, which punish you for being 0.1mm off-center (resulting in visible gaps), sketch embroidery thrives on imperfection.

In this workflow, we focus on suggesting form rather than tracing rigid lines. If you are coming from a graphic design background, you must unlearn the vector mindset. In embroidery:

• Vectors are math. They have zero thickness.
• Stitches are physical. They have texture, pull, and push.

This style allows you to “miss” a line by a millimeter, and it simply looks like artistic flair. It is the perfect training ground for developing your "digitizer's eye."

Phase 1: The “Hidden” Prep That Saves Production Time

Before you place a single node, you must define your physical constraints. A design digitized for a 4-inch patch will fail catastrophically if validated only on a screen and then sewn at 2 inches.

The Strategy: Define "Done" Before You Start

1. Size Matters: The source workflow sets the design height to 4 inches (approx. 100mm). This fits comfortably in a standard 4x4 or 5x7 hoop.
2. Width: Approximately 3.03 inches.
3. Palette: Limited to three "story colors"—Black (Structure), White (Highlights), Light Brown/Cream (Texture).

Expert Insight: Sketch designs are density-light but stitch-heavy. If you treat them like standard satin fills, your stitch count will balloon, causing "bulletproof" patches that are stiff and uncomfortable. Keep it light.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Hoop Field Confirmation: Have you verified your artwork fits within your machine’s actual sewing field (not just the physical hoop size)?
• Visual Clarity: Can you zoom in to 400% on the artwork without it turning into pixelated mush? If not, sharpen the image first.
• Thread Plan: Have you selected specific thread weights? (Standard 40wt is assumed here).
• Garment Contrast: The video demonstrates stitching on black fabric. Sketch style relies on the negative space (the fabric showing through). Ensure your fabric color contrasts with your thread choices.

Phase 2: Software Setup – Turning Off the Safety Rails

To digitize like an artist, you must fight the software’s urge to be an engineer. Standard software settings are designed to make perfect, uniform columns. We want the opposite.

Step 1: Import and Anchor

Load your artwork and immediately resize the backdrop to 4 inches height.

• Why: If you digitize at a random scale and resize later, your stitch densities and shortening values will distort. Digitize at 1:1 scale (100%).


Step 2: Disable "Helpful" Automation

In your software’s global configuration or object properties:

1. Snap to Anchors/Grid: OFF. You need freehand control to place points where the art needs them, not where the math wants them.
2. Auto-Underlay / Recipes: OFF. Standard "recipes" will add edge-run and zig-zag underlay, which creates too much bulk for a sketch design. You want to manually control every stitch layer.

Warning: Disabling "recipes" means you are flying without a net. You are now 100% responsible for pull compensation. If you create a dense satin column without underlay, the fabric will pucker. For sketch lines (1mm width), this is acceptable. For bold lettering, it is not.

Step 3: The Single-Needle Sanity Saver (Auto Trim)

This is the most critical technical setting for home-based embroiderers.

• Default Setting: Auto Trim usually triggers at jumps > 3mm.
• Optimized Setting: Change Auto Trim to 10mm.

The Logic: On a commercial multi-needle machine, a trim takes 5-8 seconds. On a single-needle home machine, a trim involves stopping, cutting, and restarting—a workflow killer. By increasing the trim distance, you force the machine to leave a "jump stitch" between close objects. You can snip these manually later, but the machine keeps its rhythm.

This setting creates the smooth flow required to make utilizing tools like a how to use magnetic embroidery hoop feel truly efficient, as you aren't constantly stopping to trim threads on a perfectly hooped garment.

Phase 3: The Digitizing Workflow (Mouse as Brush)

Speed in digitizing comes from rhythm, not rushing. The workflow uses a specific toolset mapped to hotkeys for fluid switching.

The Toolset

• Run Stitch (Hotkey 1): For travel and fine sketched lines.
• Classic Satin (Hotkey 2): For lines with varying thickness.


Step 1: Black Outlines (The Skeleton)

Unlike traditional layering (background -> foreground), sketch style often starts or prioritizes the defining lines to establish the shape.

• Settings: Classic Satin, Width = 1mm.
• The Rhythm:
  • Left Click: Places a straight point (sharp corner).
  • Right Click: Places a curve point (smooth arc).
  • Enter: Completes the segment.

Sensory Anchor: When digitizing satin columns, imagine you are drawing a ladder. You click on the left rail, then the right rail. The angle of your clicks determines the angle of the "rungs" (stitches). Trust your hand—hesitation creates jagged geometry.

Step 2: Smart Joins

The goal is continuous sewing. Use "Smart Join" or manually start your next object exactly where the previous one ended.

• Observation: Connect outlines with a Run stitch that travels underneath where a future fill will go, or along a path that blends in.
• Production value: Every connection you make saves a trim.


Phase 4: Highlights and The "Scary" Red Line

White Highlights (The Soul)

After the skeleton, add the white highlights.

• Technique: Switch between Run and Satin. Look for the "shine" on the artwork.
• Mental Mode: "Doodle." Randomness here reads as organic texture. Do not create perfect circles; create dashes and scratches.


Visual Artifacts: The Red Line Panic

In many software suites (like Wilcom), you may see a long red line shooting across your 3D preview.

• The Fear: "Is that a giant stitch that will ruin my shirt?"
• The Reality: No. It is a visual vector showing the machine where to move between colors.
• The Fix: Toggle "True View" (3D mode) off and on. If it disappears in stitch mode, it is not real.


Phase 5: The Base Layer & Material Physics

Here is where we create the background texture (the light brown/cream).

• Density: 0.8mm spacing (Note: Standard fill is often 0.4mm spacing. 0.8mm is much more open/sparse).
• Underlay: Sparse / None.

Why this works: We want the fabric to breathe. A heavy "carpet" of stitches (0.4mm) will pull the fabric and create the dreaded "bulletproof patch" effect. A 0.8mm density allows the garment to drape.

Material Interaction: If this design stitches onto a stretchy t-shirt:

1. The open density (0.8mm) puts less stress on the fabric.
2. However, the lack of underlay means the fabric must be stabilized perfectly. This is where your hoop choice makes or breaks the project.


Phase 6: Resequencing logic

You digitized in an order that made sense to your brain (Outlines -> Highlights -> Base). Now, reorder for the machine physics.

1. Base Fill (Bottom): Moves to start of sequence. Stitches first to glue fabric to stabilizer.
2. White Highlights (Middle): Sits on top of base, but under outlines.
3. Black Outlines (Top): Stitches last to clean up all edges.




Troubleshooting: The "Why is this happening?" Guide

Decision Tree: Stabilizer & Hoop Strategy

The video stitches on a black garment. Here is how to ensure your physical setup matches your digital file.

Step 1: Analyze Fabric

• Is it Stretchy (Tee/Polo)? -> You MUST use Cutaway stabilizer. Tearaway will lead to distorted outlines.
• Is it Stable (Denim/Canvas)? -> Tearaway is acceptable.

Step 2: Choose Hooping Method

• Standard Method: Inner ring + Outer ring.
  • Risk: "Hoop Burn" (shiny rings on dark fabric) and uneven tension causing puckering.

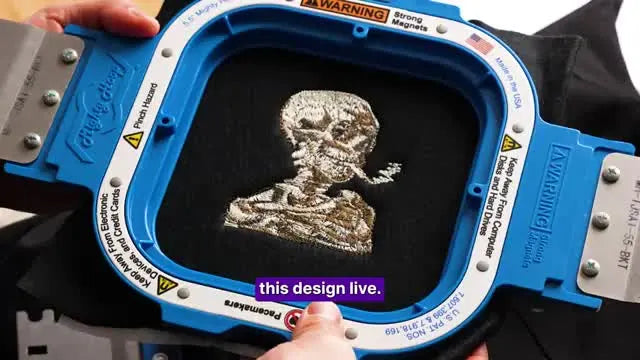

• Professional Method: Magnetic Hoops.
  • Benefit: The magnets clamp straight down. No friction burn, no tugal-o-war with the fabric.

For those battling "hoop burn" on delicate black fabrics, searching for terms like mighty hoops for brother usually leads to the realization that magnetic clamping is the industry standard for minimizing fabric damage.

The Commercial Pivot: From Hobby to Production

As you master this digitizing workflow, you will hit a hardware ceiling. It usually happens in two stages:

Stage 1: The Hooping Bottleneck

You have the file technique down, but hooping a shirt takes you 3 minutes, and you still get crooked results.

• The Fix: Magnetic Hoops.
• The Logic: If you are producing 10+ items, the time saved by a magnetic hooping station pays for the gear in a few weeks. It standardizes placement, reducing the "human error" variable.

Warning: Magnetic hoops contain powerful industrial magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep away from pacemakers and implanted devices.

Stage 2: The Needle Bottleneck

Ken (the presenter) references moving from a single-needle Brother SE600 to a multi-needle machine.

• The Trigger: You are spending more time changing thread colors than stitching.
• The Solution: A multi-needle machine (like the SEWTECH series).
• The ROI: You load all 3 colors (Black, White, Brown) once. The machine stitches the entire file non-stop.

For those running industrial equipment, upgrading to magnetic hoops for tajima embroidery machines or similar mighty hoop magnetic systems is the final step in closing the gap between "home studio" and "factory floor" efficiency.

Operation Checklist: Your First Test Stitch

• The "Scrap" Test: Always stitch on a scrap piece of fabric similar to your final garment first.
• Bobbin Check: Is your bobbin full? Running out in the middle of a sketch outline is a nightmare to repair invisible.
• Listen to the Machine: It should hum rhythmically. A rhythmic thump-thump usually indicates a dull needle punching the fabric rather than piercing it. Replace the needle (75/11 Ballpoint for knits).
• Back of Design: Inspect the back. It should clean, not a bird's nest. A "soft" feel on the back confirms your density (0.8mm) is correct.

Final Note

You do not need to be an artist to digitize art. You need a process. By turning off automation, controlling your densities, and respecting the physics of the hoop, you can turn a mouse-click sketch into a professional garment. Start with the settings above, trust the "imperfection," and let the thread do the work.

FAQ

• Q: On a Brother single-needle embroidery machine, how do I stop constant trimming when digitizing sketch-style embroidery (Auto Trim 3mm issue)?
  A: Increase the Auto Trim threshold to about 10mm so the machine runs continuously and you trim jump stitches by hand later.
  • Change Auto Trim from the typical ~3mm default to ~10mm in the machine/software settings you use for this file.
  • Accept short jump stitches between nearby objects to avoid stop-cut-restart cycles.
  • Save the setting as a template/preset for future sketch-style files.
  • Success check: the machine stops trimming every few seconds and stitches longer sequences without frequent pauses.
  • If it still fails: review the design for unnecessary breaks between objects and connect segments with smart joins/run-stitch travel where appropriate.
• Q: On a home embroidery machine, how do I fix bird’s nesting (thread loops on the bottom) during sketch-style run/satin stitching?
  A: Rethread the upper thread completely with the presser foot UP, because bird’s nesting is commonly caused by the top thread not seated in the tension system.
  • Stop the machine and cut away the nest safely, then remove the project if needed to clear the hook area.
  • Rethread from the spool path to the needle with presser foot UP to open the tension discs.
  • Check upper tension feel by pulling the thread: it should feel like flossing teeth (slight resistance), not free-spooling.
  • Success check: the underside shows controlled bobbin lines, not loose top-thread loops.
  • If it still fails: confirm the thread did not jump out of the tension disc again and re-check threading path step-by-step.
• Q: When sketch-style embroidery outlines do not line up on a black t-shirt (registration problems from fabric shifting/flagging), what is the fastest fix?
  A: Reduce fabric shifting by improving stabilization and hoop hold; adhesive spray or a magnetic hoop often solves flagging quickly.
  • Use cutaway stabilizer on stretchy tees/polos to prevent distortion (tearaway often causes shifting on knits).
  • Hoop the fabric taut like a drum skin but do not stretch the knit out of shape.
  • Add a light layer of adhesive spray to bond fabric to stabilizer before hooping.
  • Success check: black outlines land cleanly on top of the base/highlights instead of drifting or shadowing.
  • If it still fails: switch from a standard hoop to a magnetic hoop to clamp straight down and reduce movement during stitching.
• Q: In Wilcom-style embroidery software, why does a long red line appear across the 3D preview, and will it stitch onto the garment?
  A: Don’t panic—this red line is usually a travel indicator between color changes, not a real stitch on the garment.
  • Toggle True View (3D mode) off and on to refresh the preview.
  • Verify in stitch mode: if the line disappears in stitch mode, it is not a stitched element.
  • Keep resequencing logical (base first, then highlights, then outlines) so color transitions are predictable.
  • Success check: stitch simulation shows no giant stitch crossing the design area.
  • If it still fails: inspect color-change points and trim/jump settings to confirm the software is only showing a travel path.
• Q: For sketch-style embroidery on a stretch t-shirt, should I use cutaway stabilizer or tearaway stabilizer, and why does it affect outline distortion?
  A: Use cutaway stabilizer for stretchy tees/polos because it supports the fabric during and after stitching, helping outlines stay registered.
  • Choose cutaway for knits; reserve tearaway for stable fabrics like denim/canvas.
  • Keep sketch fills open (the workflow uses a sparse 0.8mm spacing) but compensate by stabilizing correctly.
  • Hoop evenly so the fabric is taut, not stretched, to avoid post-stitch rebound.
  • Success check: the design stays flat and the outlines align without rippling or warping after unhooping.
  • If it still fails: increase stabilization quality (better cutaway or firmer support method) and consider a magnetic hoop for more consistent clamping.
• Q: What needle safety checks should I follow on a Brother-style home embroidery machine when the machine makes a rhythmic “thump-thump” sound during stitching?
  A: Stop and replace the needle—rhythmic thumping commonly indicates a dull needle punching fabric instead of piercing cleanly.
  • Stop the machine before putting hands near the needle area and remove the hoop if needed.
  • Replace with a fresh needle appropriate for knits (a safe starting point is a 75/11 ballpoint for t-shirts).
  • Re-run a small test on scrap fabric similar to the final garment.
  • Success check: the machine returns to a smooth, steady hum and the fabric shows clean penetration without excessive noise.
  • If it still fails: re-check hooping/stabilizer and confirm there is no thread jam or bird’s nest in the hook area.
• Q: What magnetic hoop safety rules should I follow when using industrial-strength magnetic embroidery hoops for garment hooping?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical implants—powerful magnets can snap together suddenly.
  • Keep fingers out of the “snap zone” when placing the magnetic ring onto the hoop.
  • Place the hoop on a stable surface and lower magnets straight down to avoid sudden lateral pulls.
  • Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Success check: the hoop closes without finger pinches and the fabric is clamped evenly with no friction burn.
  • If it still fails: slow the handling process and reposition using controlled, straight-down placement instead of letting magnets slam into place.
• Q: For a home embroidery business producing 10+ garments, what is the step-by-step upgrade path to reduce hooping time and thread-change downtime (standard hoop vs magnetic hoop vs multi-needle machine)?
  A: Start by optimizing settings, then standardize hooping with magnetic hoops, and only then consider a multi-needle machine if thread changes are the real bottleneck.
  • Level 1 (Technique): increase Auto Trim distance (around 10mm) and use smart joins to reduce stop-start trimming.
  • Level 2 (Tool): switch from a standard hoop to a magnetic hoop to reduce hoop burn and improve repeatable placement.
  • Level 3 (Capacity): move from single-needle to a multi-needle machine when color changes take more time than stitching.
  • Success check: cycle time drops measurably (less time hooping, fewer interruptions, more consistent placement).
  • If it still fails: time each step (hooping vs trimming vs thread changes) to identify the true bottleneck before spending on the next upgrade.
