Digitize a Clean “G” Logo in Threads Embroidery Software—Then Stitch It Without Puckers or Weak Outlines

From Screen to Stitch: Mastering the Manual Logo Workflow in Threads Embroidery Software

When a logo looks "simple" on screen, it’s easy to underestimate the physical violence that happens inside your machine. A needle penetrates fabric 800 to 1,000 times a minute, pulling thread through fiber while the fabric tries to shrink and distort. If you digitize without respecting these forces, that "simple" logo will stitch out ugly—puckers in the fill, a wobbly satin edge, or an outline so thin it disappears from three feet away.

This Threads Embroidery Software lesson is a classic for a reason: it teaches a clean, manual workflow you can repeat on real garments. We’ll rebuild the exact sequence from the video—background foundation, fill, satin columns, then a triple-pass outline. But I am going to layer in the shop-floor habits—the sensory checks and safety margins—that keep the design stable when it hits actual fabric.

Threads Embroidery Software Workspace Setup: Make the Artwork Easy to Read Before You Place a Single Node

The fastest way to digitize poorly is to do it while squinting. Precision in embroidery isn't just aesthetic; it's mechanical. If you misplace a node by 1mm, that gap becomes a hole in your garment.

In the video, the instructor starts by:

• Pressing F11 to go full screen.
• Using a right mouse click to bring the image up / interact with it.
• Pressing I to invert colors so the artwork is easier to see against the workspace.

This isn't just "cosmetic." It’s accuracy insurance. When digitizing a fill, you need to see exactly where the graphical edge ends so your stitches extend slightly past it to account for the "pull" of the thread.

Pro tip (The 200% Rule): I recommend zooming in to at least 200-300% when placing nodes. If you can’t clearly see the boundary you’re digitizing, you will subconsciously overcompensate with extra points. Extra points become extra needles penetrations, and extra penetrations equal thread stress and fabric distortion.

The Foundation Nobody Wants to Do: Lockdown Stitch + Manual Underlay That Prevents Shifting

Think of your fabric like a loose bedsheet. If you try to paint on it, it moves. You need to pin it down first. The video begins the background by choosing Normal (a running stitch) and placing a lockdown stitch (a small star or triangle shape), then building a manual underlay using a loose zigzag motion inside the blue shape.

The instructor’s key note is gold: the underlay doesn’t have to be perfect—it just needs to stay strictly inside the shape and bind the garment to the stabilizer.

What you’re building (The Physics Explanation)

• Lockdown stitch: A tiny anchor (usually 3-4 small stitches) so the first thread movement doesn't pull out or "birdnest." Listen for the crisp sound of the needle catching; without this, your machine might trim immediately.
• Manual underlay: A low-density "grip layer." It creates friction between the fabric and the backing. By doing this manually (zig-zagging yourself) rather than using auto-underlay, you ensure no gap is left unsupported.


Warning: Mechanical Safety. Keep fingers, loose sleeves, and long hair away from the needle bar and take-up lever during test stitching. A clean digitized file can still break a needle if the garment shifts or if the hoop strikes the presser foot. Always trace your design boundaries before hitting start.

Prep Checklist (Do this BEFORE digitizing the fill)

• Visibility: Confirm the artwork is clearly visible (use F11 and I).
• Consumables: Have you selected the right needle? (Standard: 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
• Sequence: Decide stitch order: background first (push fabric out), then letter (center detail), then outline (clean up edges).
• Anchoring: Plan where your first lockdown stitch will sit so it won’t peek out from the finished design.
• Mindset: Commit to the rule: "Underlay binds the fabric; Top stitching paints the picture."

The Centerline Fill Method in Threads Embroidery Software: Fast, Clean Flow With Fewer Points

Next, the instructor switches to Fill and digitizes the background by clicking strictly down the center line of the blue shape using left mouse clicks.

This centerline method is distinct from outlining the whole shape. It allows the software to calculate the stitch angle perpendicular to your line.

1. It defines the shape path.
2. It generates the angle/flow of the fill automatically.

He also mentions he goes right over the white “G” area because it will be covered by later layers. This is crucial. Do not leave a hole for the "G." If you leave a hole, the fabric will relax in that gap, and your "G" will never line up. Stitch a solid background, then stitch the "G" on top.

You’ll see the software generate an orange wireframe connecting those center points.

Fill type shortcut you should memorize

The video shows using the 3 key to cycle fill types:

• Regular Fill (Tatami)
• Arc Fill
• New Fills
• Fill Hole

The Density Sweet Spot: For standard polyester thread (40wt), a standard fill density is usually around 0.40mm (or 4.0 points).

• Too loose (>0.50mm): Fabric shows through (the "screen door" effect).
• Too tight (<0.35mm): The fabric will stiffer ("bulletproof patch") and may pucker or cut.
• Recommendation: Stick to the software default or 0.40mm until you have run a test swatch.


Save and Resize Early: Why “35 Height” Before Details Prevents Pain Later

Before moving into the letter, the instructor:

• Saves the file as “G logo.”
• Sets the design Height to 35 (mm) in the properties bar.


This is one of those “intermediate” moves that separates calm digitizers from frustrated ones. Embroidery designs do not scale like vector graphics.

Why resizing early matters (The "Density Trap")

When you shrink a design after you have finished it, one of two things happens:

1. Stitch Count stays the same: The stitches get shoved closer together. A 0.40mm density becomes 0.20mm, and your needle acts like a saw blade, cutting a hole in your shirt.
2. Software Recalculates: You lose your carefully placed underlay spacing or outline logic.

The Fix: Always set your final dimensions immediately after roughing in the shape, before fine-tuning satin columns.

Satin Columns for the Letter “G”: Switching Arc Column vs Regular Column Without Breaking Rhythm

Now the instructor changes color to white, then repeats the same stability pattern:

1. Manual lockdown stitch.
2. Manual underlay (center run or edge run).
3. Satin stitching with the Column tool.


He uses the 2 key to cycle column types:

• Regular Column
• Arc Column
• New Column

And he switches depending on the geometry:

• Arc Column: For curved sections (top and bottom of the G).
• Regular Column: For straight/flat sections (the crossbar).




The “why” behind arc vs regular (Sensory check)

• Arc Columns: Allow the stitches to fan out slightly on the outside curve and bunch slightly on the inside. This creates a smooth, liquid light reflection.
• Regular Columns: Keep stitches parallel.
• The Check: Look at your screen. If the satin stitches look "twisted" or crisscrossed like a shoelace on a straight segment, you used the wrong column type. It should look like smooth combed hair.


Setup Checklist (Before you commit the satin letter)

• Layer Check: Confirm you’re on the correct color layer (the video switches to white).
• Underlay: Did you add a "Center Run" or "Edge Run" underlay for the satin? Satin stitches are long and loose; they need a rail to sit on.
• Toggle Tool: Use Arc Column on curves and Regular Column on flats (toggle with 2).
• Click Discipline: Keep your clicks deliberate—too many nodes create jagged satin edges.

The Triple-Pass Running Stitch Outline: The Old-School Trick That Makes Small Logos Readable

This is the part most people skip—and then wonder why their outline vanishes into the texture of a polo shirt.

In the video, the instructor selects a darker blue and uses Normal (running stitch) to build a bold outline by tracing the same path three times. This is effectively creating a manual "Bean Stitch."

Pass 1: Middle

He starts a running stitch right down the center of the outline.

Pass 2: Outside edge

He retraces the outline, clicking slightly toward the outside edge of the graphical line.

He explicitly notes you usually want outlines at least two times so they’re visible and thick enough.

Pass 3: Inside edge

He traces a third time, clicking closer to the inside edge, trying to keep it close to the points already laid down.

Why this works (Safety for your design)

A single run stitch is basically a human hair. On a piqué polo or fleece, it sinks into the valley of the fabric.

• Visual Logic: The three passes create a "rope" effect that sits on top of the texture.
• Correction Logic: As the instructor notes, this gives you a chance to correct the path. If Pass 1 was slightly wobbly, Pass 2 and Pass 3 can visually smooth it out. It is very forgiving for beginners.

The Two Problems the Video Calls Out (and How to Fix Them Before You Waste a Shirt)

The tutorial includes two practical troubleshooting points. I have expanded these into a structured diagnostic table because "try this" isn't enough when your machine is eating a $50 hoodie.

Troubleshooting: The "Why is this happening?" Table

My shop-floor add-on: What to check when it still puckers

Even with a good underlay, puckering often comes from the physics of the hoop:

• Fabric not hooped evenly (one side tighter than the other, creating a "wave").
• Stabilizer is too soft (Tearaway used on a Stretchy Knit = Disaster).
• Hoop Failure: Traditional two-ring hoops can slip on thick seams.

Stabilizer + Fabric Decision Tree: Choose Backing Like a Production Stitcher, Not a Gambler

Use this decision tree when you take this “G” logo from screen to garment.

1. Is the fabric stretchy? (T-shirt, Performance Polo, Knit)
   • YES: You MUST use Cutaway stabilizer. No exceptions. Knits stretch; Tearaway does not support them long-term.
   • NO: Go to Step 2.
2. Is the fabric stable? (Denim, Canvas, Twill)
   • YES: You can use Tearaway. It's cleaner on the back.
3. Is the fabric "fluffy" or textured? (Fleece, Towel, Velvet)
   • YES: You need a Water-Soluble Topping on top to keep stitches from sinking, AND a solid Cutaway on the bottom.

Hooping Reality Check: When Your Digitizing Is Fine but Your Hoop Setup Is the Real Problem

A clean file can still stitch poorly if hooping is inconsistent. If you’re fighting distinct issues like "football shaped" circles or outlines that are perfect on the left but off on the right, it is rarely the software. It is the hoop usage.

Common struggles include:

• Inability to hoop the same tension twice.
• Leaving "hoop burn" (crushed fibers) on delicate performance wear.
• Physical pain in wrists from tightening screws all day.

This is the point where many hobbyists get stuck, searching for hooping for embroidery machine tutorials, realizing that the variable isn't the computer—it's their hands.

A practical upgrade path (Logic, not hype)

• Level 1 (Technique): Use "spray adhesive" (temporary) to bond your stabilizer to the fabric before hooping. This prevents the "shifting sandwich" effect.
• Level 2 (Tooling): If you are doing bulky items or delicate fabrics, upgrading to a magnetic embroidery hoop system can solve the tension issue. Magnets clamp straight down, preventing the "drag" that causes burn marks.
• Level 3 (Volume): If you are running small business orders, consistency is money.

Warning: Magnet Safety. Magnetic frames are incredibly powerful to ensure they hold thick jackets. Keep them away from pacemakers, ICDs, and other implanted medical devices. Watch your fingers when snapping them shut—pinch injuries are real and painful.

Turning This “G” Logo Into a Repeatable Product: Speed, Consistency, and the Tools That Actually Pay Back

Once you can digitize a clean logo, the next bottleneck is repeatability—especially if you’re stitching left-chest placements on 20 team shirts.

If you are building a workflow around repeat orders, simply "eyeballing" the placement works for one shirt, but fails for ten. This is why professionals invest in a hooping station for embroidery.

Here’s the simple studio logic:

• A station ensures every logo is exactly 4 inches down from the collar.
• Consistency reduces rejects. (A ruined shirt costs more than the profit of 5 good ones).
• Fewer rejects protects profit more than "saving" a few minutes.

When evaluating a hooping station for machine embroidery, look for rigidity and standard size boards. And if you’re doing volume production, looking into hooping stations that allow you to prep the next garment while the machine is running is how you double your output without buying a second machine.

Operation Checklist: The “Before You Hit Start” Routine That Prevents Most Logo Disasters

• Stitch Order: Confirm: Background foundation → Fill → Satin letter → Triple-pass outline.
• Size Check: Verify the design height (Video set to 35mm). If you changed it, did you check the density?
• Bobbin Check: Do you have enough bobbin thread? (Sensory check: Look at the bobbin; if it's low, swap it now. Don't risk running out mid-satin column).
• Path Clearance: Rotate the handwheel or do a "Trace" function to ensure the needle won't hit the hoop frame.
• Test Sew: Always run on a scrap piece of similar fabric first.

The Final Look: Clean Layers, Bold Outline, and a File You Can Actually Trust

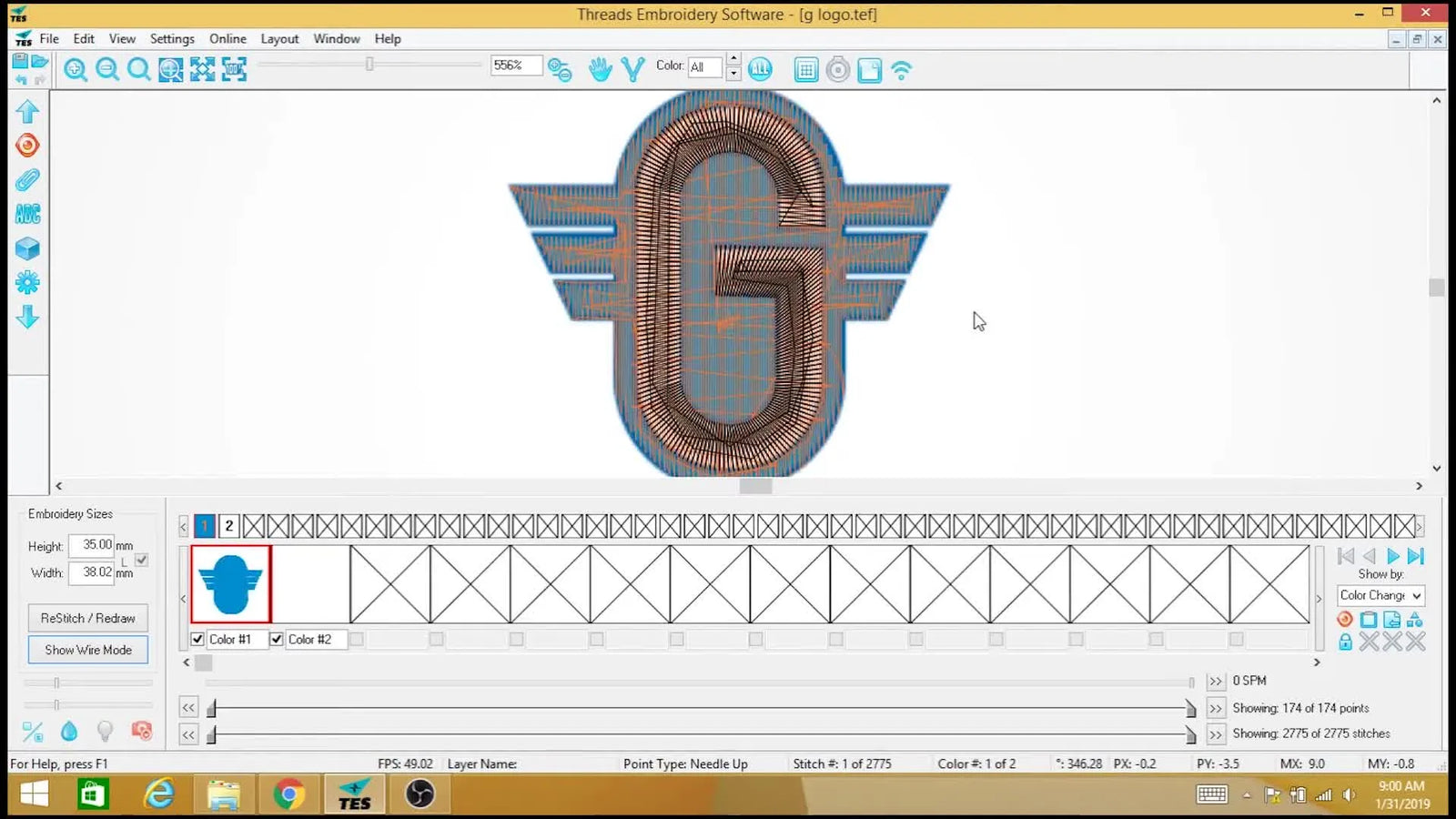

At the end of the video, the design is rendered cleanly with the background removed, showing the finished logo structure.

What you should take away

1. Underlay is structure: It is not optional. It is the concrete slab under your house.
2. Geometry matters: Use Arc Columns for curves to get that "liquid" satin look.
3. Thickness is insurance: A triple-pass running stitch outline ensures your logo is readable from a distance.

If you are scaling from hobby stitching to paid work, your next wins usually come from the physical side—better stabilization usage, learning how to use a how to use magnetic embroidery hoop for faster throughput, and trusting your test stitch data. Digitize with intent, hoop with precision, and the machine will do the rest.

FAQ

• Q: In Threads Embroidery Software, how do I stop fill puckering when digitizing a 35mm logo background with the Fill tool?
  A: Start with a lockdown stitch plus a manual zigzag underlay inside the shape before committing the fill; puckering usually means the fabric was not “bound” to the stabilizer.
  • Add: Place a small lockdown stitch first, then manually zigzag an underlay strictly inside the blue shape.
  • Keep: Use the centerline fill method (click down the center so the software generates clean flow).
  • Choose: Match stabilizer to fabric—stretchy knits generally need cutaway, not tearaway.
  • Success check: The fabric stays flat after the fill runs, with no ripples radiating out from the edges.
  • If it still fails: Re-check hooping evenness (one side tighter can create a wave) and consider heavier cutaway on the next test sew.
• Q: In Threads Embroidery Software, why does a single Normal running stitch outline look too thin on a piqué polo logo, and how do I make the outline readable?
  A: Use a triple-pass running stitch outline (middle pass, outside pass, inside pass) so the outline sits on top of textured fabric instead of sinking in.
  • Stitch: Trace the outline once down the center path.
  • Retrace: Run the same path again slightly to the outside edge.
  • Retrace: Run a third pass slightly to the inside edge to “rope” the outline.
  • Success check: From about three feet away, the outline reads as a bold line, not a hairline that disappears into the texture.
  • If it still fails: Add a water-soluble topping on top of the fabric to hold the outline up during stitching.
• Q: In Threads Embroidery Software, how do I choose Arc Column vs Regular Column so the satin letter “G” does not look twisted?
  A: Use Arc Column on curves and Regular Column on straight sections; twisted or crisscross “shoelace” stitches on a flat segment usually means the wrong column type was used.
  • Toggle: Cycle column types with the “2” key until Arc Column is active for curved top/bottom areas.
  • Switch: Use Regular Column for the straight crossbar/flat runs.
  • Support: Add a simple underlay for the satin (center run or edge run) before the top satin.
  • Success check: Satin stitches look like smooth combed hair—parallel on flats, smoothly fanned on curves.
  • If it still fails: Reduce extra nodes/clicks; too many points can create jagged satin edges even with the correct column type.
• Q: In Threads Embroidery Software, why is it risky to resize an embroidery design after digitizing, and what is the safer order for setting “Height 35mm”?
  A: Set the final design height early (such as 35mm) right after roughing in shapes; resizing later can compress density or force recalculation that breaks the underlay/outline behavior.
  • Save: Save the file early (example: “G logo”) before detail work.
  • Set: Enter the final Height value before building satin columns and outlines.
  • Test: Run a small test swatch after sizing to confirm fill density behaves normally.
  • Success check: The fill does not turn stiff or “bulletproof,” and the fabric does not pucker after stitching.
  • If it still fails: Return to the original size and rebuild details at the correct dimensions instead of scaling a finished file.
• Q: On a home embroidery machine, how do I stop birdnesting thread clumps under the throat plate during a logo stitch-out?
  A: Re-thread the machine with the presser foot UP first; birdnesting commonly comes from lost upper tension or missing the take-up lever path.
  • Re-thread: Completely re-thread the top path with presser foot up to open tension discs.
  • Clean: Remove lint and check the bobbin case area before restarting.
  • Verify: Confirm the first stitches are anchored (a small lockdown stitch helps prevent the start from pulling out).
  • Success check: The underside shows a controlled stitch formation—no sudden thread “piles” building under the needle plate.
  • If it still fails: Stop immediately and re-check the threading path again (especially take-up lever) before wasting another garment.
• Q: When stitching logos, how do I reduce hoop burn (shiny hoop rings) on performance fabric without losing stability?
  A: Hoop less aggressively (do not drum-tighten) and focus on even tension; hoop burn is often fiber crush from over-tightening and friction.
  • Loosen: Back off the hoop screw slightly and avoid pulling fabric like a drum.
  • Even out: Hoop the fabric so tension feels uniform on all sides (avoid one-side-tight “wave” hooping).
  • Bond: Use temporary spray adhesive to bond stabilizer to fabric before hooping to reduce shifting.
  • Success check: After unhooping, the fabric surface rebounds with minimal shiny ring and the design stays registered.
  • If it still fails: Consider moving to a magnetic embroidery hoop system for straighter clamping pressure and less friction on delicate fabrics.
• Q: What safety steps should operators follow to prevent needle strikes, finger injuries, and pinch hazards when running an embroidery machine and using magnetic embroidery hoops?
  A: Keep hands and loose items away from moving parts, trace boundaries before stitching, and treat magnetic frames as powerful pinch hazards.
  • Keep clear: Keep fingers, sleeves, and hair away from the needle bar and take-up lever during test stitches.
  • Trace: Use a trace/boundary check (or carefully rotate the handwheel) to confirm the needle path will not hit the hoop/frame.
  • Handle magnets: Close magnetic hoops slowly and deliberately; keep fingers out of the clamp zone to avoid pinch injuries.
  • Success check: The machine completes the boundary trace without contacting the hoop, and hands never enter the motion zone during operation.
  • If it still fails: Stop the machine and re-position the hoop/design—do not “power through” a suspected strike risk.
