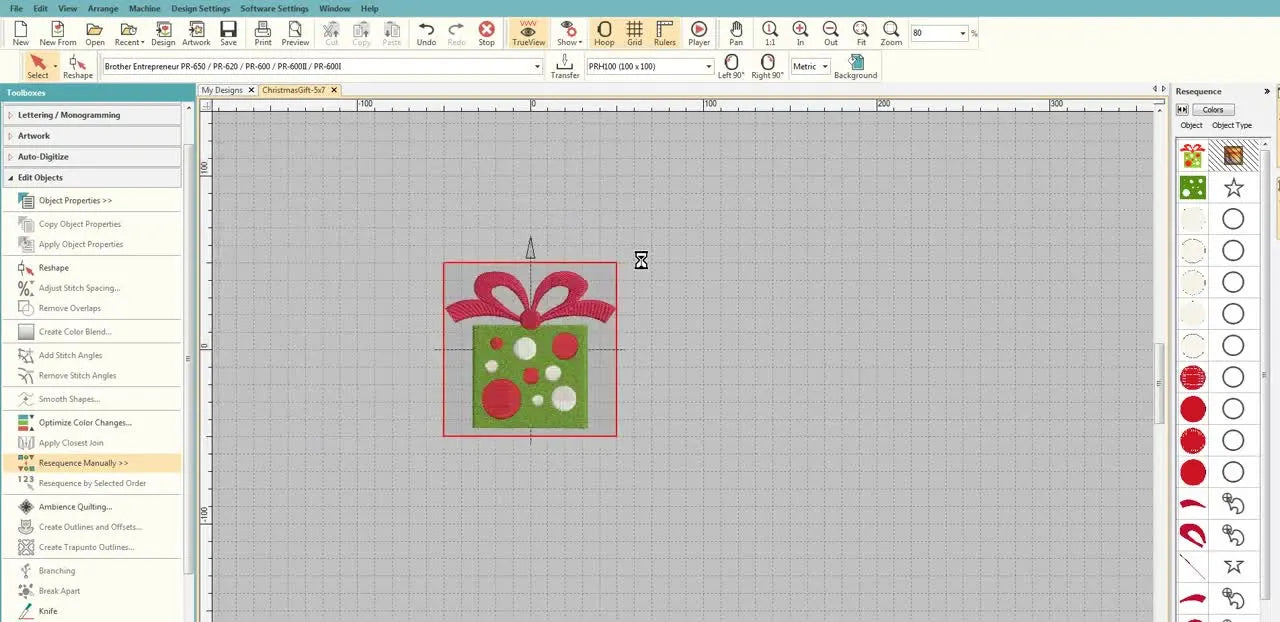

Digitize a Christmas Gift Box in Hatch: Clean Polka Dots, Flowing Stitch Angles, and Exports That Actually Fit a 4x4 Hoop

Mastering the "Brick": How to Digitize Dense Clip Art Without Ruining Your Fabric

You’re not alone if you’ve ever looked at a “cute” clip-art gift box and felt a specific kind of anxiety: This is going to stitch like a brick.

We have all been there. You see a solid square background, polka dots stacked on top, and a bow sitting on top of that. In the world of print, layers are free. In machinery embroidery, layers are mass. If you digitize this blindly, you end up with "bullet-proof" embroidery—a stiff, cardboard-like patch that causes needle deflection, breaks thread, and ruins the drape of a good sweatshirt.

In this guide, based on a classic Hatch Embroidery workflow, we are going to dismantle a Christmas present design and rebuild it not as a picture, but as a engineered structure. We will cover clean shapes, controlled bulk, and the crucial "Swiss Cheese" technique that pros use to keep designs soft.

Start Calm: The Difference Between "Tracing" and "Translating"

The video demonstrates a solid approach: treating clip art as a guide, not a rulebook.

One cognitive shift that will save you hours of frustration: Stop thinking about "tracing." Start thinking about translating. You are translating pixels (light) into thread (physical substance). Thread has thickness (loft) and pull.

If you keep this physical reality in your head from the first click, you’ll avoid the two mistakes that plague 90% of intermediate digitizers:

1. Overbuilding Density: Creating a thread sandwich so thick the machine sounds like a jackhammer (a rhythmic thump-thump sound is a warning sign).
2. Fighting the Grain: ignoring stitch angles, resulting in flat, lifeless fills that look like stickers rather than textiles.


The Hidden Prep: "Bulk Forecasting" Before You Click

Before you digitize a single node, you need to perform a "Bulk Forecast." This is the mental step where you look at the art and identify where the needle will struggle.

The 60-Second Diagnosis

Look at your artwork.

• The Base: A large green square (Layer 1).
• The Decor: Polka dots (Layer 2).
• The Detail: A Ribbon and Bow (Layer 3).

If you stitch this raw, the center where the bow meets the dot meets the box will be 3-4 layers deep. On a standard 40wt thread, that is asking for a broken needle.

The Strategy: We must use "Hole Punching" (removing overlaps) to ensure the dots sit inside the background, not on top of it.

The Equipment Reality Check: Heavy fills like this generate "Push/Pull" physics—the fabric wants to shrink in the direction of the stitches. If your hooping technique is weak, the square box will turn into a trapezoid. This is often where beginners blame the software, but the culprit is usually physical slippage. Professional shops use a hooping station for machine embroidery to ensure the fabric is perfectly square and tensioned before it ever hits the machine.

Pre-Digitizing Checklist

• Scale Import: Is the clip art roughly the size you want the final patch (e.g., 4 inches)? Resizing later distorts density.
• Layer Plan: Identify which elements are background (Green Box) vs. foreground (Bow).
• Color Contrast: Change the background fill color effectively (Donna uses green) so you can distinguish it from the artwork.
• Save As: Save your working .EMB file immediately.


Step 1: Laying the Foundation (Digitize Closed Shape)

Donna starts by tracing the square gift box. She uses the Digitize Closed Shape tool with a Tatami Fill.

The Action

1. Select Digitize Closed Shape.
2. Ensure Fill is selected (not Outline).
3. Click the four coiners of the box. Left-clicks create sharp corners; Right-clicks create curves. Since this is a box, use Left-clicks.
4. Apply the Green color.

The Sensory Check

Visually, this should look like a flat mat. If you see gaps or "sharks teeth" (jagged edges) on your screen simulation, your node placement might be slightly off.

Step 2: The Logic of Polka Dots (and the Hatch Radius Trap)

Donna moves to the polka dots. She hides the background object to see the artwork clearly—a standard best practice.

The "Hatch Radius" Trap

There is a specific quirk in Hatch that trips up new users. When you use the Circle/Oval Tool, you define the shape by dragging from the center out.

• The Trap: You try to drag across the whole width of the dot.
• The Result: You get a giant circle twice the size you wanted.
• The Fix: Drag only half the width (the radius).

Action Steps

1. Select Circle/Oval Tool.
2. Click in the exact center of a dot on the artwork.
3. Drag outward to the edge.
4. Release.
5. Repeat for all dots.

Note on Efficiency: In a production environment, we would digitize one dot, perfect its density, and then copy/paste. However, manual placement gives a more organic, "hand-wrapped" look suitable for this design.

Step 3: The "Swiss Cheese" Test (Remove Overlaps)

This is the most critical safety step in the entire tutorial. We are going to cut holes in the green background so the white dots sit flush.

Why We Do This (The Physics)

If you skip this, your machine has to force the needle through the stabilizer, the fabric, the green thread, and then the white thread. This causes:

• Needle Deflection: The needle hits the green thread and slides off, leading to crooked dots.
• Bird Nests: The bobbin tension goes haywire due to the thickness.
• Hoop Burn: The sheer density forces the fabric to ripple.

The Fix

1. Unhide the Green Background.
2. Select all the white dot objects (Ctrl+Click or drag select).
3. Click Remove Overlaps in the toolbar.
4. Verification: Hide the white dots. Does your green background look like Swiss Cheese? If yes, you are safe.

Pro-Tip on Stability: Even with overlaps removed, a fill-heavy design puts massive stress on your fabric. If you notice your fabric "creeping" or puckering around the edges of the box, standard hoop rings might be slipping. Many frequent embroiderers switch to embroidery hoops magnetic because the flat, strong clamping force prevents the fabric from shifting while the machine hammers out these thousands of stitches.

Step 4: Controlling Stitch Direction

Donna briefly reshapes the green background. She isn't just checking the shape; she is checking the Stitch Angle.

Standard Tatami fills usually default to a 45-degree or horizontal angle.

• Visual Check: Zoom in. Do the stitch lines run in a way that supports the shape?
• Reshape: Click the Reshape tool. You can move the start (Green Diamond) and End (Red Cross) points.
• Safety Rule: Try to start and end the design in areas that are not right on the edge, to prevent unravelling if the lock-stitches fail.

Warning: Physical Safety
When resizing or moving the pantograph (the arm that moves the hoop), keep your hands clear. If you are using a magnetic hoop, be aware that the magnets are incredibly strong. They can pinch fingers severely. Never place magnetic hoops near pacemakers or sensitive medical electronics.

Step 5: The Bow (Complex Shaping)

Now for the detail work. The bow is not a simple shape; it twists and turns.

The "Click" Rhythm

Mastering the Digitize Closed Shape tool is about rhythm:

• Left Click: Sharp point (corners of the ribbon).
• Right Click: Curve point (the loop of the bow).

If you get lost, listen to your internal metronome: Left (corner), Right (curve), Right (curve), Left (corner).

The "Spaghetti Node" Frustration

If you try to close the shape and it won't close, or you can't reshape it because there are 50 yellow squares on the screen, you have "node crowding."

• The Fix: Zoom in to 400% or 600%. You will likely see the start and end points overlapping. Move one slightly to see the other.




Step 6: Texture Engineering (Tatami Patterns)

Donna adds a knot (circle) to the center, then does something brilliant: she changes the Tatami Patterns.

Why Not Just Use Satin?

For a small bow, Satin stitch is fine. But for a 4-inch or 5-inch design, a Satin stitch across the bow might be 10mm or 12mm long.

• The Risk: Long satin stitches snag on zippers and washing machines (we call them "pickers").
• The Solution: Texture fills.

Donna uses patterns 12, 14, and 33 in the Object Properties. This does two things:

1. Durability: Shorter stitch lengths resist snagging.
2. Visual Separation: By using Pattern 12 on the left loop and Pattern 33 on the right loop, the light catches them differently. They look like separate pieces of fabric, not one red blob.




Step 7: Flow Dynamics (Add Stitch Angles)

Texture is good; flow is better. A real ribbon curves. If your stitches run in straight horizontal lines, the bow looks like cardboard.

The "Add Stitch Angles" Tool

1. Select the Bow Loop.
2. Click Add Stitch Angles.
3. Draw lines that cut across the ribbon, perpendicular to the edges (like rungs on a ladder).
4. Press Enter.

The Result: The stitches now fan out, following the curve of the bow. This is the difference between "Homemade" and "Boutique."

Physical Benefit: Curved stitches distribute tension more evenly. Straight stitches pull the fabric in one direction, causing distortion. If you are fighting distortion on slippery fabrics (like satin or performance wear), combining curved stitch angles with a high-grip magnetic embroidery hoop usually eliminates the "puckering" effect creates by unidirectional tension.

Step 8: The "Naked" Review

Donna hides the artwork. This is mandatory. You must judge the embroidery on its own merits, without the "crutch" of the pretty clip art underneath.

Setup Checklist (Pre-Export)

• Hole Check: Are the dots punching through the green box?
• Flow Check: Do the bow stitches curve naturally?
• Pattern Check: Did you vary the Tatami patterns (12, 14, 33) so the bow parts look distinct?
• Node Cleanup: Zoom in and delete any stray nodes that might cause a "fish tail" or stray stitch.


Step 9: Exporting and the "20% Rule"

Donna exports for a 4x4 hoop (98mm), a 3-inch size, and a 2-inch size.

The "20% Rule" Warning

Software is great at resizing, but physics is stubborn.

• Shrinking: If you shrink a design by more than 20% without adjusting density, the stitches crowd together. A 0.40mm spacing becomes 0.32mm. This creates a hard, bullet-proof feel. Always stitch-test the smallest version (50mm).
• Expanding: If you expand too much, fills become loose and gap-toothed.

When exporting, ensure you select the hoop that actually fits your machine. It is common for beginners to buy accessories online only to find they don't fit the attachment arm. Whether you are buying a replacement standard hoop or a speciality hoop for brother embroidery machine, always check your specific machine model compatibility first.

Decision Tree: Fabric, Stabilization, and Tools

This design is heavy. Your choice of fabric dictates your setup.

(A) The Guest Towel (Terry Cloth)

• Risk: Loops poking through stitches.
• Stabilizer: Heavy Tear-away or Cut-away.
• Topping: Needs a water-soluble topping (Solvy) to keep stitches floating.
• Hooping: High Friction. A magnetic hoop is ideal here to clamp the thick towel without crushing the pile excessively.

(B) The Sweatshirt (Fleece/Knit)

• Risk: Stretching and distortion (The "Trapezoid Box").
• Stabilizer: Mesh Cut-away (No Show Mesh).
• Hooping: Do not stretch the fabric. Lay it neutral.
• Adhesive: Use a light spray adhesive (like 505) to bond the fleece to the stabilizer.

(C) The T-Shirt (Jersey Knit)

• Risk: Bullet-proof patch feeling; hole cutting.
• Verdict: This design is likely too dense for a thin T-shirt unless you scale it down or reduce density significantly.

Troubleshooting Guide: From Symptoms to Solutions

Moving from "One-Off" to Production

You successfully digitized one gift box. Now, what if you get an order for 50 sweatshirts?

This is where the hobby workflow breaks down.

• The RSI Factor: screwing and unscrewing standard hoops 50 times hurts your wrists.
• The Time Factor: Standard hoops take 2-3 minutes to perfect.
• The Thread Factor: Single-needle machines require manual thread changes for every color stop.

If you find yourself moving into bulk orders, the industry upgrade path usually looks like this:

1. Level 1 (Tooling): Upgrade to magnetic hoops for embroidery machines. They snap shut in seconds, reducing hooping time by 60% and saving your wrists.
2. Level 2 (Machinery): If you are doing designs like this (3+ colors) repeatedly, a multi-needle machine becomes a necessity, not a luxury. It handles the color swaps automatically while you hoop the next garment.

Hidden Consumables List (Don't start without these)

• Spray Adhesive (e.g., 505): Essential for preventing the "bubble" in the middle of the fill.
• Appliqué Scissors: For trimming threads cleanly.
• Spare Needles: Heavy fills will dull needles. Change them every 8 hours of stitching.
• Precision Tweezers: For grabbing that tiny bobbin thread tail.

Final Operation Checklist:

• Bobbin is full (don't run out in the middle of the green box!).
• Needle is fresh and sharp.
• Stabilizer matches the fabric weight.
• Design has been checked for overlaps (Swiss Cheese test passed).
• Hoop is clear of the machine arm path.

Now, hit the green button. Watch the first layer lay down. If you hear a smooth hum, you’ve done your job right. Good luck.

FAQ

• Q: In Hatch Embroidery, how do I digitize dense clip art polka dots without creating a “brick” design that breaks needles?
  A: Use a bulk-forecast layer plan and remove overlaps so the dots sit inside the background instead of stacking on top.
  • Identify layers before digitizing: base fill (box), dots, then bow detail.
  • Digitize the background as a closed shape with Tatami fill first, then create the dot objects.
  • Run Remove Overlaps using the dot objects against the background.
  • Success check: hide the dot objects and the background should look like “Swiss cheese” holes where dots will stitch.
  • If it still fails: re-check for accidental triple-layers where the bow, dot, and box meet, and simplify those intersections.
• Q: In Hatch Embroidery Circle/Oval Tool, why do my polka dots come out twice the size (the “Hatch radius trap”)?
  A: The Circle/Oval Tool is drawn from the center to the edge, so dragging the full width makes a circle about 2× too large.
  • Click the exact center of the dot in the artwork.
  • Drag outward only to the edge of the dot (radius), then release.
  • Repeat, or perfect one dot first and then copy/paste for consistency.
  • Success check: the on-screen circle matches the artwork dot diameter without needing immediate resizing.
  • If it still fails: zoom in and confirm the first click is truly centered before dragging.
• Q: In Hatch Embroidery, how do I use Remove Overlaps to prevent needle deflection, bird nests, and hoop burn on fill-heavy designs?
  A: Run Remove Overlaps so the machine is not stitching white dots on top of a solid green fill layer.
  • Unhide the background fill object before running the command.
  • Select all dot objects, then click Remove Overlaps.
  • Hide the dot objects to verify the holes were cut in the background fill.
  • Success check: the background fill shows clean punched-out circles (no filled green under the dots).
  • If it still fails: confirm you selected the dot objects (not the background) and re-run the overlap removal, then stitch-test a small section.
• Q: On a multi-needle embroidery machine, what does a “thump-thump” sound during dense fill stitching mean, and what should I do first?
  A: A rhythmic “thump-thump” usually means the needle is striking too many thread layers, so reduce bulk and switch to a fresh, sharp needle.
  • Stop the run and inspect the design for accidental stacked layers (especially where multiple elements overlap).
  • Change to a new sharp needle (size 75/11 or 90/14 as used in the guide’s warning context).
  • Re-check that overlaps were removed before re-stitching.
  • Success check: the machine returns to a smooth, steady hum during the fill.
  • If it still fails: stitch-test at the smallest exported size you plan to run and adjust the design structure (reduce layering) before production.
• Q: On an embroidery machine, how do I fix a thread nest under the needle plate when stitching dense fills (upper thread “bird nesting”)?
  A: Re-thread correctly with the presser foot up and confirm overlaps were removed so the design is not forcing extra bulk.
  • Remove the tangled thread and re-thread the upper path with the presser foot UP.
  • Verify the design passed the “Swiss cheese” overlap-removal check.
  • Restart and watch the first minutes of stitching closely.
  • Success check: the underside shows controlled bobbin lines rather than a growing wad under the plate.
  • If it still fails: stop and reassess tension setup per the machine manual and re-check for unintended triple-layer areas in the file.
• Q: When stitch angles look flat in Hatch Embroidery Tatami fills, how do I reshape stitch direction so the bow looks like fabric, not a sticker?
  A: Use Reshape and Add Stitch Angles so stitches follow the bow’s curve instead of running in straight lines.
  • Select the bow fill object and apply a Tatami pattern change if needed for separation.
  • Use Add Stitch Angles and draw angle lines across the ribbon shape, then press Enter.
  • Use Reshape to adjust start/end points away from fragile edges when possible.
  • Success check: stitch simulation shows fanning/curving stitch flow that supports the bow shape visually.
  • If it still fails: hide the artwork and judge only the stitches, then redraw stitch-angle lines to better match the ribbon curve.
• Q: What safety rules should beginners follow when operating an embroidery machine with strong magnetic embroidery hoops?
  A: Keep hands clear of moving parts and treat magnetic hoops as pinch hazards; strong magnets can injure fingers and can be unsafe near certain medical devices.
  • Keep hands away from the hoop path when the pantograph/arm moves, especially after resizing or repositioning.
  • Close magnetic hoops deliberately and keep fingers out of the clamp zone to avoid pinching.
  • Do not place magnetic hoops near pacemakers or sensitive medical electronics.
  • Success check: hooping and running the design can be done without any hand contact near the moving hoop area.
  • If it still fails: pause the machine, re-position the hoop safely, and only resume when the hoop path is fully clear.
• Q: For production runs of 50 sweatshirts with a 3+ color dense fill design, when should an embroiderer upgrade from standard hoops to magnetic hoops or a multi-needle machine?
  A: Upgrade when hooping time, wrist strain, and manual color changes become the bottleneck—start with faster hooping, then scale the machine if orders keep coming.
  • Level 1 (technique): tighten the process—use proper stabilization, adhesive where appropriate, and verify overlap removal before every run.
  • Level 2 (tool): switch to magnetic hoops to reduce hooping time and reduce fabric shifting on heavy fills.
  • Level 3 (capacity): move to a multi-needle machine to eliminate repeated manual thread changes on multi-color designs.
  • Success check: hooping time drops noticeably and repeat garments stitch without trapezoid distortion or shifting.
  • If it still fails: audit the workflow step-by-step (hooping consistency, stabilizer choice, and design bulk) before blaming the machine.
