Digitize a “Bitten” Appliqué Bookmark in Embrilliance StitchArtist (and Stitch It Without Bulk or Hoop Burn)

Master Class: Designing a "Bitten" Bookmark in Embrilliance (From Digitizing to Production)

Writing a bookmark file looks deceptively simple—until you stitch one out. Because it is a long, narrow column of satin stitches, a bookmark is a stress test for your fabric, your stabilizer, and your patience. If the tension is wrong, it curls like a scroll. If the hooping is loose, the border misses the fabric edge entirely.

This guide takes a fun intermediate project—a "dog-bitten" bookmark—and breaks it down with the rigor of a production floor SOP (Standard Operating Procedure). We will cover the specific Boolean operations in Embrilliance StitchArtist, the physics of preventing "hoop burn," and the exact workflow to turn this from a one-off experiment into a repeatable product.

The "Simple Project" Trap: Why Bookmarks Fail

In professional embroidery, we have a rule: The smaller the object, the smaller the margin for error.

A bookmark relies entirely on its satin border for structural integrity. It seals the raw edges and prevents fraying. If your digitization or hooping is off by even 1mm, the satin stitch will fall off the fabric edge, leaving raw threads exposed.

This is why the "Prep Phase" is critical. You aren't just drawing a rectangle; you are engineering a structural frame.

The Production Bottleneck: Hoop Burn If you stitch this on a standard single-needle machine, you will likely encounter "hoop burn"—the stubborn ring marks left by tightening outer hoops to secure the fabric. On delicate bookmark materials like velvet or faux leather, these marks are permanent. This is the #1 trigger that pushes hobbyists toward magnetic embroidery hoops. If you find yourself ironing items for 20 minutes to remove ring marks, your tool is costing you money.

Part 1: Building the Structural Base

Step 1: The "Rectangle Vert" Strategy

Start by defining your canvas. We use the 5x7 hoop because it allows enough travel distance for the embroidery foot without hitting the frame.

1. Open a new file in Embrilliance Essentials.
2. Select the Design Outline Library icon.
3. Navigate to Shapes 1 > Rectangle Vert.
4. Click "Fit to Hoop": This maximizes the shape to your 5x7 (130x180mm) field.

Experience Calibration (The Sweet Spot): While "Fit to Hoop" works, professional digitizers often pull the edge in by 5mm on all sides.

• Why? Getting too close to the plastic hoop edge causes "flagging" (fabric bouncing), which ruins registration. Give your embroidery foot room to breathe.


Prep Checklist: The "Go/No-Go" Pre-Flight

• Hoop Size: Confirmed 5x7 (130x180mm) or similar.
• Safety Margin: Ensure the rectangle is at least 10mm away from the inner plastic edge of the hoop.
• Anchor Object: Have you saved the file before applying Boolean cuts? (e.g., Project_Base_v1.BE).
• Consumable Check: Do you have appliqué scissors (duckbill preferred) and temporary adhesive spray (like KK100 or 505)?

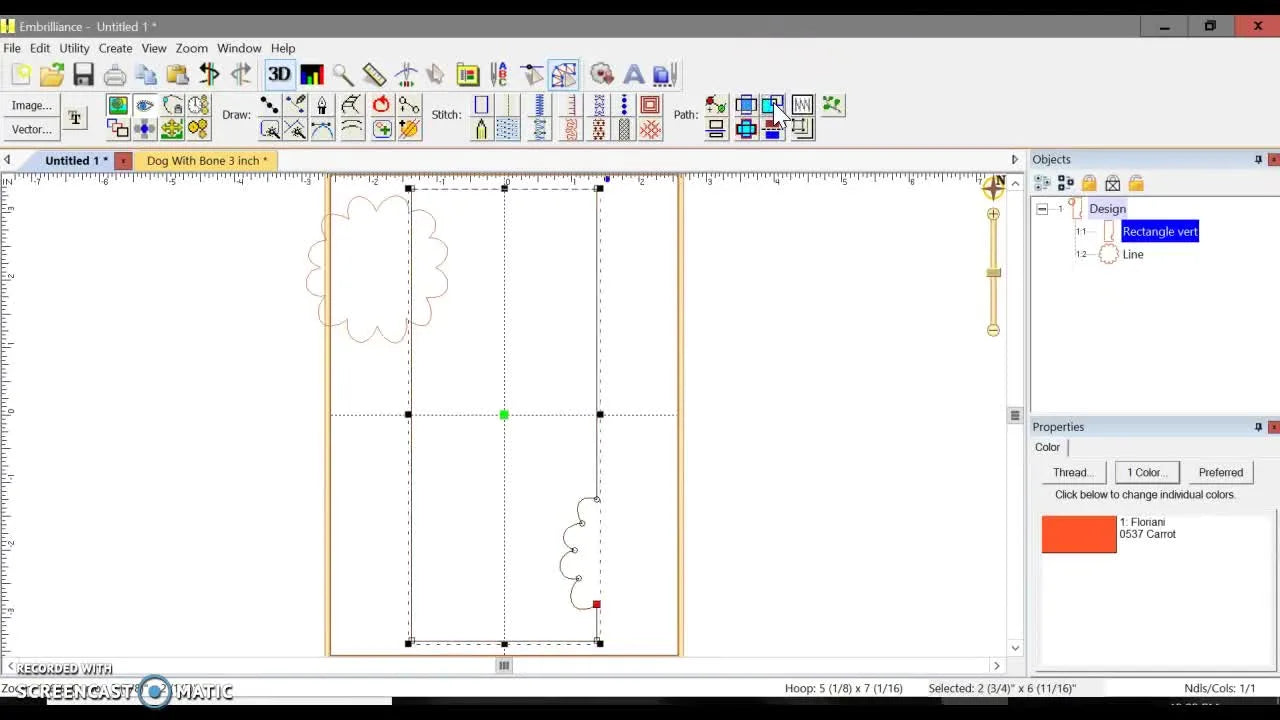

Part 2: Creating the "Bite" (Boolean Operations)

To simulate a dog taking a chunk out of the bookmark, we use a floral vector. We aren't stitching a flower; we are using its outline as a "cookie cutter."

1. Library Access: Go to Outlines > Floral > Floral 6.
2. Placement: Drag the floral shape so it overlaps the left vertical edge of the rectangle.
3. Duplication: Copy/Paste to create a second bite mark. Rotate slightly (5-10 degrees) so the bites don't look identical.
   • Visual Check: It should look like random chomp marks, not a stamped pattern.


Part 3: The "Subtract" Function (Critical Step)

This is where 80% of beginners fail. In Embrilliance StitchArtist, the Object Order dictates what gets cut and what stays.

The Golden Rule of Subtraction:

"The Cookie Dough sits below the Cookie Cutter."

1. Verify Order: Look at your Object Pane (usually on the right).
   • Bottom Layer: The Rectangle (The Dough).
   • Top Layer: The Floral Shape (The Cutter).
2. Select Both: Hold Ctrl (Win) or Cmd (Mac) and click both objects.
3. Execute: Click the Subtract button on the StitchArtist toolbar.

If the rectangle disappears and leaves the flower, your order was backwards. Undo and drag the rectangle to the bottom of the list.

Warning: Point of No Return
Boolean operations (Subtract, Union, Flatten) are destructive. Once you save and close, you cannot easily "uncut" the shape. Always keep a backup of your base rectangle file.

Part 4: Converting to Appliqué

Now that you have the "bitten" shape, turn it into stitches.

1. Appliqué Tool: With the bitten shape selected, click the Appliqué stash button.
2. Border Setting: Change the border from E-Stitch to Satin. A satin border provides the necessary structural finish.
3. Width Calibration:
   • Standard: 3.5mm is the industry standard for a safety margin.
   • Beginner: Bump it to 4.0mm. This wider satin column hides imperfect trimming (a common struggle for novices).
4. Activate "Material": In the properties panel, ensure "Position" and "Material" are checked. This tells the machine to stop so you can place your fabric.

Expert Insight: Do not check "Pre-cut" unless you own a laser cutter. You want the machine to stitch a placement line, stop, stitch a tack-down line, and stop again so you can trim by hand.

Setup Checklist: Avoiding the "Bulk" Trap

• Stitch Type: Confirm Satin Border (not E-Stitch/Blanket).
• Density: Set satin density to roughly 0.40mm. Too dense (e.g., 0.30mm) will cut your fabric; too loose (0.60mm) will show raw edges.
• Stop Commands: Verify the software has inserted "Color Changes" or "Appliqué Stops" so the machine actually pauses for you to work.
• Needle Check: Use a 75/11 Sharp needle. Ballpoint needles can deflect off stiff bookmark materials.

Part 5: Merging the Dog (Sanitizing the File)

The video demonstrates merging an existing dog appliqué design. However, stacking an appliqué on top of a bookmark appliqué creates a "bulletproof vest"—too thick to sew.

The "Clean Up" Protocol:

1. Merge the dog design onto the bookmark workspace.
2. Expand the dog's object tree.
3. Delete Process Stitches: Locate the dog's Placement Line and Tack Down stitches. Delete them.
4. Retain Visuals: Keep only the final Satin Border and the interior face details.

Why? You don't need a placement line for the dog because the dog is being stitched directly onto the fabric you already placed for the bookmark. This saves thread, time, and reduces needle deflection.

Part 6: Lettering with Personality

Add the text "This dog ate this!" using the Lettering Tool.

The "Kerning" Fix: Standard fonts often leave awkward gaps between letters like "A" and "T."

1. Click the center Green Handle on the text block to move the whole word.
2. Click the center Green Handle on a specific letter (the little diamond) to adjust kerning (spacing) or rotate that single character for a "jumbled" playful look.




Part 7: The Physical Reality (Stabilizer Decision Tree)

Digitizing is theory; stabilizer is reality. A bookmark is essentially an unsupported column. Your choice of stabilizer determines if the final product is flat or warped.

Use this Decision Tree to choose your backing:

1. Are you using a stiff base (Felt/Vinyl)?
   • Yes: Use Heavy Tearaway (2.5oz). Since the material supports itself, the backing is temporary.
2. Are you using Quilting Cotton?
   • Yes: You must use Cutaway (2.5oz). Cotton has no structural integrity against the pull of a satin stitch.
   • Tip: Use a temporary spray adhesive (KK100) to bond the cotton to the stabilizer for a "drum-tight" feel.
3. Is there fuzz (Velvet/Minky)?
   • Yes: Add a Water Soluble Topper (Solvy) to prevent the stitches from sinking into the pile.

Part 8: The Commercial Upgrade Path (From Frustration to Flow)

If you are making one bookmark, standard hooping is fine. If you are making 50 for a craft fair, traditional hoops become a liability.

The Pain Point: Tightening the screw on a standard hoop 50 times causes wrist fatigue (Carpal Tunnel risk) and often leaves "hoop burn" on nice faux leather, destroying the product.

The Solution Ladder:

1. Level 1 (Technique): Use "float" technique (hoop the stabilizer, spray glue the fabric on top) to avoid hoop marks.
2. Level 2 (Tool Upgrade): Switch to a hooping station for embroidery machine. This ensures every bookmark is perfectly straight, reducing rejects.
3. Level 3 (Speed & Safety): Upgrade to a magnetic hoop for brother (or your specific machine brand).
   • Why? Magnetic hoops clamp instantly without "unscrewing." They hold thick sandwich layers (stabilizer + fabric + appliqué) firmly without crushing the delicate fibers. This is the industry standard for preventing hoop burn.

Safety Warning: Magnetic Force
magnetic embroidery hoops use powerful neodymium magnets. They can pinch fingers severely causing blood blisters.
* Do not slide your fingers between the magnets.
* Keep away from pacemakers and magnetic media (credit cards).
* Store separately to avoid them snapping together unexpectedly.

Part 9: Troubleshooting Guide

Use this table when things go wrong. Start with the "Physical" column before changing software settings.

The "Scale Up" Mindset

Once you master the bookmark, you may find yourself with orders for 50 or 100 units. At this volume, single-needle machines become the bottleneck because of the constant thread changes (Green -> Dog Color -> Black Text).

This is the "trigger moment" where hobbyists transition to multi-needle machines (like the SEWTECH multi-needle line). These machines allow you to load all colors at once and stitch continuously. When paired with embroidery hoops magnetic, you can reload a new hoop in 10 seconds while the machine is running.

Final Operation Checklist

• Test Stitch: Run a scrap test. Listen for a rhythmic "thump-thump" (good) vs. a harsh "clack-clack" (needle hitting something).
• Appliqué Trim: When the machine stops for trimming, keep the hoop attached (if possible) or place it on a flat surface. Don't pop the fabric out!
• Scissors Safety: Use double-curved appliqué scissors. Keep the curve away from the delicate satin tack-down stitches to avoid cutting the thread.
• Hooping Tension: Tap the hooped stabilizer. It should sound like a drum skin—taught, but not stretched to the point of warping.

By respecting the physics of the hoop and the logic of the software, you turn a simple rectangle into a professional-grade product that generates profit, not frustration.

FAQ

• Q: In Embrilliance StitchArtist, why does the Subtract tool delete the rectangle and leave the floral shape when making a bitten bookmark edge?
  A: Fix the Object Order so the rectangle is below the floral “cutter” before running Subtract.
  • Open the Object Pane and drag the Rectangle to the bottom layer.
  • Keep the Floral shape(s) above the Rectangle.
  • Select both objects and click Subtract again.
  • Success check: the rectangle remains, and the “bite” is cut out of the rectangle edge (not the other way around).
  • If it still fails: Undo, re-check that both objects were selected, and verify the rectangle is not grouped/locked above the cutter.
• Q: In Embrilliance Essentials, how far should a 5x7 (130x180mm) bookmark rectangle be from the hoop edge to prevent flagging and registration shifts?
  A: Use “Fit to Hoop” as a start, then pull the shape in by about 5mm on all sides to keep stitches away from the plastic edge.
  • Choose Shapes > Rectangle Vert and click Fit to Hoop.
  • Reduce the rectangle so there is a safety margin (at least 10mm away from the inner plastic edge is a good go/no-go).
  • Save a base file before any Boolean cuts so the rectangle can be reused.
  • Success check: during stitching, the fabric does not bounce (“flag”), and the satin border stays aligned to the fabric edge.
  • If it still fails: tighten the stabilizer setup (drum-tight), and avoid placing satin columns too close to the hoop frame.
• Q: For an Embrilliance appliqué bookmark border, what satin width and density settings prevent raw edges and trimming mistakes?
  A: Set a satin border around 3.5mm wide (4.0mm if trimming is inconsistent) and use a safe starting density around 0.40mm.
  • Switch the border from E-Stitch/Blanket to Satin.
  • Set width to 3.5mm (or 4.0mm for more coverage).
  • Set satin density to roughly 0.40mm; avoid going too dense (may cut fabric) or too loose (may show edges).
  • Success check: the satin fully covers the raw edge after trimming, with no fabric fraying visible along the bite curves.
  • If it still fails: re-trim closer with duckbill appliqué scissors and consider testing density slightly looser if tunneling appears.
• Q: For a long narrow satin-stitch bookmark on quilting cotton, which stabilizer prevents curling and edge tunneling?
  A: Use 2.5oz cutaway stabilizer for quilting cotton, and bond the fabric to the stabilizer with temporary spray for a drum-tight result.
  • Spray-baste cotton to cutaway (light, even coat) before hooping or before stitching.
  • Keep hooping firm but not stretched/warped.
  • Add a water-soluble topper if the fabric has pile (velvet/minky) to prevent stitch sink.
  • Success check: the finished bookmark lies flat instead of curling like a scroll, and the satin edge does not tunnel inward.
  • If it still fails: loosen satin density toward about 0.45mm and confirm hooping is not loose.
• Q: When embroidering an appliqué bookmark, how can a user confirm correct hooping tension before starting the stitch-out?
  A: Aim for “drum-tight” stabilizer tension—taut, not stretched—so the narrow satin column stays registered.
  • Tap the hooped stabilizer to check for a drum-skin sound.
  • Confirm the design has clearance from the hoop edge (avoid crowding the plastic frame).
  • Use the float method (hoop stabilizer, adhere fabric on top) if hoop marks are a concern.
  • Success check: the fabric does not lift and slap during stitching, and the border tracks cleanly without shifting.
  • If it still fails: re-hoop with fresh stabilizer and reduce bulk layers that cause the material to bounce.
• Q: Why does an appliqué needle break on a bookmark when merging a second appliqué (like a dog) in Embrilliance, and what is the fastest fix?
  A: Remove duplicate process stitches (placement and tack-down) from the merged appliqué to avoid excessive layers and overlapping stitch zones.
  • Expand the merged design’s object tree.
  • Delete the dog appliqué Placement Line and Tack Down stitches.
  • Keep only the final satin border and interior detail stitches for the dog.
  • Success check: the needle runs through the area without harsh impacts, and the machine sound stays rhythmic instead of “clack-clack.”
  • If it still fails: reduce bulk (fewer layers), clean glue buildup from the needle, and check for hidden overlaps in stitch zones.
• Q: What safety steps prevent finger injuries when using magnetic embroidery hoops for repetitive bookmark production?
  A: Treat magnetic hoops as pinch hazards—keep fingers out of the magnet join and store magnets separated.
  • Place the hoop on a stable surface before bringing magnets together.
  • Keep fingertips away from the closing gap; do not slide fingers between magnets.
  • Keep magnetic hoops away from pacemakers and magnetic media (e.g., credit cards).
  • Success check: magnets close cleanly without snapping onto skin, and loading/unloading becomes consistent without stress.
  • If it still fails: slow down the loading motion and reposition hands so the magnets meet from the sides, not over fingers.
• Q: For production bookmarks, how should an embroiderer choose between float technique, a hooping station, magnetic hoops, and a multi-needle machine?
  A: Use a step-up ladder: fix technique first, then improve alignment tools, then upgrade clamping speed and finally color-change throughput.
  • Start with Level 1: float the fabric (hoop stabilizer, spray-baste fabric) to reduce hoop marks and speed loading.
  • Move to Level 2: use a hooping station when bookmarks are not consistently straight or rejects are rising.
  • Move to Level 3: switch to magnetic hoops when hoop burn and repetitive tightening cause material damage or wrist fatigue.
  • Consider multi-needle machines when constant thread changes become the bottleneck for runs of 50–100 units.
  • Success check: reload time drops, hoop marks stop ruining faux leather/velvet, and rejects from misalignment decrease.
  • If it still fails: run a scrap test stitch and troubleshoot physical causes first (stabilizer weight, hoop tension, bulk layers) before changing digitizing.
