Designer Diamond Royale Unboxing That Saves You From Costly Mistakes: Find the Hidden Accessories, Keep the “Floppy” Red Bag Useful, and Remove the Red Shipping Clip

If you’ve ever opened a “top of the line” embroidery machine box and felt that tiny spike of panic—What if I toss something important? What if I break something before stitch one?—you’re not alone.

Machine embroidery is 20% art and 80% engineering. The unboxing of the Husqvarna Viking Designer Diamond Royale contains the first test of that engineering mindset. This isn't just about taking things out of plastic; it's about setting up a workflow that protects your investment (and your sanity).

Below is your "field manual" for unboxing, strictly organized to prevent the two most common rookie mistakes: throwing away the structural support and failing to remove the shipping locks.

Calm First: The Designer Diamond Royale Unboxing Is Easy—If You Don’t Rush the First 10 Minutes

The fastest way to create a service repair bill is to rip packaging open like it’s a race. Sarah’s video shows the "Pro" approach: Stage, Identify, Inventory.

A lot of owners in the comments are either brand-new to embroidery or coming into a machine secondhand (inheritance, used purchase). If that’s you, pause. You don’t have a dealer standing next to you to catch a falling part.

The Golden Rule: Do not throw any packaging away until the machine has successfully stitched its first design.

The Triangular Accessory Box “Treasure Hunt”: Power Cord, USB Stick, and the Roaming Buttonhole Foot

In the sewing machine box, locate the long triangular cardboard accessory box tucked into the side foam. Do not shake this box to empty it.

Open it over a table, not the floor. Here is what you are looking for:

• Power cord
• A pink pack containing a USB stick (This is your digital brain; guard it).
• A buttonhole foot that is famous for "roaming."

The Roaming Foot Trap: Small sensor feet notoriously slide under the bottom flaps of cardboard boxes. If you dump the box or pull items out quickly, that foot stays hidden in the cardboard—and ends up in the recycling bin.

Sensory Check: Run your hand all the way to the bottom corners of the empty cardboard box. You should feel smooth cardboard, not the cold metal of a forgotten foot.

Prep Checklist (Do this before you cut more tape)

• Surface: Clear a 4ft x 2ft table space. Ensure it is stable (no wobble).
• Containment: Place a bowl or magnetic tray nearby for small loose parts.
• Extraction: Open the accessory box gently.
• Verification: Locate the Pink USB stick and set it in your tray immediately.
• Documentation: Place the manual and warranty card in a dedicated folder.


Don’t Toss the Premium Walking Foot: The Interchangeable Walking Foot Is a High-Value Inclusion

Sarah highlights that the Diamond Royale includes a walking foot with interchangeable feet.

Why this matters: This isn't a standard $15 presser foot. An interchangeable walking foot system is a significant piece of engineering designed to feed difficult layers (like quilt sandwiches or slippery silks) evenly. Replacing this kit is expensive.

Storage Advice: Keep this in its original plastic blister pack until you actually need to use it. Loose walking feet in a drawer tend to get their levers bent, ruining the timing mechanism.

The Manuals + Design Booklet Reality Check: Built-In Designs vs Dealer Download Code

You will find a User Manual, Warranty Info, and a Design Booklet.

Here is the distinction that confuses new owners:

1. Built-in Designs: These are stored in the machine's memory. You can stitch them immediately.
2. Downloadable Designs: These often require a code from the dealer to access the Husqvarna Viking website.

The Secondhand Reality: If you bought this used, that dealer code might be gone. Don't panic. The machine works perfectly without it. The embroidery community is vast, and you will likely be buying third-party designs or creating your own soon anyway.

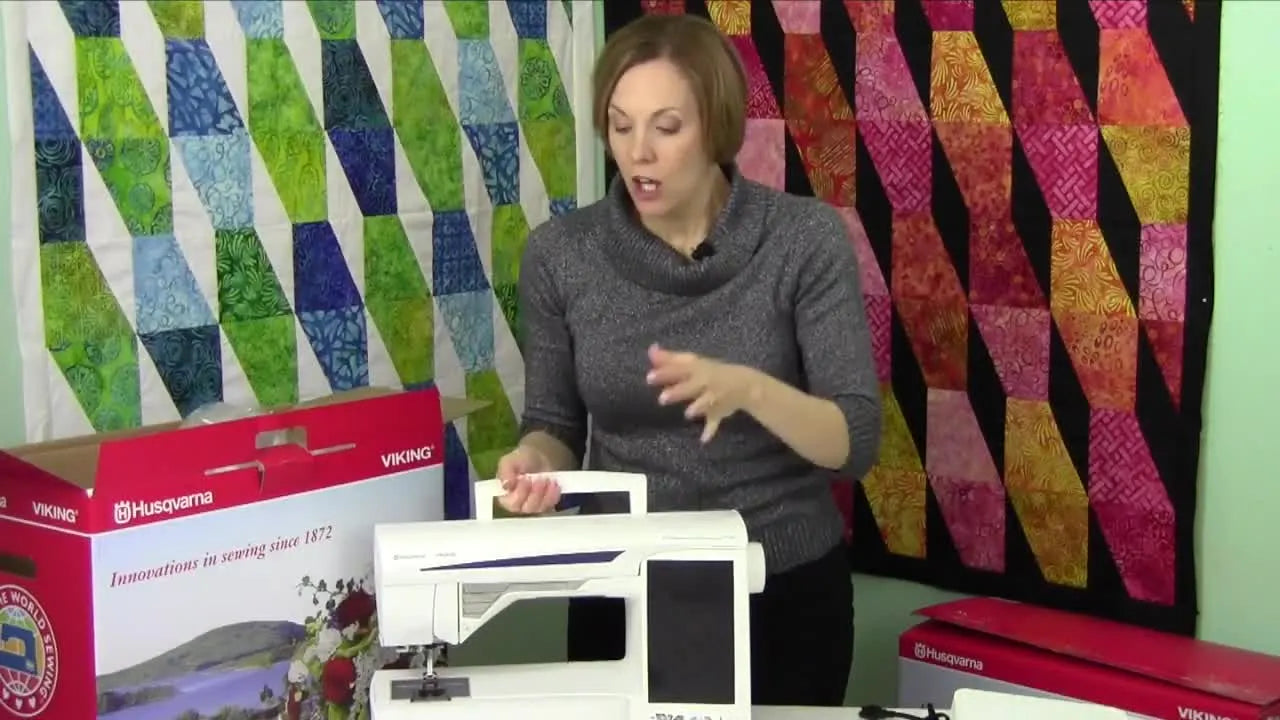

Lift the Designer Diamond Royale Safely: Handle Up, Styrofoam Off Sideways

Removing the machine from the box is a physical safety moment.

1. Remove the hard cover.
2. Grip the machine vertically by the handle.
3. Place it on your stable table.
4. Slide the Styrofoam end caps off horizontally (sideways).

The Physics of the Drop: If you try to pull the Styrofoam down while holding the machine up, the foam often sticks, then releases suddenly. This jerk can cause you to drop the machine. Slide sideways for a smooth release.

Warning: Sewing machines are dense and heavy (20+ lbs). Watch your lift posture. Ensure the needle area is clear of your fingers when gripping the neck. Do not plug the machine in yet.

The Red Embroidery Travel Bag Secret: Keep the Black Packing Shell or the Bag Is Basically Decoration

In the embroidery unit box, you will find a red zippered carrying case. Crucial Step: Sarah points out that the bag looks "floppy and flimsy." This is because the black Styrofoam/plastic packing shell inside the cardboard box is actually part of the bag's system.

Do NOT throw away the black shell.

1. Remove the embroidery unit from the black shell.
2. Take the black shell and insert it inside the red zippered bag.
3. Now, the bag has a rigid, custom-molded interior that protects the sensitive robotic arm during transport.

Without this shell, the red bag offers zero impact protection. With it, you have a professional travel case.

The Red Shipping Clip on the Embroidery Unit: Remove It or You Can’t Embroider

Lift the embroidery unit. Locate the Red Plastic Clip on the movable arm. This clip locks the pantograph (the moving arm) to prevent damage during shipping.

Removal Protocol:

1. Squeeze the sides of the red clip gentle.
2. Pull straight out.
3. Listen: It should slide off silently. If you hear cracking, you are squeezing the wrong spot.

Rule: You technically cannot embroider with this installed. The machine motors will stall, grind, and throw an error message immediately.

Setup Checklist (Before power-on)

• Unit Integrity: Confirm the embroidery unit is unpacked and the black shell is inside the red bag.
• Unlock: Verify the red shipping clip is removed and stored in the accessory box (save it for moving!).
• Clearance: Ensure your table has 2 feet of space to the left of the machine for the embroidery arm to move freely.
• Connection: Slide the embroidery unit onto the machine until you feel/hear a firm click.

Hoop Inventory Without Tears: Find the “Hidden” Middle Hoop and Verify All Three Sizes

Sarah retrieves the hoops. You should have three:

• Small: 120×120 mm (4.7" square)
• Medium: 200×260 mm (approx 8" x 10") <-- Check carefully, often hidden in packing paper.
• Large: 360×200 mm (approx 14" x 8")

The "Hoop Burn" Reality: Standard plastic hoops work by friction. You trap the fabric between an inner and outer ring and tighten a screw.

• The Problem: To hold tight, you have to crank the screw. This crushes the fabric fibers, leaving a permanent "ring" (hoop burn) on delicate items like velvet or performance wear.
• The Struggle: Putting a thick towel in a standard hoop requires immense hand strength and often pops out mid-stitch.

If you are struggling to hoop thick items or getting tired wrists, this isn't a lack of skill—it's a limitation of the tool.

If you are searching for new machine embroidery hoops, focus on compatibility. "Small/Medium/Large" isn't a universal standard; you must match the exact connection point for the Designer Diamond Royale.

The “Hidden” Consumables Pack: Thread, Stabilizer, Fabric, Scissors—Treat It Like a Starter Kit, Not a Lifetime Supply

The box includes a sampler pack. Use this for your "calibrated failure" tests. Do not use your best t-shirt for your first stitch. Use this scrap fabric to learn how the tension looks.

The Missing Essentials: New owners often realize they are missing three critical items not in the box:

1. Temporary Spray Adhesive (or Glue Stick): To hold fabric to stabilizer.
2. Water Soluble Topper: Vital if you are embroidering on towels (prevents stitches from sinking).
3. Dedicated Embroidery Needles: The needle in the machine is likely a standard sewing needle. Switch to a Topstitch 80/12 or Embroidery 75/11 for better results.

A Practical Decision Tree: Fabric Type → Stabilizer Choice

Your machine can do perfect work, but only if the "Foundation" (Stabilizer) is right.

Simple Decision Tree:

1. Is the fabric stretchy? (T-shirt, Polo, Sweatshirt)
   • NO: Go to step 2.
   • YES: Use Cut-Away Stabilizer. (Tear-away will eventually disintegrate, causing the embroidery to distort over time).
2. Is the fabric stable? (Denim, Canvas, Cotton)
   • YES: Use Tear-Away Stabilizer.
3. Is the fabric fluffy/textured? (Towel, Fleece)
   • YES: Add a Water Soluble Topper on top + Stabilizer on bottom.
4. Is the item un-hoopable or delicate? (Velvet, Backpack pocket, Thick Jacket)
   • YES: This is a candidate for Magnetic Hoops.

Hooping Physics in Plain English: Why Big Hoops Feel Harder

Why does the 360x200 hoop feel so much harder to load than the 120x120? Surface Tension Physics. The larger the surface area, the more "give" the fabric has in the center. To keep the center tight in a standard plastic hoop, you have to over-tighten the edges, which distorts the grain.

If you plan on doing large designs (jacket backs), investigate a hooping station for embroidery. These hold the hoop stationary and aligned, acting like a "third hand" so you can focus on smoothing the fabric.

When Magnetic Hoops Become the Smart Upgrade: Speed & Safety

The standard hoops included are fine for cotton. But for production or difficult items, magnetic frames are the industry secret.

Why upgrade to SEWTECH Magnetic Hoops?

1. Zero Hoop Burn: Magnets hold with downward pressure, not friction pinching. No "rings" left on your fabric.
2. Speed: You don't unscrew/rescrew. Just Click-Clack. It makes hooping 3x faster using a magnetic hooping station setup.
3. Ergonomics: No twisting screws means less strain on your wrists.

Warning: Magnet Safety. These are powerful neodymium magnets.
* Pinch Hazard: Keep fingers clear when the top ring snaps down.
* Medical Devices: Keep magnetic hoops at least 6 inches away from pacemakers.
* Electronics: Do not place them directly on your laptop or phone.

If you browse for a magnetic hoop for husqvarna viking, ensure you select the specific connector type for the Diamond series to avoid wobbling.

Troubleshooting the Two “Unboxing Mistakes” That Cause Real Problems Later

Before you call support, check these two symptoms.

Symptom A: "Motor Overload" or Grinding Noise

• The Cause: You left the Red Shipping Clip on.
• The Fix: Turn off. Remove clip. Turn on.
• Prevention: Put a "Remove Before Flight" tag on it if you store it often.

Symptom B: "Check Needle Thread" Error (False Alarm)

• The Cause: The machine's check-spring isn't detecting tension.
• The Fix:
  1. Rethread with the presser foot UP. (This opens the tension discs so the thread sits deep inside).
  2. Use a high-quality thread (Isacord/Madeira/Simthread). Old thread sheds dust that blinds the sensors.

If you own an embroidery machine husqvarna of this caliber, feed it clean thread. Cheap thread causes 90% of sensor errors.

The Upgrade Path: From Hobby to Production

Unboxing is just day one.

• Phase 1 (Learning): Use the included hoops and standard stabilizers.
• Phase 2 (Efficiency): Reduce frustration with Magnetic Hoops (specifically for knits and bulky items) and large spools of thread.
• Phase 3 (Scale): When you are asked to do 50 polos for a local business, you will hit a wall. A single-needle machine requires a thread change such every color. This is when specific compatible tools like magnetic embroidery hoops help, but eventually, you look at SEWTECH Multi-Needle Machines. These hold 10+ colors at once, automating the process so you can walk away while it runs.


Operation Checklist (Your first real embroidery session)

• Physical: Red clip is GONE. Embroidery unit clicked in.
• Needle: Fresh 75/11 Embroidery needle installed.
• Bobbin: Wound at medium speed (too fast stretches the thread) and inserted correctly.
• Hooping: Fabric is "taut like a trampoline," not "stretched like a drum."
• Speed: Beginner Sweet Spot: Set your machine speed to 600 SPM (Stitches Per Minute) for the first design. It reduces thread breaks while you learn.

Enjoy the Diamond Royale. It's a powerhouse, provided you treat the setup with the respect it deserves.

FAQ

• Q: During Husqvarna Viking Designer Diamond Royale unboxing, what packaging should be kept to avoid missing parts and travel protection?
  A: Keep all packaging until the first successful stitch, and specifically save the black packing shell for the red embroidery unit travel bag.
  • Stage parts on a table and inventory before discarding any foam, paper, or boxes.
  • Hand-check the bottom corners of the triangular accessory box for a “roaming” buttonhole foot before recycling.
  • Insert the black shell into the red zippered bag to make it a rigid, protective case for the embroidery unit.
  • Success check: Every accessory is accounted for, and the red bag holds a firm molded insert (not floppy).
  • If it still fails… Re-open all cardboard flaps and packing paper—small feet and the medium hoop are commonly hidden.
• Q: How do Husqvarna Viking Designer Diamond Royale owners prevent “Motor Overload” or grinding noise when the embroidery unit is attached?
  A: Remove the red plastic shipping clip from the embroidery unit arm before powering on—leaving it on commonly causes immediate stall/grinding and errors.
  • Power off the machine before touching the embroidery unit.
  • Locate the red clip on the movable arm and squeeze gently, then pull straight out.
  • Store the clip in the accessory box so it is available for future moves.
  • Success check: The embroidery arm moves freely without grinding and the machine does not throw an overload error at start.
  • If it still fails… Re-seat the embroidery unit until a firm click is felt/heard and confirm there is clear space to the left for arm travel.
• Q: How do Husqvarna Viking Designer Diamond Royale users fix a false “Check Needle Thread” error during first setup?
  A: Rethread with the presser foot UP and use clean, high-quality thread—this often resolves false thread-check alarms.
  • Lift the presser foot fully before threading so the tension discs open.
  • Re-thread the entire path carefully and avoid old, dusty thread that can confuse sensors.
  • Swap to a known good embroidery thread brand (clean-running thread reduces sensor issues).
  • Success check: The machine embroiders without immediately stopping for “Check Needle Thread,” and thread tension feels consistent.
  • If it still fails… Inspect the threading path again for missed guides and confirm the bobbin is inserted correctly.
• Q: What are the missing first-day consumables for Husqvarna Viking Designer Diamond Royale embroidery, and what needle should be installed before the first design?
  A: Plan to add temporary spray adhesive (or glue stick), water-soluble topper (for towels), and dedicated embroidery needles—use a 75/11 Embroidery needle or Topstitch 80/12 as a safe starting point.
  • Switch out the factory needle (often a standard sewing needle) before the first embroidery test.
  • Use the included sampler fabric/stabilizer as a “calibrated failure” test instead of a favorite garment.
  • Add water-soluble topper on textured items (like towels) to prevent stitches from sinking.
  • Success check: Stitches sit on top of the fabric (especially on towels) and the design forms cleanly without excessive shredding/breaks.
  • If it still fails… Re-check stabilizer choice using fabric type (stretchy → cut-away; stable woven → tear-away) and slow down for learning.
• Q: What is the success standard for hooping on the Husqvarna Viking Designer Diamond Royale to avoid distortion and mid-stitch fabric pop-out?
  A: Hoop fabric “taut like a trampoline,” not stretched like a drum, and avoid over-tightening the screw to the point of crushing fibers.
  • Smooth fabric evenly in the hoop and tighten only enough to prevent slipping.
  • For large hoops, take extra time to distribute tension so the center is not loose.
  • Start with stable test fabric to learn the feel before attempting thick or slippery items.
  • Success check: Fabric stays flat (no ripples), does not shift when lightly tapped, and stitches do not pucker the design area.
  • If it still fails… Consider a hooping station for alignment support, or move difficult items (bulky/delicate/un-hoopable) to a magnetic hoop workflow.
• Q: When should Husqvarna Viking Designer Diamond Royale owners upgrade from standard plastic hoops to magnetic hoops for hoop burn, thick towels, or wrist strain?
  A: Upgrade to magnetic hoops when standard hoops cause hoop burn on delicate fabrics, require excessive screw force on thick items, or slow production due to repetitive tightening.
  • Level 1 (Technique): Reduce screw pressure, stabilize correctly, and use topper on towels to improve stitch formation.
  • Level 2 (Tool): Use magnetic hoops to reduce hoop burn risk and speed up hooping with a click-on frame system.
  • Level 3 (Capacity): If frequent multi-item orders create bottlenecks from thread changes, consider moving to a multi-needle machine for production workflow.
  • Success check: Hooping time drops noticeably, fabric shows fewer clamp marks, and hooping feels easier on wrists.
  • If it still fails… Verify the magnetic hoop connector matches the Designer Diamond Royale attachment style to prevent wobble.
• Q: What magnetic hoop safety rules should Husqvarna Viking Designer Diamond Royale users follow to avoid finger pinches and device interference?
  A: Treat magnetic hoops as powerful pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear when the top ring snaps into place (magnets can close suddenly).
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Do not place magnetic hoops directly on phones, laptops, or other electronics.
  • Success check: Hoops close without pinching and are stored in a dedicated spot away from devices.
  • If it still fails… Switch to slower, two-handed placement and consider using a hooping station to control alignment and closure safely.
