Design Transfer: WiFi & USB Setup for Bernina 790 PRO & Older Models

Here is the calibrated, expert-level guide.

New Update Features: Clamp Hoops and Transfer Screens

Bernina Embroidery Software updates can feel small—until they change the exact screen you rely on every day. In this update, you’ll notice two practical shifts: the software can now “see” the small clamp hoop (a 6.5" square clamp hoop), and the design transfer screens look different than before.

If you’re running bernina embroidery machines, this matters because transfer friction is one of the biggest hidden time-wasters in embroidery: the design is ready, the stabilizer is cut, the hoop is loaded… and then the file won’t send, the USB option is grayed out, or the WiFi device won’t show up. Every minute you spend fighting a progress bar is a minute your machine isn't stitching.

What you’ll learn (and what to expect)

In this walkthrough, we will strip away the technical jargon and focus on production reliability. You’ll learn how the updated transfer workflow operates in three real-world scenarios:

1. Built-in WiFi (Bernina 790 PRO): Connecting the machine to your network and sending designs directly from the PC.
2. USB/EXP Transfer: Keeping the workflow physical. We will fix the common “EXP is grayed out” issue by creating a specific USB stick profile inside the software.
3. No Built-in WiFi Machines: How to factory reset and pair the external Bernina WiFi Device (hub/dongle) using the Connector software.

Along the way, I’ll add the “studio reality” details that don’t always get said out loud: what to check before you blame the software, how to avoid repeat setup work, and how to keep your workflow stable when you’re switching between machines.

Warning: Mechanical Safety First. Before you troubleshoot software, protect your hands and your machine. Keep fingers, hair, and loose sleeves away from the needle area. Never reach under the presser foot or near the pantograph arm while the machine is powered on or actively moving to check a screen.

Connecting the Bernina 790 PRO to WiFi

The key rule is simple and non-negotiable: your computer and your 790 PRO must be on the exact same network band.

Expert Insight: Many modern home routers "mesh" 2.4GHz and 5GHz bands together. Embroidery machines often have older WiFi chips that prefer 2.4GHz. If your PC is on high-speed 5GHz and the machine is struggling to connect, the "Same Network" rule is technically broken. The Fix: If you experience instability, connect both devices to your router's "Guest Network" (which is usually strictly 2.4GHz).

Step 1 — Turn WiFi on (Visual Check)

On the 790 PRO screen:

1. Navigate: Go to the WiFi configuration menu (the radar icon).
2. Toggle: Switch the top WiFi switch until it turns green (On).
3. Scan: Tap the plus sign to populate the list of networks.
4. Select: Choose the network that matches your computer’s network.
5. Authenticate: Enter the password using the touchscreen keypad.

Checkpoint: Look for the signal strength icon in the top header. It should be white, not grayed out.

Expected outcome: The machine is connected. You have established the "Digital Bridge."

Pro tip (Workflow Stability)

In a busy studio, WiFi issues often come from “invisible changes”: a router reboot, an automatic PC update, or the computer switching to a stronger signal. If your transfers suddenly stop working, the first thing to verify is still the simplest: same network, same credentials, and a stable signal.

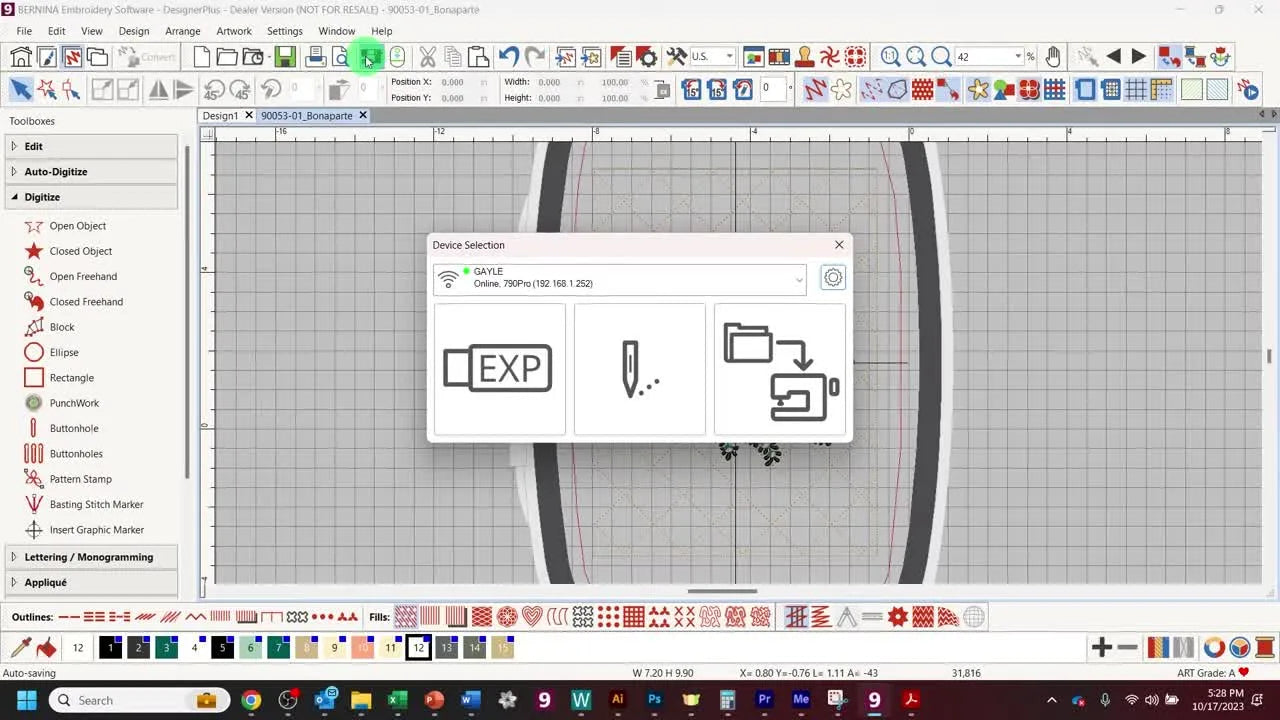

Step-by-Step: Transferring Designs via ADX

Once the 790 PRO is on the network, the updated transfer screen makes it straightforward to send a design to the machine. But "where" you send it matters for data safety.

Step 2 — Send the design to the machine using ADX

In Bernina Embroidery Software:

1. Select Target: Click the Sewing Machine icon.
2. Identify Machine: In the device dropdown, select 790 PRO.
3. Select Method: Choose the ADX icon (the green arrow pointing to the machine). The video identifies ADX as Artista Data Exchange.
4. Destination: Choose the machine folder (Hard Drive icon).
5. Execute: Click Send to Machine.

Checkpoint: Watch the screen. A progress bar appears. You should hear a confirmation tone on your PC when the transfer completes.

Expected outcome: The design is written to the machine’s storage (hard drive).

Temporary memory vs. hard drive (Why it matters)

The video also mentions sending a design into the machine’s temporary memory. Think of this like RAM in a computer.

• Temporary Memory: Good for a quick, one-off test. Ignored if the machine is turned off.
• Machine Storage (Hard Drive): Always use this for production. If the power flickers or you need to resume the design tomorrow, the file is safe.


How to Fix Grayed Out USB/EXP Options

If you prefer USB transfer (or you’re working with a machine that doesn’t use the 790 PRO’s built-in WiFi), you may run into the classic frustration: the EXP option is there, but it’s grayed out.

This is not a “bad USB stick” problem—it’s a software configuration gate.

Step 3 — Create a USB stick profile so EXP becomes available

In the transfer dialog:

1. Open Settings: Click the Settings (gear) icon inside the transfer window.
2. Initialize: Click New.
3. Format Selection: Select EXP as the type. (This is the native language of the machine).
4. Label: Name it conveniently (example: “Shop USB”).
5. Confirm: Click OK to add it to the dropdown list.

Checkpoint: The EXP button changes from grayed out to a clickable green option.

Expected outcome: You can now write designs to a USB stick.

Watch out: The “Named USB” is a profile, not a physical stick

The software doesn’t truly distinguish between physical USB sticks. Naming a stick creates a generic “writing to USB” profile.

• Workflow Tip: You don't need "USB 1, USB 2, USB 3" profiles. Just create one robust profile named "Bernina EXP" and it will write to whatever stick is currently plugged into your computer.

If you’re managing multiple bernina machines in one space, keeping your transfer targets tidy prevents sending the wrong format (like ART or PES) to a machine that only speaks EXP.

Legacy Compatibility

If you see options for Artista 730/200 or Deco 340, ignore them unless you own those specific vintage machines. The Deco, for example, requires a specific F05 folder structure, which this legacy controller handles automatically. For modern machines, stick to pure EXP.

Setting Up the External Bernina WiFi Device for Non-WiFi Machines

If your machine does not have built-in WiFi, you can bridge the gap using the external Bernina WiFi Device (the white hub/dongle).

Clarification: This device does NOT give your machine WiFi. It acts as a "mailbox." The PC sends the design to the Hub over WiFi; the Hub (plugged into the machine via USB) hands the design to the machine.

Step 4 — Factory reset the Bernina WiFi Device (Clean Slate)

If you are setting this up for the first time, or if the device has been unreliable (disconnecting frequently), do not struggle with it. Factory reset it immediately.

1. Locate: Find the small reset button on the side of the white WiFi device.
2. Action: Press and hold it.
3. Sensory Check: Watch the LED indicator. Keep holding until the LED changes color to white.

Checkpoint: The LED is white. The device has forgotten all previous bad connections.

Expected outcome: The device is reset and ready to be paired.

Warning: Magnetic Safety. While discussing setup, note that many embroiderers use magnetic accessories. External magnetic hoops utilize industrial-strength magnets.
* Pinch Hazard: These can snap together with immense force. Keep fingers clear.
* Device Safety: Keep magnets at least 6 inches away from pacemakers, heart monitors, and magnetic storage media (like the USB sticks and WiFi dongles discussed in this guide).

Step 5 — Pair the device using the Bernina WiFi Connector software

1. Launch: Open the Bernina WiFi Connector software on your PC.
2. Initiate: Click Add New Bernina WiFi Device.
3. Connect: When prompted (and only when prompted), plug the device into the PC via USB.
4. Wait: Wait for the Next button to highlight. Patience is required here. It can take up to 2 minutes for the driver to handshake.
5. Configure: Select your WiFi network and enter the password.

Checkpoint: The wizard displays a "Success" message.

Expected outcome: unplug it from the PC, plug it into your sewing machine, and the software will now "see" the machine wirelessly.

Comment-based reality check: Mac users

A viewer asked about using a Mac. Bernina does not official support Mac computers for the WiFi Connector workflow. If you are an Apple user, you will need to rely on the USB stick method or run Windows via Parallels (though driver support in Parallels can be tricky).

Troubleshooting Connection Issues

When transfer fails, troubleshoot in the order of Lowest Cost -> Highest Cost.

Structured Troubleshooting Guide

Decision Tree — Choose your transfer path

Use this logic flow to stop guessing which method to use:

1. Do you have a Bernina 790 PRO?
   • YES: Use Built-in WiFi (ADX).
   • NO: Go to step 2.
2. Is your PC in the same room as the machine?
   • YES: Just use a USB stick. It is 100% reliable and instant.
   • NO: Go to step 3.
3. Do you have the External WiFi Device (Hub)?
   • YES: Configure the Hub via Connector Software.
   • NO: You must use USB Transfer.

Expert workflow upgrades (Where time is really lost)

Transfer problems often show up right when you’re ready to stitch. If you spend 15 minutes fighting software, you are losing money or leisure time.

Once you solve the software transfer, the next bottleneck is physical hooping. If you are doing repetitive production, standard screw-hoops are slow and can cause "hoop burn" (friction marks) on sensitive fabrics.

If you are already investing in efficiency concepts like hooping stations or a dedicated hooping station for embroidery, ensure your hoops match that speed. A magnetic embroidery hoop reduces the physical strain of hooping by using magnets to hold the fabric rather than friction. For Bernina users specifically, options like magnetic embroidery hoops for bernina allow you to float stabilizer and fabric quickly—recovering the time you might have lost dealing with software updates.

Prep

Even though this tutorial is about design transfer, your stitch-out success depends on the "Pre-Flight" check.

Hidden Consumables & Prep Checks

• USB Stick: Ideally 2GB-8GB, formatted to FAT32.
• Spray Adhesive: If floating fabric (common with magnetic hoops).
• Stabilizer: Specific to your fabric (Cutaway for knits, Tearaway for wovens).
• Stylus: For precise typing of WiFi passwords on the machine screen.

Many Bernina owners explore a bernina magnetic hoop or comprehensive sets of bernina magnetic hoops when facing the challenge of easy-to-bruise fabrics (like velvet or performance wear) that clamp hoops might damage.

Prep Checklist

• Network Check: PC and Router are on; Guest Network (2.4GHz) verified if needed.
• Credentials: WiFi password is written down and handy.
• Tools: Snips, tweezers, and prepared stabilizer are within arm's reach.
• Hardware: If using USB, confirm the stick works on the PC first.
• Software: Connector App ("W" icon) is visible in the Windows system tray.

Setup

This section is the “do it once, benefit every time” configuration.

Setup A — 790 PRO WiFi Environment

• Turn WiFi toggle Green.
• Connect to network.
• Verify the machine appears in the PC software dropdown.

Setup B — USB/EXP Environment

• Go to Transfer Settings.
• Create "New" profile -> Type: EXP.
• Delete any old/duplicate profiles to prevent confusion.

Setup C — External WiFi Device

• Factory Reset the device (White LED check).
• Plug into PC -> Open Connector Software -> Wait 2 mins -> Pair.
• Move device to Sewing Machine.

Setup Checklist

• 790 PRO: WiFi icon is white (connected) in top bar.
• PC Software: Correct machine model selected in device dropdown.
• ADX: Icon is green/selectable.
• USB: EXP button is green/selectable.
• Hub: Device LED is solid (not blinking rapidly indicating error).
• Tray App: The "W" icon is active on the PC.

Operation

Now you’re ready to execute the transfer.

Operation 1 — Send via ADX (790 PRO)

1. Open Transfer Dialog.
2. Select ADX.
3. Select Hard Drive (not temporary memory).
4. Click Send.
5. Sensory Check: Ensure progress bar completes.

Operation 2 — Write to USB (EXP)

1. Insert USB into PC.
2. Select EXP Profile.
3. Click Write.
4. Eject safely from Windows before removing the stick.

Operation 3 — Send via External Hub

1. Ensure Hub is plugged into the machine.
2. In Software, select WiFi Device.
3. Click Send.
4. Walk to machine and retrieve file from the USB/Memory menu.

Operation Checklist

• Visual Confirmation: Progress bar completed 100%.
• File Check: The design name appears on the machine screen.
• Color Check: Verify the thread colors loaded correctly (sometimes EXP converts colors; check your chart).
• Stability: If using the Hub, ensure the cable is not pulled tight.
• Hooping: Hoop your fabric while the transfer is happening to save time.

Results

Mastering the transfer process turns a 10-minute frustration into a 10-second button press. After completing this guide, you should be able to:

• Navigate the new transfer screens without confusion.
• Establish a stable WiFi link on the Bernina 790 PRO.
• Revive the "Grayed Out" EXP button for USB transfers.
• Reset & Pair the external WiFi dongle when it acts up.


Remember, software is just the bridge to the fun part: stitching. If you find that the software is fast but your loading time is slow, look at your physical tools. When standard hooping becomes the bottleneck, a bernina snap hoop-style convenience approach or a magnetic frame upgrade is often the smartest capacity upgrade you can make—saving your wrists and your schedule.## FAQ

• Q: How do I connect a Bernina 790 PRO to WiFi so Bernina Embroidery Software can send designs reliably?
  A: Connect the Bernina 790 PRO and the PC to the exact same WiFi network (often the 2.4GHz/Guest network) before attempting ADX transfer.
  • Turn on: Enable the Bernina 790 PRO WiFi toggle until it shows green, then scan and select the same SSID your PC is using.
  • Authenticate: Enter the WiFi password on the machine screen and confirm the connection.
  • Stabilize: If the router “meshes” 2.4GHz and 5GHz, move both PC and Bernina 790 PRO to the router’s Guest Network (often 2.4GHz) for fewer dropouts.
  • Success check: The Bernina 790 PRO shows a white (not grayed-out) WiFi/signal icon in the top header and the PC transfer completes with a progress bar.
  • If it still fails: Re-check SSID name and password on both devices and confirm the signal is stable before changing software settings.
• Q: How do I send an embroidery design to the Bernina 790 PRO using ADX and avoid losing the file after power-off?
  A: Use ADX to send the design to the Bernina 790 PRO hard drive (machine storage), not temporary memory, for production reliability.
  • Select: In Bernina Embroidery Software, click the Sewing Machine icon and choose “790 PRO” in the device dropdown.
  • Choose: Pick the ADX (Artista Data Exchange) method, then select the Hard Drive/Machine Storage destination.
  • Send: Click “Send to Machine” and wait for the transfer to fully finish.
  • Success check: A progress bar completes and the PC gives a confirmation tone; the design appears on the Bernina 790 PRO and remains available after restarting the machine.
  • If it still fails: Verify the Bernina 790 PRO and PC are on the same network band/SSID and try again before switching transfer methods.
• Q: How do I fix the “EXP is grayed out” problem in Bernina Embroidery Software when writing to a USB stick for Bernina machines?
  A: Create a USB/EXP profile inside Bernina Embroidery Software—EXP stays grayed out until the profile exists.
  • Open: In the transfer dialog, click the Settings (gear) icon.
  • Create: Click New, select EXP as the type, name it (for example “Bernina EXP”), then click OK.
  • Use: Insert a USB stick and select the new EXP profile to write the design.
  • Success check: The EXP option changes from grayed out to selectable/green and the software writes to the USB stick without blocking.
  • If it still fails: Try a smaller USB stick (2GB–8GB) formatted FAT32, because some machines struggle with very large drives.
• Q: What USB stick size and format is a safe starting point for Bernina EXP design transfer to avoid corrupted files?
  A: Use a 2GB–8GB USB stick formatted to FAT32 as a safe starting point for Bernina EXP transfers.
  • Choose: Pick a smaller-capacity USB stick (the guide notes large drives, such as 64GB+, can cause problems).
  • Format: Format the USB stick to FAT32 before writing embroidery files.
  • Eject: Safely eject the USB stick in Windows before removing it.
  • Success check: The design loads on the Bernina machine without “file corrupted” behavior and appears by name in the machine’s USB/memory menu.
  • If it still fails: Reformat FAT32 and re-write the file using the EXP profile (not another format).
• Q: How do I factory reset and re-pair the external Bernina WiFi Device (hub/dongle) when the device keeps disconnecting or the PC cannot see it?
  A: Factory reset the external Bernina WiFi Device first (white LED), then pair it again using Bernina WiFi Connector on Windows.
  • Reset: Press and hold the reset button on the device until the LED changes to white.
  • Pair: Open Bernina WiFi Connector, click “Add New Bernina WiFi Device,” and only plug the device into the PC via USB when prompted.
  • Wait: Allow up to 2 minutes for the driver handshake before clicking Next, then select the WiFi network and enter the password.
  • Success check: The wizard shows “Success,” and after plugging the device into the sewing machine, the software can see the machine/device for wireless sending.
  • If it still fails: Check that the Connector service is running (look for the “W” icon in the Windows system tray) and restart it if needed.
• Q: What should I check if the Bernina WiFi Device is invisible in Bernina Embroidery Software even though WiFi worked before?
  A: Confirm the Bernina WiFi Connector background service is running and restart it from the Windows taskbar if needed.
  • Look: Check the Windows system tray near the clock for the “W” icon.
  • Restart: Double-click the “W” icon to reopen/restart the service so the device can be discovered.
  • Re-try: Reopen the transfer window and search/select the WiFi Device target again.
  • Success check: The WiFi Device becomes selectable in the software and transfers start with a normal progress bar.
  • If it still fails: Verify the PC is on the intended SSID and re-pair the WiFi Device if it was recently reset or moved to a different network.
• Q: What safety steps should be followed before troubleshooting Bernina design transfer screens near the needle area or pantograph arm?
  A: Keep hands and loose items away from moving parts and never reach under the presser foot while the Bernina machine is powered on or moving.
  • Stop: Pause/stop motion before leaning in to check screens or connections.
  • Clear: Keep fingers, hair, and sleeves away from the needle area and pantograph arm movement zone.
  • Verify: Do screen checks from a safe distance; do not reach under the presser foot to “see what’s happening.”
  • Success check: The machine can move through menus/positioning without anything in the needle path or risk of snagging.
  • If it still fails: Step away and power down before handling any physical connections or repositioning near the stitch area.
• Q: If Bernina design transfer is finally stable but hooping time is still slow, how should Bernina users diagnose the next bottleneck and choose between technique changes, magnetic hoops, or a multi-needle upgrade?
  A: Treat slow hooping as a separate bottleneck: optimize process first, then consider magnetic hoops for speed/less hoop burn, and only then consider a multi-needle capacity upgrade if volume demands it.
  • Diagnose: Time one full cycle (hoop + load + start) to confirm hooping is the real delay, not transfer.
  • Optimize (Level 1): Hoop fabric while the file is transferring, and keep tools/stabilizer prepped at the machine to reduce handling time.
  • Upgrade tool (Level 2): If standard screw/clamp hooping causes hoop burn or wrist strain, magnetic hoops often reduce friction handling and speed up repetitive setups.
  • Upgrade capacity (Level 3): If production volume is the driver and single-machine throughput is the limit, a multi-needle system may be the next step after workflow/tool fixes.
  • Success check: The measured “from-ready-file-to-first-stitch” time drops and hoop marks/handling issues reduce.
  • If it still fails: Re-check stabilizer choice and the hooping method for the fabric—small prep issues can still force re-hooping even when transfer is perfect.
