Design Files Not Showing on Your Embroidery Machine? Fix Usha JEF, Brother PES/DST, and Ricoma DST in 15 Minutes

The blinking cursor on your machine’s screen. The emptiness where your design used to be. It is the specific frustration of the digital embroidery age. You know the file is on the USB drive because you put it there five minutes ago. Your computer sees it. Your machine gives you the silent treatment.

When a design “disappears,” it feels like a hardware failure. Beginners often panic, assuming the motherboard is fried. Veterans know better: it is almost always a translation error between your computer’s sophisticated operating system and your embroidery machine’s rigid, often older, logic board.

As an embroidery educator, I see this daily. This isn't just about “bad files”; it’s about breaking the workflow chain. Below is a reconstructed, battle-tested protocol—based on proven shop-floor realities—to make your Usha, Brother, or Ricoma machine “see” what you want it to stitch.

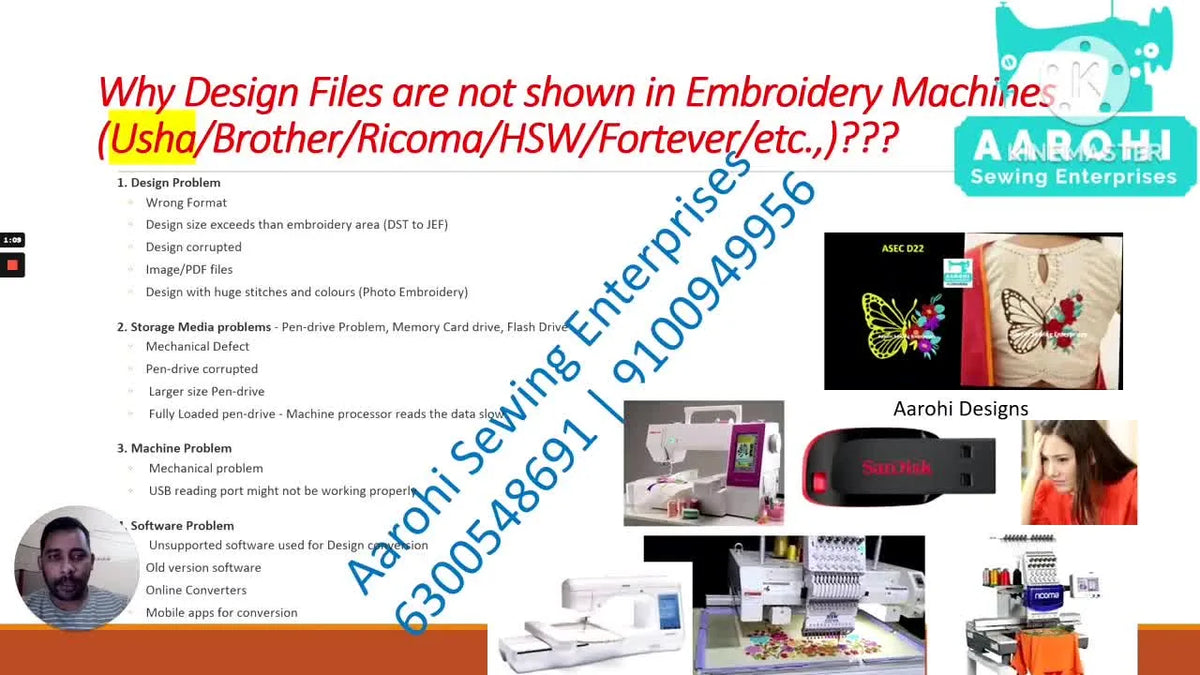

The 4-Bucket Reality Check: Why Designs Vanish

Before you re-format your entire life, pause. Troubleshooting works best when you isolate variables. The video source for this guide breaks the problem into four logical buckets. We will use this framework, but apply shop-floor rules to it:

1. Design Problems: (The "Blueprint" is wrong) – Wrong format, size, or it’s not even a stitch file.
2. Storage Media Problems: (The "Courier" is confused) – USB too big, formatted wrong (NTFS vs FAT32), or corrupted.
3. Machine Problems: (The "Reader" is dirty) – Physical dust in ports or pin damage.
4. Software Problems: (The "Architect" failed) – Bad export settings or unreliable converters.

Rule of Thumb: Always troubleshoot in this order: File → USB → Machine. It is the path of least resistance and lowest cost.

The “Hidden” Prep Pros Do First: CSI Your Workflow

Stop guessing. Before you touch a single button on the machine, you need to gather evidence. In my workshop, we call this the "Pre-Flight Check."

1. The Machine Identity

• Model Number matters: An Usha Janome 450E has different limits than a 550E.
• Firmware Version: When was the last time you updated your machine?

2. The File Forensics

• Extension: Is it .JEF, .PES, or .DST? (Visual check: turn on "File Name Extensions" in Windows/Mac view settings).
• Size: Don't guess. Open it in software and look at the millimeter dimensions.

Prep Checklist: The "Clean Room" Approach

• Sanity Check: Start with a freshly formatted (FAT32) USB drive.
• Isolation: Remove all other files. If the drive has 500 designs, the machine's processor may time out before indexing them all.
• Naming Convention: Rename the file to something short (e.g., FLOWER.JEF). Some older machines choke on special characters like &, %, or very long names.

File Format First: The Language Barrier

This is the number one reason for "Ghost Files." Machines are not multilingual polyglots; they speak specific dialects.

• Usha (450E/550E): Strictly .JEF. (Think of this as the "home user" dialect).
• Brother: Primarly .PES. They can often read .DST, but you lose color data (the machine will guess the colors, usually wrong).
• Industrial Standard (Ricoma/HSW/Fortever/Sewtech): The universal language is .DST.

Pro Tip for Scaling: If you plan to move from a single-needle home machine to a multi-needle production beast later, start organizing your files now. Create a folder system on your PC: LibraryCustomerBrother_PES and LibraryCustomerIndustrial_DST.

The Hardware Connection: If you are managing multiple machine types, color-code your USB drives. Use Red drives for JEF, Blue for PES. This simple visual cue prevents you from jamming the wrong data into the wrong port. For shops using standardized machine embroidery hoops across different machines, this digital organization is just as vital as your physical hoop station.

The Size Trap: The "Safety Margin" Rule

Here is a nuance the video touches on but experienced digitizers live by: Just because it fits mathematically, doesn't mean it fits mechanically.

If your Usha 450E has a max area of 8 x 11 inches, and your design is exactly 8.01 inches, the machine will hide it. It protects itself (and you) from hitting the frame.

The 10mm Safety Rule

Don't push the limit. If your hoop is 200x280mm, keep your design under 190x270mm.

1. Open Software: Check the X and Y dimensions.
2. Sensory Check: Look for the design center. Is it centered? If a design is off-center in the file, it might calculate as "out of bounds."
3. Resize: Scale it down by 2-5% if you are on the borderline.

Commercial Insight: If you constantly struggle with fitting designs (like large jacket backs), you may have outgrown your machine's physical limits. This is often the trigger point where businesses look at larger embroidery machine hoops or upgrade to machines with massive 14x20" fields.

“I Downloaded It, So It Must Be a Design”… The PDF Myth

We see this constantly with new clients. A customer sends a PDF and says, "Here is the embroidery file."

• PDF/JPG/PNG: These are flat images (pixels).
• JEF/DST/PES: These are coordinate maps (vectors + commands).

The Physics of the Problem: An embroidery machine is a CNC robot. It needs X/Y coordinates for every needle penetration. A picture of a house does not tell the builder how to lay the bricks.

Decision Time

• Scenario A: You have a PDF/JPG. Action: You must digitize it (or pay a digitizer). There is no shortcut.
• Scenario B: You bought a ZIP file. Action: Unzip it first! Machines cannot read inside ZIP folders.

Warning: Be extremely wary of "One-Click Auto-Digitizing" apps. They often create "bulletproof" density (too many stitches in one spot). If you run a file with 60,000 stitches in a 2-inch square, you risk breaking the needle or hammering a hole through your fabric.

Corrupted or “Heavy” Files: The Processor Choke

Sometimes the file shows up, but the machine freezes or crashes when you select it. Or, it simply never appears.

The "High Density" Issue: Industrial machines usually handle high stitch counts (50k+) fine. Home machines (single-needle) often have lower processor memory. A highly complex, dense design might simply be too "heavy" for the machine to render on screen.

The Fix

1. Re-save: Open the design in software (like Wilcom or Hatch) and "Save As" a new name. This strips out "junk code" or corruption.
2. Split: If the design is massive, split it into Part A and Part B.

Visual Cue: If the thumbnail on your machine looks like static or a jumbled mess of lines, do not stitch it. That is a corrupted header.

USB Pen Drive Rules: Smaller is Better

In a world of 1TB hard drives, it seems counter-intuitive, but for embroidery machines: Less is More.

• Capacity: Stick to 8GB or 16GB. Many machines (especially Usha/Janome 450E series and older Brother models) cannot address the memory sectors of a 32GB or 64GB drive.
• Format: The drive MUST be formatted to FAT32. Modern Windows PCs often default to NTFS or exFAT. Your machine likely cannot read those.
• Hygiene: Do not use your "Personal Life" USB. No movies, no school homework. The machine attempts to index every file on the root.

Professional Standard: Use standardized, low-capacity industrial USB drives. If you have a hooping station where you prep garments, keep a dedicated "Transfer Drive" there. Efficient shops often pair this workflow with a hooping station for embroidery machine to minimize the time between "file load" and "press start."

Setup That Prevents Repeat Problems: The Clean Handoff

Troubleshooting is exhausting. Preventing the problem is free. Establish a "Clean Handoff" protocol between your computer and your machine.

The Protocol

1. Clean: Empty the USB drive of old files.
2. Copy: Drag ONLY the specific file(s) for the current job.
3. Eject: Right-click and "Eject Safely." (Yanking the drive out can corrupt the file header instantly).
4. Insert: Place into the machine before turning the machine on (for some older models), or wait 10 seconds after insertion before opening the menu.

For those running a fleet of brother embroidery machines, standardization is key. If every operator follows this "Clean Handoff," your "file not found" errors will drop by 90%.

The 30-Second Hardware Check: Dust Bunnies Kill Data

The USB port on your machine is a physical connection. Embroidery produces lint. Lint is an insulator.

How to Clean safely

• Visual: Shine a phone light into the port. Do you see grey fuzz?
• Action: Use a can of compressed air (from a distance) or a non-conductive plastic pick.
• The "Feel": When you insert the USB, it should feel firm. If it feels "mushy" or loose, the port soldering might be cracking.

Warning: Never use a metal needle or pin to clean the USB port while the machine is on. You can short-circuit the mainboard, turning a $5 cleaning job into a $500 repair.

Software Problems: The Risks of Mobile Converters

Not all converters are created equal. The video rightly points out that free online converters or mobile apps are often the culprit.

The Problem: They might change the file extension (e.g., from .DST to .JEF) but fail to convert the coordinate commands properly. The machine sees the name "JEF" but reads gibberish inside.

The Solution: Use PC-based embroidery software (even the free "Lite" versions from manufacturers like Wilcom TrueSizer). These programs validate the stitch data before saving.

This is critical for high-speed equipment. If you are running ricoma embroidery machines at 1000 stitches per minute, a bad conversion isn't just a nuisance—it causes birdnesting (thread tangles) that can knock your machine out of timing.

A Decision Tree: From Panic to Production

Use this logic flow when a design is missing. Do not skip steps.

Step 1: The File Extension Check

• Is it JEF (Usha), PES (Brother), or DST (Industrial)?
• NO → Convert it properly on a PC.
• YES → Go to Step 2.

Step 2: The Size Check

• Is the design smaller than the machine’s max field (minus 10mm buffer)?
• NO → Resize or split the design.
• YES → Go to Step 3.

Step 3: The Media Check

• Is the USB <16GB and formatted FAT32?
• NO → formatting is the culprit. Swap drives.
• YES → Go to Step 4.

Step 4: The Physical Check

• Is the port clean? try a different port if available.

Troubleshooting Map: Symptom → Cause → Fix

Keep this list near your machine.

The Upgrade Path: Solving the Real Bottleneck

Sometimes, file issues are a symptom of a larger problem: You are outgrowing your tools.

If you are spending more time shrinking designs to fit small hoops, or fighting with USBs because you have 50 shirts to do on a single-needle machine, the bottleneck isn't the file—it's the workflow.

Level 1 Upgrade: The Magnetic Hoop If your frustration comes from the physical act of hooping (and the dreaded "hoop burn" marks on delicate fabrics), consider magnetic embroidery hoops. They hold fabric using magnetic force rather than friction.

• Why it helps: They self-adjust to different fabric thicknesses.
• The Safety Note: > Warning: Magnetic Hazard. These magnets are powerful. They can pinch fingers severely. Do not use if you have a pacemaker. Keep away from magnetic storage media (like credit cards and… yes, your USB drives!).

Level 2 Upgrade: The Multi-Needle Machine If you are constantly converting JEF files and waiting for color changes, moving to a multi-needle machine (like Sewtech or similar commercial units) changes the game. You load a DST file, assign 12 colors once, and walk away.

Understanding how to use magnetic embroidery hoop systems and multi-needle workflows is the bridge between "hobby frustration" and "business production."

Operation Checklist: The "Green Light" Routine

Before you press the start button, run this final mental scan.

• File: Correct format and within size limits?
• Stabilizer: Is the backing appropriate for the stitch density? (Heavy file = Heavy Cutaway).
• Needle: Is the needle fresh? (A burred needle ruins any design, no matter how good the file is).
• Hoop: Is the hoop locked and the inner ring slightly recessed (drum tight)?
• consumables: Do you have your fabric markers, snips, and spray adhesive ready?

When you master the file input, you stop fighting the machine and start crafting. Whether you need a simple hoop for brother embroidery machine or a complete magnetic system, the goal is the same: eliminate friction so the creativity can flow.

FAQ

• Q: Why does an Usha Janome 450E/550E embroidery machine not show a .JEF design file that is clearly on the USB drive?
  A: This is usually a file-format, file-name, or design-size limit issue, not a dead machine.
  • Check: Confirm the file extension is exactly .JEF (not .jef renamed from another format).
  • Rename: Use a short name like FLOWER.JEF and avoid symbols like & or very long names.
  • Verify size: Keep the design comfortably inside the hoop field (use the 10 mm safety buffer, not the absolute max).
  • Success check: The design appears in the machine menu and shows a normal thumbnail preview.
  • If it still fails: Move to USB troubleshooting—use a freshly formatted FAT32 8–16GB drive with only that one design on it.
• Q: How do I format a USB drive for a Brother embroidery machine so the Brother embroidery machine can read .PES designs reliably?
  A: Use a small USB drive and format it to FAT32, then transfer only the current job files.
  • Switch: Use an 8GB or 16GB USB drive (many machines struggle with 32GB+ drives).
  • Format: Format the USB to FAT32 (avoid NTFS/exFAT for machine use).
  • Clean handoff: Copy only the needed .PES file(s), then “Eject Safely” before unplugging.
  • Success check: The Brother embroidery machine recognizes the USB immediately and the design list loads without delay.
  • If it still fails: Remove extra folders/files from the root and try a different known-good USB drive.
• Q: Why does a Brother embroidery machine show a .DST design file but the colors are wrong after loading the design?
  A: This is expected behavior on many Brother units because .DST often drops or guesses color information.
  • Prefer: Use .PES when the goal is accurate color changes on a Brother embroidery machine.
  • Re-export: Save from reliable PC embroidery software rather than free online/mobile converters.
  • Organize: Keep separate PC folders for PES vs DST so the correct “language” is always loaded.
  • Success check: Color blocks and color-change order display as expected on the machine screen.
  • If it still fails: Re-save the file in PC software (“Save As”) to strip possible header junk before exporting again.
• Q: Why does an Usha Janome 450E embroidery machine hide a design that is “within 8 x 11 inches” but still will not appear in the design list?
  A: The design may be mechanically out of bounds—use a safety margin instead of the mathematical maximum.
  • Measure: Open the design in software and check X/Y dimensions in millimeters.
  • Apply buffer: Keep at least a 10 mm safety margin (example rule: 200×280 mm hoop → stay under ~190×270 mm).
  • Center: Check whether the design is off-center; off-center designs can calculate as out-of-bounds.
  • Success check: After a 2–5% resize, the design becomes visible in the machine’s menu.
  • If it still fails: Split the design into Part A and Part B, then re-save each part.
• Q: Why does a Ricoma embroidery machine freeze or crash when selecting a design file from the USB drive?
  A: A corrupted header or an overly “heavy” (dense/complex) file can overwhelm the preview/loading process.
  • Re-save: Open the design in PC software and “Save As” a new file name to remove corruption/junk code.
  • Reduce load: Remove all other files from the USB so the machine indexes fewer items.
  • Inspect preview: Do not stitch if the thumbnail looks like static or scrambled lines.
  • Success check: The file opens without freezing and displays a clean, correct preview.
  • If it still fails: Split the design into smaller parts and test each part; also try a different FAT32 8–16GB USB drive.
• Q: How do I safely clean the USB port on an embroidery machine when the embroidery machine intermittently fails to read a USB drive?
  A: Lint and dust can block data contact—clean the port carefully and never use metal tools on a powered machine.
  • Power down: Turn the embroidery machine off before cleaning.
  • Inspect: Shine a phone light into the USB port and look for grey lint/fuzz.
  • Clean: Use compressed air (from a distance) or a non-conductive plastic pick.
  • Success check: The USB drive seats firmly (not “mushy” or loose) and the machine reads files consistently.
  • If it still fails: Test with a second USB drive; if the port still feels loose, the port soldering may be failing and needs service.
• Q: What are the safety warnings for magnetic embroidery hoops when switching from standard hoops to magnetic embroidery hoops to prevent hoop burn?
  A: Magnetic embroidery hoops can reduce hooping friction marks, but the magnets are strong and require strict handling.
  • Protect hands: Keep fingers out of the closing path to avoid severe pinching.
  • Medical warning: Do not use magnetic embroidery hoops if the operator has a pacemaker.
  • Keep clear: Keep magnets away from magnetic storage media (for example, credit cards and USB drives).
  • Success check: Fabric is held evenly without over-tight friction marks, and hooping feels repeatable job-to-job.
  • If it still fails: Re-check the workflow bottleneck—use Level 1 fixes first (clean FAT32 USB + correct format/size), then consider hoop or machine workflow upgrades if the volume demands it.
