Design Doodler on iPad: Trace a Simple Flower into Real Embroidery Stitches (and Avoid the Rookie Mistakes That Ruin Stitch-Outs)

If you’ve ever looked at a cute coloring-page flower and thought, “I could stitch that,” you’re exactly who this iPad demo is for. But as someone who has overseen thousands of hours of production, I need to tell you a secret: Drawing is easy; engineering stitches that survive the wash is the real skill.

Design Doodler’s iPad workflow is refreshingly direct: import a simple line drawing, trace shapes with Fill Stitch and Satin Stitch, tweak a few properties, and you’ve got a design you can build on.

One important reality check from the presenter: the iPad app saves a native working file. You will need the Windows version to convert that native file into a machine format like DST or PES.

Calm the Panic First: Design Doodler on iPad Is “Simple,” but Your Stitch-Out Still Has Rules

The video makes digitizing look easy—and it is, in the sense that you can draw stitches with an Apple Pencil and see instant results. But the stitch-out on fabric is where beginners get blindsided.

Here’s the mindset shift you need to make today:

• The iPad preview is a liar. It shows you a perfect, flat, motionless image.
• Fabric is alive. It moves, it stretches, and thread has physical drag.
• Your Job: You are not just drawing; you are controlling tension.

If you’re coming from “download-and-stitch” designs, this is the first time you are responsible for the structural engineering of the thread.

The “Hidden” Prep Pros Do Before Tracing Anything (So the File Doesn’t Fail Later)

Before you even import the picture, decide what you’re making and what it will stitch on. That decision quietly determines whether your first stitch-out looks crisp—or looks like a bulletproof vest that puckers the fabric.

Prep Checklist (do this before you touch the Pen tool)

• Pick the _real_ end use: A t-shirt requires different density than a canvas tote or a towel.
• Select your thread weight: Standard 40wt Poly/Rayon is the baseline. If you switch to thicker cotton or thinner metallic later, your density settings will fail.
• Gather "Hidden" Consumables: Do you have sharp scissors, temporary adhesive spray (for floating fabric), and fresh needles (Size 75/11 Ballpoint for knits, Sharp for wovens)?
• Secure your environment: Set up a clean, repeatable hooping area. If you’re constantly re-hooping on your lap, you’ll never know whether the problem is the digitizing or the operator.

If you are setting up a dedicated hooping station for machine embroidery, you gain the advantage of consistent mechanical tension, which removes the biggest variable from your test stitch-outs.

Import the Coloring-Page Image (and Set the View Scale So Tracing Feels Natural)

In the video, the presenter imports a simple flower line drawing from the photo library:

1. Tap the photo icon.
2. Select “Choose Photo.”
3. Select the flower image.
4. Choose “Medium” size.
5. Confirm “Use.”

Crucial Step: Change the view scale to Fit to Screen.

Why this matters: Beginner digitizers often zoom in to the microscopic level. If you trace while zoomed in at 400%, your hand jitters create hundreds of unnecessary "nodes" (points). This makes the machine stutter during stitching, creating a sound like a grinder rather than a hum. Zoom out to see the flow of the shape.

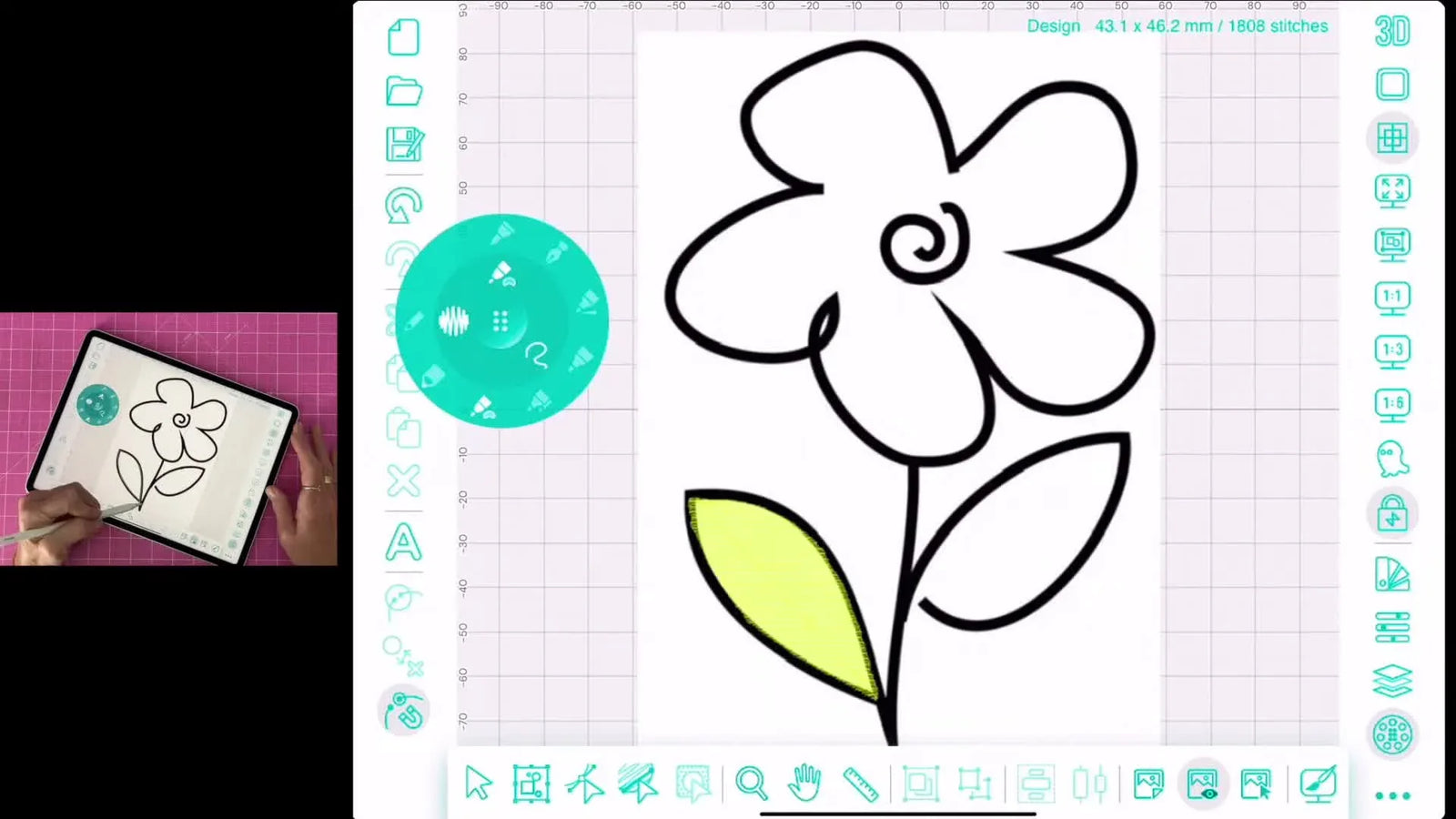

Trace Your First Object with Fill Stitch (Leaf) Without Overthinking It

The first stitched object in the demo is a leaf. This is your foundation.

• Select the Pen tool.
• Choose Fill Stitch.
• Pick a bright green color.
• Trace the leaf outline with the stylus.
• Close the shape to fill it.






What I want you to feel while tracing

Don’t “scribble-correct.” If the outline is wrong, undo and re-trace. Your goal is smooth curves. Imagine your stylus is gliding on ice—smooth, long strokes create cleaner embroidery than short, choppy ones.

Make the Leaf Look Like Embroidery: Density, Stitch Length, Fill Pattern, and Underlay

After the leaf is created, the presenter selects it and opens Properties. This is the "Engine Room" of your design.

In the video, she uses:

• Density: 0.4 mm
• Stitch Length: 3 mm
• Fill Pattern: Pattern 3
• Underlay Type: Perpendicular




Empirical Data & Safety Zones (Read This!)

The numbers on the screen are not random; they are physics.

• Density (0.4 mm): This is the industry "Sweet Spot" for standard thread.
  • Risk: If you go lower (e.g., 0.3 mm), you are packing thread too tight. This causes stiff patches and needle breaks.
  • Risk: If you go higher (e.g., 0.6 mm), the fabric will show through.
• Stitch Length (3.0 - 4.0 mm): This controls the texture.
  • Sensory Check: A 3mm stitch looks smooth and glossy. A 2mm fill stitch looks matte and feels rough to the touch.
• Underlay (Perpendicular): Think of this as the rebar in concrete. Without underlay, your top stitches will sink into the fabric, and the outline will shrink inward.

The Node-Editing Trick That Saves Your Eyes

The presenter runs into a classic problem: black control points (nodes) on top of a black line drawing make it impossible to see what you are doing.

The Pro Fix: Temporarily turn off the visibility of the background drawing layer.

Why clean nodes matter: Every node is a coordinate the machine must calculate.

• Messy nodes: The machine sounds like "Chug-chug-chug" (inconsistent speed).
• Clean nodes: The machine sounds like "Zzzzzzzzzz" (smooth, high-speed operation).

Add a Satin Border Around the Leaf (and Fix the “Way Too Wide” Satin)

Next, the presenter adds a satin border:

1. Pen tool → Satin Stitch.
2. Choose a darker green.
3. Trace around the leaf.
4. Critical Adjustment: Change satin width to 1.3 mm.






The "Satin Danger Zone"

A 1.3 mm satin stitch is very narrow.

• On flat cotton: It looks crisp.
• On a fluffy towel: It will disappear completely into the pile.
• On a thick seam: It acts like a perforation stamp and can snap needles.

Warning: Satin borders are where needle breaks happen most often. If your border crosses a thick seam (like on a jeans pocket), slow your machine down to 500 SPM (Stitches Per Minute) to prevent deflection.

Stitch the Stem with Satin Stitch (Consistency is King)

In the demo, she keeps the satin stitch tool and draws the stem, adjusting the width to match the visual weight of the leaf border.

Visual Rule: Your eye catches inconsistencies instantly. If the leaf border is 1.3mm and the stem is 2.5mm, it will look like a mistake. Keep widths consistent unless you are intentionally creating contrast.

Digitize the Petals with Fill Stitch (The Power of Undo)

For the petals, the presenter repeats the workflow but changes the fill pattern to Pattern 2 for visual contrast.

Setup Checklist (Before you say "I'm Done")

• Visual Check: Do all shapes touch or slightly overlap? (Embroidery shrinks; if they just barely touch on screen, you will have gaps on fabric).
• Underlay Check: Did you apply underlay to every filled object?
• Node Check: Toggle the drawing layer off. Are legs/lines smooth?
• Consumables: Is your bobbin full? Running out of bobbin thread halfway through a complex fill is a nightmare.

The Reality of Exporting: iPad Native File vs. Machine Formats

The presenter explains that to get a DST or PES file, you need the Windows version of the software.

The Workflow:

1. iPad: Creative drafting, tracing, visual choices.
2. Windows PC: Final parameter check, conversion to machine language.
3. USB/Wifi: Transfer to machine.

Decision Tree: Fabric, Stabilizer & Hooping Logic

You cannot use the same setup for a t-shirt that you use for denim. Use this logic tree to make safe decisions:

1. The Fabric Variable:
   • Stretchy (Knits/Tees): MUST use Cutaway stabilizer. Tearaway will result in a distorted, ruined shirt.
   • Stable (Denim/Canvas): Tearaway is acceptable.
   • Fluffy (Towel/Fleece): Needs Water Soluble Topping (Solvy) so stitches don't sink.
2. The Hooping Variable:
   • Problem: Standard standard machine embroidery hoops require hand strength and can leave "hoop burn" (shiny crush marks) on velvet or delicate performance wear.
   • Solution: Professionals search for magnetic embroidery hoops to solve this. They clamp automatically without forcing the inner ring, eliminating hoop burn.

Warning: Magnetic Safety
Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear when the magnets snap together.
* Medical: distinct distance required for pacemaker users.
* Electronics: Keep phones and credit cards at least 12 inches away.

Troubleshooting: Why It Looked Good on iPad but Failed on Fabric

If your first stitch-out looks bad, don't panic. Use this diagnostic table:

Commercial Bridge: When to Upgrade Your Tools

As you move from "testing" to "production," you will hit specific pain points. Here is when you should consider upgrading your gear:

1. Pain Point: "My wrist hurts and I have hoop burn marks."

• Diagnosis: Traditional screw-tightened hoops are slow and physically demanding.
• The Upgrade: A set of magnetic hoops for embroidery machines. They snap on instantly. If you own a specific home machine, look for a compatible magnetic hoop for brother pe800. This is the single fastest way to improve your prep time.

2. Pain Point: "I can't get the design straight."

• Diagnosis: Human error in alignment.
• The Upgrade: Using dedicated hooping stations (or a system like the hoopmaster hooping station) ensures that every shirt is hooped in the exact same spot, mandatory for bulk orders.

3. Pain Point: "Changing thread colors takes longer than stitching."

• Diagnosis: Single-needle limitations.
• The Upgrade: If you are stitching 4-color designs on 50 shirts, a single-needle brother embroidery machine is a bottleneck. This is when moving to a multi-needle machine (like the SEWTECH value series) becomes a profit decision, not just a hobby cost.

Operation Checklist (Your "Go-No-Go" for the First Stitch)

• Fabric Check: Am I testing on a scrap that mimics the final fabric weight?
• Stabilizer: Is it secured tightly in the hoop (drum-tight sound when tapped)?
• Needle: Is the needle brand new and straight?
• Speed: Have I lowered the machine speed to 600 SPM for the first test?
• Watch: Am I ready to hit the STOP button if I hear a sharp "click" or grinding noise?


Digitizing on an iPad is a liberating creative experience, but the laws of physics still apply. Trace carefully, respect the properties of your fabric, and insist on clean hooping. That is how you turn a digital doodle into a physical masterpiece.

FAQ

• Q: Why does Design Doodler on iPad embroidery look perfect on the iPad preview but pucker on a real t-shirt stitch-out?
  A: This is common—t-shirt fabric moves, so fix stabilizer and density before blaming the artwork.
  • Switch to cutaway stabilizer for knits/tees; avoid tearaway on stretch fabric.
  • Increase the density number slightly (example from the post: move from 0.4 mm toward 0.45 mm) if stitches are packing too tight.
  • Reduce “overbuilding” underlay if the area is getting stiff and pulling fabric.
  • Success check: Fabric stays flat around the design with no ripples after stitching.
  • If it still fails: Re-hoop on a stable surface and re-test at a lower machine speed for the first run.
• Q: How do I stop birdnesting under the needle plate on a home embroidery machine during the first test stitch-out from an iPad-traced file?
  A: Re-thread the top thread correctly first—birdnesting is often a threading setup issue, not the digitizing.
  • Raise the presser foot UP before threading so the thread seats correctly.
  • Re-thread the top thread from spool to needle (do not “patch” one section).
  • Confirm the bobbin is not near-empty before starting a dense area.
  • Success check: The machine forms clean stitches with no thread knot balling under the fabric.
  • If it still fails: Stop immediately and check for a sharp “click” or grinding sound, then inspect needle condition and re-hoop.
• Q: What embroidery design settings in Design Doodler (Density 0.4 mm, Stitch Length 3 mm, Perpendicular Underlay) are a safe starting point for a fill-stitch leaf with 40wt thread?
  A: Use the shown settings as a safe starting point, then test on scrap because fabric and thread drag change results.
  • Start at Density 0.4 mm and Stitch Length about 3 mm for a smooth fill texture.
  • Keep Perpendicular underlay on fills so top stitches do not sink and shrink inward.
  • Avoid pushing density tighter (example risk mentioned: 0.3 mm can over-pack thread and cause stiffness/needle breaks).
  • Success check: The fill looks solid (no show-through) and feels flexible, not like a stiff patch.
  • If it still fails: Adjust density in small steps and verify stabilizer strength matches the fabric type.
• Q: How can Design Doodler node editing on iPad be made easier when black nodes disappear on a black line drawing background?
  A: Temporarily hide the background drawing layer so the nodes are visible and you can clean the path.
  • Turn off the background drawing visibility while editing nodes.
  • Re-shape curves with fewer, smoother points instead of many tiny corrections.
  • Keep the tracing view at “Fit to Screen” to avoid creating excessive nodes from zoomed-in jitter.
  • Success check: During stitching, the machine runs smoothly (steady hum) instead of chugging through tiny point-to-point moves.
  • If it still fails: Undo and re-trace the shape with longer, smoother stylus strokes rather than “scribble-correcting.”
• Q: What satin stitch width should Design Doodler iPad users use for a leaf border, and why does a too-wide satin border increase needle break risk on thick seams?
  A: Narrow the satin border to the demonstrated 1.3 mm and slow down over thick seams to reduce needle deflection.
  • Set satin width to 1.3 mm for a crisp, controlled border on flat fabric.
  • Slow the embroidery machine to about 500 SPM when the satin border crosses thick seams (like jeans pocket seams).
  • Avoid running narrow satin across bulky transitions without slowing, because this is a common needle-break zone.
  • Success check: Satin border stitches evenly with no snapping sounds and no needle breaks.
  • If it still fails: Re-test on scrap and consider changing placement so the border does not cross the seam.
• Q: What prep consumables should be ready before tracing an embroidery design in Design Doodler on iPad so the first stitch-out does not fail?
  A: Prepare the “hidden” consumables first so test results reflect the design, not avoidable setup problems.
  • Install a fresh needle (example guidance: 75/11 ballpoint for knits, sharp for wovens).
  • Stage sharp scissors and temporary adhesive spray if floating fabric is required.
  • Confirm the bobbin has enough thread before starting a multi-object fill design.
  • Success check: The first test stitch runs without mid-design stops, skipped stitches, or rushed re-hooping.
  • If it still fails: Standardize a dedicated hooping area so repeated tests are consistent and comparable.
• Q: How do magnetic embroidery hoops reduce hoop burn marks compared with standard screw-tightened machine embroidery hoops, and what magnetic hoop safety rules matter most?
  A: Magnetic hoops clamp without forcing an inner ring, which helps prevent hoop burn, but the magnets are powerful and require strict handling.
  • Use magnetic hoops when standard hoops leave shiny crush marks on velvet or delicate performance fabrics.
  • Keep fingers clear when magnets snap together to avoid pinch injuries.
  • Maintain appropriate distance for pacemaker users and keep phones/credit cards at least 12 inches away.
  • Success check: Fabric shows minimal or no hoop burn while remaining securely held for stitching.
  • If it still fails: Re-check fabric/stabilizer pairing and hooping technique, because slipping can mimic “burn” and cause distortion.
