Design Doodler Appliqué That Actually Lines Up: Merge Overlapping Shapes Without Gaps (and Without Re-Stitching)

Mastering Merged Appliqué: The "Bone & Meat" Protocol for Design Doodler

Appliqué looks deceptive. It appears "easy" right up until the moment your tack-down stitch lands 2mm outside your placement line, your overlap shows a fabric gap, or your base material shifts, forcing you to scrap a $20 garment.

This project—merging two appliqué shapes into one clean drumstick (bone underneath, meat on top)—is exactly where Design Doodler can shine. However, success relies on respecting one non-negotiable rule of geometry: drawing direction controls stitch logic.

Below is a field-tested, "White Paper" grade workflow. We have calibrated the software settings based on shop-floor realities to ensure your stitch-out is predictable, safe, and professional.

Don’t Panic: When Design Doodler Appliqué Lines Look “Backwards,” It’s Usually One Setting (Not a Broken File)

If you have ever previewed an applied object and touched your screen in frustration asking, “Why is the tack-down outside the placement line?”—step back. You haven't broken the software.

In this specific workflow, the root cause is almost always a directional conflict: you likely drew an open shape counter-clockwise while the Auto Close Shape feature was disabled.

The software isn't failing; it is following a strict vector logic. It needs a consistent direction to decide which side of the line is "inside" (for the inset tack-down) and which is "outside" (for the placement).

From a production standpoint, reassurance is key here: even if your first component is an open-ended shape (like the drumstick bone), we can make it stitch perfectly clean. We utilize a "Masking Strategy" where the second appliqué layer covers the raw edge of the first, eliminating the need for complex manual closing.

The “Hidden” Prep Pros Do Before Touching the Appliqué Brush: Hoop Boundary, 3D Preview, and Panels You’ll Actually Use

Amateurs start drawing immediately. Professionals set up their "digital workspace" to mimic physical reality. You must set yourself up to see mistakes on-screen, rather than discovering them after you have permanently perforated a garment.

1) Set the Hoop Preset to 5x7 (Physical Boundary Check)

• Action: Click the hoop icon. Select the 5x7 preset.
• Why: Merged appliqués often "creep" outward. You might draw the bone and meat within a 4x4 area, but once the 3mm satin border generates, the actual footprint expands. Seeing the 5x7 boundary prevents the dreaded "Design exceeds hoop limit" error at the machine.


2) Enable 3D Preview (Visual Density Check)

The tutorial recommends keeping 3D on.

• Sensory Anchor: You need to see the loft of the thread. A flat line looks fine in vector view, but in 3D, overlapping satin stitches might look like a messy knot.

3) Monitor Properties and Sequence View (The Flight Instrument Panel)

Keep these panels open to monitor:

• Object Properties: Width, Density, Inset.
• Stitch Sequence: Confirming the logical order: Placement → Tack-down → Finish.

**Prep Checklist: The "Pre-Flight" Inspection**

(Do not proceed until all boxes are checked)

• Hoop Visualization: Preset set to 5x7; boundaries are visible.
• Visual Mode: 3D preview enabled to detect satin overlap issues.
• Data Panels: Properties panel open (showing Width/Density).
• Sequence: Sequence View visible to verify layer order later.
• Strategy: Decision made: First shape is Open-End (Bone); Second shape is Closed (Meat).


Dial In the Design Doodler Appliqué Brush: 3.0 mm Satin Width, Standard Density, Freehand Mode

Standardization is the bedrock of production. We aren't guessing; we are setting parameters that work for 90% of fabrics.

In the widget menu:

• Stitch Type: Select Appliqué.
• Satin Width: Set to 3.0 mm.
  • Expert Insight: 3.0 mm is the "Sweat Spot" for beginners. It provides enough width to cover raw fabric edges if your hand-trimming isn't perfect, but isn't so wide (like 4.5mm) that it creates bullet-proof ridges on soft t-shirts.
• Density: Keep at Standard (approx 0.40mm spacing).
• Mode: Use Freehand.

The "Hoop Burn" Reality Check

If you plan to run this workflow frequently, you will encounter the physical limitations of standard plastic hoops. To achieve perfect appliqué, you must hoop tight—"drum tight." However, tightening standard hoops on delicate knits causes "Hoop Burn" (permanent friction marks/creases).

This is where hardware choice becomes a diagnostic tool. If you are struggling with hoop marks, magnetic embroidery hoops are the industry standard solution. By clamping fabric with vertical magnetic force rather than friction, they hold the stabilizer firm without crushing the fabric fibers, significantly reducing prep stress during multi-step appliqué jobs.

Auto Close Shape in Design Doodler: Use It Like a Switchblade—On for Closed Pieces, Off for Open-End Connections

Open Settings (three dots menu) → General Tab. This toggle determines how your shape behaves mechanically.

1. Uncheck Auto Close Shape: Use this for the Bone. We need the end to remain "open" so it can slide under the meat without creating a bulky double-satin ridge.
2. Check Auto Close Shape: Use this for the Meat. We need this shape to be a self-contained island that seals the design.

The Concept: When disabled, you are telling the software "This is a path, not a circle." This is where the Directional Rule below becomes critical to prevent the inside/outside inversion.

The Clockwise Rule That Saves Your Stitch-Out: Open Shapes Must Be Drawn 12→3→6→9

This is the most critical technical takeaway of this guide. Code it into your muscle memory.

When Auto Close Shape is OFF, you must draw your open-end appliqué shapes in a Clockwise motion.

• Imagine a Clock Face: Start at 12, draw towards 3, down to 6, and finish at 9.
• The Result: The software utilizes the "Right Hand Rule." The Placement line generates on the outside (left of path), and the Tack-down line generates inset (right of path).

The Failure Mode (Counter-Clockwise): If you draw 12 → 9 → 6, the logic inverts. You will end up with the Placement line inside the Tack-down line.

• Consequence: You lay your fabric on the placement line, but the machine stitches the tack-down further out, missing the fabric entirely or hitting the raw edge.


Warning: Mechanical Safety
During appliqué, your hands are frequently near the needle zone to place fabric and trim. NEVER place your fingers inside the hoop while the machine is live. Always stop the machine completely before trimming. A standard embroidery needle moves at 10-15 hits per second—it will stitch through a finger before you can react.

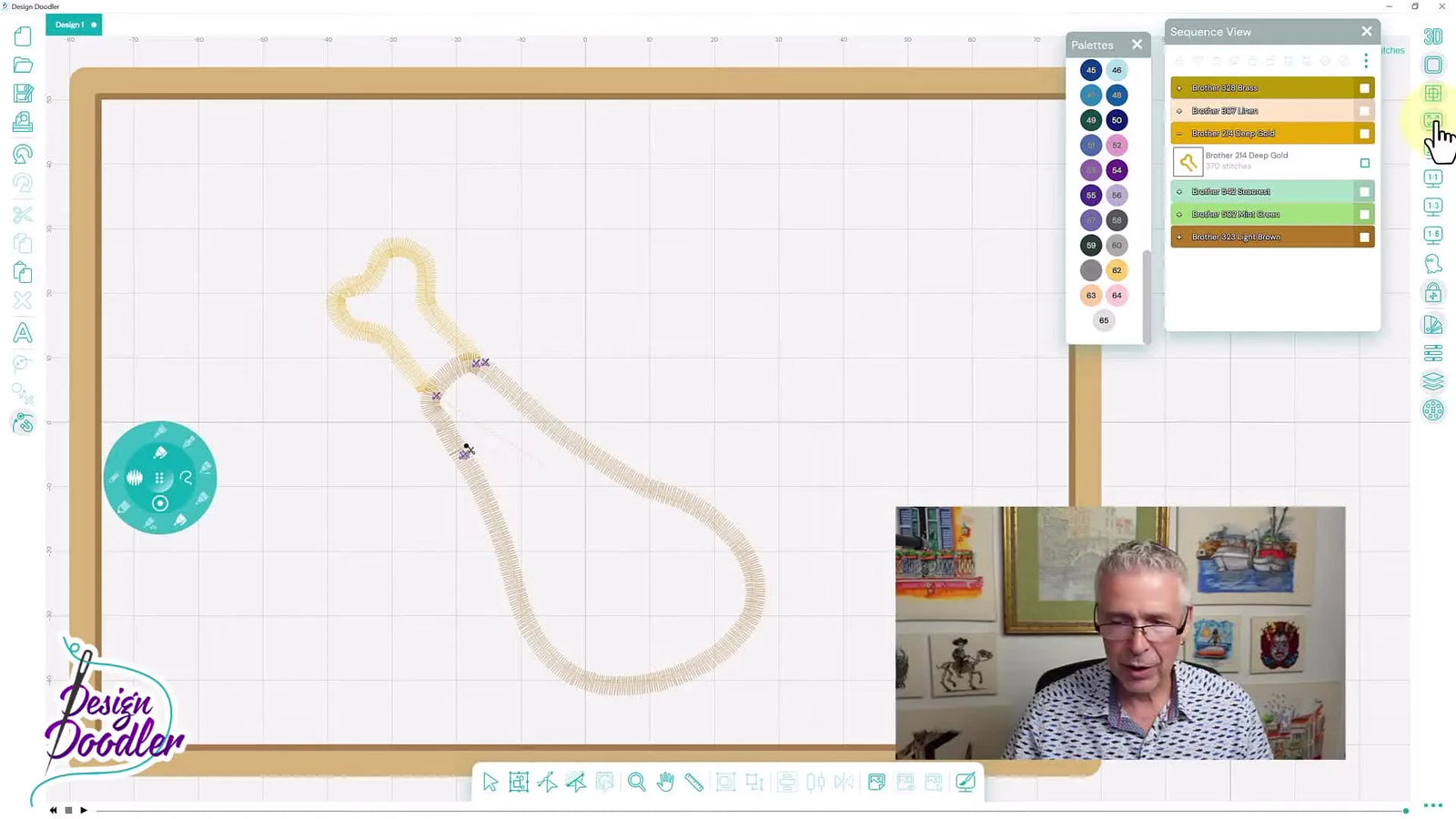

Build the Drumstick Appliqué in Two Parts: Bone Underlap (Open-End) + Meat Overlap (Closed)

We will now apply the logic. The goal is to build a structure where the "Bone" acts as the foundation and the "Meat" acts as the roof.

Part A — Digitize the Bone (The Foundation)

1. Configuration: Auto Close Shape = OFF.
2. Visuals: Choose Yellow.
3. Action: In Freehand mode, draw the bone shaped like a "U" or open loop. Draw Clockwise. Leave the top connection point open.

Visual Check: Look at the generated satin column. Is the lighter running stitch (tack-down) sitting inside the satin edges? If yes, proceed.

Part B — Digitize the Meat (The Cover)

1. Configuration: Auto Close Shape = ON.
2. Visuals: Switch to Brown.
3. Action: Draw the meat shape. Ensure it overlaps the open ends of the bone by at least 2-3mm.

Why Overlap Matters: Fabric shrinks when stitched. If you only touch the edges (0mm overlap), the pull on the fabric will create a visible gap (the "Gutter") between the bone and meat after sewing. That 3mm overlap is your "Safety Margin."

Clean Curves Without Creating Jump Stitches: Node Editing and Start/Stop Discipline

Once the shapes are drawn, they will look rough. Vector nodes are rarely perfect on the first pass.

1. Select & Edit: Use the node tool to smooth out jagged curves.
2. Tuck the Tails: Move the open termination points of the bone deeper inside the meat area. You want them buried so the final brown satin stitch covers them completely.
3. Path Optimization: Check for "Travel Stitches."
   • Symptom: A long straight line connecting the end of the bone to the start of the meat.
   • Fix: Adjust start/stop points to minimize long jumps. Long travel lines across open fabric get snagged or dragged, ruining the finish.


Slow Redraw Is Your Proof Test: Confirm the Exact Stitch Order Before You Touch Fabric

Do not trust the screen preview alone. Run the Slow Redraw simulator. This shows you exactly how the machine will execute the code.

The Mandatory Sequence:

1. Bone Placement: (Single run)
2. STOP: (Machine waits for fabric)
3. Bone Tack-down: (Double/Zig-zag run inside placement)
4. Bone Finish: (Satin border)
5. Meat Placement: (Single run)
6. STOP: (Machine waits for fabric)
7. Meat Tack-down: (Double/Zig-zag run)
8. Meat Finish: (Satin border)

If steps 4 and 5 are reversed, or if the "Meat Placement" happens before "Bone Finish," you must reorder them in the Sequence View panel immediately.

**Setup Checklist: The "Go/No-Go" Decision**

(Verify on-screen before exporting to machine)

• Directionality: Bone object was drawn Clockwise (Open-end).
• Geometry: Meat object is Closed and physically overlaps the bone ends (min 2mm).
• Stitch Type: Border confirmed as Satin (Width: 3.0mm+).
• Sequence Order: Redraw confirms: Bone Complete → Meat Start.
• Travel Path: No jump stitches crossing the visual center of the design.

Stitch-Out on a Multi-Needle Embroidery Machine: The "Rhythm of Production"

The tutorial demonstrates this on a 6-needle machine. Here is how to execute this with professional precision.

Machine Settings - The Sweet Spot:

• Speed (SPM): Slow down. Running flats is easy; jumping satin borders is hard. Set your machine to 600-700 SPM. Do not run at 1000 SPM for appliqué—the centrifugal force can shift your fabric patch before it's tacked down.
• Tension: 100-120g top tension.
  • Sensory Check: Pull the thread through the needle eye. It should feel like pulling dental floss between teeth—resistance, but smooth flow. If it slides freely, it's too loose.
• Hidden Consumables: You need Curved Tip Appliqué Scissors (Duckbill) to trim close without snipping the stabilizer, and Temporary Spray Adhesive (like 505) to hold the fabric patch if you aren't using a fusible backing.

The Workflow:

1. Placement Stitch (Yellow): Runs on stabilizer.
2. Place Fabric: Apply yellow fabric. Tip: A light mist of spray adhesive prevents lifting.
3. Tack-Down & Trim: Machine tacks. Remove hoop (or slide out) and trim fabric close to stitches (1-2mm margin).
4. Placement Stitch (Brown): Runs over the previous work.
5. Place Fabric: Apply brown fabric.
6. Tack-Down & Trim: Repeat trim process.
7. Satin Finishes: Machine seals the edges.








**Decision Tree: Fabric & Stabilizer Pairing**

Wrong pairing = Puckering. Choose correctly.

• Scenario A: Stretchy T-Shirt / Knit
  • Stabilizer: CUTAWAY (2.5oz). Non-negotiable. Tearaway will explode under satin density.
  • Needle: Ballpoint 75/11.
• Scenario B: Woven Cotton / Denim
  • Stabilizer: TEARAWAY (medium) is acceptable, but Cutaway is safer.
  • Needle: Sharp 75/11.
• Scenario C: Towel / Terry Cloth
  • Stabilizer: Tearaway + Water Soluble Topping (Solvy).
  • Why: Without topping, the satin stitches sink into the loops and disappear.

Contextual Note: If you are using thick fabrics like the corduroy shown in the tutorial, "Fabric Creep" is a real enemy. The fabric pushes against the needle. Using a strong magnetic hoop ensures the stabilizer stays absolutely rigid while allowing the thick fabric to float without being crushed in a plastic ring.

**Operation Checklist: The Final Production Standard**

(Execute during the sew-out)

• Hooping: Stabilizer is smooth (drum skin sound when tapped); no wrinkles.
• Coverage: Fabric patches extend at least 15mm past the placement line before tack-down.
• Trimming: Trimmed fabric margin is <2mm from tack-down (to be covered by 3mm satin).
• Overlap: Checked for "lifting" where the meat overlaps the bone.
• Auditory Check: Machine sound is rhythmic. A sharp "Click-Click" or grinding noise means stop immediately (likely simple needle deflection).

The “Why” Behind Underlap vs Overlap: How Layering Prevents Gaps and Hides Open Ends

Why go through this trouble instead of just butting two shapes together?

1. Tolerance Management: In engineering terms, we are designing for variances. If you butt two shapes together (0mm gap), a 0.5mm shift in the hoop results in a white gap of stabilizer showing through. By using Underlap (Bone) and Overlap (Meat), you create a "seal."
2. Clean Termination: Splicing two satin borders together often results in a messy, bulky knot. By hiding the bone's start/stop point under the meat's field, the finish is seamless.

“Can I Separate the Cut Lines for Cricut/ScanNCut?”—Managing Expectations

A common question is whether Design Doodler exports SVG vectors for cutters like Cricut or ScanNCut.

This specific workflow creates Embroidery Objects, not vector cut files. While some advanced users extract the "Placement Line" run stitch to convert to SVG in other software, Design Doodler is focused on the stitch generation.

The Efficiency Bottleneck: If you are asking this, you are likely looking for speed. You want pre-cut fabric to save time. However, in high-volume appliqué, the real bottleneck isn't cutting—it's Hooping. A magnetic hooping station solves the time-sink of manual alignment. Instead of fighting to center precuts, you use a station to align the hoop and garment instantly, which often saves more time per unit than pre-cutting fabric does.

Troubleshooting the One Scary Symptom Everyone Hits: Tack-Down Outside the Placement Line

Symptom:

You run the first color. You see the placement line. You lay your fabric. The machine starts the tack-down stitch, but it is sewing 2mm outside the line you just saw, missing the fabric entirely.

Root Cause Analysis:

You drew the Open Shape Counter-Clockwise with Auto-Close OFF. The software inverted the "Inside/Outside" vector normal.

The Fix:

• Immediate: Stop machine. Rip stitches.
• Software: Delete the object. Redraw it using the 12 → 3 → 6 → 9 Clockwise motion. Rerun the file.


The Upgrade Path: When Better Hooping and Faster Machines Pay You Back

If you are doing one drumstick for Thanksgiving, a standard single-needle machine and manual trimming is fine. But if you are producing 50 team jerseys, the friction points in this process (hooping, thread changes, trimming) become profit killers.

Here is the diagnostic criteria for upgrading your toolkit:

Level 1: The "Hoop Burn" & Alignment Pain

• Trigger: You are ruining 1 in 10 shirts due to hoop marks or crooked placement.
• Solution: Terms like magnetic embroidery hoops are your gateway to damage-free hooping. They allow you to slide fabric in and out without un-screwing the outer ring.
• Specific Need: If you own a Brother machine, search specifically for a brother 5x7 magnetic hoop to ensure the brackets match your embroidery arm.

Level 2: The "Wrist Fatigue" Pain

• Trigger: Your wrists ache after hooping 20 items; placement is inconsistent.
• Solution: A hooping station for embroidery standardizes your placement. You align the shirt once using a laser or grid, apply the magnetic top frame, and you are done. Speed increases by ~40%.

Level 3: The "Thread Change" Bottleneck

• Trigger: You spend more time changing thread spools (Yellow to Brown to Black) than the machine spends sewing.
• Solution: This is when a Multi-Needle machine (like SEWTECH models) becomes a business necessity. The machine creates the entire drumstick—color swaps included—without you touching a spool.

Warning: Magnetic Field Safety
Commercial magnetic hoops utilize frequent-earth Neodymium magnets. They create powerful pinch points—keep fingers clear of the snapping zone.
Critical: Keep these hoops away from anyone with a pacemaker or ICD (Implantable Cardioverter Defibrillator), and store away from magnetic media (credit cards, hard drives).

By adhering to the "Clockwise Rule" and treating your 3mm satin width as a safety buffer, you turn a complex merged appliqué into a repeatable, robust production file. Respect the physics of the fabric, verify your sequence, and let the improved workflow do the heavy lifting.

FAQ

• Q: In Design Doodler Appliqué, why does the tack-down stitch land outside the placement line when Auto Close Shape is OFF for an open-end appliqué piece?
  A: This is almost always caused by drawing the open shape counter-clockwise; redraw the open-end piece clockwise (12→3→6→9) with Auto Close Shape still OFF.
  • Stop: Stop the machine immediately and remove the hoop before trimming or re-running.
  • Redraw: Delete the open-end object (e.g., the “bone”) and redraw it clockwise in Freehand mode.
  • Verify: Run Slow Redraw to confirm Placement is outside and Tack-down is inset (inside).
  • Success check: The lighter run/tack-down line sits inside the satin edges, and the tack-down stitches on top of the fabric you placed.
  • If it still fails: Recheck that Auto Close Shape is truly OFF for the open piece and ON for the closed piece, then preview the stitch order in Sequence View.
• Q: In Design Doodler Appliqué, what satin width and density settings are a safe starting point to prevent edge gaps when trimming is not perfect?
  A: Use a 3.0 mm satin width with Standard density as a safe starting point for most appliqué borders.
  • Set: Choose Stitch Type = Appliqué, Satin Width = 3.0 mm, Density = Standard, Mode = Freehand.
  • Trim: Trim fabric close after tack-down, keeping a small margin so the 3.0 mm satin can cover the raw edge.
  • Preview: Keep 3D Preview ON to spot overly bulky overlaps before stitching.
  • Success check: After stitching, the satin border fully covers the fabric edge with no raw fabric peeking out.
  • If it still fails: Slow down the machine during satin borders and confirm the fabric/stabilizer pairing is appropriate for the garment.
• Q: In Design Doodler merged appliqué (bone under meat), what overlap is required between the closed top appliqué piece and the open-end base piece to prevent a visible “gutter” gap after sewing?
  A: Overlap the closed top appliqué piece over the open ends of the base piece by at least 2–3 mm to avoid gaps after stitch pull.
  • Draw: Make the base “bone” as an open-end shape (Auto Close Shape OFF) and the “meat” as a closed shape (Auto Close Shape ON).
  • Overlap: Extend the meat shape over the bone ends by 2–3 mm before generating stitches.
  • Hide: Move the bone termination points deeper under the meat area during node editing.
  • Success check: After sew-out, no stabilizer shows between the two shapes and the transition looks sealed.
  • If it still fails: Recheck stitch order so the bone finishes before the meat starts, then increase physical overlap within the design.
• Q: In Design Doodler, how does Slow Redraw confirm the correct appliqué stitch sequence for a two-layer merged appliqué design before exporting to a multi-needle embroidery machine?
  A: Use Slow Redraw to confirm each layer runs Placement → STOP → Tack-down → Finish, and that the bone completes before the meat begins.
  • Run: Play Slow Redraw and watch the exact order of stitches, not just the static preview.
  • Confirm: Check the mandatory order: Bone Placement → STOP → Bone Tack-down → Bone Finish → Meat Placement → STOP → Meat Tack-down → Meat Finish.
  • Reorder: Use Sequence View to move objects if Meat Placement appears before Bone Finish.
  • Success check: Slow Redraw shows two clear STOP points (one per fabric placement) and no layer starts before the previous satin finish is complete.
  • If it still fails: Inspect for travel stitches across open areas and adjust start/stop points to eliminate long jumps.
• Q: For multi-needle embroidery machine appliqué, what machine speed and top tension range help prevent fabric shifting and messy satin borders during merged appliqué?
  A: Slow the machine to about 600–700 SPM and use roughly 100–120 g top tension as the operational sweet spot for appliqué satin work.
  • Reduce: Set speed to 600–700 SPM for tack-down and satin borders to reduce patch shifting.
  • Check: Test top tension by feel—thread should pull with resistance but flow smoothly (not free-sliding).
  • Prepare: Use curved tip appliqué scissors for safe trimming and temporary spray adhesive if fabric patches tend to lift.
  • Success check: The machine sound stays rhythmic (no sharp clicking), and the fabric stays aligned through tack-down and satin.
  • If it still fails: Stop and inspect for needle deflection (often heard as clicking) and confirm stabilizer is hooped smooth and firm.
• Q: During appliqué on a multi-needle embroidery machine, what needle-zone safety rule prevents finger injuries when placing fabric and trimming near the hoop?
  A: Never put fingers inside the hoop while the machine is live; fully stop the machine before placing fabric or trimming.
  • Stop: Use the machine stop function and wait for complete needle stop before hands go near the needle area.
  • Remove: Move the hoop out or remove it for trimming if needed—do not trim with the needle cycling.
  • Plan: Use the STOP points in the appliqué sequence as the only times to handle fabric.
  • Success check: Hands only enter the hoop area when the machine is fully stopped and cannot unexpectedly cycle.
  • If it still fails: If workflow pressure causes rushed handling, slow the machine further and follow a consistent placement/trim routine.
• Q: What magnetic hoop safety precautions are required when using neodymium magnetic embroidery hoops during appliqué hooping and fabric re-positioning?
  A: Treat magnetic hoops as pinch-point hazards and keep them away from pacemakers/ICDs and magnetic-sensitive items.
  • Clear: Keep fingers out of the snap zone when the magnetic top frame clamps down.
  • Separate: Store magnetic hoops away from credit cards, hard drives, and similar magnetic media.
  • Protect: Do not use magnetic hoops around anyone with a pacemaker or ICD; follow medical-device guidance.
  • Success check: The hoop closes without finger pinches, and handling feels controlled rather than “snapping” unexpectedly.
  • If it still fails: Switch to slower, two-hand placement of the magnetic frame and consider a hooping station to stabilize alignment during clamping.
