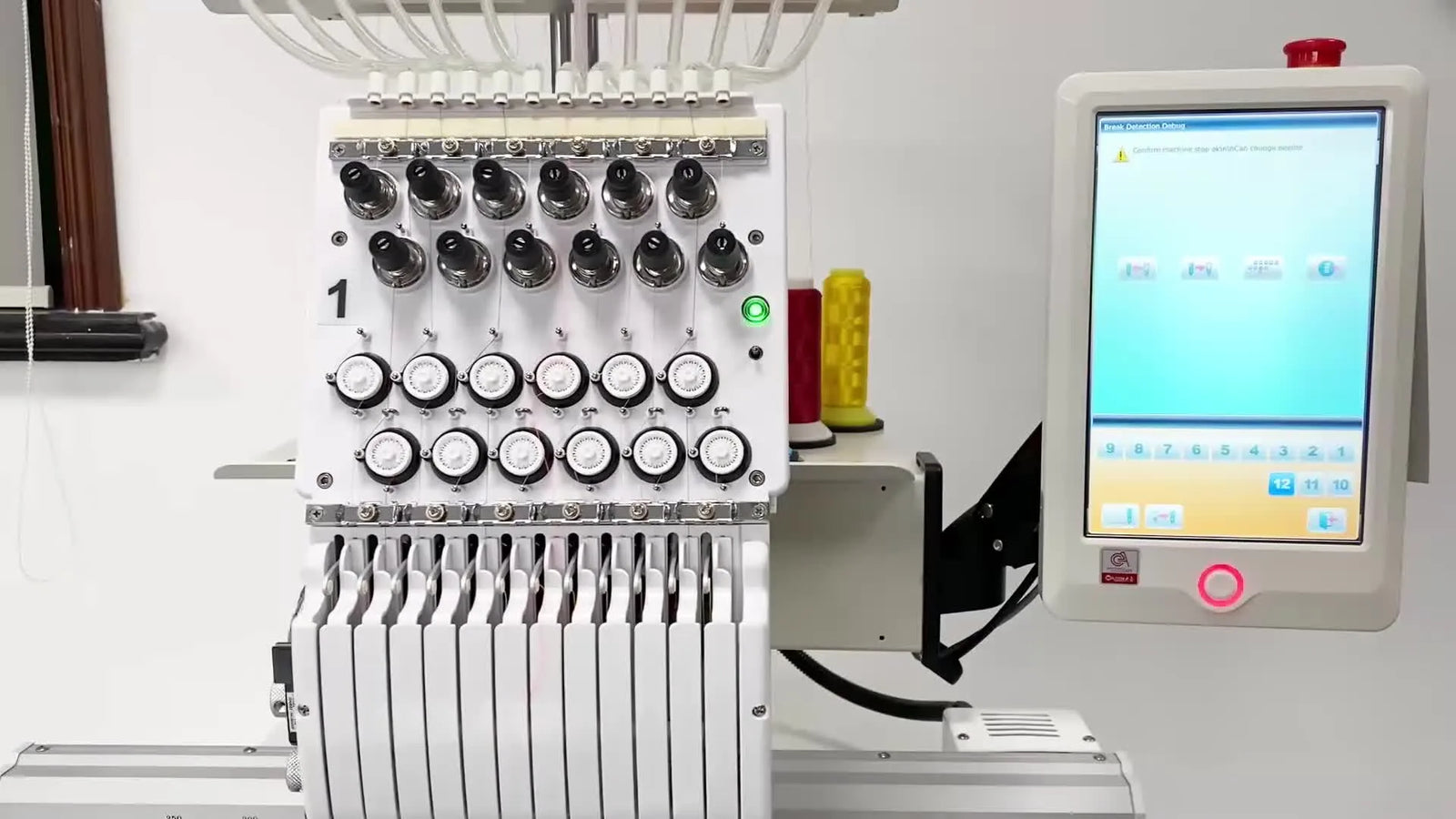

Dahao Thread Break Detection Fix: Stop False Alarms (or No Alarms) Without Guessing

The Definitive Guide to Dahao Thread Break Detection: Fix False Alarms & Stop Waste

Thread-break detection problems on a Dahao control panel can feel like the machine is "haunted." You face two distinct nightmares: either the machine stops constantly when the thread is clearly intact (the "False Alarm"), or it keeps sewing "air" while your design quietly turns into a bird's nest (the "Missed Alarm").

Here is the calm truth from the technician's bench: most of these cases are not "mystery electronics." They are usually a mismatch between friction (physical thread path), sensitivity (software settings), and feedback (sensor alignment).

This guide rebuilds the diagnostic workflow into a repeatable shop-floor routine for a single head embroidery machine or multi-head unit running a Dahao control. We will move from low-intervention checks to hardware fixes, ensuring you don’t create new problems while solving the old one.

The 30-Second Reality Check: Understanding How the Machine "Feels" Thread

Dahao thread-break detection does not "see" the thread; it "feels" the movement of the detection wheel.

• When the wheel spins: The system reads "Sewing."
• When the wheel stops: The system reads "Break."

However, thread movement isn't perfectly fluid. It vibrates, jerks, and pauses depending on your stitch length and speed. A False Alarm happens when the sensor interprets a momentary pause (like a wide satin jump) as a break. A No Alarm happens when the thread breaks, but the wheel keeps spinning due to inertia or static.

Before you touch a single parameter, you must confirm the physical baseline. If the thread isn't contacting the wheel correctly, no amount of software tuning will fix it.

Phase 1: The "Hidden" Prep (Do Not Skip)

If you are running commercial embroidery machines for production, the fastest fix is the one that involves zero screwdriver work.

Prep Checklist: The Physical Baseline

• Check the Wraps: Ensure the thread is wrapped exactly 2 times around the alarm/detection wheel.
  • Why? One wrap often slips (causing False Alarms). Three wraps create excessive tension (causing real thread breaks).
• Clean the Wheel: Wipe the detection wheel with a clean, dry cloth or a cotton swab dipped in isopropyl alcohol.
  • Sensory Check: The wheel should spin freely but stop immediately when you let go. If it feels "gummy" or keeps spinning like a bicycle wheel (inertia), clean it.
• Select Your Test Subject: Choose one specific needle (e.g., Needle 1) to troubleshoot. Do not try to fix all needles at once.

Warning: If you decide to open the tension base cover later in this process, treat it like a machine-safety job. Power down, keep fingers away from moving gears, and never force screws. A slipped screwdriver can gouge the sensor board or sever fine wires.

Phase 2: The "Red/Green" Diagnostic Test

Stop guessing. The Dahao control panel has a built-in diagnostic mode that separates "bad settings" from "broken hardware."

On your panel:

1. Tap the Test icon (usually looks like a gear or chart).
2. Select Test thread breakage.
3. Select the Needle Number you prepared in Phase 1.


The Sensory Checkpoint

Now, reach up and manually flicker the detection wheel for that needle with your finger. Watch the screen.

• Visual Target: The indicator on the screen is likely a circle or a bulb icon.
• Action: Spin the wheel.
• Success Metric:
  • Green: When the wheel is spinning.
  • Red: When the wheel stops.




Interpretation:

• If you see the Red/Green toggle: Your hardware (sensor and cable) is ALIVE. The problem is likely Sensitivity (software).
• If it stays RED even when spinning: The machine is legally blind. The problem is Configuration or Hard Hardware (sensor/cable).

Phase 3: The Sensitivity Sweet Spot (Software Fix)

If your test passed (you saw Green/Red), you just need to calibrate the machine's "patience." We do this by adjusting Upp Thr Brk Senstiv (Upper Thread Break Sensitivity) in the Emb Param menu.

• Range: Typically 1–10.
• Default: Usually 5.






Setup Checklist: Calibration Protocol

• Scenario A: False Alarms (Stops for no reason)
  • Action: Lower the sensitivity number (e.g., change from 5 down to 3).
  • Logic: Make the machine "less paranoid" about micro-pauses in the wheel.
• Scenario B: Missed Alarms (Sews air)
  • Action: Raise the sensitivity number (e.g., change from 5 up to 8).
  • Logic: Make the machine react faster to the wheel stopping.
• Verification: Run the Test thread breakage diagnostic again after changing the value to ensure the signal is still clean.

Phase 4: When the Light Stays Red (Configuration Fix)

If you spun the wheel in Phase 2 and the light stayed Red, do not panic. It might simply be looking for the wrong type of sensor.

Go to Mac Config and check:

1. T.B. Detect: Must be set to Yes.
2. T.B. Type: Ensure this matches your hardware. Common settings are Wheel or PC2220.






Pro Tip: If you recently reset your machine to factory settings, these values often default to "No" or the wrong sensor type. This is the most common cause of sudden "sensor failure" after a reset.

Phase 5: Hardware Surgery (Optical Sensor Alignment)

If config is correct and the light is still Red, we must check the physical "eyes" of the machine.

1. Remove the tension base cover carefully.
2. Locate the green sensor PCB and the black chopper wheel attached to the tension shaft.
3. The U-Slot Rule: The black wheel has slots/spokes. It must spin inside the U-shaped optical sensor.










Operation Checklist: The Hardware Inspection

• Centering: Is the black chopper wheel perfectly centered in the sensor slot? It should not rub against the sides.
• Connection: Follow the wires from the sensor board. Is the white plug fully seated? Push it gently until you feel a firm stop.
• Cleanliness: Is there dust or lint blocking the U-slot? A quick blast of canned air can fix a "dead" sensor.

Troubleshooting Decision Tree

Use this logic flow to solve the problem without wasting time:

1. Start Here: Perform the 2-Wrap Check. Is thread wrapped twice?
   • No: Fix wraps. Test sew.
   • Yes: Proceed to Step 2.
2. Run Diagnostic Test: Spin the wheel by hand. Does the screen toggle Red/Green?
   • Yes: Adjust Sensitivity.
     • If False Alarms: Lower Sensitivity (e.g., 5 → 3).
     • If Missed Breaks: Raise Sensitivity (e.g., 5 → 8).
   • No (Stays Red): Go to Step 3.
3. Check Configuration: Is T.B. Detect = Yes? Is T.B. Type correct?
   • No: Fix settings in Mac Config.
   • Yes: Go to Step 4.
4. Inspect Hardware: Remove cover.
   • Check Plug connection.
   • Check Chopper Wheel alignment.
   • Clean Optical Sensor.

The "Invisible" Culprit: Thread Instability & Hooping

Sometimes, the machine is perfect, but the process is flawed. If your fabric is "flagging" (bouncing up and down) because of a loose hoop, the thread is constantly jerking. This mimics a thread break to the sensor.

Before you blame the electronics, look at your hooping:

• The Sound Check: Tap the framed fabric. It should sound like a drum (thump-thump), not loose paper (flap-flap).
• The Solution: If you struggle with inconsistent tension on slippery garments or thick jackets, consider upgrading your tools.

Many professionals dealing with false alarms switch to magnetic embroidery hoops. Unlike traditional screw-hoops that rely on hand strength, magnetic hoops clamp instantly with uniform pressure, keeping the fabric stable and the thread path smooth.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. They can pinch fingers severely. Never place them near pacemakers or sensitive electronics. Always slide them apart rather than pulling them directly open.

Scaling Up

If you are spending more time fixing thread breaks than sewing, analyze your volume.

• Level 1 Fix: Adjust Sensitivity & Wraps (Cost: $0).
• Level 2 Fix: Upgrade to a hooping station for embroidery and magnetic frames to stabilize the feed (Cost: Moderate).
• Level 3 Fix: If your current single head embroidery machine cannot keep up with production demands despite these fixes, it may be time to look at multi needle embroidery machines for sale. Brands like SEWTECH offer multi-head solutions that utilize advanced thread detection systems designed for higher volume and speed constants.

By following this hierarchy—Physics first, Settings second, Hardware last—you turn a "haunted" machine back into a reliable profit generator.

FAQ

• Q: On a Dahao embroidery control panel, why does the thread-break alarm stop the machine when the upper thread is not broken (false alarm)?
  A: Start by correcting thread contact on the detection wheel, then reduce “Upper Thread Break Sensitivity” so the Dahao system ignores micro-pauses.
  • Verify the thread is wrapped exactly 2 times around the detection/alarm wheel.
  • Clean the detection wheel with a dry cloth (or a cotton swab with isopropyl alcohol) so it spins freely but does not “coast.”
  • Lower Upp Thr Brk Senstiv (Upper Thread Break Sensitivity) (example: 5 → 3).
  • Success check: In “Test thread breakage,” the indicator turns Green when the wheel spins and Red when it stops, and sewing no longer stops randomly.
  • If it still fails: Check fabric stability/hooping (flagging can mimic breaks) and re-run the diagnostic test on one needle only.
• Q: On a Dahao embroidery control panel, why does the machine keep sewing “air” after the upper thread breaks (missed thread-break alarm)?
  A: Increase “Upper Thread Break Sensitivity” and confirm the detection wheel/sensor signal is responding in the built-in test.
  • Run Test → Test thread breakage for one chosen needle and flick the detection wheel by hand.
  • Raise Upp Thr Brk Senstiv (example: 5 → 8) to make the machine react faster when the wheel stops.
  • Keep troubleshooting to one needle until the behavior is fixed, then apply the same approach to others.
  • Success check: A real break stops sewing quickly, and the test screen reliably flips Green (spinning) / Red (stopped).
  • If it still fails: If the screen does not toggle reliably, move to Mac Config (T.B. Detect / T.B. Type) and then inspect sensor alignment.
• Q: In Dahao “Test thread breakage,” why does the status stay RED even when the detection wheel is spinning by hand?
  A: Treat a constant RED as a configuration-or-hardware issue, not a sensitivity issue.
  • Open Mac Config and set T.B. Detect = Yes.
  • Confirm T.B. Type matches the installed hardware (common options include Wheel or PC2220).
  • Re-run Test thread breakage immediately after changing settings.
  • Success check: The indicator changes to Green while the wheel is spinning and returns to Red when it stops.
  • If it still fails: Power down and proceed to optical sensor inspection (plug seating, chopper wheel centering, dust in the U-slot).
• Q: On Dahao tension base thread-break hardware, how do you check optical sensor alignment when thread-break detection looks “dead”?
  A: Inspect the optical sensor and chopper wheel alignment so the black slotted wheel spins cleanly inside the U-shaped sensor.
  • Power down and remove the tension base cover carefully (avoid forcing screws or slipping tools near the sensor board/wires).
  • Locate the green sensor PCB and the black chopper wheel on the tension shaft.
  • Center the chopper wheel in the sensor U-slot (it must not rub the sides) and gently reseat the white plug until fully seated.
  • Clear lint/dust from the U-slot (often a quick air blast restores the signal).
  • Success check: After reassembly, “Test thread breakage” toggles Green/Red correctly when you spin/stop the wheel.
  • If it still fails: Reconfirm T.B. Detect and T.B. Type in Mac Config, then check wiring continuity per the machine manual.
• Q: On Dahao thread-break detection wheels, why is “exactly 2 wraps” around the alarm/detection wheel the recommended setup?
  A: Use exactly 2 wraps because too little contact can slip (false alarms) and too much can add friction/tension (real breaks).
  • Re-thread so the upper thread wraps the detection wheel two times, consistently for the needle you are testing.
  • Avoid “one wrap” (often slips) and “three wraps” (can create excessive tension).
  • Clean the wheel surface if it feels gummy or overly free-spinning from contamination.
  • Success check: The wheel motion becomes consistent (no random stop/start signal), and the machine stops only on real breaks.
  • If it still fails: Run “Test thread breakage” to confirm the sensor signal and then fine-tune Upp Thr Brk Senstiv.
• Q: On a Dahao-controlled commercial embroidery machine, how can loose hooping (fabric flagging) trigger false thread-break alarms, and what is the quickest hooping success test?
  A: Stabilize hooping first—fabric flagging can jerk the thread and mimic a break signal even when the sensor is fine.
  • Tap the hooped fabric and use the sound test: aim for a drum-like “thump-thump,” not a loose “flap-flap.”
  • Re-hoop to increase uniform tension and reduce fabric bounce during stitching.
  • If consistent hoop tension is hard to achieve (slippery garments or thick jackets), consider using magnetic hoops for more uniform clamping pressure.
  • Success check: The fabric stays stable (less bouncing), and false stops reduce without changing electronics.
  • If it still fails: Return to the Dahao workflow—2-wrap check → diagnostic Red/Green test → sensitivity/config/hardware.
• Q: What are the key safety precautions when using industrial-strength magnetic embroidery hoops to reduce fabric flagging and false thread-break alarms?
  A: Treat magnetic hoops as pinch hazards and handle by sliding, not pulling, to prevent finger injuries and interference risks.
  • Keep fingers clear of pinch points and slide magnets apart rather than pulling them straight open.
  • Never place magnetic hoops near pacemakers or sensitive electronics.
  • Set hoops down in a controlled way to prevent sudden snap-together impacts.
  • Success check: Hooping becomes fast and consistent, with stable fabric holding and fewer thread-jerk-related false alarms.
  • If it still fails: Re-check Dahao detection setup (2 wraps, clean wheel) and verify Red/Green response in “Test thread breakage.”
