Dahao Single-Color Sequin Device Setup: The Needle-Mapping Trick That Stops Misfires on a 15-Needle Head

The Ultimate Guide to Sequin Digitizing & Execution on Dahao Systems

Author: Chief Embroidery Education Officer @ SEWTECH Reading Time: 12 Minutes Level: Intermediate / Production

Sequin embroidery is the "high-wire act" of the apparel world. When it works, it adds premium value and high profit margins to a garment. When it fails, it is catastrophic: shattered needles, "birdnesting" in the bobbin case, and expensive rolls of sequins wasted on "stitching air."

The difference between a nightmare run and a profitable 500-piece order isn't usually the machine—it’s the setup protocol.

In this guide, I will deconstruct the exact workflow for running a sequin job on a Dahao control system (the industry standard for commercial machines). I’m going not just through the steps, but the sensory cues—what you should feel, hear, and see—that tell you your machine is safe to run.

1. Hardware Prep: Mounting the Sequin Roll (The "Tension Trap")

Most beginners fail before they even turn the machine on because they mount the roll incorrectly. A sequin roll is basically a giant spring; if it unwinds with tension, it creates drag. If it unwinds too loosely, it spirals off the spindle (the "spaghetti effect").

1. Mount the Roll: Slide the sequin roll onto the side spindle arm of the sequin device.
2. Verify Orientation: Crucial Step. The roll must unwind from the bottom, feeding directly toward the machine head.
   • The Physics: If it unwinds from the top, gravity works against the feeder, creating variable tension that leads to misfires at high speeds.

Sensory Check (The "Drag Test"): Before threading, hold the loose end of the sequin strip and pull it gently.

• Good: It feels like pulling dental floss—smooth, consistent slight resistance.
• Bad: It feels "jerky" or spins the roll wildly. If it spins freely, you need to adjust the side pressure plate or check for bent cardboard cores.


2. The Threading Path: Geometry Matters

The sequin device is a precision feeder. It relies on a specific path to keep the strip flat. If the strip twists even 5 degrees, the needle will hit the plastic sequin edge instead of the center hole, snapping the needle instantly.

Follow this strict order:

1. Guide Tube: Feed the strip down through the white plastic guide tube. This aligns the strip vertically.
2. Tension Spring: Loop the strip under the tension spring arm. This arm acts like a shock absorber for the motor's jerking motion.
3. Sensor Fork: Feed through the metal U-shaped sensor. (This tells the machine if you run out of sequins).
4. Feeding Gear: Insert the tip into the black feeding block gear. Turn the manual gear wheel (usually on the side or bottom) until you feel the teeth "bite" into the sequin holes.

Sensory Check (The "Click"): When manually turning the feed gear, you should hear a faint, rhythmic click-click-click and see the sequins advance exactly one by one. If it feels mushy or slips, the strip isn't seated.

Warning: Physical Safety
Never place tweezers or fingers near the sequin feeding block or needle bar while the machine is powered or in "Test" mode. Sequin devices move vertically with extreme force. A pinch here requires a hospital visit.

3. The "Hidden" Prep Checklist (Do This Before Touching the Screen)

The video usually skips the boring stuff, but in 20 years of running shop floors, this is where I catch 90% of errors. Before you program the Dahao computer, perform this physical audit.

The "Pre-Flight" Checklist:

• Planar Check: Is the sequin strip perfectly flat? Any twist between the roll and the feeder will jam the mechanism.
• Device Security: Wiggle the sequin device casing. Is it bolted tight to the head? Vibration loosens bolts over time.
• Needle Clearance: Ensure the needle currently in the bar (Needle 1) is a high-quality sharp needle (size 75/11 or 80/12), not a ballpoint, to pierce the sequin material cleanly.
• Obstruction Check: Ensure no loose threads from neighboring needles are draped over the sequin device.

If you are running a single head embroidery machine, these checks are vital because you don't have a second head to compare against. You are the sole quality control officer.

4. Dahao Controller: Frame Selection Strategy

Now we move to the digital brain. The Dahao system needs to know the physical boundaries of your hoop to prevent the "Frame Strike of Death" (hitting the hoop arms).

1. Navigate to the Frame Selection menu on the touch screen.
2. Select Garment J1100×350. This corresponds to the large sash/border frame used in the demonstration.
   • Note: If you are using a tubular hoop or a magnetic embroidery hoop, you would select the specific fixture size here (e.g., 300x300).
3. Stand Back: Once you press confirm, the machine will move to seek its center.

Sensory Check (Visual): Ensure the red selection box highlights the correct frame icon before confirming.

5. Auto-Calibration: Listen to Your Machine

After confirmation, the sash frame will travel to its limits or center point.

The "Health Check" Listen:

• Good Sound: A smooth, electric whirrrr sound.
• Bad Sound: A low-pitched groan, a thud-thud vibration, or a high-pitched squeal.
  • Diagnosis: If it groans, your X/Y rail lubrication is dry, or the frame is physically blocked by a table edge or garment bulk.

For operators managing a heavy-duty 15 needle embroidery machine, remember that large sash frames carry massive inertia. If the movement seems sluggish, check your belt tension and rail cleanliness immediately.

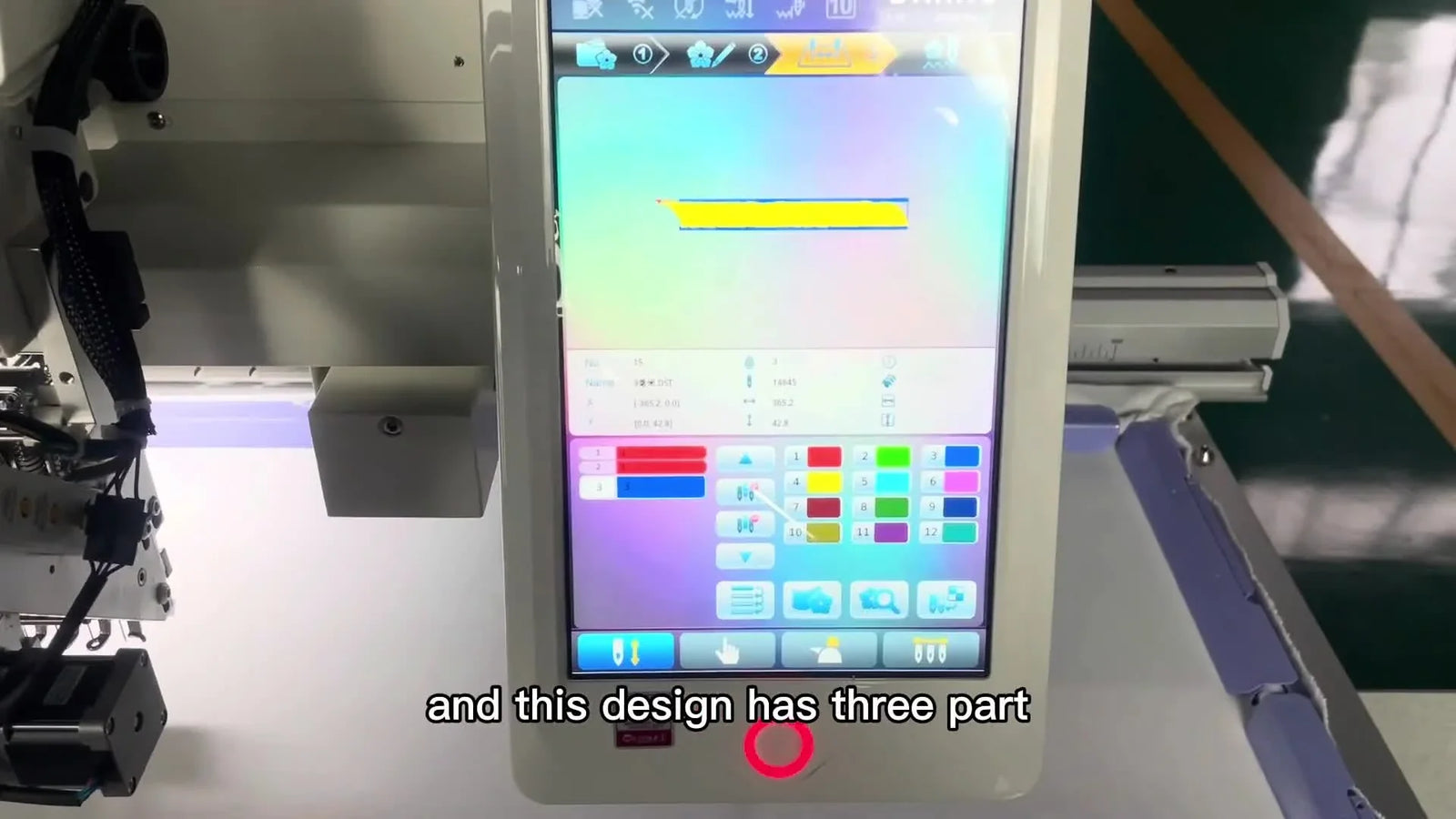

6. Loading the Design File

1. Enter the design memory.
2. Select your digitized file (DST/DSB format).
3. The screen will display a preview. Stop and Look: Does the preview match your expectations? Is the orientation correct (shouder-to-shoulder vs. top-to-bottom)?


7. The Golden Rule of Needle Mapping (1-1-3 Logic)

This is the most critical concept for sequin embroidery on multi-needle machines.

The Physical Reality: The sequin device is physically attached to Needle #1. It cannot move to Needle #5. Therefore, any part of your digital design that requires a sequin must be told to use Needle #1.

The Design in the Video:

• Step 1: Sequin Border
• Step 2: Sequin Fill
• Step 3: Flat Stitch (Green Leaf)

The Dahao Setting:

1. Color 1: Assign to Needle 1 (Sequin).
2. Color 2: Assign to Needle 1 (Sequin).
3. Color 3: Assign to Needle 3 (Standard Thread - e.g., Green).

Result: The sequence bar reads 1, 1, 3.

Why "Auto-Color" Will Fail You

Standard home machines often use "Auto" based on color matching. Industrial machines require explicit instruction. If you accidentally map the sequin step to Needle 2, the machine will move to Needle 2 and stitch... nothing. Or worse, it will crash Needle 2 into the side of the sequin device sitting on Needle 1.

If you are looking for multi needle embroidery machines for sale, prioritize systems like Dahao or similar advanced controllers that allow this explicit "Needle force" mapping. It is essential for mixed-media work.

8. Verification: The "Run Card" Review

Before leaving the settings screen, perform a logic check. I teach my students to read the sequence out loud: "Step 1 is Sequin on 1. Step 2 is Sequin on 1. Step 3 is Leaf on 3."

Pro Tip: If you have multiple operators, write this sequence (1-1-3) on a post-it note or "Run Card" attached to the machine. This prevents the afternoon shift from guessing and crashing the machine.

9. Positioning: The Pantograph Jog

Use the directional arrows to move the frame/fabric to the starting position.

• Laser Trace: If your machine has a laser trace, use it.
• Needle Drop: If not, manually lower Needle 1 (carefully!) to visually confirm it hovers exactly over your mark on the fabric.

Sensory Check: Ensure the fabric is taut (drum-tight) in the frame. Loose fabric causes "flagging," where the fabric bounces up and down, causing sequins to flip over or shatter.

Decision Tree: Consumables & Stabilization

The video uses a test cloth, but real production requires specific chemistry. Sequins add weight and tension torque to fabric.

The "Do Not Ruin It" Decision Tree:

Hidden Consumable: Spray Adhesive (505 spray). For sequin work, I strongly recommend lightly adhering the backing to the fabric. It prevents the distinct "pucker" that often happens around sequin borders.

10. Execution: Speed and Momentum

Press the Green Start Button.

The Speed Limit Debate: The video shows the machine running at 700 RPM.

• Rookie Safe Zone: 500-600 RPM. Start here. Sequins need mechanical time to drop, slide, and align.
• Production Sweet Spot: 700-750 RPM.
• Danger Zone: 850+ RPM. Unless you have a high-end specialized machine, running sequins this fast increases the "flip rate" (sequins landing upside down) and needle deflection.

Operation Checklist:

• Sequence is 1-1-3.
• Speed is capped at 650 (for the first run).
• Hands are clear of the sash frame.


11. Monitoring the Drop (The First 30 Seconds)

Do not walk away. The first 30 seconds are the "Burn-in" period. Watch the sequin device.

• Visual: You should see a blur of color dropping.
• Visual: The needle should strike the exact center of the sequin hole.

If you see the needle hitting the plastic ring of the sequin, STOP immediately. You cannot "tension" your way out of this. It is a digitizing or alignment issue.

12. Listen to the Engine: Sequin Motor Diagnostics

The sequin device has its own motor and linkage arm.

• Good: Rhythmic, soft clicking. Tick-tick-tick-tick.
• Bad: Loud slapping or grinding. This implies the feed gear is jammed or the sequin roll is snagged.

If you are setting up a professional machine embroidery hooping station, train your ears. The sound of a machine changes before it breaks. A skilled operator hears a problem 10 seconds before the thread breaks.

13. Accuracy Audit: The Macro View

Look closely at the stitches anchoring the sequins.

• Standard Method: A simple straight stitch or a "Y" shapes the sequin.
• The Issue: If the thread loop is loose, the sequin will fall off in the wash.
• The Fix: Sequin embroidery usually requires slightly tighter top tension than satin stitching to pull the sequin down firmly against the fabric.


14. The Transition: Needle 3 (Flat Stitch)

The machine automatically slows down, trims (if set), and the head shifts to Needle 3 to switch the green leaf.

• Observation: Watch the transition. Does the thread tail from the sequin section get caught?
• Efficiency: This automatic switching is why shops buy multi-needle machines. A single-needle machine would require a manual stop, re-thread, and restart here—killing your profit margin on bulk orders.


15. The Final Product Inspection

Once the design is done:

1. Do not unhoop yet.
2. Inspect the sequin runs. Are they flat? Are there gaps?
3. If there is a gap, you can reverse the machine (Dahao "Back" function) and repair it while still hooped. Once you unhoop, realignment is impossible.


Troubleshooting Matrix: When Good Sequins Go Bad

Here is my "Cheat Sheet" for the three most common failures on this setup.

Conclusion: Upgrading Your Efficiency

Mastering sequin work on a Dahao system is a gateway skill. It moves you from "hobbyist" to "manufacturer." However, as your volume grows, you will find two bottlenecks:

1. The Hooping Bottleneck:
   Standard screw hoops are slow and cause hand fatigue (and Carpal Tunnel). For production runs, many shops switch to magnetic frames. These clamp instantly and reduce "hoop burn" marks on delicate garments. If you are fighting with thick jackets or slippery performance wear, search for a magnetic embroidery hoop compatible with your machine; it is the single highest ROI accessory you can buy.

Warning: Magnet Safety
Industrial magnetic hoops use high-gauss magnets. They can pinch fingers severely and interfere with pacemakers. Handle with respect and keep them away from control screens.

1. The Capacity Bottleneck:
   If you are doing this work on a single-needle machine, the thread changes are costing you money. When ready to scale, look for a commercial embroidery machine for sale like the SEWTECH multi-needle series. The ability to map sequin devices effectively (as shown in this guide) while keeping 14 other colors standby is how you turn a 1-hour job into a 20-minute job.

Final Thought: Embroidery is 40% art, 40% engineering, and 20% patience. Trust your setup, listen to your machine, and keep your needle mapping strict. Happy stitching!

FAQ

• Q: On a Dahao-controlled multi-needle embroidery machine, why does the sequin strip “stitch air” (needle moves but no sequins drop)?
  A: Re-seat the sequin strip tip into the sequin feeding gear until the gear teeth positively engage the holes.
  • Turn off/start in safe mode and keep hands clear of the sequin block area.
  • Insert the strip tip deeper into the black feeding block gear, then hand-turn the manual gear wheel.
  • Re-check the strip path: guide tube → under tension spring → through sensor fork → into feeding gear.
  • Success check: hand-turning produces a faint, rhythmic “click-click-click” and advances sequins one-by-one.
  • If it still fails… inspect for a twisted strip or a strip that is not lying flat between the roll and feeder.
• Q: On a Dahao sequin device, how should the sequin roll be mounted to prevent drag, jerky feeding, or the “spaghetti effect”?
  A: Mount the sequin roll so it unwinds from the bottom toward the machine head, then confirm smooth, consistent drag by hand.
  • Slide the roll onto the side spindle arm and set the roll orientation to feed from the bottom.
  • Pull the loose end gently before threading and feel for consistent resistance.
  • Adjust the side pressure plate if the roll free-spins or pulls in jerks.
  • Success check: the pull feels like “dental floss”—smooth with slight, consistent resistance.
  • If it still fails… check for bent cardboard cores or a roll that is snagging as it unwinds.
• Q: On a Dahao system, how do you prevent a sequin needle crash when assigning colors (the “1-1-3” needle mapping logic)?
  A: Force all sequin steps to Needle #1 because the sequin device is physically attached to Needle 1.
  • Assign Color/Step 1 (sequin) to Needle 1.
  • Assign Color/Step 2 (sequin) to Needle 1.
  • Assign the first flat-stitch/thread section (example: leaf) to another needle (example shown: Needle 3).
  • Success check: the sequence reads out clearly as “1, 1, 3” before starting the run.
  • If it still fails… do not rely on auto-color; re-enter the mapping screen and re-confirm each step is explicitly forced to the intended needle.
• Q: When running sequins on a Dahao-controlled embroidery machine, what RPM speed is a safe starting point and when is it too fast?
  A: Start sequins at 500–600 RPM for the first run, then only increase if feeding stays stable; 850+ RPM is a common danger zone for flips and needle deflection.
  • Cap speed at 650 RPM for the first production test run.
  • Watch the first 30 seconds closely and be ready to stop immediately.
  • Increase toward 700–750 RPM only after consistent feeding and clean needle strikes are confirmed.
  • Success check: the sequin drop looks consistent (steady “blur” of drops) and the needle hits the exact center hole, not the plastic rim.
  • If it still fails… slow down immediately and re-check strip seating and fabric tightness to reduce flagging.
• Q: What stabilizer and adhesive setup prevents puckering or sequin border distortion on stretchy knit garments (T-shirt/Polo) during sequin embroidery?
  A: Use no-show mesh cutaway plus temporary spray adhesive to keep the backing bonded and stop shifting under sequin torque.
  • Apply no-show mesh (cutaway) as the base stabilizer for stretchy knits.
  • Lightly tack the stabilizer to the fabric with temporary spray adhesive before hooping.
  • Hoop the fabric drum-tight to reduce flagging that can flip or shatter sequins.
  • Success check: the fabric stays taut during stitching and the sequin border finishes without ripples or pucker around the edge.
  • If it still fails… review hooping pressure (too much can cause puckering) and confirm the fabric is not bouncing during needle penetration.
• Q: What is the safest way to check sequin feed engagement on a Dahao sequin device without risking finger injury?
  A: Never put fingers or tweezers near the sequin feeding block or needle bar while powered or in test mode—do manual checks with clear hands and controlled motion.
  • Keep hands fully away from the sequin feeder and needle area whenever the machine has power or can move.
  • Use the manual gear wheel to advance sequins instead of manipulating the strip near the moving block.
  • Stand back when confirming frame selection or calibration because the machine will seek center/limits.
  • Success check: you can verify feed by sound/visual (“click-click-click” + one-by-one advance) without placing anything near the moving mechanism.
  • If it still fails… stop the machine completely and re-thread the strip path from the roll to the feeder to remove twists.
• Q: How do you reduce hoop burn and puckering on delicate garments during sequin embroidery, and when should magnetic embroidery hoops be considered?
  A: Reduce excessive hoop pressure first; if hoop burn persists in production, magnetic embroidery hoops are a practical upgrade because they hold firmly without crushing fibers.
  • Loosen hooping pressure and re-hoop so the fabric is taut but not over-compressed.
  • Use appropriate stabilizer and light spray adhesive to reduce shifting without over-tightening the hoop.
  • Consider magnetic hoops when repeated hooping causes marks, hand fatigue, or inconsistent clamping on tricky garments.
  • Success check: the garment shows fewer clamp marks after unhooping and the stitched area stays flatter around the sequin border.
  • If it still fails… treat it as a workflow bottleneck: optimize technique (Level 1), then upgrade hooping hardware (Level 2), and only then evaluate higher-capacity multi-needle production equipment (Level 3).
