Dad Hat Embroidery That Actually Sells: Profit Math, 800 SPM Settings, and Design Choices That Won’t Pucker

The Dad Hat Profit Playbook: Mastering Unstructured Caps Without the Headache

Dad hats are currently the "golden goose" of the embroidery world. Unstructured, comfortable, and perpetually trendy, they fly off the shelves. But for the embroiderer, they present a specific functional nightmare: stability.

I have spent two years watching beginners load a standard baseball cap file onto a dad hat, only to watch the fabric pucker, ripple, and collapse. Why? Because you are trying to stitch onto a surface that behaves more like a T-shirt than a structured hat.

This guide rebuilds Alan’s insights from the video into a shop-floor manual. We will move beyond the "what" and dive into the "how"—the sensory checks, the safety margins, and the specific tooling workflows (from standard hoops to magnetic upgrades) that ensure your profit isn’t eaten up by ruined blanks.

1. Diagnostics: Spotting a "True" Dad Hat Before You hoop

A "dad hat" is defined by what it lacks: structure. In the video, Alan squeezes the crown to demonstrate this. For you, the operator, this squeeze is your first diagnostic test.

The Pinch Test (Sensory Check): Grab the front panel (where the logo goes). Pinch it.

• Structured Cap: Feels like stiff cardboard or plastic mesh. It fights back.
• Dad Hat: Collapses instantly between your fingers. It feels like denim or heavy cotton twill fabric with zero support.

Why this physics matters: On a structured cap, the buckram (stiffener) holds the fabric flat. On a dad hat, you must create that stability artificially. If your hooping is loose, the stitches will pull the fabric inward, creating a "tunneling" effect where the logo looks like a wrinkly raisin.

Here is the identification profile Alan demonstrates:

• Unstructured crown: Soft, collapsible front.
• Curved brim: Usually pre-curved (unlike flat-bill snapbacks).
• Closure: typically a metal buckle slider or Velcro.

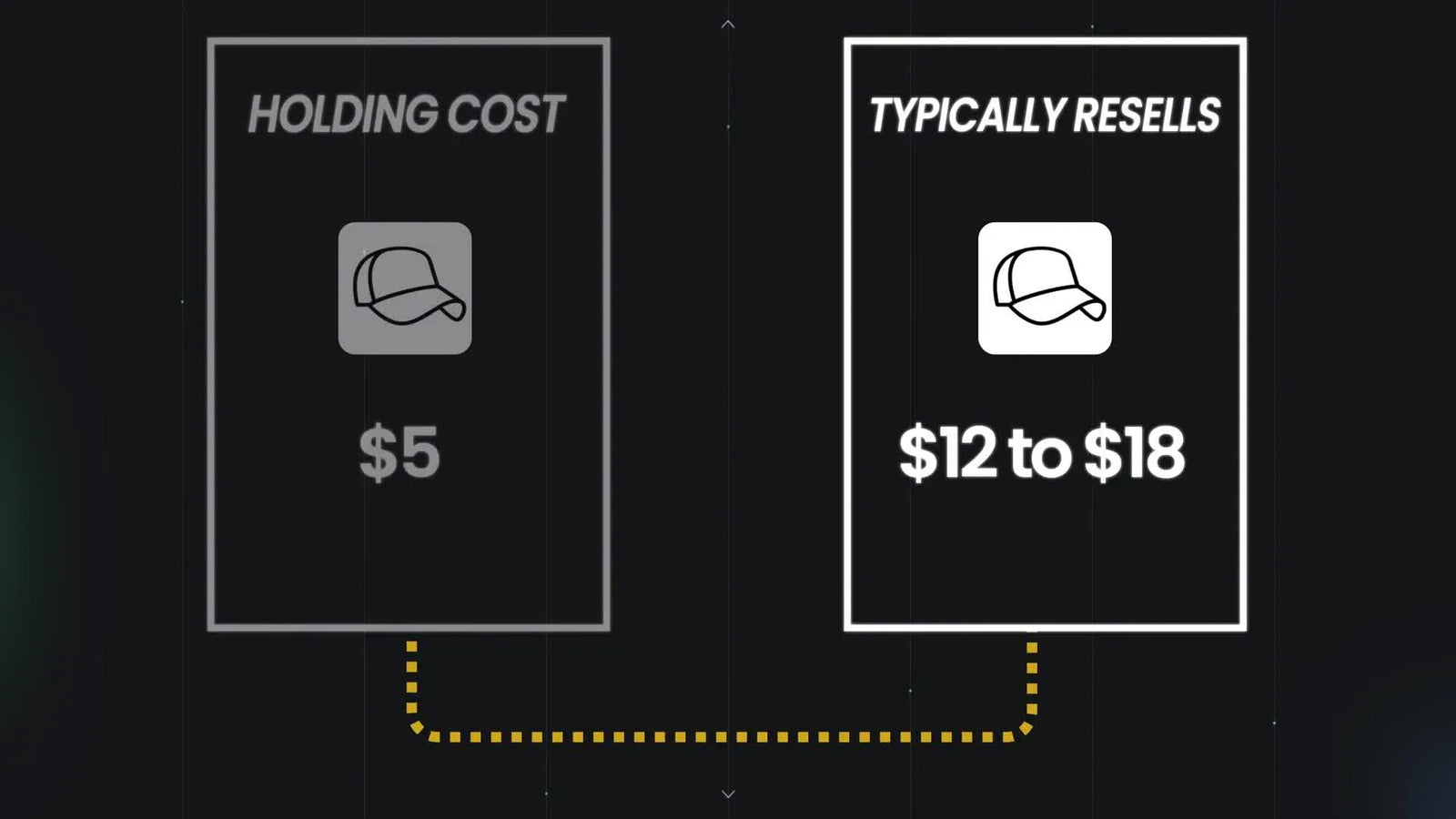

2. The Profit Equation: Margins vs. The "Oops" Factor

Alan breaks down the numbers simply:

• Blank Cost: $2–$10 (basic to premium).
• Resale Price: $12–$18 (often higher for custom work).
• Net Profit: Roughly $10 per hat.

This sounds great, until you ruin one.

The Hidden Cost of "Good Enough"

In my experience, the math changes when you factor in production risk. Unstructured hats are slippery. They shift in traditional hoop clamps.

• If you ruin 1 hat in a batch of 10, your profit drops by 10% plus the time to re-stitch.
• If you struggle to hoop the floppy crown, your labor cost doubles.

Strategic Pivot: The goal isn't just to make $10; it's to make $10 repeatably without fighting the machine. This is where your choice of tooling (standard frames vs. specialized stations) dictates your actual hourly wage.

3. Speed & Physics: Finding the "Sweet Spot" (Not the Speed Limit)

Alan suggests a benchmark of 800 SPM (Stitches Per Minute) for a standard 5,000-stitch design.

• The Math: ~5,000 stitches @ 800 SPM = ~7-9 minutes run time (accounting for trims/color changes).

The Expert Adjustment (Safety First): If you are a beginner using a bai embroidery machine or similar multi-needle equipment, 800 SPM is a great target, but I recommend starting at 600-650 SPM for your first batch of unstructured caps.

Why slow down? At 800+ SPM, the needle deflection caused by the cap's movement can be aggressive on soft fabric.

• Auditory Check: Listen to the machine. A rhythmic, steady "thump-thump" is good. If it sounds like a machine gun or you hear a sharp metallic "clack," you are running too fast for the hoop's stability. Slow down until the sound smooths out.






4. The "Hidden" Prep: Stabilization is Non-Negotiable

You cannot just hoop a dad hat and go. You must build a foundation. The number one reason for "wavy" text on dad hats is using the wrong backing.

The Decision Tree: Matching Stabilizer to Fabric

Use this logic flow to choose your consumables:

1. Is the Hat unstructured & flimsy?
   • Action: Use Cutaway Cap Backing (2.5oz - 3.0oz).
   • Why: Tearaway is not strong enough to resist the "pull" of the stitches on soft cotton. The design will distort. Cutaway locks the fibers in place.
2. Is the Hat semi-structured (some stiffness)?
   • Action: You might get away with heavy Tearaway, but Cutaway remains the safer choice for longevity.
3. Are you stitching small text (<5mm)?
   • Action: Always use Cutaway + a layer of water-soluble topping (Solvy) to stop stitches sinking into the twill.

Hidden Consumables List

Do not start without these on your table:

• Temporary Spray Adhesive (e.g., KK100): Essential to stick the backing to the inside of the cap so it doesn't slide while hooping.
• Lint Roller: Dad hats are dust magnets; clean them before stitching.
• New Needles: Use a 75/11 Sharp (Titanium coated if possible). Ballpoint needles can deflect on the thick center seam of a cap.

Warning: Mechanical Safety
Caps move on a "driver" that rotates. Ensure your design is vertically centered. If the design is too low (near the brim) or too high, the needle bar will strike the metal hoop frame. This will shatter the needle, potentially sending shrapnel toward your eyes. Always do a "Trace" (or Frame Check) before pressing Start.

Prep Checklist (The "Pre-Flight")

• Backing Secured: Cutaway stabilizer sprayed and adhered inside the crown?
• Sweatband Folded: Is the sweatband pulled back and clipped so it doesn't get stitched to the forehead?
• Center Seam Alignment: Is the center seam perfectly vertical in the hoop? (Use the red light pointer to verify).
• Surface Tension: Tap the front of the hooped cap. It should sound like a dull drum (taut), not loose fabric.

5. Design Strategy: Why "Flat" Beats "Puff" Every Time

Alan is 100% correct: Dad hats are built for flat embroidery. 3D Puff requires the foam to "cut" the fabric, which requires immense density. On a soft dad hat, that density will crush the crown, causing the hat to look deformed when worn.

The Rules of Engagement for Design:

1. Low Density: Avoid massive fill blocks.
2. Center-Out Digitizing: Ensure the file stitches from the center toward the sides. This pushes the loose fabric away from the logo, preventing ripples.
3. Bold Geometry: Thick clean lines work better than tiny serifs.






6. The Upgrade Path: Solving the Hooping Pain Point

This is the moment where most beginners quit. Hooping a cap on a traditional round tension station requires hand strength and patience. Often, you will see "hoop burn"—a ring of crushed fabric left by the clamp pressure.

The Diagnostic: Do you need to upgrade?

• Trigger: Are your wrists hurting after doing 10 hats?
• Trigger: Are you seeing "white rings" (hoop burn) on dark navy or black hats?
• Trigger: Is it taking you 5 minutes to hoop one hat?

The Solution Ladder:

• Level 1 (Technique): Try steaming the hat after unhooping to remove marks.
• Level 2 (Tooling): This is where professionals search for how to use magnetic embroidery hoop videos.
  • magnetic embroidery hoops replace the mechanical clamp with strong magnets. They automatically adjust to the thickness of the seam.
  • Benefit: Zero hand strain, significantly less hoop burn (no friction ring), and faster loading.
  • Context: If you run a bai embroidery machine (or Tajima/Ricoma), ensuring you have compatible bai magnetic hoops or bai embroidery frame upgrades can double your throughput on a 50-hat order.

Warning: Magnetic Field Safety
Commercial magnetic hoops use industrial-strength neodymium magnets.
1. Pinch Hazard: Do not let the two magnet rings snap together without fabric in between; they can crush fingers.
2. Medical Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.

7. Operations: Running the Batch

Once you are prepped, hooped, and digitized, execution is about rhythm.

The "H" Test (Tension Check): Before running the full batch, run a test letter "H". Flip the hat over.

• Pass: You see 1/3 white bobbin thread down the center of the satin column.
• Fail: You see only top thread (tension too loose) or distinct "caterpillars" of white bobbin thread on top (tension too tight).

The Workflow:

1. Load file.
2. TRACE (Check clearance).
3. Start Machine (Start slow, ramp to 600-800 SPM).
4. Watch the first 500 stitches—this is when thread breaks happen if the tail wasn't caught.

Setup Checklist (Before Pressing Start)

• Needle Clearance: Is the presser foot height set correctly? (On caps, it should trigger slightly higher than on flats, about 2-3 business cards thickness above the needle plate).
• Bobbin Check: Do you have enough bobbin thread for the whole run? (Changing bobbins mid-cap can cause alignment shifts).
• Design Orientation: Did you rotate the design 180 degrees? (Most cap drivers require the design to be upside down in the software relative to the screen).

8. Scaling Up: From Hobby to Vendor

Alan highlights the target markets: Teams, Schools, Businesses. These clients do not buy "embroidery"; they buy uniformity. They want Hat #1 to look exactly like Hat #50.

To achieve this:

1. Standardize your blank: Find a supplier you trust and stick to that model number.
2. Standardize your placement: Use a marking pen or the hooping station ruler. "1 inch above the sweatband" is the gold standard.
3. Standardize your workflow: If you use a cap hoop for embroidery machine setups, dedicate one person to hooping while the machine runs.

Conclusion: Dad hats are arguably the best entry point for profitable embroidery because the perceived value is high ($25 retail) versus the cost ($3 blank). However, the fabric is unforgiving. By respecting the physics of unstructured cotton, using the right stabilizer (Cutaway), and upgrading to tools like magnetic hoops for embroidery machines when volume increases, you turn a frustrating craft into a factory-grade process.

Start slow. Check your pinch. Listen to the machine. The profit will follow the consistency.

FAQ

• Q: On a SEWTECH multi-needle embroidery machine, how can operators confirm a cap is a true unstructured “dad hat” before hooping and prevent puckering?
  A: Use the pinch test first—if the front panel collapses like heavy cotton twill with no “fight,” treat it as an unstructured dad hat and plan extra stabilization.
  • Pinch the front panel where the logo will stitch; compare the feel to stiff buckram caps.
  • Plan Cutaway cap backing and tighter, more controlled hooping because the crown provides zero support.
  • Success check: the hooped front panel should feel taut and stable instead of floppy.
  • If it still fails: re-check that the center seam is vertical and the backing is firmly secured before stitching.
• Q: For SEWTECH cap embroidery on unstructured dad hats, which stabilizer choice prevents wavy text: Cutaway cap backing or Tearaway?
  A: Choose Cutaway cap backing (2.5oz–3.0oz) for unstructured dad hats; Tearaway often cannot resist stitch pull on soft crowns.
  • Apply Cutaway inside the crown before hooping to lock the fibers in place.
  • Add water-soluble topping when stitching small text under 5 mm to prevent thread sinking.
  • Success check: text columns look straight and even with no ripple/tunneling around the letters.
  • If it still fails: reduce design density and confirm the hat is held taut (drum-like) in the frame.
• Q: For SEWTECH cap embroidery, what “hidden consumables” should be on the table to keep unstructured dad hat hooping stable and clean?
  A: Prepare Cutaway backing, temporary spray adhesive, a lint roller, and a fresh 75/11 Sharp needle before hooping any dad hat.
  • Spray and adhere the backing inside the cap so it cannot slide during hooping.
  • Roll lint off the cap before stitching because dad hats attract dust and debris.
  • Replace the needle with a 75/11 Sharp (titanium-coated often helps) to reduce deflection on thick seams.
  • Success check: backing stays fixed during hooping and the stitch start is clean with fewer early thread issues.
  • If it still fails: verify the sweatband is folded back and clipped so it cannot get stitched down.
• Q: On a SEWTECH multi-needle embroidery machine, what is a safe starting stitches-per-minute (SPM) range for unstructured dad hats, and how can operators tell the speed is too high?
  A: Start around 600–650 SPM for the first batch, then work up toward 800 SPM only after stability looks and sounds controlled.
  • Run the first hat slower to reduce needle deflection caused by cap movement.
  • Listen for the machine sound; slow down if the rhythm becomes harsh or you hear sharp metallic “clacks.”
  • Success check: a steady, rhythmic “thump-thump” sound with clean stitch formation and no aggressive shaking.
  • If it still fails: improve hoop stability (backing adhesion + taut hooping) before increasing speed.
• Q: On a SEWTECH cap driver, how can operators prevent needle strikes on the cap frame when embroidering dad hats?
  A: Always run a TRACE/frame check and keep the design vertically centered to maintain safe clearance from the metal frame.
  • Position the design so it is not too low near the brim and not too high on the crown.
  • Run TRACE every time after loading the hooped cap to confirm the needle path clears the frame.
  • Success check: the traced path runs without any point where the needle bar/presser area approaches the metal frame.
  • If it still fails: stop immediately and re-center the design placement before restarting to avoid broken needles and injury.
• Q: On a SEWTECH multi-needle embroidery machine, how can operators verify correct upper/bobbin thread tension on a dad hat using the “H test”?
  A: Stitch a test “H” and look for about 1/3 white bobbin thread showing down the center of the satin column on the underside.
  • Run the “H” test before the full batch to catch tension problems early.
  • Flip the cap and inspect the satin column balance.
  • Success check: roughly 1/3 bobbin thread visible in the center (not all top thread, not heavy bobbin “caterpillars” on top).
  • If it still fails: adjust tension gradually and re-test before committing to the full logo.
• Q: When dad hat hooping causes wrist pain, slow loading, or “hoop burn,” how should a SEWTECH production workflow choose between technique changes, magnetic hoops, or upgrading to a multi-needle setup?
  A: Use a step ladder: correct technique first, move to magnetic hoops to reduce strain and marks, and consider capacity upgrades only when volume demands repeatability.
  • Level 1 (Technique): steam after unhooping to reduce hoop marks and tighten hooping discipline to stop shifting.
  • Level 2 (Tooling): switch to magnetic hoops when hooping takes ~5 minutes per hat, wrists hurt after ~10 hats, or white clamp rings show on dark fabric.
  • Level 3 (Capacity): standardize blanks/placement and scale with multi-needle production when batch consistency (Hat #1 = Hat #50) becomes the priority.
  • Success check: hooping time drops, fewer marks appear, and the first 500 stitches run without shifting.
  • If it still fails: re-check backing adhesion and seam alignment before assuming the machine needs adjustment.
• Q: What magnetic hoop safety rules should SEWTECH operators follow when using industrial-strength magnetic hoops for cap embroidery?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices; control ring closure and maintain safe distance.
  • Keep fingers clear and do not let magnet rings snap together without fabric in between.
  • Store and handle magnets deliberately to prevent sudden attraction and impact.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: operators can load/unload without finger pinches and the hoop closes smoothly under control.
  • If it still fails: pause production and retrain handling technique before increasing speed or batch size.
