Custom Fonts on the Brother SE1900 Without Software: The No-Panic PES Method (and How to Keep It Production-Ready)

The Secret to Buying & Using "Fonts" on Your Brother SE1900 (Without Extra Software)

If you’ve ever purchased a distinctive "font" online, decompressed the download folder, and suddenly found yourself staring at hundreds of tiny, separate files—one for every single letter, number, and punctuation mark—you are not alone. It is a specific type of panic experienced by almost every modern embroiderer. The thought is immediate: “Did I just waste my money? Do I have to load these one by one?”

Here is the calm, empirical truth: On a Brother SE1900 (and similar single-needle machines), you can use third-party embroidery fonts without buying expensive software. However, you must do it the "manual" way: functioning like a typesetter in a printing press, copying the exact letters you need to a USB drive, and then building the word on your machine’s LCD screen using the Add and Move functions.

I have spent 20 years in embroidery education, watching this exact workflow turn into crooked names, frustrating overlaps, and wasted stabilizer. Today, I am going to walk you through this process with a focus on repeatability. We aren’t just trying to get a name on a shirt; we are trying to establish a workflow that keeps your sanity intact.

The “Do I Really Need Software?” Reality Check for Brother SE1900 Embroidery Fonts

The short answer is: No, you don’t need software like Embrilliance Essentials to simply stitch a name. You can do it directly with PES files. But you need to understand the trade-off you are making between Time and Money.

• The No-Software Route (PES files): This is "Object-Based" working. You import "S," then you import "a," then "m." They are separate pictures that you must manually align. It is free, but slower.
• The Software Route (BX fonts): This is "Keyboard-Based" working. You type "Sam" on your computer, the software aligns it instantly, and you save one file. It costs money, but saves time.

My professional advice: If you are stitching a name on a Christmas stocking once a year, the manual method below is perfect. If you are launching a business stitching 50 team jerseys, the manual method is a bottleneck that will hurt your profitability.

PES vs BX Fonts on Brother Machines: Buy the Format Your SE1900 Can Actually Read

This is the most common financial mistake beginners make. When you are on sites like Etsy or EmbroideryDesigns.com, you are buying data.

• PES: This is the language your Brother SE1900 speaks. It contains coordinate data for the needle.
• BX: This is a proprietary format for Embrilliance software. Your Brother machine cannot read a BX file.

When you purchase a font, you must select the PES option. If you feed a BX file to your machine, it will act as if the USB is empty.

The "Hardware-Software" disconnect: Often, users blame their equipment when files don't load. Even the most advanced embroidery hoops for brother machines cannot stabilize a project if the machine can't read the file format. Always solve the logic (file type) before you solve the physics (hooping).

The “Hidden” Prep on Your Computer: Make the Font Folder Usable (Not a Scrolling Nightmare)

When you download a PES font pack, it typically arrives as a ZIP file. Inside, you will likely find folders categorized by size (1 inch, 2 inch, 3 inch).

Do not copy the entire alphabet to your USB drive. The processor in the Brother SE1900 is robust, but reading 52 files (A-Z, a-z) plus numbers will make the screen lag.

The "Clean-Kitchen" Method:

1. Plug your USB into your computer.
2. Open the font folder on your desktop.
3. Select only the specific letters you need for this project (e.g., Uppercase S, lowercase a, lowercase m).
4. Copy/Paste them to the root of the USB drive.

Prep Checklist (Computer + Files)

• Validation: Confirm the download contains .PES files, not just .BX.
• Extraction: Unzip the folder completely (machines cannot read inside ZIP files).
• Selection: Locate the specific size folder (e.g., "Script_2inch").
• Differentiation: Pay close attention to file names; a_lower.pes vs A_upper.pes.
• Transfer: Copy only the required letters to an empty USB drive to ensure machine speed.

Warning: Be extremely careful with scripts that look similar in filenames (like I vs l). A common rookie mistake is copying the "Lower Case l" (el) instead of "Upper Case I" (eye). Visually check the thumbnail on your computer before copying.

USB File Management for Brother SE1900: Copy Only What You Need (So the Machine Menu Stays Fast)

The host in the reference video emphasizes this, and I back it up with data: The LCD screen on the SE1900 is small. Scrolling through pages of "A, B, C, D..." to find "S" takes valuable minutes and breaks your cognitive flow.

The Pro Workflow: If you are doing this for customers, create a folder on the USB named simply: Client_Doe. Put the letters S-a-m inside that folder. This keeps the machine's "brain" uncluttered and reduces the chance of you selecting the wrong file when you are stressed or tired.

Brother SE1900 Setup: The One Plug-In That Makes the USB Icon Actually Work

Here is a physical interaction nuance that manuals often bury. The textual editing features on the Brother SE1900 are inactive unless the machine senses it is in "Embroidery Mode."

The Sensor Check:

1. Attach the Embroidery Unit: You should hear a distinct click or mechanical engagement sound.
2. Power On: The machine needs to calibrate the arm (the loud movement at startup).
3. Insert USB: Only now should you tap the USB icon.

If you don't see the "Edit" or "Add" buttons later, it is usually because the embroidery unit isn't seated perfectly, or the feed dogs are not dropped (though the SE1900 handles feed dogs automatically, the sensor is key).

The “Set + Move” Ritual on the Brother SE1900: Place the First Letter So You Don’t Fight Overlap Later

This is the single most important technical habit to learn.

The "Mosh Pit" Principle: Every time you load a design (a letter) into the SE1900, the machine places it in the dead center of the hoop coordinates (X:00, Y:00). If you load "S", it goes to the center. If you then load "a", it lands directly on top of "S".

The Protocol:

1. Select S.
2. Tap Set.
3. IMMEDIATELY tap Move.
4. Use the stylus to drag the "S" to the far left (or wherever you want the word to start).

Do not try to load the second letter until the first letter involves vacating the center stage.

Setup Checklist (Machine + Screen)

• Connection: Embroidery bed is attached continuously; machine has completed startup calibration.
• Recognition: USB icon is active; letters are visible in the thumbnail view.
• Import: Tap the first letter (e.g., "S") and press Set.
• Displacement: Immediately press Move and shift the letter using the arrow keys to its starting position (X-axis adjustment).
• Verification: Visually confirm the center of the hoop is now "empty" on the screen.


Using the Brother SE1900 “Add” Button to Build a Word (S + a + m) Without Software

Now we build the chain.

1. Press the Add button (usually looks like a folder or a plus sign near the bottom).
2. Select letter a. Press Set.
3. It appears in the center. Use Move to slide it next to S.
4. Repeat for m.

The Gap Analysis: Use the arrow keys for this, not your finger. The touchscreen is convenient, but the arrow keys move the design in precise increments (usually 0.1mm or 0.5mm). This allows you to create consistent kerning (spacing) between letters.

The Physics of Fabric: Remember, what you see on the screen relies on perfect rigid geometry. Fabric is fluid. If you are learning hooping for embroidery machine, understand that unstable fabric will cause letters to drift. If your hooping is loose, the "a" might physically shift away from the "S" during stitching. Always trust a tight hoop over a screen preview.

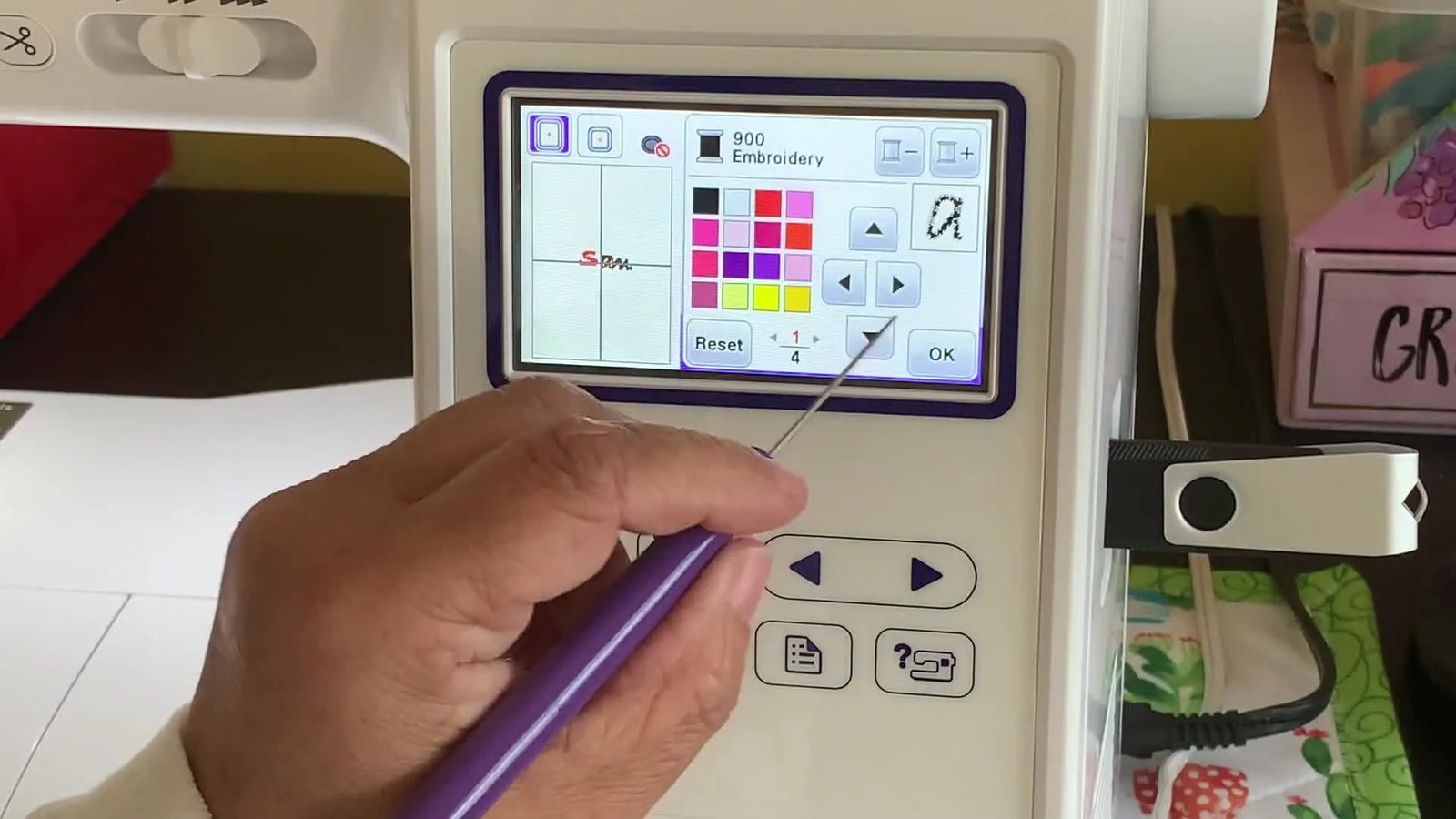

Thread Color Preview on the Brother SE1900: A Smart Way to “Proofread” Your Letters

The video host uses a brilliant visual hack: changing the color of the letters on-screen (e.g., making "S" red and "a" blue).

Why do this? The machine screen is low-resolution. When letters are all black, it is hard to tell if the tail of the "a" is overlapping the "m". By assigning contrasting colors temporarily:

1. You can clearly see the intersection points.
2. You can verify you didn't accidentally import the wrong letter.

Note: Just remember to disregard these colors when actually stitching; you will likely thread the machine with just one color of thread (e.g., white) and ignore the machine's "Change Thread" command between letters.

Final Size Check on the Brother SE1900 Screen: Confirm the Whole Word Before You Stitch

Once "Sam" is assembled, look at the Total Size metric on the screen. Example: 0.64" x 2.02".

The "Hoop Limit" Trap: Standard hoops have a hard limit (4x4 inches or 100mm x 100mm). The safe stitching area is actually slightly smaller (about 3.93"). If your combined word is 3.94", the machine will shout "Pattern is too large."

Mental Check: Do not assume "4 inch hoop" means "4 inch design." It means "3.93 inch maximum design."

Warning: Needle Deflection Hazard. Never test a new font on the final garment immediately. Stitch velocity (SPM) combined with a new dense font can cause needle deflection if the machine hits a knot or thick seam. Always run a test on scrap denim or felt at a lower speed (600 SPM) to verify the font quality.

Why Script Fonts Feel Harder Than Block Fonts: The Spacing + Pull Reality (So You Don’t Blame Yourself)

If you try to align a Script font and it looks disjointed, do not blame your eyes. Script fonts require "Connectors" to touch perfectly.

The "Push/Pull" Phenomenon: When a needle penetrates fabric 1000 times a minute, it pushes the fabric out and pulls the thread in.

• Column stitches (the legs of the letters) tend to pull in and become narrower.
• Fill stitches tend to push out.

The Adjustment: On the screen, you might need to overlap the tails of script letters slightly (by 0.5mm) so that when the fabric pulls tight during stitching, they end up kissing perfectly. If you space them "perfectly" on screen, you might end up with a gap on the fabric.

Decision Tree: When to Stay Manual (PES Letters) vs. When to Upgrade Your Workflow

Every crafter reaches a breaking point. Use this logic flow to decide if you need to spend money on tools.

• Scenario A: The Weekend Hobbyist
  • Volume: Quotes or Names on 1-3 items/month.
  • Fabric: Standard cotton/denim.
  • Decision: Stay Manual. The workflow above is free and effective.
• Scenario B: The "Team Mom" or Start-up
  • Volume: 15 jerseys with different names.
  • Pain Point: Typing is slow; hooping 15 times hurts your wrists.
  • Decision (Software): Buy Embrilliance ($100-$140). It lets you type names on a keyboard.
  • Decision (Hardware): Upgrade the hoop.

The Hardware Upgrade Path: If you find yourself constantly re-doing shirts because the names are crooked despite perfect screen alignment, the issue is likely physical hooping. A magnetic hoop for brother se1900 changes the game here. Instead of wrestling with screws and inner rings (which distort the fabric bias), magnets snap the fabric flat. This is the first step toward "production quality" results in a home environment.

The Hooping Side Nobody Mentions in Font Videos: Keep Letters Straight by Controlling Fabric Tension

You can align pixels perfectly, but if your fabric is loose, your text will wave.

The "Tactile" Standard: When hooped, run your finger over the fabric. It should not feel like a rock (too tight, causes puckering) nor like a bedsheet (too loose). It should feel like a skin on a ripe peach—firm, but with slight give.

If you are using standard brother se1900 hoops, check the inner ring. Is there a ridge? Are you creating "Hoop Burn" (shiny crush marks)? This is common with velvet or fragile knits.

The Magnetic Advantage: Professional shops use magnetic frames because they don't bruise the fabric. If you are working on larger projects, a brother 5x7 magnetic hoop allows you to slide the garment continuously without un-screwing and re-screwing, maintaining consistent tension across the whole name.

Operation Checklist (The Pre-Flight)

• Visual: Full word "Sam" looks correct on screen; connectors involved in script fonts are slightly overlapped.
• Tactile: Fabric is hooped with neutral tension; no wrinkles.
• Consumable: Fresh needle (75/11 typically) installed; bobbin has at least 50% thread.
• Trace: Run the "Trace/Check" function (the button with arrows in a box) to watch the hoop outline the area. Ensure it doesn't hit the plastic frame.
• Stability: If using a magnetic hoop, ensure the magnets are fully seated and not obstructing the needle bar path.

Warning: Magnetic Safety. The magnets on modern production hoops are industrial strength. They can pinch fingers severely. Keep them at least 6 inches away from pacemakers, credit cards, and computerized machine screens to avoid data wiping or interference.

“My Machine Doesn’t Have the Add Button” and Other Real-World Snags (Symptoms → Causes → Fixes)

Troubleshooting is about logic, not luck. Here is your diagnostic table.

The Upgrade That Actually Shows Up in Your Day: Faster Hooping, Clean Results, Less Wrist Strain

Mastering the manual PES import method is a rite of passage. It teaches you how the machine thinks—in coordinates and layers.

However, as you grow from "making one gift" to "taking orders," your bottleneck will shift.

1. Software solves the "click-click-click" frustration of file importing.
2. Hardware solves the physical pain of production.

Recognizing when to upgrade is a business skill. If you are struggling with hoop burn on delicate items, searching for magnetic embroidery hoops for brother is the logical next step to protect your inventory. If you are stuck limiting your designs to a small square, moving to a brother 4x4 embroidery hoop upgrade (or larger if your machine supports it) frees your creativity.

And finally, if you find yourself spending 40 minutes changing thread colors for a single logo, that is when you look at multi-needle machines (like SEWTECH). But for today? clear your USB, load your PES files, and stitch that name with confidence. You have the control now.

FAQ

• Q: Can a Brother SE1900 use third-party embroidery fonts without Embrilliance, using only PES letter files on a USB drive?
  A: Yes—Brother SE1900 can stitch third-party fonts without extra software if the font is provided as individual .PES letters and the word is assembled on the machine with Set, Move, and Add.
  • Copy: Select only the letters needed (for example, S + a + m) and copy them to the USB (not the whole alphabet).
  • Build: Load the first letter, press Set, then Move it off center before adding the next letter.
  • Align: Use the arrow keys for consistent spacing instead of dragging with a finger.
  • Success check: The full word is visible on the SE1900 screen with clean spacing and the hoop center is not stacked with overlapping letters.
  • If it still fails… Confirm the downloaded files are truly .PES (not .BX) and that the ZIP file was fully extracted.
• Q: Why does a Brother SE1900 act like the USB is empty when loading an embroidery font, especially after buying a BX font online?
  A: Brother SE1900 cannot read BX fonts—Brother SE1900 needs .PES files, so a BX-only purchase will look “empty” on the machine.
  • Verify: Check the file extension on the computer; confirm the letters end in .PES.
  • Extract: Fully unzip the download folder (Brother SE1900 cannot read inside ZIP files).
  • Simplify: Put only a few needed .PES letters on the USB root to reduce menu lag.
  • Success check: The Brother SE1900 USB thumbnail view shows the letter designs instead of an empty list.
  • If it still fails… Try a smaller-capacity USB drive (older tech often prefers simpler drives) and re-check that the files are not still inside a compressed folder.
• Q: Why are the Brother SE1900 “Add” and “Edit” buttons missing when trying to combine PES font letters on-screen?
  A: This usually happens because the Brother SE1900 embroidery unit is not detected—re-seat the embroidery unit so the machine enters true Embroidery Mode.
  • Power off: Turn the Brother SE1900 off completely.
  • Re-seat: Attach the embroidery unit firmly until it clicks/engages.
  • Restart: Power on and let the arm calibrate, then insert the USB and open the USB icon.
  • Success check: The Brother SE1900 screen shows the editing tools (including Add) after the embroidery unit is recognized.
  • If it still fails… Remove and reattach the embroidery unit again and confirm the machine completes the startup movement without interruption.
• Q: Why do Brother SE1900 PES font letters keep stacking on top of each other in the center of the hoop when using the Add function?
  A: Brother SE1900 places every newly loaded letter at the hoop center (X:00, Y:00), so the fix is to Move the first letter immediately after Set—before importing the next letter.
  • Load: Select the first letter and press Set.
  • Move: Immediately press Move and shift that first letter to the start position (usually far left).
  • Add: Press Add, import the next letter, then Move it into place.
  • Success check: The hoop center area on the screen is no longer “crowded,” and each new letter appears separately after you reposition it.
  • If it still fails… Use the arrow keys for fine spacing because finger-dragging can cause inconsistent jumps on the touchscreen.
• Q: How can Brother SE1900 users prevent “Pattern Too Large” when combining multiple PES font letters into one word in a 4x4 hoop?
  A: Check the Total Size after assembling the full word—Brother SE1900 4x4 hoops have a practical safe stitch area slightly under 4.00 inches, so a word that barely exceeds the limit will trigger the warning.
  • Assemble: Build the entire word first, then look at Total Size on the screen.
  • Adjust: Reduce length by tightening spacing, choosing a smaller font size folder, or simplifying the text.
  • Check: Use the machine’s trace/check function to confirm the outline stays within the hoop’s safe area.
  • Success check: The Brother SE1900 allows you to proceed without the “Pattern Too Large” alert and the trace stays inside the hoop boundary.
  • If it still fails… Rebuild the word from a smaller-size letter set (for example, a 1-inch or 2-inch font folder instead of a larger one).
• Q: Why do script embroidery fonts look gapped or disconnected on a Brother SE1900 even when the spacing looks perfect on the LCD screen?
  A: Script fonts often need slight on-screen overlap because fabric push/pull during stitching can open gaps—overlap connectors a little so they “kiss” after stitching.
  • Overlap: Nudge script tails into each other slightly before stitching (small, controlled moves).
  • Stabilize: Use appropriate stabilization (cutaway is commonly helpful for knits) so the fabric does not drift.
  • Preview: Temporarily assign different on-screen colors to letters to spot overlaps and intersections clearly.
  • Success check: After a test stitch, script connectors touch cleanly without visible gaps or broken joins.
  • If it still fails… Re-hoop with firmer, neutral tension because loose fabric can let letters shift even when screen alignment is correct.
• Q: What is a safe pre-flight checklist for stitching a new PES font on a Brother SE1900 to reduce needle issues and wasted garments?
  A: Do a short, controlled test run first—use a fresh needle, confirm bobbin thread is sufficient, trace the design, and test on scrap at a lower speed before stitching the final garment.
  • Install: Put in a fresh needle (75/11 is a common starting point) and confirm the bobbin is at least half full.
  • Trace: Run the trace/check function to ensure the hoop path will not hit the frame.
  • Test: Stitch the font on scrap fabric (denim or felt is a common choice) and reduce speed (the blog’s example suggests 600 SPM for testing).
  • Success check: The test stitch runs without needle deflection, frame contact, or distorted lettering.
  • If it still fails… Slow down further and re-check for dense areas, knots, or thick seams that can cause the needle to deflect.
• Q: What are the magnetic hoop safety rules when using magnetic embroidery hoops with a Brother SE1900 workflow?
  A: Treat magnets like industrial tools—keep fingers clear to avoid pinching, and keep magnets away from pacemakers and magnet-sensitive items.
  • Handle: Place magnets deliberately; do not let magnets snap together over fabric where fingers can get trapped.
  • Clear: Confirm magnets are fully seated and not in the needle bar path before stitching.
  • Separate: Keep magnets at least 6 inches away from pacemakers, credit cards, and sensitive electronics.
  • Success check: The fabric is held flat without bruising marks, and the machine traces/stitches without contacting any magnet parts.
  • If it still fails… Stop immediately and reposition the magnets to ensure nothing protrudes into the stitching area.
