Custom Embroidered Fabric Labels That Don’t Fray: The Floating-Hoop Workflow (Brother 8x12 + Embrilliance)

The Ultimate Guide to Professional Fabric Labels: From "Homemade" to "Brand Quality"

If you’ve ever finished a quilt, hot pad, bag, or pillowcase and thought, “This looks great… but it doesn’t look finished-finished,” custom embroidered fabric labels are the fastest way to level up.

The good news: you don’t need a complicated setup. In this workflow, you’ll fuse a medium-weight fusible stabilizer to cotton (to give it that twill-like body), float it on hooped tear-away with a light basting spray, stitch multiple phrases in one run, then cut/fold/press so the top edge is clean and the side edges don’t fray.

The "Calm Down, You’ve Got This" Primer: Why Fabric Labels Look Hard (But Aren't)

Small labels trigger anxiety for two reasons: Micro-Typography (tiny text gets dense and messy fast) and Fabric Shift (small strips of fabric love to wiggle).

To succeed, you need to understand the physics of embroidery. As stitches penetrate, they push and pull the fabric. This method solves that by building a stable "sandwich" that resists distortion:

1. Structure: Kona cotton + medium-weight fusible stabilizer creates a "cardstock-like" rigidity.
2. Anchoring: We use a "Floating Method"—hooping the stabilizer drum-tight, then adhering the fabric on top. This prevents the fabric from being distorted by the hoop rings themselves.

If you’ve been fighting puckers, shifting, or frayed edges, it’s usually not your machine—it’s the prep and finishing sequence.

Supplies for Kona Cotton + Pellon Fusible Stabilizer Labels

Here is the "Non-Negotiable" list versus the "Nice to Have" list. Do not skim this; small labels require precise inputs.

Consumables (The "Hidden" Requirements)

• Fabric: White Kona cotton (high thread count is essential for holding small stitches).
• Stabilizer A (Fusible): Pellon medium-weight fusible. Do not use light-weight; it won't support text density.
• Stabilizer B (Base): Tear-away stabilizer (medium weight).
• Adhesive: SpraynBond or Odif 505 basting spray.
• Needles: Size 75/11 Sharp (Not Ballpoint). Sharps cut through the woven cotton for crisper text; ballpoints can make small letters look fuzzy.
• Thread: 40wt embroidery thread (Polyester or Rayon). Note: For text smaller than 5mm, consider switching to 60wt thread and a 65/9 needle.
• Finishing: Fray Check liquid sealant.

Tools & Hardware

• Machine: Any embroidery machine with a 5x7 or larger field (Tutorial uses a Brother multi-needle, but the physics are the same for single-needs).
• Hoops: 8x12 hoop/frame recommended for batching.
• Cutting: Rotary cutter, quilting ruler, self-healing mat.
• Pressing: Steam iron or heat press.


Prep Checklist (Do this before opening software)

• Iron Check: Set iron to "Cotton" setting (no steam for the fusing step) to prepare for the Pellon bond.
• Cut Fabric: Cut Kona cotton large enough to cover your label layout with at least a 1-inch margin on all sides.
• Cut Fusible: Cut Pellon fusible stabilizer slightly smaller than the fabric to avoid gumming up your ironing board.
• Needle Check: Run your finger over the tip of your current needle. If you feel any burr, change it immediately.
• Space Prep: Clear a flat surface for the rotary cutter.
• Supply Check: Locate your Fray Check now (you don't want to hunt for it with wet hands later).

Warning (Safety): Rotary cutters and embroidery needles are a "quiet danger" combo. Keep fingers clear of the blade path, retract/lock the cutter between every cut, and never reach near the needle area while the machine is running (especially at high speeds).

The "Invisible" Prep: Fusing Pellon to Kona Cotton

In the video, the stabilizer is cut to size and pressed firmly onto the wrong side of the Kona cotton. This is the foundation of your quality.

The Sensory Check: After fusing, the fabric should no longer feel like soft cotton. It should feel stiff, almost like light canvas or cardstock. If it still drapes like a t-shirt, you haven't fused it long enough, or your stabilizer is too light.

Why this matters:

• Action: Press firmly for 10-15 seconds per section.
• Result: This rigidity prevents the dense satin stitches of the letters from puckering the fabric. It turns the fabric into a stable platform for typography.


Hooping Tear-Away Stabilizer: The "Drum Skin" Standard

This is the part many people skip or do loosely: you are not hooping the fabric. You are hooping one layer of tear-away stabilizer in the frame.

The Tactile Test: Once hooped, flick the stabilizer with your finger. You should hear a distinct, drum-like thump. If it sounds dull or loose, tighten the screw and pull (gently) again. Loose stabilizer = wavy text.

Commercial Insight: If you are doing batches of 50+ labels, standard hooping can cause wrist strain and inconsistent tension. This is where professionals look at their process. Understanding proper hooping for embroidery machine setups is the first step; eventually, many upgrade to magnetic frames to ensure that "drum tight" tension takes seconds, not minutes, without the physical strain.

The Floating Method: Stop Fabric Shift Before the First Stitch

The video uses a light spray of basting adhesive on the hooped tear-away stabilizer, then centers the fused fabric on top. This is called "Floating."

The Procedure:

1. Spray Zones: Do not spray near the machine. Spray the stabilizer lightly in a box or away from your workspace.
2. Sensory Check: The stabilizer should feel tacky, like a Post-It note, not wet or gummy.
3. Application: Place the fused fabric in the center. Smooth it from the center outward to push out air bubbles.

Why Float? This is the core concept behind a floating embroidery hoop workflow: by not clamping the text-heavy fabric in the rings, you eliminate "hoop burn" (those crushed white rings on dark fabric) and distortion.

The Production Upgrade: If you struggle with the fabric lifting during stitching, or if standard hoops are marking your delicate fabrics, this is the trigger point to consider Magnetic Hoops. In a production environment, a magnetic hoop for brother or similar industrial machine allows you to clamp the fabric firmly without the friction of traditional rings, holding the "sandwich" incredibly flat for text accuracy.

Warning (Magnet Safety): Magnetic hoops are powerful industrial tools. Pinch Hazard: Keep fingers clear when magnets snap together—they can break skin. Medical: Keep at least 6 inches away from pacemakers. Data: Keep away from phones and credit cards.

Loading the Hoop: The "Lock It Like You Mean It" Check

In the video, the hoop slides onto the pantograph arm. Whether you use a single-needle or a multi-needle machine, this moment is critical.

The Shake Test: After locking the hoop onto the machine arm:

1. Gently try to wiggle the hoop left and right.
2. Success Metric: The entire machine arm should move with it. There should be zero play or "clicking" between the hoop and the arm.

A tiny amount of play here translates to "shaky" letters later.

Setup Checklist (Pre-Flight)

• Hoop Seated: Hoop is locked; "Shake test" passed.
• Clearance: Fabric edges are smoothed down so the presser foot won't snag.
• Bobbin Check: Look at your bobbin. Is there enough for 5,000+ stitches? Run-outs mid-letter are a disaster.
• Thread Path: Verify the top thread isn't caught on the spool pin.
• Needle Clearance: Manually lower the needle (hand wheel) to ensure it hits the fabric safely before hitting start.


Digital Layout: Clearance Above Text is the Secret

The creator sets up the label phrases in Embrilliance Essentials. The most critical data point here is Vertical Clearance.

The Parameters:

• Font: "Finn" (or any clean, non-serif font).
• Size: Approx 0.5 inch height (12mm). Avoid going smaller than 0.25 inch (6mm) without specialized 60wt thread.
• Clearance: leave 0.5 inch (12mm) of blank space ABOVE the letters.

Why? You will fold this top 0.5 inch down later to create a clean hem. If you put text right at the top edge, you have no room to fold, and you are left with a raw edge.

Efficiency Note: If you are building files for repeat batches, consistency is key. Just as you organize digital files, organizing your physical workspace helps. Terms like hoop master embroidery hooping station refer to tools that help standard shops place designs in the exact same spot on every shirt; while overkill for floating labels, the principle applies—mark your hoop so you place the fabric in the same spot every time.

Stitching: Interpreting Machine Feedback

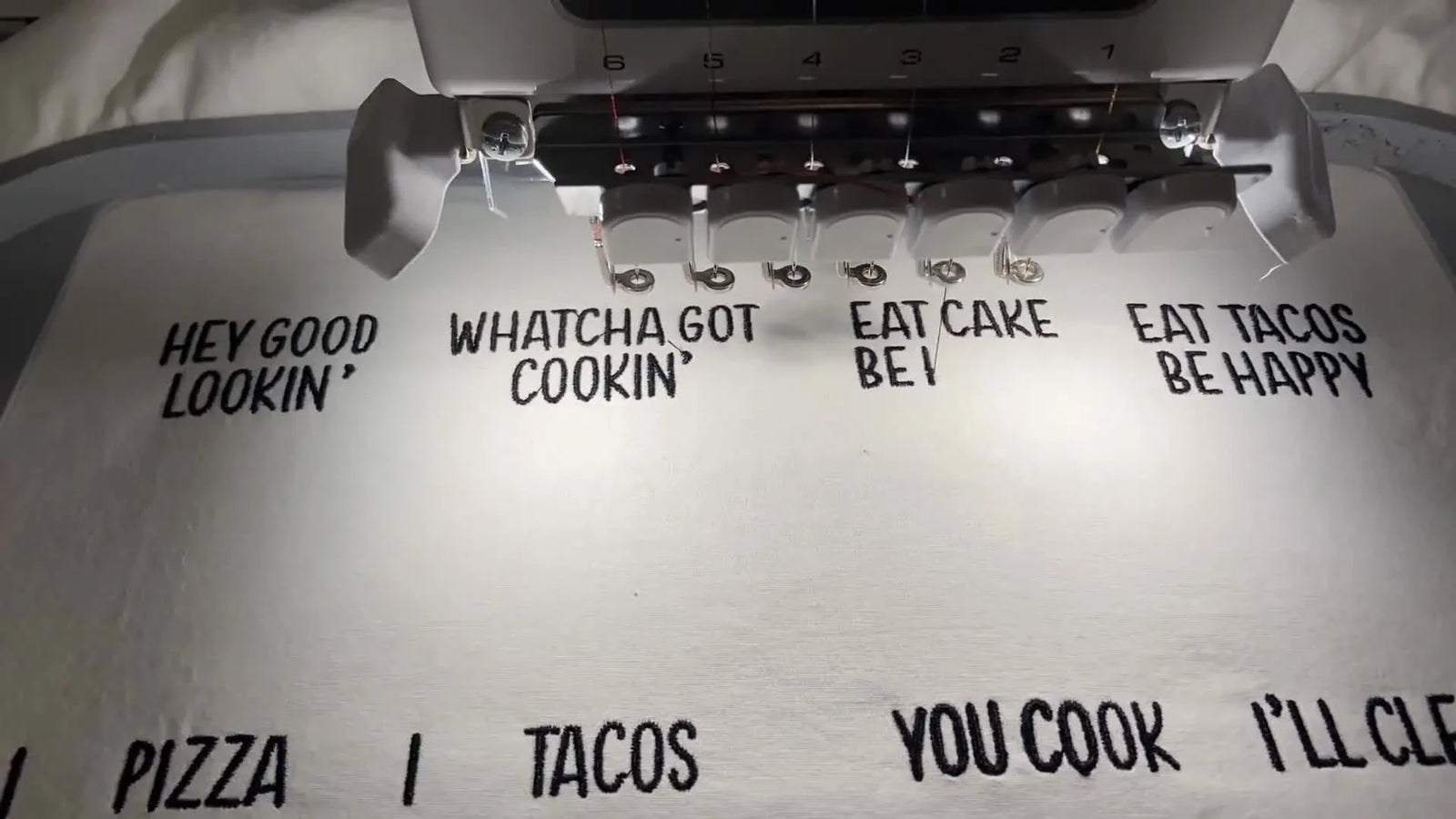

The video shows the machine stitching black text. As an operator, become a "Machine Whisperer."

Sensory Diagnostics:

• Sound: You want a rhythmic "thrum-thrum." A sharp "CLACK-CLACK" usually means the needle is dull or the hoop is bouncing.
• Visual: Watch the thread feed. It should flow smoothly. Jerky feeding often means the spool cap is too tight.
• Touch: Place a finger gently on the outer plastic of the hoop frame (safely away from the needle). You should feel vibration, but not "jumping."

The Multi-Needle Advantage: If you are making 60 labels with different colors or doing this commercially, a single-needle machine will slow you down due to thread changes. This is where scaling to a machine like the SEWTECH multi-needle line changes the game—load 10 colors, press start, and walk away. Pair that with magnetic hoops, and your throughput doubles.

Clean Removal: The "Surgeon's Hands" Approach

After stitching, remove the hoop. Now, peel the tear-away stabilizer off the back.

Technical Tip: Place your thumb directly over the embroidered letters on the front to support them, and gently tear the stabilizer away from the back.

• Don't: Yank it like a wax strip. You will distort the warm stitches.
• Do: Tear sideways, parallel to the stitching.


Trimming: The 0.5" Top Allowance Rule

Using your rotary cutter and ruler, cut the sheet into horizontal strips.

Critical Measurement: Ensure you leave that 0.5 inch (12mm) of blank fabric above the top of the text. This is your "engineering allowance" for the fold.

Safety Reminder: Always retract the rotary blade immediately after the cut.

The Fold-Down Press: Creating the "Store-Bought" Finish

Fold that top 0.5-inch allowance down behind the text. Press firmly with an iron (cotton setting, steam is okay now).

Why this works: When you sew this label into a quilt binding or a bag lining, the top edge is often visible. By folding it, you create a finished "hem" without needing to stitch it. It looks intentional and high-end.

Final Cuts: Making the Stack

Now, cut vertically between the phrases to separate your labels.

Visual Check: Use the lines on your clear quilting ruler to ensure your vertical cuts are 90 degrees perfect relative to the text line. Even a 2-degree slant looks sloppy to the human eye.

Fray Check: The Chemical Seal

Apply Fray Check to the Left and Right raw edges only.

Application Technique:

• The Mistake: Soaking the edge until it turns dark and hard.
• The Pro Move: Lightly "dab" the very edge. You want to seal the fibers, not create a hard plastic weapon.
• Drying: Let them dry completely on a non-stick surface (like glass or the cutting mat) for 15 minutes.


Decision Tree: Fabric & Stabilizer Combinations

Use this logic flow to ensure your labels stay flat, regardless of material.

START: What is your label made of?

• 1. Stiff Quilting Cotton (The Standard)
  • Action: Fuse Medium-weight stabilizer + Float on Tear-away.
  • Needle: 75/11 Sharp.
• 2. Thin/Vintage Handkerchief Cotton
  • Action: Fuse Heavy-weight stabilizer (or two layers of medium) + Float on Tear-away.
  • Needle: 70/10 Sharp (smaller hole).
• 3. Knit/Stretchy Fabric (Jersey)
  • Action: Fuse Mesh (No-Show) stabilizer + Float on Cut-away (not tear-away).
  • Critical Tool: Stretchy fabrics distort easily in standard hoops. This is the prime use case for magnetic embroidery hoops, which hold knits flat without stretching the grain.
• 4. High-Volume Production (50+ items)
  • Action: Use pre-cut stabilizer sheets.
  • Tool Upgrade: A magnetic hooping station combined with magnetic frames ensures every single label is perfectly straight, reducing the "oops, it's crooked" waste pile.


Troubleshooting: The "Why Did This Fail?" Guide

Detailed diagnostics for the most common label failures.

The Upgrade Path: Scaling from Hobby to Pro

Labels are small, but they expose the weaknesses in your workflow. Here is when you should spend money to solve problems:

1. The "Hoop Burn" Bottleneck If you spend more time fixing hoop marks than stitching, or if hooping hurts your wrists, standard hoops are your enemy. Professionals usually switch to magnetic embroidery hoops for brother (or your specific brand). They snap on instantly, hold tighter than screws, and leave zero marks.

2. The "Thread Change" Fatigue If you start selling your items, creating 50 labels creates a massive bottleneck on a single-needle machine.

• Level 1: Stick to one color.
• Level 2 (Pro): Upgrade to a Multi-Needle Machine (like SEWTECH models). This allows you to set up 6-10 colors and run batches of complex, colorful labels without stopping.

3. The Consistency Problem If your labels are crooked, investigate a magnetic hooping station. It aligns the hoop and fabric identically every single time.

Operation Checklist (The Finish Line)

• Tear Gently: Stabilizer removed without distorting the weave.
• Cut Allowance: 0.5 inch of blank space preserved at the top.
• Press Fold: Top fold is crisp and covers the raw edge perfectly.
• Seal Edges: Fray Check applied to side edges (dried for 15 mins).
• Final Exam: Pull gently on the side edges. If threads come loose, apply more sealant.

Final Thoughts: The Finishing Touch

The tutorial shows sliding the finished label into the pocket of a quilted hot pad. This is the perfect integration—functional, beautiful, and durable.

By following this "stabilization sandwich" method and respecting the physics of the machine, you turn a scrap of cotton into a professional branding tool. Start with the basics, and as your volume grows, let tools like magnetic hoops and multi-needle machines handle the heavy lifting sc you can focus on the design.

FAQ

• Q: How do I stop embroidered fabric label text from turning wobbly or “mushy” when stitching on fused Kona cotton with tear-away stabilizer?
  A: Re-do the anchoring: hoop the tear-away drum-tight, then float and secure the fused cotton more firmly before restarting.
  • Tighten: Hoop one layer of medium tear-away until it passes the “drum thump” test.
  • Re-adhere: Apply a light basting spray to the hooped stabilizer (tacky, not wet), then smooth the fused fabric from center outward.
  • Stabilize corners: Add tape at fabric corners if the fabric wants to creep during stitch-out.
  • Success check: Letters look crisp and consistent, and the fabric does not “walk” or ripple while the needle penetrates.
  • If it still fails: Increase holding power (more controlled basting spray) or consider magnetic hoops if fabric lift/shift keeps happening.
• Q: What is the correct “drum-tight” standard for hooping tear-away stabilizer for small text fabric labels in an 8x12 embroidery hoop?
  A: Hoop only the tear-away stabilizer and tighten until it sounds like a drum when flicked.
  • Pull: Gently tension the stabilizer evenly in all directions before tightening the screw.
  • Flick: Tap the hooped stabilizer with a fingertip to listen for a clear “thump” instead of a dull sound.
  • Re-seat: Re-hoop if one side feels looser than the others.
  • Success check: The hooped stabilizer feels flat and springy, with no sag or waves across the center.
  • If it still fails: Check for worn hoop hardware or inconsistent tightening technique; magnetic hoops can reduce tension inconsistency in high-volume runs.
• Q: How do I confirm the embroidery hoop is locked correctly on the embroidery machine arm to prevent shaky letters on fabric labels?
  A: Use the “shake test” before stitching—there should be zero play between the hoop/frame and the machine arm.
  • Lock: Slide the hoop onto the arm and fully engage the locking mechanism.
  • Wiggle: Gently move the hoop left/right to check for clicking or looseness.
  • Clear: Smooth fabric edges so the presser foot cannot snag and tug the floating fabric.
  • Success check: The machine arm moves with the hoop as one unit, with no clicking and no visible shift at the mount.
  • If it still fails: Re-seat the hoop and inspect the hoop attachment points; do not start stitching until the mount is solid.
• Q: Why is white bobbin thread showing on top when stitching black text on embroidered fabric labels, and what is the safest quick fix?
  A: Reduce top tension slightly first; white bobbin thread on top usually means top tension is too tight or bobbin tension is too loose.
  • Adjust: Lower top tension a small step (example given: 4.0 down to 3.0) and test again.
  • Clean: Floss the tension discs with un-waxed dental floss to remove lint buildup.
  • Re-test: Stitch a short sample of the same text density on the same fused cotton “sandwich.”
  • Success check: Top stitches look filled with no bobbin “peek-through” on the surface of the letters.
  • If it still fails: Re-check threading path and bobbin insertion, then consult the machine manual for tension baseline.
• Q: How do I prevent fabric puckering around embroidered letters on cotton fabric labels when using fusible stabilizer and tear-away backing?
  A: Increase stiffness in the fused layer—puckering usually means the stabilization “sandwich” is too soft for dense lettering.
  • Fuse longer: Press firmly for 10–15 seconds per section to fully bond the medium-weight fusible to the cotton.
  • Confirm feel: Use the sensory check—fused cotton should feel like light canvas/cardstock, not drapey.
  • Keep floating method: Float the fused fabric on hooped tear-away instead of clamping the label fabric in the hoop rings.
  • Success check: After stitching, the area around the text stays flat with minimal distortion when removed from the hoop.
  • If it still fails: The fusible may be too light for the design density; switch to a heavier fusible approach on the next batch rather than trying to “tension it out” mid-run.
• Q: What is the safest way to remove tear-away stabilizer from the back of embroidered fabric labels without warping warm stitches?
  A: Support the embroidery from the front and tear sideways slowly—do not yank downward.
  • Press: Place a thumb over the stitched letters on the front to stabilize the fabric.
  • Tear: Pull the stabilizer away from the back in a sideways motion, parallel to the stitching direction.
  • Go slow: Work in small sections instead of ripping in one motion.
  • Success check: Letters remain smooth and aligned with no stretching or distortion after the stabilizer is removed.
  • If it still fails: Tear more gradually in smaller pieces while continuing to support the front of the embroidery.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops for fabric label production?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear, keep distance from medical devices, and keep magnets away from sensitive items.
  • Protect hands: Keep fingertips out of the closing path to avoid pinch injuries when magnets snap together.
  • Follow medical caution: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Protect devices: Keep magnetic hoops away from phones and credit cards.
  • Success check: The hoop closes without finger contact, and handling feels controlled rather than “surprising.”
  • If it still fails: Slow down the closing motion and reposition hands to the outer edges before bringing magnets together.
