CSD vs DST Embroidery Files: Stop the “Wrong Format” Headache Before It Wastes a Single Stitch

If you’ve ever downloaded a design, walked to your machine feeling confident, and then hit a wall—“file not supported,” missing colors, or a design that simply won’t load—you already understand why embroidery file formats matter. It is a specific kind of sinking feeling: the excitement of creation replaced instantly by technical frustration.

This isn’t theory for digitizers only. File format choices decide whether you can share designs across brands, scale from one-off gifts to paid orders, and avoid the expensive habit of re-buying the same design. Understanding this is the difference between fighting your machine and mastering it.

Digital Embroidery Files (CSD, DST) Are the Real “Needle Drivers”—Not the Machine

An embroidery machine is only as smart as the file you feed it. The video frames this perfectly: the craft looks tactile—thread, fabric, chalk marks—but the instructions live inside the design file.

Think of the machine as a high-speed printer and the file as the PDF. If the PDF is corrupt, it doesn't matter how expensive the printer is. In the opening visuals, you see thread selection and fabric being smoothed. That’s not just pretty B-roll; it’s a reminder that embroidery is a chain of decisions.

What the file is responsible for (The "DNA" of your stitch):

• X/Y Coordinates: Exactly where the needle drops.
• Stitch Type: Satin (smooth columns) vs. Tatami (fill) vs. Run stitch.
• Stitch Sequence: The order prevents thread breaks.

When that information is locked inside a proprietary ecosystem, you don’t just lose convenience—you lose options.

The CSD File Format (Poem, Huskygram, Singer): Powerful Data, Locked Doors

CSD (Compact Stitch Data) is presented as a format developed specifically for Poem, Huskygram, and Singer embroidery machines. In its prime, it carried rich instruction data—hue, stitch type, and stitch sequence—so the machine could reproduce a design accurately without much user intervention.

The video pairs this section with delicate fabric handling. This is a subtle emotional cue: CSD-era workflows often required more "handle with care" thinking because compatibility was fragile. If you messed up the file conversion, the machine simply wouldn't sew.

What CSD did well:

• It encapsulated detailed commands specific to those machine families.
• It maintained color integrity (unlike some industrial formats that just see "Stop" commands).

Where CSD bites you today:

• It is proprietary. If you switch to a modern Brother or Janome, those files effectively become "dead languages" without conversion software.

Warning: (Safety Alert) When you’re cutting fabric near your hooping area or changing needles, keep scissors and snips at least 6 inches away from the machine bed. One accidental magnetic pull or bump can send a needle into a hard tool, causing the needle to shatter. Always wear protective eyewear when managing needle breaks.

Why Proprietary Embroidery Formats Declined: Compatibility Is a Business Problem, Not a Nerd Problem

The video’s core argument is simple: exclusivity hindered interchange among different brands and models.

That matters in three very real scenarios:

1. You buy designs: Most digital sellers offer DST or PES first. CSD is rare.
2. You collaborate: If a digitizer sends you a file, they need a universal language.
3. You scale up: Moving from a home machine to a commercial multi-needle setup requires a standard format.

The laptop typing shot is the perfect metaphor: the moment embroidery becomes “file management,” proprietary formats start costing time.

If you’re building a workflow that can grow, you want fewer dead ends.

One search term I still see people use when they’re stuck in this trap is multi hooping machine embroidery—usually because they are trying to piece together a large design on a small machine using restricted formats. Once you start splitting designs (multi-hooping), file portability stops being optional; it becomes critical.

Legacy CSD Libraries: When Keeping CSD Makes Sense (and When It’s a Trap)

The video acknowledges something important: CSD still has loyalists.

That’s usually because:

• They own legacy machines (like the Singer Poem) that still run perfectly.
• They have a large library of designs (thousands of dollars worth) only available in that format.

Here’s the "Keep or Toss" rule I teach in my workshops:

• Keep CSD if it’s tied to a specific legacy machine you actively run.
• Convert to DST if you are buying a new machine. Do not try to force a new machine to work with old formats via unreliable converters.


The DST File Format (Data Stitch Tajima): The “Travel Adapter” That Made Sharing Normal

The video positions DST as the industry’s shift toward a more universally accepted format. Originally created by Tajima, it became the "MP3" of the embroidery world.

Two claims are central:

• DST is celebrated for its open-source nature (broadly accessible).
• DST is broadly compatible with almost every commercial and modern home machine.

The "Need to Know" about DST: DST files are coordinate-based. They tell the machine "Move X, Move Y, Drop Needle." They essentially ignore color. When you load a DST file, your screen might show weird colors (like neon green and brown). This is normal. You must manually assign the colors at the machine based on your thread chart.

If you’re running or outsourcing to a tajima embroidery machine, DST is the format that keeps your pipeline moving: digitize once, run many.

A quick “format choice” decision tree you can actually use

Use this to stop guessing which file to load.

Decision Tree: Which file format should you prioritize?

1. Do you own a legacy Poem/Huskygram/Singer?
   • Yes: Use CSD.
   • No: Go to step 2.
2. Do you need to share designs across different brands (e.g., Brother at home, Ricoma at the shop)?
   • Yes: Prioritize DST.
   • No: Use your machine's native format (e.g., PES for Brother, JEF for Janome) for easier color management.
3. Are you planning to scale production (mass orders)?
   • Yes: Prioritize DST. It is the "lingua franca" of commercial production.

DST vs CSD in Plain English: Capacity, Compression, and Why “Bigger Designs” Don’t Have to Mean Bigger Headaches

The video states that DST carries the critical design instructions found in CSD, but adds robustness for more sophisticated designs.

Here’s the practical takeaway:

• DST is built for speed. It trims unnecessary data.
• DST is built for scale. It handles high stitch counts (50,000+) without crashing machines.

The measuring tape and fabric prep shots are a quiet reminder that scaling isn’t only about the file—it’s about repeatability. When you can trust the file format, you can standardize the rest of the workflow.

If you’re researching production setups, you’ll see people pairing DST workflows with better fixturing—things like hooping stations—because once the file is stable, the next bottleneck is almost always hooping speed and consistency.

The “Hidden” Prep Before You Blame the File: What to Check in Your Workflow First

Most "file corruption" errors are actually "user setup" errors. Before you assume the design is broken, run this physical check.

Prep Checklist: The "Pre-Flight" Inspection

• Format Match: Does your USB drive contain the correct extension (e.g., .dst)?
• Bobbin Health: Check your bobbin case. Blow out lint. A tiny piece of lint can cause false tension readings that look like file errors.
• Needle Freshness: Are you using a fresh needle? (Standard: 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
• Consumables: Do you have your Temporary Spray Adhesive (e.g., 505) and Water Soluble Topping ready for textured fabrics?
• Safety Zone: Keep expensive scissors away from the magnetic field if adjusting a magnetic hoop.


Setup That Prevents “It Looked Fine on My Laptop”: File Handling + Hooping Choices That Save Orders

The video shows the digital side (laptop) and the physical side (fabric prep). In real shops, the handoff between these two is where mistakes happen.

File handling setup

• Clean USBs: Don't keep 500 files on one stick. Machines lag when reading overloaded drives.
• Naming: Rename Design_Final_Final_v2.dst to Logo_Jersey_DST.dst. Keep it under 8 characters if using older machines.

Hooping setup (The "Pain" Point)

Once you move toward DST workflows, hooping becomes your enemy. Traditional plastic hoops require significant hand strength and often leave "hoop burn" (shiny crushed marks) on delicate fabrics like the pink chiffon shown in the video.

If you struggle with hoop burn or wrist pain, this is where tool selection matters:

• Home Users: Consider machine embroidery hoops with magnetic locking mechanisms using magnets. They float over the fabric rather than crushing it into a groove.
• Pro Users: If you run a tajima embroidery hoop system, upgrading to high-strength magnetic frames drastically increases speed because you don't have to adjust screws for every shirt.

Tool-upgrade path (When to spend money):

• Symptom: Hoop burn on velvet/performance wear. Solution: Magnetic Hoops.
• Symptom: Wrist pain/Arthritis. Solution: Magnetic Hoops (No screws to tighten).
• Symptom: Need to sew 50 shirts a day. Solution: SEWTECH Multi-Needle machine + Magnetic Frames.

Warning: (Magnetic Safety) High-strength magnetic hoops are industrial tools. They snap together with enough force to pinch fingers severely. Never use magnetic hoops if you have a pacemaker, as the strong magnetic field can interfere with medical devices. Keep them away from credit cards and mechanical watches.

Setup Checklist (Right before pressing Start)

• Hoop Check: Tap the fabric. It should sound like a dull drum (taut, not stretched).
• Clearance: Rotate the handwheel or use the definitive "Trace" function to ensure the needle won't hit the hoop frame.
• Thread Path: Pull the top thread gently near the needle. It should feel like pulling dental floss—smooth resistance, no snags.
• Command: Verify the machine color stop sequence matches your printed thread chart (Crucial for DST files!).

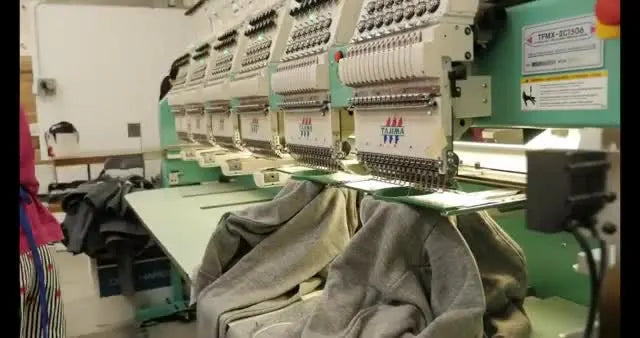

Running DST in the Real World: What Changes When You Go Industrial (and Why It’s Worth It)

The video’s industrial sewing station and thread cones are visual bridges into production thinking.

DST’s value shows up when:

• Consistency: You need the logo to look exactly the same today as it did six months ago.
• Speed: Commercial machines running DST files can hit 1,000 stitches per minute (SPM).
  • Expert Tip: Start slower. For detailed designs, 600-750 SPM is the "Sweet Spot" for quality. Speed kills detail.

A common scaling question I hear is whether a hooping station for embroidery is “really necessary.” If you are doing batches of 10+ items, yes. It ensures the logo is in the exact same spot on every breast pocket, reducing rejects.

“It Won’t Share / It Won’t Load”: Troubleshooting CSD vs DST Compatibility Without Guessing

The video provides two clear troubleshooting items. Let's expand them with actionable fixes.

Symptom: "File Not Found" on Machine Screen

• Likely Cause: machine cannot read the proprietary CSD format, or the USB is too large (over 8GB).
• Fix: Convert to DST using software (like Wilcom or Hatch) and use a smaller USB drive (FAT32 formatted).

Symptom: Colors are wrong on the screen (Neon Green/Pink)

• Likely Cause: DST files do not hold color palettes.
• Fix: Ignore the screen colors. Follow your printed production worksheet/color chart.

Symptom: Design is off-center or hits the hoop

• Likely Cause: The center point in the file wasn't set to (0,0).
• Fix: Manually center the needle in the hoop before starting, or re-save the file with "Center Design" checked.

Watch out: People assume “my friend sent me a file, so it works.” That’s false. Always ask: "Is this digitized for the fabric I am using?"

The Future of Embroidery Technology: Keep Your Workflow Flexible

The video closes by acknowledging ongoing evolution. You don’t need to predict the future to protect yourself from it. You just need a workflow that isn’t trapped.

Here’s what “flexible” looks like in practice:

• Files: Standardize on DST.
• Hardware: Choose machines (like SEWTECH) that accept standard industrial accessories.
• Process: Master the "Hoop -> Trace -> Stitch" rhythm.


The Upgrade Moment: When DST Is Solved, Your Next Bottleneck Is Hooping Speed

If you’re still hooping one-by-one with screwing and unscrewing, you’ll feel “busy” but not productive.

When you start thinking in batches—logos, uniforms, repeat orders—your upgrade path becomes clearer:

1. Level 1 (Better Stability): Use better stabilizers (Cutaway for knits, Tearaway for woven).
2. Level 2 (Better Tools): Switch to Magnetic Hoops (such as Sew Tech Magnetic Hoops). They reduce hooping time by 50% and eliminate screw-tightening fatigue.
3. Level 3 (Better Capacity): If you are changing threads more than sewing, look at SEWTECH Multi-Needle Machines. They auto-change colors, allowing you to prep the next hoop while the machine works.

And if you’re evaluating fixtures, you'll see terms like embroidery frame in supplier catalogs. Just make sure you’re comparing not only size but also grip strength and ease of release.

Operation Checklist (The "First Minutes" Protocol)

• Watch the First 100 Stitches: Do not walk away! This is when "Bird Nests" happen.
• Listen: You want a rhythmic thump-thump. A sharp clack-clack means a needle is hitting something or is dull.
• Stabilizer Check: Ensure the stabilizer isn't tearing away prematurely.
• Storage: After a successful run, save that specific DST file to a folder named "Proved Production Files" so you never have to guess again.

If you take only one lesson from the CSD-to-DST evolution, let it be this: choose tools and formats that keep doors open. Your future self—especially the one trying to deliver paid orders on time—will thank you.

FAQ

• Q: Why does a Tajima embroidery machine show neon green/pink or “wrong colors” when loading a DST embroidery file?
  A: This is normal for DST files because DST is coordinate-based and does not carry real thread color palettes.
  • Ignore on-screen thread colors and run by a printed thread chart/production worksheet.
  • Verify the machine color stop sequence matches the chart before pressing Start.
  • Rename and re-save a clean copy of the DST if the stop order looks confusing.
  • Success check: The machine stops exactly at the planned color-change points and the stitched colors match the chart, even if the screen colors look odd.
  • If it still fails… Ask the digitizer whether the file was digitized for the exact fabric type, because “working file” does not guarantee correct results on a different material.
• Q: How can a SEWTECH multi-needle embroidery machine fix a “File Not Found” message caused by a CSD embroidery design on a USB drive?
  A: Convert the proprietary CSD design to DST and use a small, FAT32-formatted USB because many machines cannot read CSD and may reject large USB drives.
  • Convert the CSD file to DST using reputable embroidery software (for example, Wilcom or Hatch).
  • Format a smaller USB drive to FAT32 and copy only the needed design files to reduce machine reading lag.
  • Keep file names simple (short names are safer on older systems).
  • Success check: The design appears in the machine’s file list and loads to the preview screen without an error.
  • If it still fails… Re-export the DST with “Center Design” enabled in software and try a different USB stick.
• Q: How do you prevent an industrial embroidery machine design from stitching off-center or hitting the hoop when using a DST file?
  A: Re-center the design before stitching and always run a trace/clearance check so the needle path cannot collide with the hoop frame.
  • Center the needle position in the hoop before starting, especially if the file center was not set to (0,0).
  • Use the machine’s “Trace” (or equivalent) function to confirm the full design stays inside the hoop boundary.
  • Stop and re-save the file with “Center Design” checked if the traced outline is shifted.
  • Success check: The trace outline stays fully inside the hoop with consistent clearance all around.
  • If it still fails… Choose a larger hoop/frame size or re-digitize/re-size the design to fit the hoop safely.
• Q: What is the correct “pre-flight” checklist to run before blaming a DST embroidery file for “corruption” on a multi-needle embroidery machine?
  A: Most “file corruption” complaints are setup issues—check format match, bobbin area cleanliness, needle condition, and key consumables first.
  • Confirm the USB contains the correct file extension (for example, .dst) and the machine supports that format.
  • Clean the bobbin case area (remove lint) because lint can trigger false tension symptoms that look like file problems.
  • Replace the needle if there is any doubt; as a safe starting point, use 75/11 Ballpoint for knits and 75/11 Sharp for wovens (follow the machine manual).
  • Prepare consumables as needed: temporary spray adhesive (for example, 505) and water-soluble topping for textured fabrics.
  • Success check: The first 100 stitches run smoothly without sudden looping, thread breaks, or abnormal sounds.
  • If it still fails… Test the same machine setup with a known-good “proved production” DST to separate file issues from machine/setup issues.
• Q: What is the fastest way to confirm correct hooping tension before pressing Start when using Sew Tech magnetic hoops or standard embroidery hoops?
  A: Hoop the fabric taut (not stretched) and verify clearance before stitching to prevent bird nests, distortion, and hoop strikes.
  • Tap the hooped fabric and adjust until it sounds like a dull drum (taut, not over-stretched).
  • Run the trace/outline to confirm the needle path clears the hoop/frame.
  • Pull the top thread near the needle; it should feel like smooth “dental floss” resistance with no snags.
  • Success check: The fabric stays flat with no ripples, the trace clears the frame, and the first stitches do not pucker or shift the design.
  • If it still fails… Change stabilizer type (cutaway for knits, tearaway for wovens) and re-hoop to remove slack without stretching the fabric.
• Q: What needle-and-scissors safety steps should be followed when changing needles or trimming near an embroidery machine using a magnetic hoop system?
  A: Keep hard tools away from the machine bed and protect your eyes, because a bump or magnetic pull can drive a needle into a tool and shatter it.
  • Keep scissors and snips at least 6 inches away from the machine bed during needle changes and trimming.
  • Wear protective eyewear when managing or troubleshooting needle breaks.
  • Stop the machine fully before placing or removing tools near the needle area.
  • Success check: No metal tools are within the machine’s immediate work zone during needle movement or test runs.
  • If it still fails… Reassess the workspace layout so tools have a dedicated parking spot away from the hooping area.
• Q: What magnetic hoop safety rules should be followed when using high-strength Sew Tech magnetic hoops on embroidery machines?
  A: Treat magnetic hoops as industrial pinch hazards and avoid them entirely for pacemaker users due to potential medical-device interference.
  • Keep fingers clear when bringing hoop parts together because the snap force can pinch severely.
  • Never use magnetic hoops if the operator has a pacemaker; the magnetic field may interfere with medical devices.
  • Keep magnetic hoops away from credit cards and mechanical watches.
  • Success check: The hoop halves are aligned and closed without finger contact in the snap zone, and the hoop can be released safely and predictably.
  • If it still fails… Switch to a standard screw-type hoop for the job or adjust handling technique to control the closing motion more safely.
• Q: If hoop burn and wrist pain are slowing embroidery production, what is the step-by-step upgrade path from stabilizers to magnetic hoops to a SEWTECH multi-needle embroidery machine?
  A: Start with stability fixes, then reduce hooping strain with magnetic hoops, and only then consider multi-needle capacity if thread changes are the real bottleneck.
  • Level 1 (Technique/Consumables): Match stabilizer to fabric (cutaway for knits, tearaway for wovens) to reduce distortion and re-hooping.
  • Level 2 (Tool Upgrade): Use magnetic hoops to reduce hoop burn on delicate fabrics and eliminate screw-tightening fatigue.
  • Level 3 (Capacity Upgrade): Move to a SEWTECH multi-needle embroidery machine when frequent color changes are consuming more time than stitching.
  • Success check: Hooping time drops (often noticeably), hoop burn marks reduce on sensitive fabrics, and daily output becomes more consistent.
  • If it still fails… Add a repeatable placement process (for example, batch-focused hooping workflow) so positioning errors do not replace hooping speed as the new bottleneck.
