If you have ever imported a bitmap into Wilcom Hatch, stared at that imposing square white background, and thought, “I just need this specific part—why is it so hard to isolate?”, take a deep breath. You are experiencing the first friction point of digitizing: Asset Preparation.

Cropping in Hatch is not merely a cosmetic tool; it is the foundational step of Trajectory Control. It is one of those deceptively simple functions that saves you hours of cleanup time before you ever lay down a single satin column or tatami fill.

In this deep dive, we are following the workflow of Sue from OML Embroidery, but we are going to elevate it with 20 years of production floor experience. We will not just show you how to crop; we will teach you why a strategic crop prevents thread breaks, reduces density issues, and ultimately leads to a profitable, repeatable embroidery run.

The Veteran Truth: Good cropping isn’t about making things look “pretty” on your computer monitor. It is about controlling the interpretative load on your digitizing software. A cleaner, intentional crop means fewer calculation errors when you convert artwork into stitches, and implies a safer safety margin when that needle starts moving at 1,000 stitches per minute (SPM).

Don’t Panic: Wilcom Hatch Crop Is Non-Destructive Thinking (Even When It Feels Permanent)

For beginners, the act of cropping often triggers a psychological response: Fear of Data Loss. It feels scary because the outside area visual disappears the moment you release the mouse button. You might think, "What if I cut off too much? Do I have to re-import?"

In this Hatch workflow, that disappearance is normal. You are creating a new view state for the image object.

Key Mindset Shift: You are not “doing embroidery” yet. You are engaging in Pre-Flight Logic. You are preparing the artwork so your future digitizing decisions—like where edges should terminate, what details are too small to stitch (under 1mm), and what background noise should be ignored—are easier and more predictable.

If you are transitioning from Wilcom V5 or high-end industrial software, you may be accustomed to performing bitmap edits in vector suites like CorelDRAW first. Sue points out that Hatch users can still leverage Corel products (like Corel Essentials), but you do not have to. Hatch has built-in cropping that is fast, non-destructive, and surprisingly flexible.

The “Hidden” Prep Before You Crop a Bitmap in Wilcom Hatch (So You Don’t Fight the Software)

Before you even navigate to the Crop menu, you must perform a physical and digital "handshake" with the software. Ignoring this leads to 80% of beginner frustration, manifesting as "ghost clicks" (clicking but nothing happens).

1. The Select Tool Protocol

You cannot edit what isn't grasped. Confirm you are selecting the bitmap itself, not the empty canvas around it.

• Visual Check: Look for the black sizing handles (small squares) appearing around the perimeter of your image. No black squares? You aren't in control yet.

2. The Interaction Zoom

Zooming is an art. You need to be at a comfortable operational level.

• Too Far: You can't see the specific pixel edge where the design ends and the noise begins.
• Too Close: The screen starts drifting or "swimming" uncontrollably when your mouse hits the edge of the viewport.

Sue mentions that if Auto-pan is engaged, it can make editing feel chaotic—especially when you are zoomed in and your cursor nears the edge. We will discuss calibrating this later, but for now, aim for a view where the entire subject fills 70% of your screen.

Warning: Mechanical Safety Protocol. This may seem early, but proper digitizing prevents physical injury. If you crop too tightly and place stitch nodes right on the edge of your hoop limit, you risk a Hoop Strike—where the needle creates a collision with the plastic or metal frame. This can shatter the needle, sending metal shards towards your eyes. Always crop with the intent to leave a safety margin inside your hoop boundary.

Prep Checklist (Do this BEFORE you touch Crop)

• Asset Visibility: Bitmap is imported and fully opaque on the canvas.
• Selection Confirmation: You clearly see black selection handles around the image perimeter.
• Zoom Stability: You are zoomed in enough to see detail, but not so close that the screen scrolls wildly.
• Tool Awareness: You have mentally located the Select tool (Arrow) and Reshape tool.
• Consumable Check: If you are digitizing for a specific garment, have your water-soluble pen ready to mark the physical center, ensuring your digital crop matches physical reality later.


Find the Crop Menu in Wilcom Hatch (It Only Appears When the Bitmap Is Selected)

Hatch utilizes a Context-Sensitive Interface. This means tools hide until they are needed to reduce visual clutter. Sue’s workflow relies on this muscle memory:

1. Click directly on the imported bitmap to select it.
2. Scan the Top Contextual Toolbar.

Your eyes should travel up. You will see multiple crop shapes available (Rectangle, Oval, Heart, Star, etc.). The critical detail is that these are not “effects” buried in a sub-menu; Hatch surfaces them immediately if and only if the bitmap is the active object.

If you are the type of operator who thrives on repeatable Standard Operating Procedures (SOPs), lock this loop in: Select Image → Verify Handles → Navigate to Crop.

Oval Crop in Hatch: The Fastest Way to Isolate a Motif Without Extra Software

The oval crop is the cleanest “first crop” for most organic designs (flowers, crests, portraits) because it lacks sharp corners that can inhibit the Reshape process later. It is forgiving, organic, and quick.

Here is the tactical execution Sue demonstrates:

1. Select the bitmap.
2. Choose the Oval crop tool.
3. Engage: Hold the left mouse button and drag outward from your intended anchor point.
4. Vector: Drag diagonally to expand the oval over the "keep zone."
5. Release: Hatch crops instantly.

Sensory Feedback Check:

• While Dragging: You should see a faint, ghosted oval outline tracking your mouse movement.
• On Release: The visual noise (background) should vanish instantly, leaving only the area inside the oval.

Expert Insight on Data Density: This is the moment to pause and ask: "Did I keep enough margin?" If you crop too tight against the design edge, you force yourself into awkward digitizing compromises later. For example, a satin stitch border requires at least 1.5mm to 2mm of fabric stability (depending on pull compensation settings). If you crop right to the pixel edge, your detailed underlay might hang off the "cliff" of your design area. Sweet Spot: Leave at least 5mm of background buffer during this phase.

Setup Checklist (Right after your first crop)

• Object Integrity: The cropped image appears as a standalone object.
• Safety Buffer: The crop edge is NOT cutting through critical design pixels (check the edges!).
• Selectability: You can still click the image and see the black handles.
• Reshape Readiness: You are ready to refine the shape, rather than accepting the default oval.

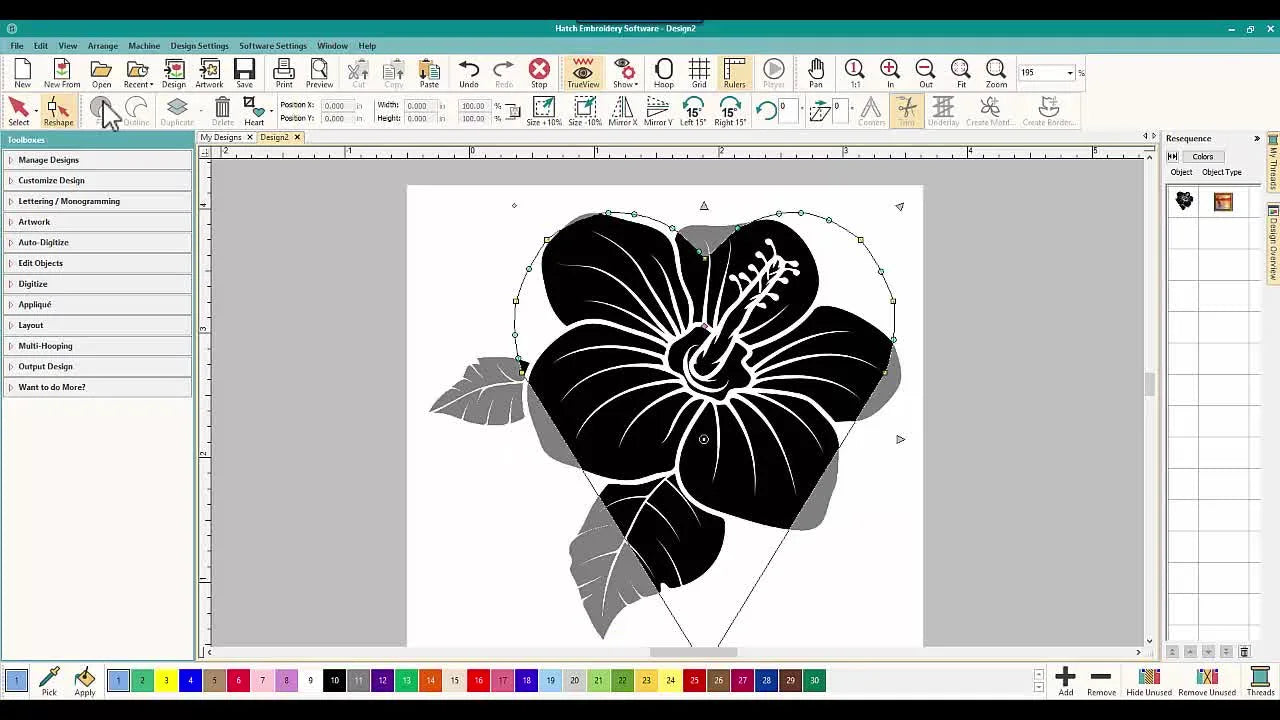

Heart Crop + Reshape Tool: Where Wilcom Hatch Starts Feeling Like a Real Design Playground

This section represents the transition from "passive user" to "active designer." Sue’s heart example usually triggers the cognitive "Aha!" moment for students.

Phase 1: The Rough Cut

1. Select the bitmap.
2. Choose the Heart crop option.
3. Click and drag to draw the heart over the area you want.
4. Release to crop instantly.

Phase 2: The Reshape (The Professional Move) Most beginners stop at the rough cut. Experts do not.

1. Click the Reshape tool.
2. Tactile Control: Grab the yellow square nodes (corners/cusps) or blue control points (curves) and drag them.

Sensory Feedback Check:

• As you drag a blue node, imagine you are pulling a rubber band. The line should flex smoothly.
• The image mask updates in real-time. You should see the background appearing and disappearing as you move the node.

This is where you customize the geometry to fit the garment. If you are embroidering on a pocket, you might widen the heart. If it is for a sleeve, you might narrow it. Sue explicitly demonstrates making the heart look "odd" or abstract—proving that you are not limited to the software's default idea of a heart.

Comment-driven Pro Tip: “How do I remove the white background?”

A recurring question in the comments (and a major friction point for novices) is: "How do I make the white background transparent?"

We must clarify the terminology. Cropping is masking; it is not erasing. In this video, Sue demonstrates cropping shapes to isolate the subject. If your "white background" is part of the bitmap itself (inside the crop), cropping will typically just tighten the frame around it.

The Reality: If you still see white pixels inside your crop, that data still exists. Hatch minimizes the visual distraction, but for auto-digitizing, those white pixels are still "seen." Keep your expectations realistic: Cropping controls the boundary; it does not perform advanced magic wand functions to detect and un-stitch interior colors.

Star Crop in Wilcom Hatch: The Trick for Off-Center Composition That Looks Intentional

Sue switches to a regular 5-point star crop and performs a subtle but brilliant move: she places it off-center on purpose.

In the world of embroidery design, Center-to-Center is the boring standard. Off-center crops create dynamic motion. They imply a patch-style aesthetic or a "peek-a-boo" effect where the subject interacts with the frame.

The Workflow:

1. Select the bitmap.
2. Choose Star 5 point crop.
3. Click and drag to place the star.
4. Release.

The Refinement:

1. Return to Reshape.
2. Locate the small diamond handle.
3. Action: Pull this handle in or out to adjust the "sharpness" of the star rays.

Visual Metric:

• Pulling In: Makes the star look like a skinny, sharp "burst" (good for callouts).
• Pulling Out: Makes the star fat and blocky (better for patch backgrounds requiring room for satin text).

Sue also notes you can delete nodes to simplify the shape. Rule of Thumb: Fewer nodes = smoother curves. If a curve looks jagged, delete the intermediate nodes and let the software's algorithm smooth the line between the remaining two points.

The “Autopan Chaos” Problem in Hatch: Stop the Screen From Sliding While You Edit

If your screen seems to drift, slide, or move uncontrollably while you try to drag nodes, you are experiencing "Autopan Drift." Sue identifies this correctly as a major annoyance.

• Symptom: You drag a node near the edge of the screen, and suddenly your canvas scrolls to the middle of nowhere.
• Experience: It feels like trying to write on a piece of paper that someone is pulling away from you.
• Fix: Disable Auto-pan.

This is critical for precision. When the canvas drifts, beginners panic-correct with the mouse. This over-correction leads to jagged shapes, accidentally grabbing the wrong nodes, and a spike in frustration. A steady canvas equals a steady hand.

The “Why” Behind Cropping Before Digitizing: Cleaner Edges, Fewer Stitching Surprises

Why spend 10 minutes cropping? Why not just start digitizing?

Because Cognitive Load is finite. Cropping is a filtering process.

When you digitize from raw artwork, you are constantly making micro-decisions:

• Where does this stain stitch end?
• Is this pixel dirt or a detail?
• Do I need to simplify this jagged line?

A sloppy, oversized bitmap forces you to make those decisions under pressure, often while you are also managing stitch angles and densities.

A deliberate crop helps you:

1. Focus: You only see the motif that matters.
2. Noise Reduction: It removes visual clutter that distractions the eye.
3. Boundary Definition: It creates a hard edge that makes defining your Pull Compensation (the distortion of fabric under tension) much easier to visualize.

If you are building a workflow for commercial production, consistency is king. Consistent crop boundaries lead to consistent stitch counts, which lead to predictable run times and costs.

Quick Decision Tree: When to Crop in Hatch vs. When to Edit the Artwork Elsewhere

Use this logic flow before you waste time fighting the wrong tool.

START: What is your primary obstruction?

1. I need a defined shape (circle/heart/patch) around the subject.
   • Decision: Use Hatch Crop + Reshape.
   • Why: Fast, native, editable within the .EMB file.
2. I have a stylized silhouette requirement (e.g., a twisted heart or custom shield).
   • Decision: Use Hatch Crop, then heavily manipulate via Reshape.
   • Why: The node editing in Hatch is vector-based and powerful.
3. I need to remove specific interior pixels (like removing a white background from inside a logo).
   • Decision: STOP. Use CorelDRAW or Photoshop (or other bitmap editor) first.
   • Why: Hatch Crop is a cookie-cutter, not a magic eraser.
4. I need ultra-precise graphic cleanup for a corporate logo.
   • Decision: Request a Vector file (.AI/EPS) or clean the bitmap externally.
   • Why: Garbage In, Garbage Out. A bad bitmap will result in jagged satin stitches.

Troubleshooting: Symptoms → Likely Cause → Fix (Cropping & Reshape in Wilcom Hatch)

The Upgrade Path After You Crop: From Screen-Perfect to Stitch-Perfect (Without Wasting Hooping Time)

Once your cropped image looks correct, Sue’s final move is simple: switch back to Select to "commit" the view. You are now ready to digitize.

However, this is where the amateur stops and the professional begins.

A perfect digital file is only 50% of the equation. You can have the cleanest crop and the most precise stitch nodes in the world, but if that transfer to the physical realm is sloppy, the result is failure.

The "Hooping Bottleneck" If you are still hooping by hand on a tabletop, fighting to keep the fabric straight, or noticing "hoop burn" (shiny rings) on delicate fabrics, your workflow is broken. The time you saved cropping in Hatch is being lost in physical setup.

Many professionals search for a specific solution: how to use magnetic embroidery hoop correctly to solve these issues.

Level 1: The Stability Fix If you are doing production runs of 50+ shirts, manual hooping is physically dangerous (RSS/Carpal Tunnel) and slow. A hooping station for machine embroidery standardizes your placement. It ensures that the perfectly cropped logo lands on the exact same spot or every single shirt, chest after chest, without you having to measure every time.

Level 2: The Damage Control Fix Traditional hoops rely on friction and friction damages fabric. This is why terms like magnetic embroidery hoop are your gateways to understanding efficient production. These tools use vertical magnetic force rather than friction, allowing you to hold thick jackets or slippery silks without crushing the fibers.

Level 3: The Scale Fix For higher throughput, shops utilize embroidery hooping station setups paired with multiple magnetic embroidery frames. This creates a "staging" workflow: one frame is running on the machine, while the next garment is being magnetically pre-loaded. This reduces machine downtime to near zero.

If you are comparing alignment systems, you might look at a hoopmaster hooping station style workflow or similar alternatives like the hoop master embroidery hooping station concept (generic or brand specific), as these systems mechanically guarantee that the digital center you defined in Hatch matches the physical center on the shirt.

Finally, if your volume is climbing and you are still on a single-needle machine, the inability to queue colors is costing you profit. This is when upgrading to a dedicated multi-needle machine becomes the logical next step in your business evolution.

Warning: Magnetic Safety Protocol. If you choose to upgrade to Magnetic Hoops, treat them with extreme caution. These are industrial-grade N52 neodymium magnets.
* Pinch Hazard: They snap together with enough force to crush fingers or blood blisters. Never float your fingers between the rings.
* Medical Devices: Keep them at least 6-12 inches away from pacemakers and insulin pumps.
* Electronics: Keep them away from credit cards, phones, and hard drives.

Operation Checklist (Before you move on to Digitizing)

• Final Crop Check: You have cropped the bitmap to the exact boundary needed.
• Curve Refinement: You used Reshape to smooth out any robotic/sharp angles.
• Commit: You switched back to the Select tool to finalize the edit.
• Density Preview: You have confirmed there is enough "meat" left in the image to support the underlay stitches you plan to use.
• Physical Prep: You have selected the correct stabilizer (Cutaway for knits, Tearaway for wovens) and have your hoop ready.

Comment-driven Watch Out: “Can I do this in Wilcom Studio 3?”

A viewer asked whether Wilcom Studio 3 can crop images using this exact method. This guide specifically demonstrates the workflow inside Wilcom Hatch (Crop shapes + Reshape). If you are on an older version or the full industrial Studio level, check your specific manual. While the logic (Crop -> Reshape) remains the same, the button locations may vary.

Mastering this asset prep in Hatch makes you a better digitizer in any software, because you learn to prioritize Clean Data over messy artwork.

FAQ

• Q: Why are Wilcom Hatch crop tools (Rectangle/Oval/Heart/Star) missing from the top toolbar when cropping a bitmap?
  A: Wilcom Hatch only shows Crop tools when the imported bitmap is actively selected.
  • Click directly on the bitmap (not the empty canvas) until black sizing handles appear.
  • Look at the top contextual toolbar again; Crop shapes should appear immediately.
  • Zoom so the bitmap fills most of the screen, then re-click the bitmap to avoid “ghost clicks.”
  • Success check: Black square handles are visible around the image, and Crop shape icons are visible in the toolbar.
  • If it still fails: Undo any accidental deselection, then re-import the bitmap and repeat the “Select Image → Verify Handles → Crop” loop.
• Q: How do I stop Wilcom Hatch crop shapes from landing off-target when I click-and-drag an Oval Crop or Heart Crop?
  A: Redo the crop and start the drag from a more intentional anchor point—this is common and usually fixed with a simple undo.
  • Press CTRL+Z to undo the off-target crop.
  • Click closer to the intended center of the subject before dragging the crop shape outward.
  • Drag diagonally to expand the shape over the “keep zone,” then release.
  • Success check: A faint “ghost” outline tracks the mouse while dragging, and the unwanted background disappears instantly on release.
  • If it still fails: Zoom to a comfortable working view (subject ~70% of the screen) and try again to improve control.
• Q: How can Wilcom Hatch stop the screen from sliding while I reshape crop nodes (Wilcom Hatch Auto-pan drift)?
  A: Disable Wilcom Hatch Auto-pan to keep the canvas steady while editing nodes.
  • Turn off Auto-pan in the software Options/Settings.
  • Zoom out slightly so the reshape area stays away from the screen edges.
  • Drag nodes again with smaller movements to avoid triggering edge-scrolling behavior.
  • Success check: The canvas stays still while dragging nodes, and the mask updates smoothly in real time.
  • If it still fails: Recenter the design on screen before reshaping, then continue edits in the middle of the viewport.
• Q: How do I remove the white background from a logo using Wilcom Hatch Crop, so auto-digitizing ignores the white pixels?
  A: Wilcom Hatch Crop is masking (boundary control), not pixel erasing—white pixels inside the crop will still exist.
  • Use Crop + Reshape to isolate the subject boundary and reduce outside clutter.
  • If white pixels are part of the bitmap inside the crop, edit the artwork in a bitmap editor (for example CorelDRAW or Photoshop) before re-importing.
  • Re-import the cleaned artwork into Wilcom Hatch, then crop again for final boundary control.
  • Success check: After external cleanup, the unwanted white area is no longer present inside the cropped region when viewed in Hatch.
  • If it still fails: Stop relying on auto-digitizing for that file and request a proper vector source (.AI/.EPS) or a cleaner original image.
• Q: What safety margin should be left when cropping a bitmap in Wilcom Hatch to avoid hoop-limit issues and needle-to-hoop collisions (hoop strike risk)?
  A: Do not crop tightly to the design edge—leave a safe buffer so stitch objects are not forced to the hoop boundary.
  • Leave background buffer during asset prep (a safe starting point in this workflow is about 5 mm) so later stitch edges are not pushed to the limit.
  • Avoid placing stitch nodes right at the hoop limit; keep the design comfortably inside the hoop boundary.
  • Recheck the crop edge before digitizing borders that need stable fabric support.
  • Success check: The crop edge does not cut through critical design pixels, and the planned stitch area clearly sits inside the hoop boundary.
  • If it still fails: Re-crop with more margin before digitizing—do not “fix it later” with tight nodes near the hoop edge.
• Q: What is the fastest “success standard” to confirm a Wilcom Hatch Crop + Reshape edit is done correctly before digitizing?
  A: Verify selectability, buffer, and smooth reshape response before switching back to Select to commit.
  • Click the cropped image to confirm it remains a single selectable object with black handles.
  • Inspect edges to confirm the crop is not cutting into important pixels.
  • Use Reshape to smooth curves (delete unnecessary nodes if the curve looks jagged).
  • Switch back to Select to commit the edit when satisfied.
  • Success check: The image is easy to reselect, reshape changes are smooth (not jagged), and the boundary looks intentional with visible buffer.
  • If it still fails: Zoom to 200–400% and simplify the shape by removing excess nodes, then reshape again.
• Q: How do I reduce hoop burn and speed up repeatable garment setup after digitizing in Wilcom Hatch (manual hooping bottleneck vs magnetic embroidery hoops vs multi-needle machines)?
  A: Start with setup consistency, then reduce fabric damage, then scale throughput—upgrade in levels based on the bottleneck.
  • Level 1 (technique): Standardize placement using a hooping station so the digital center matches the physical center consistently.
  • Level 2 (tool): Use magnetic embroidery hoops/frames when friction hoops mark fabric or when thick/slippery materials are hard to hold.
  • Level 3 (capacity): Move to a multi-needle platform (such as SEWTECH multi-needle embroidery machines) when color changes and downtime limit profit.
  • Success check: Placement repeats without re-measuring each garment, fabric shows fewer shiny rings, and machine downtime between pieces drops.
  • If it still fails: Re-check stabilizer choice (cutaway for knits, tearaway for wovens) and confirm the hoop/frame size matches the design boundary you cropped.
