Crooked Hoop, Perfect Stitch: Embroidering a Nylon Dog Collar & Leash on the Brother Dream Machine (Without the Usual Headaches)

If you have ever tried to embroider a thick, narrow nylon dog collar and felt your standard hoop fighting back—slipping, popping open, or refusing to clamp—you are not alone. Nylon webbing is dense, springy, and notoriously difficult to secure in traditional plastic hoops.

The good news: this project is absolutely doable. Even better, you can achieve professionally aligned results even if the collar is hooped physically crooked.

In this workflow analysis, we follow seasoned digitizer Rena Wilcoxson (Embroidery Garden) as she stitches a matching set: a nylon leash and a 1-inch-wide collar. She utilizes the Brother Dream Machine’s InnovEye camera technology and Snowman positioning stickers to "find" the true center and rotate the design automatically.

I am going to rebuild her process into a shop-ready Standard Operating Procedure (SOP). I will also inject the empirical data (speed, needle type, tension) and safety protocols that prevent wasted collars, broken needles, and common frustration.

The Calm-Down Moment: Why a Crooked-Hooped Nylon Collar Can Still Stitch Straight on the Brother Dream Machine

Thick nylon webbing does not behave like cotton. It resists compression. When you clamp it between plastic rings, it adds significant height, often causing the inner ring to twist or the strap to skew diagonally as you tighten the screw.

Rena leans into that reality rather than fighting it. She intentionally hoops the collar imperfectly, then uses the Snowman sticker + InnovEye scan.

Here is the cognitive shift: You are not relying on your hands to force the strap perfectly straight; you are giving the machine a high-contrast target (the sticker). The machine locates the sticker’s crosshairs and mathematically calculates the angle of deviation, automatically rotating the embroidery file to match your strap exactly.

The “Hidden” Prep Pros Don’t Skip: Templates, Center Marks, and Keeping Stitching Out of the Leash Handle Loop

Before you touch the machine, you win or lose this job at the planning stage. Nylon is unforgiving—once the needle punches a hole, that hole is permanent.

Rena starts with a non-negotiable habit: Paper Templating. She physically holds a 1:1 printout on the leash to confirm two critical variables:

1. Width Clearance: The design fits the 1-inch strap with a safety margin (at least 3mm or 1/8" on top and bottom).
2. Structural Safety: The design does not creep into the handle loop or hardware stitch points.

The Danger Zone: On a leash, the loop where your hand goes is high-stress. If you embroider into the fold or the heavy box-stitching that secures the hardware, you create bulk that rubs against the hand and weakens the structural integrity of the leash.

Expert Note on Marking: Nylon webbing suffers from "memory-bend." It comes off a roll and wants to curl. If you mark your center point while the strap is arched over your knee, your center will be off when flattened. Flatten the strap on a hard table before using your marking pen to ensure the center point is true.

Prep Checklist (Do this before you open the hoop)

• Template Verification: Print the design at 100% scale. Place it on the 1-inch strap. Do you see at least 1/8" of nylon visible above and below the paper?
• Hardware Clearance: Ensure the needle will not land within 1 inch of any metal D-ring or plastic buckle. Hitting hardware = broken machine.
• Handle Check: On the leash, verify the design stops before the strap folds back to form the handle loop.
• Marking: Mark your crosshairs (center point) clearly. Faint marks cause scanning errors.
• Visible Backside Decision: Determine if the back will be seen (Leash = Yes, Collar = No). This dictates your stabilizer choice (see Decision Tree below).
• Hidden Consumables: Do you have temporary spray adhesive or masking tape to secure the loose ends of the leash so they don't flop under the needle?


Resizing Paw Prints in PE-DESIGN for a 1-Inch Nylon Strap (So You Don’t Stitch Off the Edge)

Rena’s collar is nominally 1 inch wide, but the usable embroidery field is narrower due to the edge weave. Her source paw prints were roughly 1 inch high. Attempting to stitch these would result in the needle hitting the very edge of the strap, causing thread shredding or needle deflection.

She resized them in PE-DESIGN down to approximately 0.75 inches (3/4") high.

She also created the name “Lulu” using a TrueType font converted to stitches.

• Density Rule of Thumb: When resizing text for nylon (which has a coarse texture), standard density is usually fine. However, ensure your underlay is sufficient (Edge run + Center run) to prevent the letters from sinking into the webbing weave.

The Visual Breathing Room: A design that touches the edge of a flat strap will look like it is "falling off" once the collar curves around a dog's neck. Always aim for that 1/8" buffer zone.

If you are planning to scale this up for a small business, this stage is where many professionals investigate a hooping station for machine embroidery. While not strictly required for a single project, a station allows you to clamp the webbing straight and mark centers repeatably without the strap sliding around on the table.

Snowman Positioning Stickers: The One Alignment Habit That Saves Thick-Webbing Projects

After marking the center, Rena places the Snowman positioning sticker so its crosshairs align exactly with her ink mark.

Crucial Sensory Check: You must press this sticker down firmly. Run your fingernail over it. Nylon is textured; if the sticker is "floating" on top of the weave, the machine's camera (InnovEye) might misread the angle or, worse, the sewing foot could snag the loose edge of the sticker and drag it off.

Lighting Matters: The camera needs contrast. If your nylon is white, using a white Snowman sticker can sometimes cause detection lag. Ensure your work area is well-lit but avoid harsh glare directly on the sticker which can wash out the camera sensor.

This method solves the "Vertical Name" dilemma. If your machine supports it, you can simply rotate the lettering 90 degrees in the software. If not, the Snowman camera scan handles the rotation relative to the hoop, allowing you to hoop horizontally but stitch vertically if the design is set up that way.

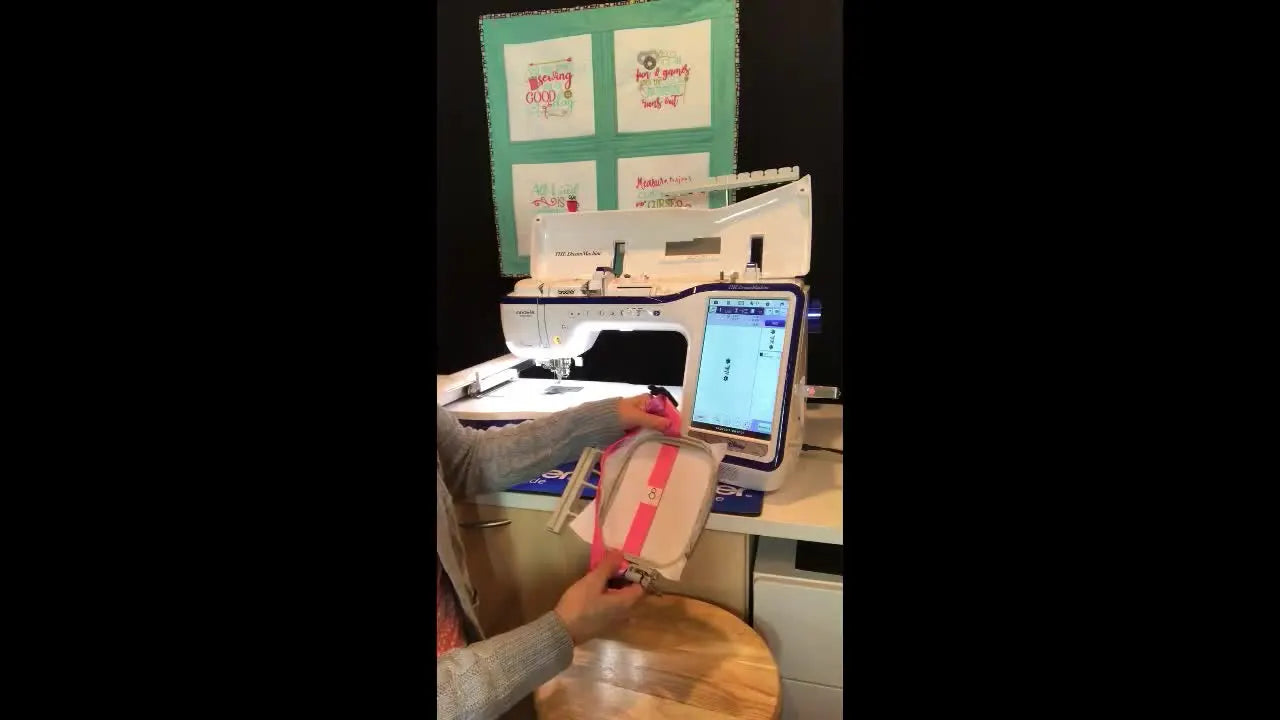

The Real Fight: Hooping a Thick Nylon Collar in a Brother 4x4 Hoop Without Warping the Strap

Rena uses a standard 4x4 plastic hoop. This is the physically hardest part of the process.

1. She places Cutaway Stabilizer (2.5oz or 3.0oz) in the hoop. Stick-on stabilizer is generally discouraged for collars as the residue gums up needles and collects dirt over time.
2. She lays the collar on top.
3. The Adjustment: She loosens the outer ring screw significantly—almost to the end of the bolt.

You will feel resistance. Thick nylon does not compress. As you push the inner ring down, it will try to pop back up.

• The Technique: Loosen first. Press the inner ring down evenly. You should hear/feel it seat into the bottom ring. Only then do you tighten the screw. Ideally, use a screwdriver to get that extra turn of tightness that fingers can't achieve.

If you are using a standard brother 4x4 embroidery hoop, do not be alarmed if the nylon looks slightly waved or crooked inside the hoop. As long as it is taut (drum-tight) and secure (won't slip), the camera will fix the angle.

Warning: Pinch Hazard & Needle Safety. Keep fingers clear of the gap between the rings when forcing them together—they can snap shut violently. Furthermore, never push on the hoop near the needle bar while the machine is powered on. An accidental bump to the start button or handwheel while your fingers are near the needle can cause severe injury.

Setup Checklist (Before you attach the hoop to the machine)

• Screw Tension: Is the hoop screw tightened with a screwdriver? Finger-tight is often insufficient for heavy nylon.
• Float Check: Lift the hoop. Does the stabilizer and strap stay rock solid? If the strap slides even 1mm, re-hoop.
• Clearance: Check the "tail" of the collar/leash. Roll up the excess strap and tape it to the hoop edge so it doesn't fall under the needle or get caught in the embroidery arm rail.
• Bobbin: Is your bobbin full? You do not want to run out of bobbin thread halfway through a name on a dog collar—aligning a restart on narrow webbing is a nightmare.

InnovEye Scan + Snowman Recognition on the Brother Dream Machine: Let the Camera Do the Straightening

With the hoop locked onto the machine arm:

1. Navigate to the Edit screen.
2. Select the Snowman/Camera icon.
3. Choose Scan.

What to Expect: The machine will warn you that the arm will move. Stand back. The hoop will travel smoothly in a grid pattern as the camera "hunts" for the sticker. Once found, you will see the design on the screen jump and rotate. It is aligning itself to the sticker's coordinates.

The "Magic" Confirmed: Even if you hooped the strap at a 5-degree slant, the design is now slanted 5 degrees to match. To the machine, it is perfectly straight.

The One Step People Forget: Remove the Snowman Sticker Before Stitching Starts

Once the machine says "OK" and the calibration is locked, it will prompt you to remove the positioning sticker.

Do not skip this. If you stitch through the sticker, two things happen:

1. Gummy Needle: The adhesive melts and coats your needle, causing skipped stitches and thread shredding immediately.
2. Impossible Removal: Stitches sewn over the sticker trap the paper forever. It looks terrible and unprofessional.

Peel it off gently. Do not pull so hard that you shift the collar in the hoop.

Stitching the Collar: Presser Foot Down, Start, and Let the Design Run

Rena lowers the presser foot and hits Start.

Empirical Data for Nylon Webbing: While the machine defaults to higher speeds, stitching on nylon generates high friction heat.

• Speed: reduce speed to 600 SPM (Stitches Per Minute). This reduces heat build-up which can melt the nylon or snap the thread.
• Needle: Rena used a 75/11.
  • Expert Calibration: While 75/11 works, for thicker tactical webbing, an 80/12 Titanium Topstitch or 90/14 Jeans needle is often safer. These have stronger shafts to prevent deflection (bending) when penetrating the dense weave.
• Thread: 40wt Polyester is standard. It is strong, colorfast, and handles friction well.

If you are trying to build a reliable strap workflow, this is where the conversation around hooping for embroidery machine shifts from "how do I hoop?" to "how do I repeat this 50 times without my hands cramping?" (See Troubleshooting below).

Clean Backs on a Single-Layer Leash: Water-Soluble Stabilizer + Matching Bobbin Thread

The leash presents a different challenge: Visibility. The backside of the embroidery will be seen.

Rena's solution for the leash:

1. Stabilizer: She swaps Cutaway for Fabric-Type Water-Soluble Stabilizer (e.g., Vilene or fibrous WSS, not the thin topping film). She uses two layers for rigidity.
   • Why? Once washed, the stabilizer dissolves completely, leaving no white scratchy backing paper.
2. Bobbin: She switches to Black Bobbin Thread (matching the leash color).
   • Why? Standard white bobbin thread would look like a mistake on a black leash.

Constraint: Water-soluble stabilizer is not as strong as cutaway. Rena notes this design is under 3300 stitches. For heavy, high-density designs (10k+ stitches), water-soluble might distort. For a simple name and paw prints, it is perfect.

Bonus Workflow: Embroidering Down a Jeans Leg by Opening the Inseam (Using the Same Snowman Alignment Trick)

Rena applies the same logic to a pair of jeans.

1. access: She rips the inseam open. You cannot hoop a pant leg otherwise.
2. Stabilizer: Since jeans fabric stretches, she uses Iron-on (Fusible) Cutaway Stabilizer. This prevents the denim from shifting during the hoop scan.
3. Process: Template -> Mark Center -> Snowman Sticker -> Scan -> Stitch -> Repeat.

She stops about 1 inch before the crotch seam to avoid the massive bulk of the zipper/seam intersection. This proves that the Snowman method works anywhere you can fit a sticker.

Finishing the Collar Like a Pro: Trim Cutaway Cleanly Without Nicking Stitches

Back to the collar. Once stitching is complete, remove the hoop. Flip the collar over. You will see the Cutaway stabilizer. Using sharp embroidery scissors (curved tip is best), trim the stabilizer close to the stitches—about 2-3mm away.

• Leash Note: For the leash with water-soluble stabilizer, simply dip it in warm water or dab with a wet cloth, and the backing disappears.

Warning: The Fatal Snip. When trimming stabilizer on nylon, be hyper-aware of your main thread knots. Nylon is slippery; if you accidentally snip a locking stitch or a knot, the entire design can unravel much faster than it would on cotton. Use good lighting.

Decision Tree: Choosing Cutaway vs. Water-Soluble Stabilizer for Nylon Collars and Leashes

Use this logic flow to determine your consumable setup:

Question: Will the backside of the embroidery be visible in daily use?

• NO (e.g., Collar is double-ply, or has a backing strap sewn over it later):
  • Stabilizer: Cutaway (2.5oz). Best stability, prevents puckering.
  • Bobbin: Standard White (unless the leash is very dark and you fear the white pulling close to the top).
  • Post-Process: Trim with scissors.
• YES (e.g., Single-ply Leash, reversible items):
  • Stabilizer: Heavy Fabric-Type Water Soluble (2 layers).
  • Bobbin: Matching Color (Bobbin fill or same 40wt thread as top).
  • Stitch Count Restriction: Only safe for low-to-medium density designs (<4000 stitches).
  • Post-Process: Dissolve with water.

Troubleshooting Thick Nylon Straps: Symptoms, Likely Causes, and Fixes

Here are the three specific failure points for this project, and how to fix them without ruining the material.

Problem 1: “I can’t get the inner ring down—my collar is too thick.”

• Likely Cause: The gap between the inner and outer ring is too wide for the screw's current setting.
• Immediate Fix: Loosen the screw until the nut is barely holding on. Use the Snowman alignment so you don't have to stress about the collar being straight.
• Prevention: Check your hardware. If a D-ring or buckle is sitting under the hoop rim, it acts as a fulcrum and prevents closing. Slide the hardware outside the embroidery field.

Problem 2: “The embroidery outlines are off-register (gaps between border and fill).”

• Likely Cause: The nylon slipped during stitching (Flagging).
• Immediate Fix: Ensure you are using Cutaway stabilizer. Tearaway is notoriously bad for nylon as the needle perforations destroy the stabilizer's grip on the strap.
• Tool Upgrade: A magnetic hoop for brother dream machine can apply consistent downward pressure along the entire frame edge, preventing the "bouncing" that causes registration errors.

Problem 3: “My hands hurt from forcing the hoop, and/or I have 'Hoop Burn' rings on the fabric.”

• Likely Cause: Mechanical hoops require friction and force. Thick materials maximize this struggle.
• The Commercial Solution: If you are doing one leash, muscle through it. If you are doing 50 leashes for a rescue shelter, you need to change tools. This is where professionals switch to a magnetic embroidery hoop.
  • Why? Magnetic hoops clamp straight down. There is no "inner ring" friction. You lay the strap, drop the top magnet, and it snaps shut. Zero hand strain, zero hoop burn, and it holds thick webbing significantly tighter against the needle plate.

Warning: Magnetic Field Safety. Magnetic frames use powerful Neodymium magnets.
1. Pinch Hazard: They snap together instantly. Keep fingers away from the contact zone.
2. Medical Devices: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

The Upgrade Path: When to Stay with Standard Hoops vs. Move to Magnetic Hoops or a Multi-Needle Setup

You do not need new gear to do one perfect collar—Rena proves that with technique alone. But as your volume increases, your time becomes the most expensive resource.

1. The Hobbyist Zone (Standard Hoops): Stick with the plastic 4x4 hoop if you are making gifts for your own pets. The Snowman technique is free and effective.
2. The "Side Hustle" Zone (Magnetic Upgrade): If you sell collars on Etsy, the time spent fighting the hoop adds up. A set of magnetic embroidery hoops for brother reduces hooping time from 2 minutes to 15 seconds. It also eliminates the risk of "hoop burn" marks on expensive velvet or satin collars.
3. The Volume Zone (Multi-Needle): If you are consistently stopping to change thread colors or need to embroider tubular items (like bags or pre-sewn sleeves) without ripping seams, you have outgrown the flatbed. A SEWTECH multi-needle machine allows you to hoop difficult items more easily (using specialized tubular hoops) and run jobs faster with auto-color changes.

Note for Brother Users: If you are searching for a brother luminaire magnetic hoop, ensure you check compatibility. Many users upgrade to magnetic frames specifically for the Luminaire and Dream Machine because the large screens make alignment easy, but the large standard hoops are physically difficult to close on thick materials.

Operation Checklist (What to verify during the stitch-out)

• Camera Scan: Did you watch the screen? Did the design visibly rotate? If it stayed perfectly vertical, the scan might have failed—abort and re-scan.
• Sticker Removal: Stop! Is the sticker off? Double-check.
• Clearance: Is the leash handle loop dangling? Tape it up.
• Sound Check: Listen to the machine. A rhythmic "thump-thump" is good. A sharp "slap" or grinding noise means the needle is struggling—pause and check if your needle is bent.
• Completion: Trim your jump stitches and stabilizer immediately while inspection is fresh.

By combining Rena's clever "Snowman" navigation with proper stabilizer choices and a respect for the physics of nylon, you can turn a frustrating wrestling match into a precise, repeatable production line.

FAQ

• Q: How can a Brother Dream Machine embroider a nylon dog collar straight even when the Brother 4x4 embroidery hoop is physically crooked?
  A: Use the Brother Dream Machine InnovEye camera with a Snowman positioning sticker so the machine scans the crosshair and rotates the design to match the strap angle.
  • Place the Snowman sticker crosshairs exactly on the marked center point on the nylon.
  • Run the InnovEye Scan from the Edit screen and wait for the on-screen design to jump/rotate.
  • Confirm the strap is taut and secure even if it looks slightly skewed in the hoop.
  • Success check: the design visibly rotates on the screen after the scan and looks aligned to the sticker’s crosshairs.
  • If it still fails: re-press the sticker firmly (nylon texture can lift edges), improve lighting/contrast, and scan again.
• Q: What is the fastest way to hoop a thick 1-inch nylon dog collar in a Brother 4x4 embroidery hoop without the inner ring popping up?
  A: Loosen the outer ring screw much more than usual, seat the inner ring evenly first, then tighten with a screwdriver for maximum clamp force.
  • Loosen the screw nearly to the end of the bolt before pushing the inner ring down.
  • Press down evenly around the ring until it fully seats, then tighten the screw (a screwdriver often beats finger-tight).
  • Keep buckles/D-rings fully outside the hoop rim so hardware does not block closure.
  • Success check: when you lift the hooped assembly, the collar and stabilizer do not slide even 1 mm.
  • If it still fails: re-hoop with the screw looser at the start and tape/secure any bulky hardware away from the hoop edge.
• Q: Should nylon dog collars use cutaway stabilizer or water-soluble stabilizer for machine embroidery, and when does the choice change?
  A: Choose cutaway for maximum stability when the backside will not be seen, and choose heavy fabric-type water-soluble (often in 2 layers) only when a clean, visible backside matters and the design is low stitch-count.
  • Decide by visibility: collar backs are often hidden (cutaway), leash backs are often visible (water-soluble + matching bobbin).
  • Keep water-soluble for simpler designs (the example workflow stays under about 3300 stitches); higher-density designs may distort.
  • Match bobbin thread color when the backside will show (for example, black bobbin on a black leash).
  • Success check: after stitching, the strap lies flat with no puckering, and the backside looks intentionally clean for the item’s use.
  • If it still fails: switch from water-soluble to cutaway for better control, or reduce design density/size before restitching.
• Q: What causes off-register outlines and gaps between border and fill when embroidering thick nylon webbing, and how can the issue be fixed?
  A: Off-register outlines on nylon webbing are usually caused by strap slip/flagging, so increase stabilization and clamping consistency to stop movement.
  • Re-hoop using cutaway stabilizer (tearaway commonly loses grip as the needle perforates it).
  • Tighten the hoop screw firmly (often with a screwdriver) and tape/secure strap tails so nothing tugs during stitch-out.
  • Consider upgrading to a magnetic embroidery hoop if repeated slip happens on thick webbing, because even downward pressure can reduce bouncing.
  • Success check: satin borders sit directly on their intended underlay with no visible gaps, and the strap does not “bounce” under the needle.
  • If it still fails: stop and re-hoop—if the strap can shift in the hoop by hand, it can shift under the needle.
• Q: What Brother Dream Machine step must happen after InnovEye scans the Snowman positioning sticker, and what happens if the Snowman sticker is stitched through?
  A: Remove the Snowman positioning sticker immediately after the machine confirms alignment; stitching through it can gum up the needle and trap paper under the stitches.
  • Wait until the machine locks the calibration and prompts removal.
  • Peel the sticker off gently so the collar does not shift in the hoop.
  • Start stitching only after verifying the sticker is completely off the nylon.
  • Success check: the needle enters clean nylon (no paper) and the thread runs smoothly without sudden shredding/skips at the start.
  • If it still fails: replace the needle (adhesive can foul it) and re-scan with a fresh sticker before restarting.
• Q: What stitch settings are a safe starting point on a Brother Dream Machine for embroidering nylon webbing (speed, needle, and thread), and what are the warning signs?
  A: Reduce speed to about 600 SPM and use 40wt polyester thread; a 75/11 needle can work, but thicker webbing often needs a stronger needle (often an 80/12 Titanium Topstitch or 90/14 Jeans) per machine manual guidance.
  • Set speed to 600 SPM to reduce friction heat that can melt nylon or snap thread.
  • Start with 40wt polyester top thread for strength and colorfastness.
  • Monitor sound/feel: pause if you hear sharp “slap”/grinding or suspect needle deflection.
  • Success check: the machine runs with a steady, rhythmic sound and the thread does not shred or repeatedly break.
  • If it still fails: change to a stronger needle size/type and re-check hoop security and stabilizer choice before continuing.
• Q: What are the key safety hazards when forcing a Brother 4x4 embroidery hoop onto thick nylon webbing, and what extra safety rule applies to magnetic embroidery hoops?
  A: Standard hoops can snap shut and pinch fingers, and the needle area is hazardous if the machine is powered; magnetic embroidery hoops add a powerful snap-together pinch risk and must be kept away from pacemakers/insulin pumps.
  • Keep fingers out of the ring gap while seating the inner ring because thick nylon increases snap force.
  • Never push on or near the hoop/needle bar area while the machine is powered on; avoid accidental start/handwheel movement.
  • For magnetic hoops, keep fingers clear of the contact zone and maintain distance from medical devices (follow the 6-inch guidance noted).
  • Success check: hands stay clear during clamping and the hoop/frame closes without any finger contact points.
  • If it still fails: slow down, reposition grip points farther from the closing edge, and clamp on a stable surface before attaching to the machine.
