Crisp Serif Text Under 5mm in PE-Design: Manual Punch Micro-Lettering That Actually Stitches Clean

Master Micro-Text: The "Skeleton" Method for Perfect 5mm Lettering

Tiny serif text is the ultimate litmus test in the embroidery world. It separates true digitizers from "software button-pushers." If you have ever taken a beautiful built-in serif font, resized it down to 4mm, and watched with horror as your machine stitched out an illegible, lumpy knot of thread, I want you to know one thing: You didn’t fail. Physics did.

When thread columns shrink below a certain width, the standard rules of tension and displacement change. You are hitting the physical limits of how auto-digitized satin structures behave. The machine isn't broken; the instructions are just physically impossible for the needle to execute.

This guide is your "White Paper" on solving this specific problem. We will rebuild the exact method used by industry veterans in PE-Design: using Manual Punch to create a running-stitch core (a "skeleton"), then adding specific architectural blocks to form clean serifs that actually stitch.

The Ugly Truth in Stitch View: Why Auto Serif Fonts Fail Under 5mm

First, let’s establish the "Danger Zone." In the professional world, we consider any text under 5mm to be micro-text. At this scale, the structural integrity of built-in fonts collapses.

In our demonstration, the instructor types “ASSESSMENT” in all caps using a standard serif font. To the naked eye on the screen, it looks fine. But screen pixels lie; thread has volume.

Switching to Stitch View reveals the disaster waiting to happen. The serif ends (the little feet on the letters) are digitized with stitch angles running opposite to the main column. When you shrink the letter, those opposing angles collide. The thread creates a traffic jam in a sub-millimeter space. On letters like ‘E’, this collision causes the ends to "pooch out," creating a distorted, rounded blob rather than a crisp corner.

The Expert Benchmark:

• 10mm+ Height: Built-in fonts usually work fine.
• 6mm - 10mm: Risky. Requires testing.
• Under 5mm: Built-in serif fonts result in a 90% failure rate. You must manually digitize.

The "Hidden" Prep: Visibility, Anchors, and Hooping

Before you place a single node, you need to set up your digital workspace for surgical precision.

The instructor demonstrates a crucial habit: keep your template visible but faded. You are tracing, not inventing. This removes the cognitive load of trying to guess proportion.

The Physical Reality of Micro-Text: Digitizing is only 50% of the battle. The smaller the text, the less margin for error you have with fabric movement. If your fabric shifts by even 0.5mm, a 3mm letter is ruined. This is where beginners often blame the software when the culprit is actually hooping instability.

If you routinely stitch tiny names or logos on finished garments (like shirt cuffs or collars), standard plastic hoops can struggle to hold even tension without "hoop burn." This is a primary scenario where professionals switch tools. We will discuss how magnetic embroidery hoops change the game for micro-text later, but for now, ensure your virtual workspace is prepped.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Measurement Check: Is the target text truly under 5mm? Use the ruler tool.
• Font Triage: Type the word in a stock font, switch to Stitch View, and identify where it fails (usually corners and serifs).
• Zoom Level: Set zoom to at least 400-600%. You need to see individual needle points.
• Travel Plan: Identify where your running stitches will "hide" (traveling through the center of the letter).

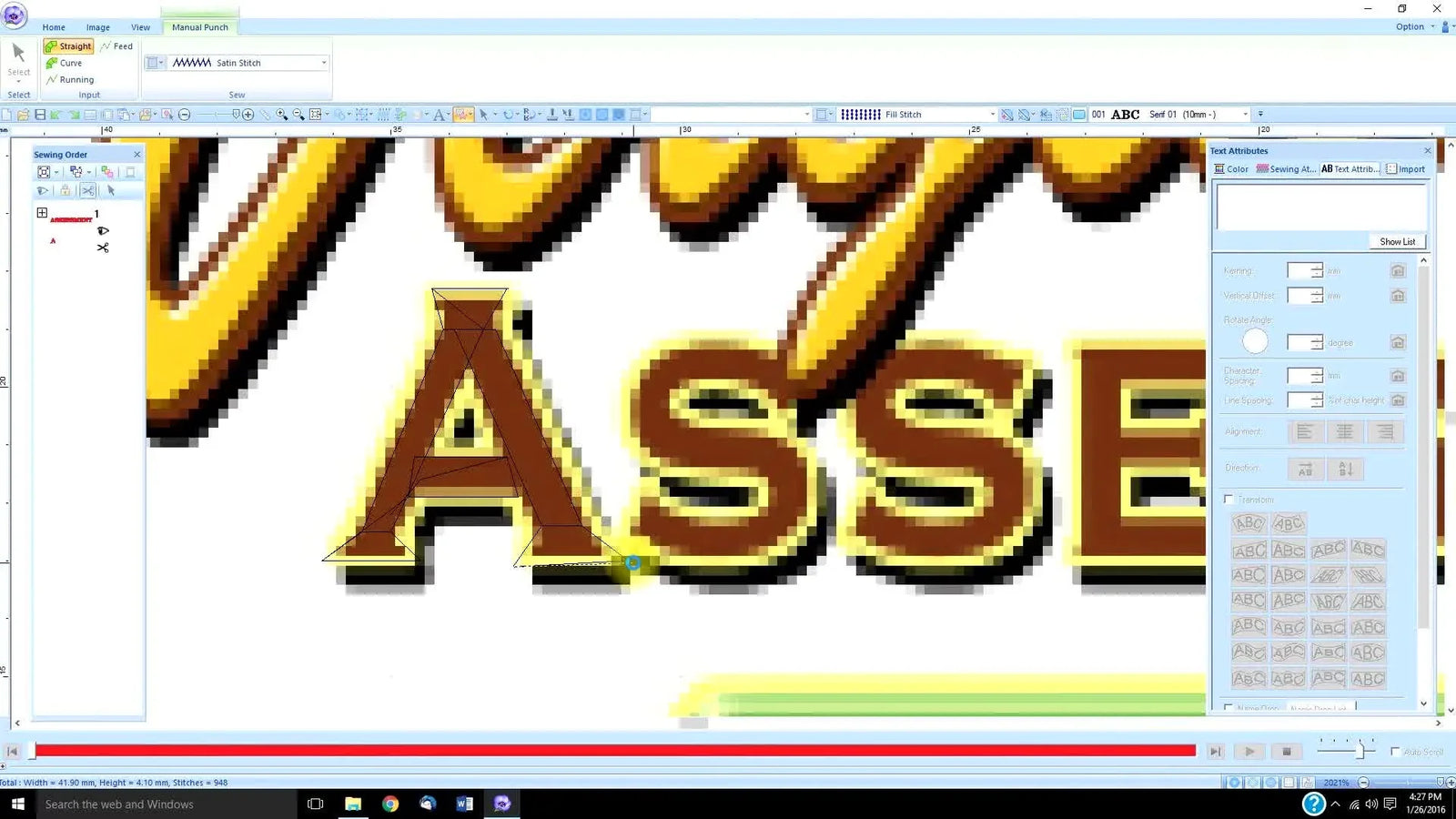

The "Skeleton" Method: Building Letter A

The secret to sharp micro-text is minimizing needle penetrations. We do this by building a "Skeleton."

The Process:

1. Select Manual Punch.
2. The Spine: Lay down a Running Stitch first. This acts as the backbone of the letter. It stabilizes the fabric before the heavy satin stitches land.
3. The Flesh: Switch to Straight Block to build the serif feet.

By keeping the serif perpendicular to the spine, you force the machine to create clean, sharp corners.

Sensory Check: What to Look For

• Visual: The running stitch should look like a thin, architectural blueprint line.
• Visual: The serif block should look like a distinct rectangle, not a blob merging into the leg.

Warning: Safety First
Manual digitizing is click-intensive.
* Ergonomics: Use keyboard shortcuts to save your wrist.
* Sharps Hazard: Keep thread snips and seam rippers capped or in a designated tray, not loose on your desk while you mouse-over. Reaching blindly for a shortcut key and hitting a seam ripper is a common studio injury.

Speed Without Sloppiness: The Muscle Memory of V, Z, X

In PE-Design, speed comes from the left hand (keyboard), not the right hand (mouse). The instructor transitions fluidly because she isn't hunting for icons.

The "Triad" of Shortcuts:

• V: Running Stitch (The Skeleton)
• Z: Straight Block (The sharp Serifs)
• X: Curve Block (The rounded bodies)




Why this matters: When working at a 4mm scale, a "Straight Block" accidentally placed on a curve creates a jagged, geometric glitch that is visible to the eye. Instant switching allows you to flow with the anatomy of the letter.

Controlling Curves: The Letter S

Curves are where auto-digitizers fail most spectacularly, turning a graceful ‘S’ into a jagged lightning bolt.

The instructor highlights the Scissor Icon—your visual cue for a cut point. She then uses the Curve Block (X).

The "Wide-to-Tight" Technique: To define a small curve without using too many points:

1. Place points wide on the outer arc (to define the shape).
2. Place points tight on the inner arc (to pull the thread in).




The "Twist" Trap: Be very careful to end your block on the correct side of the shape. If you start on the left rail and end on the right rail, the software will twist the satin stitch like a candy cane, creating a lump. Always visualize the thread path.

Efficiency: The "Duplicate" Rule

Once you have agonizingly perfected one Letter S, never build it again.

Select it, copy it, and drag it. In micro-text, consistency is king. If the first ‘S’ stitches perfectly, the duplicate will too. If you re-digitize it, you introduce slightly different densities and angles, making the text look uneven.

Production Note: At this scale (under 2mm travel), the machine likely won't trigger a trim. It will just drag the thread. This is good—it speeds up production and reduces tie-offs, which are bulky.

Complex Paths: The Letter E (Center-First Logic)

The Letter E is a trap because it has three horizontal bars. If you stitch Top -> Middle -> Bottom, you have to travel dangerously over open fabric.

The Solution:

1. Skeleton Run: Travel through the spine.
2. Center Bar First: Stitch the middle serif.
3. Travel: Run up the spine to the top, then down to the bottom.


This hides all your travel stitches inside the main vertical column. The result is a clean letter with no visible jump stitches to trim later.

The Secret Sauce: Density 4.0 & Pull Compensation

You have built the shape, but if you hit "Sew" now, it will fail. Why? Thread displacement.

The instructor opens Sewing Attributes and makes two non-negotiable changes.

1. Density: 4.0 lines/mm

• The Logic: Standard density (often 4.5 or 5.0) puts too much thread in a tiny space. By lowering it to 4.0, you are telling the machine to "breathe" slightly. You want the stitches to cover the fabric, but not stack on top of each other.
• Visual Check: In Stitch View, you should see tiny gaps of white background between the simulated threads. This is good.

2. Pull Compensation: ON

• The Physics: When a needle punches fabric, the tension pulls the edges inward. A 1mm column on screen will sew out as 0.7mm or 0.8mm on fabric—essentially invisible.
• The Fix: Pull Compensation artificially widens the column to counteract this shrinkage.




The Stabilizer Decision Tree

Your software settings are perfect. Your machine is calibrated. But your text still looks warped. The culprit? The Fabric-Stabilizer mismatch.

Use this decision tree to select the safe foundation for micro-text.

Level 1: Is the fabric stretchy? (T-shirts, Polos, Knits)

• YES: Cutaway Stabilizer is mandatory.
  • Why: Knits move. Tearaway allows too much shifting during the 1000 tiny needle penetrations of micro-text.
  • Pro Tip: Use a fusible Cutaway (iron-on) to lock the fabric fibers in place before hooping.
• NO: Go to Level 2.

Level 2: Is the fabric woven/stable? (Denim, Twill, Canvas)

• YES: Tearaway Stabilizer is acceptable.
  • Condition: Ensure it is a high-quality, crisp tearaway. If it feels soft like a paper towel, double it up.

Hooping for Success: Even with the right stabilizer, if the fabric "flagpole" (bounces) in the hoop, small letters will distort. This is the precise moment where magnetic embroidery hoops become a production asset. Unlike traditional screw-hoops that can torque the fabric, magnetic hoops clamp straight down, preserving the grain line of the fabric—essential for text that must remain perfectly horizontal.

Warning: Magnetic Field Safety
magnetic embroidery hoops differ significantly from standard plastic hoops. They use industrial-grade neodymium magnets.
* Pinch Point: They snap together with extreme force (up to 30lbs+). Watch your fingers!
* Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them on laptops or near credit cards.

Troubleshooting Micro-Text: Symptoms to Solutions

When things go wrong (and they will), don't panic. Use this diagnostic table to isolate the variable.

The Upgrade Path: When to specific Tools

If you are stitching one handkerchief for a gift, patience and standard tools are sufficient. However, if you are moving into production—doing naming for a team, company logos, or batches of 50+ items—time and consistency become your profit metrics.

Scenario: You start seeing "hoop burn" (shiny rings) on customer shirts, or your wrists ache from wrestling traditional hoop screws 50 times a day.

The Hierarchy of Solutions:

1. Level 1 (Technique): Use "floating" techniques with adhesive spray. (Cheap, but messy and risky for registration).
2. Level 2 (Tooling): Upgrade to machine embroidery hoops with magnetic locking.
   • Benefit: Rapid hooping without adjusting screws for different fabric thicknesses.
   • Search Intent: Many professionals search for how to use magnetic embroidery hoop videos to see how much faster the workflow is.
3. Level 3 (System): Implement a hooping station for embroidery.
   • Benefit: Guarantees that every left-chest logo is in the exact same spot on every shirt, regardless of size.

Specific machines have specific needs. For example, a magnetic hoop for brother single-needle machines helps navigate the limited clearance, while multi-needle users often look for hooping for embroidery machine setups that allow them to prep the next garment while the machine is running.

Setup Checklist: The "Mock-Up" Phase

• Test Fabric Match: Are you testing on the same material as the final product? (Testing on felt perfectly but sewing on pique polo = failure).
• Needle Check: Use a 60/8 or 75/11 sharp needle. A fat 90/14 needle will punch holes larger than your stitches.
• Thread: Ensure you are using high-quality 40wt thread. For extreme micro text (under 3mm), consider 60wt thin thread (requires a smaller needle).
• Consumables: Have your Spray Adhesive (for floating) or Water Soluble Topping (to keep stitches on top of fabric nap) ready.

Operation: The Sound of Success

Finally, listen to your machine.

Stitching the Skeleton: You should hear a fast, rhythmic tat-tat-tat. Stitching the Satin Blocks: You should hear a distinct zzzt-zzzt.

If you hear a distinct THUMP or a grinding noise, stop immediately. On micro-text, this usually means a "bird's nest" is forming underneath because the needle is engaging the same spot too many times.

Operation Checklist: During the Stitch

• Watch the underlay: Is the skeleton adhering well to the fabric? If it's puckering immediately, STOP. Re-hoop tighter.
• Listen for "nesting": A change in sound often precedes a thread break.
• Inspect the "E": The middle bar of the E is the canary in the coal mine. If it looks crisp, the rest will likely succeed.
• Post-Process: Trim jump threads carefully with curved snips. For micro-text, a careless snip can cut the actual knot and unravel the letter.

By combining the "Skeleton" digitizing method with the physical stability of proper stabilization and, where appropriate, advanced hooping tools, you move from "hoping it works" to "knowing it will work."

FAQ

• Q: Why do built-in PE-Design serif fonts fail when resized to under 5mm micro-text embroidery?
  A: Under 5mm, the satin structures in built-in serif fonts usually collide at corners, so the machine stitches a lumpy “blob” instead of crisp serifs—manual digitizing is the reliable fix.
  • Switch to Stitch View and inspect serif ends (look for opposing stitch angles crashing into each other).
  • Rebuild letters with Manual Punch using a running-stitch “skeleton” first, then add straight-block serif feet.
  • Reduce unnecessary penetrations by hiding travel stitches inside the letter spine.
  • Success check: serif corners sew as distinct sharp rectangles, not rounded “pooched” ends.
  • If it still fails: lower density and enable pull compensation before testing again.
• Q: How do PE-Design Manual Punch shortcuts V, Z, and X speed up micro-text digitizing without jagged edges?
  A: Use V (Running Stitch), Z (Straight Block), and X (Curve Block) to match stitch structure to letter anatomy instantly, so curves stay smooth and corners stay sharp.
  • Press V to lay the running-stitch skeleton before any satin/blocks.
  • Press Z only for straight serif feet and straight segments (avoid using it on curves).
  • Press X for curved bodies (like S) to prevent “lightning bolt” jaggies.
  • Success check: in Stitch View, curves look continuous and corners look intentional—not faceted or stair-stepped.
  • If it still fails: zoom to 400–600% and redraw the problem segment with fewer, better-placed points.
• Q: How do PE-Design settings “Density 4.0 lines/mm” and “Pull Compensation ON” prevent micro-text from turning into an illegible blob?
  A: Set density to 4.0 lines/mm and turn pull compensation on, because micro-columns need breathing room and extra width to survive thread displacement.
  • Open Sewing Attributes and lower density to 4.0 lines/mm (avoid over-packing thread in tiny areas).
  • Enable Pull Compensation so thin columns do not sew out narrower than intended.
  • Preview in Stitch View and accept small simulated gaps (that spacing is healthy at this scale).
  • Success check: stitched letters remain readable with clean edges instead of thick, stacked thread lumps.
  • If it still fails: re-check corners/serifs for thread collisions and simplify the structure with the skeleton method.
• Q: How do I stop twisted satin “candy cane” curves in PE-Design Curve Block micro-text (Letter S problem)?
  A: Redraw the curve block so the block starts and ends on the same side of the rails, because ending on the opposite rail twists the stitch direction.
  • Delete the twisted block instead of trying to “edit it back” at 4–5mm scale.
  • Recreate the curve using the wide-to-tight point placement: wide points on the outer arc, tight points on the inner arc.
  • Visually track the thread path before closing the block to avoid crossing rails.
  • Success check: the S stitches with a smooth satin flow and no raised lump at the twist point.
  • If it still fails: reduce the number of points and confirm the cut point/scissor marker is where the segment should end.
• Q: What stabilizer should I use for micro-text embroidery on knits vs woven fabrics to prevent distorted lettering?
  A: Use cutaway stabilizer for stretchy knits and a crisp tearaway for stable wovens, because micro-text magnifies any fabric movement.
  • Choose Cutaway Stabilizer for T-shirts/polos/knits; consider fusible cutaway to lock fibers before hooping.
  • Choose Tearaway Stabilizer for denim/twill/canvas; double up if the tearaway feels soft or flimsy.
  • Hoop firmly to prevent “flagpoling” (fabric bouncing in the hoop).
  • Success check: stitched text stays horizontal and proportional with no waviness or skew during the run.
  • If it still fails: treat the issue as hooping instability and upgrade the hooping method/tooling for better grip.
• Q: What are the safety risks when using magnetic embroidery hoops and how can operators prevent finger pinch injuries?
  A: Magnetic embroidery hoops can snap together with extreme force, so control the closing motion and keep hands clear of pinch points.
  • Keep fingers out of the hoop’s closing path and lower the top frame deliberately (do not “let it jump”).
  • Keep magnetic hoops away from pacemakers/insulin pumps and avoid placing them near sensitive electronics.
  • Store hoops so they cannot slam together unexpectedly on a metal surface.
  • Success check: the hoop closes smoothly under control with no sudden snap that risks trapping skin.
  • If it still fails: pause production and change the handling routine—pinch injuries are preventable but happen fast.
• Q: How do I choose between technique fixes, magnetic embroidery hoops, and a hooping station when micro-text keeps distorting and hoop burn appears on customer garments?
  A: Start with technique, then upgrade tooling, then upgrade the system—because repeated micro-text distortion and hoop burn usually indicate hooping instability and workflow strain, not “bad software.”
  • Level 1 (Technique): float with adhesive spray when appropriate, but monitor registration closely.
  • Level 2 (Tooling): switch to magnetic hoops to clamp straight down and reduce fabric torque and repeated screw adjustments.
  • Level 3 (System): add a hooping station when repeat placement consistency and speed become the main bottlenecks.
  • Success check: micro-text stays crisp across multiple garments with fewer re-hoops, less hoop burn, and consistent placement.
  • If it still fails: revisit stabilizer choice and digitizing structure (skeleton + correct density/pull compensation) before blaming the machine.
