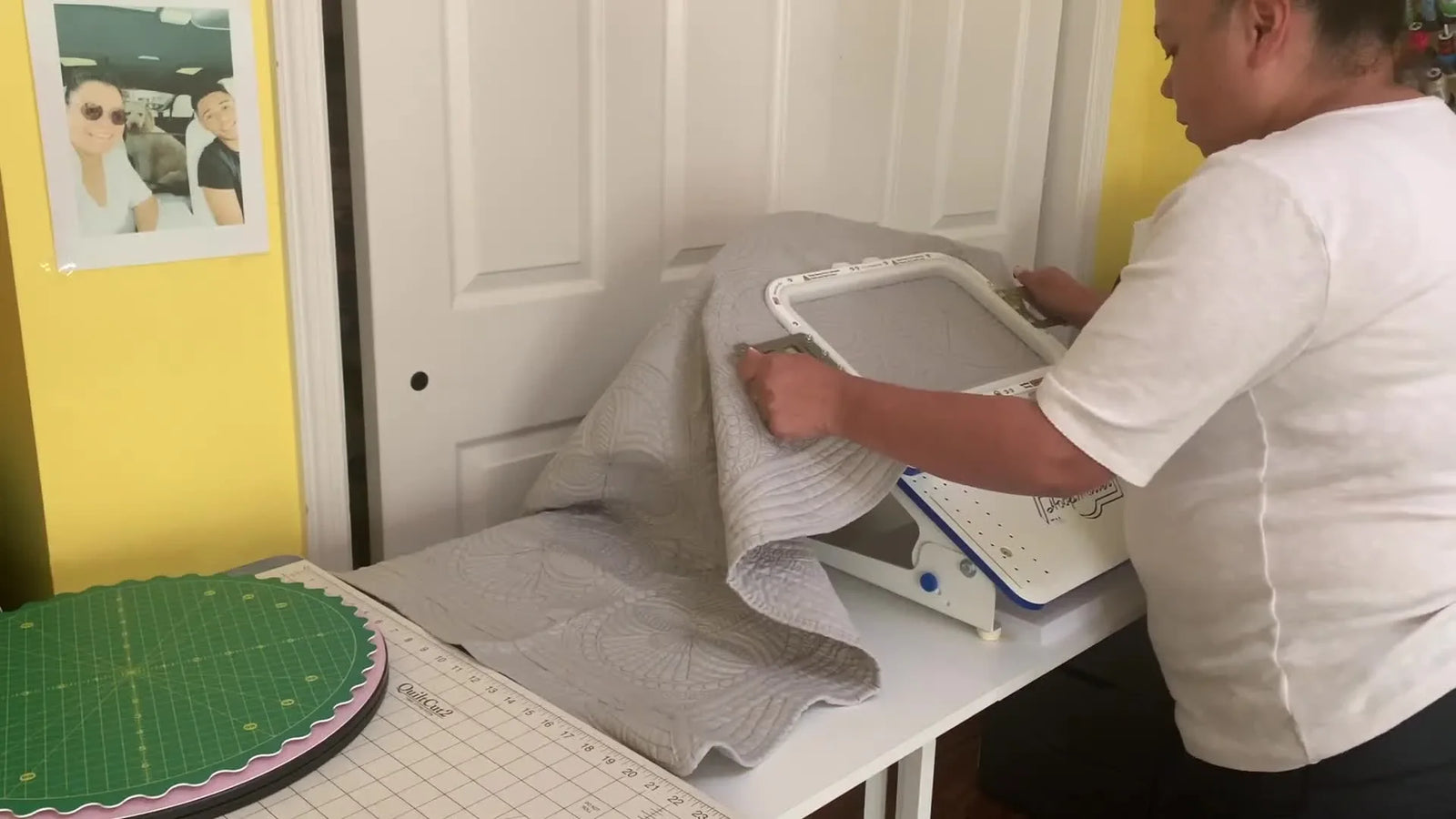

Crisp Names on Thick Quilts: Hooping a Baby Blanket with a Brother PR1055X Camera + an 8x13 Magnetic Hoop

Mastering Thick Quilts: A Studio-Grade Guide to Safe, Professional Lettering

Embroidering a finished baby quilt is one of the most mechanically intimidating tasks in our industry. You are dealing with "high-stakes" material—often a sentimental or expensive item that cannot be replaced—combined with bulky layers that fight against the machine.

The "puffy" nature of a quilt introduces instability. The fabric wants to bounce (a phenomenon we call "flagging"), seams love to shift under pressure, and the thickness eats up the clearance between your needle and the hoop wall.

However, with the right mechanical setup and a "safety-first" workflow, this becomes a repeatable, high-profit project. Drawing from the workflow of Jeanette (using a Brother Entrepreneur Pro X PR1055X) and adding twenty years of production floor disciplines, we will break this down into a zero-friction guide.

We will focus on the "Trinity of Stability": Magnetic Hoop Clamping, Station Alignment, and Digital Verification.

The Psychology of the "Springy" Substrate: Why Quilts Scare Beginners

If you have ever hooped a quilt and felt a knot in your stomach thinking, "This is too thick, it’s going to pop out," your instincts are actually correct. Traditional screw-tightened hoops rely on friction against the inner ring. When you shove a thick quilt in there, the fabric compresses, but over the course of 1,000 stitches, it tries to expand back to its original shape. This "rebound" causes design registration errors (where outlines don't match fills).

The Solution: You stop fighting the fabric's thickness and start controlling it. Jeanette’s demonstration works because she uses a system that applies vertical pressure rather than radial friction. By using an 8x13 magnetic hoop and a hooping station, the quilt is sandwiched, not stretched.

The goal is to achieve a "firm pillow" feel—not a drum skin. When you press on the hooped quilt, it should have a slight give but zero lateral movement.

Software Prep: The "Font Rescue" Technique in Embrilliance

Before we touch the machine, we solve a common data problem. Jeanette uses the Embrilliance platform to set up the name "Jack P. Boettke" using the Twilight font.

The Problem: Many BX fonts (mapped fonts) are digitized for aesthetics, not exhaustive utility. The Twilight set didn't have a period symbol for the middle initial "P."

The Studio Fix: Instead of abandoning the font, use this specific workflow:

1. Open the Inspector: Click the “i” (info) button in your font panel.
2. Verify the Glyph Map: Look at the visual chart of available characters. If the period is missing, stop searching.
3. The "Patch": Select a standard system font (like Georgia) or a different digitized font that includes punctuation.
4. Merge & Resize: Type the period, resize it to match the visual weight of the Twilight letters, and merge it into the text object.

Expert Tip: Always check your font's "x-height" (the height of the lowercase letters). For baby quilts, a total height of 3 to 4 inches for the full name usually provides the best readability without being overwhelming.

The Geometry of Alignment: Calibrating the Hooping Station

Alignment is where most quilt projects fail. A quilt is heavy; if you try to hold it straight with your hands while hooping, gravity will pull it askew. This is where the hoopmaster station becomes critical infrastructure.

Jeanette demonstrates checking the Station Extenders (the arms). This is not just about "fitting" the hoop; it is about squaring it.

The Calibration Protocol:

1. Loosen the Arm Knobs: Do not force the fixture.
2. Seat the Bottom Ring: Place the bottom magnetic ring into the station fixture. It should drop in with a satisfying "clunk" and sit perfectly level.
3. Tighten to Tolerance: Slide the arms until they touch the ring gently, then tighten.
4. The "Wiggle Test": Try to rotate the bottom ring. If it moves more than 1mm, your alignment will drift. Readjust until it is rigid.

Warning: Magnetic Pinch Hazard. When working with powerful magnetic hoops (especially industrial grades like Mighty Hoops), keep your fingers away from the "snap zone." The magnets do not care if your finger is between them. Hold the top ring by the handles or the outer rim, never the underside.

The Hidden Prep: Material Science & "Invisible" Consumables

Experienced operators know that 80% of the work happens before the green button is pressed. Jeanette makes two crucial decisions here: Navy Blue Thread on a Gray Quilt (High Contrast) and Tearaway Stabilizer.

Stabilizer Logic for Quilts

Standard theory suggests Cutaway for everything knits/soft. However, a thick quilt has its own internal stability due to the batting and stitching.

• The Consensus: Heavy Tearaway is acceptable IF the stitch density is low (like simple lettering).
• The Upgrade: If your font is thick/blocky, "float" a layer of Cutaway under the hoop for insurance to prevent the letters from sinking into the quilt batting.

The Prep Checklist (Do Not Skip)

• Hoop Size Verification: Confirm your software is set to the 8x13 magnetic hoop. Selecting the wrong hoop size in the machine will cause it to reject the frame or, worse, cause a collision.
• Consumable Check: Have your curved embroidery scissors and a lint roller ready.
• Surface Sweep: Wipe the throat plate of the machine. Lint buildup here causes the quilt to drag, which ruins registration.
• The "Squish" Check: Squeeze the quilt edge. If it is thicker than 4mm, you must adjust your machine's presser foot height (in settings) to avoid dragging.

Commercial Context: If you frequently struggle with hoop burn (shiny rings left on fabric) or wrist pain from tightening screws on thick items like this, this is the primary trigger to upgrade to magnetic hoops/frames. For home users, they save your hands; for business users, they save approximately 45 seconds per hoop.

The "Overlap Rule": Securing Stabilizer Without Waste

Jeanette demonstrates a technique that confuses beginners: her stabilizer sheet does not reach the top clips of the station. This is perfectly fine.

Why It Works (The Physics of Clamping)

The station clips are just "third hands" to hold things while you work. The actual holding power comes from the magnetic bond.

• The Rule: The stabilizer must fully cover the magnetic tracks of the hoop. As long as the magnet sandwiches the stabilizer, the quilt, and the bottom ring, it will not move.

Line up the quilt using the quilt’s own border stitching as your straight edge. Visual cues on the fabric are always more reliable than chalk marks, which can rub off.

When using a powerful tool like the mighty hoop 8x13, listen for the Audible Confirmation. You want to hear a distinct, sharp SNAP.

• Sensory Check: If the snap sounds dull or muffled, the guilt layer is too thick or a seam is obstructing the magnet. Open it and move the seam out of the clamping zone. A weak magnet bond guarantees a hoop pop mid-stitch.


The "Camera Nudge": Precision Placement on the Brother PR1055X

Once hooped, we move to the machine. The brother pr1055x offers a distinct advantage here: the Live Camera Scan.

Instead of guessing where the needle will land, Jeanette:

1. Scans the Background: The screen displays the actual hooped quilt.
2. Visual Nudging: She uses the touchscreen arrows to move the name closer to the border.
3. The "Boutique Gap": She leaves a visual gap between the name and the quilt border.

Design Rule of Thumb: Never place text closer than 1/2 inch (12mm) to a satin border or thick seam. If the machine foot hits that ridge, it will flag, causing the text to distort or the needle to break.

The Trace: Your Last Line of Defense

The "Trace" (or Frame Check) is not optional. It is the only thing standing between you and a destroyed hoop or broken machine. Jeanette runs the trace function, where the machine moves the hoop to the four corners of the design design boundaries.

What to Look For (The "Hawk Eye" Method)

Don't just watch the screen; watch the Needle Bar relative to the Hoop Wall.

• Visual Check: When using magnetic embroidery hoops, the walls are often thicker than plastic hoops. Ensure there is at least 5mm of clearance between the presser foot and the magnetic wall at the closest point.
• Deflection Check: Watch the quilt surface. Is it bellying up (rising) in the middle? If so, tap it down. If it rises back up immediately, your hooping is too loose.


The Final Thread Setup

Before the first stitch, Jeanette trims the thread tail. This seems minor, but on a quilt, a long tail can get snagged by the foot and dragged into the bobbin case, causing a "bird's nest" (tangle) instantly.

Setup Checklist (The "Go/No-Go" Sequence)

• Reference Check: Is the design oriented correctly? (Names should usually read left-to-right when the quilt is held up).
• Clearance: Does the hoop move freely? Check that the rest of the heavy quilt isn't caught on the table edge or the machine head.
• Presser Foot Height: Crucial Step. For quilts, set your presser foot height to 2.5mm - 3.5mm (standard is 1.5mm). If it's too low, it will push a "wave" of fabric ahead of the needle.
• Bobbin: Is there enough bobbin thread? Changing a bobbin in the middle of a quilt project often leaves a visible scar.


The Stitch-Out: Why You Must Slow Down

Jeanette begins the embroidery. Note that while commercial machines can run at 1,000 SPM (Stitches Per Minute), this is reckless for a thick quilt.

Expert Parameter Recommendations:

• Speed: Cap your machine at 600-700 SPM. High speed creates vibration, and vibration causes the heavy quilt to shift in the magnet.
• Observation: Listen to the machine. A rhythmic thump-thump is normal (the needle penetrating layers). A sharp clack-clack means the needle is hitting the needle plate too hard (deflecting) or the foot is slapping the fabric.

The "Scale" Strategy: If you find yourself doing these personalized quilts daily for clients, standard single-needle machines will become your bottleneck due to thread changes and hooping time. The natural evolution for a growing business is the Multi-Needle Platform (like SEWTECH or Brother PR series), which allows you to set up the next hoop while the current one runs.

The Quality Audit (In-Hoop)

Jeanette inspects the design before removing the hoop. This is standard professional practice.

• Why: If the thread tension was off, or if you missed a spot, you can fix it only if the hoop hasn't been removed. Once you pop that magnet, you will never get it back in the exact same distinct pixel coordinates.
• Visual Anchor: Look for "crispness." The edges of the letters should be sharp, not jagged. The bobbin thread (usually white) should not be visible on top.


Unhooping: The "Surgery" Technique

Jeanette removes the frame and gently tears away the stabilizer.

Technique Adjustment: Do not yank the stabilizer like you are starting a lawnmower. Hold the embroidery stitches with your left hand (fingers over the letters), and gently tear the stabilizer away with your right hand.

• Reason: Quilts are loosely woven. Aggressive tearing can distort the fibers around your beautiful embroidery, creating unsightly holes or puckers.


The "Fold Test": Verifying the User Experience

The final product isn't just a flat quilt; it's a folded gift. Jeanette folds the quilt to verify the name is visible on the turnover. This proves her placement choice (lower third, near the border) was correct.

Studio Rule: Always mock up the fold before you hoop using painter's tape to mark where the fold line falls. Make sure your embroidery is centered in the "visible zone" of the fold.

Pro Tips: Sourcing & Swirls

Based on common studio questions, here are two quick value-adds:

• Sourcing Blanks: You don't need a wholesale license to start. Jeanette buys based on price/availability (Etsy, local sales).
  • Pro Tip: Buy three blankets when you start selling. One to ruining/testing, one for the order, and one for backup.
• Fancy Swirls: If your client wants "swirly font," remember that in digital embroidery files (BX), swirls are often separate keystrokes (like [, ], or |) or a completely different font set. Check the character map!


Troubleshooting: The "Quick-Fix" Matrix

Quilts introduce specific problems. Here is how to solve them fast.

Decision Tree: Stabilizer Selection for Quilts

Jeanette used tearaway, but is that right for you? Use this logic flow.

Q1: Is the quilt "puffy" (HIGH LOFT) or flat (LOW LOFT)?

• High Loft: You need compression. Use Magnetic Hoops. Float a layer of Water Soluble Topping (Solvy) on top so stitches don't sink out of sight.
• Low Loft: Proceed to Q2.

Q2: Is the design Heavy (Filled) or Light (Text)?

• Heavy Fill: Use Cutaway Stabilizer. Tearaway will perforate and the design will pop out.
• Light Text: Tearaway is acceptable (as seen in the guide), preferably "Heavy Weight" (2.5oz).

Q3: Can you see the back?

• Yes: Use Tearaway or "No-Show Mesh" (Cutaway that is soft to the touch). Avoid stiff cutaway which feels like cardboard against a baby's skin.


The Productivity Upgrade Path

We have proven that thick quilts are manageable with the right physics (magnets) and the right checks (tracing). However, your equipment dictates your ceiling.

1. Level 1: The Operator Upgrade. Use the checklists above. Calibrate your speed and strict "Trace" protocols. This costs \$0 but saves ruined garments.
2. Level 2: The Tool Upgrade. If you struggle with alignment or physical pain from hooping, invest in a Hooping Station and Magnetic Hoops. This solves the "Setup" friction.
3. Level 3: The Scale Upgrade. If you are turning away orders because you "don't have time," the single-needle machine is your bottleneck. A multi-needle machine (like SEWTECH models) allows you to hoop the next quilt while the current one stitches, doubling your output without working extra hours.

Operation Checklist (The "live fire" check)

• Start Watch: Watch the first 100 stitches. If the fabric doesn't flag (bounce), you are safe to walk away.
• Sound Check: Listen for the rhythmic "thump." Any metal-on-metal sound requires an immediate E-Stop.
• Finish: Remove hoop, tear stabilizer gently, and use a lint roller to remove fuzz.
• Presentation: Fold continuously to ensure the name sits center-stage.

Mastering puffy substrates isn't magic—it's just managing tension and clearance. Follow the steps, trust the magnets, and watch your needle speed. Happy stitching!

FAQ

• Q: How can a Brother PR1055X embroider a finished thick baby quilt without the quilt shifting or popping out of the hoop?
  A: Use vertical clamping and controlled compression (magnetic hoop + station) instead of over-tight friction hooping—this is common, and it’s fixable.
  • Hoop with an 8x13 magnetic hoop so the quilt is “sandwiched, not stretched,” aiming for a firm pillow feel (not drum-tight).
  • Align the bottom ring in a hooping station so gravity does not pull the quilt off-square during hooping.
  • Keep thick seams out of the clamping zone before snapping the top ring down.
  • Success check: Press the hooped quilt—there should be slight give with zero lateral (side-to-side) movement.
  • If it still fails: Re-hoop and run the machine Trace/Frame Check to confirm clearance and boundary before stitching.
• Q: How do I calibrate a hooping station for an 8x13 magnetic embroidery hoop so lettering stays straight on a heavy quilt?
  A: Set the station arms to “zero play” so the bottom ring cannot rotate—most quilt alignment issues start here.
  • Loosen the station arm knobs; do not force the fixture into position.
  • Seat the bottom ring fully into the station until it sits level, then slide arms to touch gently and tighten.
  • Perform the wiggle test and re-adjust until rotation is under about 1mm.
  • Success check: Try to rotate the bottom ring by hand—if it feels locked and square, alignment will hold.
  • If it still fails: Re-check that the quilt weight is supported on the table and not pulling while you clamp.
• Q: How do I prevent a Brother PR1055X magnetic hoop stitch-out from colliding with the hoop wall during Trace/Frame Check on thick quilts?
  A: Always run Trace and verify physical clearance—magnetic hoop walls can be thicker than plastic hoops.
  • Run the Trace/Frame Check to all design corners before the first stitch.
  • Watch the needle bar/presser foot relative to the hoop wall (not just the screen).
  • Ensure at least 5mm clearance at the closest point and keep text at least 1/2 inch (12mm) away from thick borders/seams.
  • Success check: The hoop traces the full boundary with no near-misses, scraping, or fabric “bellying up” into the foot path.
  • If it still fails: Reposition the design on-screen (camera nudge) and/or choose a larger hoop boundary to increase clearance.
• Q: What presser foot height should a Brother PR1055X use for embroidering thick quilts to reduce flagging and distortion?
  A: Increase presser foot height to reduce pushing and “waving” of bulky layers; a safe starting point on quilts is 2.5–3.5mm (confirm in the machine manual).
  • Set presser foot height higher than the common default (often around 1.5mm) before stitching thick quilts.
  • Stitch at a capped speed (about 600–700 SPM) to reduce vibration-driven shifting.
  • Keep the quilt bulk supported so it does not drag and lift under the foot.
  • Success check: The quilt surface stays flat (no bouncing/flagging) during the first 100 stitches and outlines stay registered.
  • If it still fails: Add stabilizer support (float cutaway) and reduce speed further (often down to ~500 SPM).
• Q: When is tearaway stabilizer acceptable for quilt lettering, and when should cutaway stabilizer be added for quilt embroidery?
  A: Tearaway can work for light lettering on quilts, but filled or heavy fonts often need cutaway support to prevent sinking and distortion.
  • Use heavy tearaway for low-density, simple text because the quilt’s batting adds inherent stability.
  • Float a layer of cutaway under the hoop when lettering is thicker/blocky or when the quilt looks “squashed.”
  • Consider adding water-soluble topping on high-loft quilts so stitches don’t disappear into the pile.
  • Success check: Letter edges look crisp (not jagged), and bobbin thread is not showing on top while stitches sit visibly on the surface.
  • If it still fails: Reduce stitch speed and re-check hooping tightness and seam placement in the clamp zone.
• Q: How do I stop a “bird’s nest” thread jam under the needle plate on a Brother PR1055X when embroidering a quilt?
  A: Stop immediately and reset threading—on quilts, long thread tails and loose top tension commonly trigger instant nesting.
  • Hit stop as soon as nesting starts; do not let the machine keep stitching into the tangle.
  • Cut away the mess, then rethread the upper path completely.
  • Trim the top thread tail short before the first stitches so it cannot get snagged and pulled into the bobbin area.
  • Success check: The first stitches form cleanly with no loop buildup under the fabric and the machine sound returns to a steady rhythm.
  • If it still fails: Re-check top tension settings and confirm the quilt is not dragging, which can worsen thread control.
• Q: What is the safest way to handle powerful magnetic embroidery hoops during quilt hooping to avoid finger injuries?
  A: Treat magnetic hoops as a pinch hazard and keep fingers out of the snap zone—this is a real risk with strong magnets.
  • Hold the top ring by the handles or outer rim, never underneath where fingers can get trapped.
  • Lower the top ring in a controlled way rather than letting it slam down.
  • Keep seams and bulky ridges out of the magnet track so the hoop can close evenly without sudden shifts.
  • Success check: The hoop closes with a clean, sharp snap and no uneven gaps around the ring.
  • If it still fails: Open and reclose after moving thickness away from the clamp zone; a dull/muffled snap often indicates obstruction or excessive bulk.
• Q: When should a quilt embroidery business upgrade from screw hoops to magnetic hoops, and when is a multi-needle machine upgrade justified for quilt personalization orders?
  A: Upgrade in layers: first fix process, then reduce setup friction with magnetic hoops, then scale output with a multi-needle platform when time becomes the bottleneck.
  • Level 1 (Technique): Use strict Trace, correct presser foot height, controlled speed, and stabilizer matching to stop rework.
  • Level 2 (Tool): Move to magnetic hoops/frames and a hooping station when hoop burn, hoop popping, alignment drift, or wrist pain from screw tightening keeps happening.
  • Level 3 (Capacity): Consider a multi-needle machine when single-needle thread changes and hooping time limit daily throughput.
  • Success check: Setup becomes repeatable (consistent placement + no mid-stitch hoop pops) and hooping time per item drops noticeably.
  • If it still fails: Track where time is lost (hooping vs thread changes vs re-stitching) and upgrade the step that is actually blocking production.
