Crisp Names on Fluffy Towels: Building a Primer (Knockdown) Stitch in Melco DesignShop Without Wasting Thread or Ruining Loops

The Invisible Foundation: Master the Primer Stitch for Perfect Towel Embroidery

Towels can humble even experienced stitchers. The thick, thirsty loops of terry cloth simply do not care how beautiful your font looked on the computer screen. If you have ever finished a monogram, stepped back, and thought, "Why does this look fuzzy, sunk-in, or unreadable?" you are in the right place.

The solution isn't just "more stabilizer." The solution is the Primer Stitch (often called a Knockdown Stitch in other software).

Think of a primer stitch as a stage. Before the actors (your letters) can perform, you need to build a flat floor over the rough terrain. A primer stitch is a thin, open fill that isn't meant to be the star of the show. Its sole job is to press towel loops down so your lettering sits on a stable surface rather than fighting with the texture.

This guide will walk you through the digitization logic, the specific parameters (calibrated for safety), and the physical hooping techniques required to conquer terry cloth.

Primer Stitch (Knockdown Stitch) on Bath Towels: The Concept

A primer stitch is a block of fill stitches placed under your text, usually stitched in the same color as the towel so it disappears.

In the video, this layer is intentionally thin and see-through. Beginners often make the mistake of making this layer too thick, creating a "bulletproof patch" on the towel. That is not the goal. The goal is control, not total coverage.

On terry cloth, loops naturally spring up through satin stitches and light fills. The primer works like a gentle "comb" or net that holds these loops down.

Market Reality Check: If you run a custom shop, this is the technique that separates "home-made" looks from "professional" results. Towels are high-touch items; customers inspect them up close.

The "Hidden" Prep Before You Digitize: Font Choice & Pull Comp

The workflow starts by building the lettering first, then building the primer around it. This order matters for visualization.

1. Font Selection Strategy

Text on towels fights a losing battle against pile height.

• The Problem: Thin, elegant scripts often get swallowed by the loops.
• The Fix: The video uses "Juliet Script" at a 2-inch height. Large text is safer on towels.

2. Pull Compensation (The "Thickener")

This is critical. You must increase your Pull Compensation.

• Setting: In the video (Melco DesignShop), this is set to 5 points (approx 0.5mm in other systems).
• Why: This artificially thickens the column width of the letters. Without it, the thread tension pulls the stitches tight, making thin lines disappear into the heavy fabric.

3. The Jump Stitch Trim

In the video, a trim command is manually added between the "J" and "u".

• The Goal: Eliminate the connecting jump stitch (travel line) between letters.
• Why: On smooth fabric, you can snip these later. On terry cloth, snipping a jump stitch often creates a "lint explosion" or risks snipping a towel loop, ruining the product. Removing the jump in the software is safer.

Warning: Needle Zone Safety. When manually trimming threads near the needle bar, keep your fingers clear. If the machine engages or the head moves, puncture wounds or lacerations can occur instantly. Always ensure the machine is in a stopped/locked state before reaching near the needle.

Creating the Shape: The Complex Fill Tool

Once the text is set, you build the primer shape around it.

The Tracing Technique

• Zoom In: See the details of your font.
• Tool: Use the Complex Fill tool (or equivalent "Digitize Closed Shape" in your software).
• Action: Trace a loose contour around the text. Use right-clicks (or your software's curve node command) to create rounded, organic edges.

Psychological Safety Tip: Do not obsess over perfection here. The instructor is explicit: because the primer stitches in the same color as the towel, the edges will blend in. You are aiming for a practical "bubble" around the text, not a laser-precise outline.

Layer Order: The "Stacking" Logic

This is the most common mistake for beginners: stitching the primer on top of the text.

In embroidery software object lists (trees), the order represents time.

1. First Logic: The primer must be the first object in the sequence (bottom of the visual stack in some software, top in others—check your manual).
2. Second Logic: The text must be the last object.

Checkpoint: Rotate your 3D view. You should see the text visually "floating" above the primer fill. In the video, the primer is colored orange temporarily just to make it visible on screen—don't forget to change it back to the towel color!

The "Money Settings": Calibrating Density for Towels

This section is the heart of the technical execution. Standard settings will fail here; you need specific "Knockdown" parameters.

Open Object Properties for the primer fill. Here is the translation of the video's Melco settings into universal principles:

1. Top Stitch Density: Loose is Better

• Setting (Melco): Density = 30.
• Translation: In standard metric software (Wilcom/Hatch), this is a spacing of roughly 1.0mm to 1.5mm. Compare this to a standard fill of 0.4mm. You want a very open grid.
• Why: You want to mat down the loops, not create a stiff piece of cardboard.

2. Underlay Strategy

• Action: Turn OFF Auto Underlay.
• Why: Auto underlay usually adds a 45-degree lattice designed for stability. Here, we don't need stability; we just need a net. The extra stitches add bulk and stiffness.
• Manual Setup: The instructor sets a manual Underlay Density of 30 (open) with a 90-degree angle. This creates a cross-hatch effect when combined with the top stitch.

3. Trapunto Effect

• Setting: Trapunto = On.
• Effect: This pushes the travel runs to the edge of the shape, creating a slightly defined border that helps finish the look cleanly.


Expert Insight: Why "Less is More"

Terry cloth is springy. If you use a standard fill density (e.g., 0.4mm), you will:

1. Hammer the towel flat, creating a permanent "divot."
2. Build up so much thread that the area becomes stiff and uncomfortable to use.
3. Risk needle breaks from friction heat.

A loose grid (Density 30/1.2mm) allows the towel to breathe while still holding the loops at bay.

Template Strategy: Save It Once

In the video, these settings are saved as a style preset named "Primer Stitch."

If you are doing this for business, consistency is your currency. Clients notice if Towel A feels soft and Towel B feels like a patch. Save your settings to ensure every towel feels exactly the same.

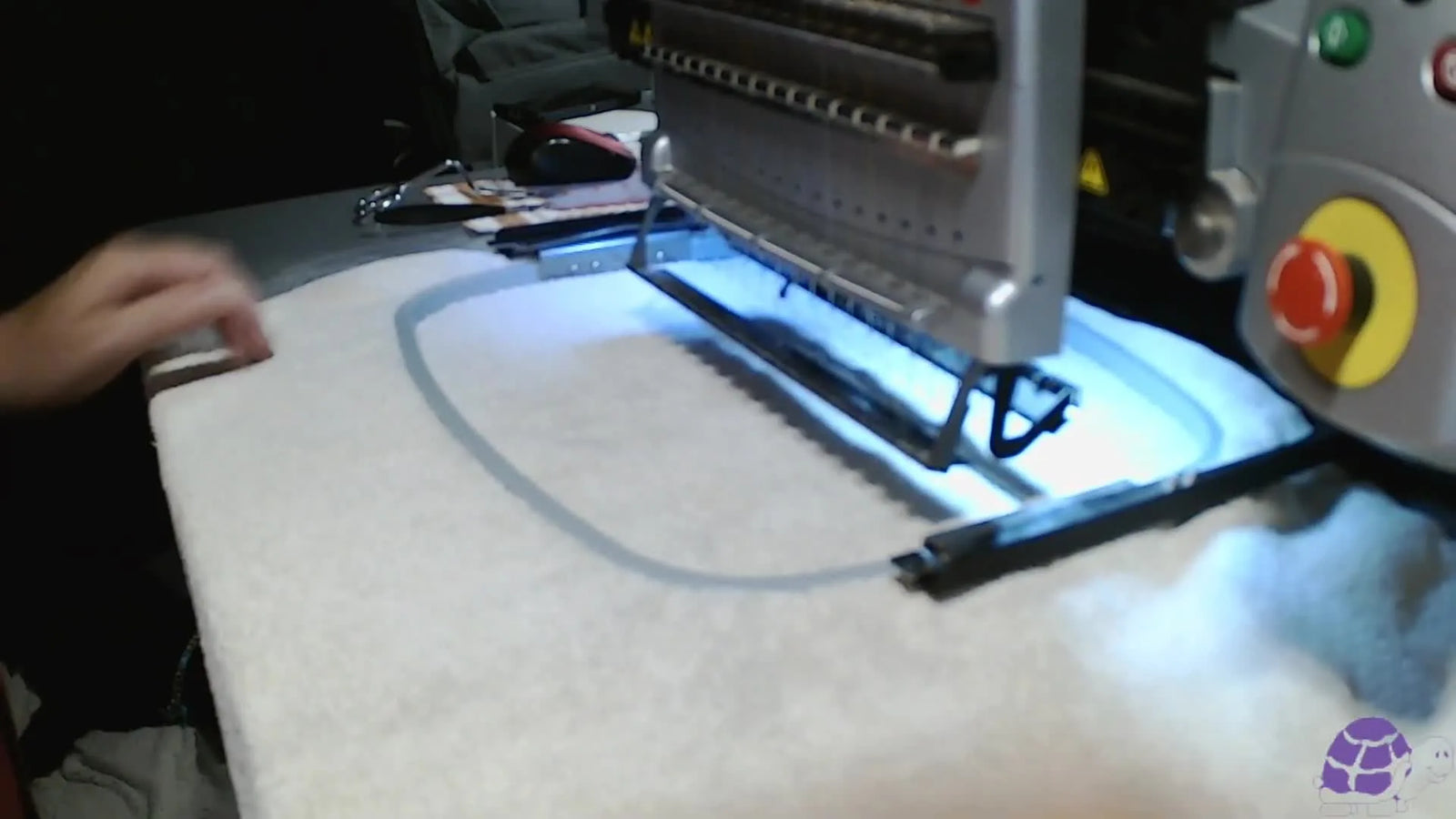

Machine Setup & Physics: The 14x11 Hoop

We now move from the digital world to the physical machine.

The Constraints

• Hoop: 14 × 11 inch hoop (Large rectangular).
• Needles:
  • Needle 1: Cream (Matches towel) -> Used for Primer.
  • Needle 15: Purple (Contrast) -> Used for Text.
• Speed: The video suggests 1000 SPM (Stitches Per Minute).
  • Beginner Safety Adjustment: If you are new to towels, start at 600-700 SPM. Large hoops on heavy towels create significant momentum (sway). Slowing down ensures better registration and reduces the risk of the hoop popping off the arms.
• Tension/Acti-Feed: Set to 13 (Melco specific). For standard tension knobs, you want a slightly looser top tension than you would use for caps, to prevent the thread from sinking too deep.

If you are configuring melco embroidery machine settings for the first time, treat these numbers as a baseline. Listen to your machine—it will tell you if it's unhappy.

Sensory Diagnostic: The Sound of Success

A viewer commented on how "quiet" the machine was. Use your ears:

• Correct Sound: A rhythmic, dull thump-thump-thump. This indicates the needle is penetrating easily.
• Wrong Sound: A sharp slap, pop, or grinding noise. This usually means the hoop is bouncing (flagging) or the needle is struggling to penetrate dense layers.

The 180° Flip: A Critical Spatial Check

The video catches a classic error: The towel is loaded end-first into the machine, meaning the design would stitch upside down relative to the border.

The Fix: Rotate the design 180 degrees in the operating system. Pro Tip: Always hold the towel up by the band where it will hang on a rack. Visualize the text. Now lay it in the hoop. Does it match/

Hooping Strategy: The "Sandwich" Method

Hooping towels is physically demanding. The inputs must be correct to prevent the "shifting" that ruins outlines.

The Formula

1. Bottom Layer: Heavy Tearaway Backing. (Do not use Cutaway unless the towel is extremely stretchy/knit based. Tearaway leaves a cleaner back for towels).
2. Middle Layer: The Towel.
3. Top Layer: Solvy (Water Soluble Topping).
   • Role: This prevents the top stitches from sinking, while the primer holds the bottom loops down. It's a double-safety system.

The Tape Trick

Use masking tape or painter's tape to secure the corners of the Solvy.

• Crucial Rule: Keep the tape far away from the stitch path. Gumming up a needle with adhesive is a 20-minute clean-up job.


Decision Tree: Stabilizer & Topping

Note: While Tearaway is standard for aesthetic reasons on towels, if your towel is very stretchy, you must use Cutaway to prevent distortion, even if it leaves a backing square.

The Stitch-Out: What to Watch For

Once you press start, stay close.

1. Stage 1 - The Primer (Cream): You should see a light, open fill forming. It should blend into the towel almost invisibly.
2. Stage 2 - The Text (Purple): The text should sit proudly on top of the primer.




Operation Checklist (The "During Flight" Check)

• [ ] Sequence Check: Did the primer stitch first?
• [ ] Topping Check: Is the Solvy lifting or bubbling? If so, pause and tape it down (outside the stitch zone).
• [ ] Sound Check: Is the machine rhythm steady?
• [ ] Loop Check: Look closely at the letters. Are any white loops poking through the purple text? (If yes, your primer isn't dense enough or wide enough).

Finishing: The Reveal

Finishing is what the customer feels against their skin.

1. Remove Solvy: Tear away the large chunks. Use a damp paper towel, a steamer, or a water spray bottle to dissolve the small bits trapped in the text.
2. Remove Tape: Peel SLOWLY. Cheap towels will shed loops if you rip the tape off like a bandage. Roll the tape back on itself.
3. Remove Backing: Support the stitches with one hand while tearing the backing away with the other to avoid distorting the text.






Troubleshooting Guide: Symptoms & Solutions

The "Production" Upgrade Path: Solving the Hooping Pain

If you are doing one towel for Mom, a standard hoop is fine. If you are doing 50 towels for a spa, standard hoops will destroy your wrists and slow you down.

Level 1: The "Hoop Burn" Problem

Traditional hoops require you to force an inner ring into an outer ring, crushing the thick towel material. This often leaves permanent shiny marks ("hoop burn").

• The Upgrade: magnetic embroidery hoops. These use magnets to clamp the fabric top and bottom rather than forcing it into a ring. They essentially eliminate hoop burn on thick items like towels.

Warning: Magnetic Hazard. Magnetic hoops contain industrial-strength magnets. They can pinch fingers severely. Do not use if you have a pacemaker, and keep them away from sensitive electronics.

Level 2: Efficiency & Speed

Aligning a name clearly on a striped towel takes time.

• The Upgrade: Using a hooping station for machine embroidery allows you to pre-measure the placement. You slide the hoop on, magnetize it, and go. It ensures Towel #1 matches Towel #50.

Level 3: Compatibility Check

Before buying generic upgrades, check your specific machine arms. Searching for embroidery hoops for melco or your specific brand is vital, as the attachment brackets vary significantly between commercial machines.

Level 4: Scaling Up

When your single-needle machine can't keep up with the color changes (switching from primer thread to text thread manually), or when you need to run 10 towels an hour, look into multi-needle solutions like SEWTECH’s multi-needle machines. The ability to have the primer color on Needle 1 and the Text color on Needle 2 saves minutes per towel—which equals profit.

Final Summary Checklists

Prep Checklist (Do this at the computer)

• [ ] Font selected (thick/bold preferred) & Pull Comp added (0.5mm/5pts).
• [ ] Jump stitches trimmed in software (safest method).
• [ ] Primer Stitch created: Open density (1.2mm spacing/30 points), Auto Underlay OFF.
• [ ] Layering confirmed: Primer First, Text Last.
• [ ] Thread colors chosen: Primer matches towel; Text contrasts.

Setup Checklist (Do this at the machine)

• [ ] Bobbin check: Is there enough thread for a dense fill?
• [ ] Hoop Size: 14x11 (or appropriate large hoop) selected in OS.
• [ ] Stabilizer Sandwich: Backing (Bottom) + Towel + Solvy (Top).
• [ ] Orientation: Design rotated 180° if necessary.

Consumables You Forgot You Needed

• Spray Adhesive: Helpful to hold the backing to the towel temporarily.
• Water Soluble Pen: For marking the center of the towel without permanent ink.
• Tweezers: For picking out small bits of Solvy after the stitch.

By mastering the Primer Stitch, you stop fighting the towel and start working with it. The result is professional, legible embroidery that lasts wash after wash. Happy stitching!

FAQ

• Q: How do I set a Primer Stitch (Knockdown Stitch) under towel lettering in Melco DesignShop so the towel loops do not poke through satin columns?
  A: Use a thin, open primer fill under the text (not a dense patch) to press terry loops down before the lettering stitches.
  • Build the lettering first, then digitize a loose “bubble” primer shape around it with a Complex Fill (closed shape) tool.
  • Set the primer as the first stitch object and the text as the last stitch object in the object list (sequence = time).
  • Calibrate the primer to be very open: Density 30 in Melco (about 1.0–1.5 mm spacing in many metric systems), Auto Underlay OFF, manual underlay also open (Density 30) at 90°.
  • Success check: The primer looks light and see-through and blends into the towel color, while the text sits visibly “on top” and stays readable.
  • If it still fails… Widen the primer area slightly and re-check that primer stitches before the text (wrong order is the #1 cause).
• Q: What pull compensation should be used for towel monograms in Melco DesignShop to prevent thin script lettering from sinking into terry cloth?
  A: Increase pull compensation to thicken the lettering columns so the stitches do not get swallowed by towel pile.
  • Set Pull Compensation to 5 points (about 0.5 mm in other systems) as shown in the workflow.
  • Choose a thicker/bolder font and size up (the example uses Juliet Script at 2-inch height) instead of relying on density.
  • Avoid overly thin, elegant scripts on high-loop terry unless the text is large.
  • Success check: Satin columns look full and continuous, with fewer towel loops popping through the letter strokes.
  • If it still fails… Add a primer stitch under the text and confirm water-soluble topping is used on top of the towel.
• Q: How do I prevent a jump stitch between letters on terry towels in Melco DesignShop without snipping towel loops during finishing?
  A: Add trim commands in the software between letters so the machine trims instead of forcing you to cut on terry cloth.
  • Insert a trim between problem letters (example: between “J” and “u”) where the travel line would cross exposed towel loops.
  • Keep hands clear of the needle zone when checking trims; only reach in when the machine is fully stopped/locked.
  • Use topping (water-soluble film) to reduce snag risk if any short travels remain.
  • Success check: No visible travel line connects the letters on the towel surface after stitching.
  • If it still fails… Re-sequence objects and verify the trim command is actually placed between the correct letters (not just visually separated).
• Q: What is the correct towel hooping “sandwich” with tearaway backing and Solvy topping to reduce sinking and shifting in a 14×11 hoop?
  A: Hoop as a stable sandwich: heavy tearaway backing (bottom) + towel (middle) + water-soluble topping (top).
  • Place heavy tearaway backing under the towel; use cutaway only when the towel is very stretchy/knit and distortion is likely.
  • Add Solvy/water-soluble topping on top to stop stitches from sinking into loops; tape corners down with low-tack tape far from the stitch path.
  • Mark placement (water-soluble pen is helpful) and keep the towel square in the hoop to reduce shifting.
  • Success check: The topping stays flat (no bubbling), outlines register cleanly, and the text remains crisp instead of fuzzy.
  • If it still fails… Slow machine speed and re-check hoop stability (large, heavy towels can cause hoop sway/flagging).
• Q: How can I diagnose hoop bounce (flagging) during towel embroidery by sound when running a large 14×11 hoop at 1000 SPM?
  A: Use the machine sound as a quick diagnostic and slow down if the hoop is bouncing under load.
  • Listen for a steady, dull “thump-thump-thump” (good penetration) versus sharp “slap/pop/grind” sounds (bounce or struggle).
  • If you are new to towels, reduce speed to about 600–700 SPM to improve registration and reduce the chance of the hoop popping off the arms.
  • Confirm the towel is hooped securely with the correct backing/topping stack so the hoop is not fighting thickness.
  • Success check: The sound stays rhythmic and consistent, and stitch placement stays aligned without wobble marks.
  • If it still fails… Re-hoop with better support and confirm the primer density is open (overly dense primer increases friction and stress).
• Q: What needle-area safety steps should be followed when adding manual trims or checking threads on a multi-needle embroidery machine stitching towels?
  A: Keep hands out of the needle zone unless the machine is fully stopped/locked—needle bar movement can injure instantly.
  • Stop the machine completely before reaching near the needle bar to inspect trims, thread paths, or towel placement.
  • Do not “hold” or “guide” thread near moving parts while the head can engage.
  • Plan trims in software when possible so less manual cutting is needed on terry cloth.
  • Success check: All checks and thread handling happen with zero needle movement risk (no hands near needles during motion).
  • If it still fails… Follow the specific lockout/stop procedure in the machine manual and train every operator on the same rule.
• Q: How do I fix hoop burn (ring marks) on thick towels, and when should magnetic embroidery hoops be considered for towel production?
  A: Steam out minor hoop burn first; for repeated towel jobs, magnetic hoops are often the practical upgrade to reduce ring marks and wrist strain.
  • Steam the hoop marks to relax towel fibers after stitching (many marks improve with heat/steam).
  • Reduce over-tight hooping pressure; thick towels do not need to be crushed to be stable when backing and topping are correct.
  • Consider magnetic hoops when hoop burn is recurring or hooping is physically painful/slow on bulk towels.
  • Success check: The towel surface looks uniform after finishing (no shiny ring), and hooping feels controlled rather than forced.
  • If it still fails… Treat it as a process issue: verify backing/topping choice, speed control, and consider magnetic hoops plus a hooping station for consistent placement (especially for batches).
