Crisp Kimberbell Dimensional Pennants on a Brother Luminaire XP1: The Safe “Float + Trim” Method That Actually Works

Dimensional Pennants on the Brother Luminaire: A "Zero-Friction" Guide to Stitching Small Leather Projects

Dimensional pennants look simple—until you’re staring at a tiny strip of embroidery leather, a fast-moving needle, and a placement box that feels too small to be forgiving.

If you’re feeling that little spike of panic (“Am I about to ruin my expensive leather… or catch my finger?”), stop and breathe. You are not alone. Machine embroidery on unforgiving materials like leather is an experience science, not just a button-pushing exercise.

This project is beginner-friendly, but based on my years of troubleshooting in production environments, I know it has two specific "failure points" that cause new users to quit:

1. The "Ghost" Overlay: The Brother Luminaire screen showing a confusing background from a previous scan.
2. The Floating Anxiety: Holding a small leather strip for tack-down without shifting, puckering, or getting your hands dangerously close to the needle.

This walkthrough follows the workflow shown in the tutorial but adds the "Old Pro" sensory details—the sounds, the tactile checks, and the safety protocols—that prevent waste and keep your fingers safe.

Don’t Panic: Brother Luminaire XP1 Dimensional Pennants Are a Tiny Stitch-Out (and That’s Good News)

The pennants design is deceptive. It is physically small—about 0.78 x 3.03 inches with roughly 350 stitches—so you’re not committing to a long stitch session. The upside is speed; the downside is that small pieces magnify handling errors.

The workflow uses a Brother Luminaire Innov-is XP1 with a standard 4x4 hoop, and the pennants are stitched on red embroidery leather. The instructor’s key mindset is worth adopting: this is a “stitch to create a cut edge” accessory. Unlike traditional appliqué where you need a margin, here the stitch line is the final product.

If you’re working on a Brother Luminaire and you’ve been curious about brother 4x4 embroidery hoop projects that create 3D effects without complicated construction, this is one of the cleanest "quick wins" available to build your confidence.

The “Hidden” Prep That Saves Leather: Tearaway Stabilizer + a Smaller 4 x 1.5" Leather Strip

The printed instructions for this project call for Light Mesh Cutaway stabilizer and a 4 x 2 inch leather strip. However, the video instructor makes two specific practical changes based on experience. Let’s validate why these changes work regarding physics and material science.

The Changes

1. She hoops Tearaway stabilizer instead of mesh cutaway.
2. She cuts the leather smaller: 4 x 1.5 inches (saving 0.5 inches of material per run).

The "Why" (Physics & Economy)

• Stabilizer Physics: Usually, we preach "Cutaway for wearables" because stitches need permanent support. However, for this specific pennant, you will trim the stabilizer away completely at the end. The stabilizer is only a temporary scaffold. Therefore, Tearaway is acceptable here because it offers rigid support during the stitch but easy removal later.
• Material Behavior: Embroidery leather is rigid. It doesn't "drape." If it shifts during the tack-down stitch, it tends to stay shifted. It won't relax back into place like cotton.

The Sensory Check: "Drum-Tight"

How tight is tight enough? When you hoop your stabilizer (without the leather yet):

• Tactile: Run your finger across the stabilizer. It should feel tight, like the skin of a drum. There should be zero "sponge" or give.
• Auditory: Tap it. You should hear a dull thud, not a paper-like rattle.
• If it's loose, your leather will flag (bounce) and your outline stitches will be wavy.


Prep Checklist: The "Pre-Flight" Safety Check

(Do this before you touch the LCD screen)

• Stabilizer: Hooped Medium Weight Tearaway is drum-tight in the 4x4 hoop (no ripples).
• Material: Leather strip is cut to 4 x 1.5 inches (video modification) or your preferred size.
• Sharps: A fresh 75/11 embroidery needle is installed (dull needles punch holes in leather rather than piercing it).
• Thread: Neutral thread (white/grey) is loaded in the bobbin and top, as the edge will be visible.
• Tools: Curved embroidery scissors are on the right side of your machine (or dominant hand side).
• Hidden Consumables: Have a roll of painter's tape or embroidery tape nearby—just in case you don't feel safe holding the leather with your fingers.

Brother Luminaire “Ghost Scan” Fix: Turn Off Background Image Before You Stitch

The video highlights a very common Brother Luminaire panic moment: you load the design, and you see a faint, ghostly overlay of a fabric or hoop from a previous project. It looks like your machine is glitching or your file is corrupt.

It is not a glitch. It is the camera background memory.

The Fix

1. On the Luminaire interface, locate the Camera Icon (usually near the top).
2. Find the toggle for Background Image.
3. Set it to OFF.
4. Visual Check: The screen should snap to a clean, stark white background.

This is vital because when you are trying to line up a small piece of leather, that ghost image can distort your perception of where the center actually is. If you are troubleshooting a screen alignment while testing a magnetic hoops for brother luminaire or any other hooping method, you must clear this background first to ensure your physical hoop matches your digital screen.

File Loading on Brother Luminaire XP1: Pocket → USB → “Main street celebration”

The navigation path is standard but specific.

1. Home Screen
2. Select Pocket
3. Select USB
4. Tap the file labeled “Main street celebration”
5. Confirm the 4x4 hoop selection.

The Speed Limit: 600 SPM

The instructor sets the maximum embroidery speed to 600 spm (stitches per minute).

Expert Note on Speed: While production experts run machines at 1000+ SPM, 600 SPM is the "Sweet Spot" for leather.

• Why? Leather creates friction. High speeds generate heat, which can cause needle gumming if the leather has a synthetic coating.
• Auditory Check: At 600 SPM, your machine should hum rhythmically. If it sounds like aggressive pounding (thump-THUMP-thump), slow it down to 400 SPM. Quality beats speed on a 3-minute run.


Setup Checklist: Machine Readiness

(Confirm these settings before the first stitch)

• File: Design loaded from Pocket → USB.
• Display: Background Image is OFF (clean white screen).
• Speed: Max speed limited to 600 SPM (or 400 SPM for nervous beginners).
• Risk Assesment: Hand wheel area is clear; bobbin area is free of lint.

The Placement Line: Stitch the Rectangle First

The first stitch sequence creates a single running stitch rectangle on the bare stabilizer. The instructor emphasizes that exact positioning within the hoop isn’t critical, as long as it's within the sewing field.

The Strategy: Think of this placement line as your "Target Zone." Your only job is to cover this target completely with your leather strip.

If you are new to the floating embroidery hoop technique (where material sits on top of the hoop rather than in it), this is the safest place to learn. The stakes are low: if the placement line stitches poorly, you just peel the stabilizer and start over—no leather wasted yet.

Floating the Embroidery Leather: The "Danger Zone"

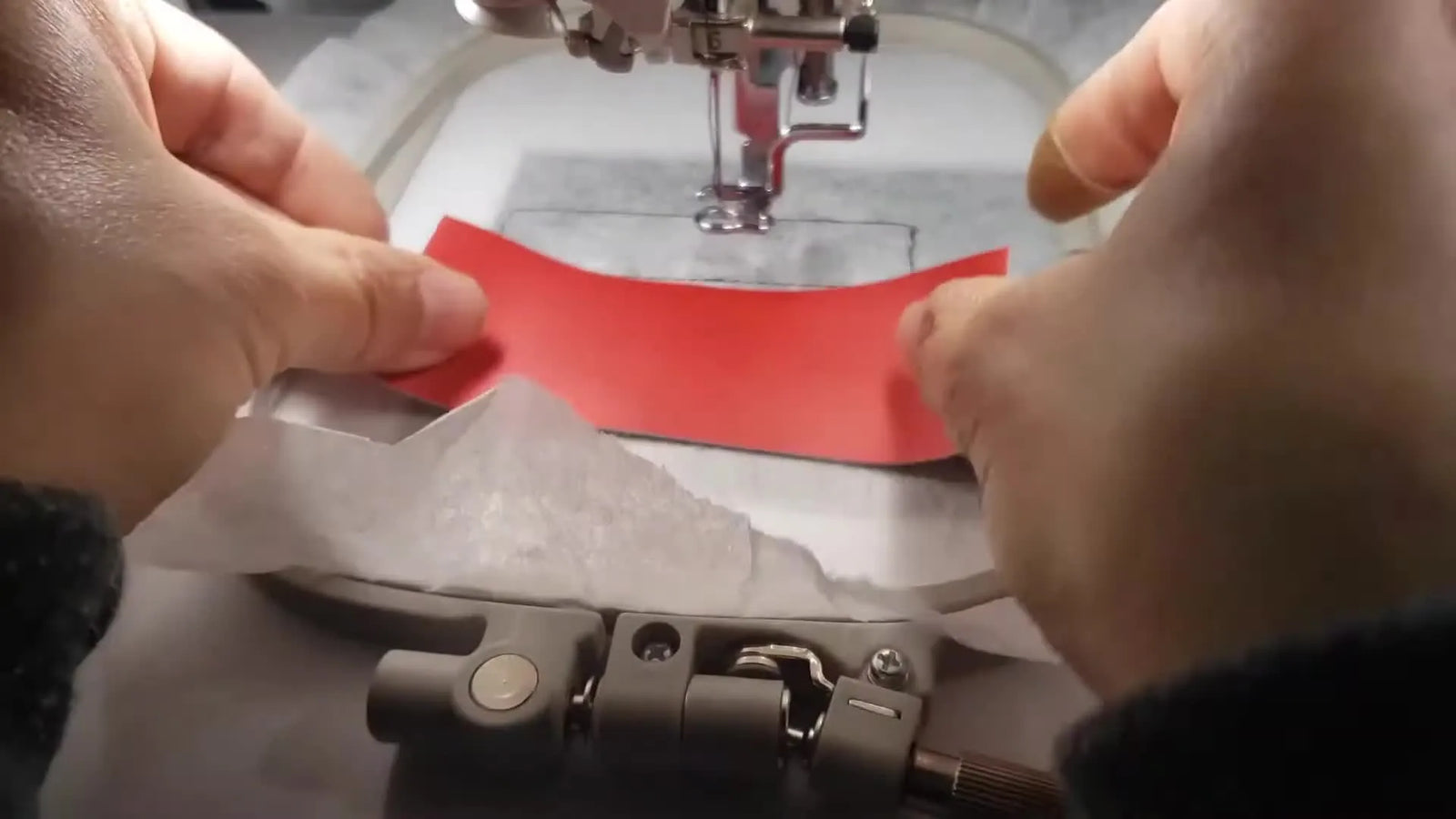

After the placement line stitches, the machine stops. The video shows the instructor placing the leather right-side up over the rectangle and holding it with her fingers while the machine stitches the tack-down.

Stop. Read this carefully.

Warning: Physical Safety
Never, ever keep your fingers inside the hoop perimeter while the machine is active. A machine needle moves faster than your reflex. If the leather shifts, hit the Stop button. Do not try to "chase" or adjust the moving material with your hand.

Safe Floating Technique

1. Visual Alignment: Place your pre-cut leather strip (4 x 1.5") over the stitched box. Ensure you have about 1/4" overlap on all sides.
2. The Tape Method (Recommended for Beginners): Instead of holding it, use two small strips of embroidery tape (or painter's tape) on the far edges of the leather to secure it to the stabilizer. Keep the tape away from the stitch path (gummed needles cause thread breaks).
3. The Finger Method (Advanced): If you must hold it, press down firmly on the outermost corners of the leather, keeping your fingers pressed against the plastic rim of the hoop, far away from the center connection.

Why Floating Shifts (The Physics)

Needles create drag. As the needle pulls out of the tough leather, it lifts the material slightly. If your stabilizer isn't drum-tight, the whole sandwich bounces, causing the leather to skew.

• Tactile Check: The leather should sit flat. If it curls, use tape.
• Tool Solution: If you do this often, magnetic embroidery hoops are excellent for clamping small, rigid pieces quickly without the "hoop burn" or shifting issues common with standard floating.




The Stitch-Out: Tack-Down First, Then Outlines

Once the leather is safe (taped or held), stitch the tack-down. This traces the box again to lock the leather to the stabilizer. Immediately after, the machine will stitch the detailed outline of the five pennant flags.

Quality Control: The "Wavy Line" Check

• The Symptom: If your straight lines look like waves or the corners aren't sharp.
• The Cause: This is almost always "flagging"—the material bouncing up and down with the needle.
• The Fix: Increase hoop tension (tighten the screw) next time, or use a sticker stabilizer/spray adhesive to bond the leather to the backing.


Precision Trimming: The Stitch Line *Is* the Cut Line

After stitching, remove the hoop from the machine. Do not unhoop the material yet. Place the hoop on a flat table.

The instructor’s method is specific:

1. Unhoop: Remove everything from the frame.
2. Trim: Cut directly on the stitched line.

How to Trim Without Ruining It

This is different from appliqué where you leave a margin. Here, you are cutting through the center of the satin stitch or right alongside the running stitch.

• Tool Requirement: Curved double-curved scissors or precision snips.
• Technique: Hold the scissors stationary and rotate the leather into the blade. Do not hack at it with the tips of the scissors.
• Sensory: Listen for a crisp snip. If the leather folds over the blade, your scissors are too dull.

Warning: Sharp Instrument
When cutting rigid material like leather, the scissors can slip suddenly once they cut through the tough part. Always cut away from your holding hand.

You should end up with five individual pennants.

Quick Decision Tree: Stabilizer Choice for Accessories

Beginners often freeze when choosing stabilizers. Use this logic flow for projects like these pennants.

Question 1: Will the stabilizer be visible or inside the final object?

• Visible/Removed (Like this project): Use Tearaway.
  • Why? You need to remove 100% of it so the edge looks clean.
• Hidden/Permanent (Like a patch on a shirt): Use Cutaway.
  • Why? Wearables need permanent fiber support to survive the washing machine.

Question 2: Is your material "Stretchy" or "Stable"?

• Stable (Leather, Vinyl, Felt): Tearaway is safe.
• Stretchy (T-shirt, Jersey): Must use Cutaway or Mesh, fused with temporary spray adhesive.

Troubleshooting: The "Why Did That Happen?" Guide

The Upgrade Path: Moving from Hobby to Production

Stitching one set of pennants is fun. Stitching 50 sets for a craft fair is a different game. As you grow, you will hit "Pain Points." Here is how professionals solve them using upgraded tools.

Pain Point 1: The "Hoop Burn" & Hand Fatigue

• The Problem: Trying to jam thick leather into a standard plastic inner/outer ring hoop requires hand strength and often leaves ugly ring marks (hoop burn) on the leather.
• The Upgrade: Magnetic Hoops.
• Why: Magnetic frames clamp automatically. They don't force the material into a ring; they hold it between magnets. This eliminates hoop burn and saves your wrists. Professional studios often rely on magnetic embroidery hoops for brother to solve this exact issue.

Warning: Magnet Safety
Commercial embroidery magnets are incredibly powerful. They can pinch fingers severely. Never place them near cardiac pacemakers or sensitive electronics. Handle with extreme care.

Pain Point 2: The Single-Needle Bottleneck

• The Problem: You have 20 orders. Your single-needle machine requires a thread change every 2 minutes. You are trapped at the machine.
• The Upgrade: Multi-Needle Machine (e.g., SEWTECH / Ricoma / Brother PR).
• Why: A multi-needle machine holds 6, 10, or 15 colors at once. You press "Start" and walk away. If you are serious about selling, this is the only way to scale profitability.

Operation Checklist: The "No-Regrets" Routine

• Placement: Stitched the placement rectangle first.
• Cover: Leather fully covers the box (visual check 360°).
• Safety: Hands kept clear during the tack-down stitch (or tape used).
• Finish: Allowed outline to finish completely before unhooping.
• Trim: Cut cleanly on the stitch line.
• Count: Verified 5 finished pieces.

Treat this project like a pilot test. If you can handle the leather float and the precise trim here, you are ready for bigger challenges like in-the-hoop keyfobs and wallets. Happy stitching!

FAQ

• Q: How do Brother Luminaire Innov-is XP1 users remove the “ghost” camera overlay on the embroidery screen before aligning small leather pieces?
  A: Turn the Brother Luminaire Background Image setting OFF to return the screen to a clean white view.
  • Tap the Camera icon on the Brother Luminaire interface.
  • Find Background Image and toggle it to OFF.
  • Re-check the design placement only after the background clears.
  • Success check: the display snaps to a stark white background with no faint previous hoop/fabric image.
  • If it still fails: power-cycle the machine and repeat the Camera → Background Image OFF step before reloading the design.
• Q: How tight should Brother Luminaire XP1 stabilizer be in a Brother 4x4 hoop for floating embroidery leather without wavy outlines?
  A: Hoop medium-weight tearaway “drum-tight,” because loose stabilizer is the fastest cause of leather flagging and wavy lines.
  • Tighten the 4x4 hoop until the stabilizer has zero ripples.
  • Run a finger across the hooped stabilizer to feel for any “sponge” or give.
  • Tap the stabilizer to confirm tension before stitching the placement rectangle.
  • Success check: stabilizer feels like a drum skin and produces a dull thud (not a papery rattle) when tapped.
  • If it still fails: tighten the hoop screw more on the next run or bond the leather to the backing with a sticker stabilizer/spray adhesive.
• Q: What is the safest way to float a 4 x 1.5-inch embroidery leather strip on Brother Luminaire XP1 during the tack-down stitch?
  A: Use tape on the far edges instead of fingers, and keep hands completely outside the hoop perimeter while the Brother Luminaire is stitching.
  • Place the leather right-side up and fully covering the stitched placement rectangle with about 1/4" overlap.
  • Tape the far edges/corners to the stabilizer, staying clear of the stitch path to avoid gummed needles and thread breaks.
  • Press Stop immediately if the leather shifts—do not chase moving material with fingers.
  • Success check: the tack-down rectangle stitches cleanly while the leather stays flat with no visible skew.
  • If it still fails: re-hoop the stabilizer drum-tight and re-secure the leather; frequent floating may justify switching to a magnetic embroidery hoop system.
• Q: Why does Brother Luminaire XP1 embroidery leather shift or stitch crooked during floating, and what is the fastest fix?
  A: Leather often “walks” from needle drag during tack-down, so secure the leather with embroidery tape or upgrade to a magnetic frame to increase hold.
  • Stitch the placement rectangle first, then cover it fully with the leather strip before tack-down starts.
  • Tape the leather at the far edges so the needle drag cannot pull the strip off-square.
  • Avoid placing tape in the stitch path to prevent adhesive buildup on the needle.
  • Success check: the stitched pennant outlines align evenly inside the leather edges without drifting to one side.
  • If it still fails: reduce handling variables by slowing down and improving stabilization (tighter hooping or adhesive/sticky backing).
• Q: What Brother Luminaire XP1 embroidery speed is a safe starting point for stitching embroidery leather dimensional pennants?
  A: Limit the Brother Luminaire XP1 to 600 SPM as a safe starting point for leather, and drop to 400 SPM if the machine sounds like pounding.
  • Set the max embroidery speed to 600 stitches per minute for the run.
  • Listen to the machine during stitching and slow down if it sounds like aggressive “thump-THUMP” impacts.
  • Prioritize clean penetration and stable stitching over finishing faster.
  • Success check: the machine hums rhythmically and stitches form cleanly without harsh impact sounds.
  • If it still fails: re-check needle condition and material hold, since speed alone will not correct flagging or shifting.
• Q: What needle should Brother Luminaire XP1 users install for embroidery leather to reduce needle breaks and ugly holes?
  A: Start with a fresh 75/11 embroidery needle for embroidery leather, because dull needles tend to punch and over-stress the needle.
  • Replace the needle before the run rather than “testing one more time” on leather.
  • If breaks continue, move up to a size 80/12 Titanium needle as noted for thicker/tougher leather behavior.
  • Keep stitching speed moderate to reduce heat/friction on coated leathers.
  • Success check: stitches form without repeated popping sounds, skipped penetrations, or sudden needle snaps.
  • If it still fails: confirm the leather thickness is appropriate and re-check the floating method (tape/magnetic hold) to stop the material from lifting into the needle.
• Q: How do Brother Luminaire XP1 users stop thread nesting (birdnesting) when stitching floating leather on tearaway stabilizer?
  A: Re-thread the top thread and confirm the presser foot height is appropriate for leather thickness, because nesting often follows tension loss or flagging.
  • Completely re-thread the upper thread path (don’t just tug and continue).
  • Check that the presser foot is height-adjusted for the leather so the material is controlled, not bouncing.
  • Confirm the hoop area is clear and the bobbin area is free of lint before restarting.
  • Success check: the underside shows controlled bobbin thread (not a wad), and stitches advance smoothly without bunching at the start.
  • If it still fails: address the root cause of flagging by tightening hooping, adding adhesive/sticky stabilization, or improving the clamp method.
• Q: What are the magnet safety rules when using magnetic embroidery hoops for small leather projects to prevent finger injuries and other hazards?
  A: Treat embroidery magnets as high-force pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Place magnets down deliberately—do not let magnets snap together near fingers.
  • Keep fingertips out of the closing gap when positioning the magnetic frame.
  • Store magnets separated and controlled so they cannot slam together unexpectedly.
  • Success check: magnets seat firmly without any sudden snapping onto skin, and hands remain clear during placement/removal.
  • If it still fails: switch back to tape-based floating until safe handling becomes routine, then reintroduce magnetic frames with slower, two-handed placement.
