Creative DRAWings Snowman Outline Fix: Import the Design, Pick “T-shirt Knit 1,” and Make That Border Actually Show Up

When you’re new to embroidery software, the scary part isn’t clicking buttons—it’s the quiet fear that one wrong choice (fabric preset, palette, stitch width) will turn a cute design into a puckered mess on a real T-shirt. You stare at the screen, paralyzed by the thought of wasting an expensive garment.

This is normal. Embroidery is an "experience science," where software settings must translate into physical needle penetrations.

This first part of the Creative DRAWings holiday series is a smart, beginner-friendly workflow: import a pre-digitized snowman, choose the correct knit fabric preset so the underlay is appropriate, then make two high-impact edits—outline color and outline thickness—so the snowman reads clearly when stitched.

Calm First: What This Creative DRAWings Snowman Edit Actually Changes (and What It Doesn’t)

You’re not “re-digitizing” the snowman from scratch in Part 1. You’re doing controlled edits to an existing embroidery file: importing it, confirming the wizard settings, then changing the outline/eyes color and converting the outline from a single running stitch into a bolder double stitch at 0.6 mm.

That’s good news—because it means your risk is low, and your payoff is high. A clearer outline is one of the fastest ways to make a holiday design look more professional on knit garments, especially when the garment color is light and the design needs definition.

The "Why" Behind the Method: If you’re building a repeatable workflow for garments, start thinking like a production shop early: consistent fabric presets, consistent thread palette choices, and consistent outline visibility. That mindset is what eventually lets you scale beyond “one cute shirt” into batches of 50.

The “Hidden” Prep Before You Import: DVD Pop-Ups, File Paths, and a Clean Workspace

The video pulls the design from the Creative DRAWings installation DVD. That sounds simple—until Windows tries to auto-run an installer and steals your focus. Before we touch the software, we must ensure your physical workspace and computer are prepped.

What the video does: insert the DVD, cancel the installation window if it appears, then import the embroidery from inside Creative DRAWings.

Prep Checklist (do this before you click “New”)

• Physical Media Check: Confirm the installation DVD is inserted. Listen for the drive to spin up and settle.
• System Focus: If an automatic installation window pops up, cancel it immediately. We want to browse files, not install software.
• Target Garment Check: Decide your target item (the video uses a child’s T-shirt). Is it a jersey knit? A pique polo? This choice drives the fabric preset.
• Consumables Check: Ensure you have the physical supplies ready for a knit project:
  • Needles: Ballpoint 75/11 (essential for knits to avoid cutting fibers).
  • Stabilizer: Cut-away stabilizer (Mesh) is non-negotiable for wearables.
  • Adhesive: Temporary spray adhesive (like 505) or a sticky stabilizer.
• Thread Plan: Have your thread palette in mind. The video keeps the design’s original thread count at 6 and uses an RGB palette.

Warning: Keep fingers, hair, and loose sleeves away from moving machine parts when you later stitch the test-out. Software edits can look perfect on screen and still cause needle breaks if the physical setup is rushed. Always maintain a "Safe Zone" of 6 inches around the needle bar.

Import “Muneco de nieve” from the Creative DRAWings DVD Without Getting Lost in Folders

In Creative DRAWings, the video starts a new design and imports an existing embroidery file to bypass the blank canvas anxiety.

What to click (exact path shown in the video)

1. Click New (upper left).
2. Choose From Embroidery.
3. Click Browse.
4. In the DVD drive, open the Designs folder.
5. Open folder 01.
6. Scroll to and open Winter.
7. Select “Muneco de nieve” (Little Snowman).
8. Click Open.

At this point, the file browser closes and you return to the wizard flow.

Pro Tip from the Shop Floor: If you ever plan to reuse this design often, copy it from the DVD to a clearly named folder on your computer (for example, “Holiday Designs / Snowman”). The video doesn’t do that step, but it saves time. In a production environment, clear file paths prevent the "Where did that file go?" panic when a customer orders a re-run six months later.

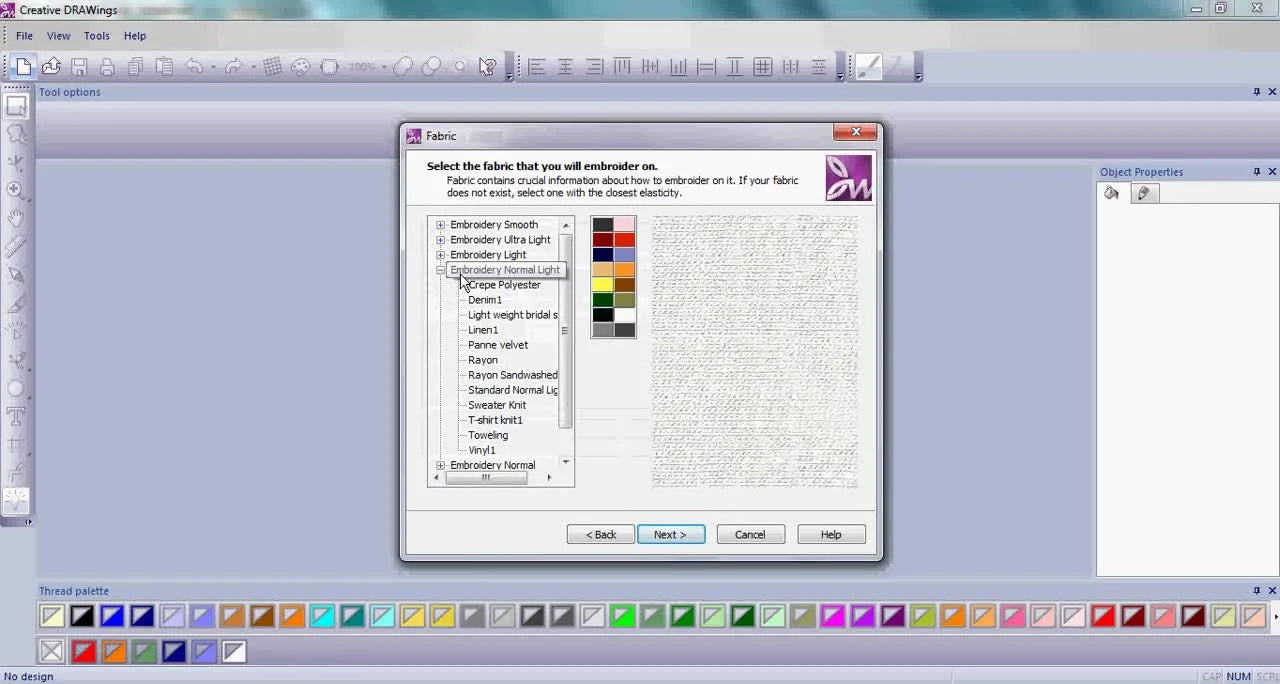

The Make-or-Break Wizard Choice: “Embroidery Normal Light → T-shirt Knit 1” for Knit Garments

This is the most important decision in Part 1, and the video calls it out clearly: choose the proper fabric so you get the proper underlay.

What the video selects

• Fabric category: Embroidery Normal Light
• Specific fabric: T-shirt Knit 1
• Background: a light color so the design is easy to see on screen

Why Experienced Embroiderers Care: Knit fabric is unstable. It stretches, rebounds, and distorts under the tension of the thread (usually ~110g-130g of tension). A knit-appropriate preset tells the software to calculate "Pull Compensation"—meaning the software intentionally distorts the design on screen to counteract the fabric shrinking under the needle.

If you skip this, or choose "Woven," your perfect circle will stitch out as an oval, and outlines will not line up with the fill (gapping).

The Physical Reality Check: On knits, hooping and stabilization are a system. Traditional hoop rings often stretch the fabric, causing "hoop burn" (permanent shiny rings) or distortion. This uses friction to hold the fabric, which is the enemy of delicate knits.

Many professionals search for ways to eliminate this friction. Tools like magnetic embroidery hoops have become a standard upgrade path because they rely on magnetic force rather than friction. They hold the knit evenly without forcing it out of shape—especially helpful when you’re doing a production run of multiple shirts and need to avoid hand strain.

Decision Tree: Knit T-shirt Stabilizer + Hooping Strategy (simple, reliable)

Use this logic to avoid ruining your garment.

1. Is the T-shirt lightweight and stretchy (Jersey/Performance)?
   • Yes: MUST use a Fusible No-Show Mesh (Cut-away) stabilizer. Do NOT use Tear-away; the stitches will pull through.
   • Hooping: Do not pull the fabric "drum tight" like woven cotton. It should be neutral—flat but not stretched.
   • No (Heavy Sweatshirt): A Cut-away is still preferred, but you can get away with a heavier weight stabilizer.
2. Is the design outline-heavy (like this snowman border)?
   • Yes: Add a Water Soluble Topping (Solvy) on top of the fabric. This prevents single or double stitches from sinking into the "valleys" of the knit texture.
   • No: You may skip topping, but watch for “wavy” outlines.
3. Are you getting hoop marks or distortion when you hoop?
   • Yes: Your clamp is too tight. Reduce hoop pressure screw. Consider upgrading to magnetic hoops specifically designed to clamp without "burn."
   • No: Keep your current hooping method, but ensure you aren't over-tightening the screw after hooping.

Thread Count and Palette: Keep It Simple So Your First Test-Out Is Predictable

After fabric selection, the video keeps the design’s thread count and chooses the palette.

What the video sets

• Number of threads: 6
• Palette: RGB

This is a beginner-friendly choice: you’re not changing the design’s color structure yet—you’re only changing one outline color and one stitch style. Keeping the thread count the same reduces surprises.

Sensory Anchor: When threading your machine for these 6 colors later, pull on the thread through the needle. It should feel smooth with a slight resistance, similar to pulling dental floss between teeth. If it pulls hard (jerky), your tension is too high for this software preset.

“Select By → Pen Color”: The Fast Way to Grab Only the Outline Objects

Once the snowman is loaded, the video uses a very specific selection method: right-click a color swatch in the bottom row (the colors used in the embroidery), then select objects by pen color.

What to click (exactly as shown)

1. Find the dark blue color box in the bottom row (used thread colors).
2. Right-click that dark blue box.
3. Hover over Select by.
4. Choose Pen color.

Expected Visual Outcome: Use your eyes to verify. The blue outline elements—and only the blue outline elements—should have a bounding box or highlight around them on the canvas.

This is one of those “learn it once, use it forever” software habits. Selecting by attribute (pen color) is faster and safer than trying to lasso tiny outline segments—especially on designs with multiple small parts.

Change the Outline from Blue to Black (Click the Pen Icon, Not the Fill)

Now you’re going to reassign the outline color using the top row (available threads). The video is very specific about where to click on the color swatch.

What the video does

1. Go to the top row (available threads).
2. Find the Black color box.
3. Click the upper-left corner of the black box—the area indicated by a pen icon.

Expected Outcome: The snowman’s outline and eyes change from blue to black.

Analysis: This “pen vs fill” click target is a classic beginner trap. If you click the large center square (Fill), the software tries to fill the outline shape with stitches, creating a mess. You must aim for the tiny icon in the corner.

Make the Outline Actually Pop: Convert the Running Stitch to a 0.6 mm Double Stitch

After changing the color, the video zooms in, then thickens the outline by changing the width in Tool Options.

The key nuance: the eyes are separate objects. The video notes that when you click the outline again, the eyes are not linked—so you can thicken only the outer outline if that’s what you want.

What to click (and what you should see)

1. Select: Click only the outer outline (exclude the eyes if you don’t want them thickened).
2. Navigate: Go to Tool options (top toolbar).
3. Edit: Change the width value to 0.6 mm.
4. Confirm: Press Enter.

Expected Outcome: The outline changes from a single running stitch (a thin dash) into a double stitch or satin line. It will look significantly bolder on screen.

Why 0.6 mm? A standard running stitch is often swallowed by the "fuzz" of knit fabrics. 0.6 mm is the "Beginner Sweet Spot." It is thick enough to sit on top of the fabric surface (especially if you used water-soluble topping), but not so wide that it requires a complex satin stitch column.

Setup Checklist (before you save/export anything)

• Fabric: "Embroidery Normal Light → T-shirt Knit 1" is active.
• Palette: Thread count is 6; Palette is RGB.
• Selection: Outline objects were isolated via "Select by → Pen color."
• Color Tech: You clicked the small pen icon (not fill) to change to black.
• Structure: Outline width is 0.6 mm (Enter pressed).
• Visual Check: Zoom in to 200%. Is the outline visibly thicker? Are the eyes untouched (if that was the goal)?

The “Why” Behind These Choices: Underlay, Knit Behavior, and Outline Visibility

The video gives you the practical rule—choose the proper fabric to get the proper underlay. Here’s the deeper reason, in plain language.

• Knits deform under stitch tension. Even when they look stable in the hoop, they shift microscopically (0.1mm - 0.5mm) as the needle penetrates repeatedly.
• Underlay is your foundation. It helps lock the fabric to the stabilizer and supports top stitches so outlines don’t look wobbly or sink.
• A double stitch outline is more forgiving. A single running stitch can look thin or uneven on knit surfaces; a double stitch at 0.6 mm gives you a stronger visual edge and covers minor gaps between the fill and the border.

Production Insight: If you’re stitching on garments regularly, your hooping method becomes a bottleneck. Inconsistent placement leads to wasted shirts. A dedicated hooping station for embroidery can speed up alignment and reduce handling—especially when you’re doing the same placement repeatedly (left chest, center front, etc.).

Furthermore, if your hands or wrists get tired from clamping traditional hoops (the "wrist twinge"), a magnetic hooping station paired with magnetic frames can reduce repetitive strain. This upgrades your process from "struggling with screws" to "snap and go."

Comment Question: “Will There Be a Printable Copy?”—How Pros Turn Videos into a Repeatable Checklist

A viewer asked whether there will be a printable copy like other videos. The channel replied that a printable version is planned for the Creative DRAWings website soon.

Until you have that printable, here’s the pro move: make your own one-page “run card” (also known as a Standard Operating Procedure or SOP) for this exact workflow. In production, the difference between hobby speed and shop speed is documentation.

Time Check: Import + edit might take 5 minutes today. If you do it 50 times in a season for custom nametags or holiday gifts, that’s over 4 hours of labor. Learn the shortcuts now.

Troubleshooting the Two Most Common “Why Didn’t It Change?” Moments

Even sticking to the plan, things go wrong. Here is your structured troubleshooting guide.

The Upgrade Path (When You’re Ready): Faster Hooping, Cleaner Knits, and Less Rework

Once you can reliably edit designs in software, the software isn't the problem anymore. The bottleneck moves to your physical handling—especially on difficult items like knits.

Here’s a practical “tool upgrade” logic to help you decide when to invest:

• Level 1 (Hobbyist): If you hoop one shirt occasionally, your standard plastic hoop is fine. Just be gentle with tension screws and use fusible mesh stabilizer to keep the knit stable.
• Level 2 (Enthusiast): If you are hooping weekly and fighting alignment issues, consider a hooping station. This changes placement from an "eyeball guess" to a repeatable grid system.
• Level 3 (Pro/Production): If you are hooping bulk knits and seeing hoop marks (or you hate the hand pain of clamping), specific embroidery magnetic hoop options are the industry solution. They reduce hoop burn significantly and speed up loading by 30-50%, creating a safer environment for delicate fabrics.

Warning: Magnetic frames are powerful industrial tools. Keep strong magnets away from pacemakers and implanted medical devices. Always keep fingers clear of the "snap zone" when closing the frame to avoid painful pinching injuries.

Operation Checklist (your final “did I do Part 1 correctly?” test)

• File Path: The snowman file “Muneco de nieve” was successfully imported from Designs → 01 → Winter.
• Environment: The Hoop selection in the wizard matches the physical hoop you will use on the machine.
• Physics: Fabric preset is strictly set to Embroidery Normal Light → T-shirt Knit 1.
• Colors: Thread count is locked at 6; Palette is RGB.
• Selection: Dark blue outline objects were isolated using the precision method Select by → Pen color.
• Modification: Outline and eyes were changed to black by clicking the pen icon area.
• Refinement: Outer outline width is set to 0.6 mm, converting it to a durable double stitch.

Get your snowman to this exact point—imported, fabric set, outline black, outline thickened—and you’re ready for the next parts of the series where fills and lettering get more advanced.

FAQ

• Q: In Creative DRAWings, how do I import the “Muneco de nieve” embroidery design from the installation DVD without getting lost in folders?
  A: Use the exact DVD folder path and let the wizard return you to the design screen automatically.
  • Click New → From Embroidery → Browse.
  • Open DVD Drive → Designs → 01 → Winter → “Muneco de nieve” → Open.
  • Success check: the file browser closes and the snowman design appears on the canvas with the wizard flow continuing.
  • If it still fails: cancel any auto-install pop-up, then try browsing the DVD again (do not run the installer).
• Q: In Creative DRAWings, which fabric preset should be selected for a knit T-shirt so the underlay and pull compensation are correct?
  A: Select Embroidery Normal Light → T-shirt Knit 1 to keep outlines and fills lining up on knit garments.
  • Choose Embroidery Normal Light as the category, then T-shirt Knit 1.
  • Set a light background color so you can see stitch objects clearly on screen.
  • Success check: after stitching, outlines are not drifting away from fills (reduced gapping/oval distortion).
  • If it still fails: re-check that a knit stabilizing setup is used (cut-away mesh) and consider increasing pull compensation slightly (a safe, small starting change is often around 0.2 mm, but follow the software/machine guidance).
• Q: For a knit T-shirt embroidery test-out, what needles and stabilizers should be prepared before running the Creative DRAWings snowman design?
  A: For knit wearables, start with a 75/11 ballpoint needle and cut-away mesh stabilizer, and add topping if outlines sink.
  • Install Ballpoint 75/11 to reduce fiber cutting on knits.
  • Use Cut-away stabilizer (Mesh); avoid tear-away for stretchy jerseys.
  • Add temporary spray adhesive (like 505) or use sticky stabilizer to control shifting.
  • Success check: the shirt stays flat (not stretched) and stitches sit on the surface without tunneling or distortion.
  • If it still fails: add water-soluble topping to prevent outlines from getting “buried” in knit texture.
• Q: In Creative DRAWings, how do I select only the snowman outline objects quickly using “Select by → Pen color”?
  A: Right-click the used thread color in the bottom row and select by pen color to isolate only that outline group.
  • Find the dark blue color box in the bottom row (used colors).
  • Right-click → Select by → Pen color.
  • Success check: only the outline elements highlight (bounding box/selection) while other parts stay unselected.
  • If it still fails: confirm the click was on the bottom row used color, not the top-row palette.
• Q: In Creative DRAWings, why did the fill color change instead of the outline when changing the snowman outline from blue to black?
  A: Click the pen icon corner of the black swatch (not the center fill area) to change outline color.
  • Press Undo (Ctrl+Z) immediately if the fill changed.
  • Go to the top row palette, locate Black, and click the upper-left corner (pen icon target).
  • Success check: the snowman outline and eyes switch to black while fill areas do not suddenly become filled/altered.
  • If it still fails: zoom in and click precisely on the pen-icon corner—this is a common beginner mis-click.
• Q: In Creative DRAWings, how do I convert a running-stitch outline into a bolder 0.6 mm double stitch for knit visibility?
  A: Select the outline object and set the width to 0.6 mm in Tool options, then press Enter.
  • Click only the outer outline if you do not want the eyes thickened.
  • Open Tool options and change width to 0.6 mm, then press Enter.
  • Success check: at 200% zoom, the outline preview looks visibly thicker than a single running stitch.
  • If it still fails: re-check object selection (eyes and outline may be separate) and add topping on the physical knit if the stitched outline still looks sunken.
• Q: What safety rules should be followed when test-stitching an edited Creative DRAWings design to avoid needle-area injuries?
  A: Keep a strict 6-inch safe zone around the needle bar and never reach into moving parts during stitching.
  • Tie back hair and avoid loose sleeves before starting the machine.
  • Keep fingers away from the needle area while the machine is running, even during a “quick test.”
  • Success check: hands remain outside the 6-inch zone for the full stitch cycle, including starts/stops.
  • If it still fails: stop the machine fully before adjusting thread, fabric, or stabilizer—do not troubleshoot with motion active.
• Q: For knit T-shirts, how do I reduce hoop burn and distortion, and when should embroidery magnetic hoops or a multi-needle embroidery machine be considered?
  A: Start by reducing hoop pressure and stabilizing correctly; upgrade to magnetic hoops if hoop marks and handling time remain the bottleneck, and consider multi-needle equipment when volume demands it.
  • Level 1 (technique): Hoop neutral (flat, not stretched), reduce pressure screw, use cut-away mesh; add topping for outline-heavy designs.
  • Level 2 (tool): move to magnetic hoops if hoop marks, distortion, or hand strain persist with traditional friction hoops.
  • Level 3 (capacity): consider a multi-needle embroidery machine when repeated garment runs require faster color changes and consistent throughput.
  • Success check: fewer shiny hoop rings on knits, less re-hooping, and consistent outline alignment across multiple shirts.
  • If it still fails: verify garment type (very stretchy performance knits may need fusible no-show mesh) and review placement workflow to reduce repeated handling.
