Cowboy Ghost ITH Patch (and Magnet) in Baby Lock Palette 11: The Sewing Order That Saves Your Backing—and Your Sanity

If you have ever opened an ITH (In-The-Hoop) patch file and felt a wave of anxiety wash over you—thinking, “Okay… but when exactly do I put the fabric in? And if I mess this up, will I destroy my machine?”—stop. Take a breath. You are not alone.

Machine embroidery is 20% software and 80% physics. The Cowboy Ghost patch design in Baby Lock Palette Version 11 is a perfect example: it is a clean, repeatable structure, but it requires you to respect the Order of Operations.

In my two decades of training embroiderers, I have seen brilliant designs ruined by simple hesitation. This guide rebuilds the video’s walkthrough into an "Industry Whitepaper" standard workflow. We will decode the "Why" behind the density settings, establish safe speed limits for your machine, and introduce the professional tools that turn a struggle into a production line.

Don’t Panic: The Anatomy of an ITH Patch File

The design loads at 3.25" wide x 3.44" high with 5,889 stitches. To the untrained eye, the color list on the left looks like a chaotic list of instructions. But to a pro, this is a standard Architecture.

Almost every professional patch follows this "Sandwich Logic":

1. Placement Stitch (The Map): A fast run stitch on the stabilizer. Shows you exactly where to put your material.
2. Tack-down Stitch (The Anchor): Locks the material to the stabilizer.
3. Design Stitches (The Art): The fills, details, and satin columns of the character.
4. Backing/Magnet Tack-down (The Trap): The crucial pause point where you cover the ugly back side.
5. Satin Border (The Seal): The thick edge that hides raw fabric cuts.
6. Top Stitch (The Finish): The final aesthetic pass.

Once you see these "Milestones," the fear disappears. You are no longer guessing; you are executing a plan.

The "Hidden" Prep: Stabilizers, Consumables, and Physical Setup

Before we press "Start," we must address the variables that software cannot control: Fabric Physics and Hoop Tension.

1. The Substrate Strategy

For patches, standard tear-away stabilizer often fails because the needle perforations of the satin border act like a stamp, punching the stabilizer out before the patch is done.

• Expert Recommendation: Use Cutaway Stabilizer (2.5oz - 3.0oz). It provides the permanent skeleton the patch needs.
• Patch Material: Use a twill or designated patch fabric. Pre-shrink and iron it.

2. The Hooping Variable

A major pain point for beginners is "Hoop Burn"—the permanent ring marks left on delicate patch leather or velvet by standard plastic hoops. Furthermore, wrestling stiff patch material into a screw-tightened hoop often leads to "trampolining" (where the fabric is loose in the center).

This is a specific scenario where a magnetic hooping station earns its keep. By using magnetic force rather than friction, you eliminate hoop burn and ensure the stabilizer acts as a perfectly flat foundation. If you struggle with hand strength or consistency, this tool upgrade solves the physical battle before the stitching begins.

Prep Checklist (Pre-Flight Safety Check)

• Needle Check: Install a fresh 75/11 Sharp or Topstitch needle. (Ballpoint needles can struggle with stiff patch twill).
• Bobbin Check: Ensure you have a full bobbin. Running out during a satin border is a nightmare to fix invisibly.
• Fabric Cut: Patch front material is cut at least 1" larger than the placement outline on all sides.
• Plan the Back: Backing piece is cut and ready. If utilizing a magnet, ensure it is the correct ceramic or neodymium disc size.
• Consumables: Have Appliqué Scissors (Duckbill) and Temporary Spray Adhesive (e.g., 505 or KK100) on hand.

Warning: Blade Safety. Trimming appliqué requires placing your fingers dangerously close to the fabric. Always stop the machine completely. Keep your non-cutting hand behind the blade direction. If you drop your scissors, let them fall—never try to catch them.

Phase 1: The Foundation (Steps 1-2)

The video highlights the first two critical stops. Here is the sensory feedback you need to look for:

1. Placement Stitch: Run this directly on your stabilizer.
2. The "Sticky" Step: Spray the back of your patch material lightly with adhesive. Place it over the outline.
3. Tack-down Stitch: This locks the fabric.
   • Visual Check: Is the fabric flat? No ripples.
   • Auditory Check: Listen to the machine. A consistent thump-thump is good. A slapping sound means the fabric is flagging (bouncing).

If your patch creates a "bubble" in the center after tack-down, your hoop tension was loose. This is a common entry point for users to upgrade to magnetic embroidery hoop systems, which clamp the entire perimeter continuously, preventing the fabric push-pull that causes bubbles.

The Physics of Density: Why "Half of Default 114" Matters

The walkthrough notes that the background fill is intentionally light, with density set to half of the default 114.

Why explain this? Beginners often think "Higher Density = Better Quality." This is false.

• The Problem: High density adds thousands of needle penetrations. This generates Heat (friction) and Displacement (pushing fabric fibers apart).
• The Result: A dense patch will curl up like a potato chip (the "Domed" effect) and feel stiff as cardboard.
• The Fix: Lowering density allows the fabric to breathe. The patch lays flat, feels flexible, and reduces thread breakage.

Expert Rule of Thumb: For fill stitches on patches, aim for 0.45mm to 0.55mm spacing (in generic terms), or follow the video's specific software percentage reduction. Trust the "light" look on screen; the thread has volume and will cover better than you think.

Triple Stitch Details: Managing Needle Stress

The eyes, spots, and hat utilize a Triple Stitch (bean stitch). This involves the needle entering the same hole (or micro-steps forward/backward) three times to create a bold line.

• Risk: Triple the penetrations = Triple the heat.
• Mitigation: If you hear the machine laboring or see the thread shredding:
  1. Slow Down: Drop your speed to 600 SPM (Stitches Per Minute) for these details.
  2. Check Tension Check: The top thread should sit smoothly. If it looks tight or is pulling bobbin thread to the top, loosen top tension slightly.


The "Critical Pause": Adding the Backing or Magnet

This is the moment that defines the ITH (In-The-Hoop) process. We are at Color Stop #9 (in this specific file).

The Workflow:

1. STOP the machine. Do not just pause; ensure it won't restart if you bump the pedal.
2. Remove the Hoop: Do not un-hoop the stabilizer! Just take the frame off the pantograph.
3. The Flip: Turn the hoop over.
4. Placement:
   • Magnet Version: Place the magnet in the designated spot (usually secured with tape). Cover with backing fabric.
   • Standard Patch: Stick your backing fabric (matching color) over the exposed back stitches using spray adhesive or painter's tape to hold the corners.
5. Re-attach: Slide the hoop back in carefully. Ensure the backing didn't peel off underneath.
   • Tactile Check: Slide your hand under the hoop (if safe) to feel that the backing is still flat.

Efficiency Note: If you are producing 50+ of these, the "On/Off" process becomes exhausting with screw hoops. Production environments favor magnetic embroidery hoops here because they are lighter and easier to manipulate during these frequent interruptions.

Warning: Magnet Safety Hazard. If inserting neodymium magnets, be extremely careful. They can snap together with crushing force, pinching skin severely. They can also interfere with pacemakers. Store them away from computerized machine screens and credit cards.

The Finish Line: Satin Border & Top Stitch

Once the backing is tacked down, you MUST trim the excess backing fabric.

• The Rule: Trim as close to the tack-down line as possible (0.5mm - 1mm).
• The "Why": If you leave excess backing, the satin stitch will try to cover it, resulting in a lumpy, uneven edge that looks amateur.

The Satin Stitch (Orange Border):

• Speed Limit: I recommend capping speed at 600-700 SPM here. The needle is swinging wide (Zig-Zag). High speed causes increased vibration and "wobble," making the edge look jagged.
• Top Stitch: This final triple-stitch pass acts as a "compression seal." It presses the satin threads down, making the edge look crisp and durable.

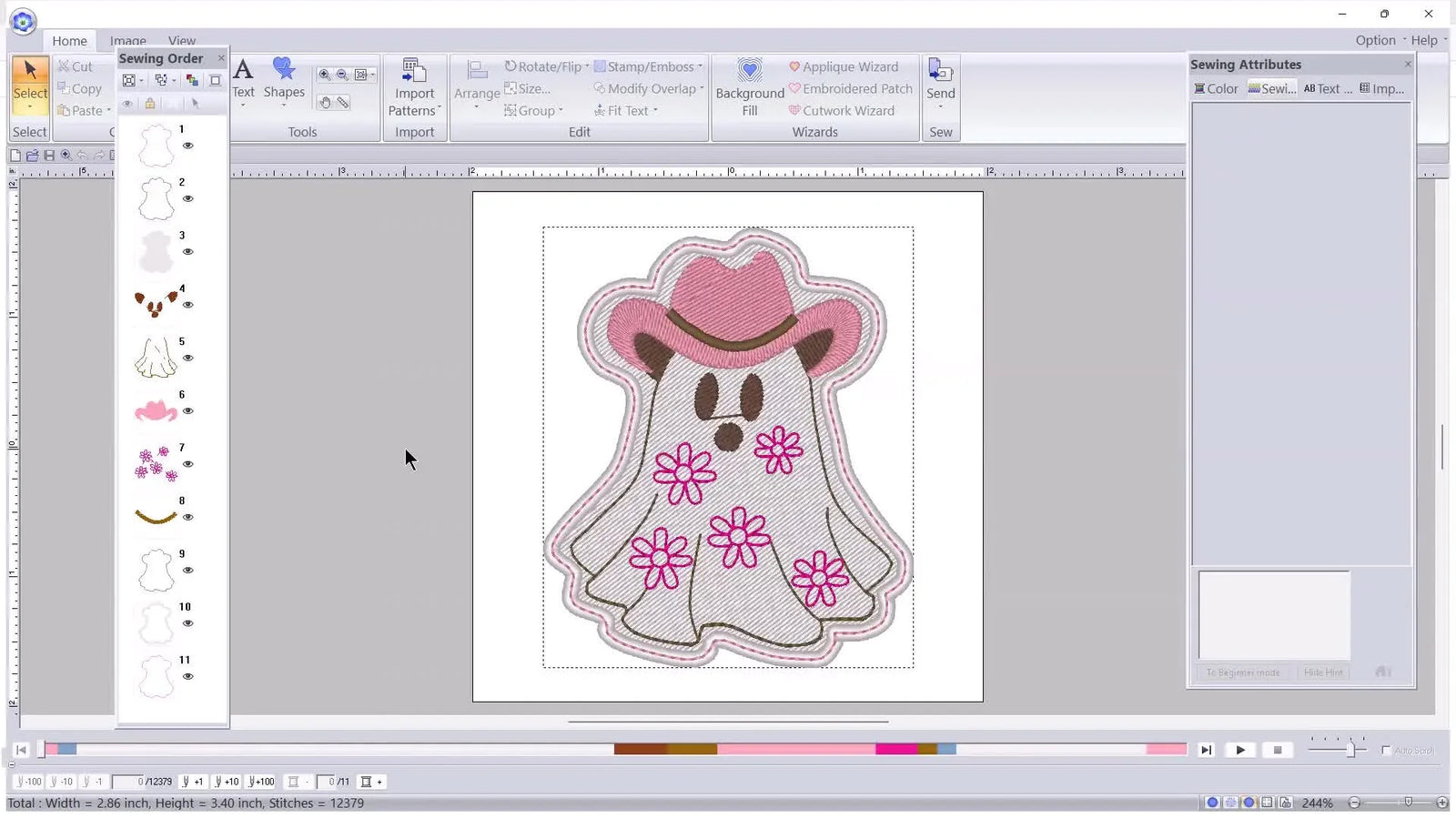

Software Simulation: The Palette 11 Advantage

The presenter changes colors in software to preview the Ghost. Pro Tip: Use this feature to check Contrast. A patch needs high readability from 3 feet away. If your screen preview looks "muddy" or the text blends into the background, it will look worse in thread. Adjust your digital thread colors to verify contrast before you thread the machine.

For those researching how to use magnetic embroidery hoop configurations in production, note clearly in your software file (using the "Notes" tab) which hoop size you used. Consistency in software setup leads to consistency in physical output.

Batch Processing: Cowboy vs. Cowgirl

The structure remains identical between the two designs. This is the secret to profitability.

• Muscle Memory: You learn exactly when to pause, where to trim, and how to position the magnet.
• Batching: Cut all your squares of fabric and backing at once. Stage them in piles.
• Commercial Reality: If you plan to sell these, timing matters. A single-needle machine requires a manual thread change for every color stop.
  • The Pain Point: If you find yourself spending more time changing thread than stitching, you have outgrown your equipment.
  • The Solution: This is the specific trigger point to consider a Multi-Needle Machine (like SEWTECH alternatives). They auto-change colors, holding 10-15 spools at once, allowing you to walk away during the run.


The Map: How to Read the PDF Instructions

The included PDF is not trash; it is your flight manual.

• Map the Stops: Mark clearly which step number is the BACKING PAUSE. (In this case, #9).
• Write it Down: Use a sticky note on your machine screen: "STOP AT #9." It is easy to get hypnotized by the machine rhythm and miss the pause, ruining the patch.


Decision Tree: The "Right" Way to Build Your Stack

Do not guess. Follow this logic path to determine your materials.

Q1: Is this a magnet or a sew-on patch?

• Magnet: You MUST pause at the backing step to insert the magnet. Use a backing fabric that looks good (felt or vinyl).
• Sew-on: You can skip the fancy backing. Just use a matching twill on the back to hide the bobbin threads.

Q2: Is the patch covering a large area (3"+)?

• Yes: Use Cutaway stabilizer.
• No (Small 1" icons): Tearaway might assume, but Cutaway is safer.

Q3: Are you fighting hoop burn?

• Yes: Switch to an embroidery magnetic hoop. The flat clamping avoids the "ring of death" on sensitive fabrics.
• No: Ensure your standard hoop is "finger tight" plus one turn with a screwdriver—no more.


Setup Checklist (The "Go/No-Go" Check)

• Design is loaded and orientation is correct (up is up).
• Stop #9 (Backing Step) is identified mentally or marked.
• Top thread tension is tested (do an 'H' test on scrap fabric).
• Bobbin area is free of lint (lint causes uneven tension loops).
• Scissors are within reach but not on the machine table (vibration makes them walk).


Troubleshooting: Symptoms & Solutions

When things go wrong, use this diagnostic table. Always start with the physical/cheap fixes.

The Commercial Bridge: When to Upgrade

If you are making one patch for a grandchild, patience is free. If you are fulfilling an order for a local sports team, time is money.

• The Stabilizer Upgrade: Stop using scraps. Buy rolls of professional Cutaway.
• The Hooping Upgrade: If you dread the physical act of hooping, or if standard hoops pop open under thick patch layers, baby lock magnetic embroidery hoops (and compatible generic versions) create a commercial-grade grip without the physical strain.
• The Machine Upgrade: When your "fun hobby" feels like a "sweatshop job" because of thread changes, look into multi-needle machines. SEWTECH offers robust entry points into this world that bridge the gap between domestic and industrial.


Operation Checklist (During the Run)

• Step 1-2: Run Placement. Place fabric. Check: Is it covering all lines?
• Step 3: Run Tack-down. Action: Trim excess fabric if necessary (depending on style).
• Step 4-8: Run Design. Listen: Any rhythmic clicking? (Thread shredding warning).
• Step 9 (PAUSE): Remove Hoop. Insert Magnet/Backing. Tape it down. Return Hoop.
• Step 10: Run Backing Tack-down. CRITICAL: Remove hoop again and trim backing flush to stitches.
• Step 11-12: Run Satin & Top Stitch. Speed: Reduced to ~650 SPM.
• Finish: remove from hoop, seal edges with heat (if using heat-seal), and inspect.


If you follow the "Sandwich Logic"—Stabilizer, Fabric, Design, Backing, Border—you remove the variable of luck. You are no longer hoping for a good patch; you are engineering one.

Master this Cowboy Ghost, and you have mastered the fundamental physics of every ITH patch you will ever encounter.

FAQ

• Q: In a Baby Lock Palette 11 ITH patch file, when should the backing fabric or magnet be added at Color Stop #9?
  A: Add the backing (or insert the magnet + cover fabric) at the planned “Critical Pause” at Color Stop #9—stop completely, remove the hoop from the machine, flip, place, then re-attach.
  • Stop: Turn the machine fully STOP (not just pause) so it cannot restart accidentally.
  • Remove: Take the hoop/frame off the arm but do not un-hoop the stabilizer.
  • Place: Flip the hoop, position magnet (if used) and cover with backing fabric; secure corners with tape if needed.
  • Re-attach: Slide the hoop back in carefully so the backing stays flat.
  • Success check: Run a hand/visual check that the backing is fully flat underneath with no lifted corners before stitching resumes.
  • If it still fails: Add painter’s tape to backing corners (outside the stitch area) to prevent peel-up during the next tack-down.
• Q: For an ITH patch in Baby Lock Palette 11, what stabilizer weight should be used to prevent the satin border from punching out tear-away?
  A: Use cutaway stabilizer around 2.5 oz–3.0 oz for patches so the border stitches don’t perforate and “stamp” the stabilizer loose mid-run.
  • Choose: Hoop one layer of cutaway as the base “skeleton.”
  • Prep: Pre-shrink and iron patch twill/patch fabric before placing it.
  • Cut: Keep patch fabric at least 1" larger than the placement outline on all sides.
  • Success check: After tack-down, the center should stay flat (no bubble) and the stabilizer should not tear at stitch perforations.
  • If it still fails: Re-check hooping tension and reduce speed on the satin border to limit distortion.
• Q: In a Baby Lock Palette 11 ITH patch workflow, how can hoop tension be checked to prevent “bubbles” after the tack-down stitch?
  A: Hoop so the fabric/stabilizer stack is uniformly flat—bubbles after tack-down usually mean the hooping was too loose.
  • Hoop: Re-hoop so the stabilizer is flat and the patch fabric is firmly anchored before tack-down.
  • Secure: Use light temporary spray adhesive on the back of the patch material before placing.
  • Listen: Pay attention during tack-down—slapping sounds often indicate fabric flagging/bouncing.
  • Success check: After tack-down, the surface should look smooth with no ripples, and the machine sound should be a steady, consistent “thump-thump.”
  • If it still fails: Consider switching to a magnetic embroidery hoop system to clamp the perimeter continuously and reduce push-pull shifting.
• Q: In a Baby Lock Palette 11 ITH patch, why does reducing fill density to about half of default “114” help prevent a domed or stiff patch?
  A: Lowering density reduces heat and fabric displacement, helping the patch stay flatter and more flexible instead of curling like a “potato chip.”
  • Reduce: Follow the file’s approach (about half of the default 114) for the background fill rather than increasing density for “coverage.”
  • Watch: Expect thread volume to cover more than the screen preview suggests.
  • Aim: Use a safe starting point of roughly 0.45 mm–0.55 mm spacing for patch fills (adjust as needed for fabric and thread).
  • Success check: The stitched area should lay flatter and feel less like stiff cardboard, with fewer thread breaks.
  • If it still fails: Re-check stabilizer choice (cutaway) and slow down during dense detail areas to reduce stress.
• Q: On a Baby Lock embroidery machine running a Baby Lock Palette 11 ITH patch, what speed limit helps prevent jagged satin borders and triple-stitch needle stress?
  A: Cap speed around 600–700 SPM for satin borders and slow to about 600 SPM for triple-stitch detail areas to reduce wobble, heat, and shredding.
  • Slow: Drop speed before the satin border and before triple-stitch elements like eyes/spots/hat details.
  • Inspect: If thread looks shredded or the machine sounds strained, stop and replace the needle.
  • Adjust: If bobbin thread is pulling to the top, loosen top tension slightly after re-threading correctly.
  • Success check: Satin edges look smooth (not wavy/jagged) and triple-stitch lines sew without repeated snapping or fraying.
  • If it still fails: Change to a fresh 75/11 Sharp or Topstitch needle and confirm the fabric is not flagging in the hoop.
• Q: In a Baby Lock Palette 11 ITH patch, how do you fix white bobbin thread showing on top during stitching?
  A: Re-thread the top path and confirm the bobbin is seated correctly—white bobbin showing on top usually indicates top tension too tight or bobbin thread not in the tension spring.
  • Re-thread: Completely re-thread the top thread path and “floss” it into the tension discs.
  • Reseat: Remove and reinstall the bobbin so the thread clicks into the bobbin tension spring.
  • Clean: Clear lint from the bobbin area because lint can cause uneven tension loops.
  • Success check: The top stitching should look clean with minimal bobbin color popping to the surface.
  • If it still fails: Do a small tension test on scrap (such as an “H” test) and adjust top tension in small steps.
• Q: What are the key safety rules for trimming appliqué and handling neodymium magnets during a Baby Lock Palette 11 ITH patch run?
  A: Stop fully before trimming and treat neodymium magnets as a pinch hazard—both steps are common risk points and should be handled slowly and deliberately.
  • Stop: Turn the machine completely off/stop before trimming; never trim while the machine can move.
  • Cut: Keep the non-cutting hand behind the blade direction; if scissors drop, let them fall (do not catch).
  • Handle: Keep neodymium magnets separated; prevent snap-together crushing force and keep them away from pacemakers.
  • Store: Keep magnets away from machine screens/electronics and items like credit cards.
  • Success check: Trimming is controlled with no near-miss finger contact, and magnets are placed without snapping together or shifting during stitching.
  • If it still fails: Use tape to secure the magnet position and slow the workflow—rushing is the main cause of injuries and placement mistakes.
• Q: For high-volume ITH patch production in Baby Lock Palette 11, when should a user move from technique tweaks to magnetic hoops to a multi-needle machine?
  A: Upgrade in layers: first stabilize and slow down, then reduce hooping friction with magnetic hoops, and consider a multi-needle machine when thread changes dominate production time.
  • Level 1 (Technique): Use cutaway stabilizer, mark the backing pause at Color Stop #9, and run borders at 600–700 SPM.
  • Level 2 (Tool): Switch to magnetic hoops if hoop burn occurs, hooping is inconsistent, or frequent hoop removal/re-attachment is physically exhausting.
  • Level 3 (Capacity): Move to a multi-needle machine when manual color changes on a single-needle machine take more time than actual stitching.
  • Success check: Output becomes repeatable (flat patches, clean borders) and total cycle time per patch drops without quality loss.
  • If it still fails: Batch-cut fronts/backings and stage materials in piles so the machine is not waiting on prep steps.
