Couture Jacket Embroidery That Doesn’t Warp: Template Placement, Tricot Fusing, and a Realistic Rose Stitch-Out on a 15-Needle Machine

Based on the latest industry standards and empirical data from professional embroidery workshops, here is the calibrated, whitepaper-style guide for couture jacket embroidery.

When you embroider a couture jacket, you’re not just decorating fabric—you’re committing to a decision that has to survive tailoring, pressing, lapel roll, seam allowances, and the brutal honesty of close-up viewing.

In this project, Susan Elias plans custom embroidery for a peak lapel jacket. We will walk through the exact workflow expected from someone who understands garments first and embroidery second: mapping placement on a dress form with a hoop-sized paper template, fusing tricot interfacing to cotton twill for the "right weight," and executing a realistic rose stitch-out.

Below is the same process, rebuilt into a clear, operational checklist-driven method, incorporating sensory checks and safety protocols to ensure your success.

Pin the Paper Hoop Template on a Peak Lapel Jacket First—Before You Ruin a Seam Allowance

Susan’s first move is the one most amateurs skip: she cuts a paper circle to match the inner diameter of the embroidery frame and pins it directly onto the toile (muslin) jacket on a mannequin.

Why this prevents failure:

1. The "Inner Hoop" Reality: Beginners often look at the outer plastic ring of the hoop. That is irrelevant. Only the inner clearing matters. The paper template represents the "Live Stitch Zone."
2. Physics of the Fold: A rose that looks perfect on a flat table may disappear entirely when the lapel folds back. You are embroidering a 3D object, not a 2D sheet.

Sensory Check: When you fold the lapel over the paper template, the embroidery should not feel "choked" or hidden. It should breathe.

Pro Tip: If you struggle with garment proportions, treat embroidery placement like pattern alterations—work in the stable zones (chest plate, back yoke) first. Avoid placing heavy satin stitches directly over a dart tip or a seam allowance unless you are an expert at bulk reduction.

The "Hidden" Prep Checklist: Placement Planning on a Dress Form

• Create the Template: Cut a paper circle/rectangle matching your hoop's inner measurements exactly.
• The 360 Check: Pin the template and view from the Front, Side, and 3/4 angle.
• The "Roll" Test: Manually fold the lapel to its finished position. Does the design distort?
• Seam Safety Zone: Mark a 15mm (approx. 5/8") buffer from any raw edge to prevent the hoop from crushing the seam allowance later.
• Scale Verification: Ensure the chosen motif size (Susan recommends testing multiple sizes) fits visually without overwhelming the wearer's frame.


Fuse Tricot Interfacing to Cotton Twill Without Making the Jacket Feel Like Cardboard

Susan stabilizes the brown cotton twill by fusing black tricot interfacing to the back. She chooses tricot because it has a knight structure (stretch), glue on one side, and provides the "right weight."

The Science of "Hand": Couture embroidery is a battle between Stability (what the machine needs) and Drape (what the jacket needs).

• Too Stiff: Using heavy cutaway stabilizer on a lapel creates a "bulletproof vest" effect. The lapel will crease, not roll.
• Too Loose: Using no stabilizer causes the dense rose stitches to pull the fabric, creating puckers.

The Solution: Tricot allows the fabric to move slightly but provides a unified base. By interfacing the entire panel (not just the spot behind the flower), Susan ensures the fabric reacts to humidity and washing uniformly.

Warning: Thermal Safety
Steam irons and fusible adhesives are a leading cause of workshop injury.
* Heat: Cotton usually tolerates high heat (Setting 3/Wool-Cotton), but always test.
* Glue: Ensure the "bumpy" adhesive side faces the fabric, not your iron.
* Pressing: Do not "iron" (slide back and forth). Press (lift up, move, push down). Sliding distorts the grain line before the glue sets.

Decision Tree: Choosing Stabilization for Garment Embroidery

Use this logic flow to determine your backing strategy.

1. Is the fabric stable and medium-weight (e.g., Cotton Twill, Denim)?
   • YES: → Fusible tricot over the entire zone is often sufficient for a couture hand.
   • NO: → Go to Step 2.
2. Is the fabric stretchy, thin, or unstable (e.g., Jersey, Silk, Rayon)?
   • YES: → You need a compound system. Fuse tricot/mesh permanently, and float a layer of crisp tearaway or cutaway underneath during stitching for temporary rigidity.
   • NO: → Go to Step 3.
3. Is the design extremely dense (Solid fills, >15,000 stitches)?
   • YES: → Tricot alone may fail. Add a layer of "No-Show Mesh" (Nylon Mesh) in the hoop for unseen support that won't stiffen the jacket.
   • NO: → Proceed with the tricot method.

Prep Checklist: Fusing Interfacing for an Embroidery Zone

• Coverage: Cut interfacing to cover the entire pattern piece (or at least 4 inches past the hoop area).
• Tactile Check: Rub the interfacing. Rough side = Glue side. Place rough side DOWN on the wrong side of the fabric.
• The Press: Apply heat/steam for 10-15 seconds per section (count it out).
• Cool Down: Crucial Step. Let the fabric cool completely flat for 60 seconds before moving it. Moving hot fabric breaks the glue bond.
• Supplies: Ensure you have enough interfacing. (Susan notes she’s nearly out—don't start a project without a full roll).


Treat a 15-Needle Embroidery Machine Like a Production Tool—Even for One Couture Jacket

The stitch-out is performed on a PRO 1501-II style multi-needle setup. While you can embroider on a single-needle home machine, a 15-needle machine changes the workflow from "hobby" to "production."

Why Tooling Matters: In a production environment, hooping is often the bottleneck. Traditional screw-tightened hoops are notorious for "Hoop Burn" (crushing the velvet or twill fibers, leaving a permanent white ring) and causing wrist strain.

The Upgrade Path: If you are struggling with hoop marks on delicate jacket fabrics, or if hooping takes you longer than 2 minutes per piece, professionals switch to Magnetic Hoops.

• Advantage: They hold fabric with magnetic force rather than friction, eliminating hoop burn.
• Search Intent: Many professionals search for how to use magnetic embroidery hoop when they encounter hoop burn issues on velvet or twill.
• Compatibility: For optimal results, ensure the magnetic frame is rated for your machine's arm width.

Also, consider a hooping station for machine embroidery. This is a physical jig that ensures every jacket pocket is hooped in the exact same spot, crucial for consistency when making more than one item.

Thread Paths and Tension Knobs: Do a 30-Second "Feel and Listen" Check Before the First Stitch

Before pressing start, Susan inspects the multi-needle head. Do not trust the machine blindly.

The "Floss" Test (Tactile Check): Pull the thread through the needle eye manually (with the presser foot down/engaged).

• Correct: It should feel like pulling dental floss between teeth—distinct resistance, but smooth.
• Too Loose: threads fly out? Check the tension discs.
• Too Tight: Needle bends? Loosen the knob.

The Bobbin Check (Visual): Look at a previous test stitch. The white bobbin thread should occupy the center 1/3 of the satin column on the back. If you see top thread loops on the bottom, your top tension is too loose.

Speed Limit Recommendations:

• Commercial Standard: 800 - 1000 SPM (Stitches Per Minute).
• Couture/Safe Mode: 600 - 700 SPM. For a one-off jacket, speed is not the goal. Quality is. Slowing down reduces friction heat and thread breakage risk.

Setup Checklist: Before You Hit Start

• Hoop Security: Lock the hoop arms. Shake the hoop gently—it should not rattle.
• Needle Clearance: Manually lower the needle (Trace function) to ensure it doesn't hit the hoop frame.
• Thread Path: Check for "pigtails" or tangles at the thread tree on top of the machine.
• Bobbin: Ensure a full bobbin is loaded. (Running out mid-rose leaves a visible splice).
• Sensory Check: Run the machine for 5 seconds. Listen. A rhythmic "thump-thump" is good. A sharp "clack-clack" means a needle is hitting something or the bobbin case is loose.

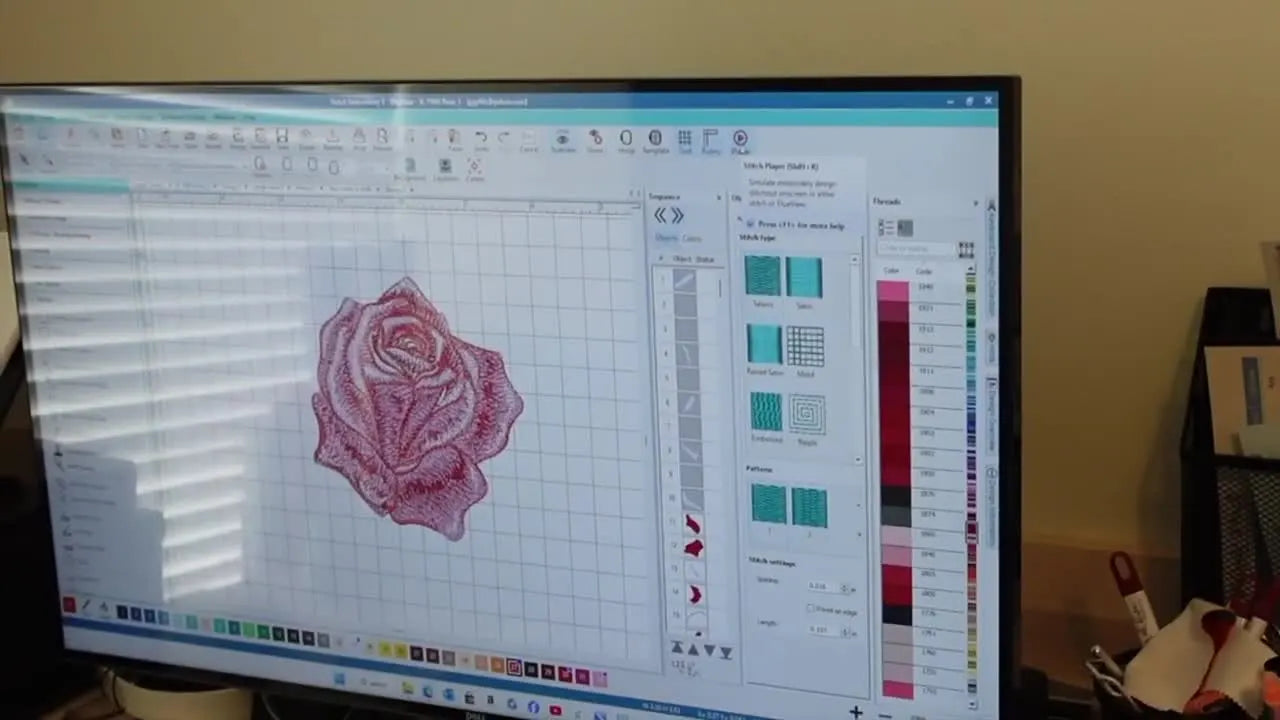

Build a Realistic Rose in Wilcom by Layering Shades—Not by Drawing a Heavy Satin Outline

The digitizer explains a critical concept: Realism comes from Light and Layering, not outlines.

The "Cartoon Trap": Beginners often use auto-digitizing software that puts a heavy satin border around every petal. This creates a "coloring book" or "patch" look.

• Couture Approach: The digitizer uses a "Fringe" or "Jagged" edge technique. He layers dark thread, then mid-tones, then highlights on top. The edges are undefined, blending into the fabric like a painting.

Learning Resource: If you are using software like Wilcom or Hatch, search specifically for a Wilcom Digitizing Tutorial regarding "complex fills" and "blending." Understanding stitch angles (how light hits the thread) is the difference between a flat red blob and a 3D rose.

The Color Sequence That Creates 3D Depth: Dark Red → Pink → White Highlights → Deeper Shadow

The Physics of Thread: Thread is reflective. A vertical stitch looks different from a horizontal stitch. To maximize this, Susan and the digitizer plan the sequence:

1. Dark Base: Establishes the deepest shadow.
2. Mid-Tones (Pink): Creates the body of the petal.
3. Highlights (White/Pale Pink): Hits the "curled" edges of the petals.
4. Deep Shadow: A final pass of very dark red/black to separate the petals visually.

Pro Tip: If you have a multi-needle machine, set these up on needles 1-4 respectively. This eliminates the stop-start time of changing threads on a single-needle machine.

Skip the "Cartoon Flower" Trap: Texture Edges Beat Borders for Couture Embroidery

Troubleshooting a common design failure:

• Symptom: The flower looks like a corporate logo or a sports mascot patch.
• Cause: Hard satin borders contain the design, making it stiff and graphical.
• Fix: Use Texture Fills (Tatami) with varied angles. Remove the border. Let the needle penetrations create the edge.

On a jacket lapel, a hard border fights the fabric's drape. A textured edge moves with the fabric.

Paper Reference vs. Screen Preview: The Fastest Reality Check Before You Stitch

Susan compares the printed paper design to the screen. Why do this? Screens lie about scale. A 1000% zoom makes everything look huge. The paper printout is your 1:1 reality check.

• Metric: Place the paper printout on the jacket again just before stitching. Did you load the correct file size? (e.g., The "Large" rose vs "Medium" rose).


Thread Wall to Desk: Choose Spools Like a Colorist, Not Like a Shopper

Susan selects threads from a wall rack. Hidden Consumable Alert:

• Needles: For Cotton Twill + Interfacing, use a 75/11 Sharp or Universal needle. If your needle is dull, it will push the fabric down into the throat plate, causing "bird nesting."
• Spray Adhesive: Keep a can of temporary spray adhesive nearby if you are floating any extra stabilizer.


Hoop the Cotton Twill in a Standard Tubular Hoop—But Don’t Let the Hoop Decide Your Design

Susan uses a standard green tubular hoop. The Hooping Challenge: Hooping thick twill + interfacing requires hand strength. It must be "Drum Tight."

• Tactile Test: Tap the fabric in the hoop. It should sound like a dull drumskin. If it ripples when you push it, it is too loose. Loose fabric = Puckering.

Tooling Upgrade - Magnetic Hoops: This is where terms like magnetic embroidery hoop become relevant for production work. Unlike the screw hoop shown, a magnetic hoop snaps the fabric in place instantly without requiring force or adjustment screws. It is safer for the fabric grain.

• While brands like hoopmaster and dime snap hoop offer solutions, ensure you choose a magnetic frame with high clamping force—especially for jackets where layers (lining + twill) can be thick. The 5.5 mighty hoop is a popular size reference, but the key is finding the right magnetic fit for your specific machine arms.

Warning: Magnet Safety
Professional magnetic hoops use neodymium magnets.
* Pinch Hazard: They snap together with enough force to crush fingers. Handle by the edges.
* Medical Devices: Keep away from pacemakers.

Nudge the Nodes, Save the Petal: Small Vector Edits Prevent Big Stitch Problems

The digitizer adjusts the Bezier curves (nodes) on projection. The 1mm Rule: On a screen, a 1mm gap looks invisible. On fabric, a 1mm gap between colors looks like a hole. The digitizer must add Pull Compensation—intentionally overlapping the shapes so that when the thread pulls the fabric tight, the gaps close perfectly.

The First Stitches Tell the Truth: Start with the Dark Red Base and Watch for Distortion Early

The "2-Minute Rule": Do not walk away during the first 2 minutes.

• Watch for "Flagging": If the fabric bounces up and down with the needle, your hooping is too loose. Stop immediately. Flagging causes skipped stitches and wire breaks.
• Sound Check: A rhythmic purr is good. Grinding or distinctive "slapping" sounds indicate tension issues.


When the Fill Builds Up, Don’t Panic—Evaluate Density, Direction, and the Hand of the Fabric

As the rose fills in:

• Check for Puckering: Look at the perimeter of the rose. Is the twill rippling? If yes, your stabilizer was insufficient or hoop tension was low.
• Check Density: Is the rose becoming a rigid "rock"? If so, note this for the next file revision—the density needs to be reduced (e.g., from 0.40mm spacing to 0.45mm spacing).

Operaion Checklist: During the First Test Stitch-Out

• Start Watch: Observe the first 1000 stitches closely.
• Underthread Check: after the first color change, flip the hoop slightly to check the back. Is the tension balanced (1/3 white bobbin)?
• Drift Check: Is the design staying centered? (Relevant if using a weak hoop).
• Completion: Upon finishing, remove from hoop and Press (using a pressing cloth). Do not judge puckering until the fabric has rested and been steamed.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

The Commercial Logic: When to Upgrade Your Tools?

The workflow above works for one jacket. But what if you need to produce 50 corporate jackets?

1. The Pain: Hooping takes too long and hurts your wrists.
   • The Upgrade: Magnetic Hoops. They standardize tension and reduce hooping time to seconds.
2. The Pain: You are constantly re-threading for color changes.
   • The Upgrade: Multi-Needle Machine. A 15-needle machine allows you to load the entire palette (Red, Pink, White, Dark Red) once and run the job continuously.
3. The Pain: Inconsistent placement.
   • The Upgrade: Hooping Station. A jig that ensures the rose lands on the exact same spot on the lapel, every single time.

By mastering the manual skills first (as Susan did), you will know exactly when the volume of work justifies the investment in better infrastructure.

FAQ

• Q: How do I verify the correct embroidery placement on a peak lapel jacket using a paper hoop template with a tubular embroidery hoop inner diameter?
  A: Use a paper template that matches the hoop inner opening exactly, then test the lapel roll before stitching.
  • Cut: Match the hoop inner dimensions (the “live stitch zone”), not the outer ring.
  • Pin: Place the template on the toile/garment on a dress form and view from front, side, and 3/4.
  • Fold: Roll the lapel to its finished position and confirm the motif is not hidden or distorted.
  • Success check: With the lapel folded, the template area should still “breathe” and not feel choked or swallowed by the roll.
  • If it still fails: Resize the motif (test multiple sizes) or move placement into a more stable zone and keep a ~15 mm buffer from raw edges/seam allowances.
• Q: How do I fuse tricot interfacing to cotton twill for jacket embroidery without making the lapel feel like cardboard?
  A: Fuse tricot with a press-and-cool method and cover the whole panel so the jacket keeps drape while gaining stability.
  • Identify: Feel the interfacing—rough/bumpy side is the glue side, and it must face the fabric (wrong side).
  • Press: Use a lift-and-press motion (do not slide) and hold each section 10–15 seconds.
  • Cool: Let the piece cool completely flat for about 60 seconds before moving it.
  • Success check: The panel should feel unified and supported, but the lapel should still roll rather than crease like a board.
  • If it still fails: Add a temporary floated stabilizer layer during stitching (often used as a compound system on unstable fabrics) and retest on a sample first.
• Q: How do I judge “drum tight” hooping on thick cotton twill plus interfacing using a standard tubular embroidery hoop to prevent puckering?
  A: Hoop until the fabric is truly firm and evenly tensioned—loose hooping is the fastest path to puckering and flagging.
  • Tighten: Hoop with even tension across the entire opening; avoid pulling grain off-axis.
  • Tap: Tap the hooped fabric surface before mounting it on the machine.
  • Lock: Secure hoop arms and gently shake—nothing should rattle.
  • Success check: The fabric should sound like a dull drumskin when tapped and should not ripple when pressed with a finger.
  • If it still fails: Stop early if the fabric bounces (flagging) and re-hoop; if hooping is consistently slow or leaves marks, consider a magnetic hoop as a workflow upgrade.
• Q: How do I do a 30-second multi-needle embroidery machine tension check using the floss test and the 1/3 bobbin rule before stitching a dense rose?
  A: Confirm smooth, controlled top-thread resistance and balanced bobbin presentation before the first stitch to avoid loops, breaks, and distortion.
  • Pull: With the presser foot engaged, pull the top thread through the needle—aim for a “dental floss” resistance (smooth but distinct).
  • Inspect: Check a prior test stitch—on the back, white bobbin thread should sit in the center ~1/3 of satin columns.
  • Listen: Run 5 seconds and listen for a steady rhythmic sound, not sharp clacking.
  • Success check: The thread pull feels consistent and the back-of-design tension shows the centered 1/3 bobbin indication.
  • If it still fails: If white bobbin shows on top, reduce top tension; if the machine clacks, stop and check for needle-to-hoop contact or a loose bobbin case.
• Q: How do I prevent needle breaks on a 15-needle embroidery machine when stitching near a tubular hoop on a jacket panel?
  A: Slow down, verify clearance with trace/manual needle drop, and replace questionable needles immediately—needle strikes are the usual cause.
  • Replace: Install a fresh needle (the guide references 75/11 Sharp or Universal for cotton twill + interfacing).
  • Trace: Use trace/manual needle lowering to confirm the needle will not hit the hoop frame before running.
  • Slow: Run in a safer couture range (about 600–700 SPM) to reduce impact and friction heat.
  • Success check: The machine runs with a clean rhythmic sound and no “clack-clack,” and the needle path clears the frame through the full design area.
  • If it still fails: Re-check hoop mounting (no rattle) and stop immediately if contact is suspected—continuing can damage the needle bar and the hoop.
• Q: How do I reduce hoop burn (white rings) on delicate jacket fabrics caused by screw-tightened embroidery hoops, and when should I switch to a magnetic embroidery hoop?
  A: If screw hoops leave white rings or hooping exceeds about 2 minutes per piece, switching to a magnetic hoop is a practical fix because it holds without friction crushing fibers.
  • Recover: Steam gently and lightly scratch the ring with a fingernail to lift crushed fibers (results vary by fabric).
  • Diagnose: If hoop burn repeats on velvet/twill or hooping requires high force, treat the hoop as the root cause.
  • Upgrade: Use a magnetic hoop to clamp with magnetic force instead of friction; confirm the frame fits the machine arm width.
  • Success check: After hooping, the fabric surface shows no crushed “white ring,” and hooping time drops to seconds with consistent tension.
  • If it still fails: Re-evaluate stabilizing and placement buffers (keep distance from raw edges) because distortion can be mistaken for hoop burn.
• Q: What magnetic embroidery hoop safety steps prevent finger pinch injuries and interference risks when using neodymium magnetic frames in a production embroidery setup?
  A: Treat magnetic hoops like a pinch hazard tool—handle by the edges and keep them away from medical devices.
  • Grip: Separate and join magnets by holding the frame edges; never place fingers between mating surfaces.
  • Control: Bring components together slowly and deliberately; do not let them snap from a distance.
  • Isolate: Keep magnetic hoops away from pacemakers and similar medical devices.
  • Success check: Hands stay clear during closure and the hoop seats without a violent snap or uncontrolled slam.
  • If it still fails: Stop using the magnetic hoop until a safer handling routine is in place (work surface, hand position, and sequence), then resume with deliberate edge-only handling.
