Couching on the Baby Lock Solaris Upgrade 3: The Yarn “Puddle” Trick That Keeps Letters Plush (Not Distorted)

Master Class: The Logic of Couching on the Baby Lock Solaris (Upgrade 3)

If you have ever watched a machine attempt to crouch letters and thought, "This is either going to look amazing… or it’s going to turn into a wavy, disastrous mess," you represent the majority of embroiderers. You aren't being dramatic; you are being realistic. Couching—the art of stitching a textured yarn onto fabric surface—is a technique that rewards calm mechanical preparation and brutally punishes rushed hooping.

In this project breakdown, based on Michelle Gilmartin’s demonstration on the Baby Lock Solaris/Luminaire Upgrade 3, we are going to strip away the mystery. We will use the dedicated couching foot (from the Upgrade 1 kit), variegated yarn, and monofilament thread (top and bobbin).

The goal? A chenille-like, premium texture. The requirement? Yarn that feeds with absolutely zero drag.

Don’t Panic—Couching on Baby Lock Solaris Upgrade 3 Is Simple Once You Respect Yarn Feed

The "scary" part of couching isn't the software digitizing or the mechanics of the foot—it is the physics of the yarn itself. Yarn behaves like a stubborn garden hose. If the yarn is even slightly restricted as it enters the machine, the stitches will still form (the needle doesn't know any better), but the letter shape will distort, and the texture won't sit evenly.

Michelle’s core message is one I repeat in every training session: Couching success is 90% yarn management and 10% machine operation. The machine can only lay down what you allow it to freely access.

Expert Reassurance: In this demo, the stitch-out runs clean with no thread breaks, even with tricky monofilament. Why? Because the setup is consistent, and the yarn is kept slack. If you follow the physics, the machine will comply.

Find the Upgrade 3 Couching Alphabet (Tab 2) and Load a Saved Design Without Guesswork

On the Solaris/Luminaire interface, the couching letters are located under the dedicated couching icon. Crucially, Upgrade 3 adds "Tab 2," which is where the specific couching alphabet lives. Michelle loads a saved design (“A1 Sews”) from memory, utilizing uppercase to showcase the texture.

Visual Anchor: Do not judge these designs by the screen preview alone. On screen, they look flat and uninspired. In reality, they are digitized with lower density to accommodate the thick yarn. The "chenille effect" only appears physically during the stitch-out.

Production Tip: If you are building a workflow for repeat orders (team names, shop logos), save your common layouts in the machine memory. It saves you from re-navigating menus every time.

The “Hidden” Prep Pros Do First: Yarn Choice, Monofilament, and a Clean Path to the Couching Foot

Before you even think about touching the "Start" button, you must engineer a yarn path that allows the material to feed as if it is floating on air.

The Material Stack

• Yarn: Variegated yarn (adds visual depth).
• Thread: Monofilament (invisible) thread in both the needle and the bobbin.
• Hardware: Thread stand + both stand guides + the top-left thread guide attachment + couching foot.

Michelle routes the yarn from the spindle, through both guides on the telescopic thread stand, then over to the specific thread guide attachment on the top left of the machine.

The Failure Point: This is where amateurs accidentally sabotage the project. They let the yarn rub against a sharp plastic edge, catch on a standard thread guide, or unwind with a "tug-tug-tug" rhythm. Yarn does not behave like embroidery thread—any friction translates immediately into a distorted letter shape.

If you are experimenting with magnetic hoop embroidery, remember that while a good hoop provides the necessary foundation stability, it cannot compensate for a yarn path that is dragging from the top.

Prep Checklist (Mechanical & Material Audit)

• Foot Check: Confirm high-clearance couching foot is installed (not a standard embroidery foot).
• Guide Install: Attach the specific top-left yarn guide (from the Upgrade 1 kit).
• Bobbin Audit: Inspect the bobbin area for lint; use a fresh monofilament bobbin using the correct wind tension (should feel firm, not squishy).
• Yarn Inspection: Unspool 3-4 yards of yarn by hand. Feel for hidden knots or rough joins.
• Path Clearance: Clear the table capability. Ensure nothing (scissors, rulers) will snag this yarn as it drags across the bed.
• Needle Check: Use a fresh needle (Size 90/14 Topstitch or Embroidery recommended for monofilament to reduce friction).


Threading the Couching Foot with a Wire Threader: The Tiny Tool That Saves Your Sanity

Michelle uses a small wire loop tool (very similar to a dental floss threader) to pass the yarn through the tiny eye of the couching foot. This is a fine motor skill task.

The Sequence:

1. Insert: Push the wire loop down into the eye of the couching foot.
2. Capture: Feed the yarn tip through the wire loop.
3. Draw: Gently pull the wire tool down to draw the yarn completely through the foot.

Asset Management: Store this wire tool in a ziplock bag taped to your machine or accessory box. It is translucent and tiny; if it drops on the carpet, it is gone forever.

Warning: Needle Area Safety
Keep fingers, wire threaders, and loose yarn tails away from the needle bar area when the machine is powered on. A sudden accidental press of the "Start" button or foot pedal while your hands are threading the foot can result in severe puncture injuries. Always engage the "Sensor Lock" (if available) or keep your foot away from the pedal during threading.

The 8-Inch Rule: Set the Yarn Tail So the First Stitches Anchor Cleanly (No Pull-Back)

After threading, Michelle pulls the yarn through until there is at least 8 inches of tail lying on the fabric. She tucks it to the side.

The Physics of the Start: In couching, the first 3-5 stitches are the critical anchor points. Unlike thread, the machine cannot "catch" the yarn if it is short. If the tail is too short (e.g., 2 inches), the needle's downward force will jerk the yarn backward out of the foot before it catches.

• Result: A skinny, bald spot at the start of your letter.
• Fix: The 8-inch tail provides enough mass and drag to prevent the yarn from retracting during the initial needle penetration. Think of it as your insurance policy.


Magnetic Hoop Setup on Black Fabric: Fast Hooping Without Stretching the Surface

Michelle stitches the sample in a magnetic hoop, clearly visible on the table. For couching, this is a distinct mechanical advantage.

The Issue with Standard Hoops: To hold fabric tight in a screw-tightened hoop, we often pull and tug. This creates "drum skin" tension. However, when we release the fabric later, it relaxes, and the couching (which creates its own density) buckles.

The Magnetic Solution: Magnetic hoops clamp the fabric flat without forcing you to distort the grain. This neutral tension is ideal for surface embellishment like couching. If you are using a babylock magnetic embroidery hoop, your goal is firm manufacturing pressure across the entire frame—no soft corners, no shifting, and crucially, no "hoop burn" (shiny rings) on your nice black fabric.

Commercial Strategy: The Hooping Bottleneck

If you are moving from hobbyist to semi-pro using a single-needle machine, hooping is often where you lose money.

• Trigger (The Pain): You are spending 5 minutes hooping a shirt to avoid hoop burn, or your wrists ache from tightening screws.
• Criteria (The Decision): If you are doing runs of 10+ items, or working with delicate velvet/napped fabrics that standard hoops crush.
• The Upgrade Options:
  • Level 1 (Technique): Use "floating" techniques with adhesive stabilizer (messy, but works).
  • Level 2 (Tooling): Upgrade to SEWTECH Magnetic Hoops. They snap on instantly, protect the fabric grain, and drastically reduce setup time.
  • Level 3 (Scale): If you are producing team gear daily, consider a magnetic hooping station workflow to ensure logo placement is identical on every shirt.


Warning: Magnetic Field Safety
High-quality magnetic hoops use industrial-strength magnets (Neodymium).
1. Pinch Hazard: Do not let the top and bottom frames snap together without fabric in between; they can pinch fingers severely.
2. Medical: Keep strong magnets at least 6 inches away from pacemakers or other implanted medical devices.
3. Electronics: Store away from credit cards, hard drives, and machine LCD screens.

The “Yarn Puddle” Habit: How to Feed Couching Yarn with Zero Tension (So Letters Don’t Warp)

This is the signature technique demonstrated: Michelle maintains an ample supply of yarn sitting loosely on top of the machine head—she calls it a "puddle."

Why this matters (The 'Why'): The couching foot does not pull yarn off the spool; the stitch formation drags it down. If the yarn has to pull the heavy spool to unwind it, that resistance pulls against the needle.

• The Symptom: Your letters will look "skinny" or the satin columns will be narrow because the yarn is fighting the stitch.
• The Fix: Manually unspool 2-3 yards of yarn and let it pile up on the table or machine body. The foot should pull from this loose puddle—zero resistance. Any pulling at all will distort the look.


Setup Checklist (Pre-Flight—Right Before "Start")

• Thread Selection: Verify screen shows "Monofilament" or clear thread settings (adjusts tension automatically on Solaris).
• Tail Check: Confirm 8-inch yarn tail is laid safely to the side.
• The Puddle: Ensure a generous slack pile of yarn is resting freely on the machine.
• Path Scan: Trace the yarn path with your eye—is it catching on the spool pin? The handle?
• Knot Patrol: Verify no knots are visible within the next 2-3 yards of feeding yarn.

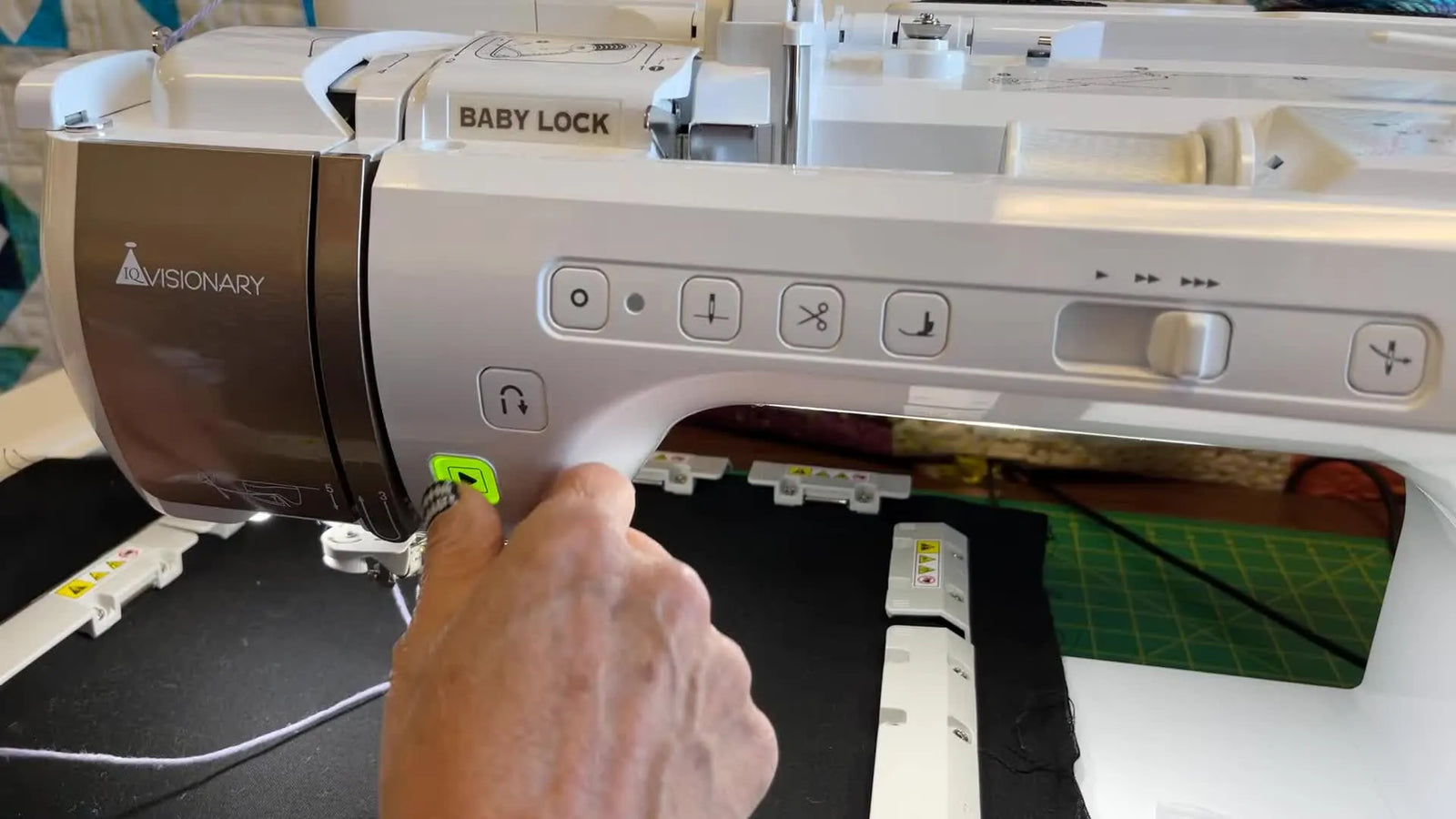

Stitching the Couching Letters: Hold the Tail, Let the Machine Anchor, Then Don’t Interfere

When Michelle starts embroidering, she lightly holds the yarn tail.

• Action: Hold the tail with feather-light tension.
• Sensory Check: Feel the machine take 3-4 distinct stitches.
• Release: Once you see the yarn is anchored, let go immediately.

Expert Advice: Do not "help" the yarn feed. If you pull it towards the foot, you create slack that loops. If you hold it back, you starve the stitch. Your job is solely to maintain the "puddle" of slack.

If you are building a repeatable workflow with magnetic hoops for babylock embroidery machines, train yourself to keep your hands on the table, not near the needle, monitoring that puddle.

Transitioning Between Letters: The Machine Cuts Thread, Not Yarn—So You Must Create Slack for the Jump

Here is a critical mechanical distinction: The Solaris trimmer cuts the monofilament thread, but it does not (and cannot) cut the thick yarn.

When the letter "A" is finished:

1. The machine trims the thread.
2. The hoop moves to the position for letter "B".
3. The Drag Risk: If you don't intervene, this movement will jerk the yarn.

The Fix: Michelle manually pulls more yarn through the foot—again aiming for about 8 inches—to create a "bridge" of slack between the letters. This ensures the start of letter "B" has a fresh, loose tail to anchor with.

Production Note: Leave enough yarn between letters so you can pull the tails to the back of the fabric later with a large-eye hand needle for a clean finish.

Operation Checklist (During Stitch-out)

• Anchor: Hold tail gently -> Stitch -> Release.
• Monitor Puddle: If the slack pile disappears, pause and unspool more.
• Transition Slack: After a jump cut, manually pull ~8 inches of yarn through the foot before resuming.
• Emergency Stop: Hit the stop button immediately if you see a knot approaching the foot eye.

Knots in the Middle of the Yarn Ball: Stop, Advance Past It, and Don’t Try to “Power Through”

A viewer asked about mid-ball knots. Michelle’s answer is definitive: It won't go through, and it won't stitch. The eye of the couching foot is exact tolerances. A factory knot will jam, likely bending your needle or breaking the foot.

The Protocol:

1. Spot it: Watch your yarn feed.
2. Pause: Stop the machine before the knot hits the guide.
3. Advance: Cut the yarn (if needed) or manually pull the knot all the way through the foot and out the other side before resuming stitching.
4. Restart: Treat the restart just like the beginning of a letter (8-inch tail rule).


Stabilizer and Needle Questions: A Decision Tree That Prevents Wavy Letters

Stability is non-negotiable in couching because the yarn adds weight and drag to the fabric. While the video uses a specific setup, here is the industry-standard decision logic for couching success.

Decision Tree: Fabric vs. Stabilizer

Use this to determine your "sandwich."

Variable 1: Fabric Type

• Scenario A: High-Stretch (T-Shirts, Jerseys)
  • Risk: Yarn pulls fabric together (puckering).
  • Solution: Fusible No-Show Mesh (PolyMesh) + Cutaway Stabilizer. Do not use tearaway; the stitches will rip it out.
• Scenario B: Loose Weave / Knit (Sweaters, Towels)
  • Risk: Stitches sink; texture looks uneven.
  • Solution: Cutaway Stabilizer on bottom + Water Soluble Topping (Solvy) on top. The topping keeps the yarn "lofty."
• Scenario C: Stable Woven (Denim, Canvas - like the demo)
  • Risk: Hoop burn; firmness.
  • Solution: Medium Tearaway is usually sufficient, but Cutaway offers better long-term wash wear.

Variable 2: Needle Choice

• Standard: Size 90/14 Embroidery.
• Problem: If monofilament is shredding or snapping.
• Solution: Switch to a Topstitch 90/14 needle (larger eye reduces friction) or a specific Metallic needle.

Pro Tip: If you want to standardize results, write down your "recipe" (e.g., "Black Canvas + 2.5oz Cutaway + 90/14 Topstitch"). Don't guess next time.

Why Magnetic Hoops Help Couching (And When They Don’t)

Couching is controlled placement under system tension (fabric tension + yarn feed).

The Physics: Magnetic hoops help because they grab the fabric vertically. There is zero horizontal torque applied to the fibers (unlike screwing a standard hoop tight). This means your fabric stays theoretically "neutral."

• Benefit 1: Less distortion after unhooping.
• Benefit 2: Faster workflow.
  However, remember: Even the most expensive hoop cannot fix a yarn path that is dragging from the spool. The Puddle Technique is the primary variable; the hoop is the supporting actor.

If you are comparing babylock magnetic embroidery hoops against standard ones, judge them by the "Flat Test": Does the fabric lay flat on the table immediately after removal? If yes, your hooping tension was perfect.

PES Files, Fonts, and What You’re Actually Buying

A commenter asked where to buy PES files. This highlights a confusion between "File Format" and "Design Type."

The Breakdown:

1. Built-in: The couching alphabet shown is firmware-based (Upgrade 3 feature). You cannot "buy" this separately as a file; it is part of the machine upgrade.
2. Purchasable Designs: You can buy third-party couching designs (.PES files).

Buyer Beware: Before purchasing a "Couching Font":

• Is it a true couching design (digitized with low density)?
• Or is it just a faux-chenille look using regular thread?
• Does it require software to map the keys?

If your goal is to sell finished goods, ensure you own the commercial rights to the designs you buy.

The “Looks Like Chenille” Finish: Quality Audit

Michelle shows a close-up of the finished texture. It looks soft, lofty, and premium.

The Quality Audit (Pass/Fail):

• Visual: Is the yarn fluffy? (Pass) vs. Is the yarn flattened and wiry? (Fail - Check tension).
• Tactile: Run your hand over it. Is it soft? (Pass) vs. Is it prickly? (Fail - Monofilament tension might be too loose).
• Structure: are the curves smooth? (Pass) vs. Are they angular or pulled? (Fail - Yarn drag occurred).




The Upgrade Path: When Couching Becomes a Product Line

Couching letters can be a high-margin add-on for boutique sweatshirts, tote bags, and spirit wear because the texture reads "expensive."

Business Scaling Strategy: If you decide to offer this service, you need to solve the Time vs. Money equation.

• Scenario Trigger: You have an order for 20 team hoodies with couched logos.
• The Bottleneck: Hooping thick hoodies in standard hoops is physically exhausting and slow.
• The Solution Path:
  1. Immediate: Invest in SEWTECH Magnetic Hoops. This solves the "thick fabric" clamping issue instantly.
  2. Intermediate: Utilize a hooping station for embroidery machine. This ensures every logo is at the exact same height on the chest, reducing rejects.
  3. Advanced: If volume exceeds 50+ units/week, the single-needle yarn setup becomes slow. Look into multi-needle machines (which have their own couching kits) to increase throughput.

And if you are specifically shopping for magnetic embroidery hoop options, prioritize strong magnet retention force over sheer size. Couching requires the fabric to stay put while the heavy yarn is dragged over it.

FAQ

• Q: Why do Baby Lock Solaris/Luminaire Upgrade 3 couching letters look wavy or “skinny” even when the stitches form?
  A: The most common cause is yarn drag—couching is won or lost by yarn feed, not by stitch formation.
  • Unspool 2–3 yards and feed from a loose “yarn puddle” on the machine/table so the foot pulls with near-zero resistance.
  • Re-route the yarn through both thread-stand guides and the top-left yarn guide attachment so the yarn is not rubbing any edge.
  • Clear the bed area so scissors/rulers/handles cannot snag the yarn while it moves.
  • Success check: Letters stay full and evenly “chenille-like,” with smooth curves instead of narrowed columns.
  • If it still fails: Stop and inspect for a hidden knot/rough join in the next few yards of yarn, then restart with fresh slack.
• Q: How long should the yarn tail be for Baby Lock Solaris/Luminaire couching so the first stitches don’t pull the yarn back out of the couching foot?
  A: Use the “8-inch rule”—leave at least 8 inches of yarn tail on the fabric before starting.
  • Pull yarn through the couching foot until 8+ inches rests on the fabric and tuck it safely to the side.
  • Start stitching while holding the tail with feather-light control for the first 3–5 stitches only.
  • Release immediately once the yarn is clearly anchored.
  • Success check: The letter start is fully covered (no bald/skinny start segment).
  • If it still fails: Re-thread the couching foot and confirm the correct high-clearance couching foot is installed (not a standard embroidery foot).
• Q: How do you transition between letters on the Baby Lock Solaris/Luminaire Upgrade 3 couching alphabet if the machine trims monofilament thread but cannot cut the yarn?
  A: Manually create slack between letters—pull about 8 inches of yarn through the couching foot after each jump/cut.
  • Pause at the end of a letter and pull extra yarn through the foot before the hoop moves to the next letter area.
  • Keep the yarn feeding from a slack puddle so the hoop travel cannot “jerk” the yarn.
  • Plan to leave enough yarn between letters to pull tails to the back later for a clean finish.
  • Success check: The next letter starts cleanly without a sudden yank, distortion, or gap in coverage.
  • If it still fails: Stop and check whether the yarn is catching on the spool pin/stand guide during the jump movement.
• Q: What should be checked in the Baby Lock Solaris/Luminaire bobbin area and needle choice when couching with monofilament thread (top and bobbin)?
  A: Start with a clean bobbin area and a fresh needle—monofilament is unforgiving when lint or friction is present.
  • Clean lint from the bobbin area before the stitch-out.
  • Wind a fresh monofilament bobbin that feels firm (not squishy) and install it cleanly.
  • Replace the needle; a 90/14 Topstitch or Embroidery needle is a common safe starting point to reduce friction with monofilament.
  • Success check: The stitch-out runs without thread breaks and the monofilament does not shred.
  • If it still fails: Switch to a Topstitch 90/14 (larger eye) or a Metallic-style needle as a friction-reduction option, and follow the machine manual for threading/tension guidance.
• Q: What should be done if a knot in the yarn ball approaches the Baby Lock Solaris/Luminaire couching foot eye during stitching?
  A: Stop before the knot reaches the couching foot—do not try to power through because the knot can jam and damage parts.
  • Watch the yarn feed path continuously and pause immediately when a knot is within the next feed section.
  • Pull the knot all the way through the couching foot (or cut and advance past it) before resuming.
  • Restart like a letter start: reset an 8-inch tail and ensure slack puddle is ready.
  • Success check: The yarn feeds smoothly through the couching foot eye with no hesitation or “tug-tug” rhythm.
  • If it still fails: Replace that yarn section; rough joins and bulky knots may continue to jam the foot eye.
• Q: What stabilizer “sandwich” prevents puckering or wavy Baby Lock Solaris/Luminaire couching letters on T-shirts, towels, or stable woven fabrics?
  A: Match stabilizer to fabric type—couching needs firm support because yarn adds drag and weight.
  • Use fusible no-show mesh (PolyMesh) + cutaway for high-stretch T-shirts/jerseys to resist puckering.
  • Use cutaway on bottom + water-soluble topping on top for towels/loose knits to prevent stitches from sinking.
  • Use medium tearaway for stable wovens (cutaway may hold up better long-term, generally).
  • Success check: After unhooping, the fabric lies flat and the letter columns stay smooth without ripples.
  • If it still fails: Re-check hooping method (avoid over-stretching) and confirm yarn feed is truly slack (puddle method).
• Q: What are the key safety precautions when threading a Baby Lock Solaris/Luminaire couching foot using a wire threader near the needle area?
  A: Power and hand placement matter—keep hands/tools away from any accidental start condition.
  • Keep fingers, wire threader, and loose yarn tails away from the needle bar area while the machine is capable of running.
  • Engage “Sensor Lock” if available, and keep feet away from any foot pedal during threading.
  • Thread in a controlled sequence (insert wire loop → capture yarn → draw through) without reaching under the needle.
  • Success check: The yarn is fully through the couching foot eye with no hand contact near the needle path.
  • If it still fails: Stop and reposition the hoop/head for better access—never “fish” near the needle with the machine ready to sew.
• Q: When does it make sense to upgrade from standard hoops to magnetic hoops for Baby Lock Solaris/Luminaire couching, and when is technique the better fix?
  A: Upgrade when hooping time, fabric marking, or distortion becomes the bottleneck—but fix yarn drag first because hoops cannot correct a pulling yarn path.
  • Level 1 (Technique): Reduce hoop distortion by avoiding over-tightening and by using appropriate stabilizer for the fabric type.
  • Level 2 (Tooling): Use magnetic hoops when standard hoops cause hoop burn on delicate/black/napped fabrics or when screw-tightening is slow and inconsistent.
  • Level 3 (Scale): If producing repeated placements (10+ items), consider a hooping-station workflow to keep placement identical and reduce rejects.
  • Success check: Fabric passes a “flat test” after removal (lays flat quickly) and letters stay smooth with consistent texture.
  • If it still fails: Re-check the yarn path and maintain a generous slack puddle—drag from the spool will still warp letters even in the best hoop.
